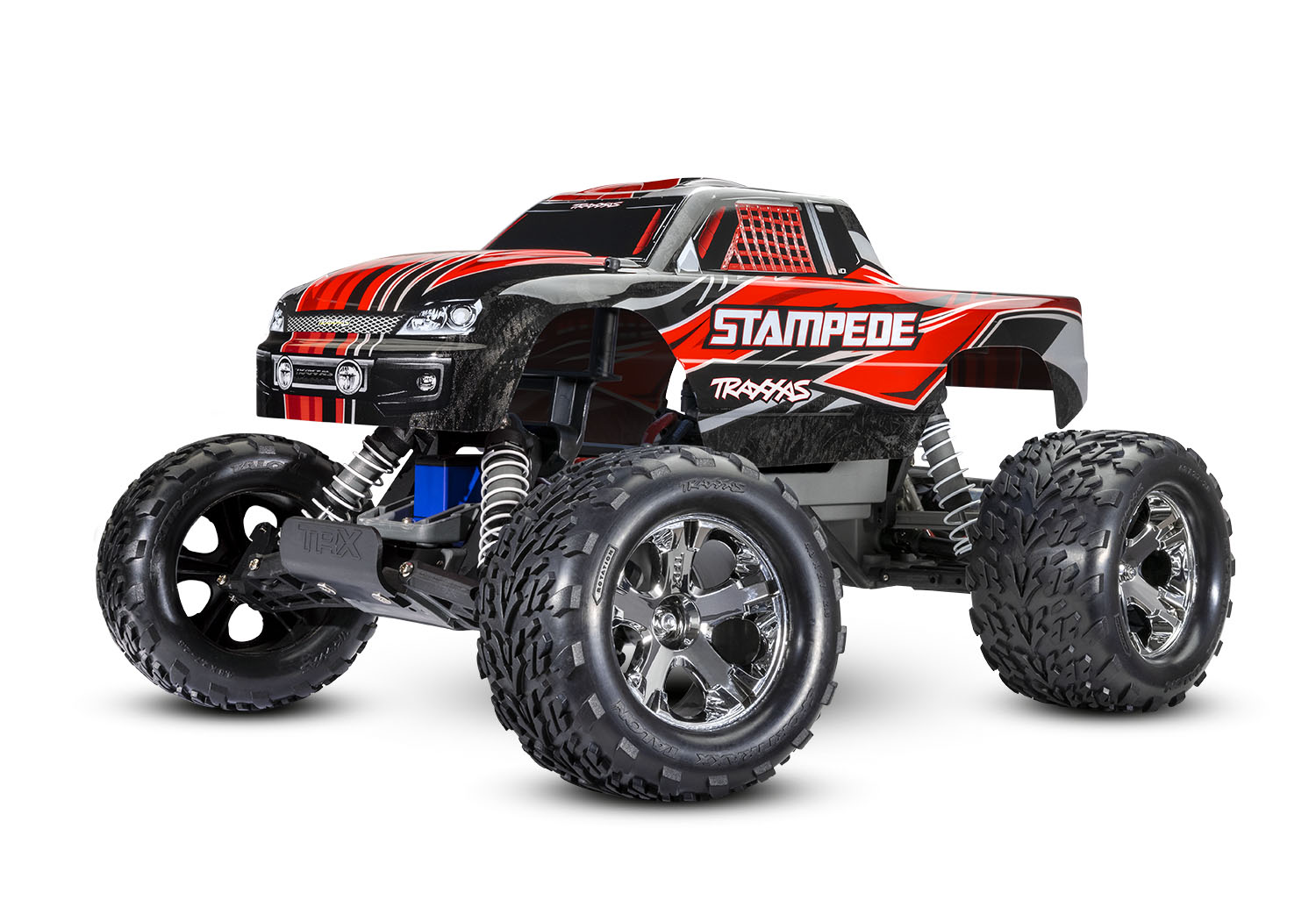

Stampede 1/10 Monster Truck
MODEL SPECS
Model Name:
Stampede 2WD XL-5 with USB-C
Model Type:
Monster Truck
Model Speed:
30+ mph with 7-cell battery and included optional 21-tooth pinion gear
Model Skill Level:
1
Scale:
1/10
Weight:
4.08 pounds (1.85 kg)
Length:
16.25 inches (413 mm)
Width:
12.75 inches (324 mm)
Front Track:
12.75 inches (324 mm)
Rear Track:
12.75 inches (324 mm)
Height:
9.5 inches (241 mm)
Wheelbase:
10.63 inches (270 mm)
Center Ground Clearance:
4 inches (102 mm)
Drivetrain:
2WD
Transmission:
Magnum 272™
Differential Type:
Planetary steel gear
Gear Ratio (Internal):
2.72 (final drive: 12.34)
Gear Pitch:
48 pitch
Servo(s):
2056 high torque waterproof
Radio System:
TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:
164 mm X 46 mm X 26 mm

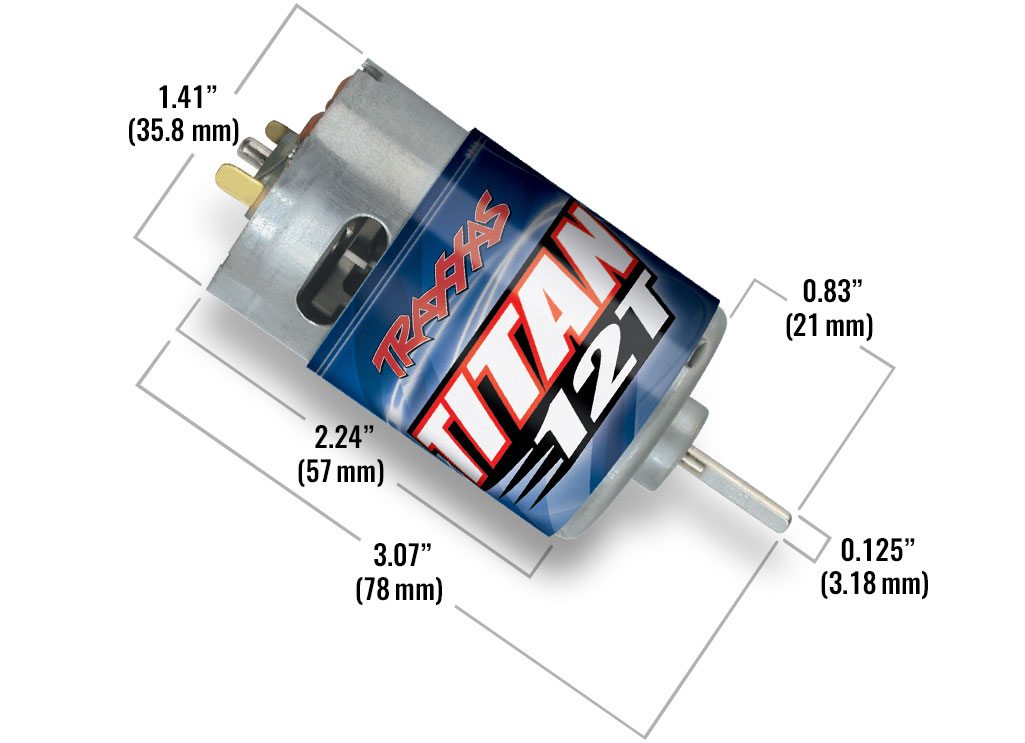

MOTOR SPECS
Motor Name:
Titan® 12T 550
Motor Type:
High-speed brushed motor
Motor Weight:
8.47 ounces (240 g)
Motor Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
Bullet

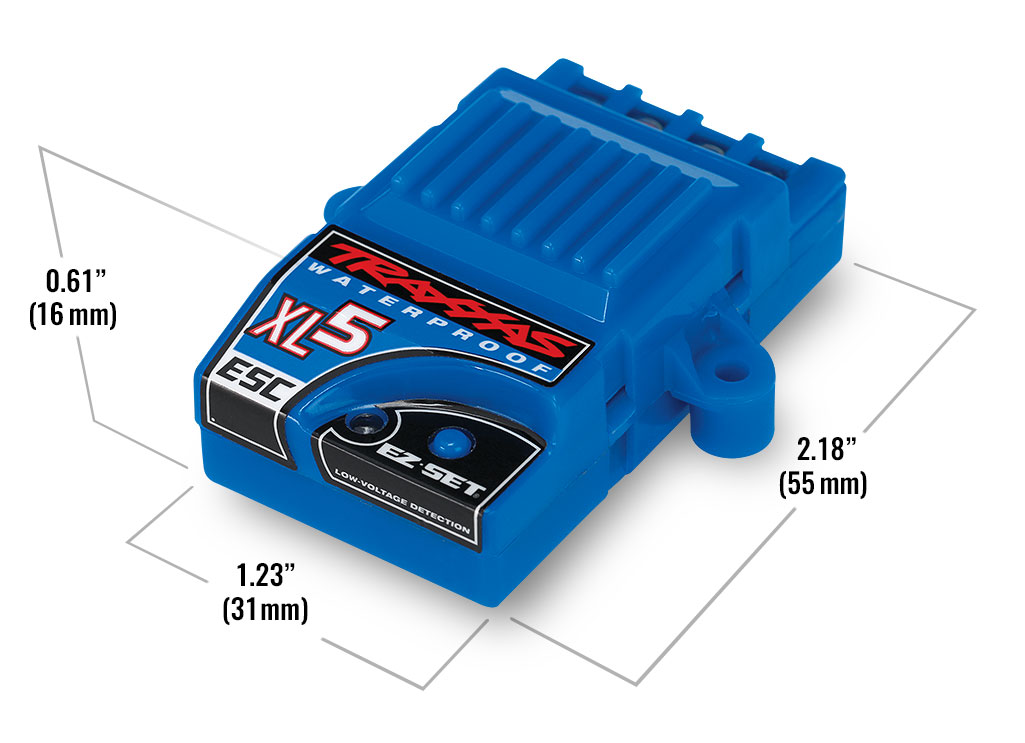

ESC SPECS
ESC Name:
Waterproof XL-5 ESC with low-voltage detection
ESC Type:
Brushed
ESC Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight:
2.44 ounces (69 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High Current Connector
ESC Power Wire:
14 gauge
ProGraphix® Painted Body Pre-painted monster truck body with applied decals High-Performance Waterproof XL-5™ Electronic Speed Control Innovative waterproof design Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Traxxas EZ-Set® one-button setup LiPo and NiMH compatible with two-stage low-voltage detection Titan® 550 Motor Powerful Titan 12T 550 modified motor with internal cooling fan Oversized armature for big torque and increased power handling Virtually maintenance-free operation TQ™ 2.4 GHz 2-Channel Radio System Ergonomic transmitter with internal antenna Traxxas 6519 3-channel micro receiver with fail-safe security Patented O-ring sealed watertight receiver box keeps the micro receiver dry Includes Battery and USB-C Charger 4-amp USB-C fast charger 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD® Tough Fiber-Composite Monocoque Chassis Tall 4″ center ground clearance to drive over obstacles All electronics securely fastened to chassis Easy Access Battery Compartment Accepts 6-cell flat packs and 7-cell hump packs Accepts short form factor 2-cell LiPo batteries Transmission and Driveline Brushless-ready Magnum 272™ metal-gear transmission Torque-Control™ slipper clutch system Planetary gear differential with steel ring gear Sealed gearbox protects the transmission with beefed up motor guard External gear cover with easy clutch access Heavy-duty telescoping U-joint driveshafts and yokes Steering High-torque waterproof Traxxas 2056 steering servo Spring-loaded servo saver helps protect against impacts Suspension Durable solid camber links eliminate the need for adjustment Captured rod ends won't pop off Springs and Shocks Fully adjustable oil-filled Ultra Shocks™ with X-ring technology White powder-coated springs Wheels and Tires Pre-glued high profile Talon™ all-terrain tires with performance foam inserts 2.8″ Mirror-chrome All-Star™ wheels Backed by Unparalleled Traxxas Support and Parts Availability
