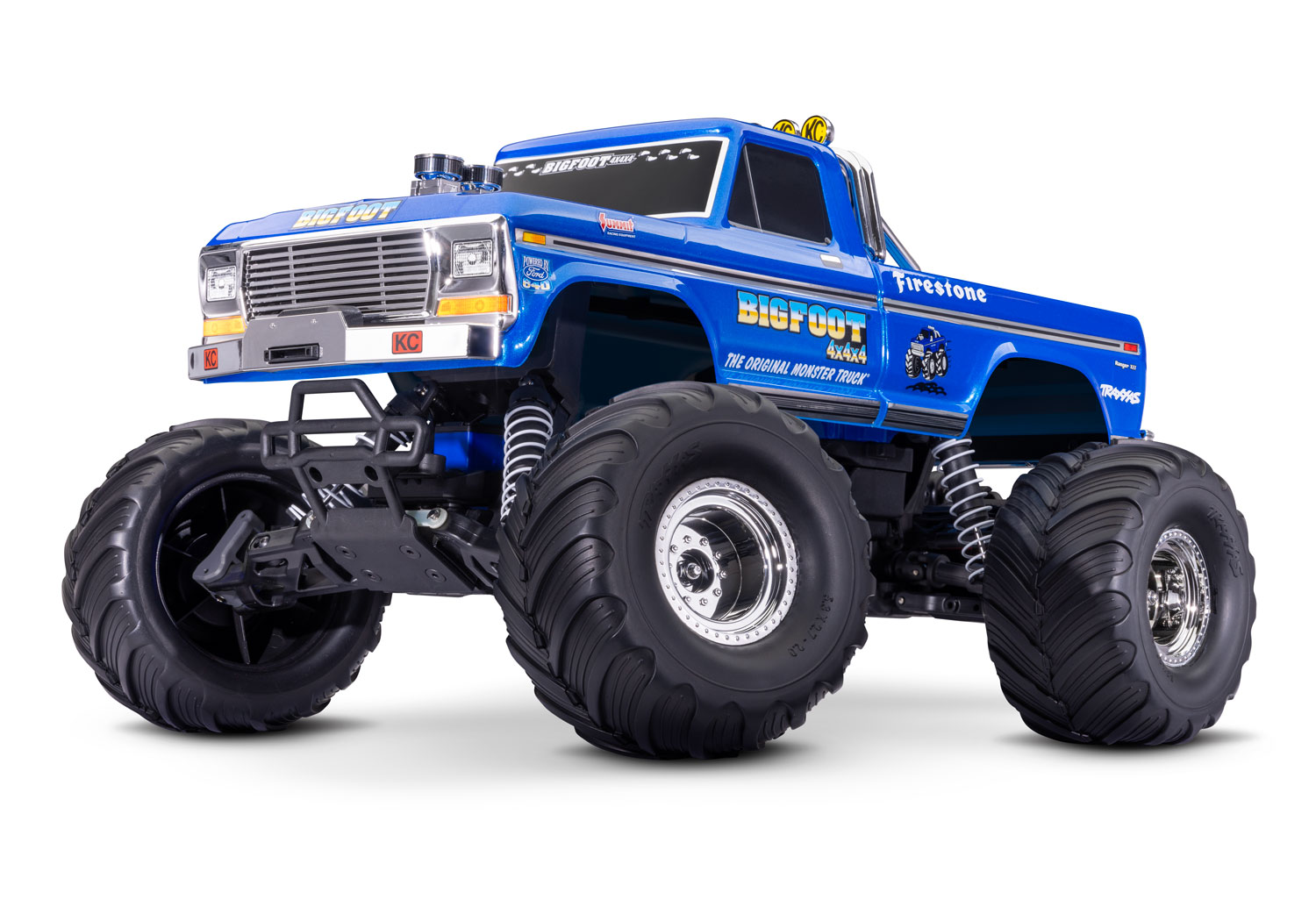

BIGFOOT No. 1 XL-5 w/Battery

Skip to the beginning of the images gallery

1/10

Size

30 - 45

Speed

Brushed Motor

Power

Battery & Charger

Included

BIGFOOT No. 1 XL-5 w/Battery

Part Number:

36234-8

Gallery

Specs

Features

Parts Finder

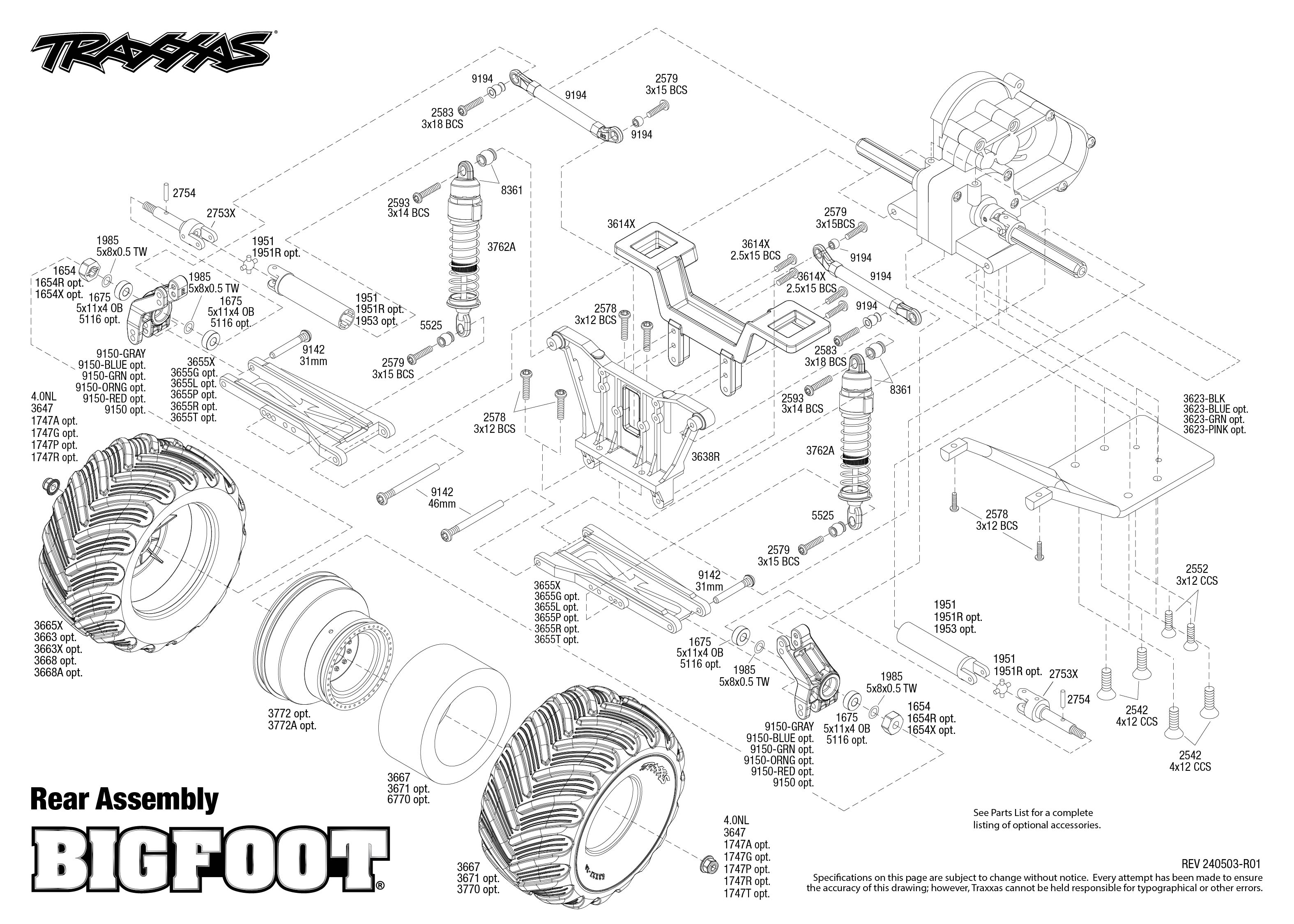

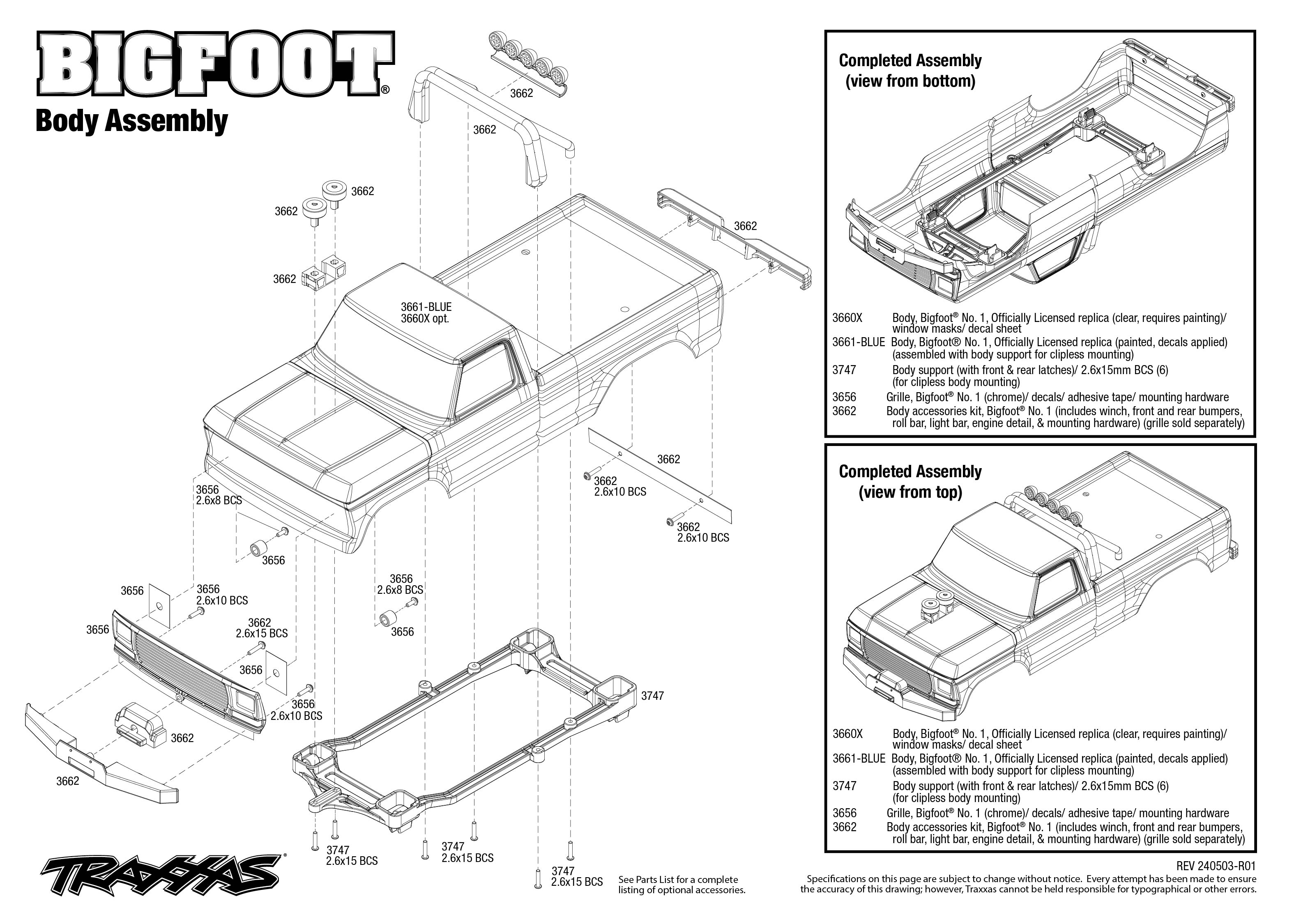

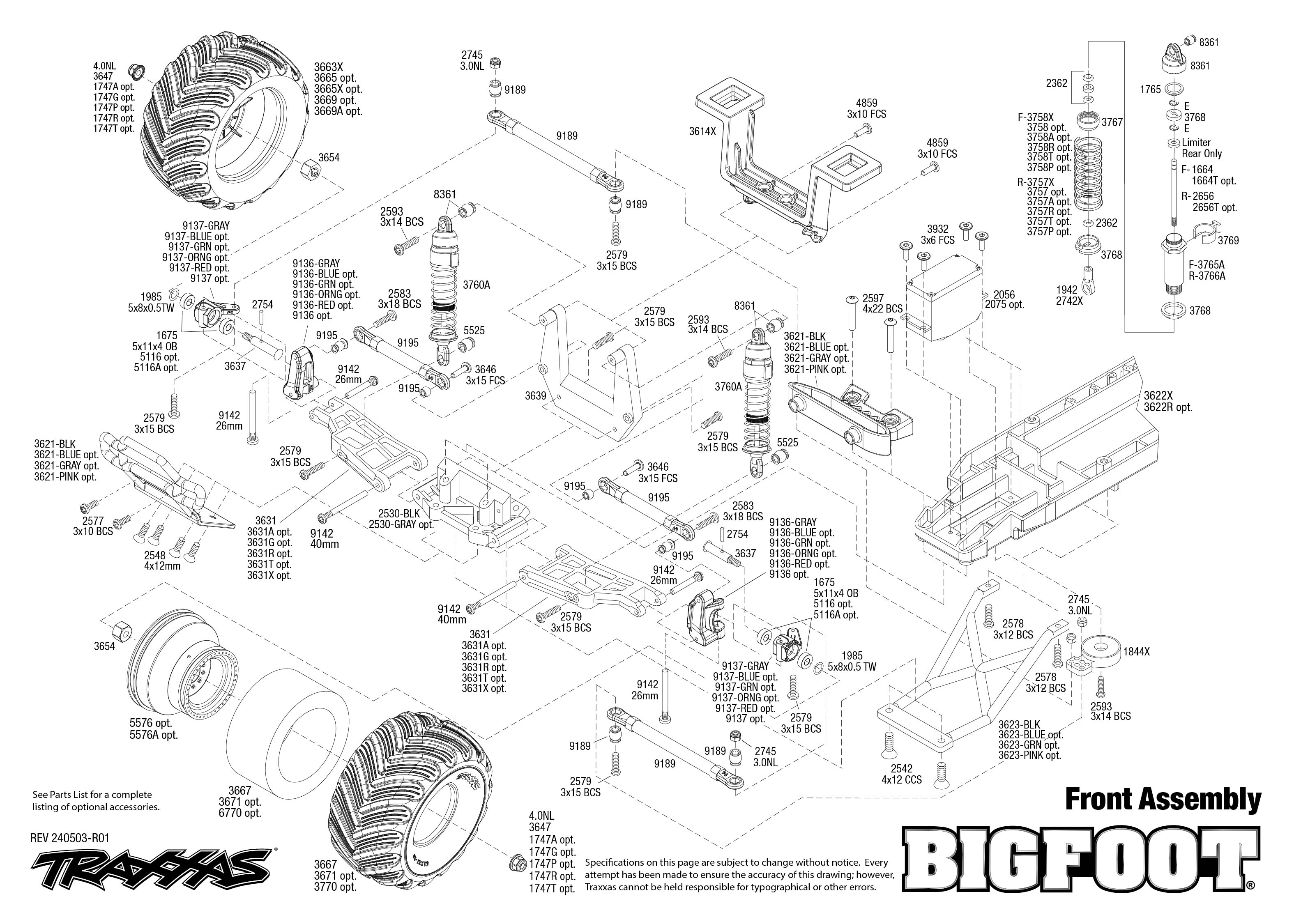

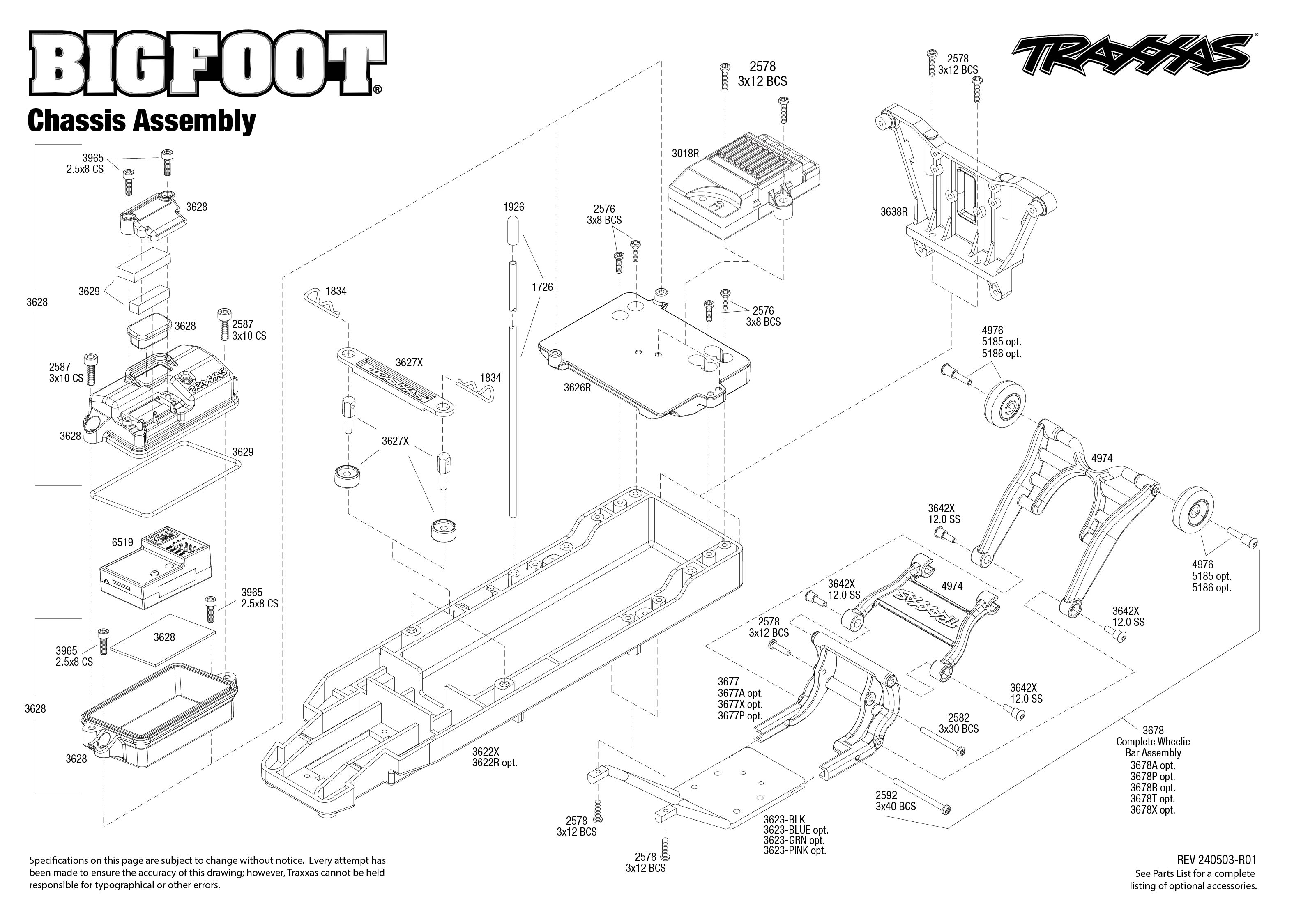

Exploded Views

Support

MODEL SPECS

Model Name:	BIGFOOT No 1 HD w/USB-C
Model Type:	Monster Truck
Model Speed:	30+ mph with 7-cell battery
Model Skill Level:	1
Scale:	1/10
Weight:	4.08 pounds (1.85 kg)
Length:	16.25 inches (413 mm)
Width:	12.75 inches (324 mm)
Front Track:	12.75 inches (324 mm)
Rear Track:	12.75 inches (324 mm)
Height:	9.5 inches (241 mm)

Wheelbase:	10.63 inches (270 mm)
Center Ground Clearance:	4 inches (102 mm)
Drivetrain:	2WD
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	2.72 (final drive: 12.34)
Gear Pitch:	48 pitch
Servo(s):	2056 high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	164 mm X 46 mm X 26 mm

MOTOR SPECS

Motor Name:	Titan^® 12T 550
Motor Type:	High-speed brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC SPECS

ESC Name:	Waterproof XL-5™ ESC with low-voltage detection
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge

Licensed BIGFOOT^® No. 1 Clipless Body

Brilliant blue metallic officially licensed F-100 Ford^® XLT Ranger body

Chrome front bumper with replica winch
Chrome grille with light buckets and reflectors
Replica high-rise dual-carb intake manifold
Chrome roll bar with replica KC lights

Body reinforcements to prevent pull-through damage
Holds tight for intense action
Quick and easy removal
Smooth appearance with no body posts or clips
Includes wheelie bar

High-Performance Waterproof XL-5™ Electronic Speed Control

Innovative waterproof design
Three drive profiles

Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)

Traxxas EZ-Set^® one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection

Titan 550 Motor

Powerful Titan^® 12T 550 brushed motor with internal cooling fan
Oversized armature for big torque and increased power handling
Virtually maintenance-free operation

Extreme Heavy Duty Parts Installed

Strengthened C-hubs, axle carriers, and steering blocks
HD suspension arms

TQ™ 2.4 GHz 2-Channel Radio System

Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
Sealed watertight receiver box keeps the receiver dry

Includes Battery and USB-C Charger

4-amp USB-C fast charger
3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD^®

Tough Fiber-Composite Monocoque Chassis

Tall 4″ center ground clearance to drive over obstacles

Easy Access Battery Compartment

Accepts NiMH 6 and 7-cell flat packs and hump packs
Accepts 2-cell LiPo batteries

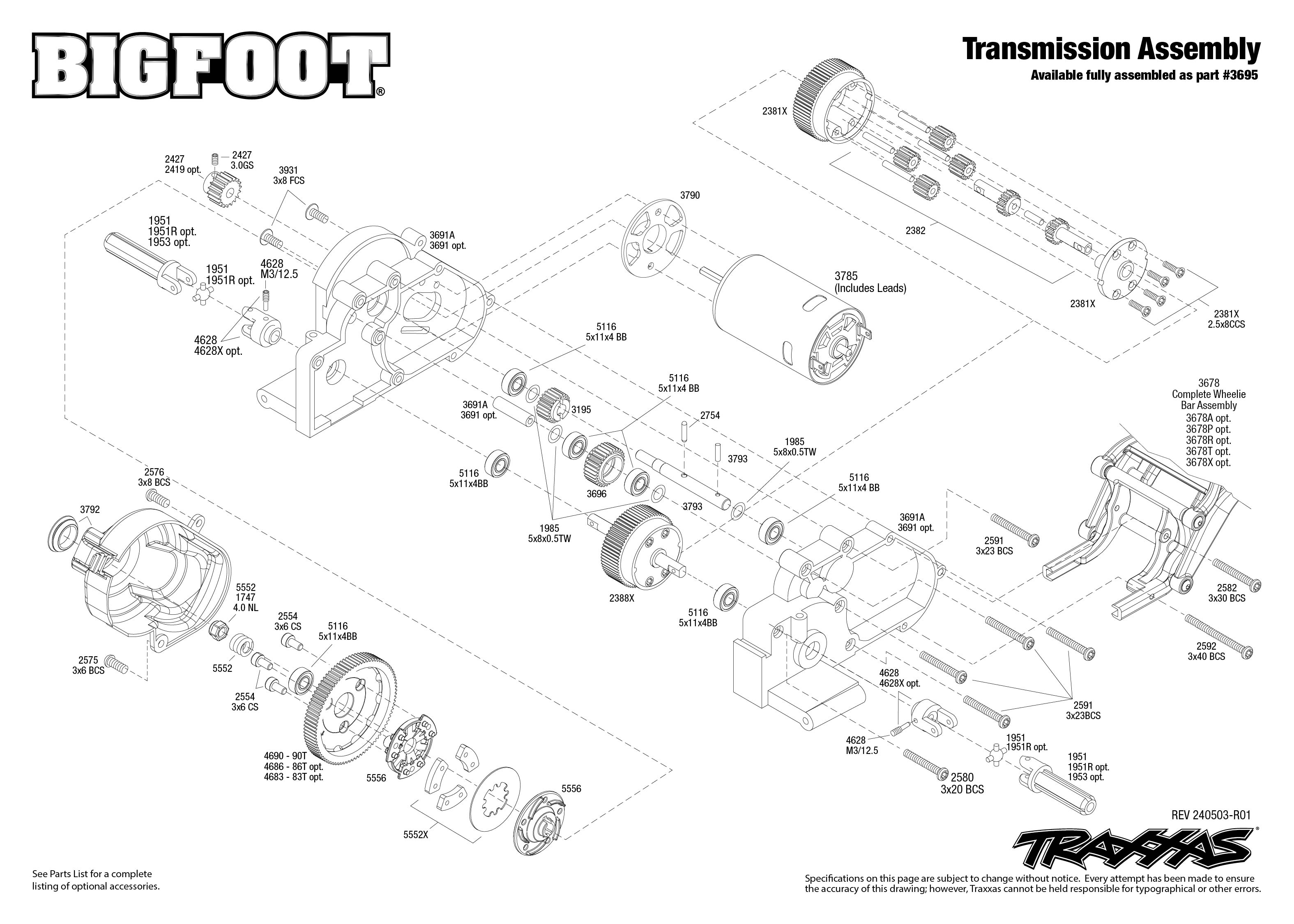

Transmission and Driveline

Brushless-ready Magnum 272™ metal-gear transmission
Torque-Control™ slipper clutch system
Planetary gear differential with steel ring gear
Sealed gearbox protects the transmission with beefed up motor guard
External gear cover with easy clutch access
Heavy-duty telescoping U-joint driveshafts and yokes

Steering

High-torque waterproof Traxxas 2056 steering servo
Spring-loaded servo saver helps protect against impacts

Suspension

Durable solid camber links eliminate the need for adjustment
Captured rod ends won't pop off

Springs and Shocks

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
White powder-coated springs

Wheels and Tires

Pre-glued high profile Terra-Groove shaved monster truck tires
2.2″ Deep dish mirror-chrome beadlock-style wheels

Precision Hex Hardware
