BIGFOOT No. 1 BL-2s

Skip to the beginning of the images gallery

1/10

Size

30 - 45

Speed

2s Brushless

Power

Battery & Charger

Sold Separately

BIGFOOT No. 1 BL-2s

Part Number:

36334-4

Accessories Batteries & Chargers Tools & Hardware

Gallery

Specs

Features

Parts Finder

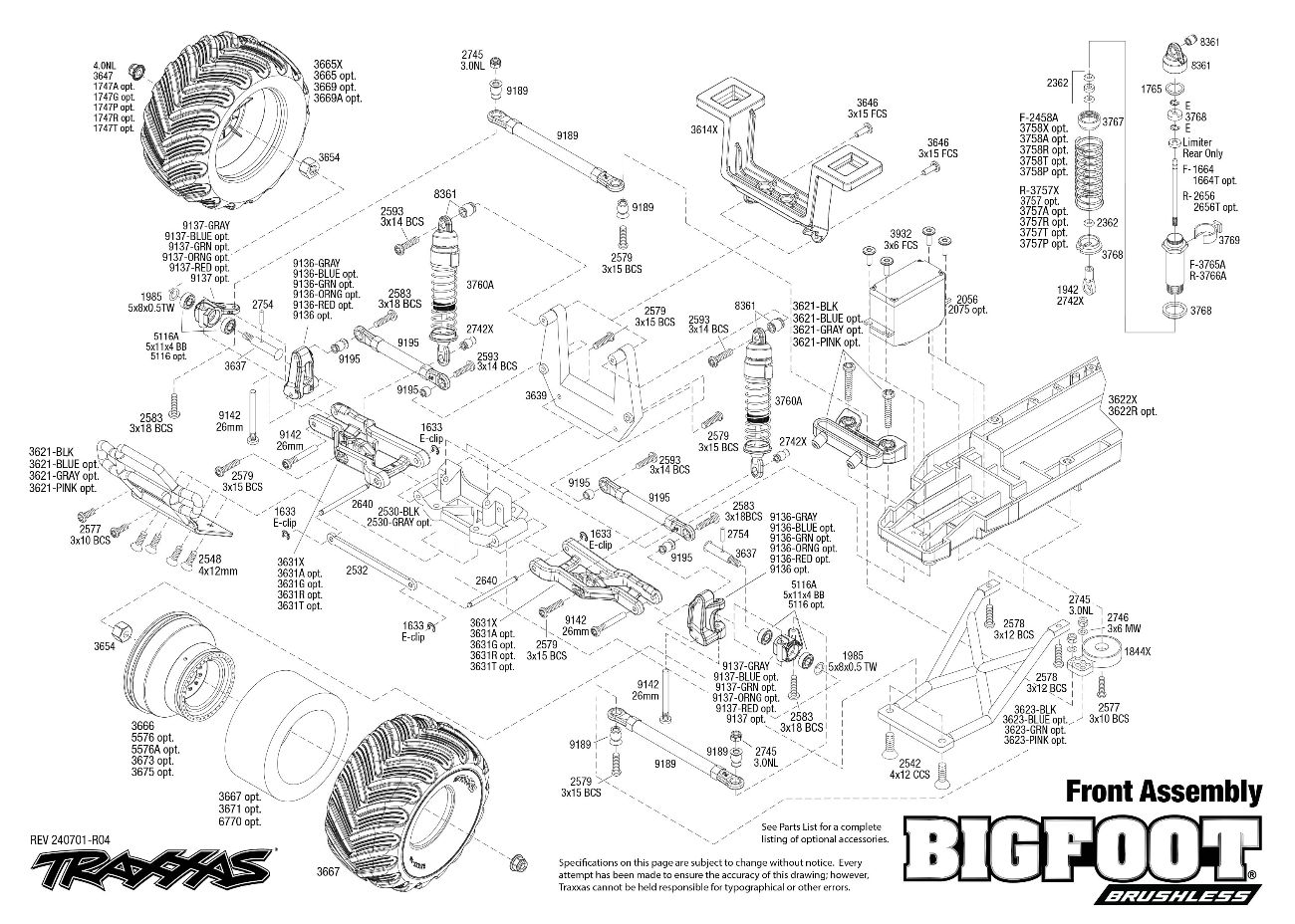

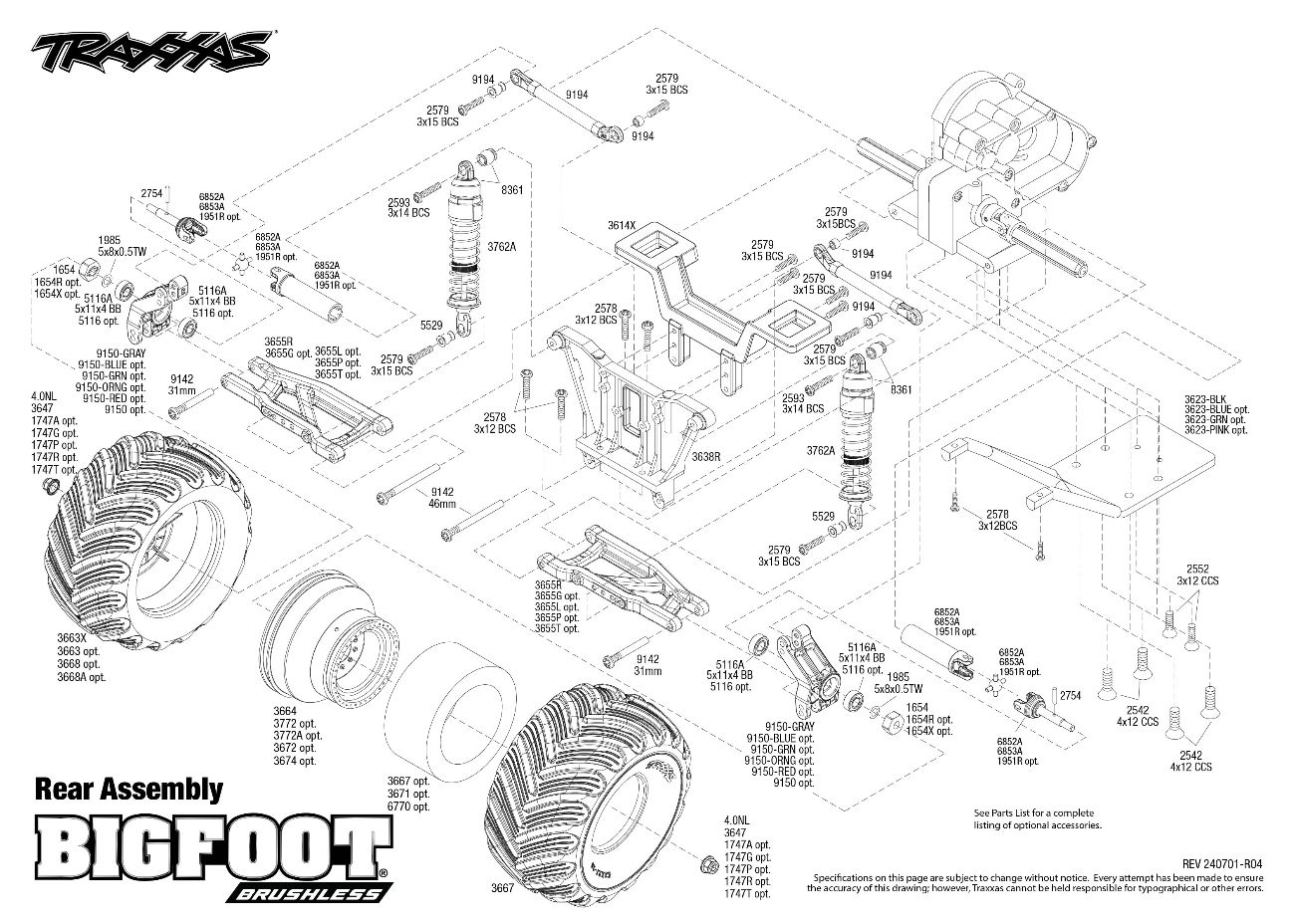

Exploded Views

Support

MODEL SPECS

Model Name:	BIGFOOT No. 1 BL-2s HD
Model Type:	Monster Truck
Model Speed:	30+ mph with 7-cell battery
Model Skill Level:	1
Scale:	1/10
Weight:	4.08 pounds (1.85 kg)
Length:	16.25 inches (413 mm)
Width:	12.75 inches (324 mm)
Front Track:	12.75 inches (324 mm)
Rear Track:	12.75 inches (324 mm)
Height:	9.5 inches (241 mm)

Drivetrain:	2WD
Transmission:	Magnum 272™
Differential Type:	Planetary steel gear
Gear Ratio (Internal):	2.72 (final drive: 12.34)
Gear Pitch:	48 pitch
Servo(s):	2056 high-torque waterproof
Battery Compartment Specs:	164 mm X 46 mm X 26 mm

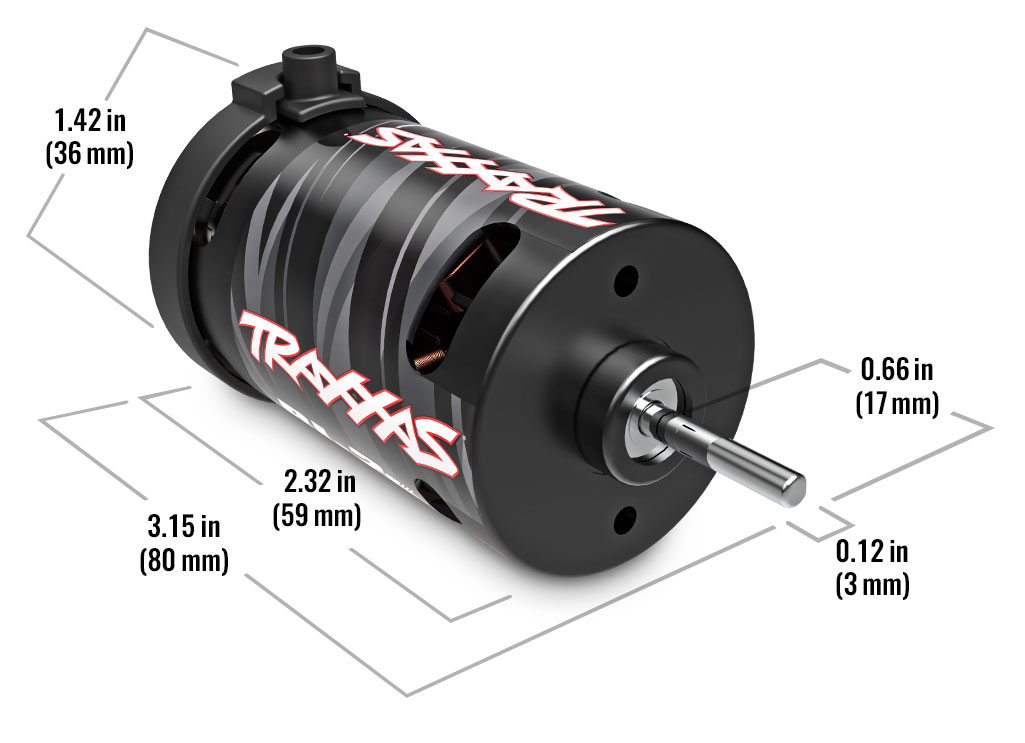

MOTOR SPECS

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

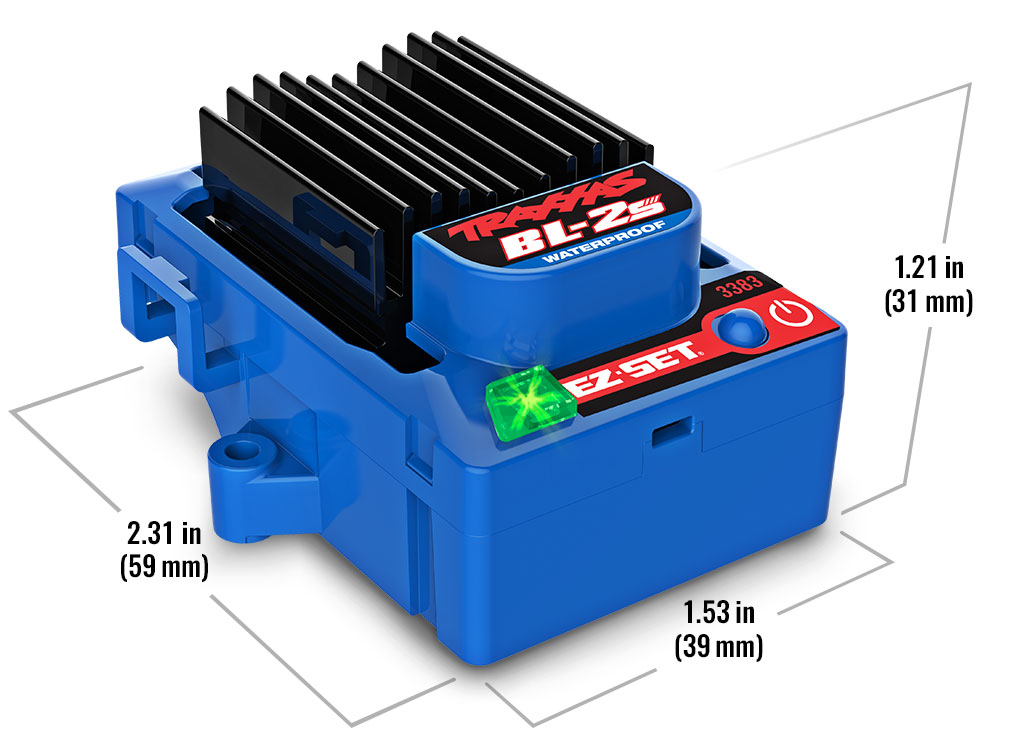

ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector

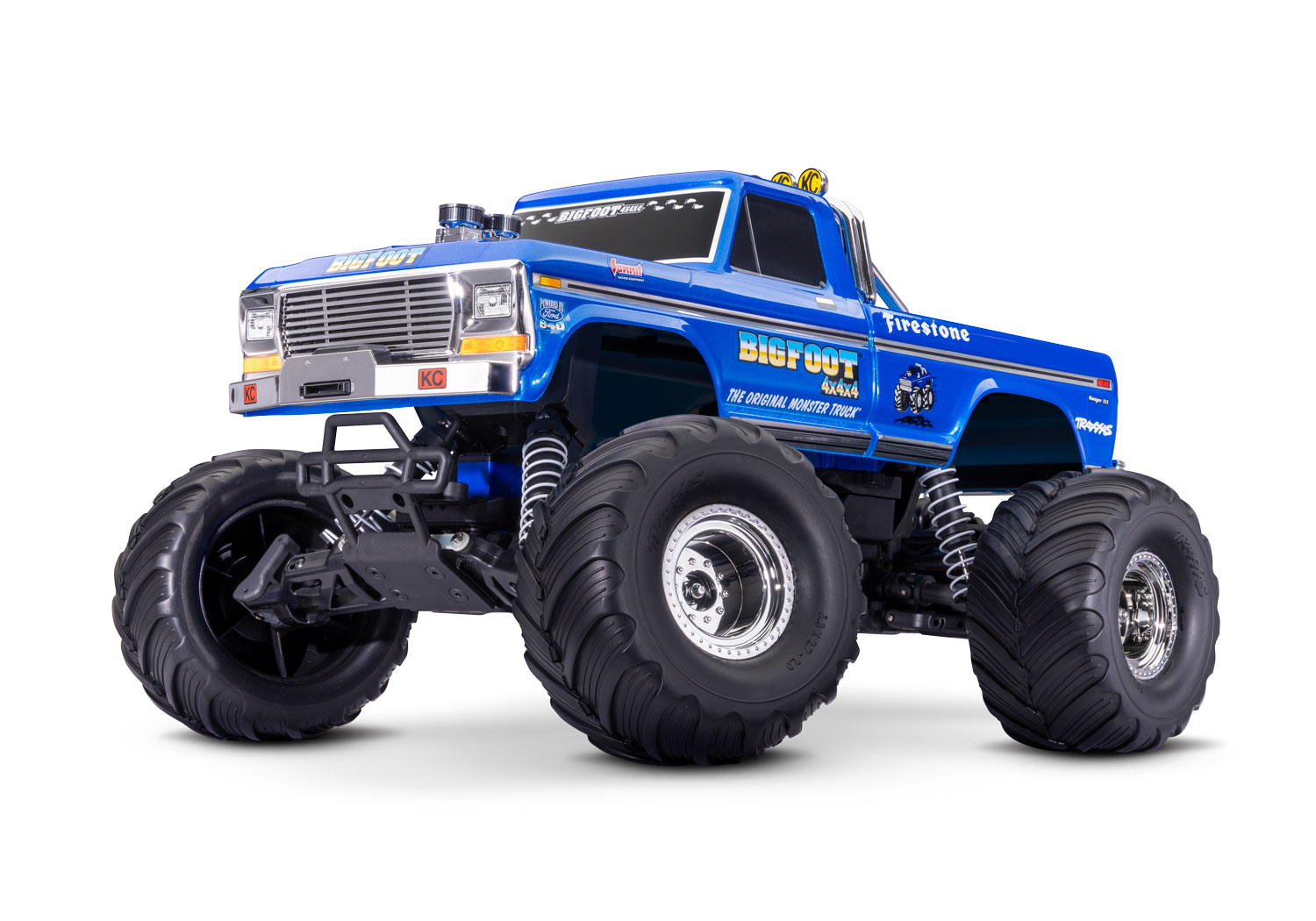

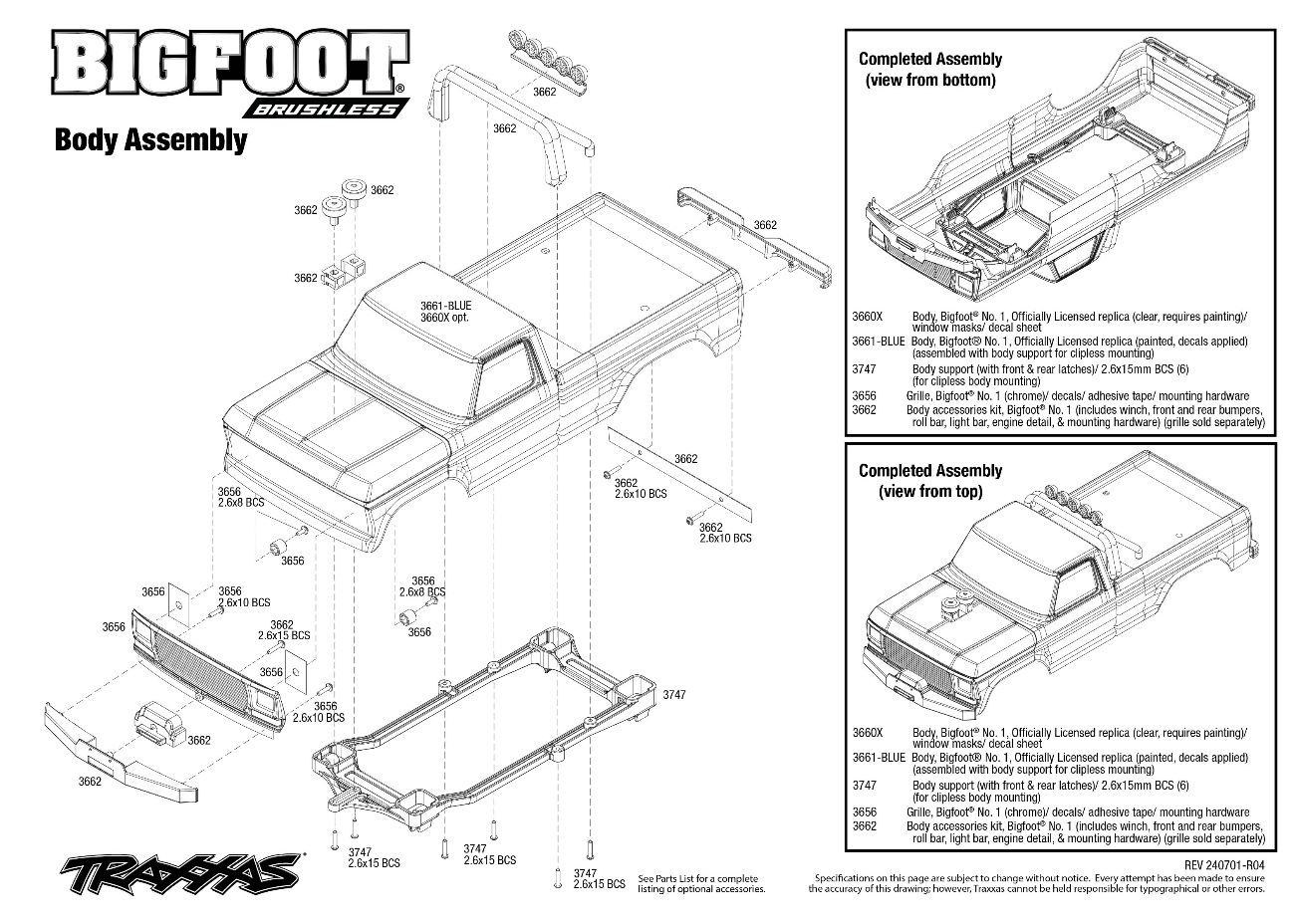

Licensed BIGFOOT^® No. 1 Clipless Body

Brilliant blue metallic officially licensed F-100 Ford^® XLT Ranger body

Chrome front bumper with replica winch
Chrome grille with light buckets and reflectors
Replica high-rise dual-carb intake manifold
Chrome roll bar with replica KC lights

Body reinforcements to prevent pull-through damage
Holds tight for intense action
Quick and easy removal
Smooth appearance with no body posts or clips
Includes wheelie bar

BL-2s™ Waterproof Electronic Speed Control

Heat sink accepts accessory cooling fan
Three Programmable Drive Profiles

Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)

Traxxas EZ-Set^® one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection
NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
LiPo battery packs: 2 cells (7.4 volts)

BL-2s Brushless Motor

Integrated cooling fan
Low-maintenance design
Efficient ball bearings
3300 kV
Virtually maintenance-free

Extreme Heavy Duty Parts Installed

Strengthened C-hubs, axle carriers, and steering blocks
HD suspension arms
Extreme heavy duty driveshafts

Extra material for improved strength

TQ™ 2.4 GHz 2-Channel Radio System

Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
O-ring sealed watertight receiver box keeps the receiver dry

Easy Access Battery Compartment

Adjustable battery hold down
Accepts 6- and 7-cell flat packs and 7-cell hump packs
Accepts many 2s LiPo battery configurations

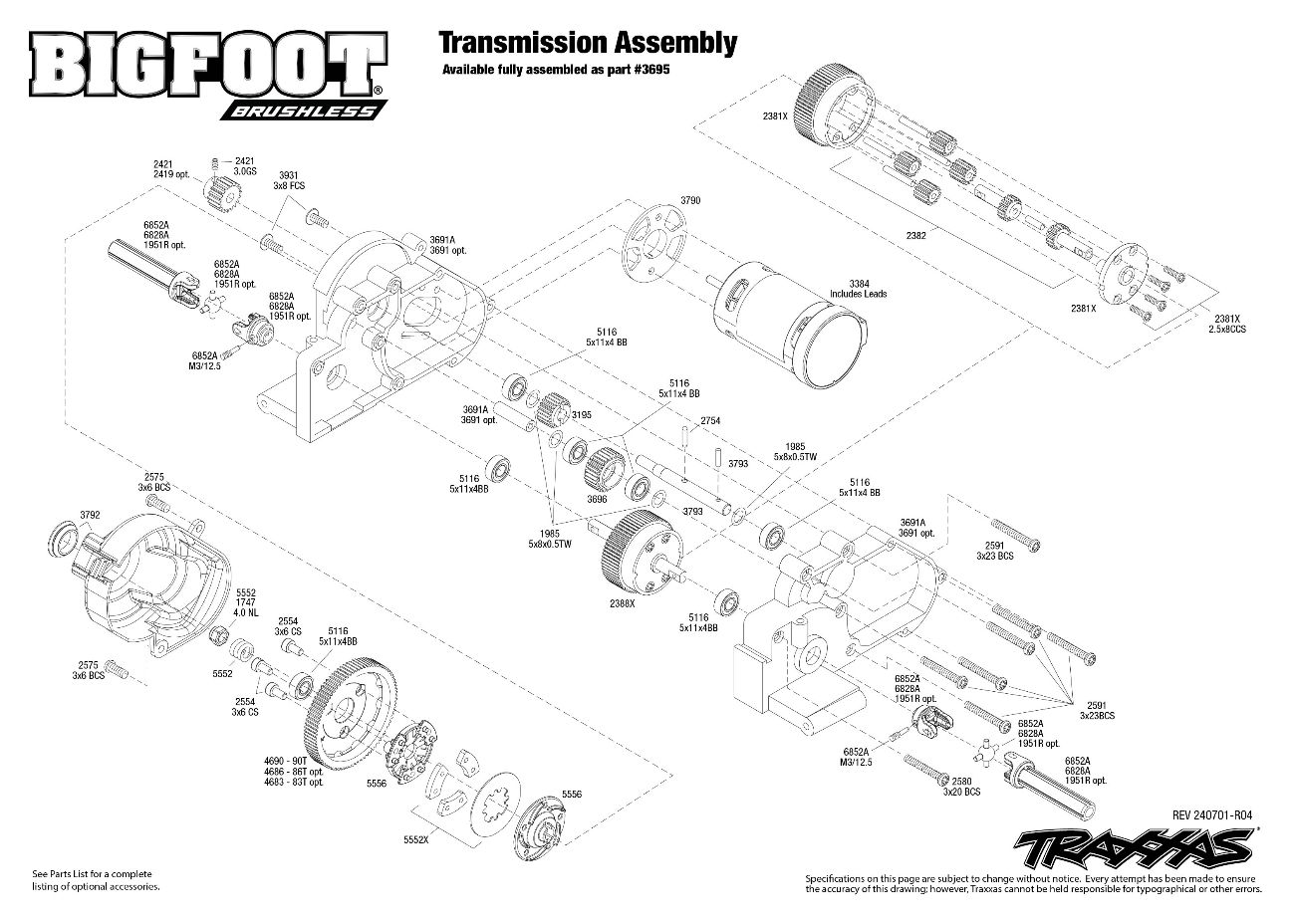

Transmission and Driveline

Velineon^®-ready Magnum 272™ metal-gear transmission
Torque-Control™ slipper clutch system
Planetary gear differential with steel ring gear
Sealed gearbox protects the transmission with beefed up motor guard
External gear cover with easy clutch access

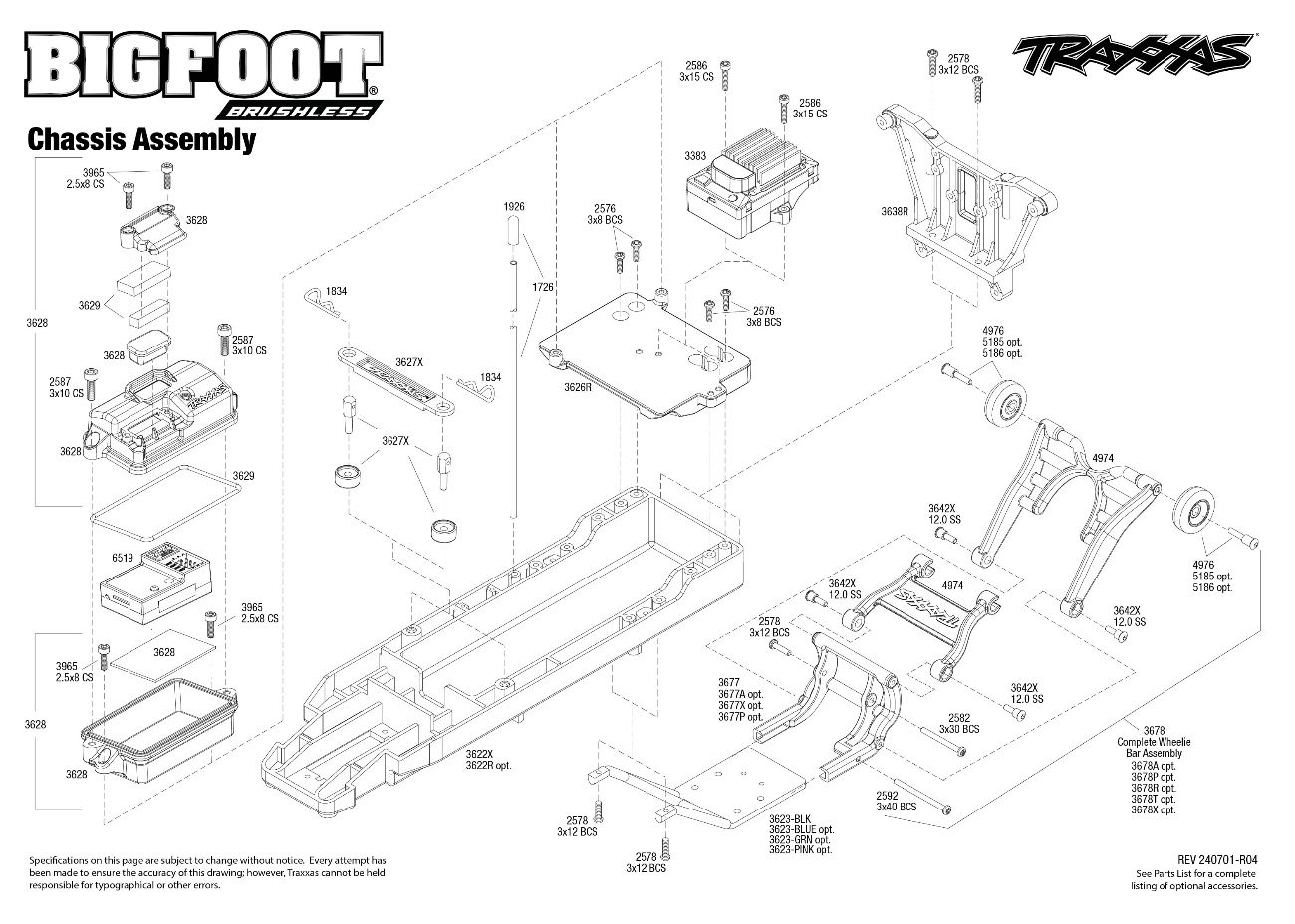

Tough Fiber-Composite Monocoque Chassis

Tall 4″ center ground clearance to drive over obstacles

Steering

High-torque waterproof Traxxas 2056 steering servo
Spring-loaded servo saver helps protect against impacts

Suspension

Durable solid camber links eliminate the need for adjustment
Captured rod ends won't pop off

Springs and Shocks

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
White powder-coated springs

Wheels and Tires

Pre-glued high profile Terra-Groove shaved monster truck tires
2.2″ Deep dish mirror-chrome beadlock-style wheels

Rubber-Sealed Ball Bearings
Precision Hex Hardware
Battery and Charger Sold Separately
