Blast RTR Boat W/ESC With Tq R

Skip to the beginning of the images gallery

Blast RTR Boat W/ESC With Tq R

Part Number:

38104-1

Gallery

Specs

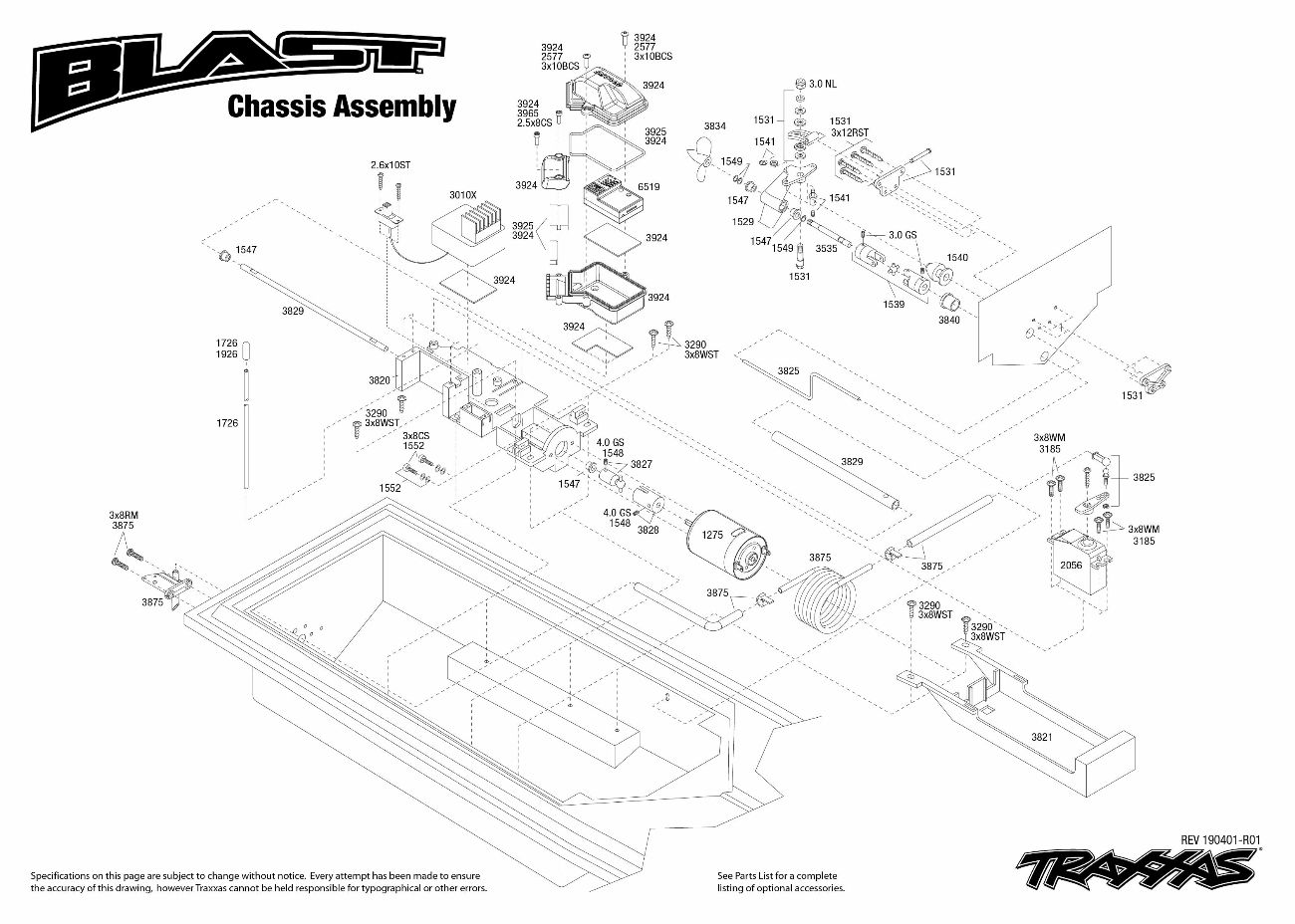

Exploded Views

Support

MODEL SPECS

Model Name:	Blast
Model Type:	Boats
Model Skill Level:	1
Scale:	1/10
Weight:	1.75 pounds (0.79 kg)

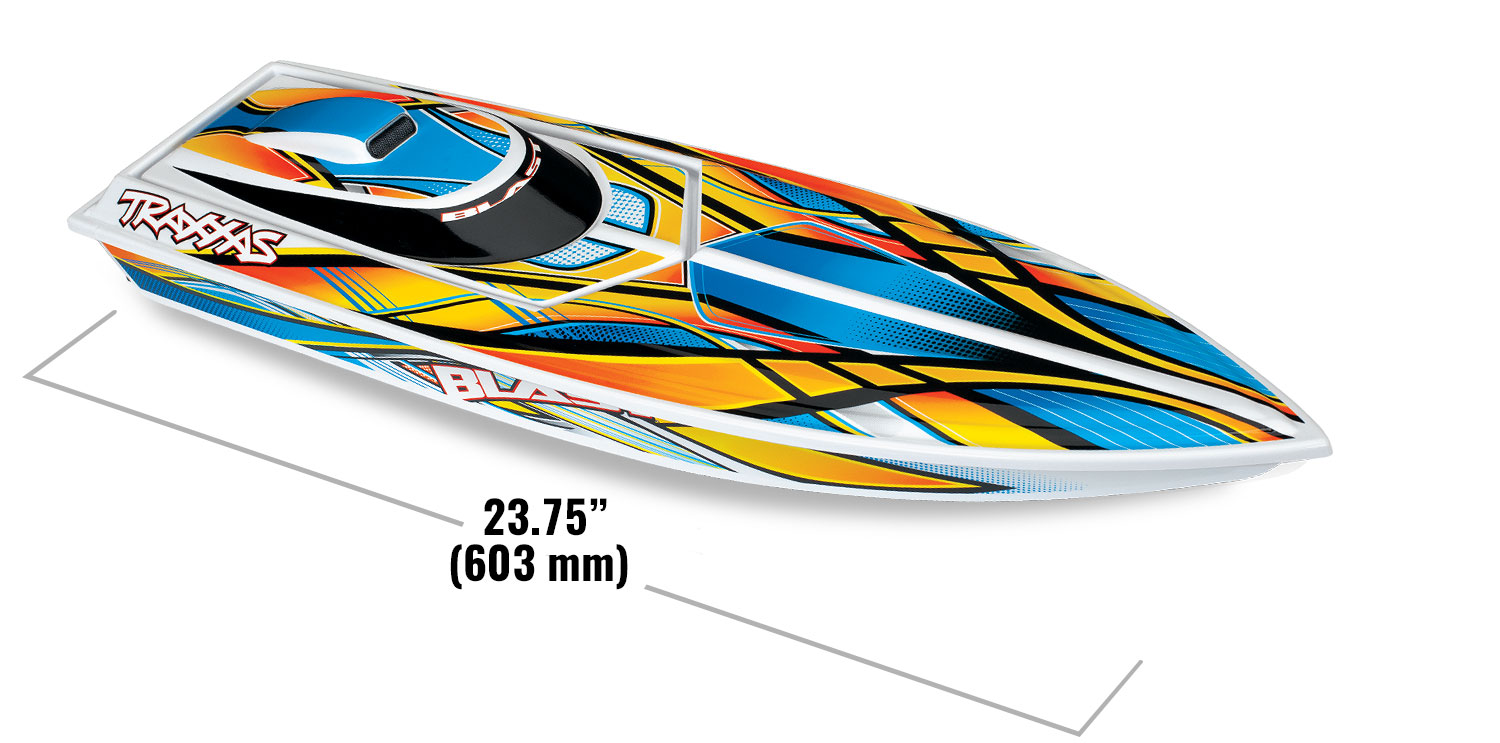

Length:	23.75 inches (603 mm)
Width:	5.75 inches (146 mm)
Height:	3.25 inches (83 mm)
Drive System:	Direct drive

Outdrive:	Adjustable surface-piercing prop
Hull Length:	23.75 inches (603 mm)
Dead Rise Angle:	20°
Length:	23.75 inches (603 mm)
Height:	3.25 inches (83 mm)
Beam (Width):	5.75 inches (146 mm)
Servo(s):	2056 high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio

MOTOR SPECS

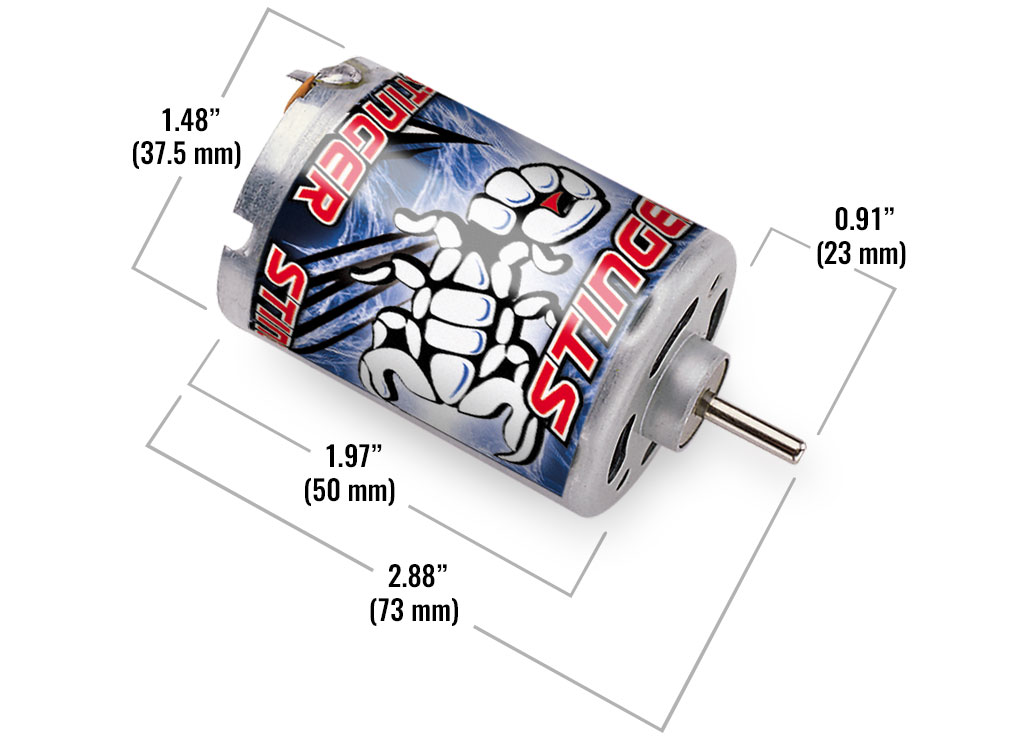

Motor Name:	540 Stinger™ (20-turn)
Motor Type:	Brushed
Motor Weight:	5.12 ounces (145 g)
Motor Length:	2.88 inches (73 mm) overall length, 1.97 inches (50 mm) can length
Motor Diameter:	1.48 inches (38 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC SPECS

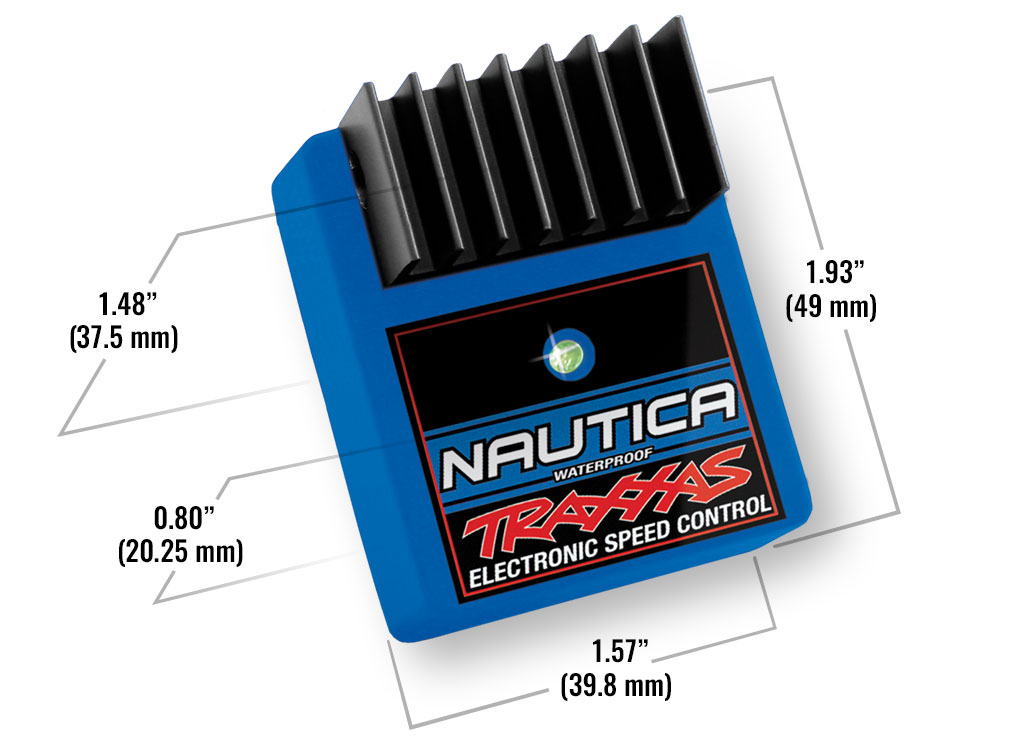

ESC Name:	Nautica™ waterproof ESC
ESC Type:	Brushed
ESC Case Size:	1.93 inches (49 mm) L, 1.57 inches (40 mm) W, 1.48 inches (38 mm) H
ESC Weight:	3.16 ounces (90 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High Current Connector
