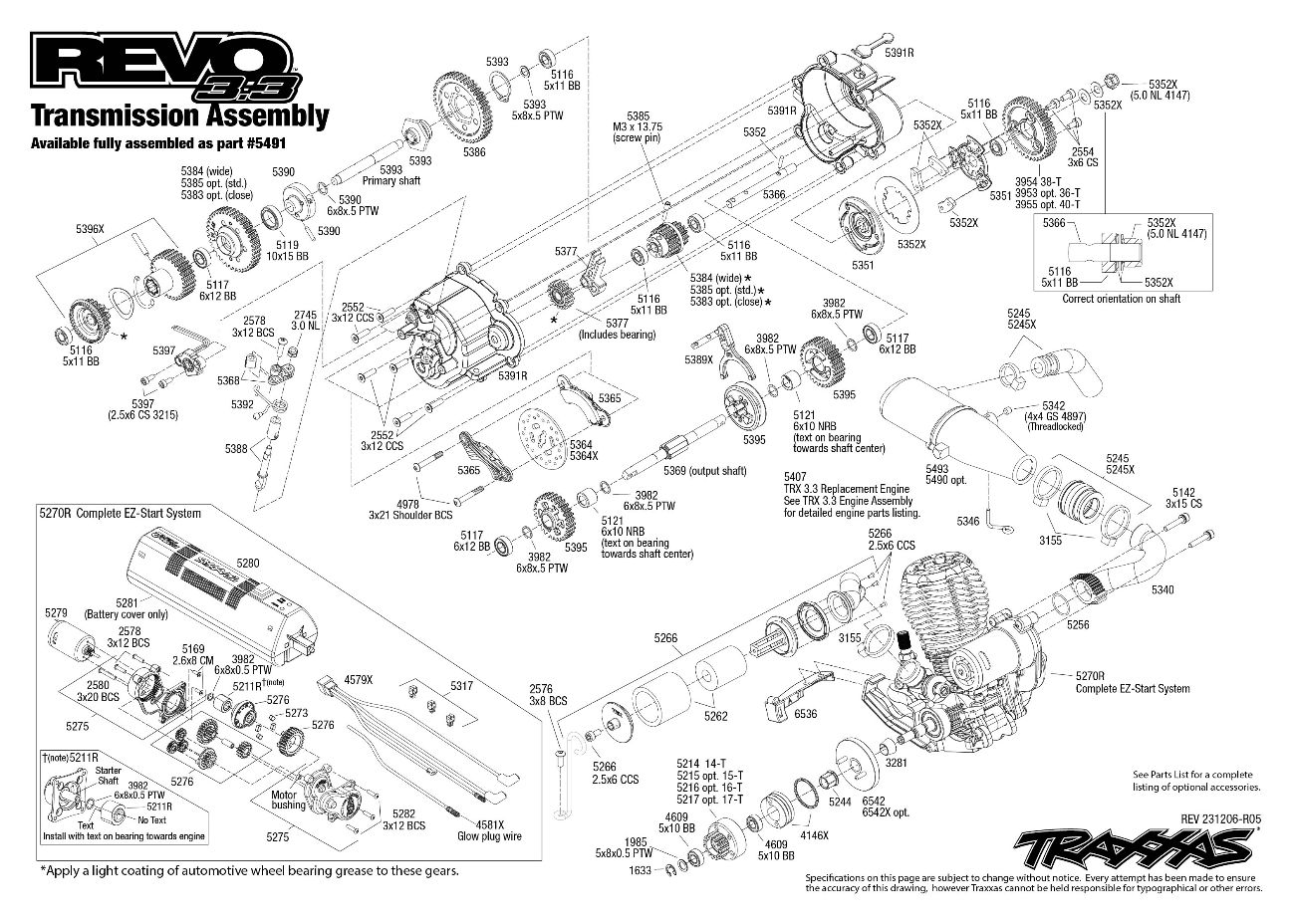

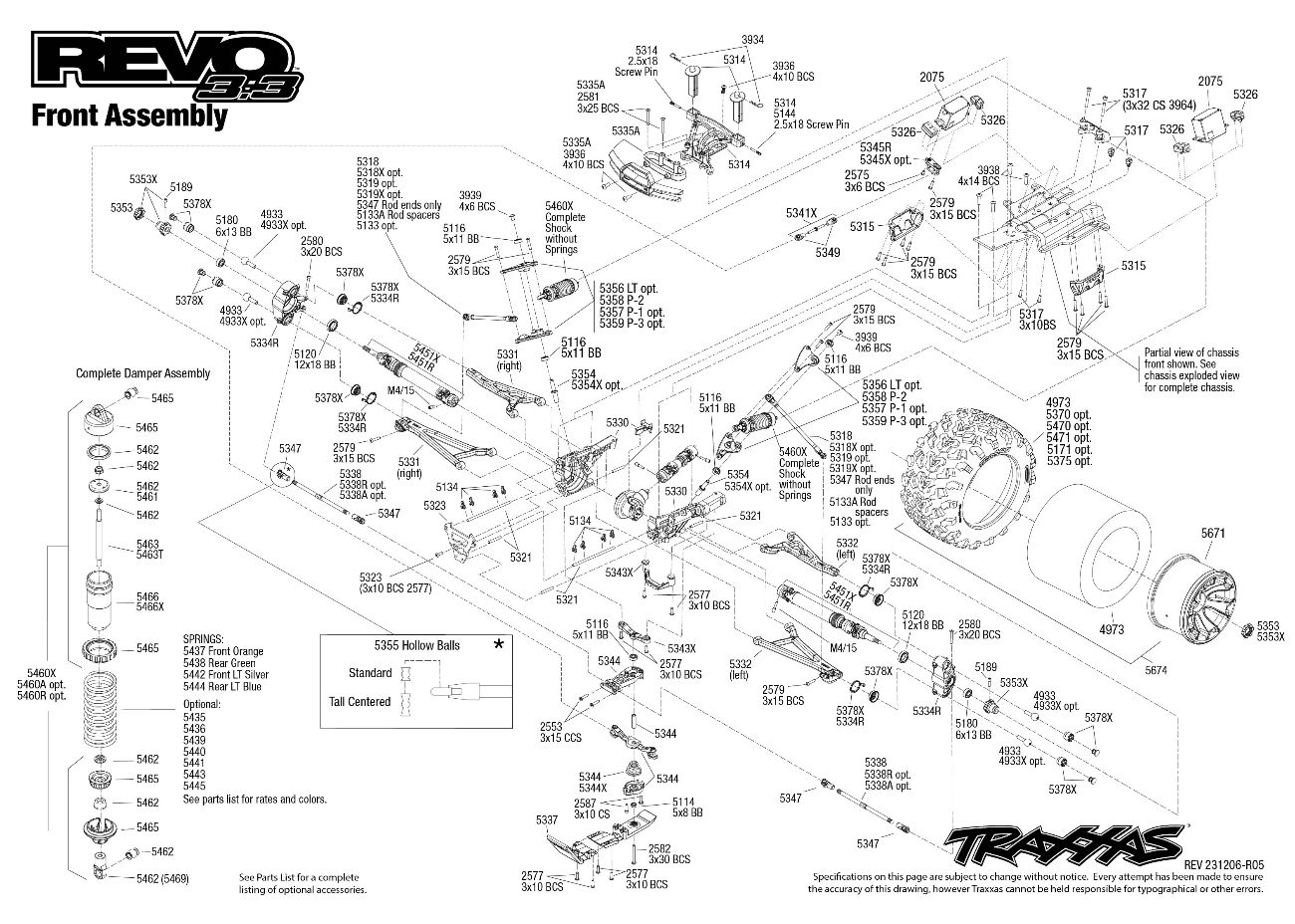

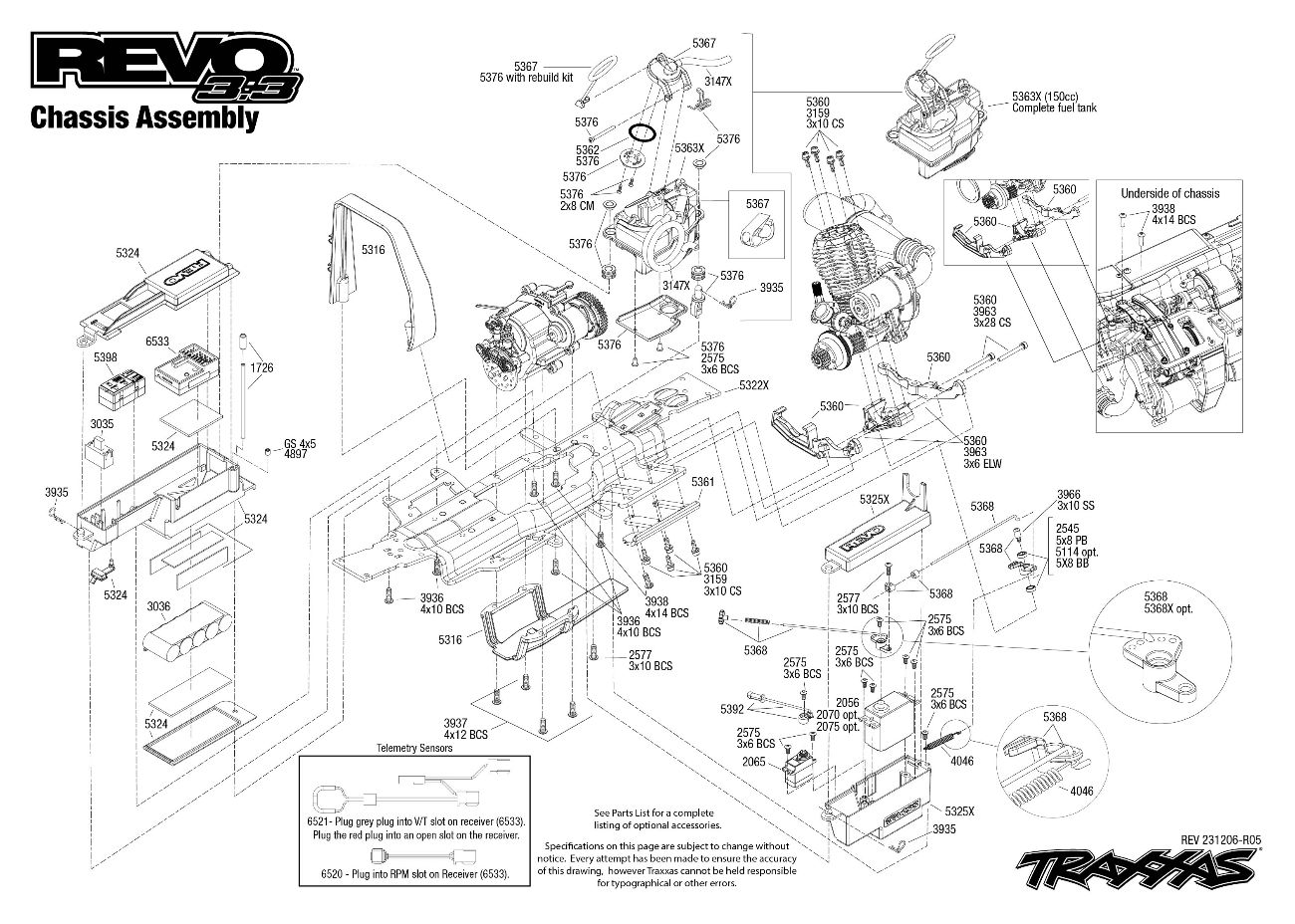

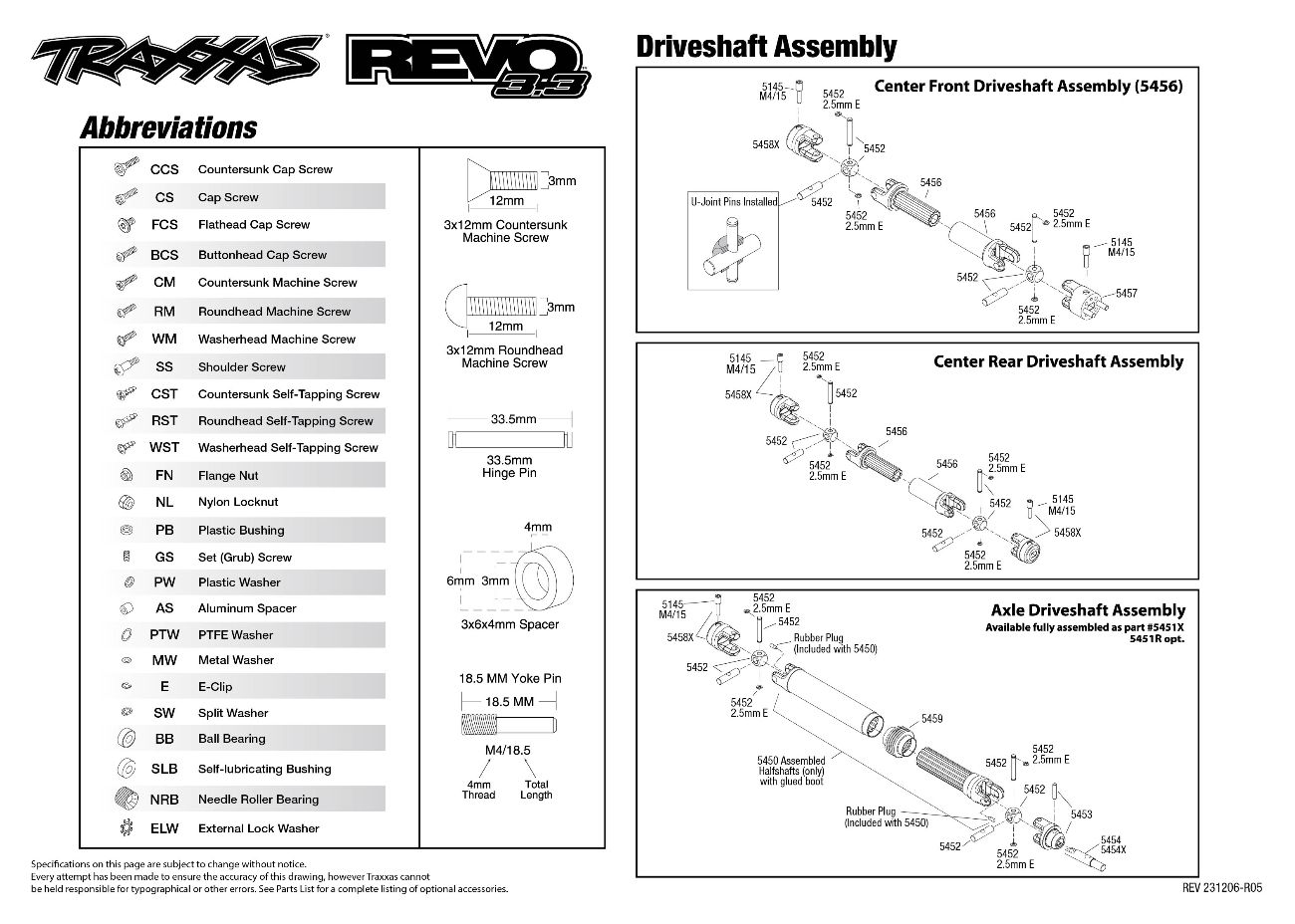

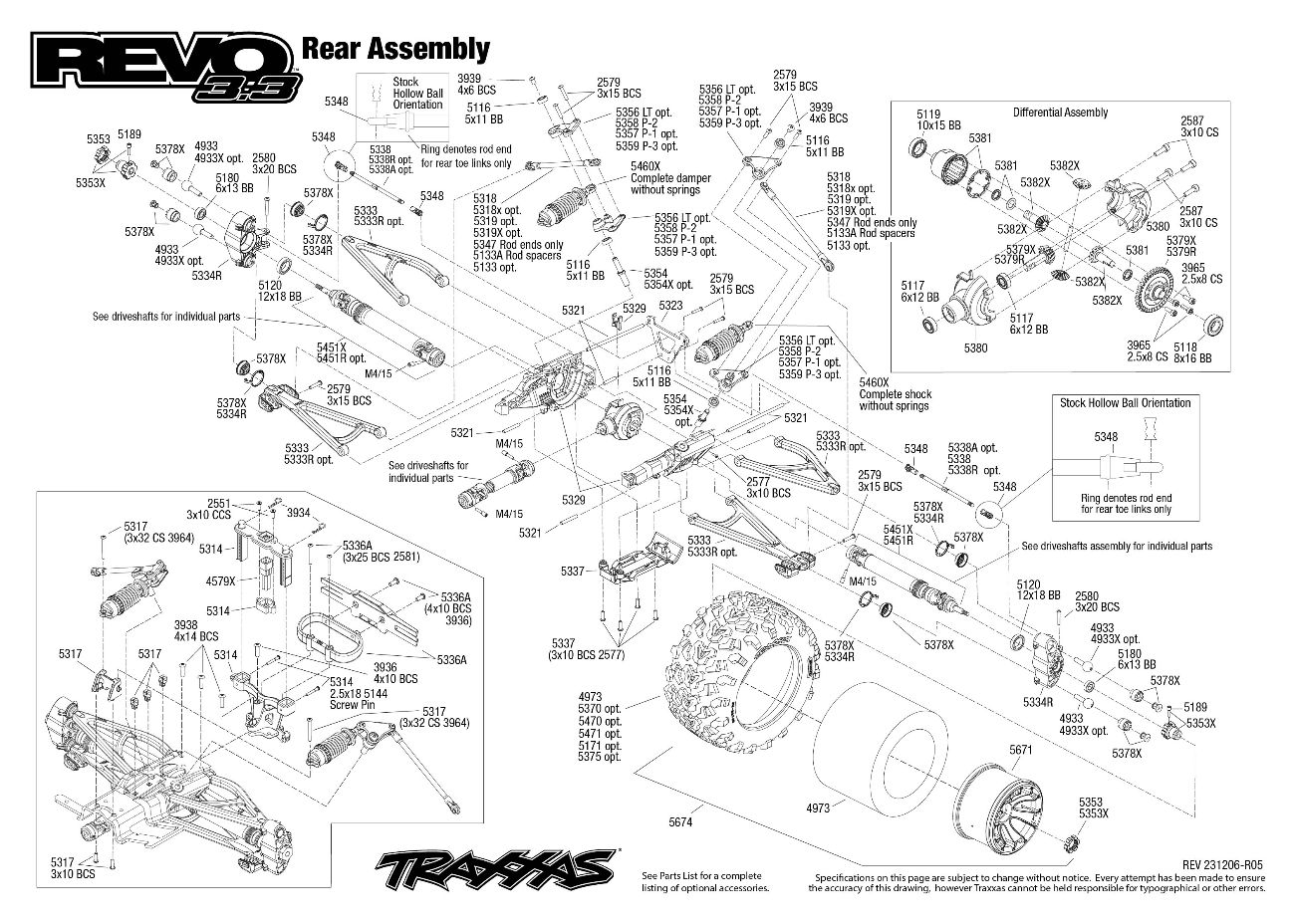

Exploded Views
Support
MODEL SPECS
Model Name:
Revo 3.3
Model Type:
Monster Truck
Model Speed:
45+ mph
Model Skill Level:
4
Scale:
1/10
Weight:
10.3 pounds (4.69 kg)

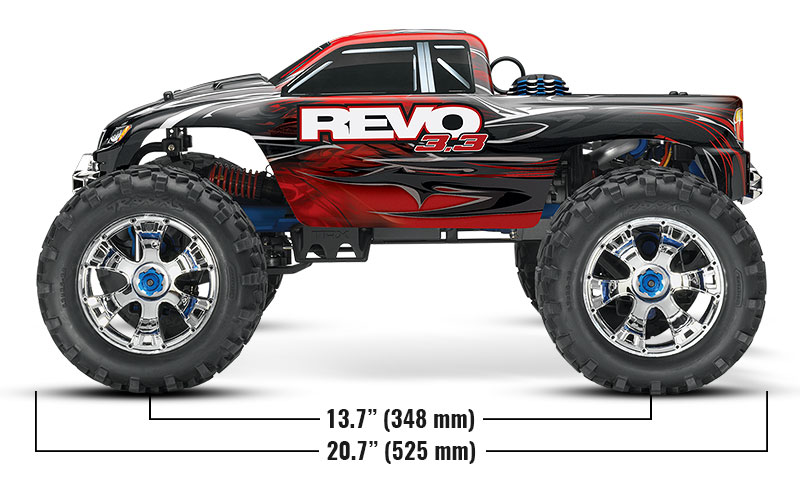

Length:
20.65 inches (525 mm)

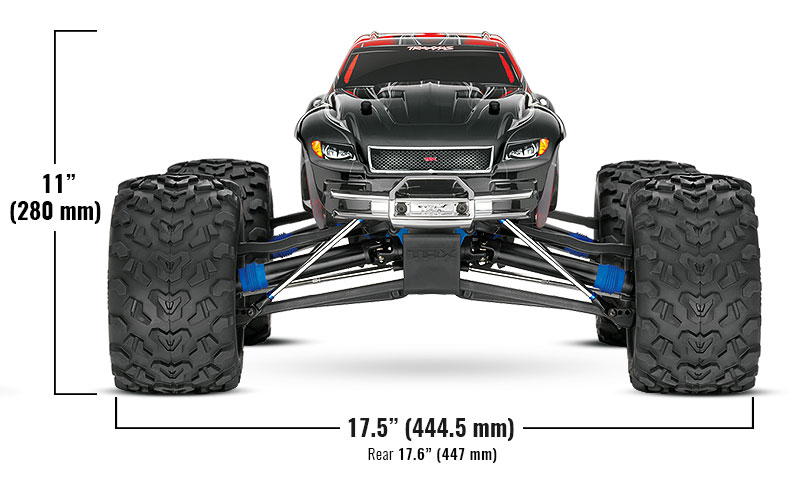

Width:
17.6 inches (447 mm)
Front Track:
17.5 inches (445 mm)
Rear Track:
17.6 inches (447 mm)
Height:
11.02 inches (280 mm)
Wheelbase:
13.7 inches (348 mm)
Center Ground Clearance:
4.25 inches (108 mm)
Drivetrain:
Shaft-driven 4WD
Transmission:
OptiDrive® auto two-speed fwd/rev
Differential Type:
Bevel gear, sealed, limited slip
Gear Ratio (Internal):
25.55:1 (1st gear) 16.31:1 (2nd gear)
Gear Pitch:
1.0 metric pitch (Mod 1)
Servo(s):
Dual 2075 digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 3-channel transmitter with TSM® receiver and 6511 Wireless Module
Size:
3.3 cc
Starter:
Electric EZ-Start®
Carburetor:
Two-needle slide carburetor
Air Filter:
Dual-stage foam
:
150 cc
ProGraphix® Painted Body
Pre-painted body with applied decals
Tough front and rear tube bumpers
Adjustable wheelie bar
TRX® 3.3 Racing Engine
Large bore piston and sleeve deliver extreme power
Oversized dual-stage air filter
Polished aluminum dual-chamber tuned exhaust pipe
Slide carburetor
Knife-edged connecting rod
Large aluminum blue-anodized cooling head
Super-light piston and rod
High-performance ball bearings
EZ-Start® Electric Starting System
Lights the glow plug and cranks the engine with the push of a button
Status LEDs
Includes starter battery and charger
Traxxas Stability Management® (TSM)
Improves straight line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the vehicle
Adjusts from off to 100% assistance from the transmitter
Blue-Anodized Aluminum Chassis
Blue-anodized 3 mm aluminum 3D semi-monocoque chassis
Tall 4.25″ center ground clearance
Rugged front and rear skid plates
Large 150 cc fuel tank extends run time
TQi™ 2.4 GHz High Output Radio System
TQi 2.4 GHz 3-channel high output transmitter
Includes Traxxas Link™ Wireless Module
Factory installed speed, RPM, and temperature telemetry sensors
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Multi-Function knob
5-channel TSM micro receiver (6533) with fail-safe security and integrated telemetry ports
Includes 1200 mAh NiMH receiver pack battery
Enclosed radio box protects sensitive electronics from dirt and fuel spills
Transmission and Driveline
Shaft-driven four wheel drive
Ultra-compact, fewer moving parts
Tunable front and rear sealed, limited-slip gear differentials
Low rotating mass for quick, high-revving acceleration
Large diameter semi-metallic brake disc
Constant drive engagement is smooth and instantly responsive
Sealed case protects the gears and two-speed from debris
Semi-metallic pads
Rubber seals for smooth, trouble-free performance
Extreme deflection for the most suspension travel
Finned aluminum alloy pressure plates
Steering
Dual digital waterproof high-torque Traxxas 2075 steering servos
Heavy-duty bellcrank with integrated servo saver
Suspension
Progressive pushrod rocker-actuated suspension
Shocks are rigidly mounted to the chassis to minimize crash damage
Sealed pivot ball suspension arms
Captured rod ends won't pop off
Springs and Shocks
Precise GTR™ shocks provide smooth, consistent damping performance
Threaded shock bodies for precise ride height adjustment
Hard-anodized PTFE-coated shock bodies with TiN coated shock shafts
Red powder-coated springs
Wheels and Tires
Pre-glued 6.3″ tall Maxx® tires with performance foam inserts
3.8″ Mirror-chrome Geode™ wheels
17 mm splined hex
Backed by Unparalleled Traxxas Support and Parts Availability
