1/10

Size

50 - 65

Speed

Nitro Engine

Power

Battery & Charger

Sold Separately

Jato 3.3

Part Number:

55077-3

WARNING: This product can expose you to chemicals including Nitromethane, which is known to the State of California to cause cancer, and Methanol, which is known by the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Gallery

Specs

Features

Parts Finder

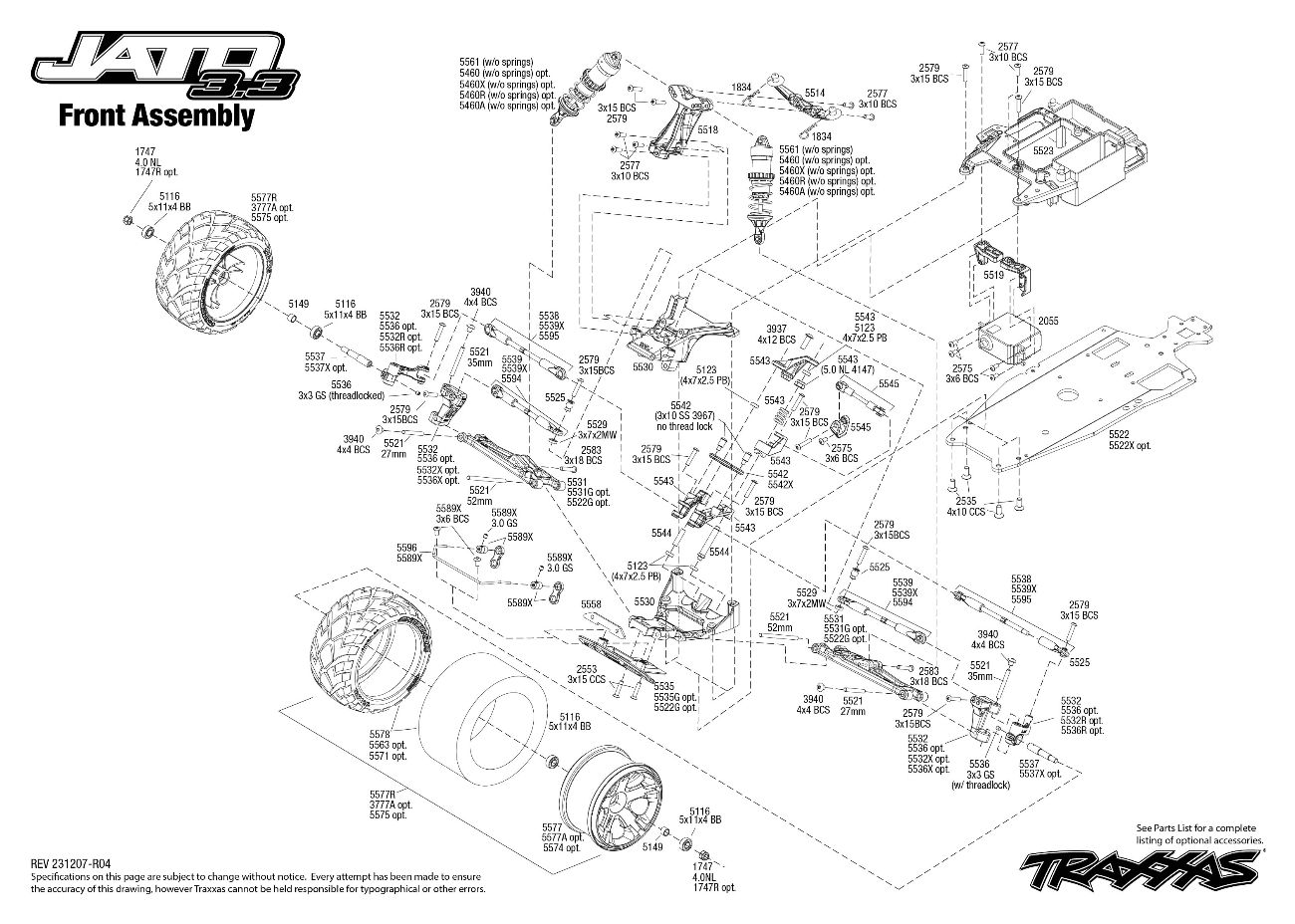

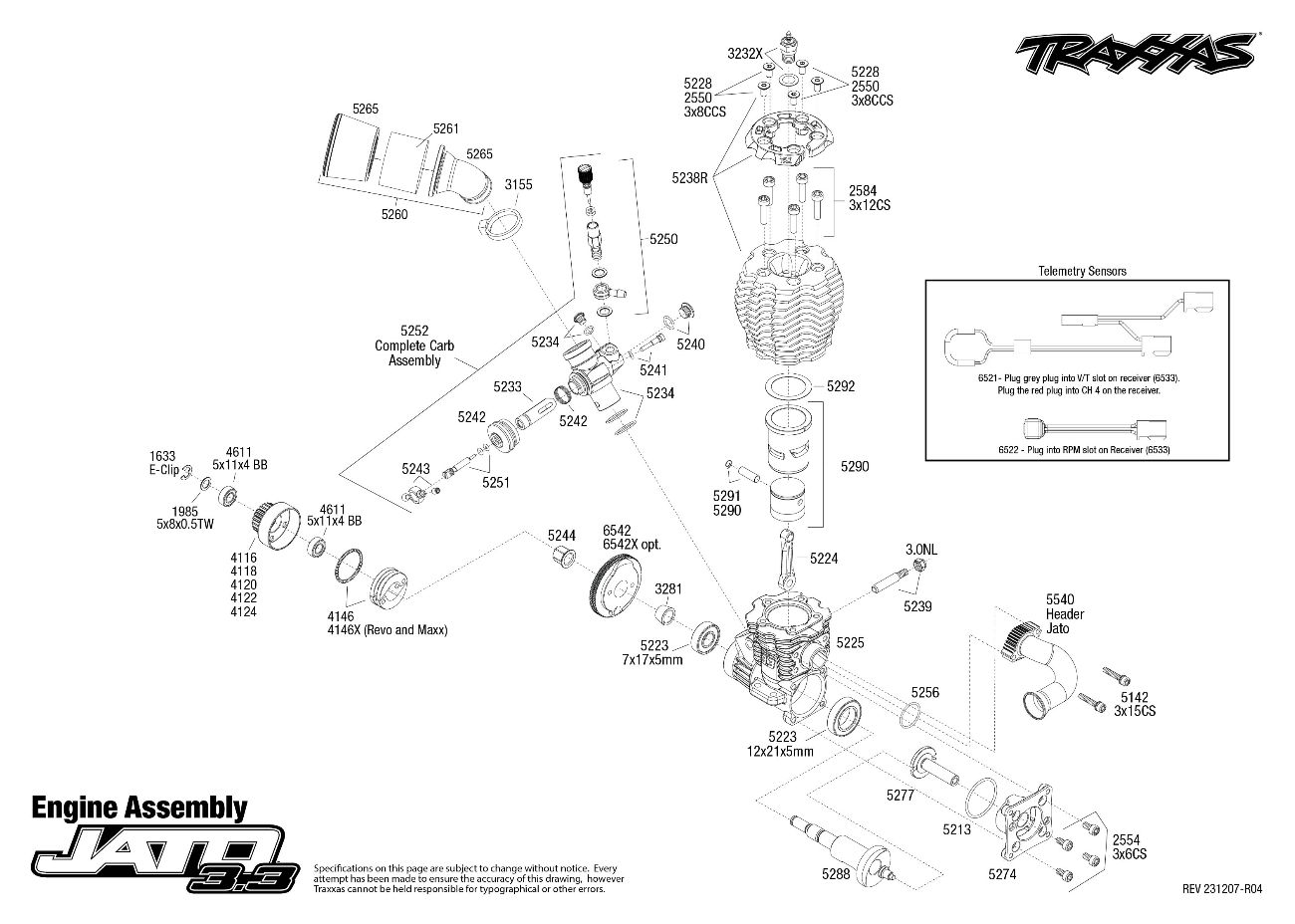

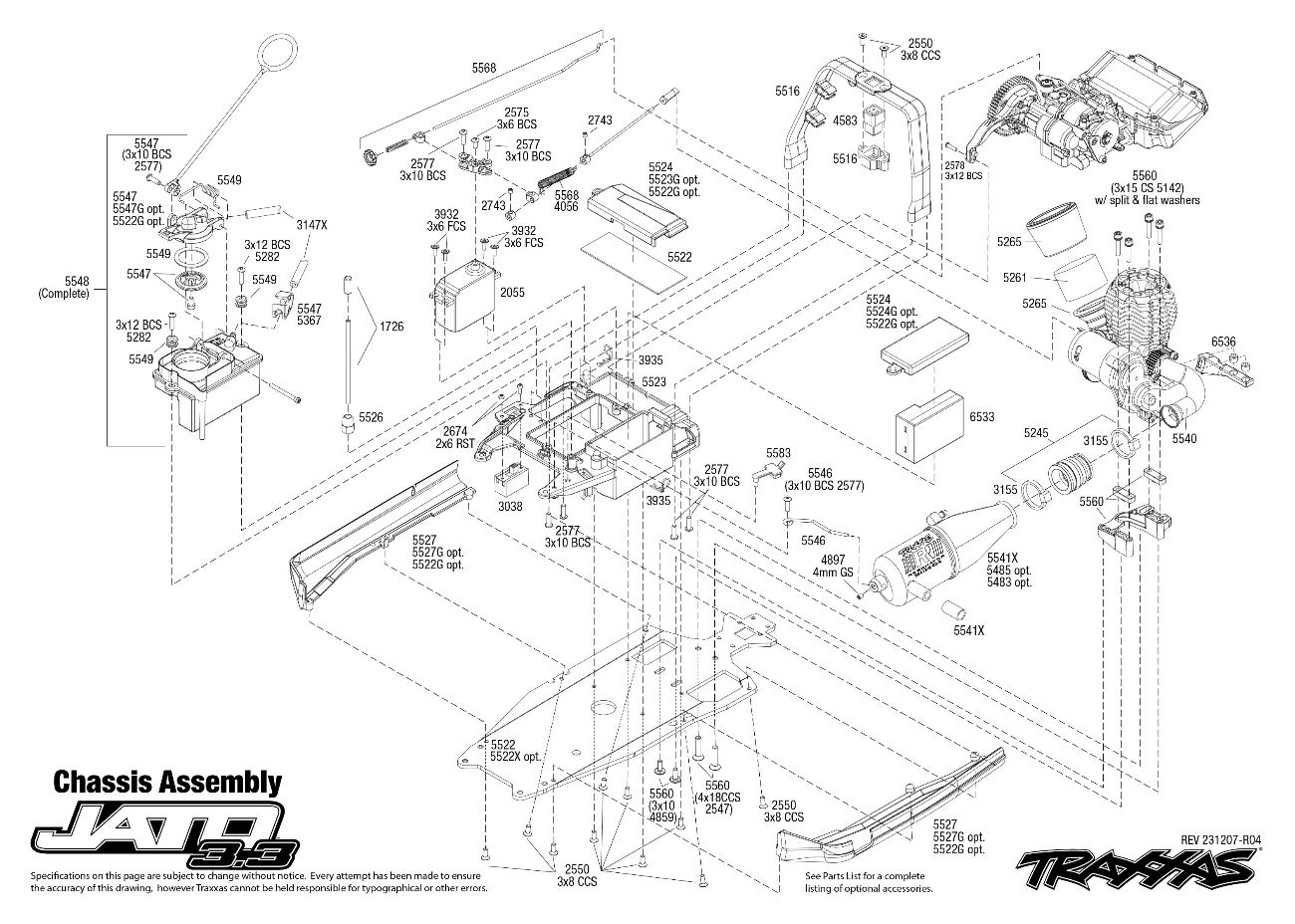

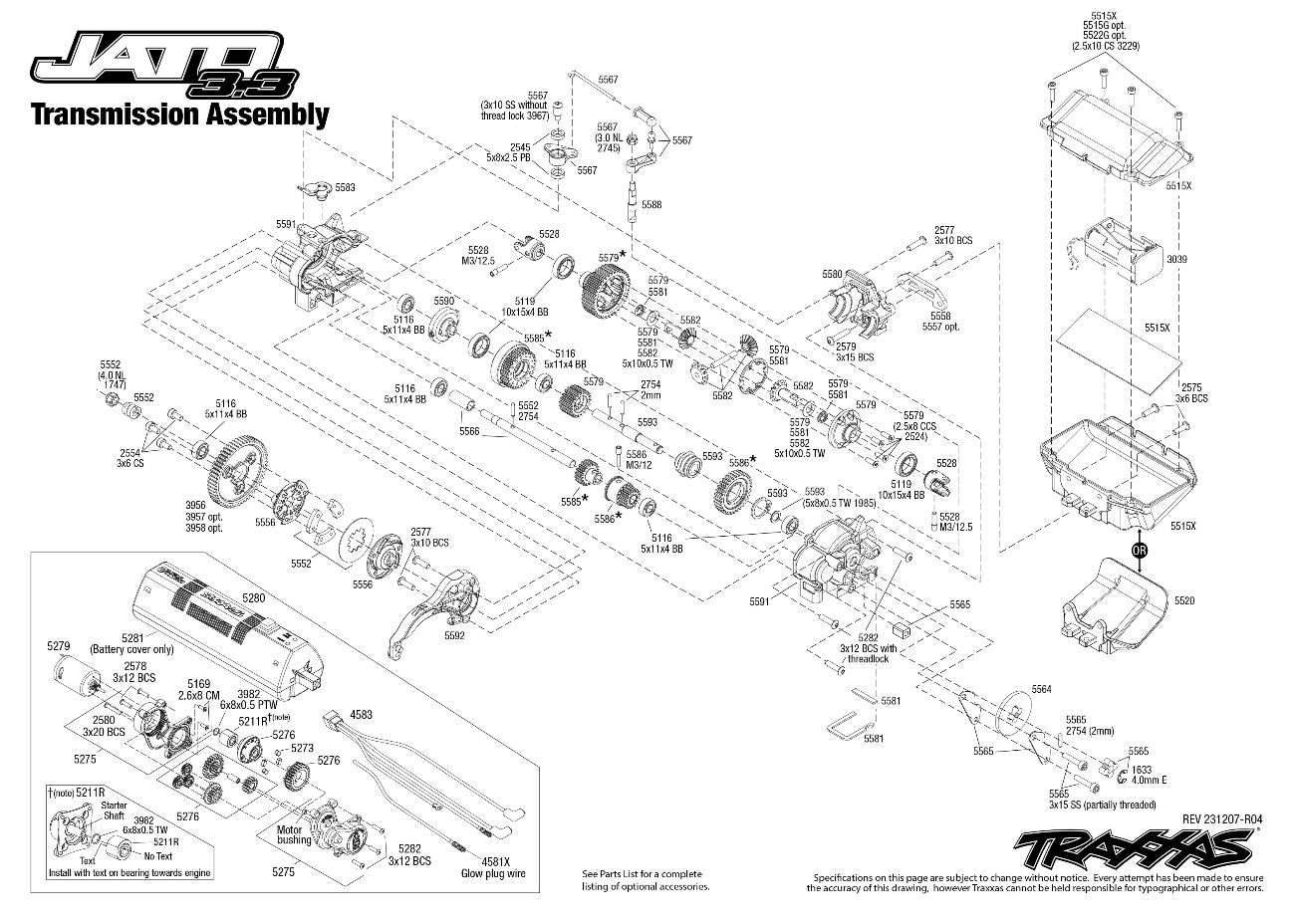

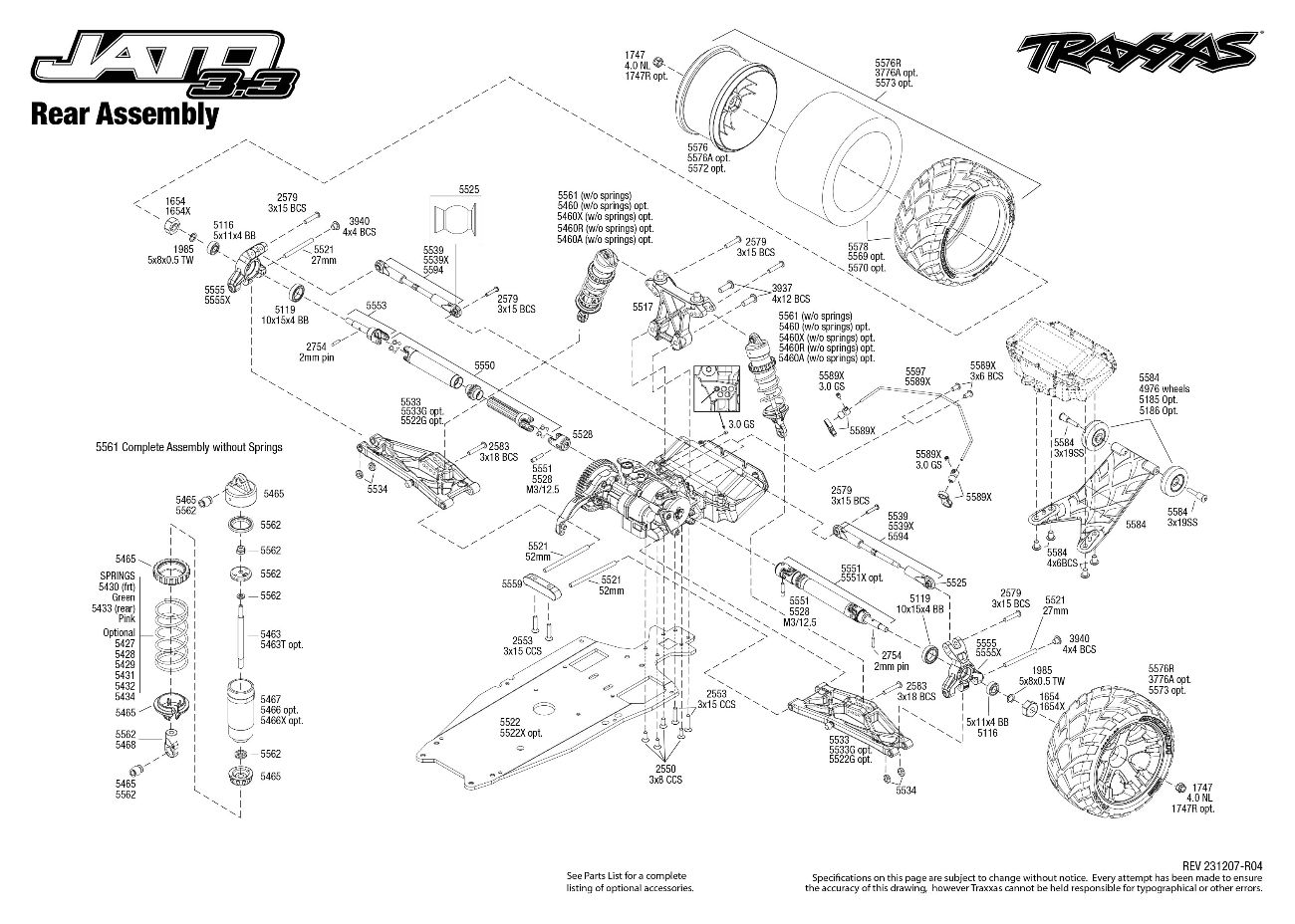

Exploded Views

Support

MODEL SPECS

Model Name:	Jato 3.3
Model Type:	Stadium Trucks
Model Speed:	65+ mph
Model Skill Level:	5
Scale:	1/10
Weight:	5.18 pounds (2.35 kg)

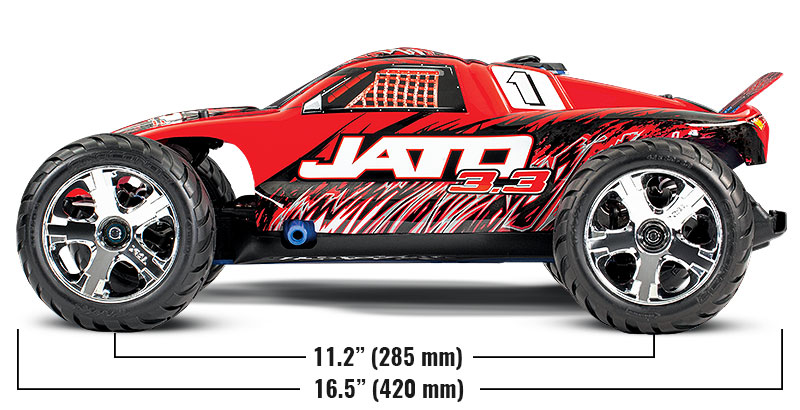

Length:	16.53 inches (420 mm)
Width:	13.00 inches (330 mm)

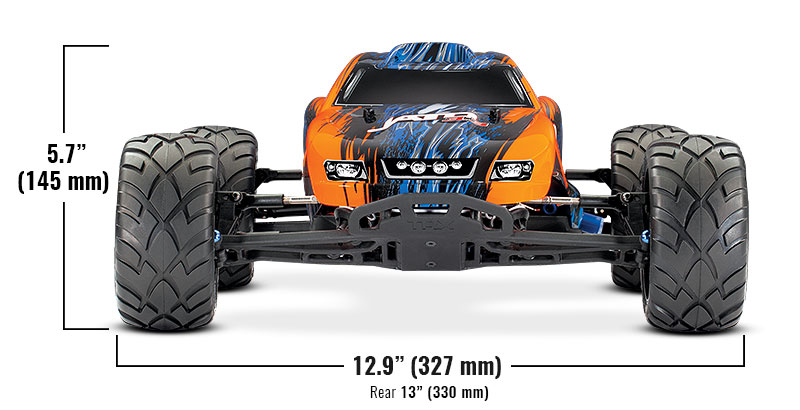

Front Track:	12.87 inches (327 mm)
Rear Track:	13.00 inches (330 mm)
Height:	5.70 inches (145 mm)

Wheelbase:	11.22 inches Long (285 mm)
Drivetrain:	2WD
Transmission:	Auto two-speed
Differential Type:	Hardened-steel bevel gear, sealed
Gear Ratio (Internal):	9.77:1 (1st gear total gear reduction) 7.29:1 (2nd gear total gear reduction)
Gear Pitch:	32 pitch
Servo(s):	2055 high-torque
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver and 6511 Wireless Module
Size:	3.3 cc
Starter:	Electric EZ-Start^®
Carburetor:	Two-needle slide carburetor
Air Filter:	Dual-stage foam
:	75 cc

ProGraphix^® Painted Body

Pre-painted body with applied decals
Aggressive, aerodynamic body with rear wing
Integrated dirt guards form a barrier against dirt and rocks.
Includes wheelie bar

TRX^® 3.3 Racing Engine

Large bore piston and sleeve deliver extreme power
High-volume dual-stage air filter
Tuned blue aluminum Resonator™ exhaust pipe
Slide carburetor
Knife-edged connecting rod
Large aluminum blue-anodized cooling head
Super-light piston and rod
High-performance ball bearings

EZ-Start^® Electric Starting System

Lights the glow plug and cranks the engine with the push of a button
Status LEDs
Includes starter battery and charger

Traxxas Stability Management^® (TSM)

Improves straight line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the vehicle

Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz High Output Radio System

2-channel high output transmitter
Includes Traxxas Link™ Wireless Module
Factory installed speed, RPM, and temperature telemetry sensors
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
5-channel TSM receiver (6533) with fail-safe security and integrated telemetry ports
Enclosed radio box protects sensitive electronics from dirt and fuel spills

Blue-Anodized Aluminum Chassis

Strong 3 mm 6061-T6 aluminum construction
Removable roll hoop helps protect critical chassis components
The low-profile 75 cc fuel tank

Transmission and Driveline

Adjustable two-speed transmission for unmatched acceleration and top speed
Sealed gearbox protects transmission components from dirt and rocks
Large diameter semi-metallic brake disc
Sealed, limited-slip gear differential is fully tunable

Semi-metallic pads
Finned aluminum alloy pressure plates
Rubber seals for smooth, trouble-free performance

Extreme deflection for the most suspension travel

Steering

High-torque Traxxas 2055 steering servo
High-performance bellcrank system eliminates bump steer

Suspension

Full suspension adjustability including caster, camber, toe, anti-squat, ride height, weight bias, and roll-center
Front & rear sway bars
Captured rod ends won't pop off

Springs and Shocks
