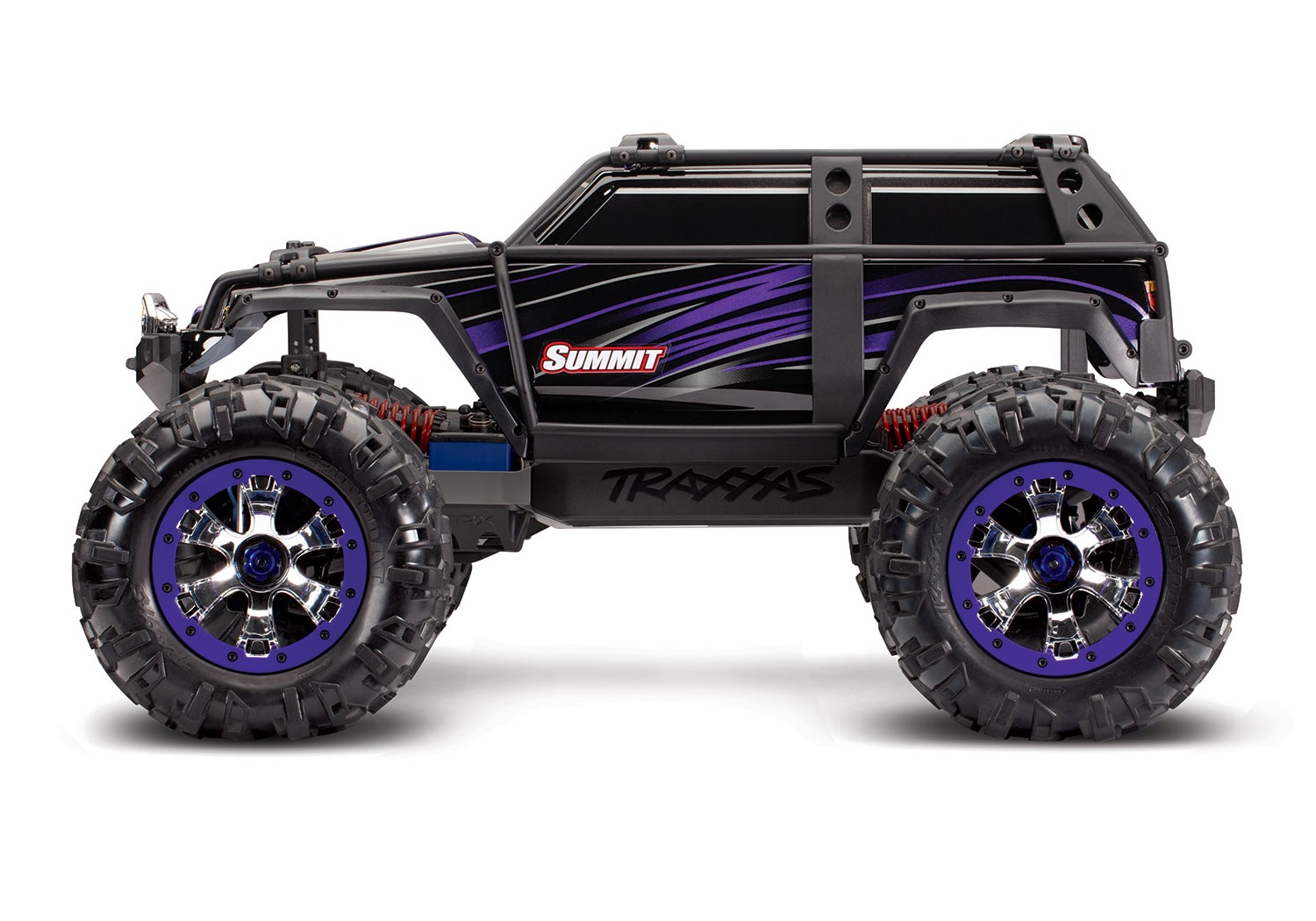

Summit 4WD Electric Monster Tr
MODEL SPECS
Model Name:
Summit
Model Type:
Monster Truck
Model Skill Level:
2
Scale:
1/10
Weight:
11 pounds (4.98 kg)

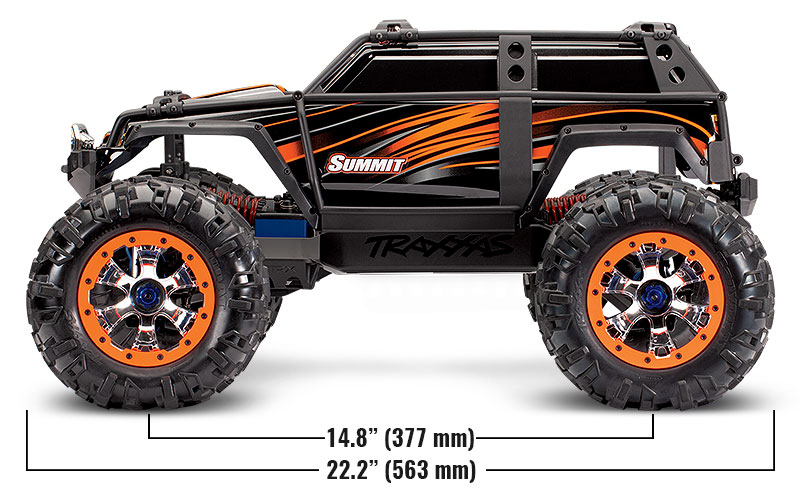

Length:
22.17 inches (563 mm)

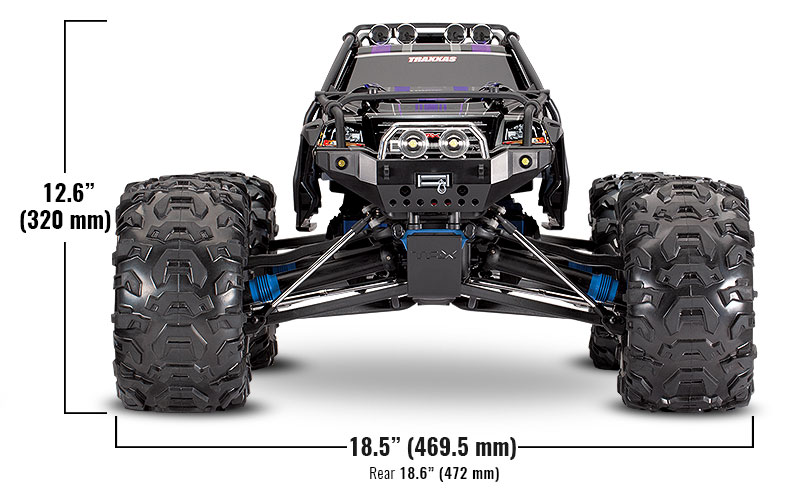

Width:
18.48 inches (469.5 mm)
Front Track:
18.48 inches (469.5 mm)
Rear Track:
18.58 inches (472 mm)
Height:
12.6 inches (320 mm)
Wheelbase:
14.84 inches (377 mm)
Center Ground Clearance:
4.76 inches (121 mm)

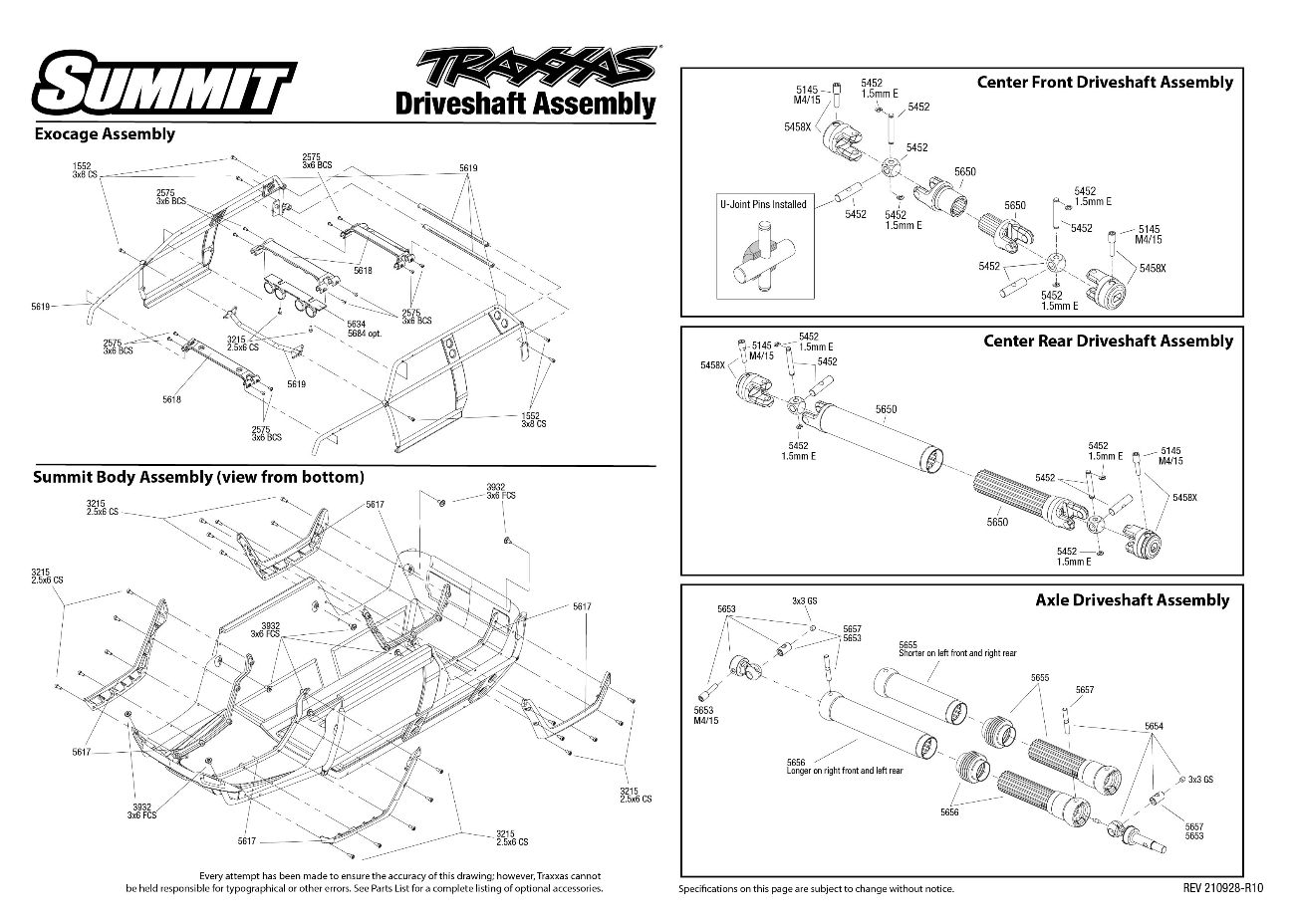

Drivetrain:
Shaft-driven 4WD

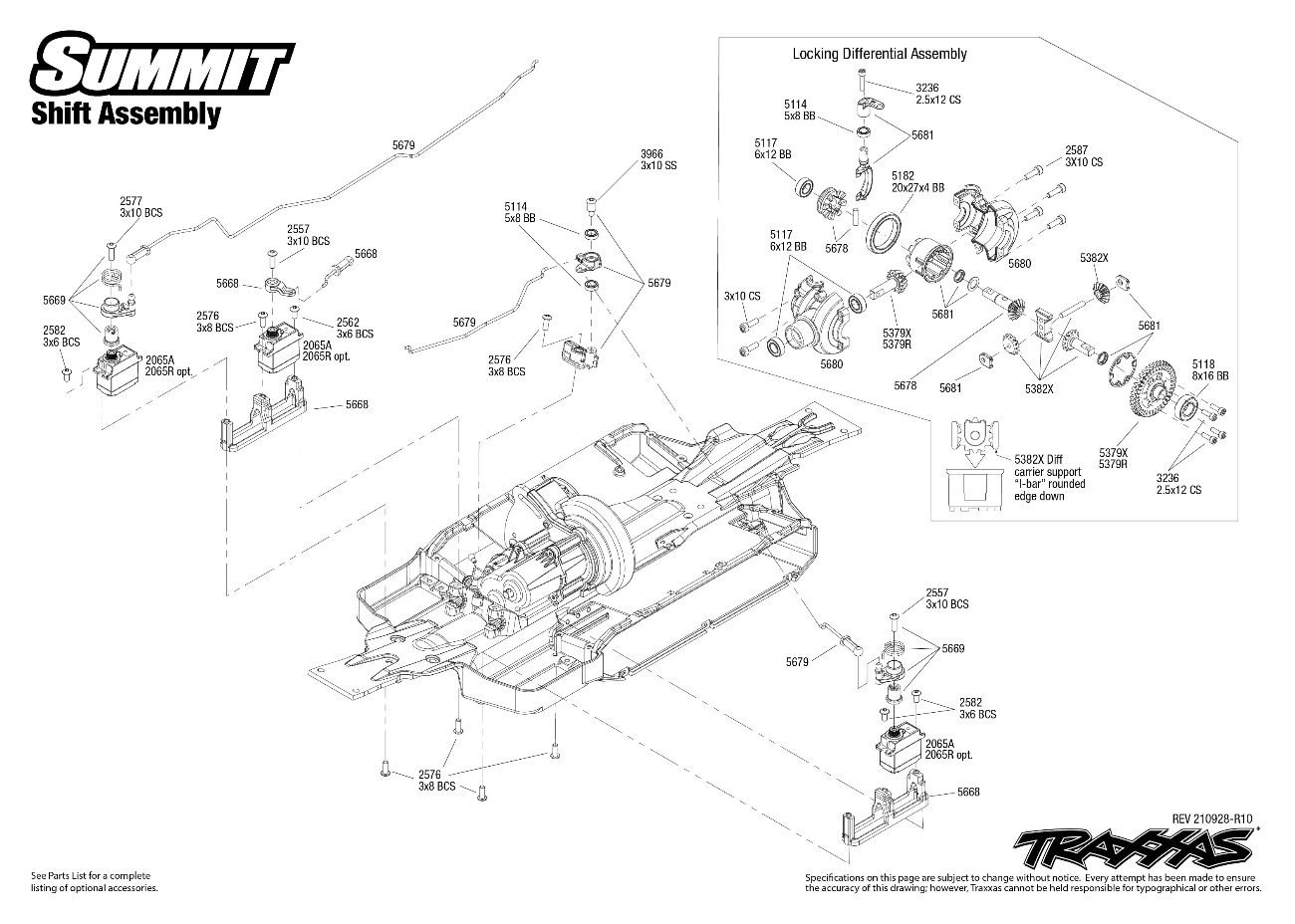

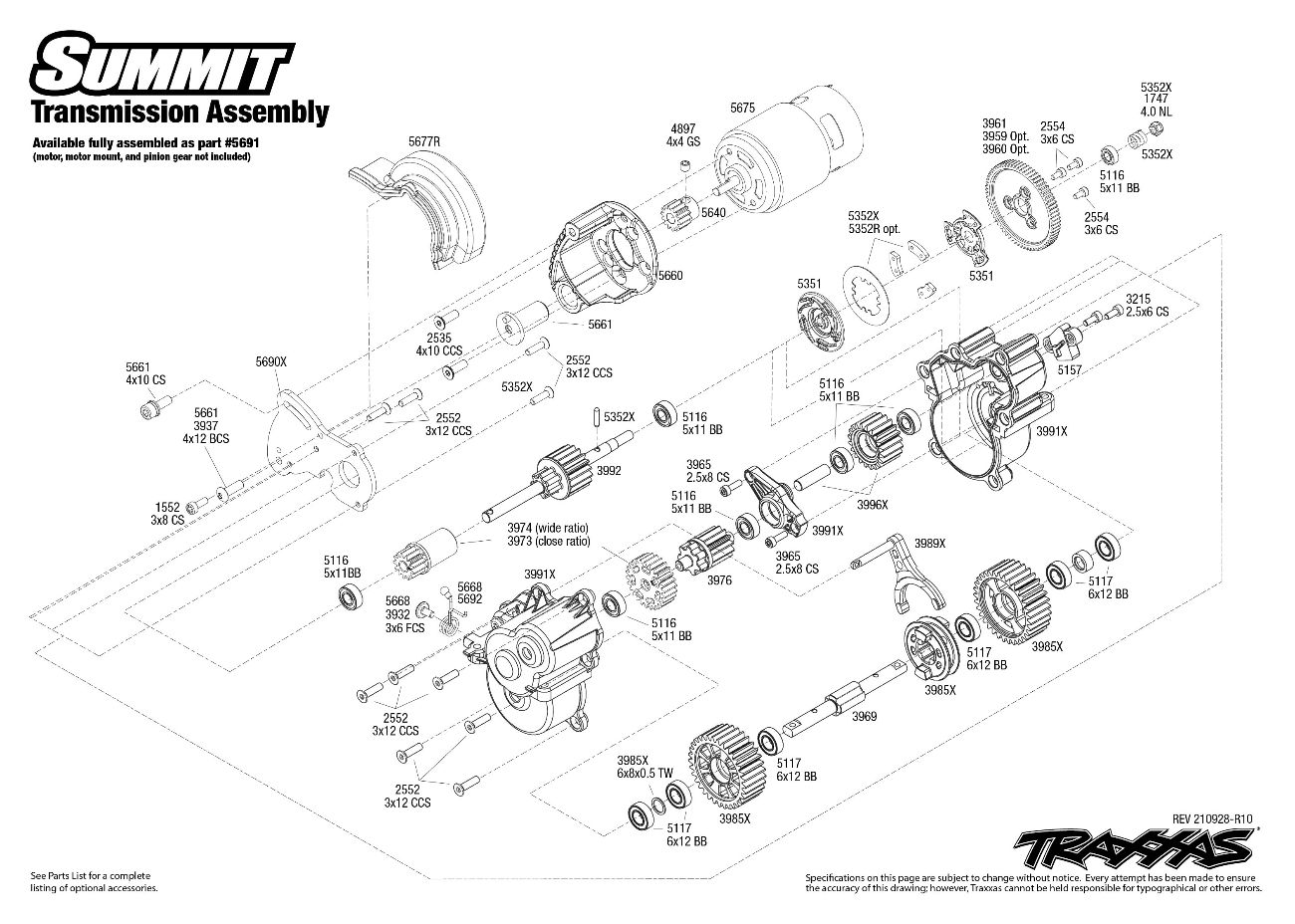

Transmission:
High-low two-speed
Differential Type:
Bevel gear, sealed, limited slip
Gear Ratio (Internal):
25:1 (high range) 70:1 (low range)
Gear Pitch:
32 pitch
Servo(s):
2075 dual digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 4-channel radio

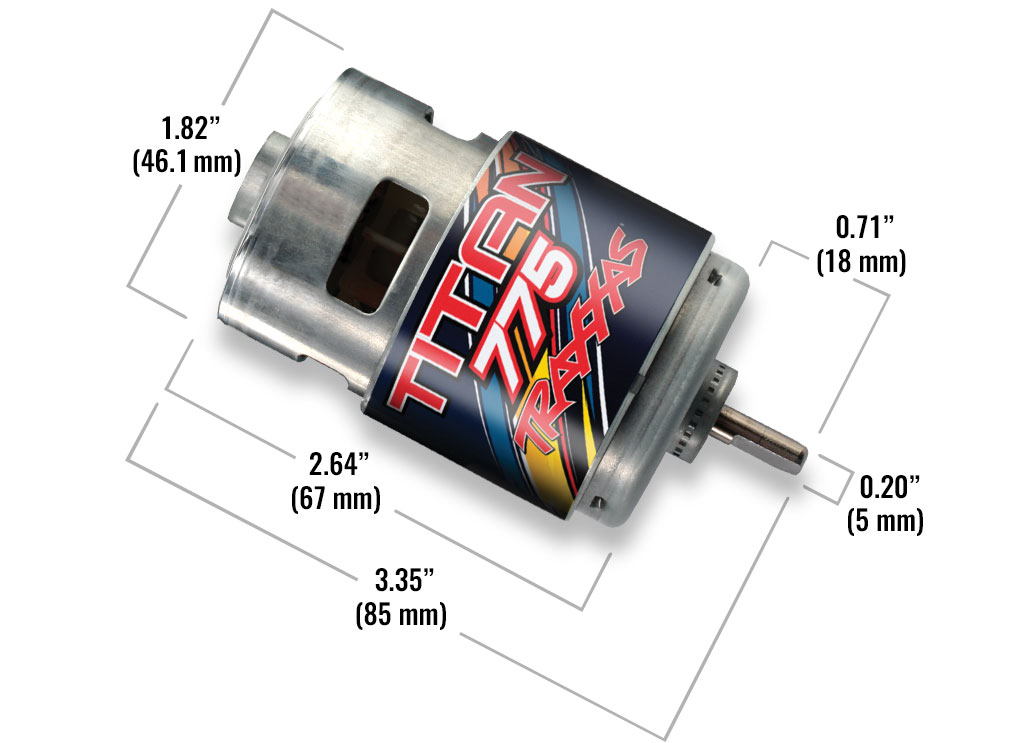

MOTOR SPECS
Motor Name:
Titan® 775
Motor Type:
High-torque brushed motor
Motor Weight:
13.76 ounces (390 g)
Motor Length:
3.35 inches (85 mm) overall length, 2.64 inches (67 mm) can length
Motor Diameter:
1.82 inches (46 mm)
Motor Shaft Size:
5 mm
Motor Connector Type:
Bullet

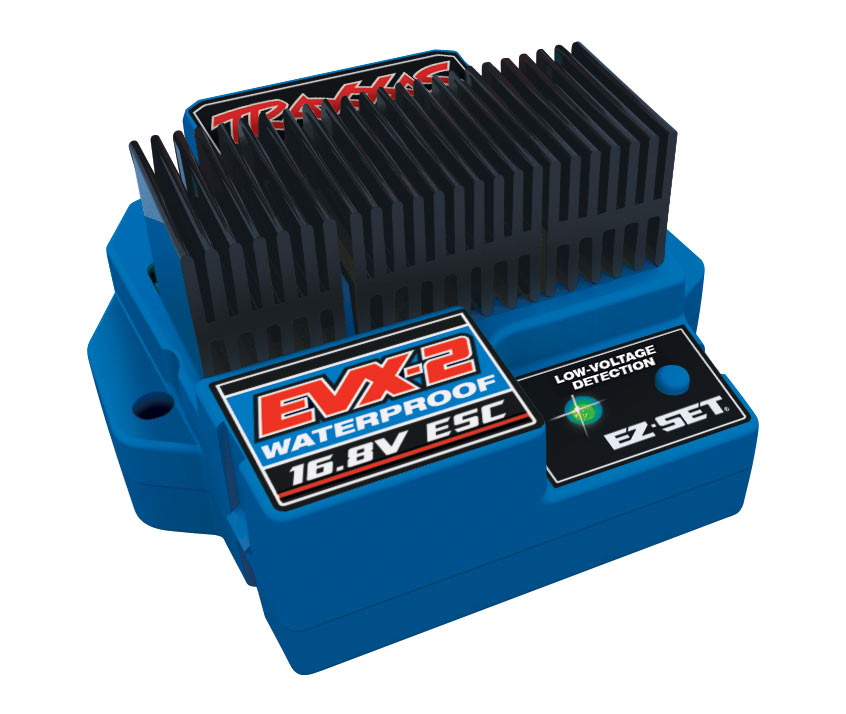

ESC SPECS
ESC Name:
EVX-2 with low voltage detection forward/reverse/brake
ESC Type:
Brushed
ESC Case Size:
2.27 inches (57 mm) / 2 inches (51 mm) / 1.05 inches (27 mm)
ESC Weight:
3.60 ounces (102 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High Current Connector
ESC Power Wire:
14 gauge

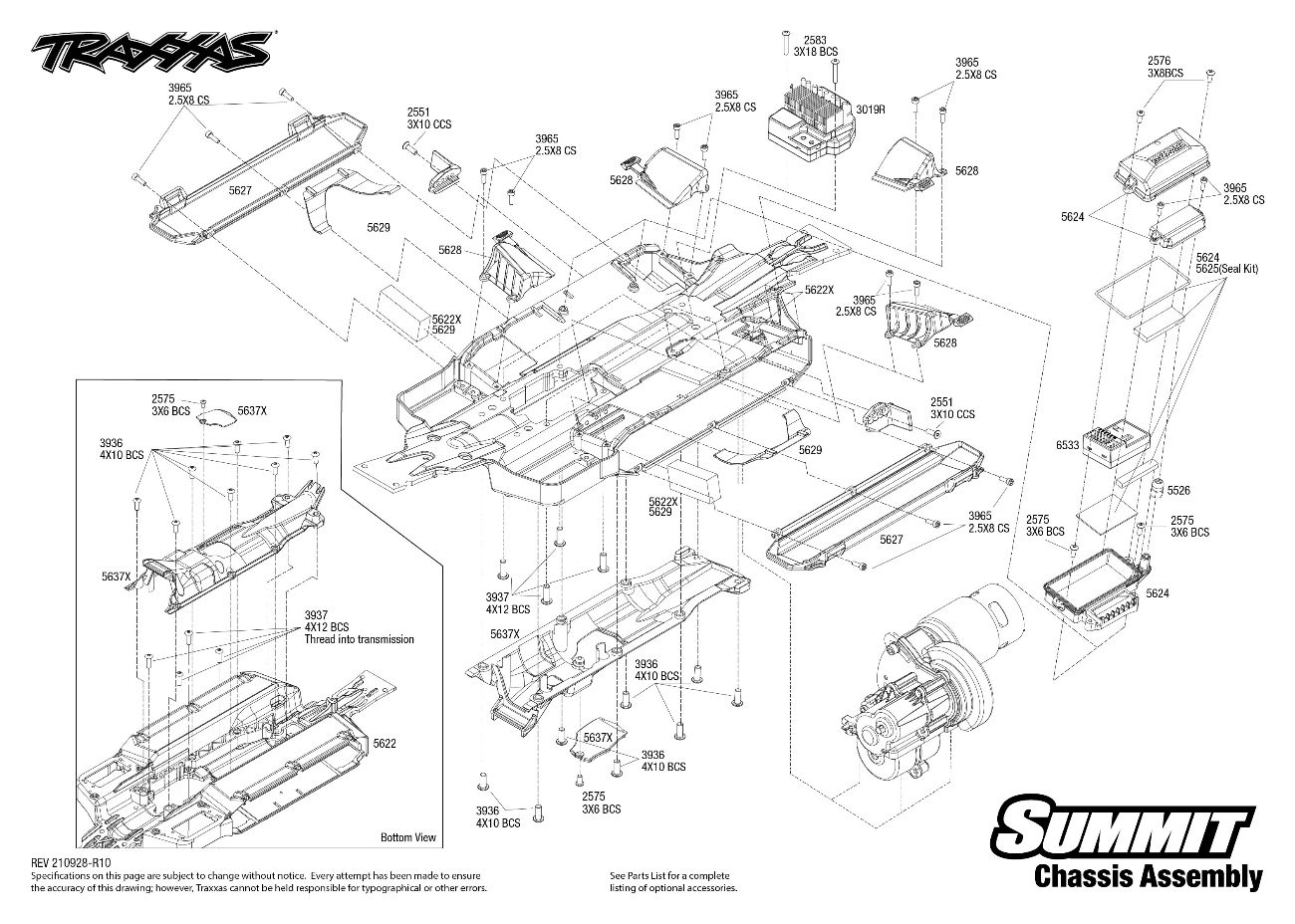

ProGraphix® Body with ExoCage™ Aggressive SUV-styled body Rugged ExoCage protects the body from rollovers Molded fender flares Strong front and rear bumpers Bright 10-LED lighting system EVX-2™ Waterproof Electronic Speed Control 16.8-volt Fwd/Rev electronic speed control EZ-Set® single button programming Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) High-capacity heat sink Titan® 775 Motor Huge Titan 775 modified motor with internal cooling fan 5 mm output shaft Extra wrap of steel for maximum torque Transmission Remotely operated high-low transmission 70:1 low range, 25:1 high range TQi™ 2.4 GHz Radio System TQi™ 2.4 GHz 4-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link enabled models Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle endpoints Patented waterproof receiver box Chassis Reinforced composite tub for greater durability Vented internal battery compartments with quick-release doors Low-CG design for improved performance Tough skid plates for driveline protection Drivetrain Dual-CV Telescoping Axles Heavy-duty telescoping center driveshafts Differentials Innovative T-Lock™ remote locking differentials Heavy-duty sealed 4-gear design Steering Heavy-duty servo horn with integrated servo saver Dual waterproof digital 2075 servos for 250 oz-in of torque Suspension Oil-filled GTR shocks with height-adjustable threaded aluminum bodies Inboard rocker arm suspension design for extreme articulation Low-CG design improves handling and protects components Wheels and Tires Massive 7″ Canyon AT™ extreme-terrain tires with soft foam inserts Rugged 3.8″ Geode™ wheels with Beadlock-style protectors 17 mm axle hubs Sealed Ball Bearings Hex hardware with Rust-Resistant Black Oxide Coating Requires Battery and Charger (Sold Separately)
