Battery & Charger
Sold Separately
Slash VXL Mag 272r Trans
MODEL SPECS
Model Name:
SLASH VXL W/ MAGNUM 272R
Model Type:
Short Course Trucks
Model Speed:
60+ mph with 3s LiPo and pinion/spur 31/76
Model Skill Level:
2
Scale:
1/10
Weight:
5.64 pounds (2.56 kg)

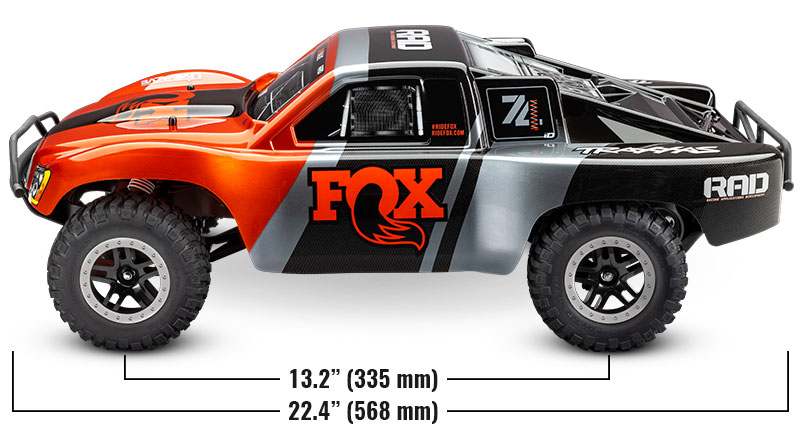

Length:
22.36 inches (568 mm)

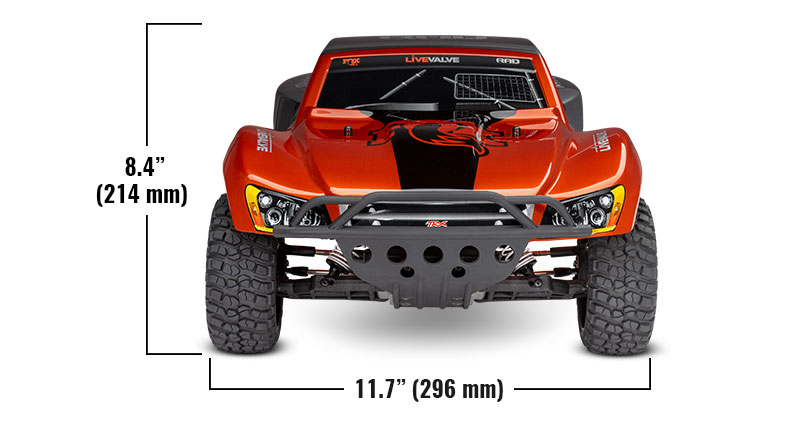

Width:
11.65 inches (296 mm)
Front Track:
11.65 inches (296 mm)
Rear Track:
11.65 inches (296 mm)
Height:
8.43 inches (214 mm)
Wheelbase:
13.2 inches (335 mm)
Center Ground Clearance:
3.5 inches (89 mm)
Drivetrain:
2WD

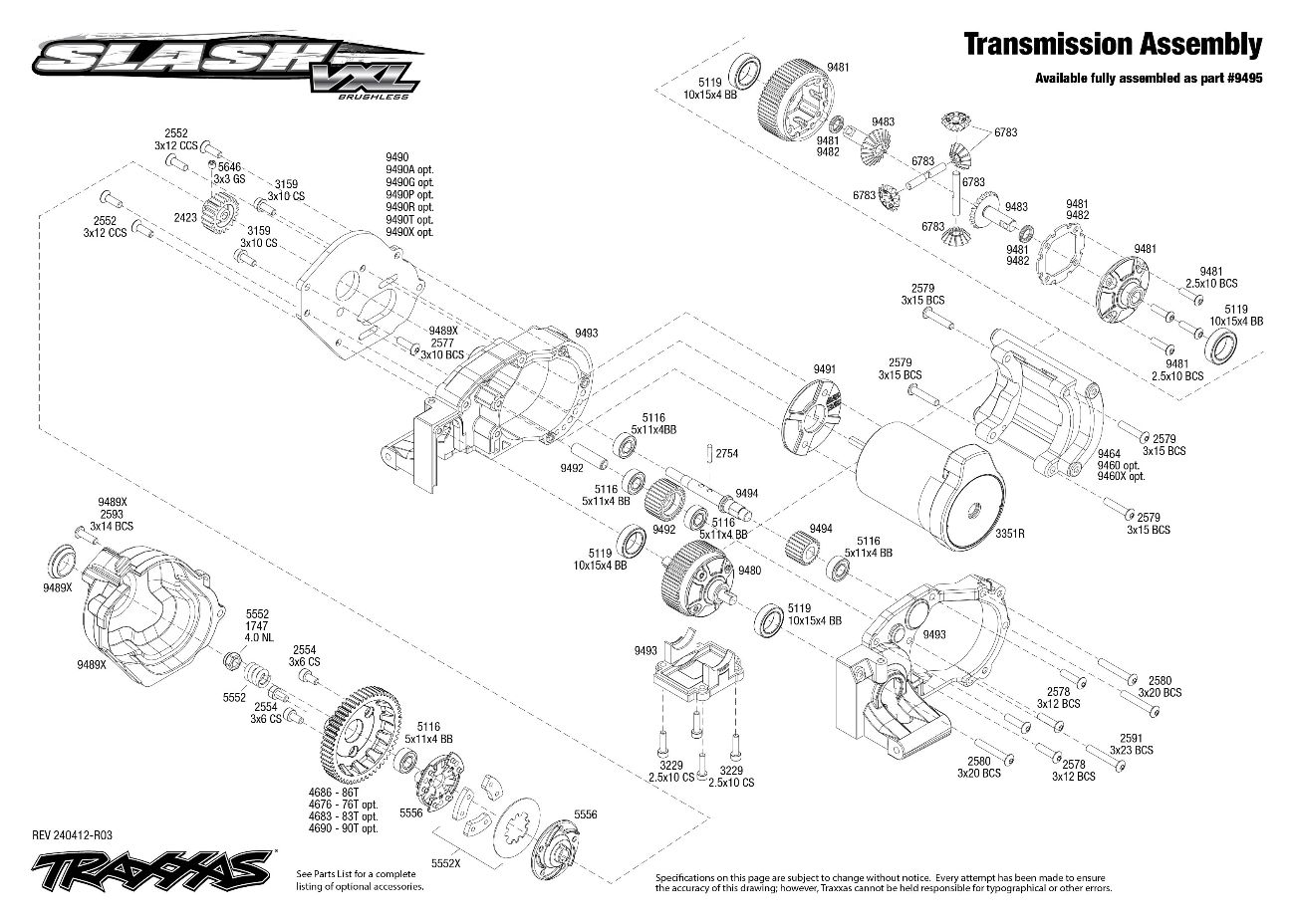

Transmission:
Heavy-duty Magnum 272R
Differential Type:
Sealed bevel-gear differential
Gear Ratio (Internal):
2.72 (final drive: 10.2)
Gear Pitch:
48 pitch
Servo(s):
2075 digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with 6533 receiver
Battery Compartment Specs:
165 mm X 49.5 mm X 23 mm, 25 mm

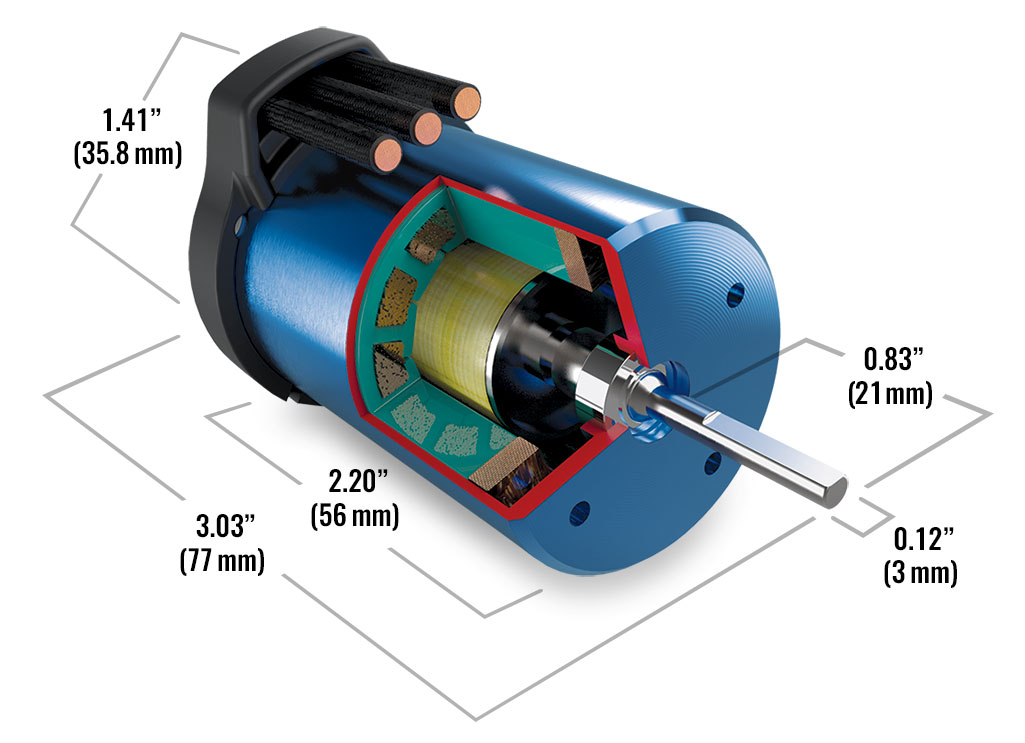

MOTOR SPECS
Motor Name:
Velineon® 3500
Motor Type:
Sensorless brushless
Motor Weight:
9.24 ounces (262 g)
Motor Length:
3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
3.5 mm bullet

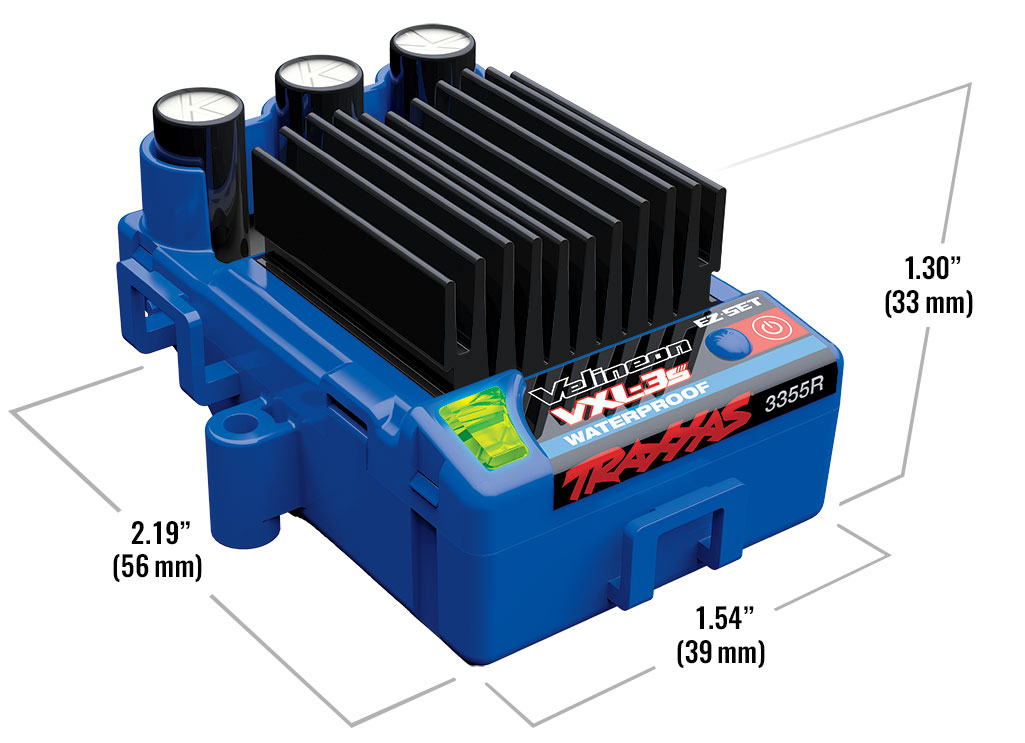

ESC SPECS
ESC Name:
VXL-3s™ electronic speed control
ESC Type:
Brushless
ESC Case Size:
1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:
3.17 ounces (90 g)
Motor Connectors:
3.5 mm bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
12 gauge Maxx® Cable
Race Replica ProGraphix® Painted Body Pre-painted body with applied decals Scale dimensions and looks of actual short course race trucks Chassis nerf bars absorb impact and support the body Scale front and rear tube-style bumpers VXL-3s™ Waterproof Electronic Speed Control Sport Mode - Forward / Brake / Reverse Traxxas EZ-Set® one-button setup Race Mode - Forward / Brake Large heat sink Built-in two-stage low-voltage detection for LiPo batteries Training Mode™ - 50% Forward / Brake / 50% Reverse (patented) NiMH battery packs: 6-9 cells (7.2 to 10.8 volts) LiPo battery packs: 2-3 cells (7.4 to 11.1 volts) Velineon® Brushless Motor Ultra high-temperature sintered Neodymium magnets Low-maintenance design Efficient, high-speed ball bearings Precision-balanced rotor 3500 kV Brilliant blue-anodized finish Traxxas Stability Management® (TSM) Improves straight line acceleration and braking on low-traction surfaces Maintains steering composure to allow throttle-on powerslides Never dulls throttle or slows the truck Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz High Output Radio System TQi 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link-enabled models Programmable multi-function knob Adjustable steering and throttle percentage (dual rates) Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle end points Patented waterproof receiver box Tough Fiber-Composite Monocoque Chassis Long 13.2″ wheelbase for increased stability Over 3.5″ of ground clearance All electronics securely fastened to chassis Suspension Adjustable steel turnbuckles Captured rod ends won't pop off Magnum 272R™ Transmission Redesigned heavy-duty low-CG case 3.2 mm aluminum motor plate Case supported bearings Fixed gear mesh High-strength steel gears Sealed bevel-gear differential Easy differential access Driveline Torque-Control™ slipper clutch system Heavy-duty telescoping U-joint driveshafts and yokes Steering Digital High-torque waterproof Traxxas 2075 steering servo Dual-bellcrank steering with integrated servo saver Springs and Shocks Fully adjustable oil-filled Ultra Shocks™ with X-ring technology Race-tuned progressive rate white powder-coated springs Wheels and Tires Pre-glued scale all-terrain tires with performance foam inserts 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability Requires Battery and Charger (Sold Separately)
No Parts available for this model
