Battery & Charger
Included

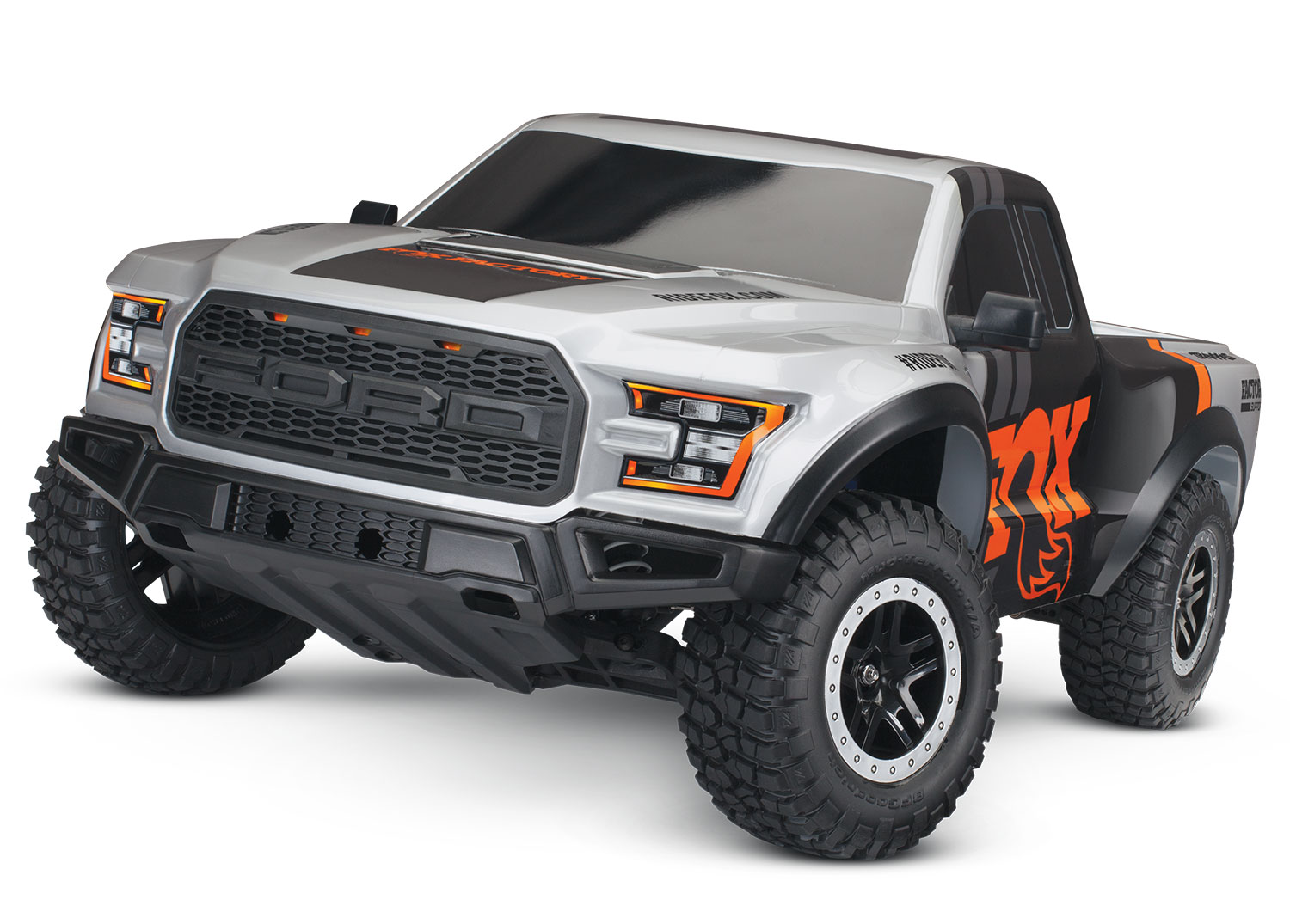

Ford Raptor 2WD XL-5
MODEL SPECS
Model Name:
Ford Raptor XL-5 2WD with USB-C
Model Type:
Short Course Trucks
Model Speed:
30+ mph with 7-cell battery and included optional 23-tooth pinion gear
Model Skill Level:
1
Scale:
1/10
Weight:
4.76 pounds (2.16 kg)
Length:
22.36 inches (568 mm)
Width:
11.65 inches (296 mm)
Front Track:
11.65 inches (296 mm)
Rear Track:
11.65 inches (296 mm)
Height:
8.43 inches (214 mm)
Wheelbase:
13.2 inches (335 mm)
Center Ground Clearance:
3.5 inches (89 mm)
Drivetrain:
2WD

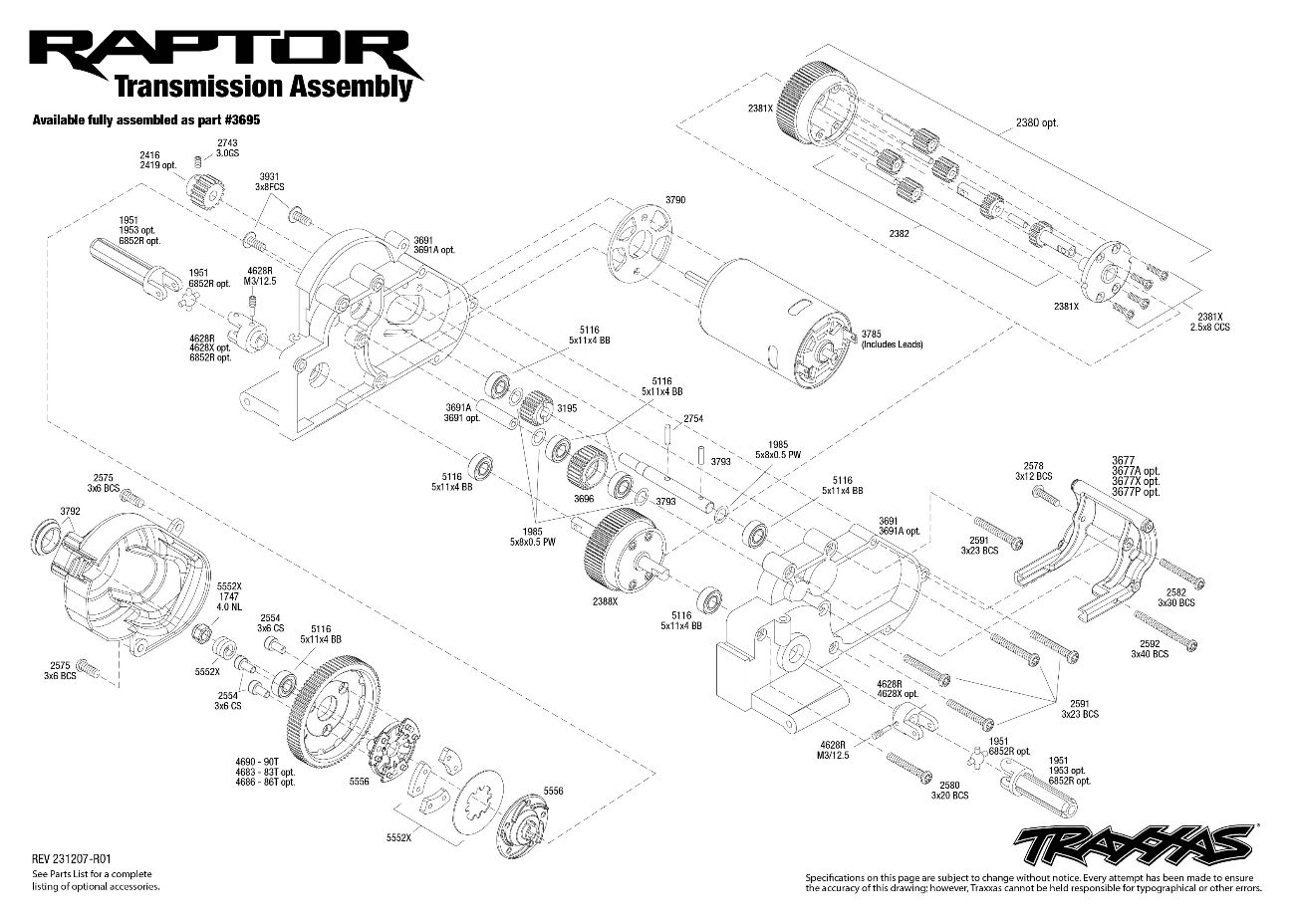

Transmission:
Magnum 272™
Differential Type:
Planetary steel gear
Gear Ratio (Internal):
2.72 (final drive: 9.05)
Gear Pitch:
48 pitch
Servo(s):
2075 digital high-torque waterproof
Radio System:
2.4 GHz 2-channel radio
Battery Compartment Specs:
165 mm X 49.5 mm X 23 mm, 26 mm

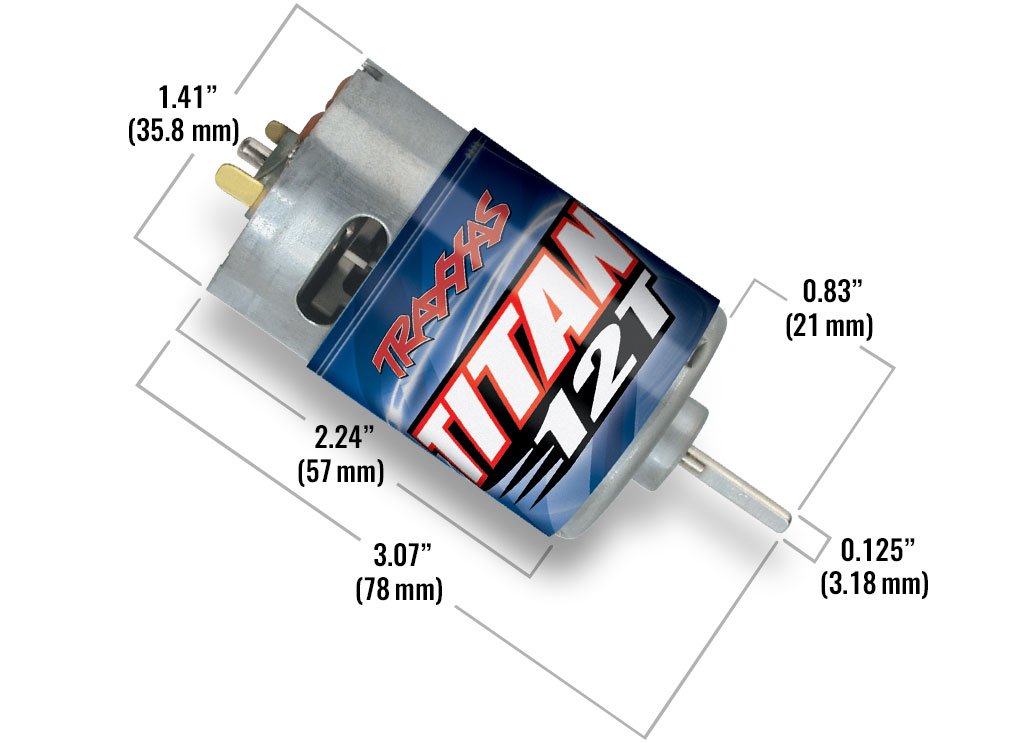

MOTOR SPECS
Motor Name:
Titan® 12T 550
Motor Type:
High-speed brushed motor
Motor Weight:
8.47 ounces (240 g)
Motor Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
Bullet

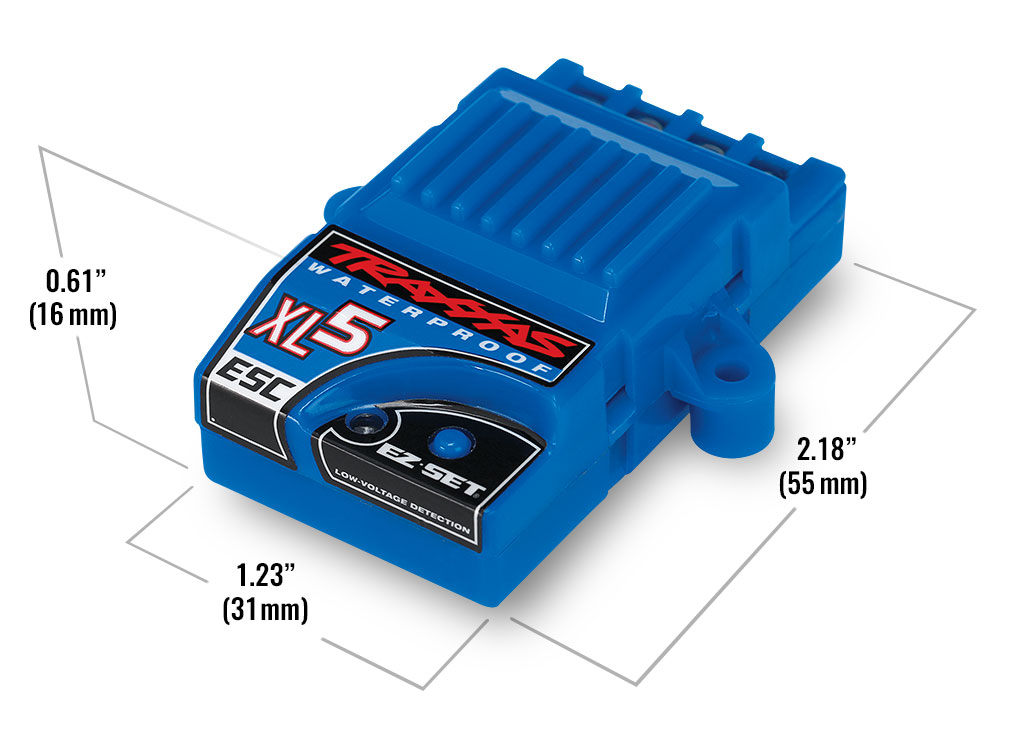

ESC SPECS
ESC Name:
Waterproof XL-5™ ESC with low-voltage detection
ESC Type:
Brushed
ESC Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:
2.44 ounces (69 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
14 gauge
Officially Licensed Ford® F-150® Raptor® body and Graphics Injection molded grille, side mirrors, and hood vent Chassis nerf bars absorb impact and support the body Tough front and rear replica bumpers High-Performance Waterproof XL-5™ Electronic Speed Control Innovative waterproof design Three drive profiles Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Traxxas EZ-Set® one-button setup LiPo and NiMH compatible with two-stage low-voltage detection Titan® 550 Motor Powerful Titan 12T 550 modified motor with internal cooling fan Oversized armature for big torque and increased power handling Virtually maintenance-free operation Molded wire retainer keeps motor wires secure TQ™ 2.4 GHz 2-Channel Radio System Ergonomic transmitter with internal antenna Traxxas 6519 3-channel micro receiver with fail-safe security Patented O-ring sealed watertight receiver box keeps the micro receiver dry Includes Battery and USB-C Charger 4-amp USB-C fast charger 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD® Tough Fiber-Composite Monocoque Chassis Long 13.2″ wheelbase for increased stability Over 3.5″ of ground clearance All electronics securely fastened to chassis Easy Access Battery Compartment Adjustable battery hold down Accepts 6- and 7-cell flat packs and 7-cell hump packs Accepts many 2s LiPo battery configurations Transmission and Driveline Brushless-ready Magnum 272™ metal-gear transmission Torque-Control™ slipper clutch system Planetary gear differential with steel ring gear Sealed gearbox protects the transmission with beefed up motor guard External gear cover with easy clutch access Heavy-duty telescoping U-joint driveshafts and yokes Steering Digital High-torque waterproof Traxxas 2075 steering servo High-performance bellcrank system minimizes bump steer Suspension Adjustable steel turnbuckles Captured rod ends won't pop off Springs and Shocks Fully adjustable oil-filled Ultra Shocks™ with X-ring technology Race-tuned progressive rate white powder-coated springs Wheels and Tires Pre-glued scale all-terrain tires with performance foam inserts 2″ outer diameter, 3″ inner diameter dual-profile black split-spoke wheels Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability
No Parts available for this model
