Stampede 4X4 Kit W Electronics

MODEL SPECS

Model Name:	Stampede 4X4 Kit with Electronics
Model Skill Level:	1
Scale:	1/10
Weight:	5.67 pounds (2.57 kg)

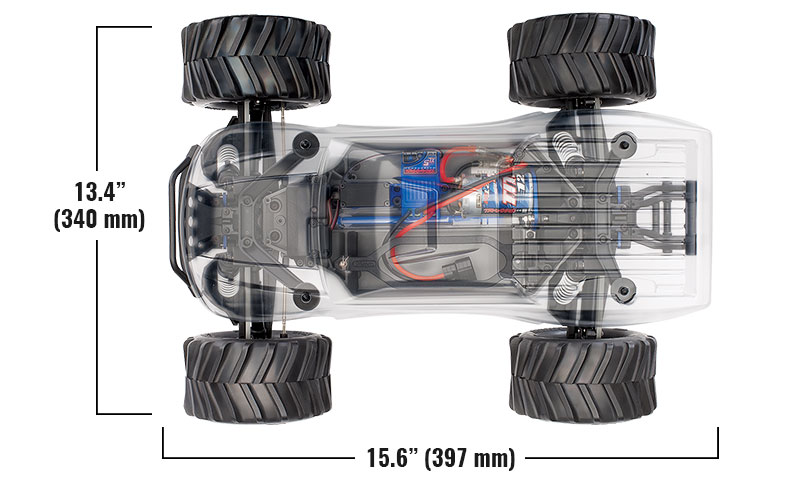

Length:	15.63 inches (397 mm)
Width:	13.39 inches (340 mm)
Front Track:	13.39 inches (340 mm)
Rear Track:	13.39 inches (340 mm)

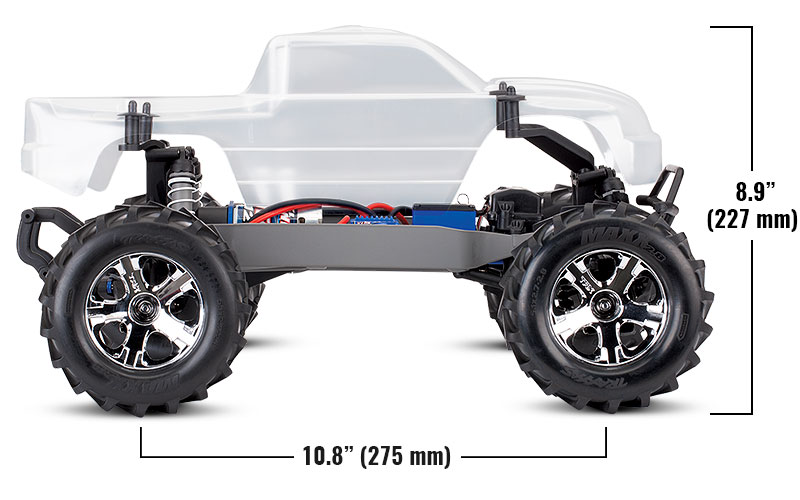

Height:	8.94 inches (227 mm)

Wheelbase:	10.83 inches (275 mm)
Center Ground Clearance:	2.95 inches (75 mm)
Drivetrain:	Shaft-driven, 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	23.5:1
Gear Pitch:	32 pitch
Servo(s):	#2056 high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	142 mm X 48.5 mm X 23 mm, 25 mm

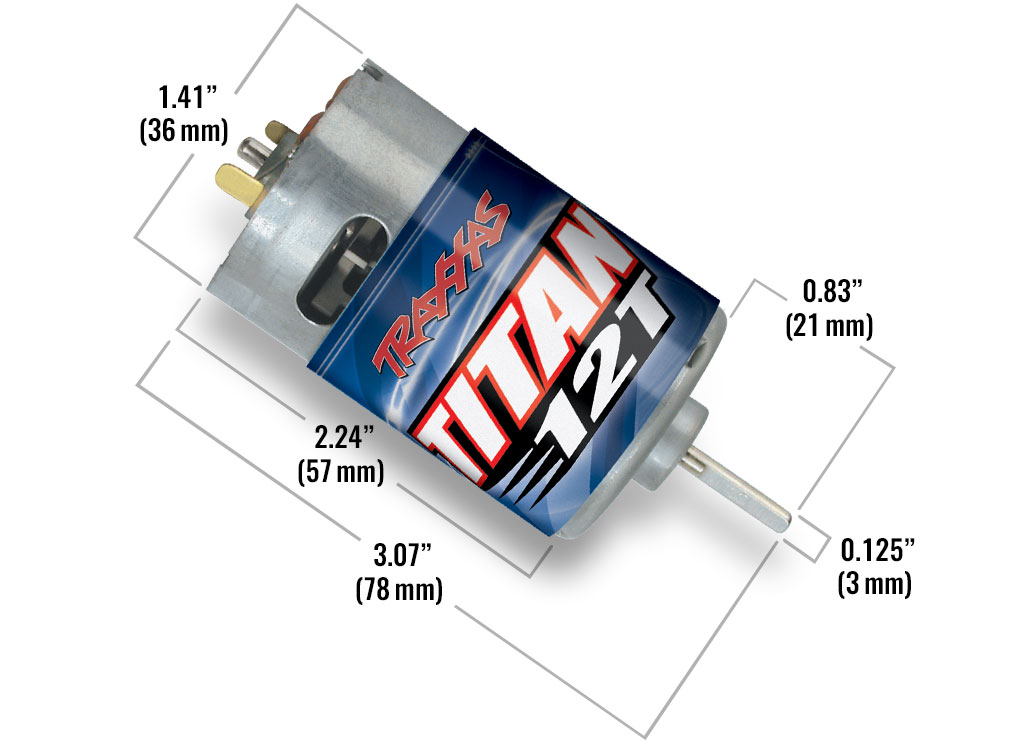

MOTOR SPECS

Motor Name:	Titan^® 12T 550
Motor Type:	High-speed brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC SPECS

ESC Name:	Waterproof XL-5 ESC with low-voltage detection
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High Current Connector
ESC Power Wire:	14 gauge

Easy to Follow Full-Color Assembly Manual
Easy to Follow Full-Color Assembly Manual

True-to-scale part illustrations and ruler charts

True-to-scale part illustrations and ruler charts

True-to-scale part illustrations and ruler charts

True-to-scale part illustrations and ruler charts
Helpful assembly tips and clear illustrations

Helpful assembly tips and clear illustrations
Helpful assembly tips and clear illustrations
Helpful assembly tips and clear illustrations
Clear Monster Truck Body
Clear Monster Truck Body

Body comes pre-cut and ready to mount

Body comes pre-cut and ready to mount

Body comes pre-cut and ready to mount

Body comes pre-cut and ready to mount
Includes window masking and decals
Includes window masking and decals
Includes window masking and decals
Includes window masking and decals
(Requires polycarbonate paint)
(Requires polycarbonate paint)
(Requires polycarbonate paint)

(Requires polycarbonate paint)
Waterproof XL-5™ Electronic Speed Control
Waterproof XL-5™ Electronic Speed Control

Innovative waterproof design

Innovative waterproof design

Innovative waterproof design

Innovative waterproof design

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse

Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Race Mode - forward / brake
Race Mode - forward / brake
Race Mode - forward / brake
Race Mode - forward / brake
Race Mode - forward / brake
Race Mode - forward / brake
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Training Mode™ - 50% forward / brake / 50% reverse (patented)

Training Mode™ - 50% forward / brake / 50% reverse (patented)
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Traxxas EZ-Set^® one-button setup
Traxxas EZ-Set^® one-button setup
Traxxas EZ-Set^® one-button setup
Traxxas EZ-Set^® one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection
LiPo and NiMH compatible with two-stage low-voltage detection
LiPo and NiMH compatible with two-stage low-voltage detection
LiPo and NiMH compatible with two-stage low-voltage detection

Titan 550 Motor
Titan 550 Motor

Powerful Titan™ 12T 550 modified motor with internal cooling fan

Powerful Titan™ 12T 550 modified motor with internal cooling fan

Powerful Titan™ 12T 550 modified motor with internal cooling fan

Powerful Titan™ 12T 550 modified motor with internal cooling fan
Oversized armature for big torque and increased power handling
Oversized armature for big torque and increased power handling
Oversized armature for big torque and increased power handling
Oversized armature for big torque and increased power handling

Virtually maintenance-free operation

Virtually maintenance-free operation

TQ™ 2.4GHz 2-Channel Radio System

Ergonomic transmitter with internal antenna

Ergonomic transmitter with internal antenna

Ergonomic transmitter with internal antenna

Ergonomic transmitter with internal antenna
Traxxas #6519 3-channel micro receiver with fail-safe security
Traxxas #6519 3-channel micro receiver with fail-safe security
Traxxas #6519 3-channel micro receiver with fail-safe security
Traxxas #6519 3-channel micro receiver with fail-safe security
Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Patented O-ring sealed watertight receiver box keeps the micro receiver dry

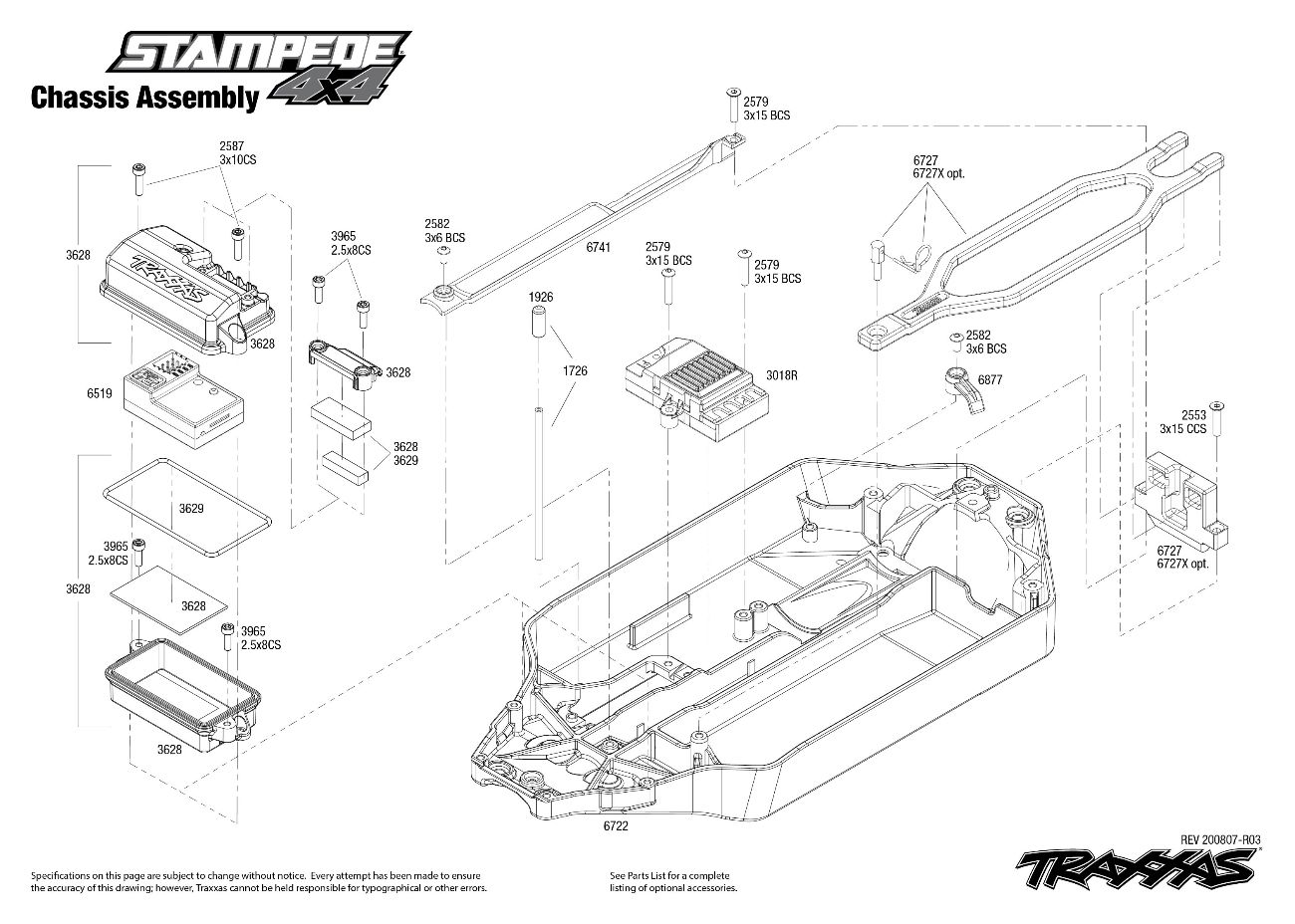

Tough Fiber-Composite Modular Chassis
Tough Fiber-Composite Modular Chassis

Modular chassis makes maintenance quick and easy

Modular chassis makes maintenance quick and easy

Modular chassis makes maintenance quick and easy

Modular chassis makes maintenance quick and easy
Easy motor access with single-screw motor plate attachment
Easy motor access with single-screw motor plate attachment
Easy motor access with single-screw motor plate attachment
Easy motor access with single-screw motor plate attachment
All electronics securely fastened to chassis

All electronics securely fastened to chassis
All electronics securely fastened to chassis
All electronics securely fastened to chassis
Easy Access Battery Compartment
Easy Access Battery Compartment

Accepts 6-cell flat packs and 7-cell hump packs

Accepts 6-cell flat packs and 7-cell hump packs

Accepts 6-cell flat packs and 7-cell hump packs

Accepts 6-cell flat packs and 7-cell hump packs
Accepts short form factor 2-cell LiPo batteries
Accepts short form factor 2-cell LiPo batteries
Accepts short form factor 2-cell LiPo batteries

Accepts short form factor 2-cell LiPo batteries

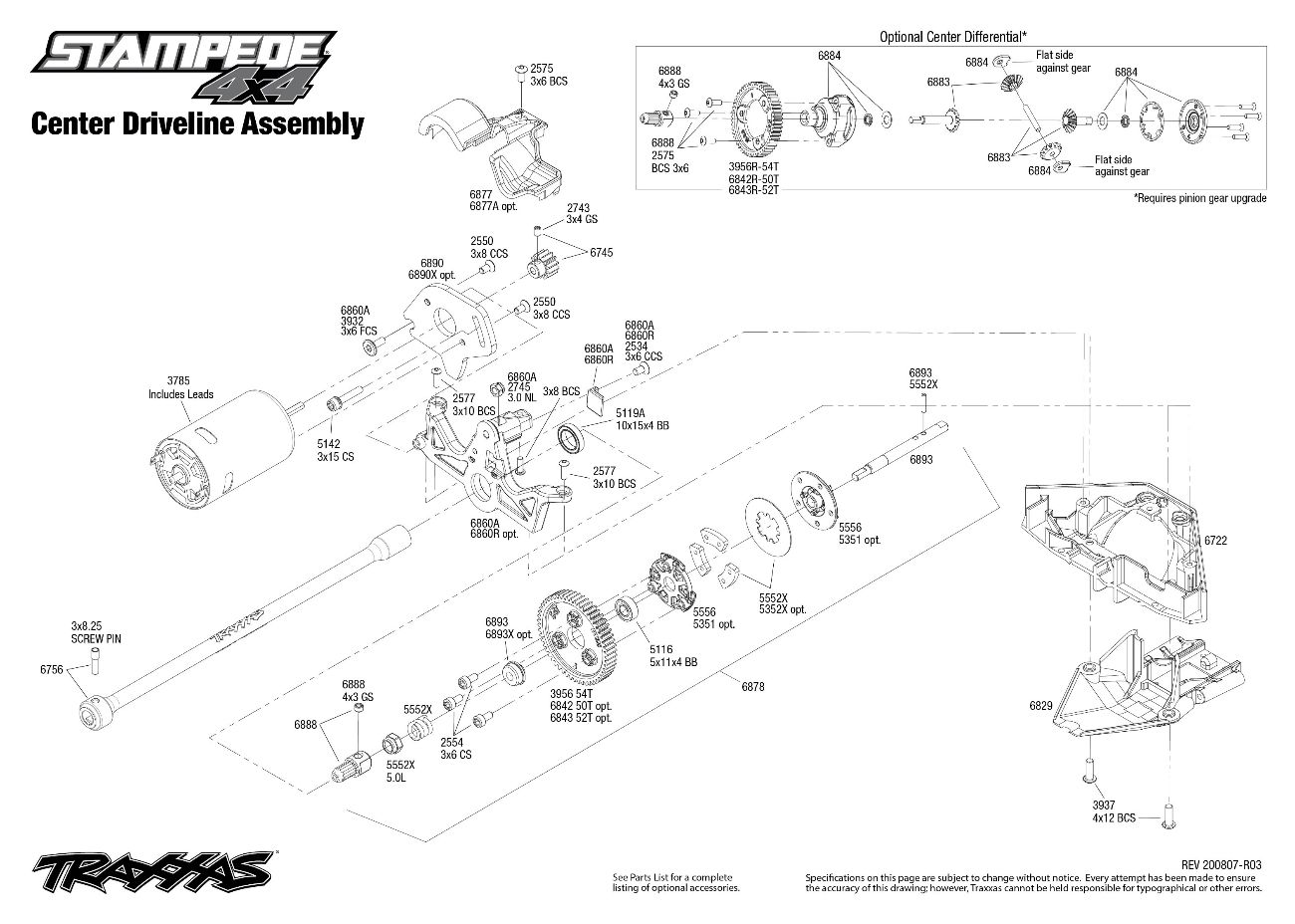

Transmission and Driveline
Transmission and Driveline

Full-time shaft-driven 4WD

Full-time shaft-driven 4WD

Full-time shaft-driven 4WD

Full-time shaft-driven 4WD
Torque-Control™ slipper clutch with large 32-pitch gearing
Torque-Control™ slipper clutch with large 32-pitch gearing
Torque-Control™ slipper clutch with large 32-pitch gearing
Torque-Control™ slipper clutch with large 32-pitch gearing
Sealed, silicone-filled differentials with steel gears

Sealed, silicone-filled differentials with steel gears
Sealed, silicone-filled differentials with steel gears
Sealed, silicone-filled differentials with steel gears

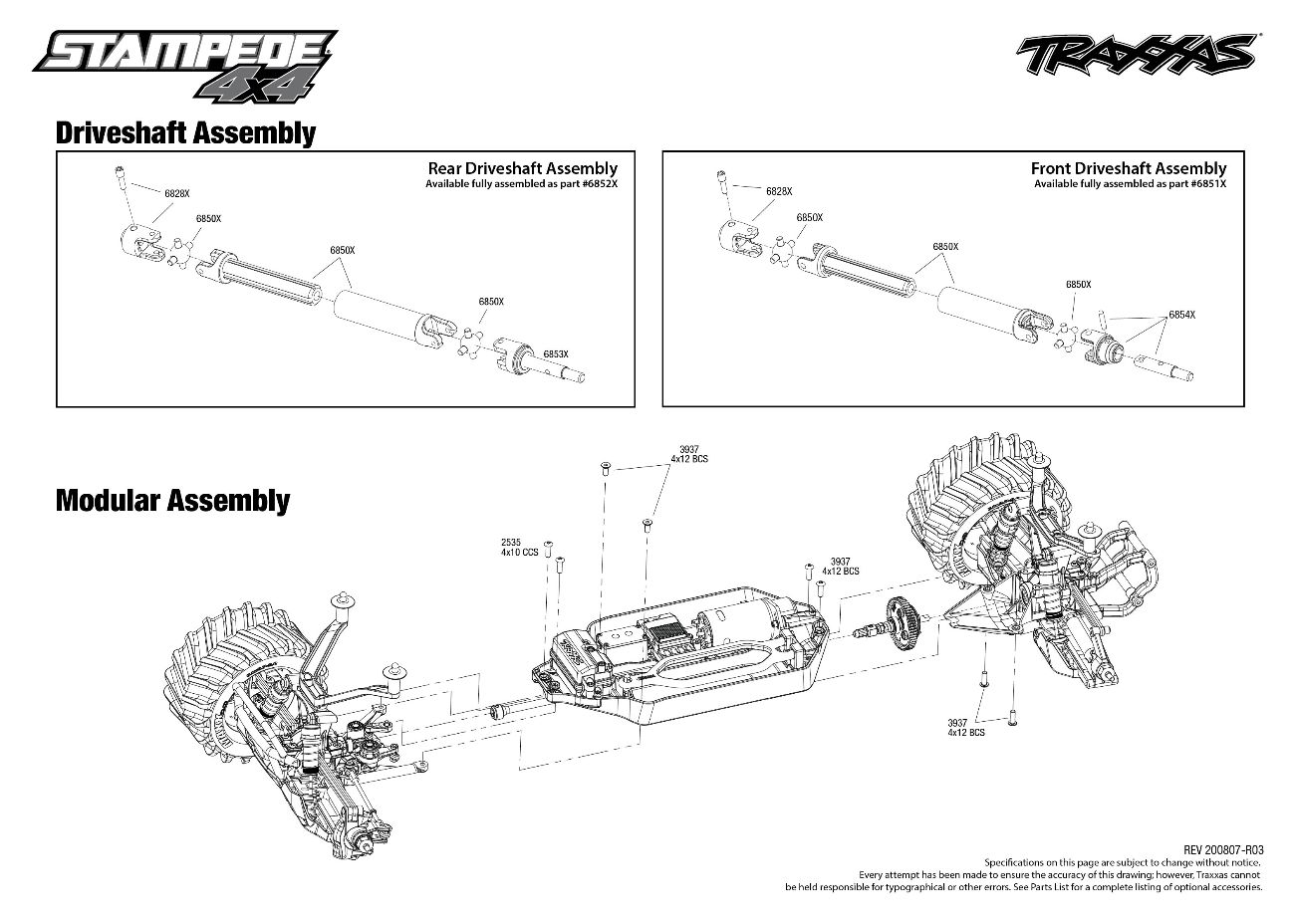

Heavy-duty telescoping U-joint driveshafts

Heavy-duty telescoping U-joint driveshafts

Steering

Waterproof Traxxas #2056 steering servo

Waterproof Traxxas #2056 steering servo

Waterproof Traxxas #2056 steering servo

Waterproof Traxxas #2056 steering servo
Dual bellcrank steering system with integrated servo saver

Dual bellcrank steering system with integrated servo saver
Dual bellcrank steering system with integrated servo saver
Dual bellcrank steering system with integrated servo saver
Suspension
Suspension

Durable solid camber links eliminate the need for adjustment

Durable solid camber links eliminate the need for adjustment

Durable solid camber links eliminate the need for adjustment

Durable solid camber links eliminate the need for adjustment
Captured rod ends won't pop off
Captured rod ends won't pop off
Captured rod ends won't pop off
Captured rod ends won't pop off
Rugged shock guards mounted to suspension arms
Rugged shock guards mounted to suspension arms
Rugged shock guards mounted to suspension arms

Rugged shock guards mounted to suspension arms
Springs and Shocks
Springs and Shocks

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
White powder-coated springs
White powder-coated springs
White powder-coated springs

White powder-coated springs
Wheels and Tires
Wheels and Tires

Pre-glued high profile Chevron Maxx™ all-terrain tires with performance foam inserts

Pre-glued high profile Chevron Maxx™ all-terrain tires with performance foam inserts

Pre-glued high profile Chevron Maxx™ all-terrain tires with performance foam inserts

Pre-glued high profile Chevron Maxx™ all-terrain tires with performance foam inserts
2.8” Mirror-chrome All-Star™ wheels
2.8” Mirror-chrome All-Star™ wheels
