MODEL SPECS
Model Name:
Rustler 4X4 w/ LED Lights
Model Type:
Stadium Trucks
Model Skill Level:
1
Scale:
1/10
Weight:
4.73 pounds (2.15 kg)

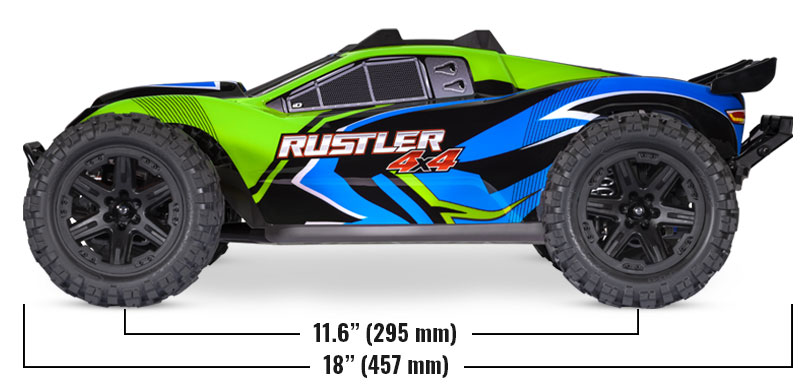

Length:
18 inches (457 mm)
Width:
12.94 inches (329 mm)
Front Track:
12.94 inches (329 mm)
Rear Track:
12.94 inches (329 mm)
Height:
6.35 inches (161 mm)
Wheelbase:
11.6 inches (295 mm)
Center Ground Clearance:
1.1 inches (27 mm)
Drivetrain:
Shaft-driven 4WD
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):
19.23:1
Gear Pitch:
32 pitch
Servo(s):
2056 high-torque waterproof
Radio System:
TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:
162 mm X 50 mm X 25 mm

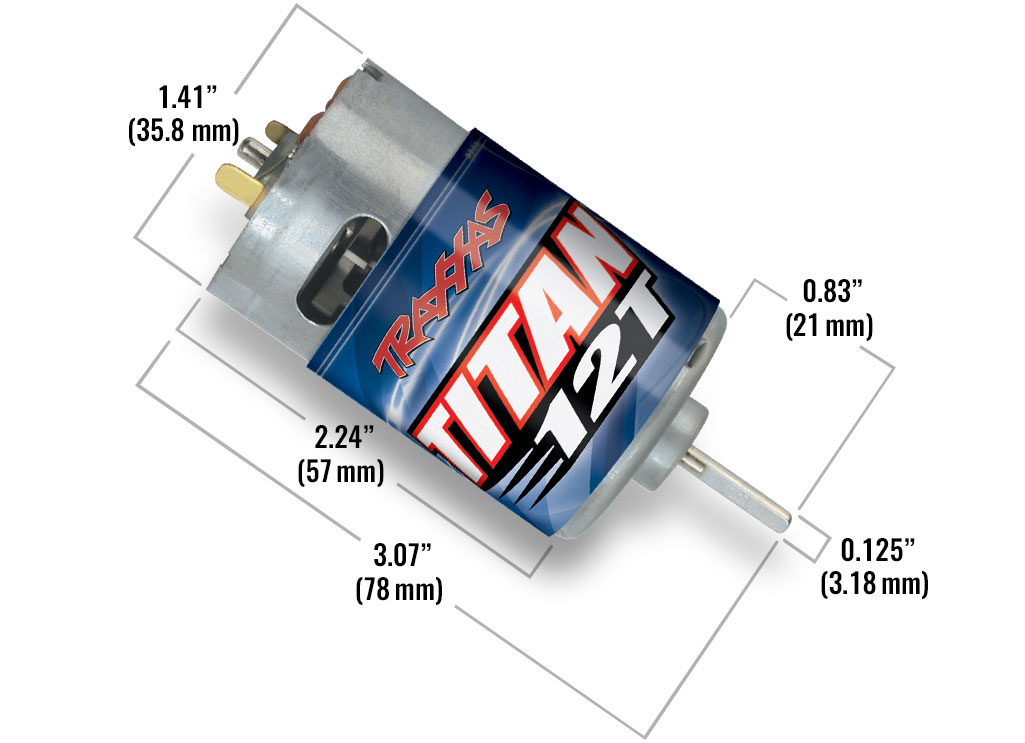

MOTOR SPECS
Motor Name:
Titan® 12T 550
Motor Type:
High-speed brushed motor
Motor Weight:
8.47 ounces (240 g)
Motor Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
Bullet

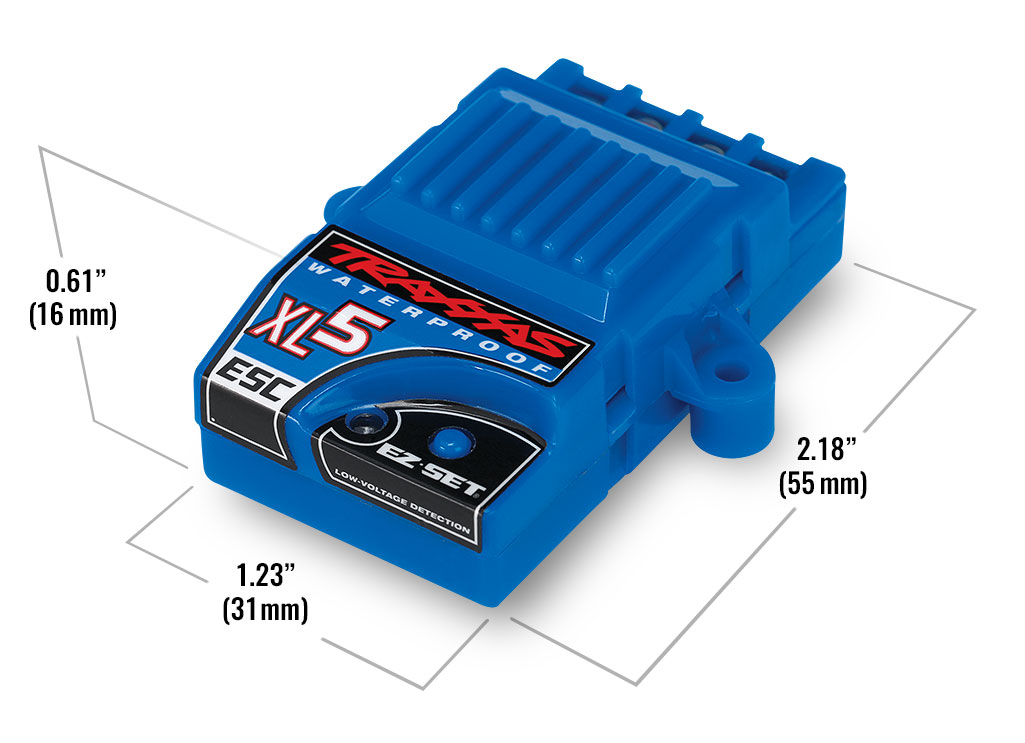

ESC SPECS
ESC Name:
Waterproof XL-5™ ESC with low-voltage detection
ESC Type:
Brushed
ESC Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight:
2.44 ounces (69 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High Current Connector
ESC Power Wire:
14 gauge
Clipless ProGraphix® Body Easy one-handed removal Reinforced inner cage Strong oversized latch Rugged roof rollover protector Molded composite plastic wing High-Performance Waterproof XL-5™ Electronic Speed Control Innovative waterproof design Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Traxxas EZ-Set® one-button setup LiPo and NiMH compatible with two-stage low-voltage detection Titan® 550 Motor Powerful Titan 12T 550 brushed motor with internal cooling fan Oversized armature for big torque and increased power handling Virtually maintenance-free operation Molded wire retainer keeps motor wires secure Front and Rear LED Lighting TQ™ 2.4 GHz 2-Channel Radio System Ergonomic transmitter with internal antenna Traxxas 6519 3-channel micro receiver with fail-safe security Sealed watertight receiver box keeps the micro receiver dry Includes Battery and Charger 4-amp 12 V DC Peak Detecting Fast Charger 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD® Chassis Low-CG design for responsive handling Modular composite tub design Latching battery hold-down High-approach front bumper to climb curbs Drivetrain Heavy-duty driveshafts Oil-filled steel gear front and rear differentials Large 32-pitch gearing Torque Control™ heavy-duty slipper clutch Steering Chassis-mounted 2056 servo Dual bellcrank design with integrated servo saver Suspension Durable solid camber links eliminate the need for adjustment Oil-filled Ultra Shocks Captured rod ends won't pop off Rugged front and rear shock towers White powder-coated progressive springs Wheels and Tires Large 2.8″ black wheels Talon™ EXT tires Sealed Ball Bearings Hex hardware with Rust-Resistant Black Oxide Coating
