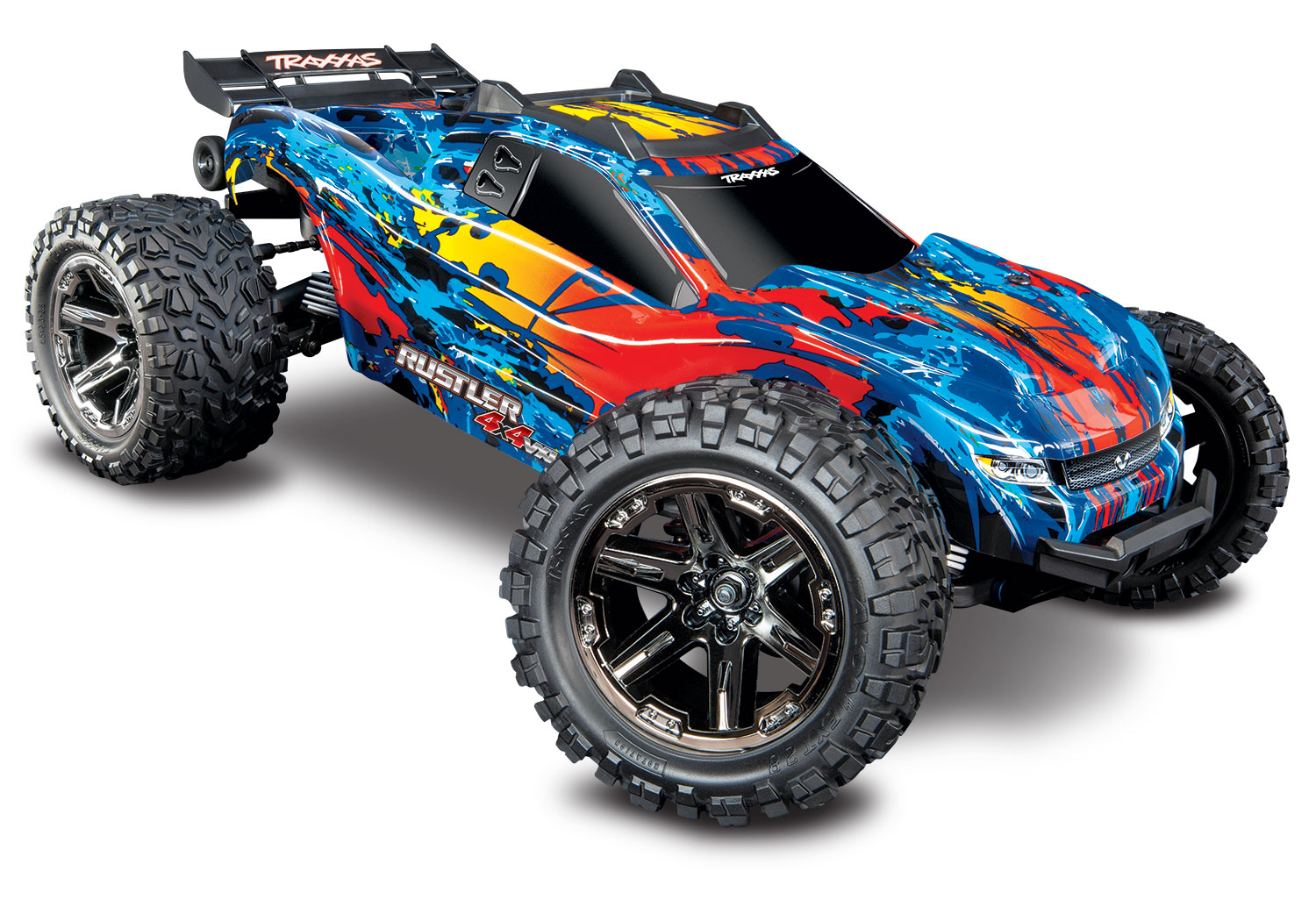

Rustler VXL 4X4 Brushless
MODEL SPECS
Model Name:
Rustler 4X4 VXL
Model Type:
Stadium Trucks
Model Speed:
65+ mph with 3-cell LiPo and 20/54 gearing
Model Skill Level:
2
Scale:
1/10
Weight:
5.12 pounds (2.32 kg)

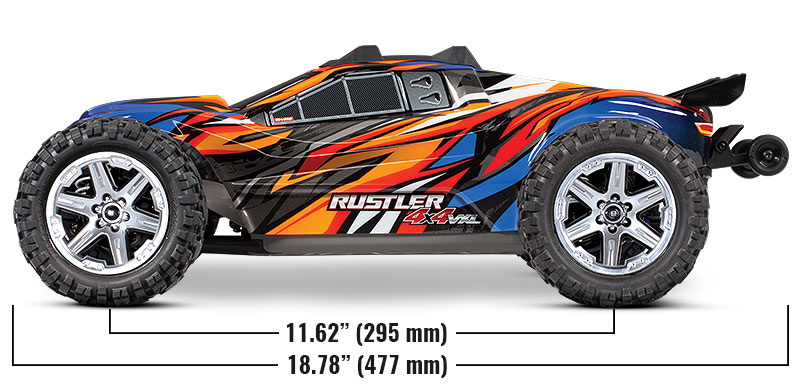

Length:
18.78 inches (477 mm)

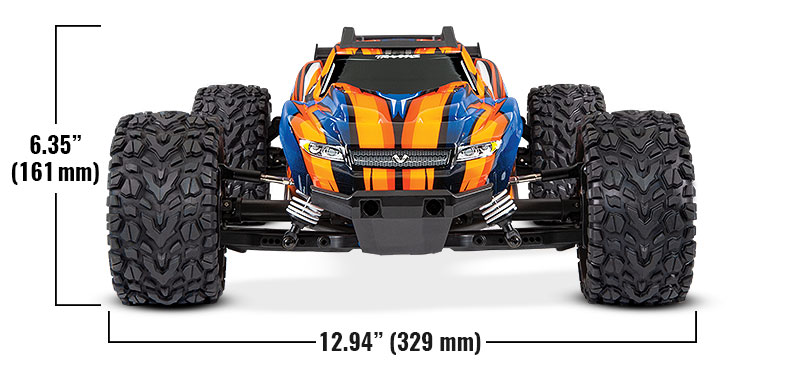

Width:
12.94 inches (329 mm)
Front Track:
12.94 inches (329 mm)
Rear Track:
12.94 inches (329 mm)
Height:
6.35 inches (161 mm)
Wheelbase:
11.62 inches (295 mm)
Center Ground Clearance:
1.1 inches (27 mm)

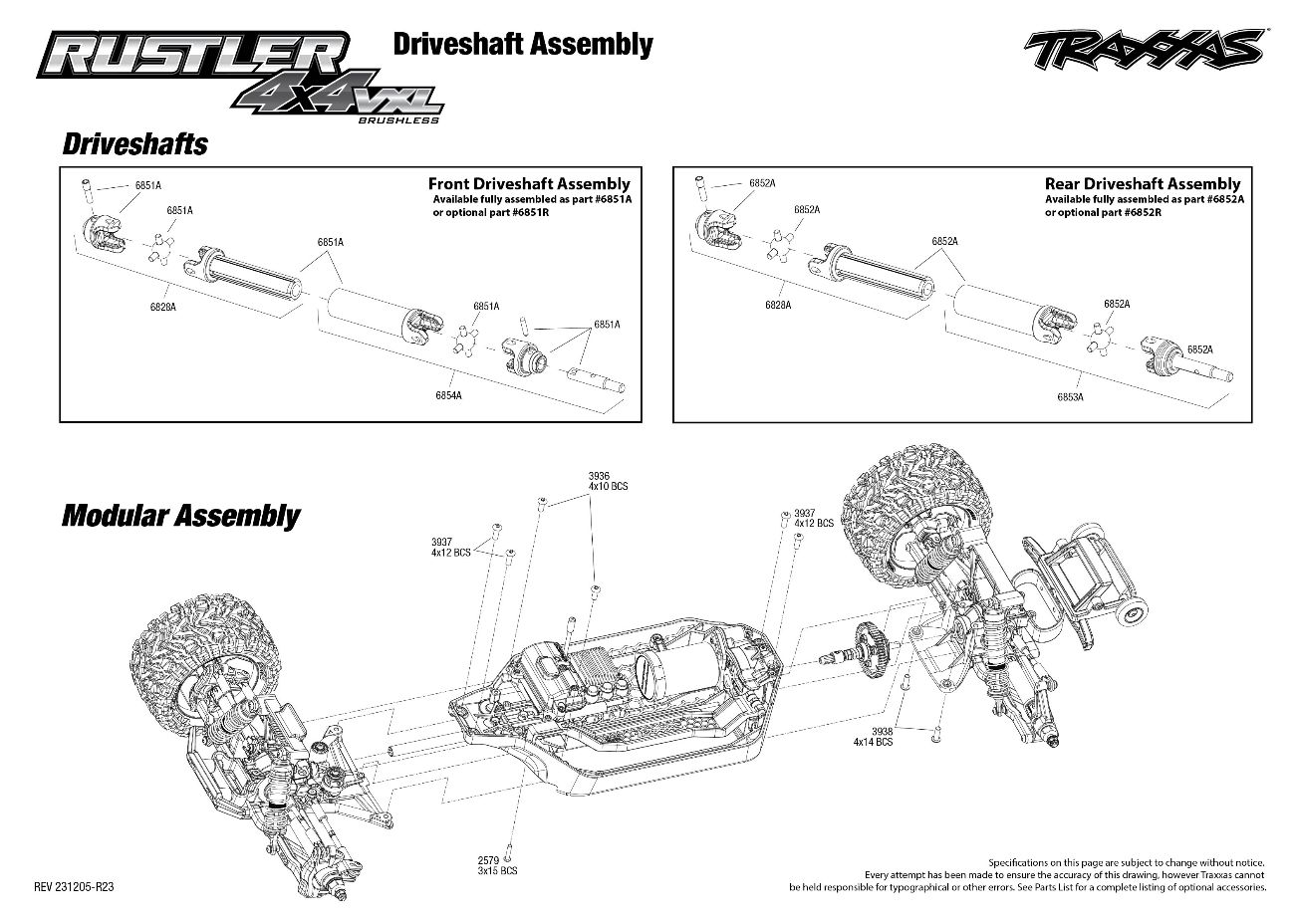

Drivetrain:
Shaft driven 4WD

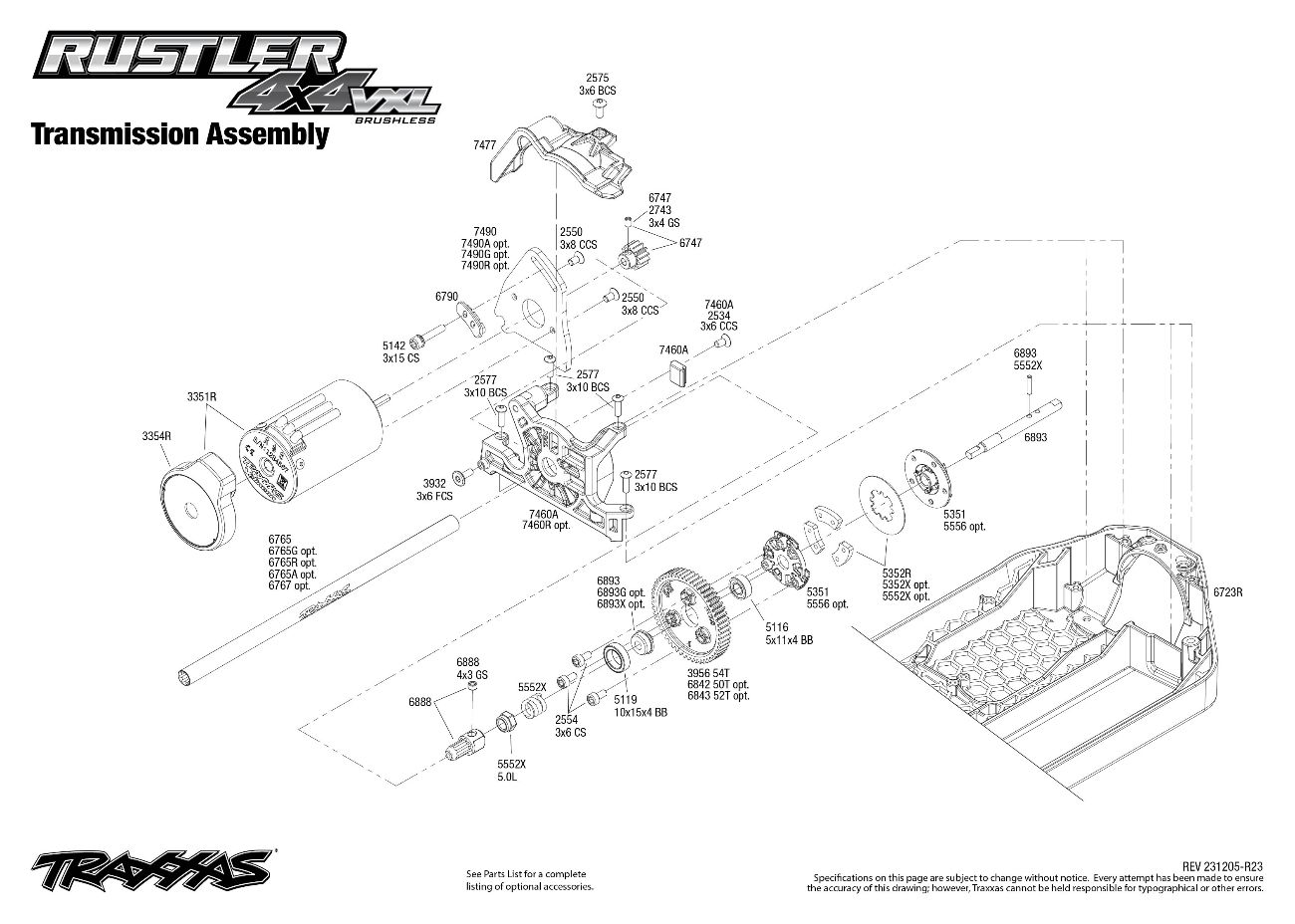

Transmission:
Single speed
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):
13.97:1
Gear Pitch:
32 pitch
Servo(s):
2075 digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Compartment Specs:
162 mm X 50 mm X 25 mm, *42mm with optional battery strap (included)

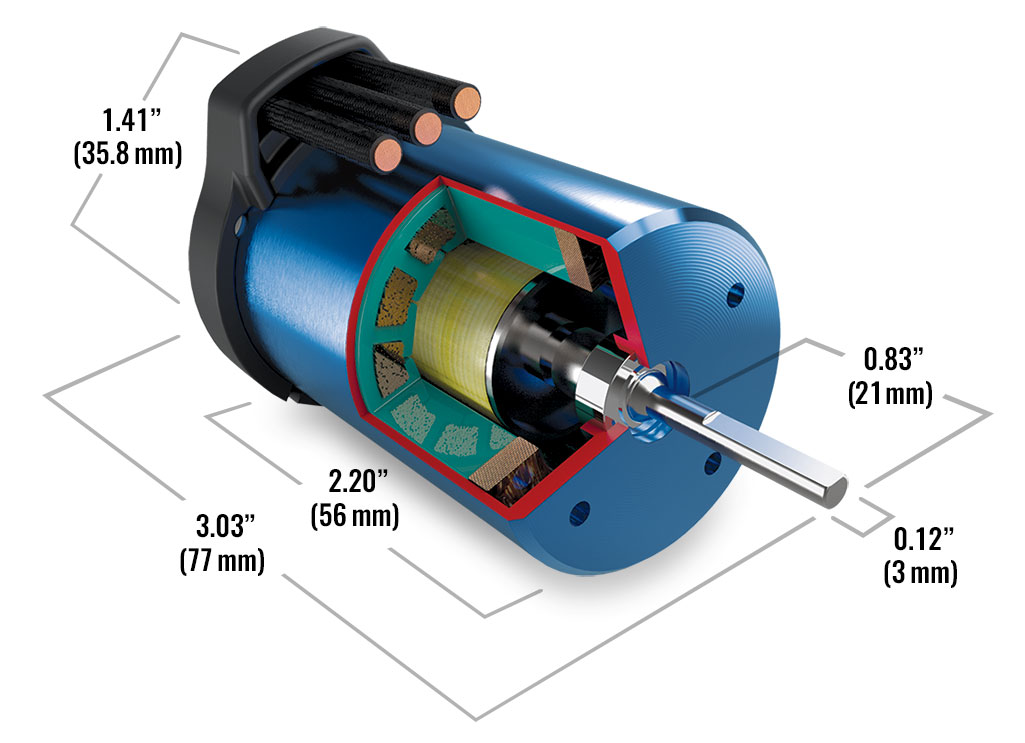

MOTOR SPECS
Motor Name:
Velineon® 3500
Motor Type:
Sensorless brushless
Motor Weight:
9.24 ounces (262 g)
Motor Length:
3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
3.5 mm bullet

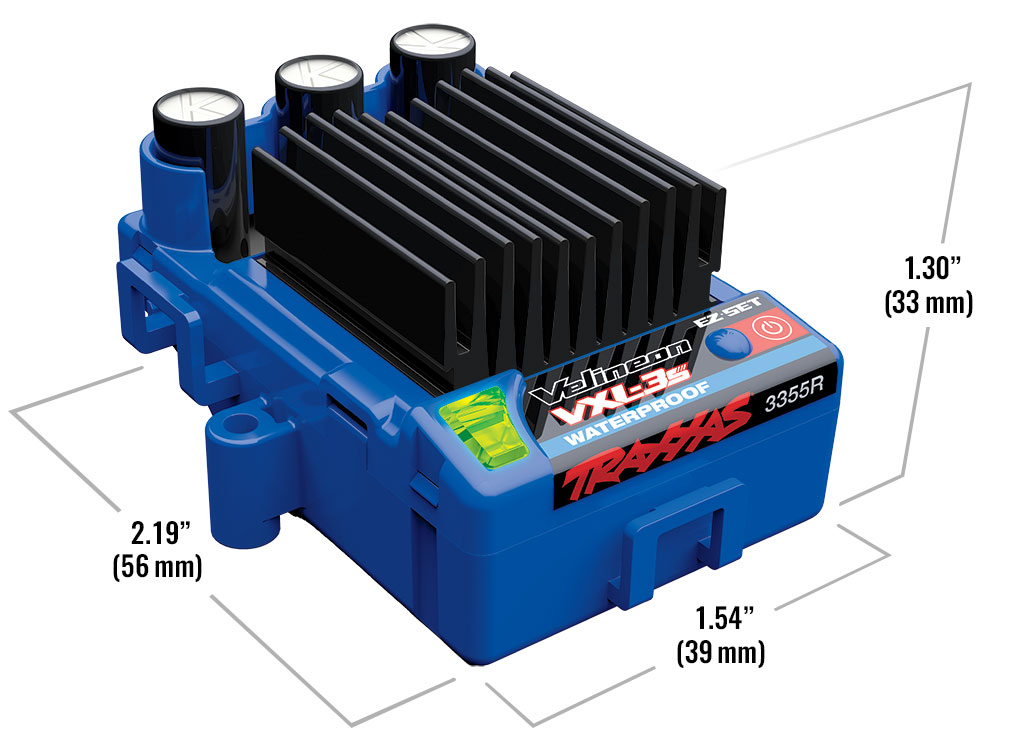

ESC SPECS
ESC Name:
VXL-3s™ electronic speed control
ESC Type:
Brushless
ESC Case Size:
1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:
3.17 ounces (90 g)
Motor Connectors:
3.5 mm bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
12 gauge Maxx® Cable

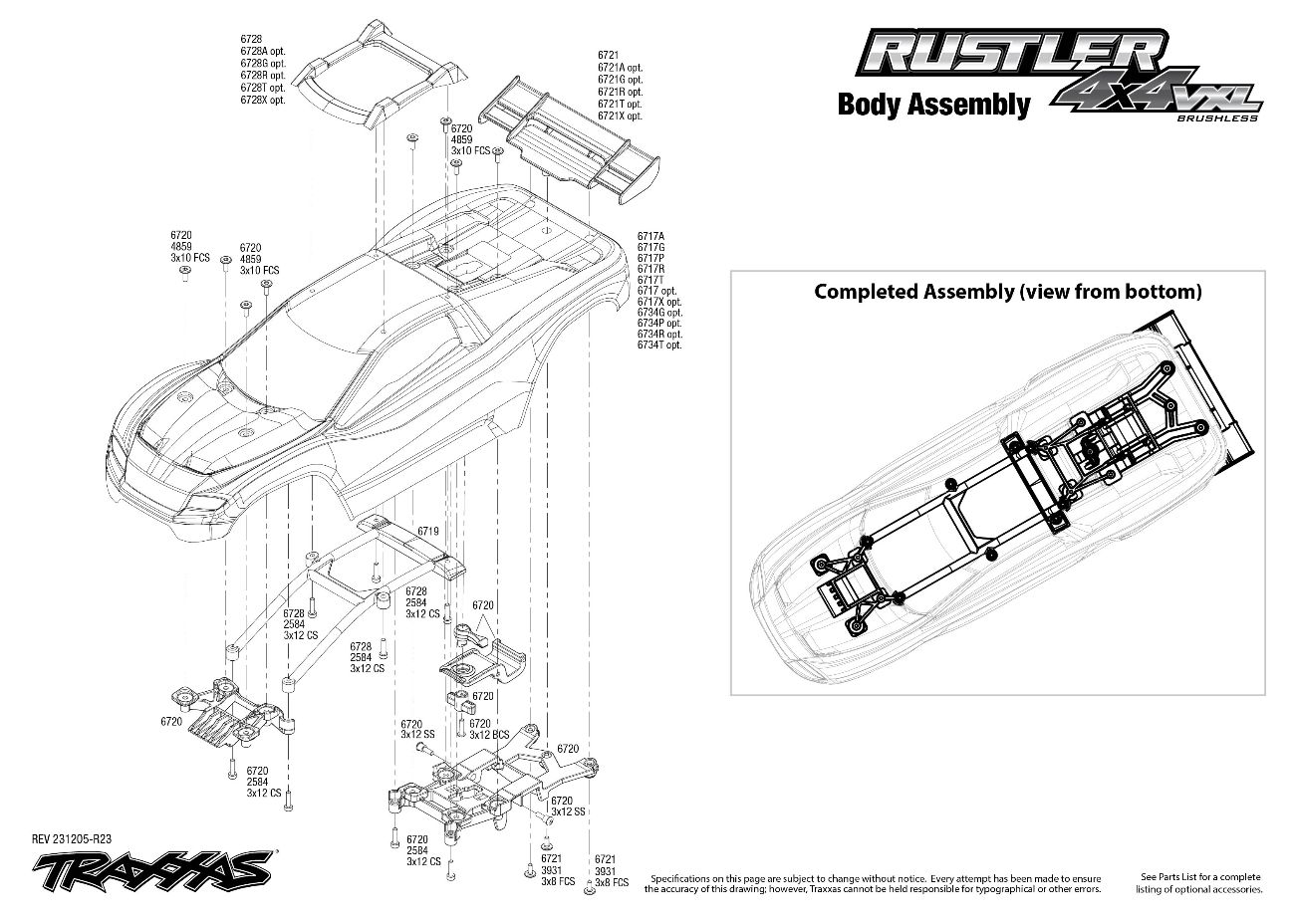

Clipless ProGraphix® Body Easy one-handed removal Reinforced inner cage Strong oversized latch Rugged roof rollover protector Molded composite plastic wing VXL-3s™ Waterproof Electronic Speed Control Sport Mode - Forward / Brake / Reverse Traxxas EZ-Set® one-button setup Race Mode - Forward / Brake Large heat sink Built-in two-stage low-voltage detection for LiPo batteries Training Mode™ - 50% Forward / Brake / 50% Reverse (patented) NiMH battery packs: 6-9 cells (7.2 to 10.8 volts) LiPo battery packs: 2-3 cells (7.4 to 11.1 volts) Velineon® Brushless Motor Ultra high-temperature sintered Neodymium magnets Optimized for power and efficiency in 1/10th scale vehicles Low-maintenance, unique Traxxas design Efficient, high-speed ball bearings Precision-balanced rotor 3500 kV Brilliant blue-anodized finish Traxxas Stability Management® (TSM) Improves straight line acceleration and braking on low-traction surfaces Maintains steering composure to allow throttle-on powerslides Never dulls throttle or slows the truck Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz High Output Radio System TQi 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link-enabled models Programmable multi-function knob Adjustable steering and throttle percentage (dual rates) Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle end points Patented waterproof receiver box Chassis Low-CG design for responsive handling Modular composite tub design Latching battery hold-down Reinforced integrated wheelie bar High-approach front bumper to climb curbs Drivetrain New larger heavy-duty driveshafts Oil-filled steel gear front and rear differentials Large 32-pitch gearing Torque Control™ heavy-duty slipper clutch with aluminum pads Anodized-aluminum center driveshaft Steering Chassis-mounted 2075 servo Dual bellcrank design with integrated servo saver Suspension Adjustable toe and camber links New impact-resistant suspension arm composite Oil-filled Ultra Shocks Captured rod ends won't pop off Rugged front and rear shock towers White powder-coated progressive springs Wheels and Tires Large 2.8″ black chrome wheels Talon™ EXT tires Sealed Ball Bearings Hex hardware with Rust-Resistant Black Oxide Coating Requires Battery and Charger (Sold Separately)
