Stampede 4X4 VXL 1/10 Scale
MODEL SPECS
Model Name:
Stampede 4X4 VXL TSM
Model Type:
Monster Truck
Model Speed:
60+ mph with optional gearing and 3s LiPo battery (items sold separately)
Model Skill Level:
2
Scale:
1/10
Weight:
5.6 pounds (2.54 kg)

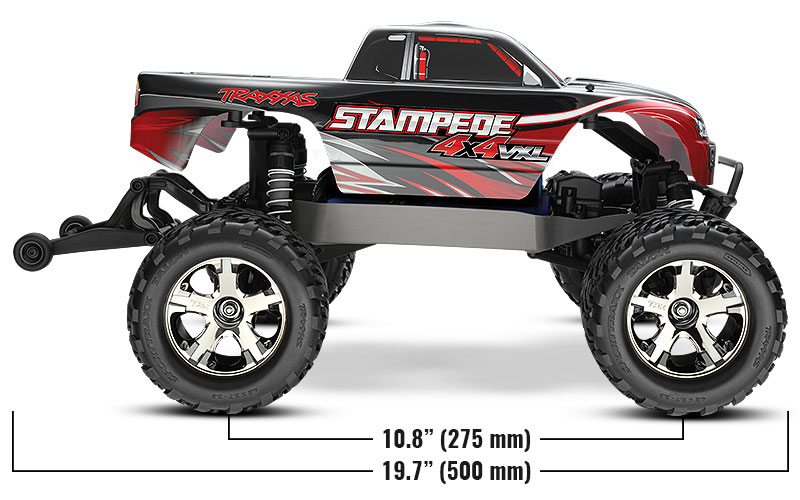

Length:
19.69 inches (500 mm) – with wheelie bar

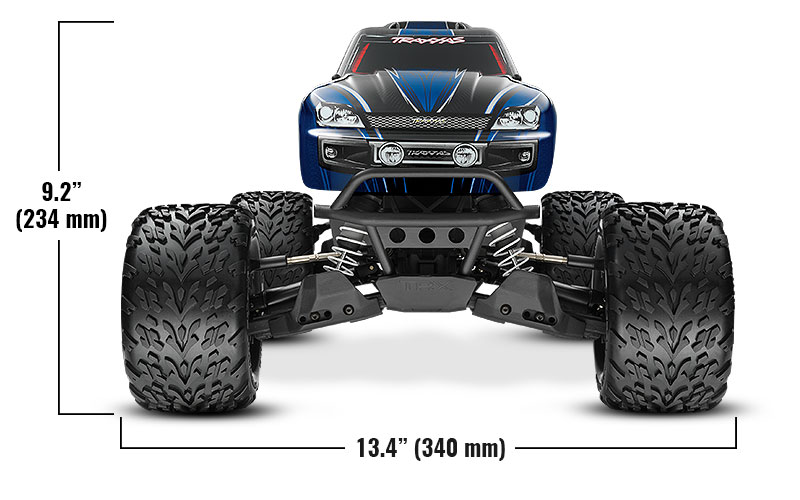

Width:
13.39 inches (340 mm)
Front Track:
13.39 inches (340 mm)
Rear Track:
13.39 inches (340 mm)
Height:
9.21 inches (234 mm)
Wheelbase:
10.83 inches (275 mm)
Center Ground Clearance:
2.90 inches (74 mm)

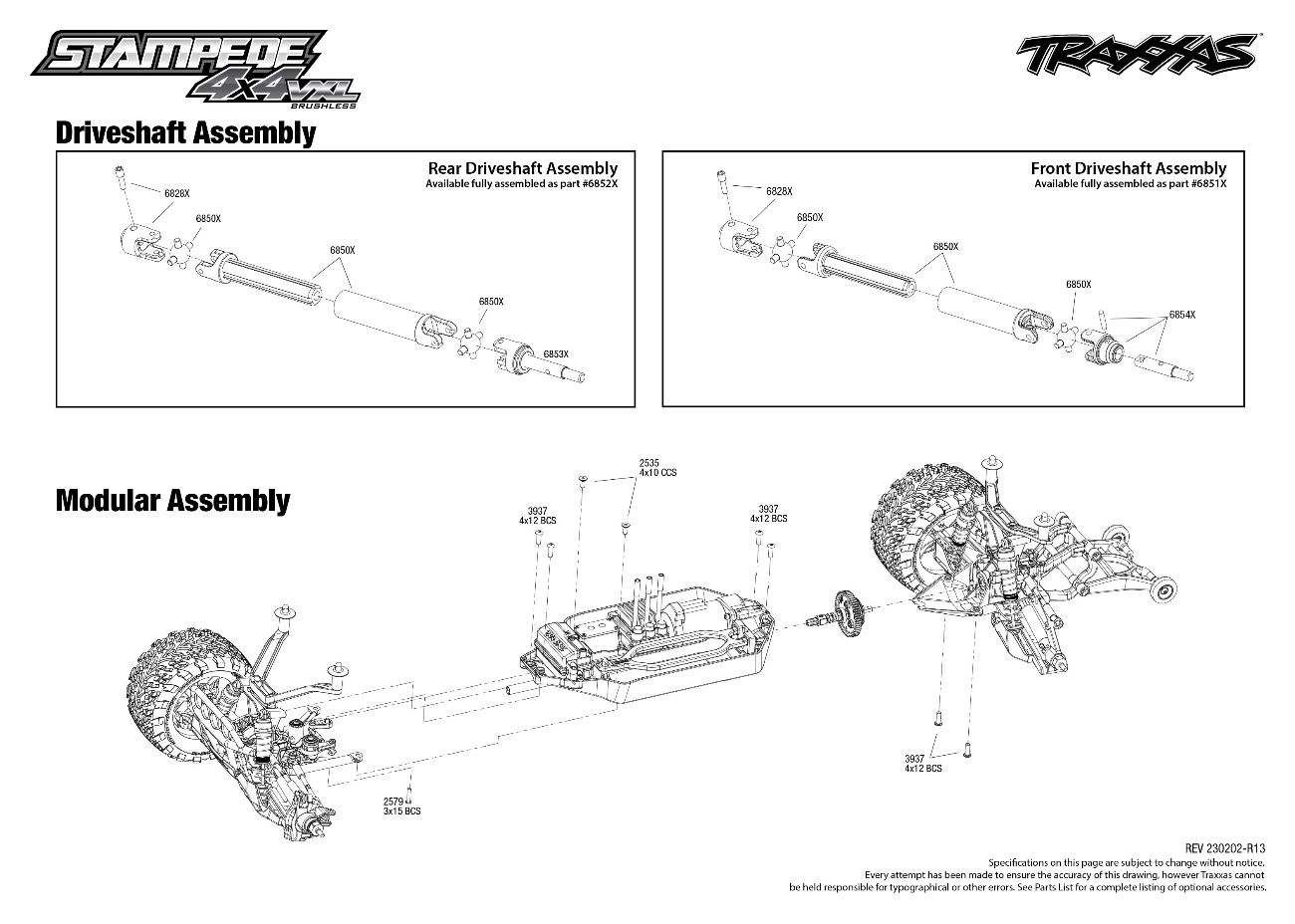

Drivetrain:
Shaft-driven, 4WD
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):
13.97:1
Gear Pitch:
32 pitch
Servo(s):
2075 digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with 6533 TSM® receiver
Battery Compartment Specs:
142 mm X 48.5 mm X 23 mm, 25 mm
MOTOR SPECS
Motor Name:
Velineon® 3500
Motor Type:
Sensorless brushless

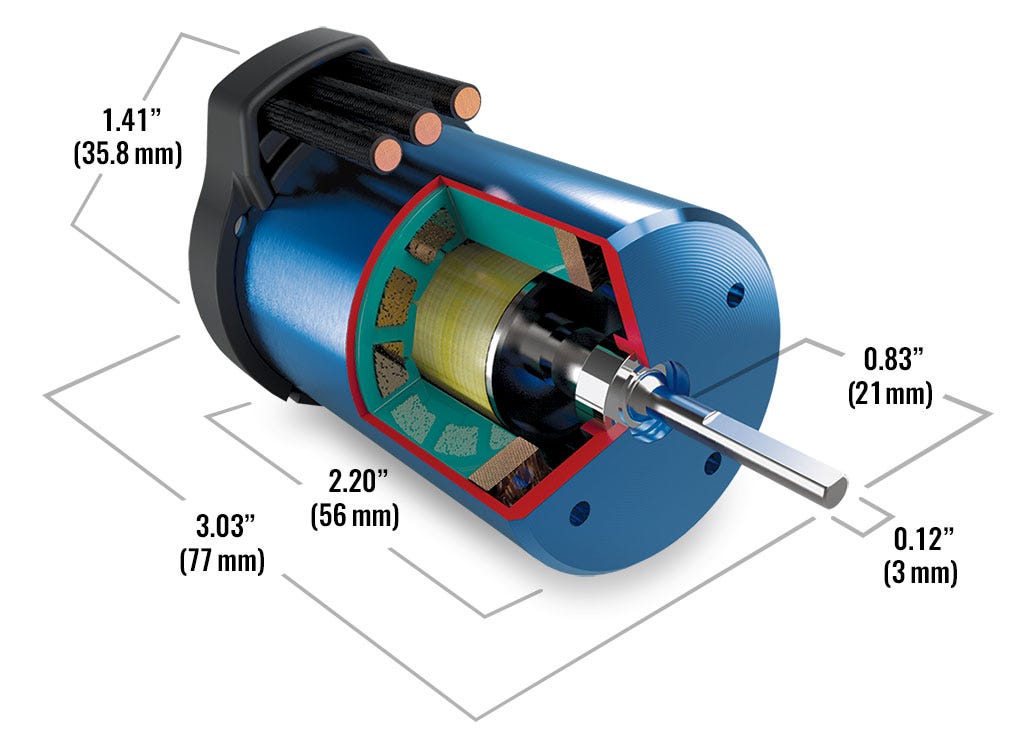

Motor Weight:
9.24 ounces (262 g)
Motor Length:
3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
3.5 mm bullet

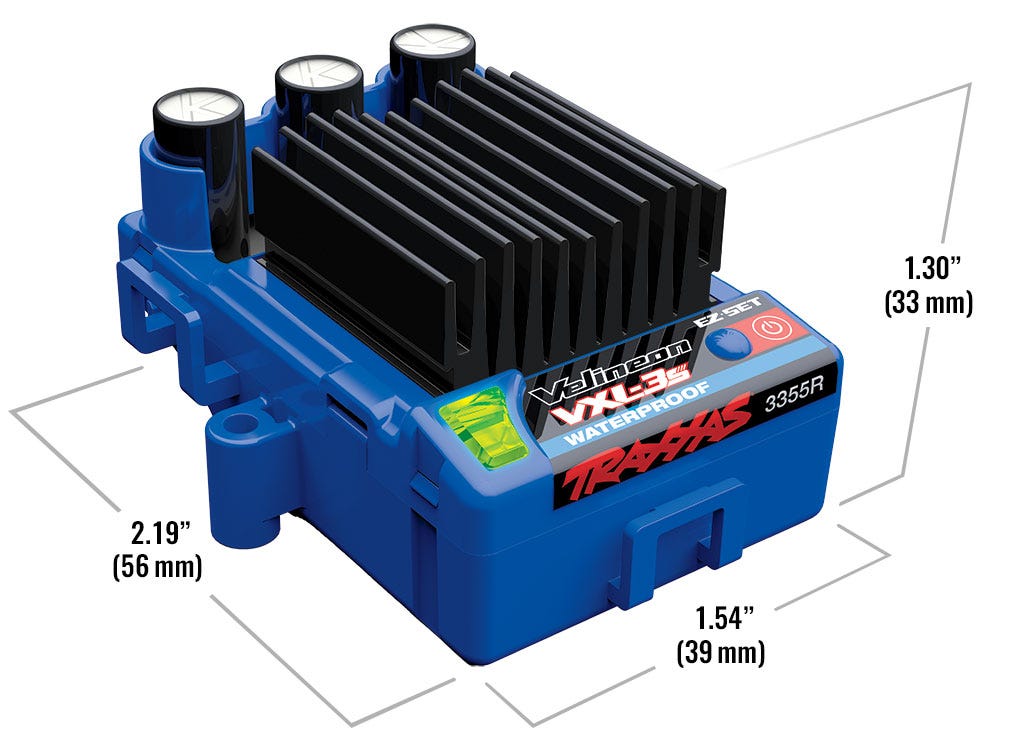

ESC SPECS
ESC Name:
VXL-3s™ electronic speed control
ESC Type:
Brushless
ESC Case Size:
1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:
3.17 ounces (90 g)
Motor Connectors:
3.5 mm bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
12 gauge Maxx® Cable
ProGraphix® Painted Body Pre-painted monster truck body with applied decals Front and rear tube-style bumpers VXL-3s™ Waterproof Electronic Speed Control Sport Mode - Forward / Brake / Reverse Traxxas EZ-Set® one-button setup Race Mode - Forward / Brake Large heat sink Built-in two-stage low-voltage detection for LiPo batteries Training Mode™ - 50% Forward / Brake / 50% Reverse (patented) NiMH battery packs: 4-9 cells (4.8 to 10.8 volts) LiPo battery packs: 2-3 cells (7.4 to 11.1 volts) Velineon® Brushless Motor Ultra high-temperature sintered Neodymium magnets Optimized for power and efficiency in 1/10th scale vehicles Low-maintenance, unique Traxxas design Efficient, high-speed ball bearings Precision-balanced rotor 3500 kV Brilliant blue-anodized finish Traxxas Stability Management® (TSM) Includes exclusive Self-Righting capability Improves straight line acceleration and braking on low-traction surfaces Maintains steering composure to allow throttle-on powerslides Never dulls throttle or slows the truck Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz High Output Radio System TQi 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link-enabled models Programmable multi-function knob Adjustable steering and throttle percentage (dual rates) Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle end points Patented waterproof receiver box Tough Fiber-Composite Modular Chassis Modular chassis makes maintenance quick and easy Easy motor access with single-screw motor plate attachment All electronics securely fastened to chassis Easy Access Battery Compartment Accepts 6-cell flat packs and 7-cell hump packs Accepts short form factor 2-cell and 3-cell LiPo batteries Transmission and Driveline Full-time shaft-driven 4WD Blue-anodized aluminum center driveshaft Torque-Control™ slipper clutch with large 32-pitch gearing Sealed, silicone-filled differentials with steel gears Heavy-duty telescoping U-joint driveshafts Steering Digital high-torque Traxxas 2075 waterproof steering servo Dual bellcrank steering system with integrated servo saver Suspension Adjustable steel turnbuckles Captured rod ends won't pop off Rugged shock guards mounted to suspension arms Springs and Shocks Fully adjustable oil-filled Ultra Shocks™ with X-ring technology White powder-coated springs Wheels and Tires Pre-glued high profile Talon™ all-terrain tires with performance foam inserts 2.8″ Black-chrome All-Star™ wheels Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability Requires Battery and Charger (Sold Separately)
