Battery & Charger
Sold Separately
Slash 4X4 Ultimate
MODEL SPECS
Model Name:
Slash 4X4 Ultimate
Model Type:
Short Course Trucks
Model Speed:
60+ mph with optional gearing and 3s LiPo battery (items sold separately)
Model Skill Level:
2
Scale:
1/10
Weight:
5.03 pounds (2.28 kg)

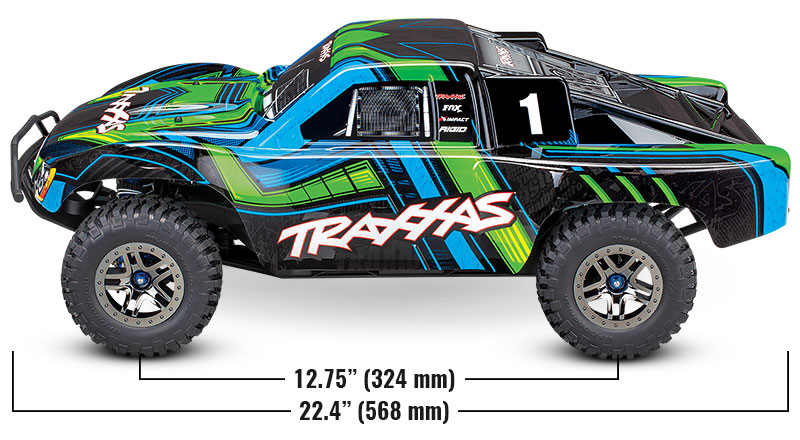

Length:
22.36 inches (568 mm)

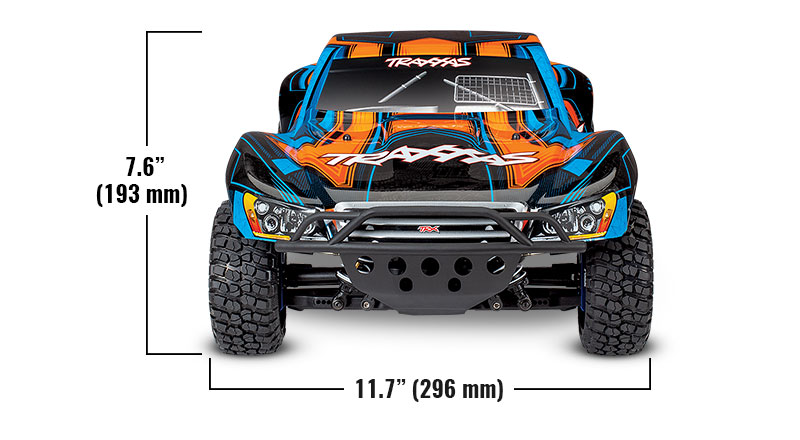

Width:
11.65 inches (296 mm)
Front Track:
11.65 inches (296 mm)
Rear Track:
11.65 inches (296 mm)
Height:
7.60 inches (193 mm)
Wheelbase:
12.75 inches (324 mm)
Center Ground Clearance:
1.85 inches (47 mm)
Drivetrain:
Shaft-driven 4WD
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):
11.82:1
Gear Pitch:
32 pitch
Servo(s):
2075R metal gear, digital high-torque, waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver and 6511 Wireless Module
Battery Compartment Specs:
165 mm X 49.5 mm X 23 mm , 25 mm

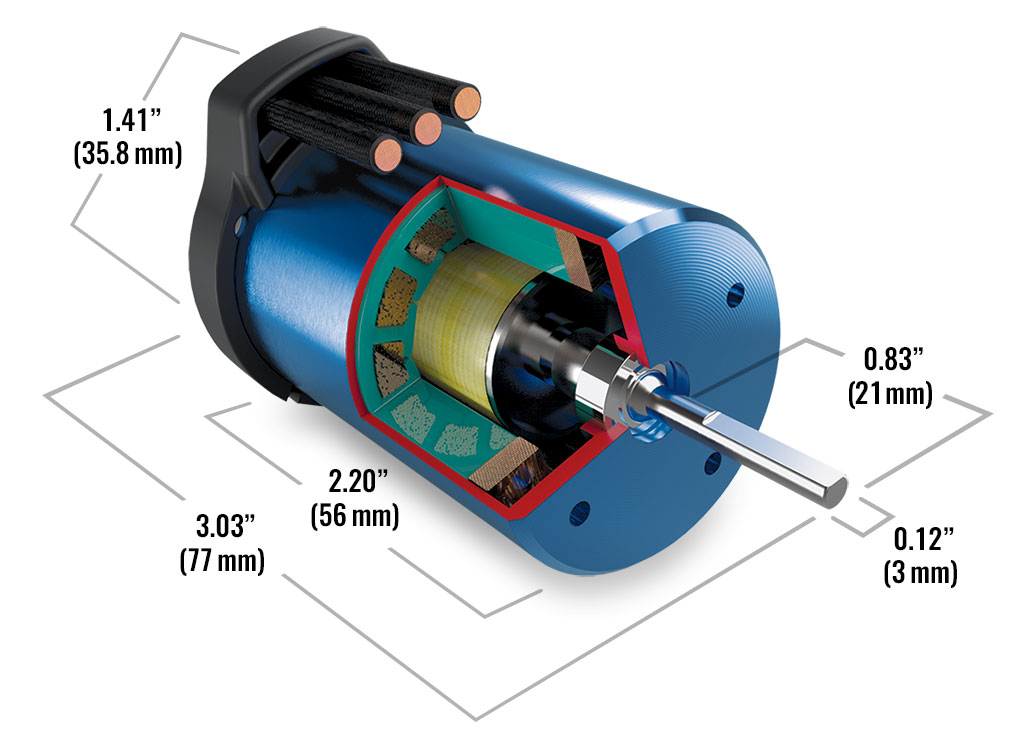

MOTOR SPECS
Motor Name:
Velineon® 3500
Motor Type:
Sensorless brushless
Motor Weight:
9.24 ounces (262 g)
Motor Length:
3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
3.5 mm bullet

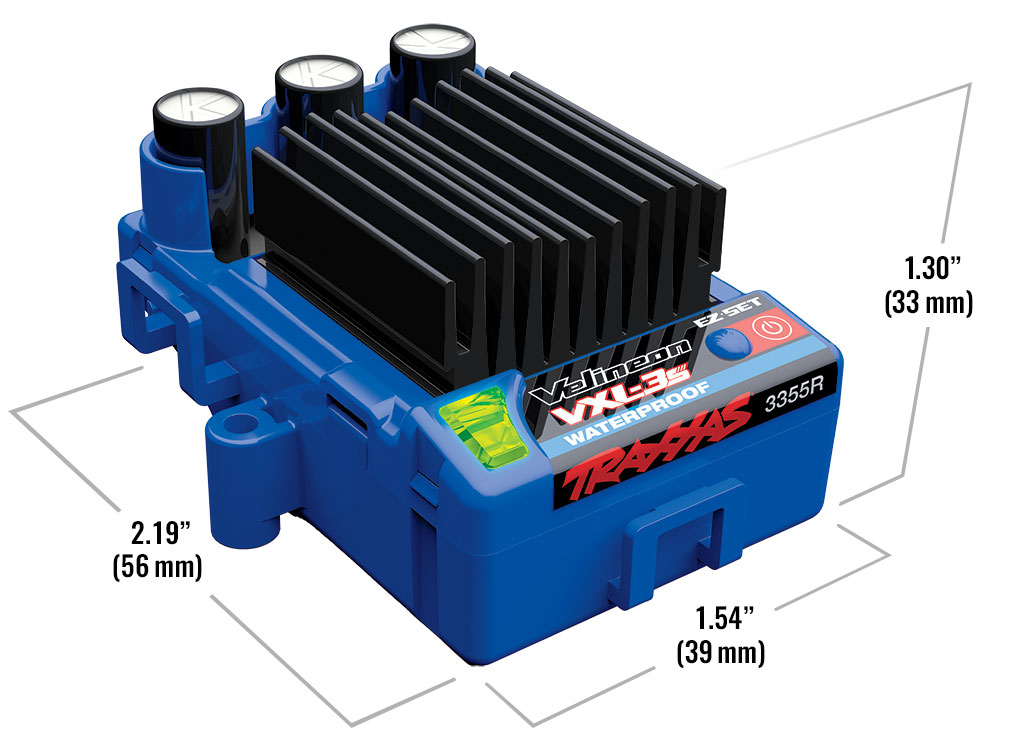

ESC SPECS
ESC Name:
VXL-3s™ electronic speed control
ESC Type:
Brushless
ESC Case Size:
1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight:
3.17 ounces (90 g)
Motor Connectors:
3.5 mm bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
12 gauge Maxx® Cable
Pre-Installed Heavy-Duty Aluminum Upgrades Blue-anodized 6061-T6 aluminum C-hubs Blue-anodized 6061-T6 aluminum steering blocks Blue-anodized 6061-T6 aluminum rear hub carriers Blue-anodized 6061-T6 aluminum axle nuts Race Replica ProGraphix® Painted Body Pre-painted body with applied decals Scale dimensions and looks of actual short course race trucks Chassis nerf bars absorb impact and support the body Scale front and rear tube-style bumpers VXL-3s™ Waterproof Electronic Speed Control Traxxas EZ-Set® one-button setup Sport Mode - Forward / Brake / Reverse Race Mode - Forward / Brake Large heat sink Built-in two-stage low-voltage detection for LiPo batteries Training Mode™ - 50% Forward / Brake / 50% Reverse (patented) NiMH battery packs: 6-9 cells (7.2 to 10.8 volts) LiPo battery packs: 2-3 cells (7.4 to 11.1 volts) Velineon® Brushless Motor Ultra high-temperature sintered neodymium magnets Optimized for power and efficiency in 1/10th scale vehicles Low-maintenance, unique Traxxas design Efficient, high-speed ball bearings Precision-balanced rotor 3500 kV Brilliant blue-anodized finish Traxxas Stability Management® (TSM) Improves straight line acceleration and braking on low-traction surfaces Maintains steering composure to allow throttle-on powerslides Never dulls throttle or slows the truck Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz High Output Radio System TQi 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link-enabled models Programmable multi-function knob Adjustable steering and throttle percentage (dual rates) Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle end points Patented waterproof receiver box with easy-access plug Low-CG Reinforced Monocoque Chassis Batteries and electronics held low for improved handling Low-CG design dramatically increases corner speed Modular chassis makes maintenance quick and easy Long 12.75″ wheelbase for increased stability Easy motor access with single-screw motor plate attachment All electronics securely fastened to chassis Integrated personal transponder mount Easy Access Battery Compartment Adjustable battery hold down Accepts 6- and 7-cell NiMH flat packs Accepts many 2s and 3s LiPo battery configurations Transmission and Driveline Full-time shaft-driven 4WD Blue-anodized aluminum center driveshaft Torque-Control™ slipper clutch with large 32-pitch gearing Sealed, silicone-filled differentials with steel gears Upgraded Extreme-duty telescoping driveshafts Steering Digital high-speed 2075R waterproof metal gear steering servo Dual bellcrank steering system with integrated servo saver Suspension Impact resistant heavy-duty suspension arms Adjustable front and rear sway bars Adjustable steel turnbuckles Captured rod ends won't pop off Springs and Shocks High-volume GTR shocks with adjustable-collar blue PTFE-coated aluminum bodies and titanium-nitride coated shafts Race-tuned white powder-coated springs Wheels and Tires Officially-licensed BFGoodrich® Mud-Terrain™ T/A® Tires molded in S1 race compound 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability Requires Battery, and Charger (Sold Separately)
No Parts available for this model
