MODEL SPECS
| Model Name: | 1/16 Slash 4X4 |
|---|---|
| Model Type: | Short Course Trucks |
| Model Skill Level: | 1 |
| Scale: | 1/16 |
| Weight: | 2.2 pounds (1 kg) |

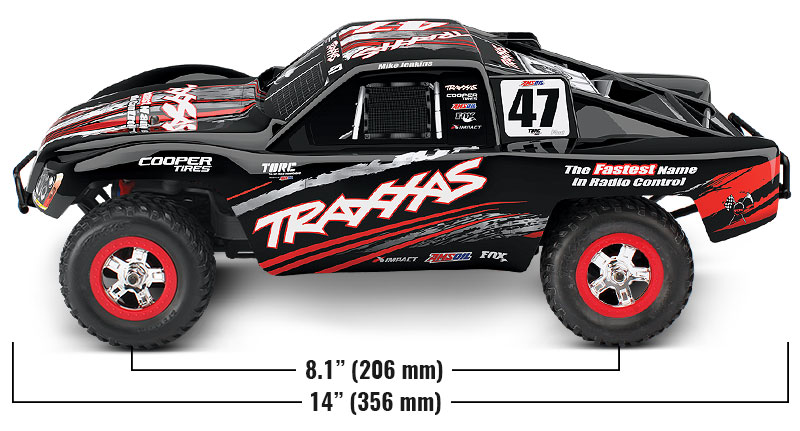

| Length: | 14 inches (356 mm) |

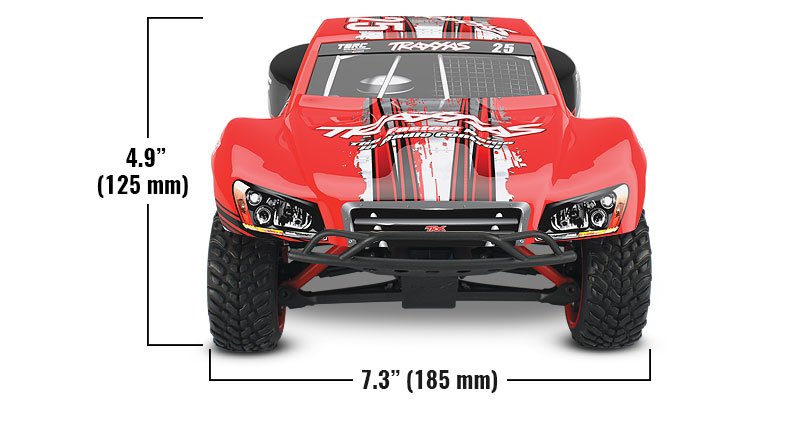

| Width: | 7.3 inches (185 mm) |
| Front Track: | 7.3 inches (185 mm) |
| Rear Track: | 7.3 inches (185 mm) |
| Height: | 4.92 inches (125 mm) |
| Wheelbase: | 8.1 inches (206 mm) |
|---|---|
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Heavy-duty with steel idler gear |
| Differential Type: | Hardened steel bevel, sealed |
| Gear Ratio (Internal): | 5.04:1 |
| Gear Pitch: | 48 pitch |
| Servo(s): | 2080 digital waterproof |
| Radio System: | TQ™ 2.4 GHz 2-channel radio |
MOTOR SPECS

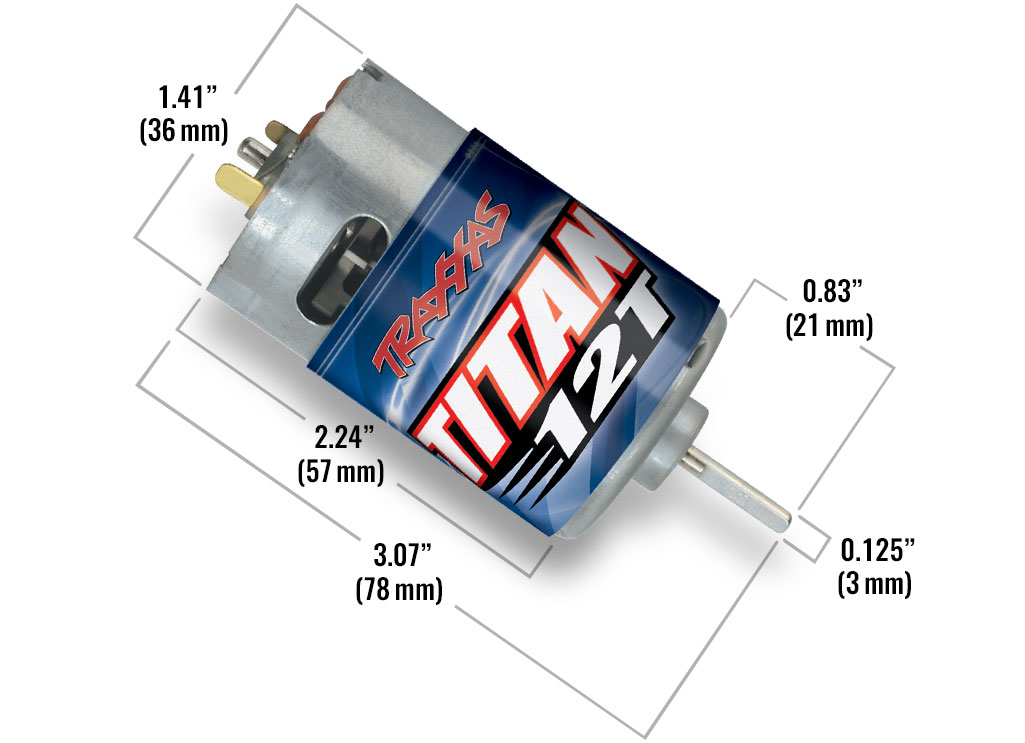

| Motor Name: | Titan® 12T 550 |
|---|---|
| Motor Type: | High-speed brushed motor |
| Motor Weight: | 8.47 ounces (240 g) |
| Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |
ESC SPECS
| ESC Name: | Waterproof XL-2.5 ESC with low-voltage detection |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 46.5 mm / 26.5 mm / 22 mm |
| ESC Weight: | 1.16 ounces (33 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High Current Connector |
| ESC Power Wire: | 16 gauge |
- Race Replica ProGraphix® Painted Body
- Race Replica ProGraphix® Painted Body
- 1/16 Scale pre-painted body with applied decals
- 1/16 Scale pre-painted body with applied decals
- 1/16 Scale pre-painted body with applied decals
- 1/16 Scale pre-painted body with applied decals
- Scale dimensions and looks of actual short course race trucks
- Scale dimensions and looks of actual short course race trucks
- Scale dimensions and looks of actual short course race trucks
- Scale dimensions and looks of actual short course race trucks
- Scale front and rear tube-style bumpers
- Scale front and rear tube-style bumpers
- Scale front and rear tube-style bumpers
- Scale front and rear tube-style bumpers
- Waterproof XL-2.5™ Electronic Speed Control
- Waterproof XL-2.5™ Electronic Speed Control
- Innovative waterproof design
- Innovative waterproof design
- Innovative waterproof design
- Innovative waterproof design
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Race Mode - forward / brake
- Race Mode - forward / brake
- Race Mode - forward / brake
- Race Mode - forward / brake
- Race Mode - forward / brake
- Race Mode - forward / brake
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- Traxxas EZ-Set® one-button setup
- Traxxas EZ-Set® one-button setup
- Traxxas EZ-Set® one-button setup
- High-capacity heat sink
- High-capacity heat sink
- High-capacity heat sink
- High-capacity heat sink
- LiPo and NiMH compatible with two-stage low-voltage detection
- LiPo and NiMH compatible with two-stage low-voltage detection
- LiPo and NiMH compatible with two-stage low-voltage detection
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan® 550 Motor
- Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Oversized armature for big torque and increased power handling
- Oversized armature for big torque and increased power handling
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Ergonomic transmitter with internal antenna
- Ergonomic transmitter with internal antenna
- Ergonomic transmitter with internal antenna
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Includes Battery and Charger
- Includes Battery and Charger
- 2-amp 12 V DC Peak Detecting Fast Charger
- 2-amp 12 V DC Peak Detecting Fast Charger
- 2-amp 12 V DC Peak Detecting Fast Charger
- 2-amp 12 V DC Peak Detecting Fast Charger
- 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®
- 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®
- 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®
- 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®
- Fiber-Composite Monocoque Chassis
- Fiber-Composite Monocoque Chassis
- Low-CG design for improved handling
- Low-CG design for improved handling
- Low-CG design for improved handling
- Low-CG design for improved handling
- Tough skid plates for driveline protection
- Tough skid plates for driveline protection
- Tough skid plates for driveline protection
- Tough skid plates for driveline protection
- All electronics securely fastened to chassis
- All electronics securely fastened to chassis
- All electronics securely fastened to chassis
- All electronics securely fastened to chassis
- Dual Integrated Battery Compartments
- Dual Integrated Battery Compartments
- Quick-release battery doors for fast pack changes
- Quick-release battery doors for fast pack changes
- Quick-release battery doors for fast pack changes
- Quick-release battery doors for fast pack changes
- Intake and exhaust cooling vents keep battery temperatures down
- Intake and exhaust cooling vents keep battery temperatures down
- Intake and exhaust cooling vents keep battery temperatures down
- Intake and exhaust cooling vents keep battery temperatures down
- Accepts 1/16 scale NiMH and LiPo batteries
- Full-time shaft-driven 4WD
- Full-time shaft-driven 4WD
- Full-time shaft-driven 4WD
- Full-time shaft-driven 4WD
- Sealed heavy-duty transmission
- Sealed heavy-duty transmission
- Sealed heavy-duty transmission
- Sealed heavy-duty transmission
- Adjustable slipper clutch
- Adjustable slipper clutch
- Adjustable slipper clutch
- Adjustable slipper clutch
- Sealed, silicone-filled differentials with steel gears
- Sealed, silicone-filled differentials with steel gears
- Sealed, silicone-filled differentials with steel gears
- Sealed, silicone-filled differentials with steel gears
- Heavy-duty telescoping U-joint driveshafts
- Heavy-duty telescoping U-joint driveshafts
- Heavy-duty telescoping U-joint driveshafts
- Heavy-duty telescoping U-joint driveshafts
- Steering
- Steering
- Digital waterproof Traxxas 2080 steering servo
- Digital waterproof Traxxas 2080 steering servo
- Digital waterproof Traxxas 2080 steering servo
- Digital waterproof Traxxas 2080 steering servo
- Servo horn with integrated servo saver
- Servo horn with integrated servo saver
- Servo horn with integrated servo saver
- Servo horn with integrated servo saver
- Suspension
- Suspension
- Twin-arm pivot ball suspension
- Twin-arm pivot ball suspension
- Twin-arm pivot ball suspension
- Twin-arm pivot ball suspension
- Progressive rocker-arm damping for extreme travel
- Progressive rocker-arm damping for extreme travel
- Progressive rocker-arm damping for extreme travel
- Progressive rocker-arm damping for extreme travel
- Captured rod ends won't pop off
- Captured rod ends won't pop off
- Captured rod ends won't pop off
- Captured rod ends won't pop off
- Springs and Shocks
- Springs and Shocks
- Inboard fully adjustable oil-filled GTR™ shocks
- Inboard fully adjustable oil-filled GTR™ shocks
- Inboard fully adjustable oil-filled GTR™ shocks
- Inboard fully adjustable oil-filled GTR™ shocks
- Adjustable pre-load collars
- Adjustable pre-load collars
- Adjustable pre-load collars
- Adjustable pre-load collars
- Red powder-coated springs
- Red powder-coated springs
- Red powder-coated springs
- Red powder-coated springs
- Wheels and Tires
- Wheels and Tires
- Pre-glued all-terrain tires with high-performance foam inserts
- Pre-glued all-terrain tires with high-performance foam inserts
- Pre-glued all-terrain tires with high-performance foam inserts
- Pre-glued all-terrain tires with high-performance foam inserts
- Satin chrome 5-spoke beadlock style wheels
- Satin chrome 5-spoke beadlock style wheels
- Satin chrome 5-spoke beadlock style wheels
- Satin chrome 5-spoke beadlock style wheels
- Rubber-Sealed Ball Bearings
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Precision Hex Hardware
- Backed by Unparalleled Traxxas Support and Parts Availability
- Backed by Unparalleled Traxxas Support and Parts Availability
- Expand All
- Collapse All

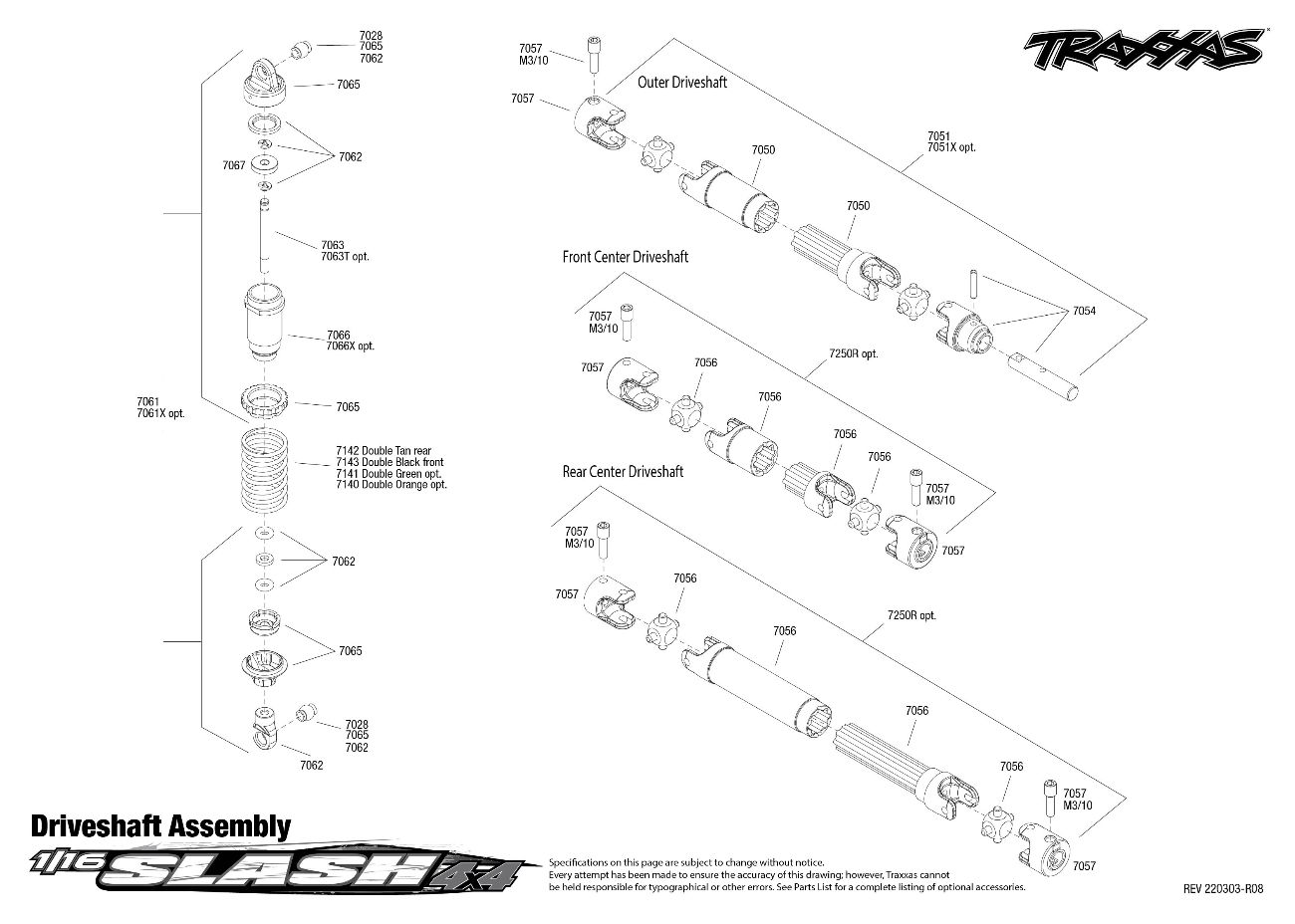

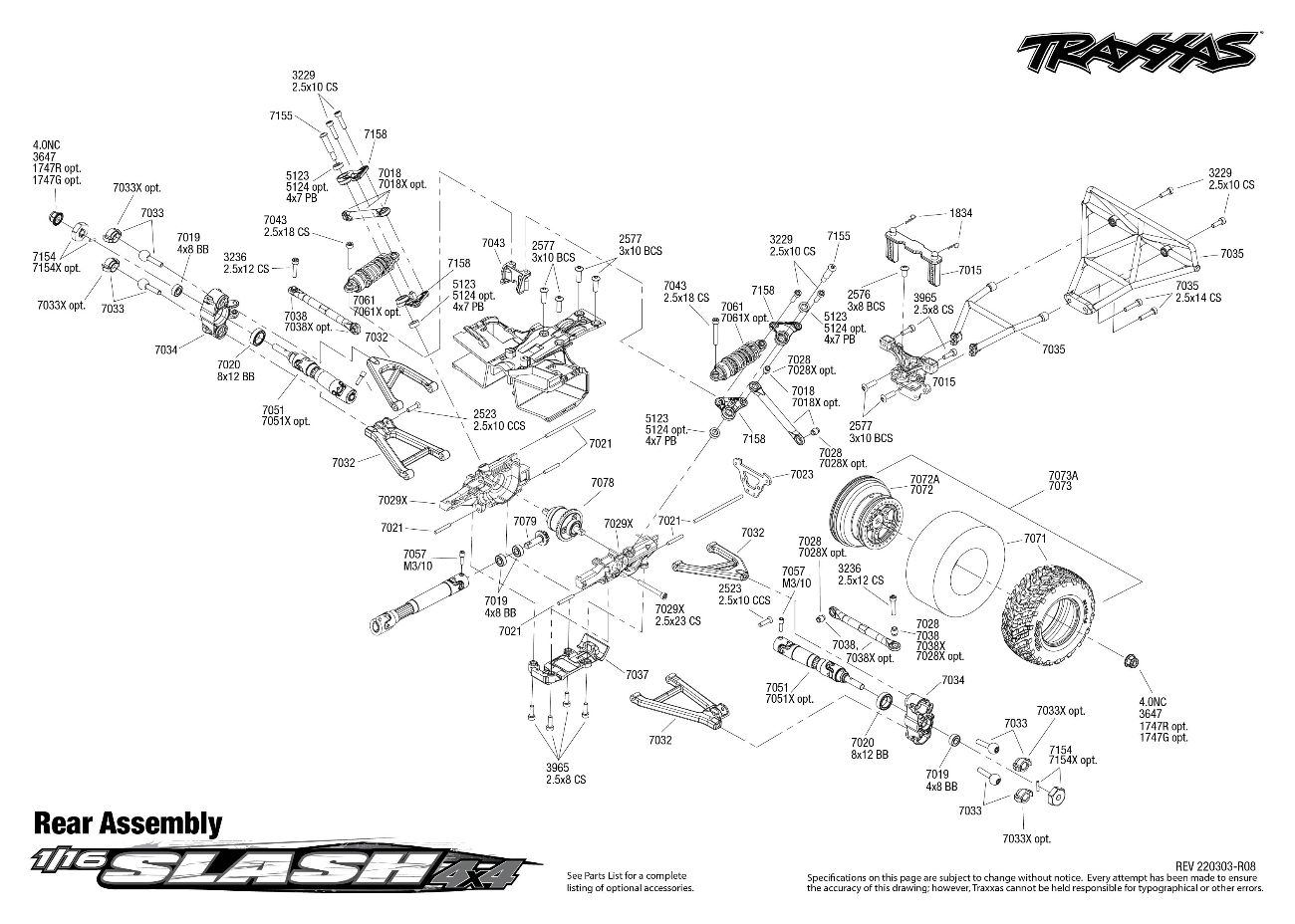

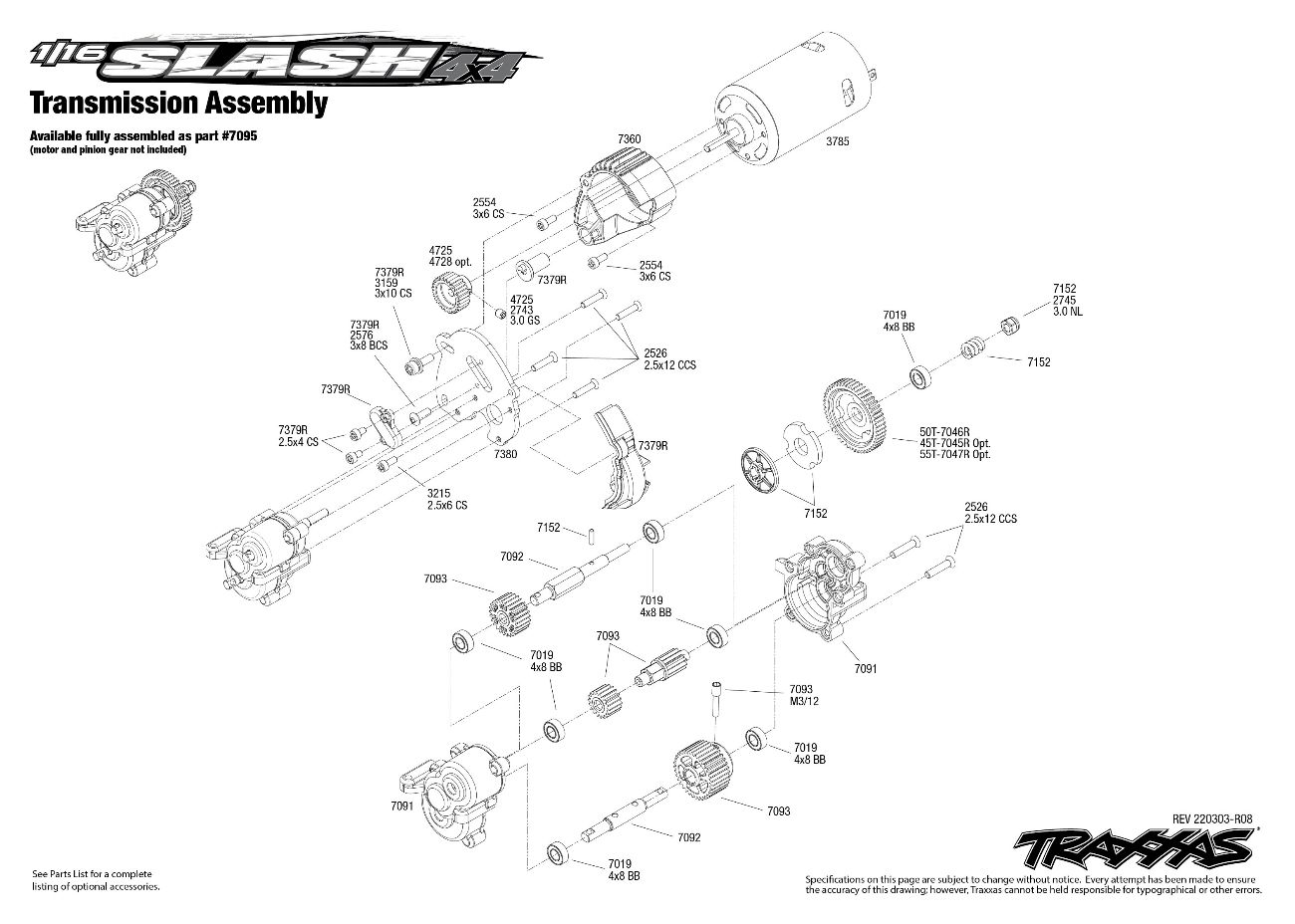

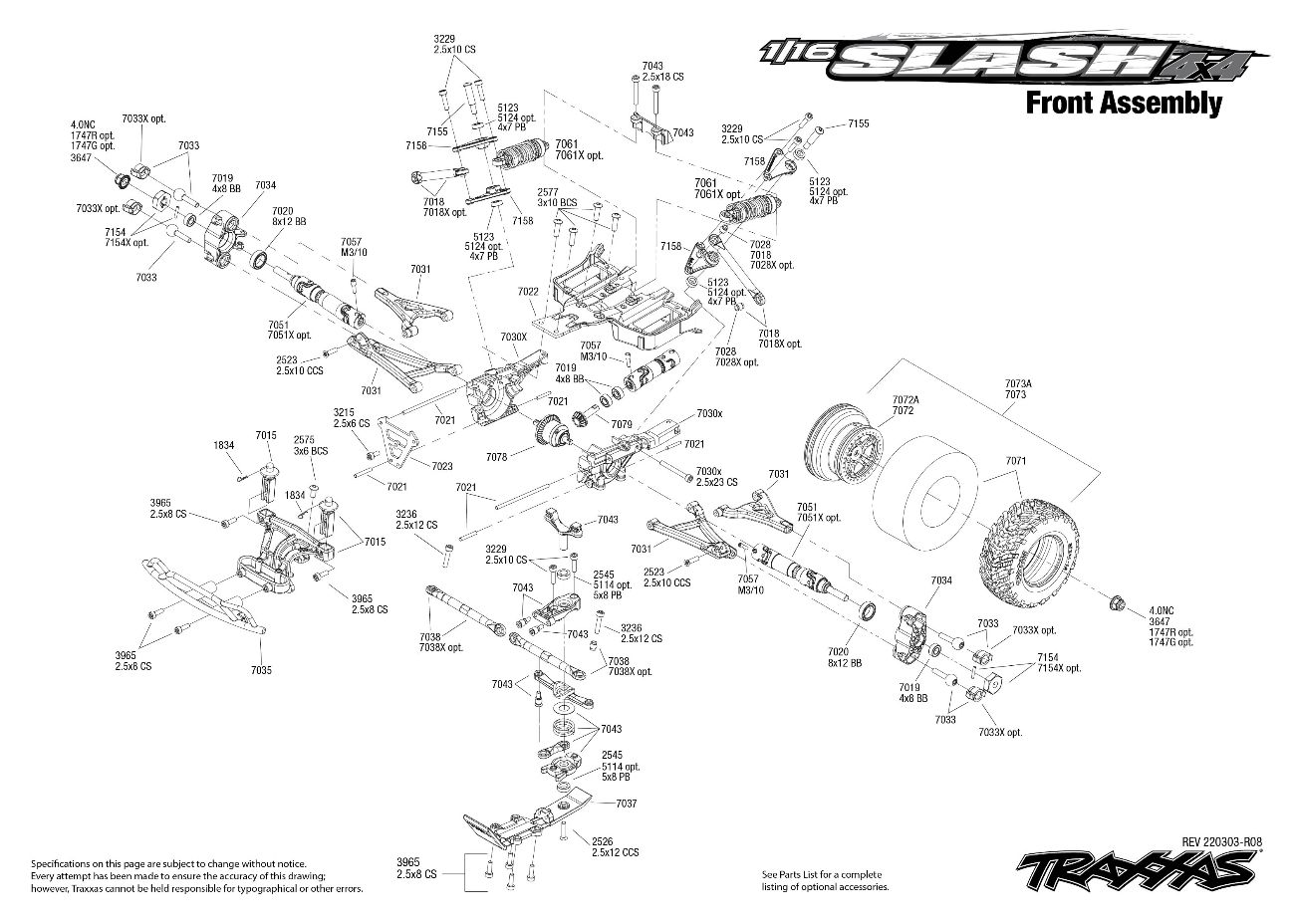

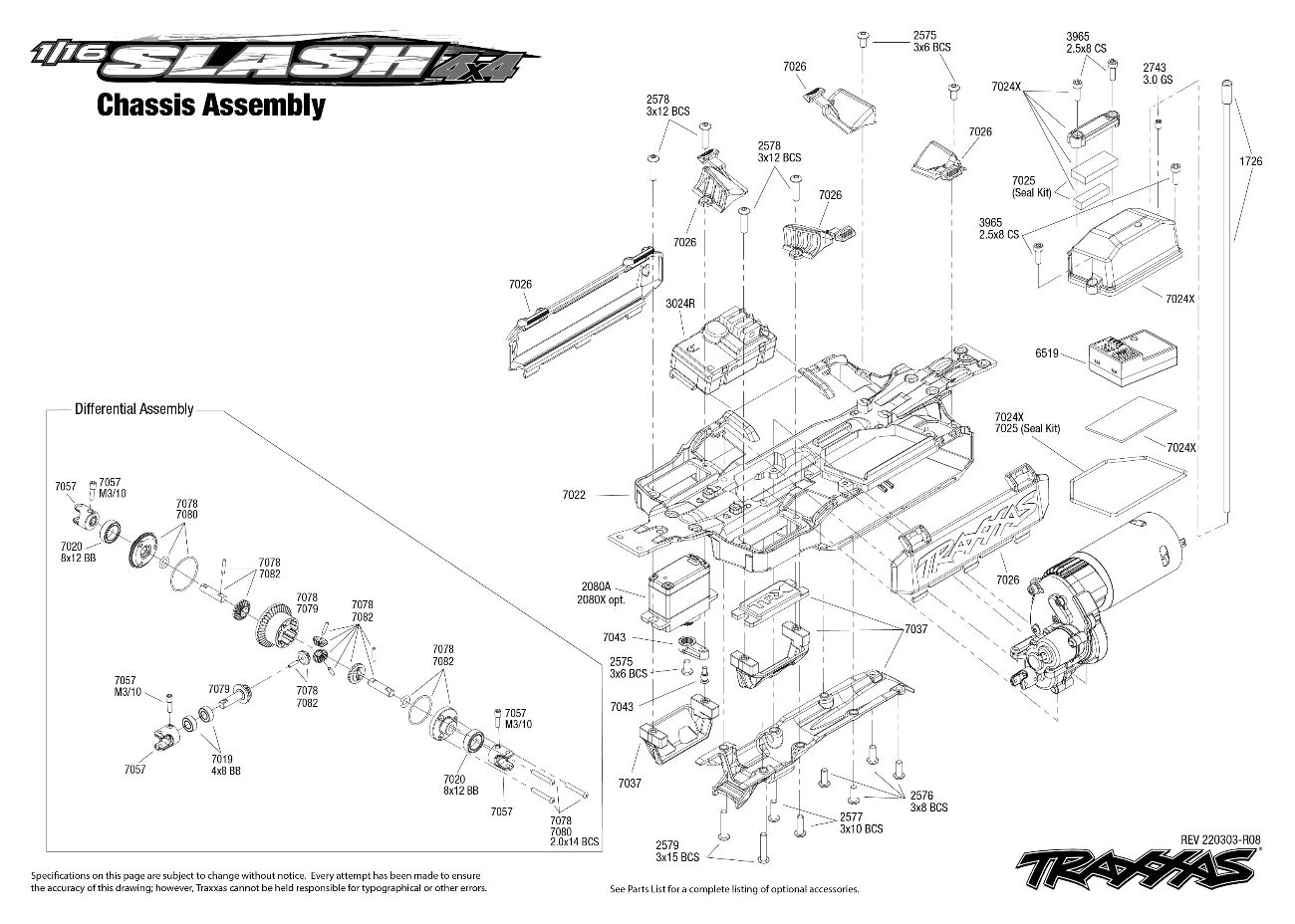

Exploded Views
