Battery & Charger
Sold Separately
1/16 E-Revo
MODEL SPECS
Model Name:
1/16 E-Revo
Model Type:
Monster Truck
Model Skill Level:
1
Scale:
1/16
Weight:
2.73 pounds (1.24 kg)
Length:
12.6 inches (320 mm)

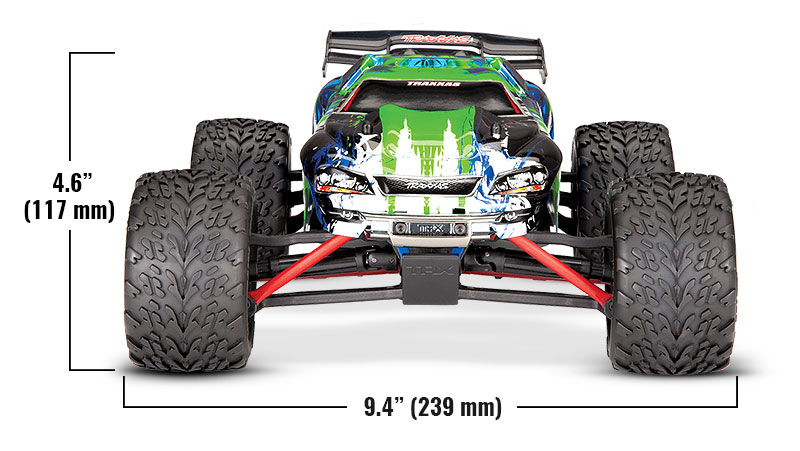

Width:
9.4 inches (239 mm)
Front Track:
9.4 inches (239 mm)
Rear Track:
9.4 inches (239 mm)
Height:
4.6 inches (117 mm)
Wheelbase:
7.9 inches (202 mm)
Drivetrain:
Shaft-driven 4WD

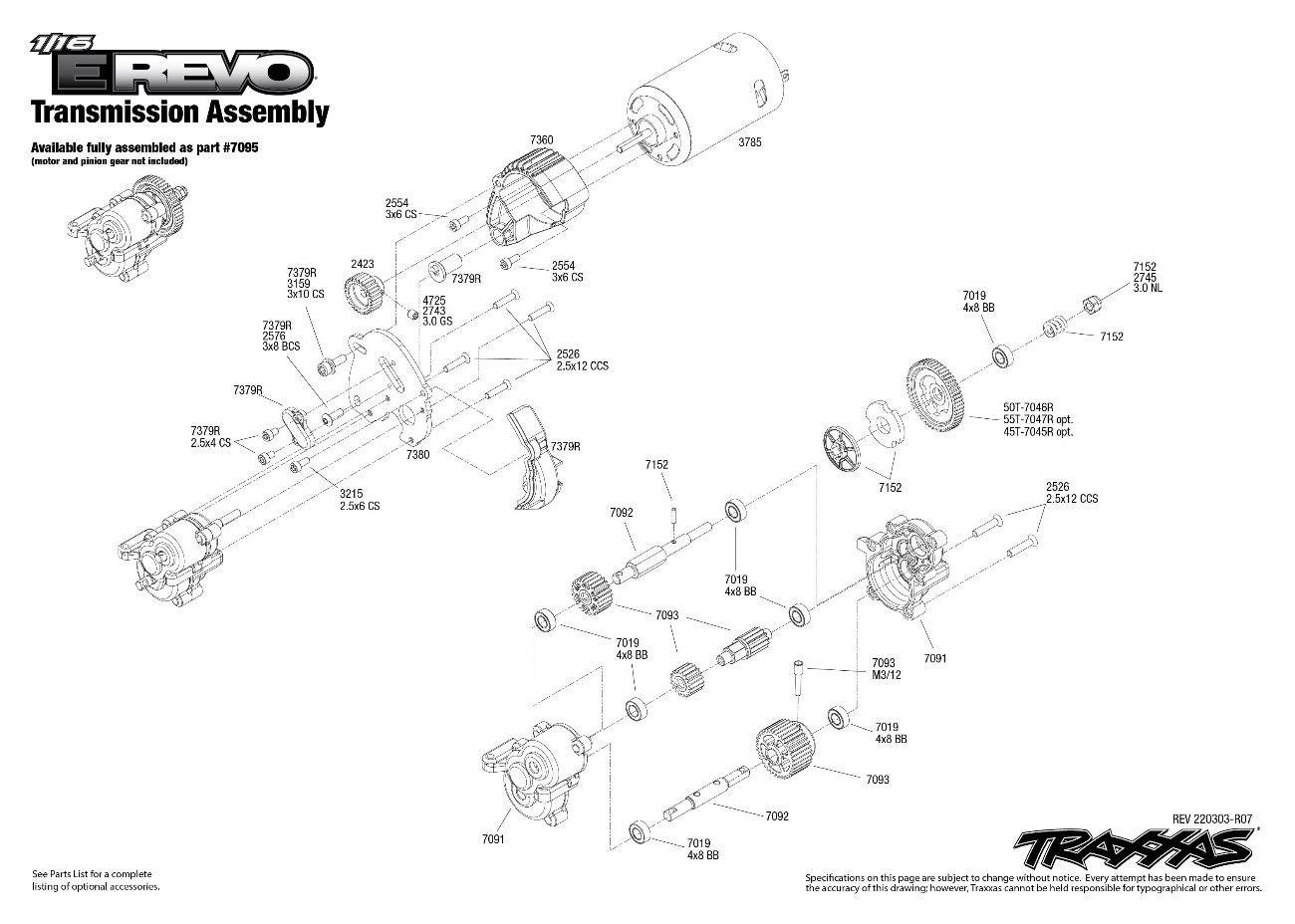

Transmission:
Heavy-duty single speed
Differential Type:
Hardened steel bevel, sealed
Gear Ratio (Internal):
5.04:1
Gear Pitch:
48 pitch
Servo(s):
2080 digital waterproof
Radio System:
TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:
89 mm X 35.5 mm X 20 mm

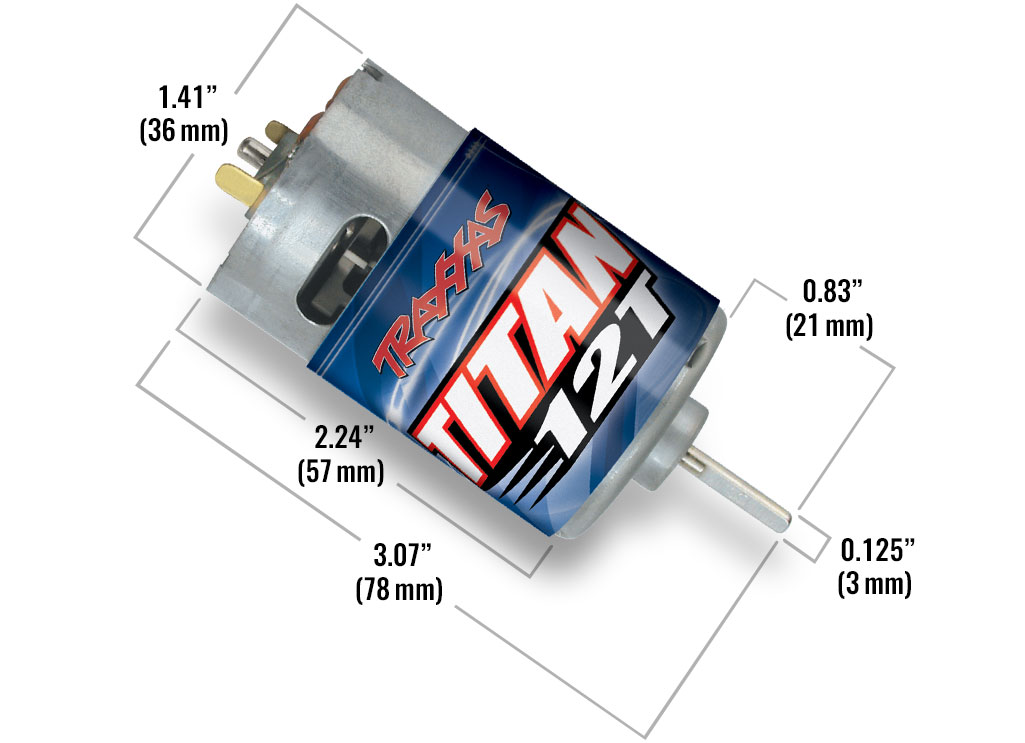

MOTOR SPECS
Motor Name:
Titan® 12T 550
Motor Type:
High-speed brushed motor
Motor Weight:
8.47 ounces (240 g)
Motor Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
Bullet

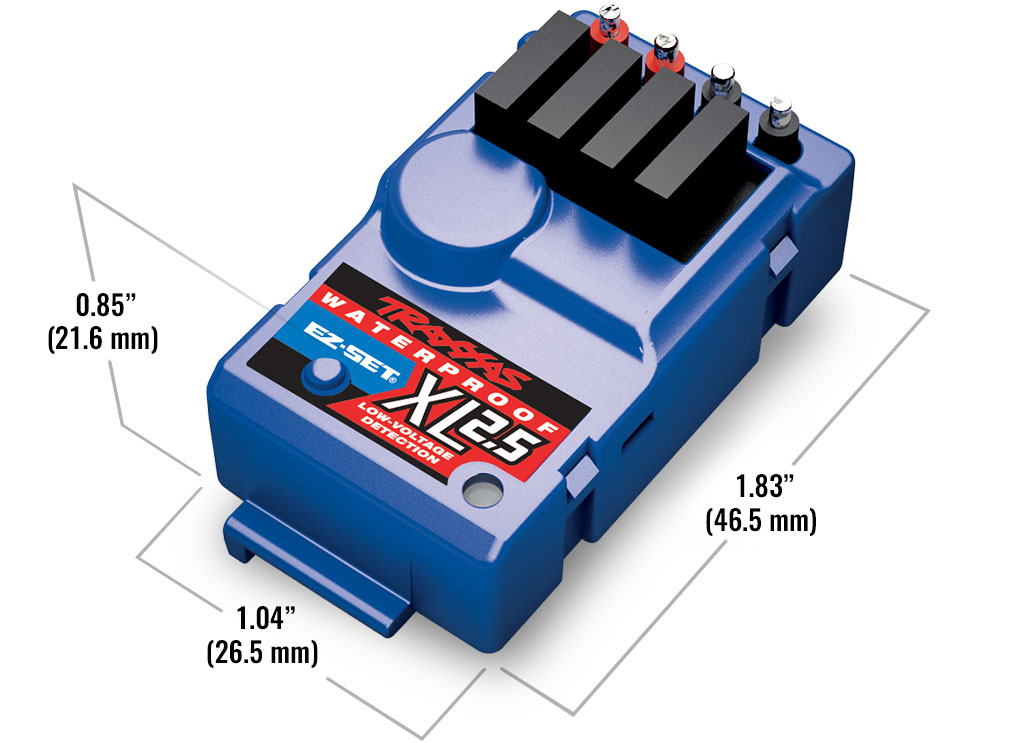

ESC SPECS
ESC Name:
Waterproof XL-2.5™ ESC with low-voltage detection
ESC Type:
Brushed
ESC Case Size:
46.5 mm / 26.5 mm / 22 mm
ESC Weight:
1.16 ounces (33 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High Current Connector
ESC Power Wire:
16 gauge
ProGraphix® Painted Body 1/16 Scale pre-painted body with applied decals High-downforce composite wing Waterproof XL-2.5™ Electronic Speed Control Innovative waterproof design Three drive profiles Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Traxxas EZ-Set® one-button setup High-capacity heat sink LiPo and NiMH compatible with two-stage low-voltage detection Titan® 550 Motor Powerful Titan 12T 550 modified motor with internal cooling fan Oversized armature for big torque and increased power handling Virtually maintenance-free operation Includes Battery and Charger 2-amp 12 V DC Peak Detecting Fast Charger 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD® TQ™ 2.4GHz 2-Channel Radio System Ergonomic transmitter with internal antenna Traxxas 6519 3-channel micro receiver with fail-safe security Patented O-ring sealed watertight receiver box keeps the micro receiver dry Fiber-Composite Monocoque Chassis Low-CG design for improved handling Tough skid plates for driveline protection All electronics securely fastened to chassis Dual Integrated Battery Compartments Quick-release battery doors for fast pack changes Intake and exhaust cooling vents keep battery temperatures down Accepts 1/16 scale NiMH and LiPo batteries Transmission and Driveline Full-time shaft-driven 4WD Sealed heavy-duty transmission Adjustable slipper clutch Sealed, silicone-filled differentials with steel gears Heavy-duty telescoping U-joint driveshafts Steering Digital waterproof Traxxas 2080 steering servo Servo horn with integrated servo saver Suspension Twin-arm pivot ball suspension Progressive rocker-arm damping for extreme travel Captured rod ends won't pop off Springs and Shocks Inboard fully adjustable oil-filled GTR™ shocks Adjustable pre-load collars Red powder-coated springs Wheels and Tires Pre-glued Talon™ tires with high-performance foam inserts 53 mm Gemini™ 5-spoke chrome wheels Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability
No Parts available for this model
