Battery & Charger
Included

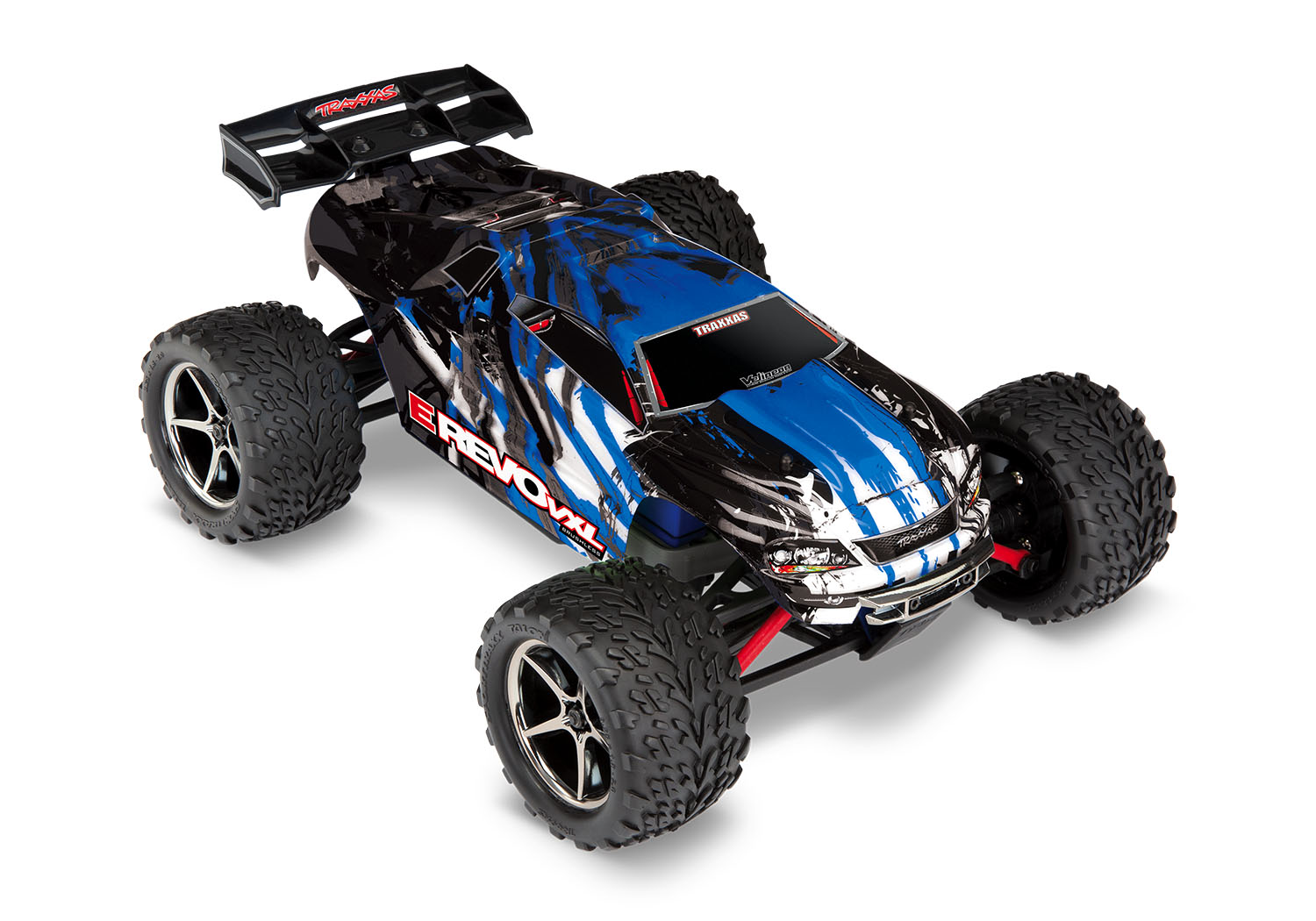

1/16 E-Revo VXL w/Battery
MODEL SPECS
Model Name:
1/16 E-Revo VXL w/USB-C
Model Type:
Monster Truck
Model Speed:
30+ mph (50+ mph with dual batteries)
Model Skill Level:
2
Scale:
1/16
Weight:
2.4 pounds (1.09 kg)

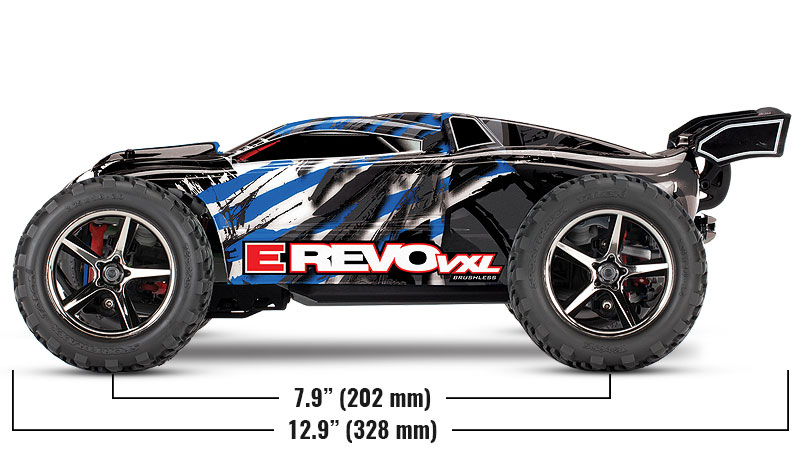

Length:
12.9 inches (328 mm)

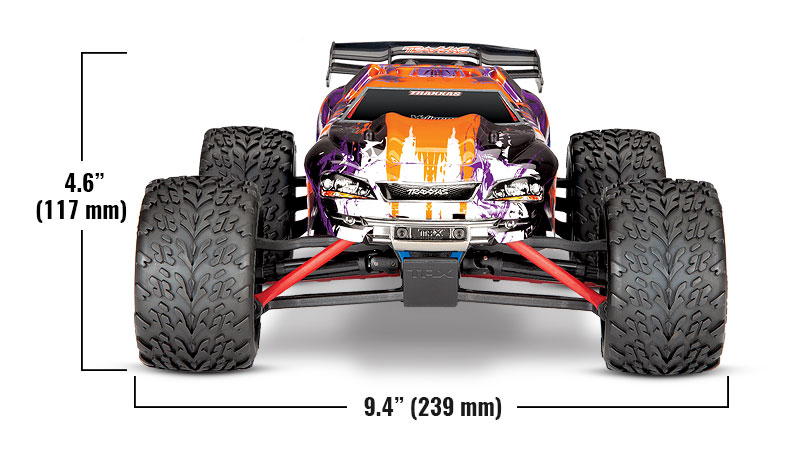

Width:
9.4 inches (239 mm)
Front Track:
9.4 inches (239 mm)
Rear Track:
9.4 inches (239 mm)
Height:
4.6 inches (117 mm)
Wheelbase:
7.9 inches (202 mm)
Drivetrain:

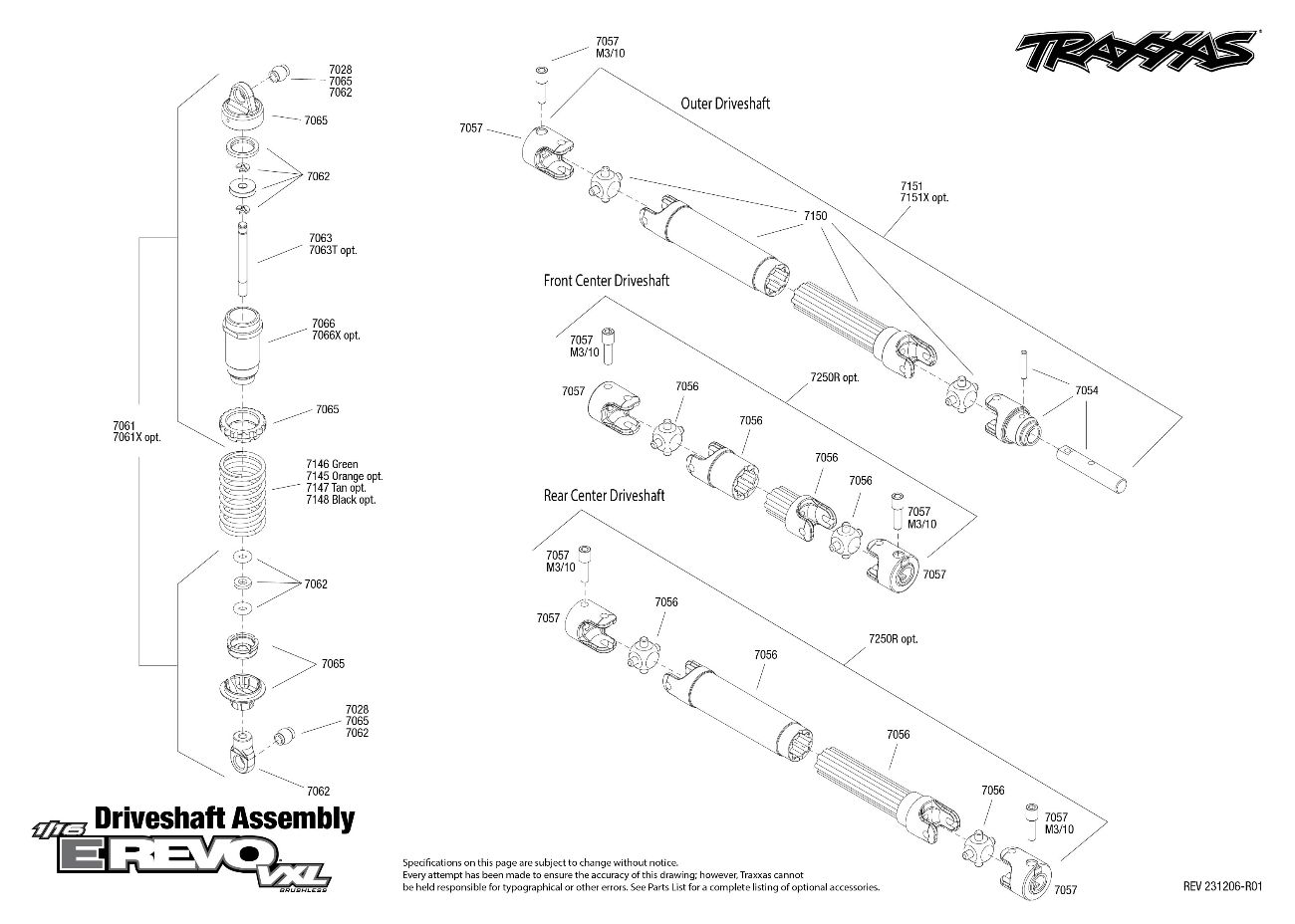

Shaft-driven 4WD

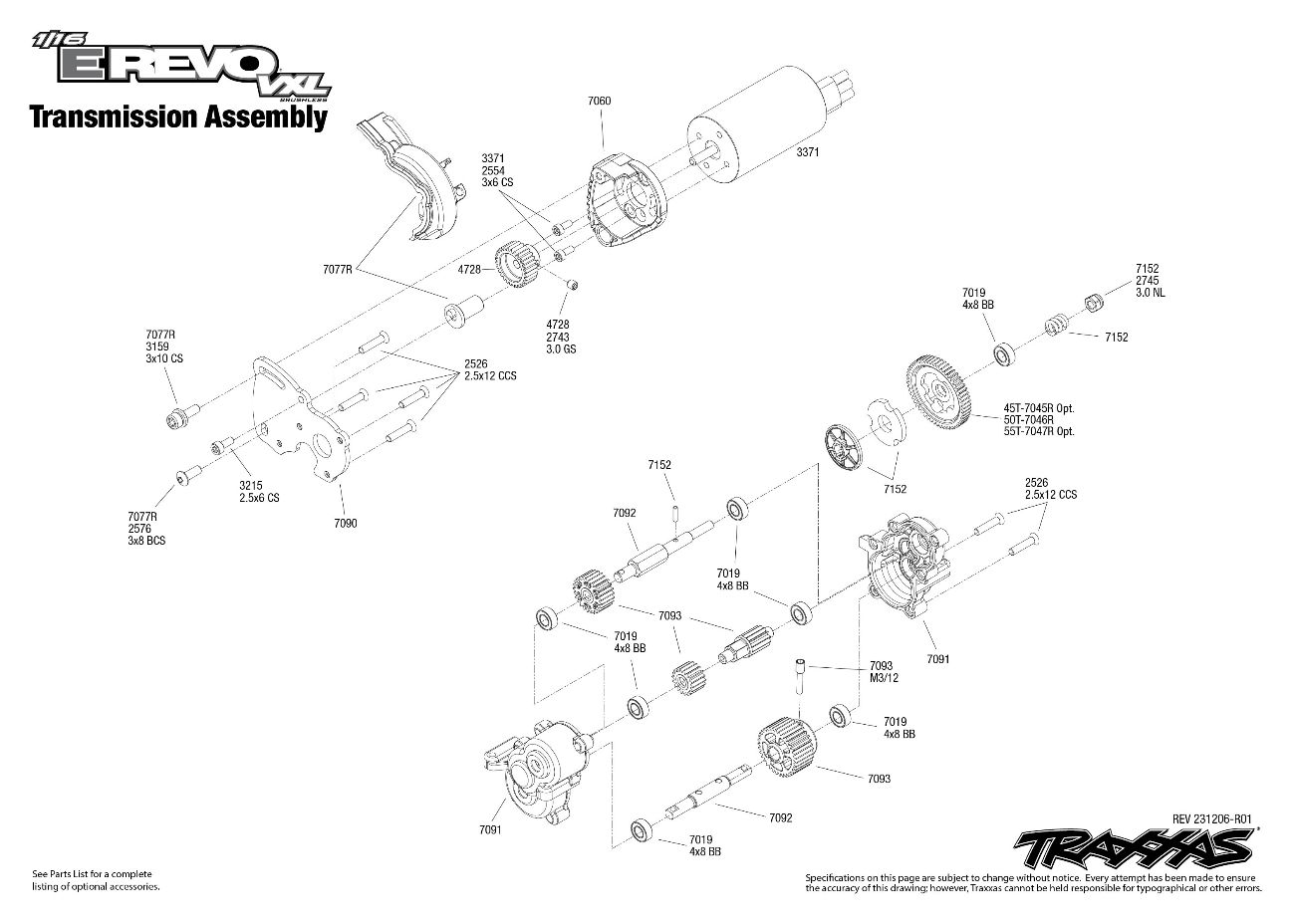

Transmission:
Heavy-duty single speed

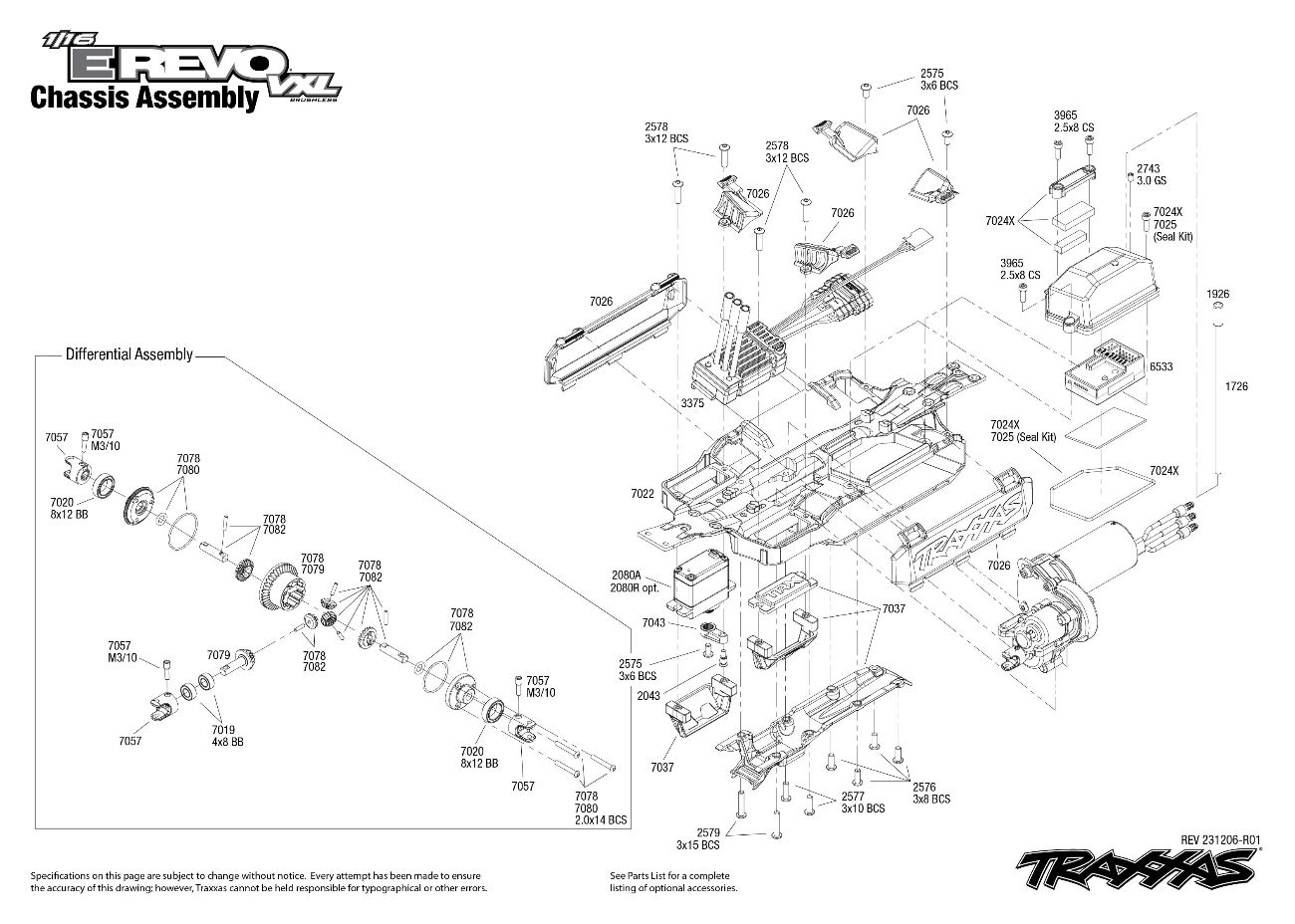

Differential Type:
Hardened steel bevel, sealed
Gear Ratio (Internal):
5.04:1
Gear Pitch:
48 pitch
Servo(s):
2080 digital waterproof
Radio System:
TQi™ 2.4 GHz 2-Channel transmitter with TSM® receiver

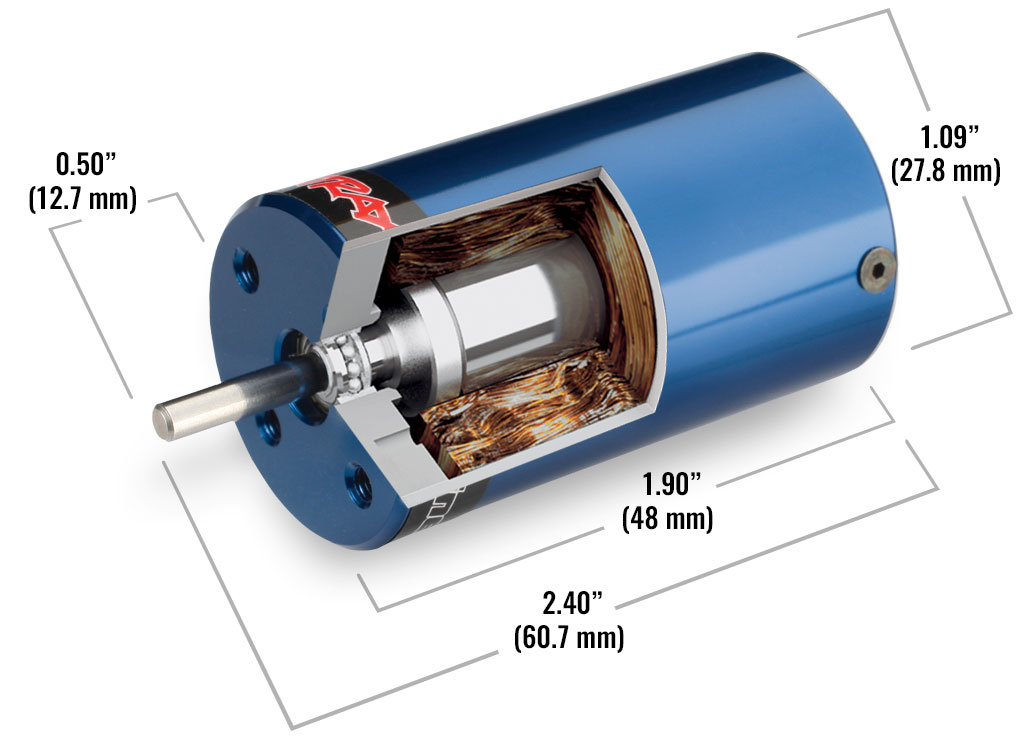

MOTOR SPECS
Motor Name:
Velineon® 380
Motor Type:
Sensorless brushless
Motor Weight:
4.49 ounces (140 g)
Motor Length:
2.4 inches (61 mm) overall length, 1.9 inches (48 mm) can length
Motor Diameter:
1.09 inches (28 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
3.5 mm bullet

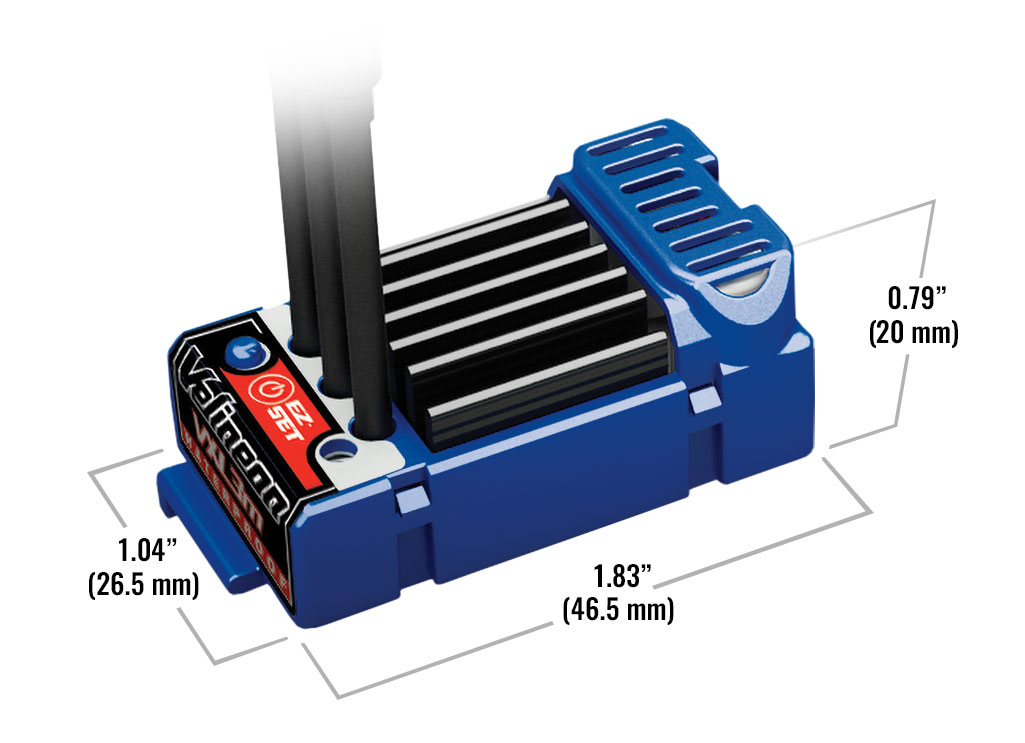

ESC SPECS
ESC Name:
Waterproof Velineon® VXL-3m ESC
ESC Case Size:
1.06 inches (27 mm) / 1.85 inches (47 mm) / 0.87 inches (22 mm)
ESC Weight:
1.34 ounces (38 g)
Motor Connectors:
3.5 mm bullet connectors
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
16 gauge
ProGraphix® Painted Body 1/16 Scale pre-painted body with applied decals High-downforce composite wing Waterproof VXL-3m™ Electronic Speed Control Innovative waterproof design Three drive profiles Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Traxxas EZ-Set® one-button setup High-capacity heat sink NiMH battery packs: 6-12 cells (7.2 to 14.4 volts) LiPo battery packs: 2-3 cells (7.4 to 11.1 volts) Velineon® 380 Brushless Motor Powerful 8-turn, 4000 kV design Optimized for smooth sensorless power Ultra high-temperature sintered Neodymium motor magnets Gold-plated 3.5 mm bullet connectors Traxxas Stability Management® (TSM) Improves straight line acceleration and braking on low-traction surfaces Maintains steering composure to allow throttle-on powerslides Never dulls throttle or slows the vehicle Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz High Output Radio System TQi 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link-enabled models Programmable multi-function knob Adjustable steering and throttle percentage (dual rates) Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle end points Patented waterproof receiver box Includes Battery and USB-C Charger 2-amp USB-C Fast Charger 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD® Fiber-Composite Monocoque Chassis Low-CG design for improved handling Tough skid plates for driveline protection All electronics securely fastened to chassis Dual Integrated Battery Compartments Quick-release battery doors for fast pack changes Intake and exhaust cooling vents keep battery temperatures down Accepts 1/16 scale NiMH and LiPo batteries Transmission and Driveline Full-time shaft-driven 4WD Sealed heavy-duty transmission Adjustable slipper clutch Sealed, silicone-filled differentials with steel gears Heavy-duty telescoping U-joint driveshafts Steering Digital waterproof Traxxas 2080 steering servo Servo horn with integrated servo saver Suspension Twin-arm pivot ball suspension Progressive rocker-arm damping for extreme travel Captured rod ends won't pop off Springs and Shocks Inboard fully adjustable oil-filled GTR™ shocks Adjustable pre-load collars Red powder-coated springs Wheels and Tires Pre-glued Talon™ tires with high-performance foam inserts 53 mm Gemini 5-spoke chrome wheels Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability
