Battery & Charger
Sold Separately

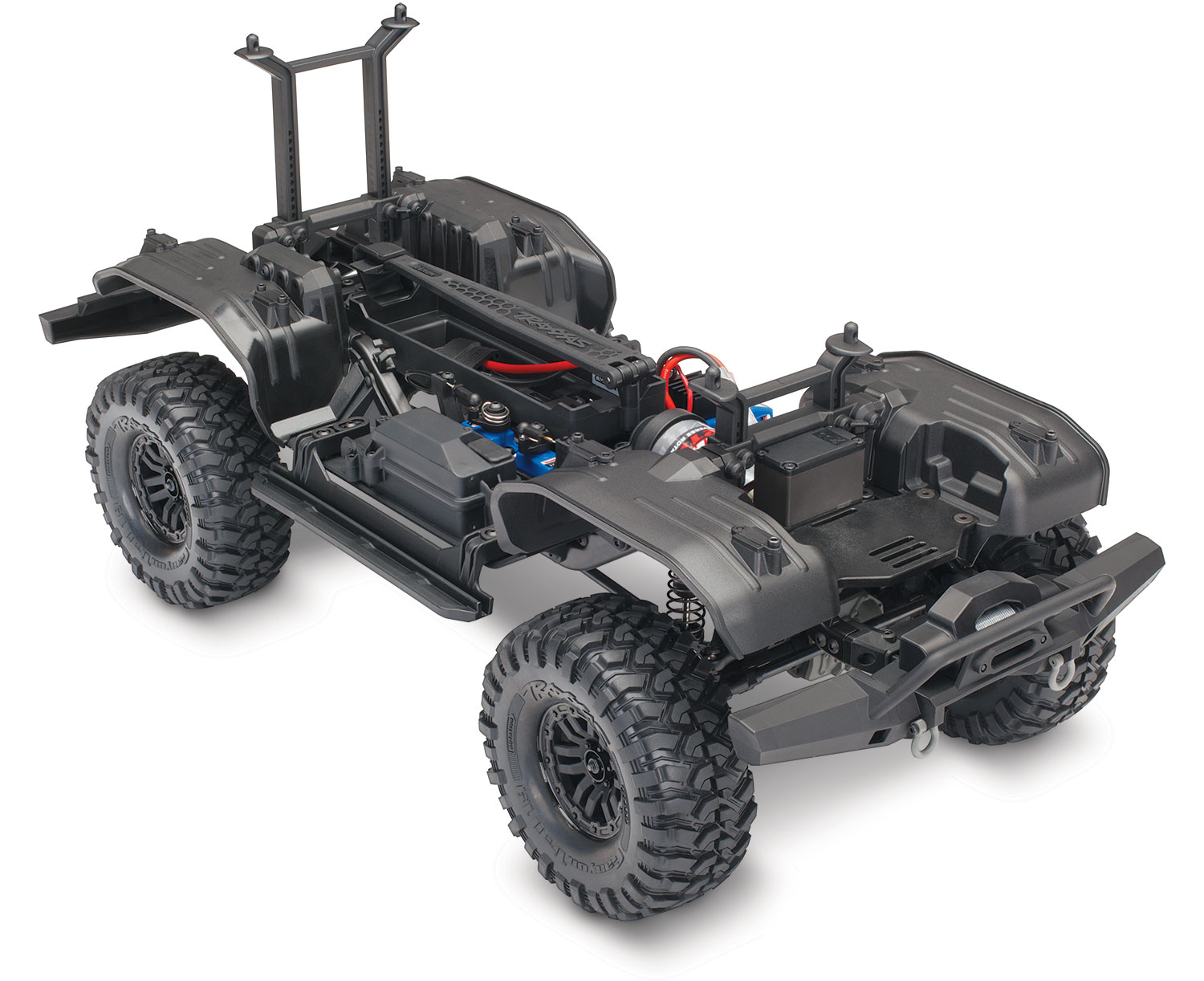

TRX-4 Crawler Kit
MODEL SPECS
Model Name:
TRX-4 Crawler Kit
Model Type:
Trail / Crawler
Model Skill Level:
2
Scale:
1/10
Weight:
6.42 pounds (2.91 kg)
Length:
20.57 inches (523 mm)
Width:
9.78 inches (249 mm)
Front Track:
9.78 inches (249 mm)
Rear Track:
9.78 inches (249 mm)
Height:
10.47 inches (266 mm)
Wheelbase:
12.28 inches (312 mm)
Center Ground Clearance:
3.14 inches (80 mm)
Drivetrain:
Shaft-driven 4WD
Transmission:
2-speed high/low, remote shifting
Differential Type:
4 gear, remote locking
Gear Pitch:
32 pitch
Servo(s):
2075X metal gear, digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs:
159 mm X 47 mm X 23 mm, 26 mm

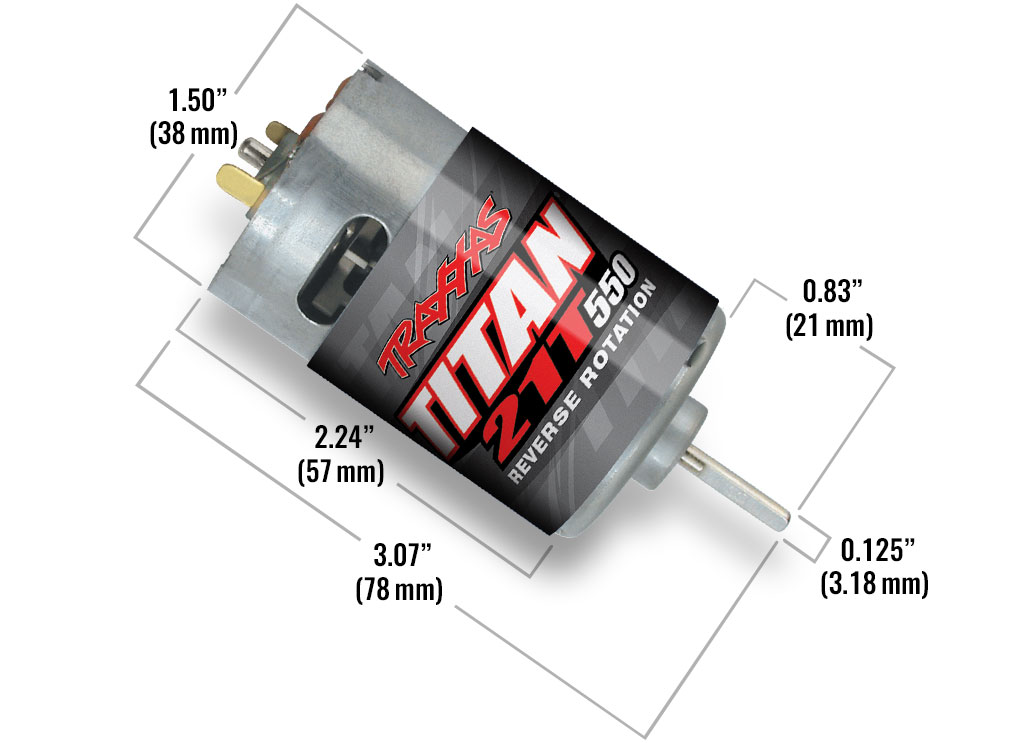

MOTOR SPECS
Motor Name:
Titan® 21T Reverse Rotation
Motor Type:
High-torque brushed motor
Motor Weight:
8.47 ounces (240 g)
Motor Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:
1.53 inches (39 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
Bullet

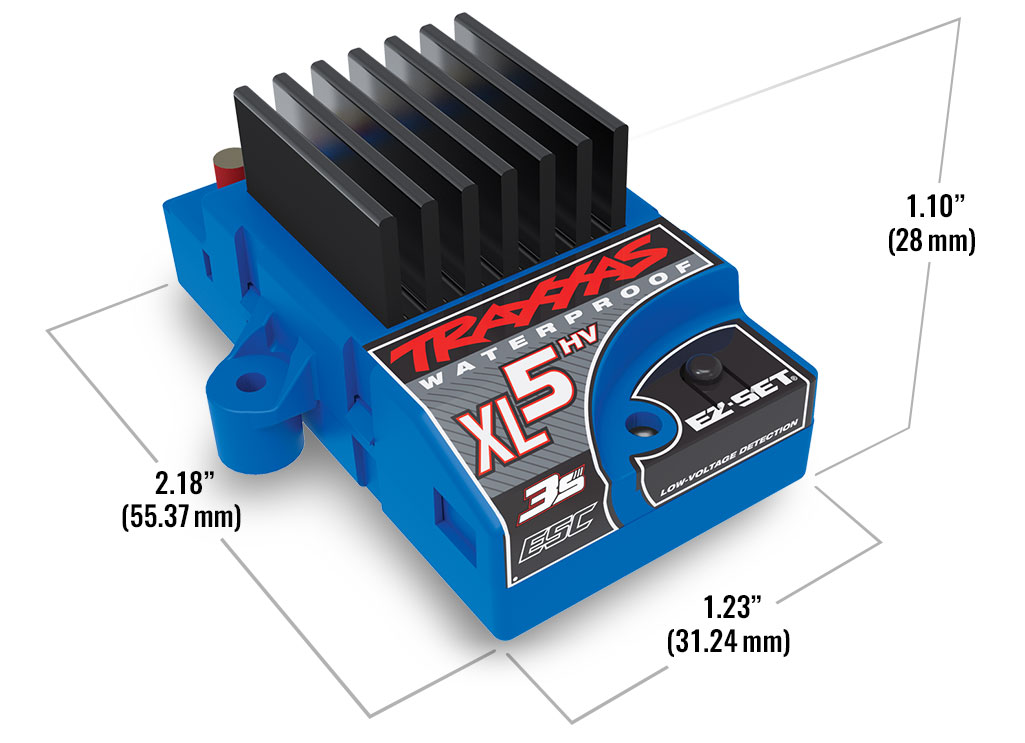

ESC SPECS
ESC Name:
XL-5™ HV
ESC Type:
Brushed
ESC Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:
2.60 ounces (74 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
14 gauge
Easy to follow full-color assembly manual True-to-scale part illustrations and ruler charts Helpful assembly tips and clear illustrations Body sold separately Trail-tuned XL-5 HV Waterproof Electronic Speed Control Fully waterproof design Sport Mode — forward / brake / reverse Race Mode — forward / brake / no reverse Training Mode™ - 50% forward / 100% brake / 50% reverse (patented) Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake Traxxas EZ-Set® one-button setup Large, efficient heat sink Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V) Two stage low voltage protection (LVD) Titan 550 Motor Powerful Titan™ 21T reverse rotation motor with internal cooling fan Precision, preset gear mesh adjustments Motor retention separate from gear mesh Portal Axles Increase ground clearance Eliminate torque twist Steel gears Improve axle geometry and reduce strain on driveshafts Transmission Two speed high/low range with remote shifting Dual horizontal shafts Twin friction plate slipper clutch Easily removed for servicing TQi™ 2.4GHz Radio System TQi 4-channel transmitter 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link enabled models Exclusive Cruise Control feature for extended trail driving Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle endpoints Patented waterproof receiver box with easy-access plug Rigid Steel Frame 1.5 mm thick steel frame rails increase torsional rigidity Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm) Adjustable rear shock tower positions for SWB and LWB configurations Bumpers adjust fore and aft Rugged rock rails adjust for width Wire routing clips integrated into frame rails Innovative Battery Compartment Hinged battery strap allows quick and easy battery access No pins to lose Accommodates different height batteries Accepts full-size long battery packs Integrated compartment accepts smaller 1/16 scale batteries (with optional strap) Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap) Drivetrain Full-time shaft driven 4-wheel drive Tough 6 mm stub axles Steel front CV driveshafts Hardened steel rear axle shafts Remote locking steel gear differentials with cable-actuation Steel gear transfer case Steering Chassis mounted 2075X metal gear digital servo Superior 45° steering angle Direct steering (no servo saver) Steering geometry corrected for bump steer Suspension Front — 3 link with panhard Rear — Triangulated 4 link Heavy-duty rod ends with steel hollow balls 5 mm diameter steel link rods with 4mm threaded ends Pre-assembled aluminum GTS Shocks Coilover GTS shocks exclusive to TRX-4 chassis Silver-anodized aluminum bodies Threaded bodies with collars easily adjust ride height Silky smooth damping for the toughest trails O-ring cap seal and dual X-ring shaft seals Shock oil included in kit Wheels and Tires 1.9” Canyon Trail tires with trail-tuned foam inserts Tough black scale wheels Trail tuned S1 rubber compound 12 mm steel hex Tire glue required Sealed Ball Bearings Hex hardware with rust-resistant black oxide coating Requires Battery and Charger (Sold Separately)
No Parts available for this model
