TRX-4 W/ Deep Terrain Traxx

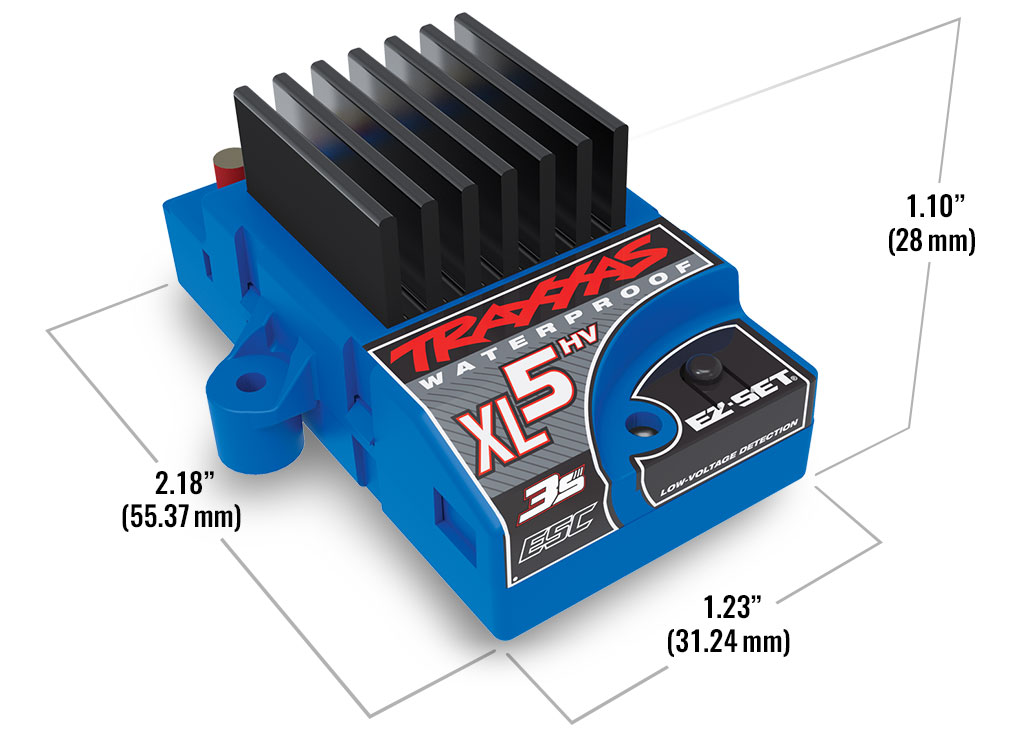

ESC SPECS
ESC Name:
XL-5™ HV
ESC Type:
Brushed
ESC Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:
2.6 ounces (74 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
14 gauge
Tough, Lightweight Pickup Truck Body Low profile bumpers for increased clearance Red differential covers and D-rings Clear windows Scale Accessories Rugged Expedition Rack with detailed accessories Tough inner fenders Injection-molded snorkel, side mirrors, and grilles All-Terrain Traxx® Virtually unstoppable traction on practically any terrain Oil-filled coilover dampers to control rotational movement Suspended road wheels allow treads to conform to irregular surfaces Specially designed one-piece rubber treads resist de-tracking Longer rear Traxx drive units for steep climbing stability Sealed bearings on drive wheels Low-maintenance self-lubricating bushings on guide wheels LED Light Kit Sealed waterproof design Color-coded power distribution block for easy and secure connections Regulated to provide consistent and reliable power output Eliminates overheating, glitching, and other electronics issues Portal Axles Increase ground clearance Eliminate torque twist Steel gears Improve axle geometry and reduce strain on driveshafts Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control Fully waterproof design Sport Mode — forward / brake / reverse Race Mode — forward / brake / no reverse Training Mode™ - 50% forward / 100% brake / 50% reverse (patented) Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake Traxxas EZ-Set® one-button setup Large, efficient heat sink Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V) Two stage low voltage protection (LVD) Motor Powerful Titan® 21-T reverse rotation motor with internal cooling fan Precise preset gear mesh adjustments Motor retention separate from gear mesh Rigid Steel Frame 1.5 mm thick steel frame rails increase torsional rigidity Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm) Adjustable rear shock tower positions for SWB and LWB configurations Bumpers adjust fore and aft Rugged rock rails adjust for width Wire routing clips integrated into frame rails Drivetrain Full-time shaft driven 4-wheel drive Tough 6 mm stub axles Steel front CV driveshafts Hardened steel rear axle shafts Spool-locked front and rear differentials Innovative Battery Compartment Hinged battery strap allows quick and easy battery access No pins to lose Accommodates different height batteries Accepts full-size long battery packs Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap) Transmission Single-speed with steel gears Dual horizontal shafts Twin friction plate slipper clutch Easily removed for servicing Steering 236 oz-in torque Superior 45° steering angle Direct steering (no servo saver) Waterproof case Full metal gears Steering geometry corrected for bump steer Suspension Front — 3 link with panhard Rear — triangulated 4 link Heavy-duty rod ends with steel hollow balls 5 mm diameter steel link rods with 4 mm threaded ends Aluminum GTS Shocks Oil-filled coilover GTS shocks exclusive to TRX-4 chassis Silver-anodized aluminum bodies Threaded bodies with collars easily adjust ride height Silky smooth damping for the toughest trails O-ring cap seal and dual X-ring shaft seals TQ™ 2.4 GHz 2-channel transmitter Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry Sealed Ball Bearings Hex Hardware with Rust-Resistant Black Oxide Coating
MODEL 82034-4 : TRX-4® Equipped with Traxx® : 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive® , with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, painted body, scale accessories, and LED lighting.
What’s In The Box:
TRX-4, Ready-To-Drive model XL-5 HV waterproof electronic speed control Titan 21T reverse rotation motor TQ 2.4 GHz radio system High quality maintenance tools
What You’ll Need:
Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
