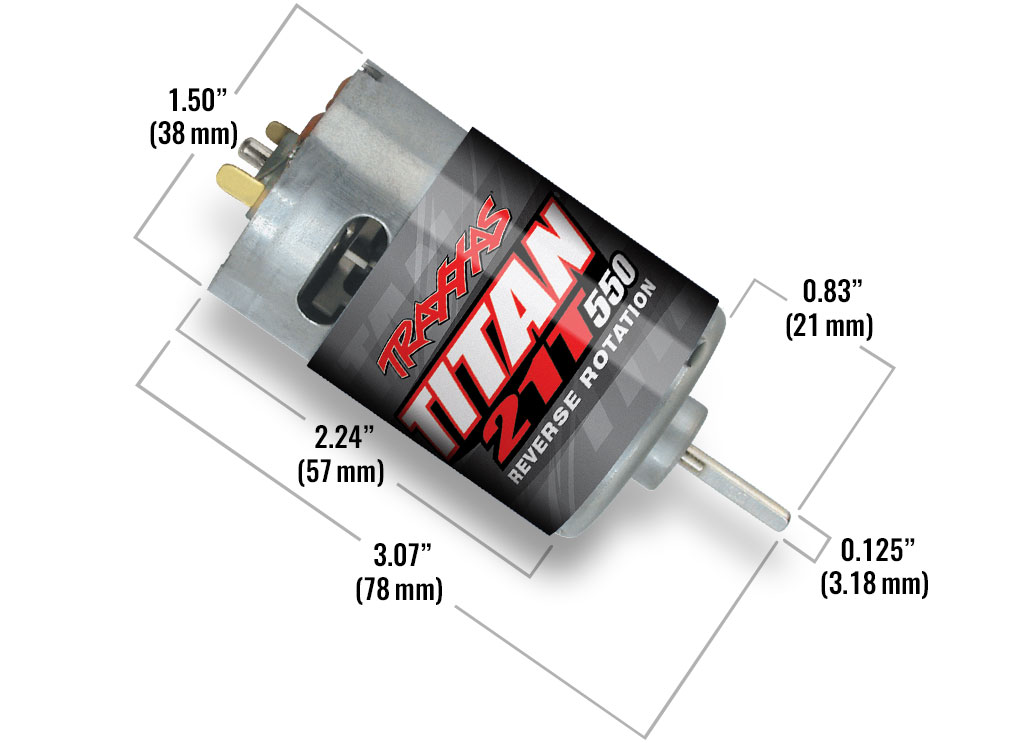

Motor Name:	Titan^® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

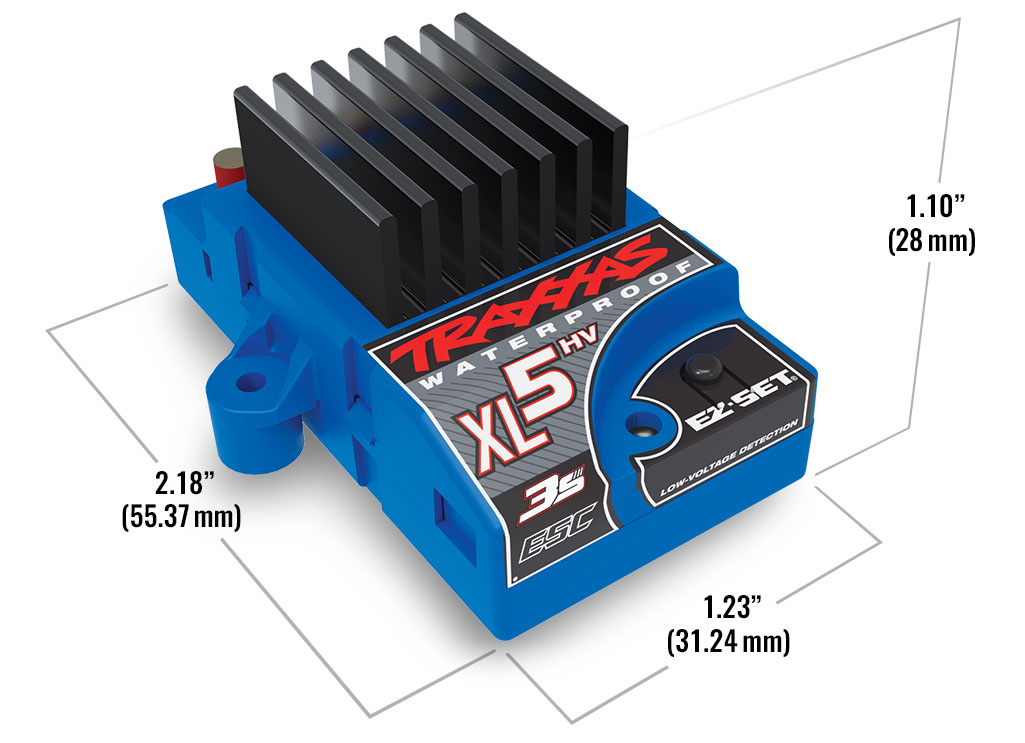

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge

Officially Licensed 1979 Ford^® Bronco Body

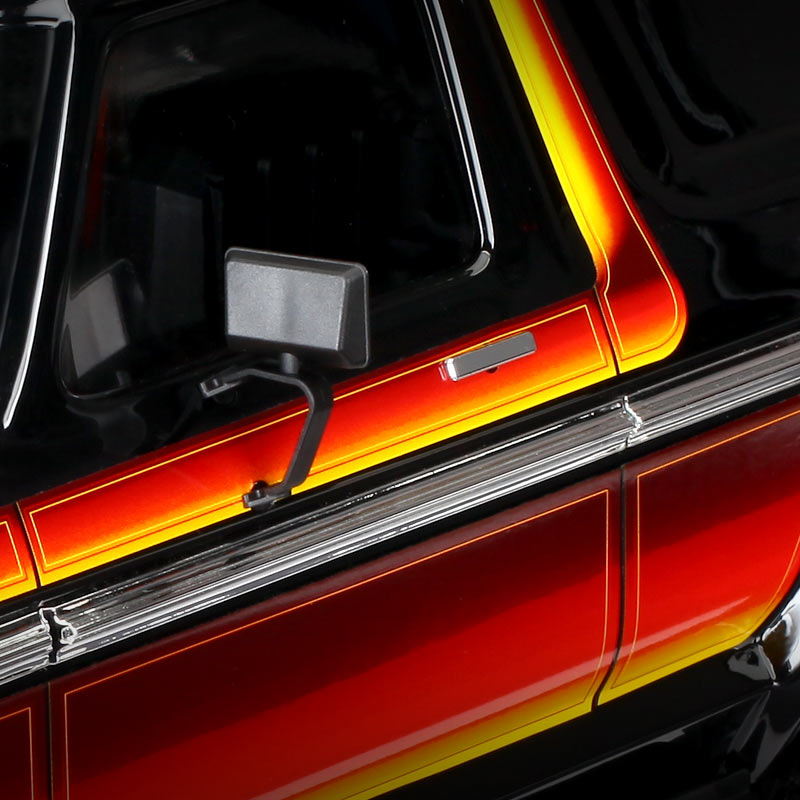

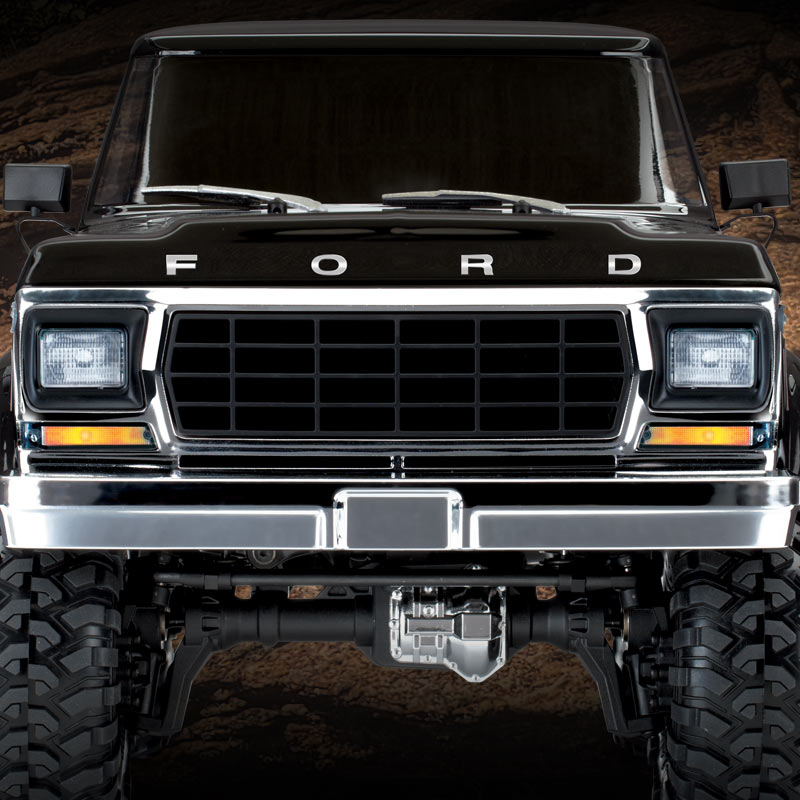

Scale details: grille, chrome bumpers, side mirrors, chrome side trim, and wipers
Clear front and side windows
Authentic decal sheet

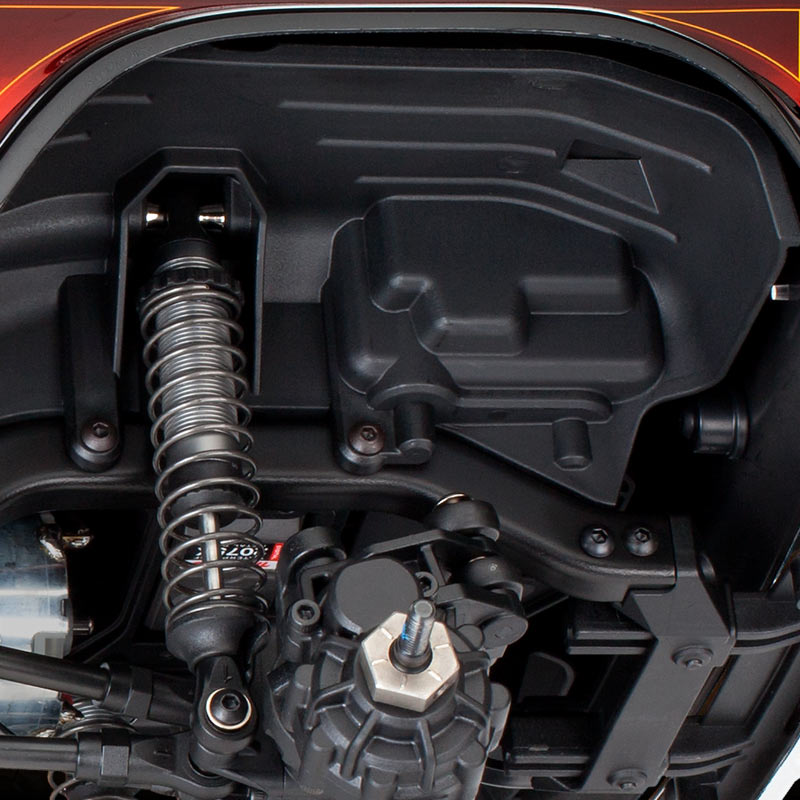

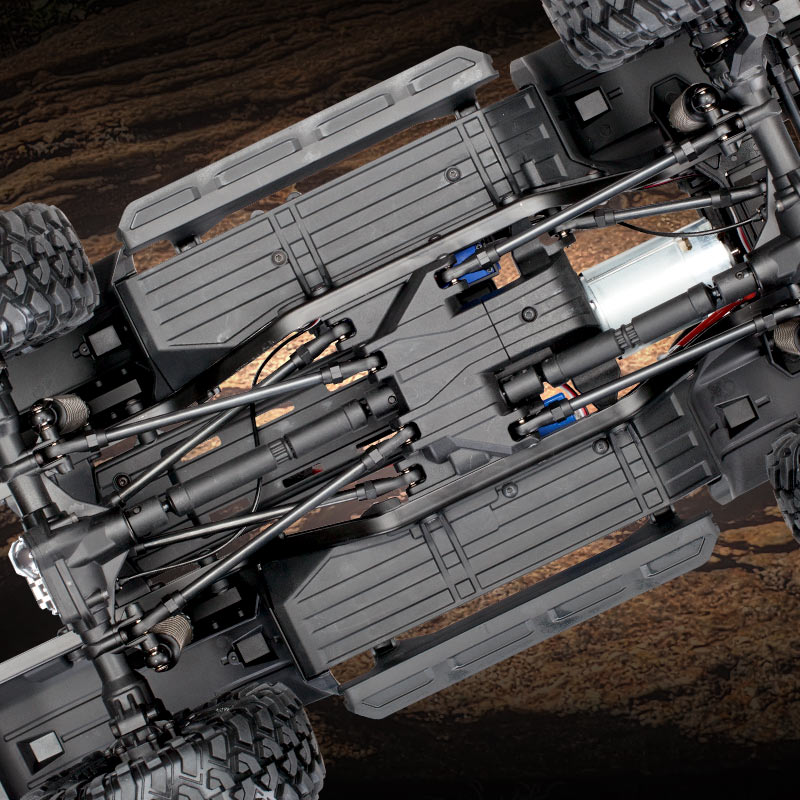

Full Nylon composite wheel wells and floor pans
Additional scale accessories sold separately

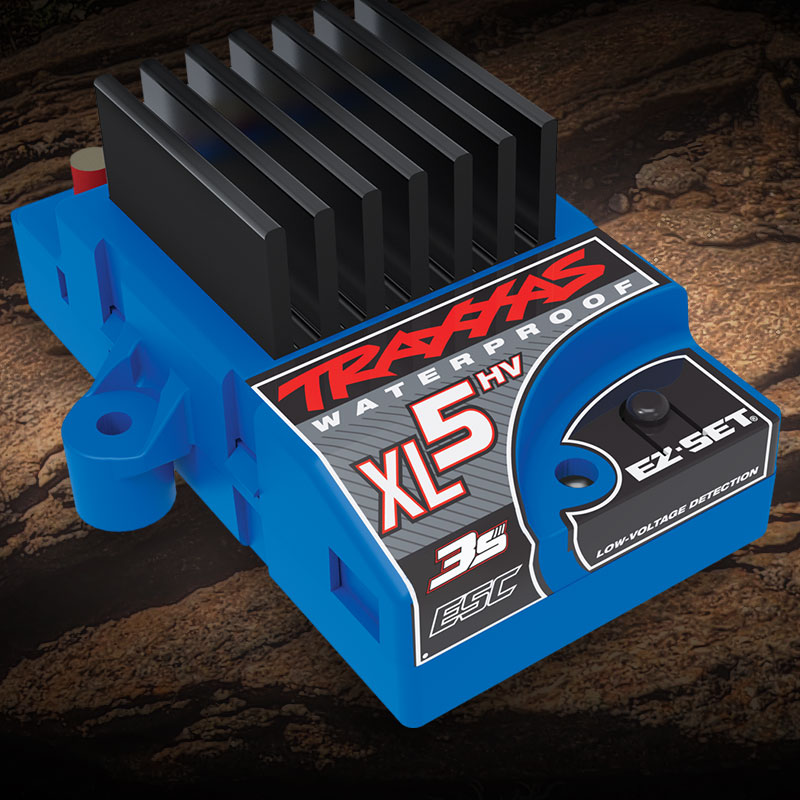

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

Fully waterproof design

Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set^® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
Two stage low voltage protection (LVD)

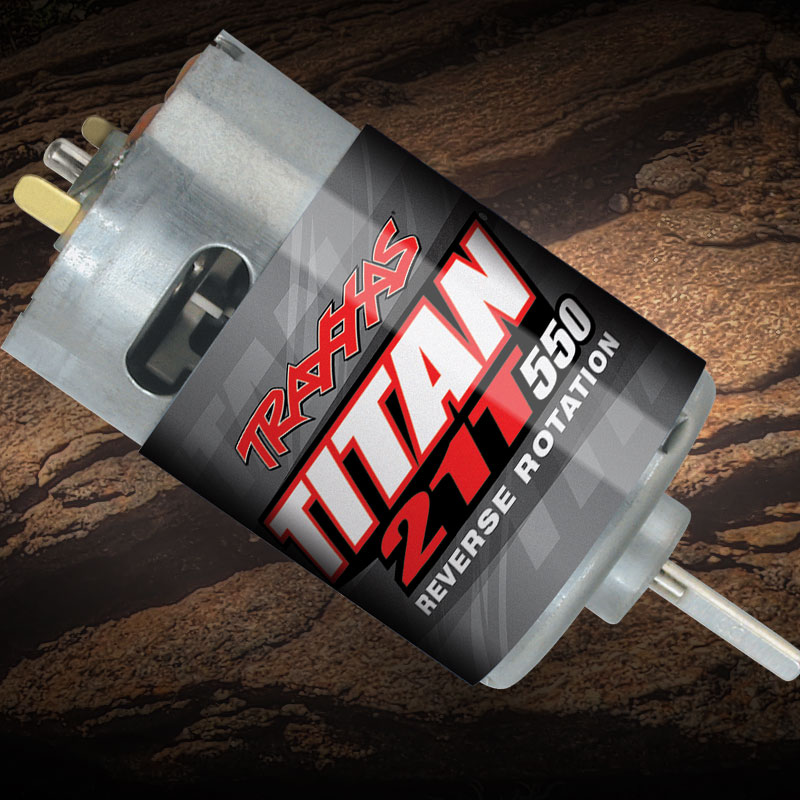

Titan^® 550 Motor

Powerful Titan 21T reverse rotation motor with internal cooling fan
Precision, preset gear mesh adjustments
Motor retention separate from gear mesh

Portal Axles

Increase ground clearance
Eliminate torque twist
Steel gears

Improve axle geometry and reduce strain on driveshafts

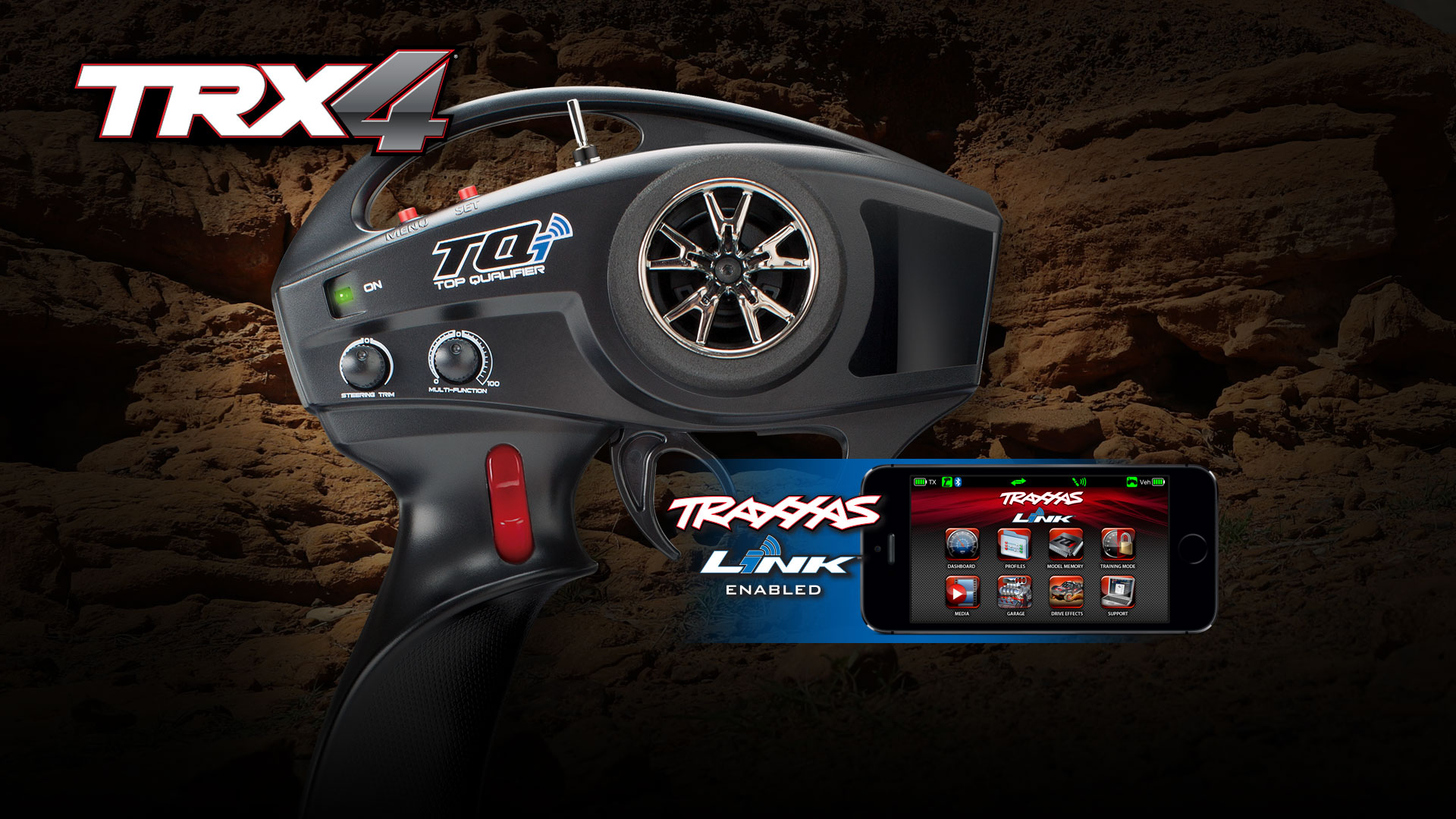

TQi™ 2.4 GHz Radio System

4-channel transmitter
5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Exclusive Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
Patented waterproof receiver box with easy-access plug

Rigid Steel Frame

1.5 mm thick steel frame rails increase torsional rigidity

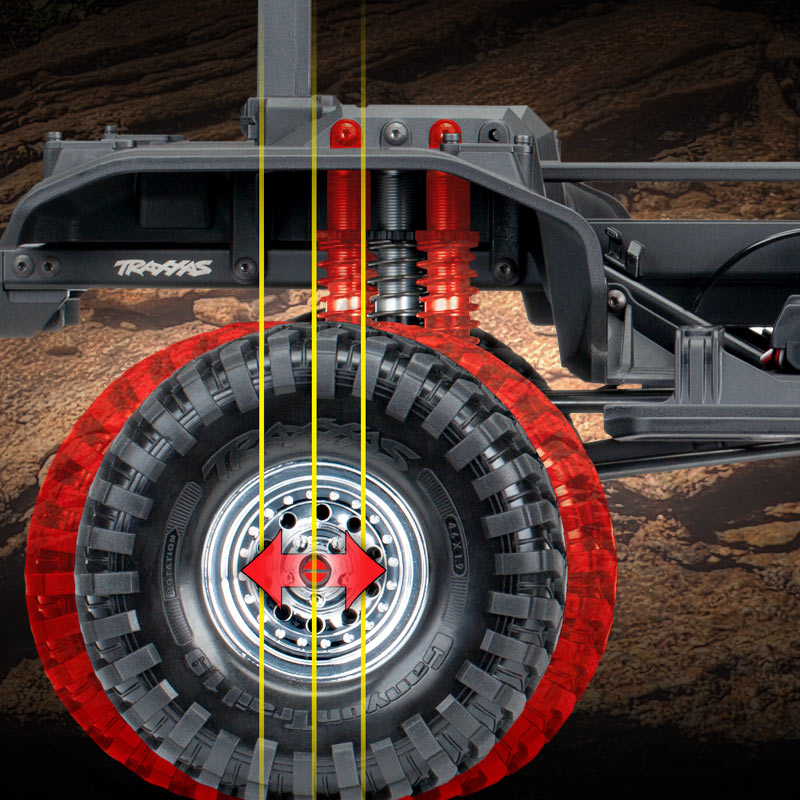

Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft

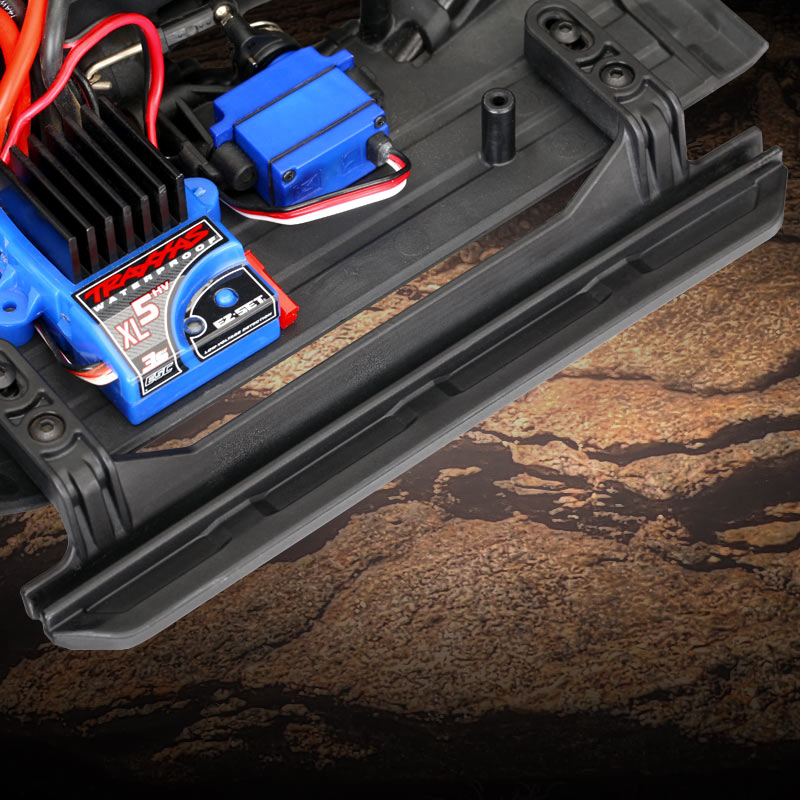

Rugged rock rails adjust for width

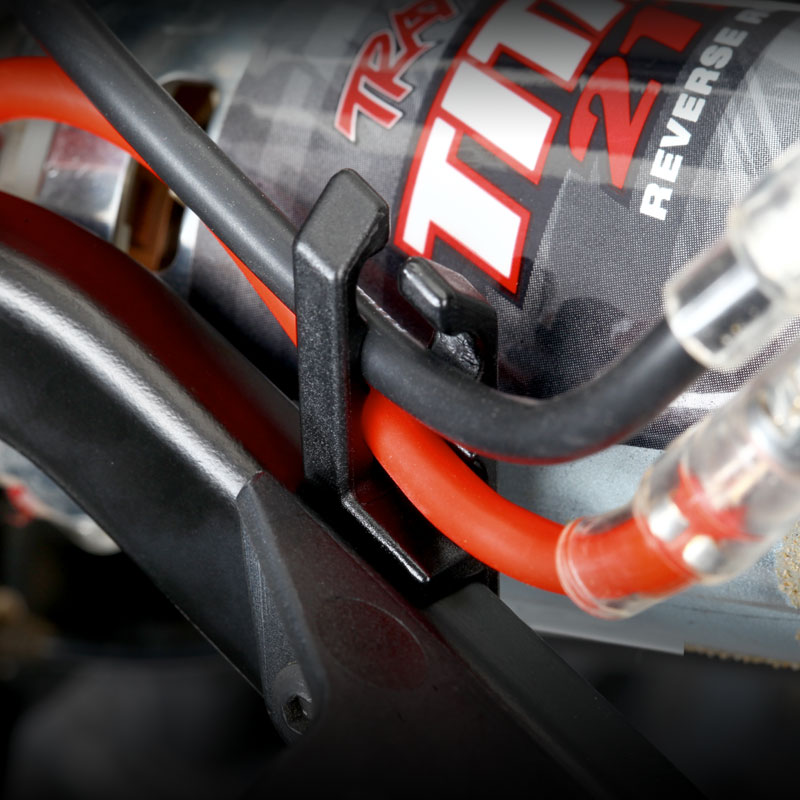

Wire routing clips integrated into frame rails

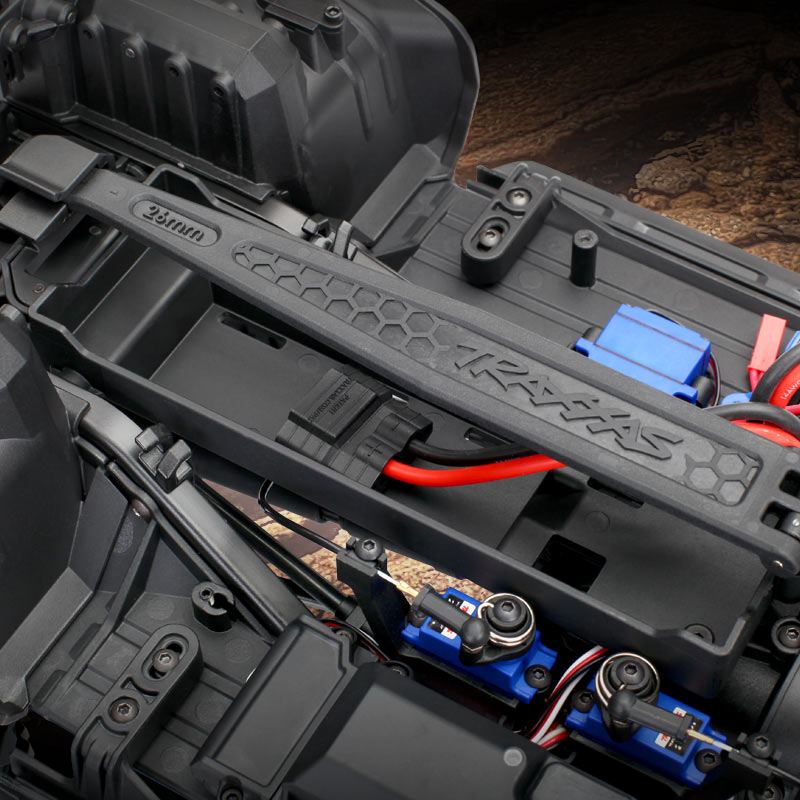

Innovative Battery Compartment

Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Drivetrain

Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles

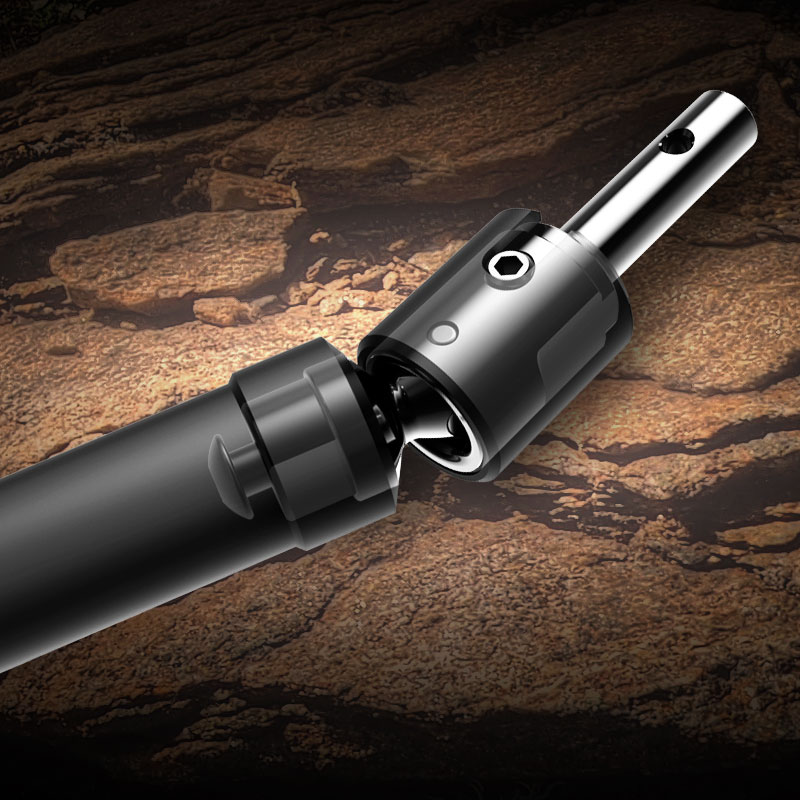

Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case

Transmission

Two speed high/low range with remote shifting
Dual horizontal shafts

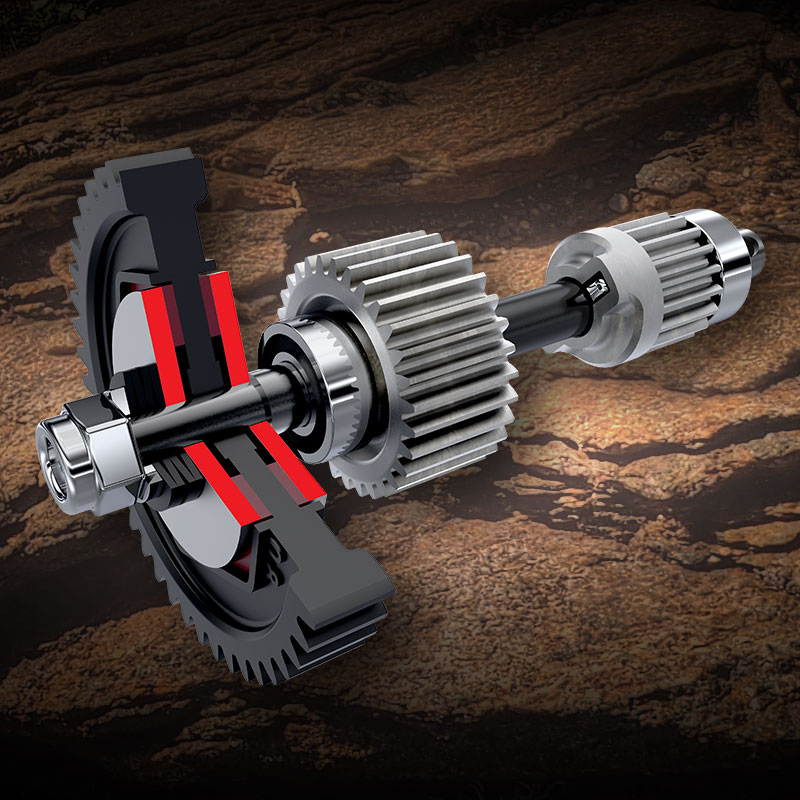

Twin friction plate slipper clutch
Easily removed for servicing

Steering

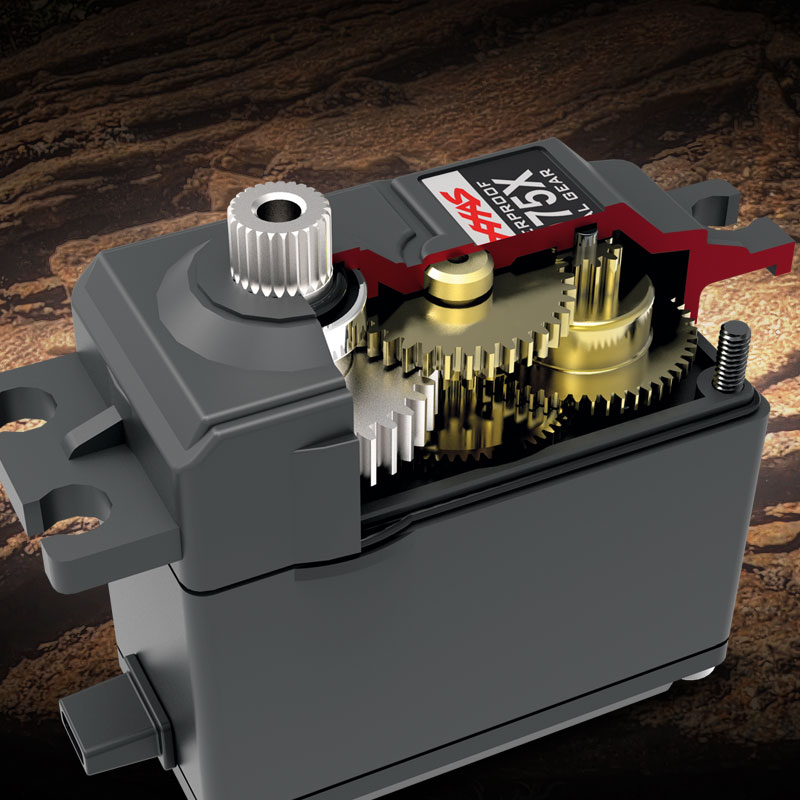

Chassis mounted 2075X metal gear digital servo

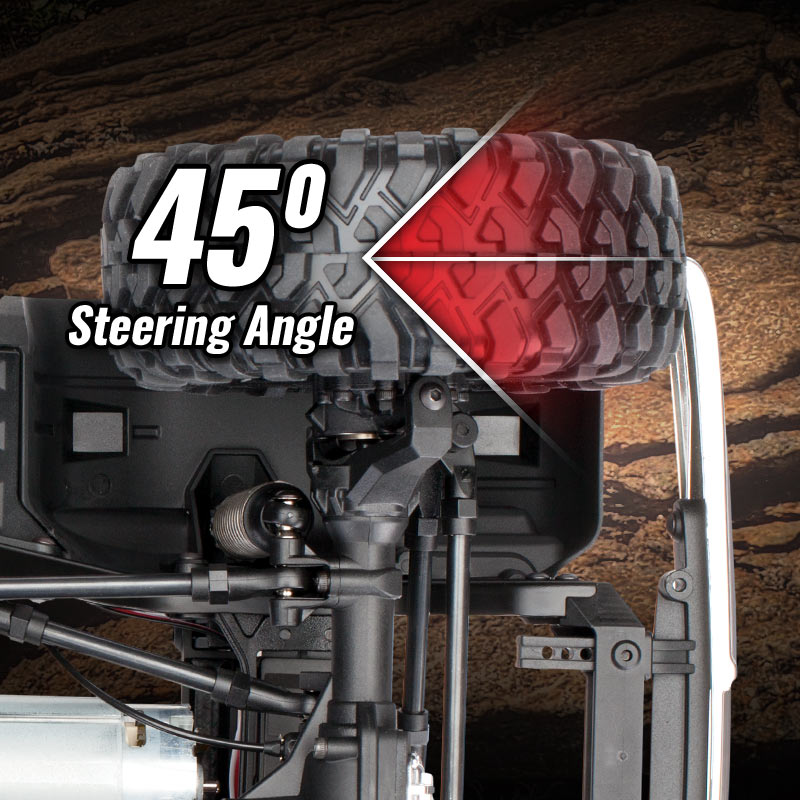

Superior 45° steering angle
Direct steering (no servo saver)

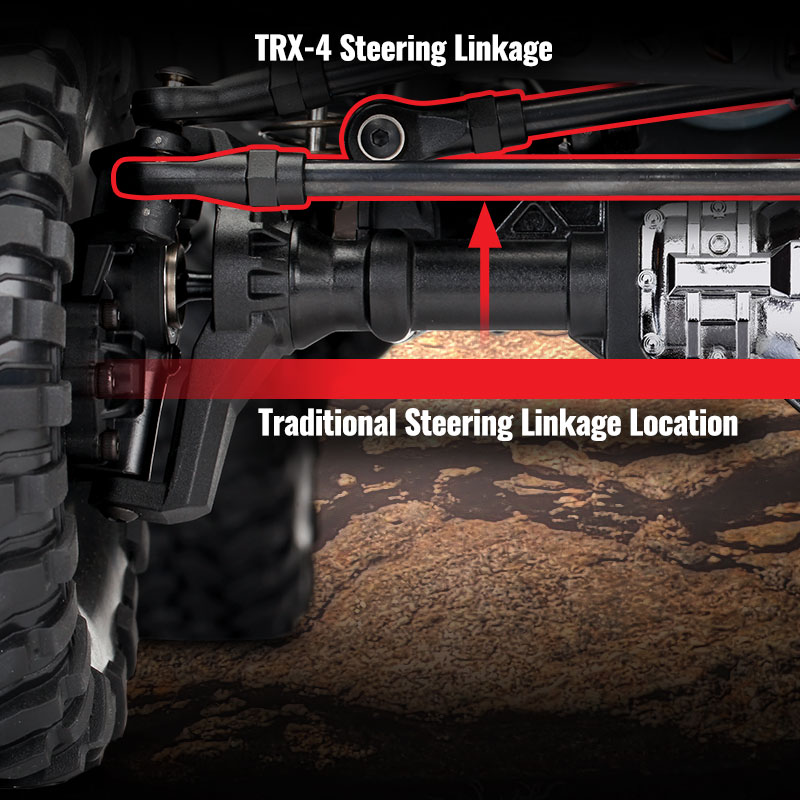

Steering geometry corrected for bump steer

Suspension

Front — 3 link with panhard
Rear — Triangulated 4 link

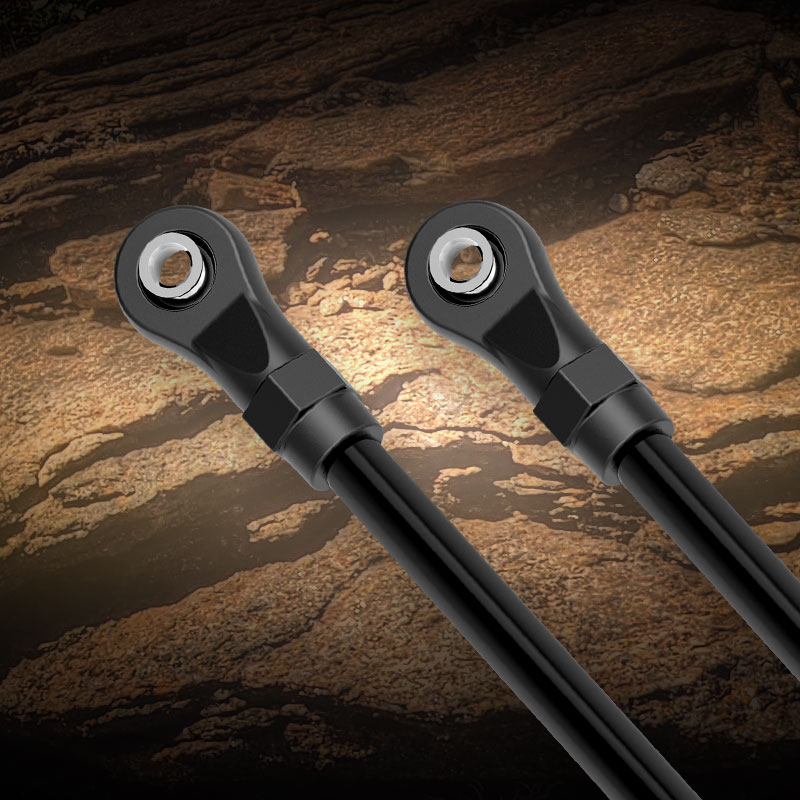

Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends

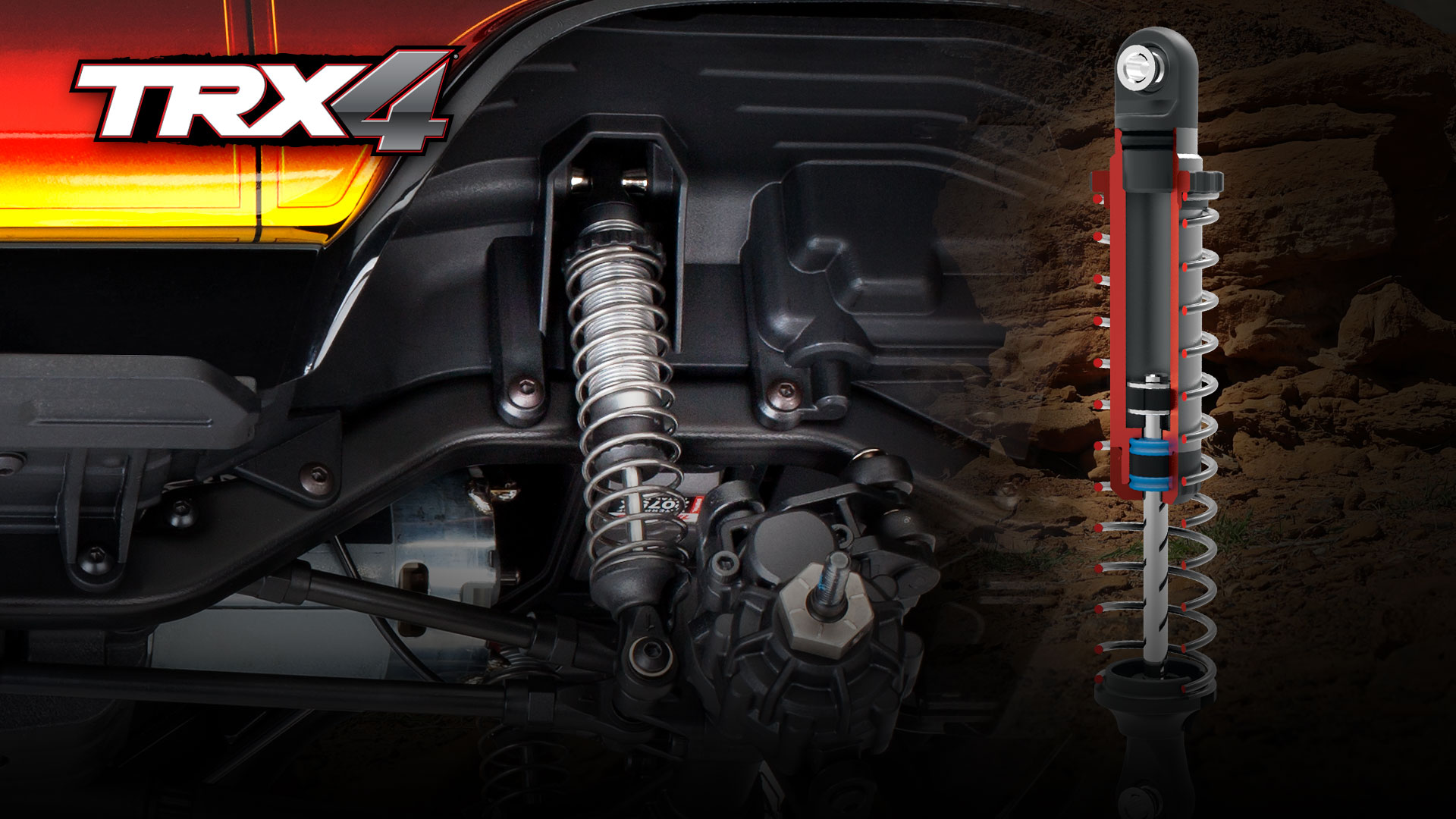

Aluminum GTS Shocks

Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

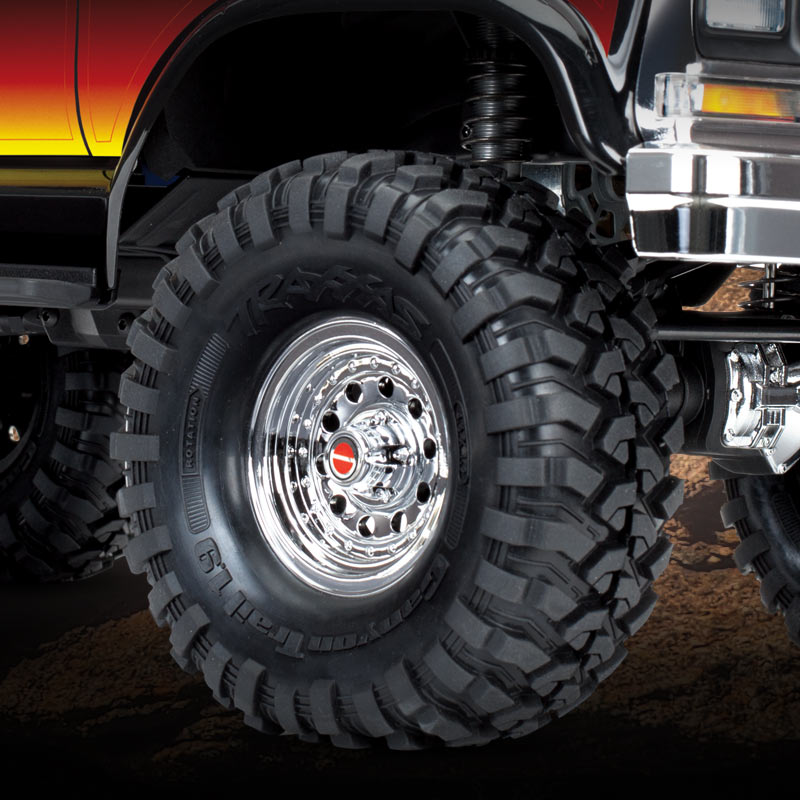

Wheels and Tires

Replica chrome wheels with hub inserts
Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex

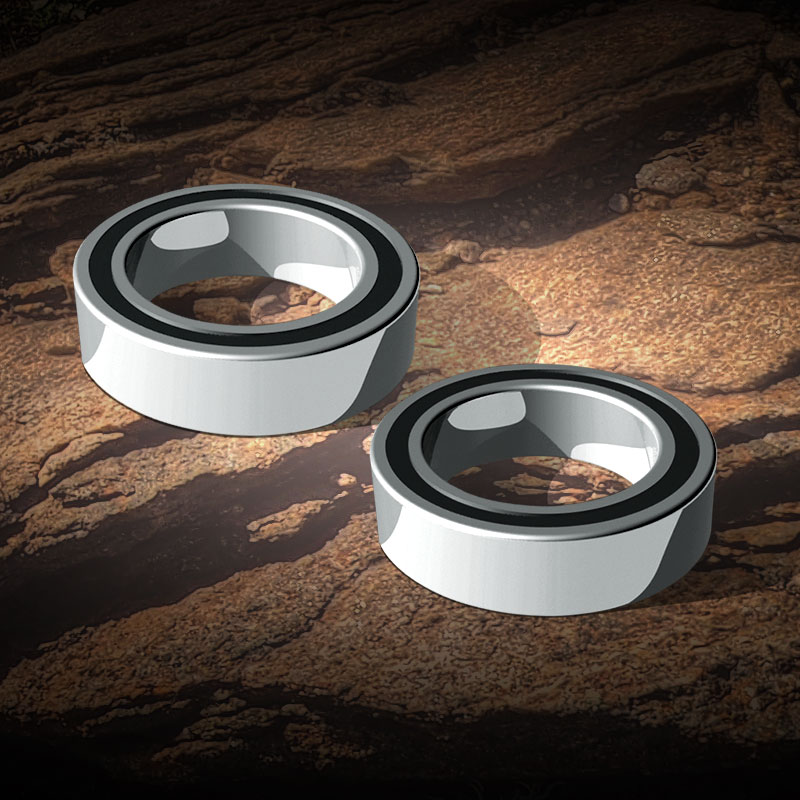

Sealed Ball Bearings

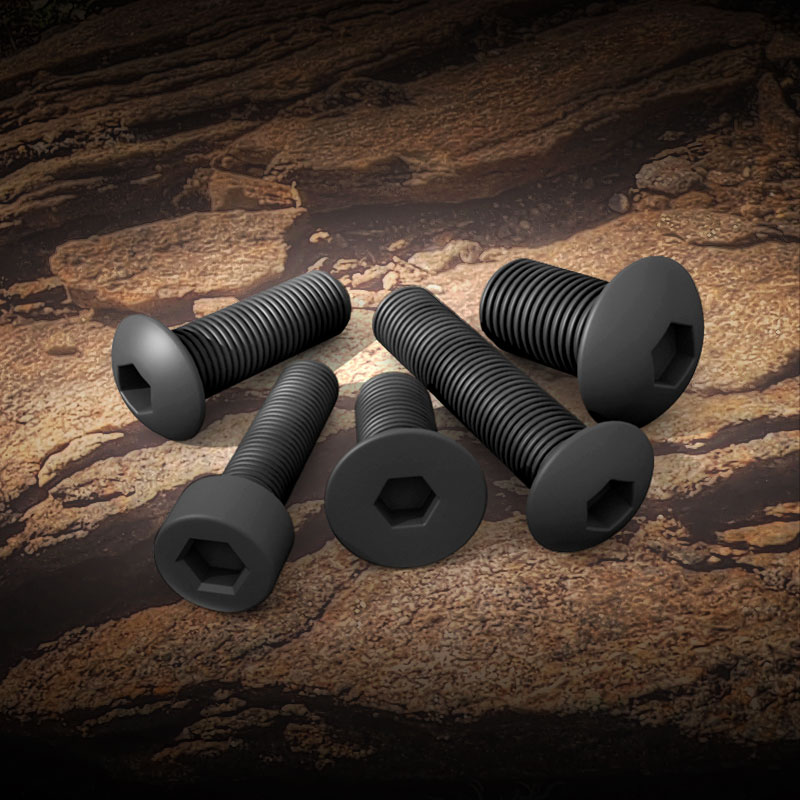

Hex hardware with rust-resistant black oxide coating

Requires Battery and Charger (Sold Separately)

Learn More

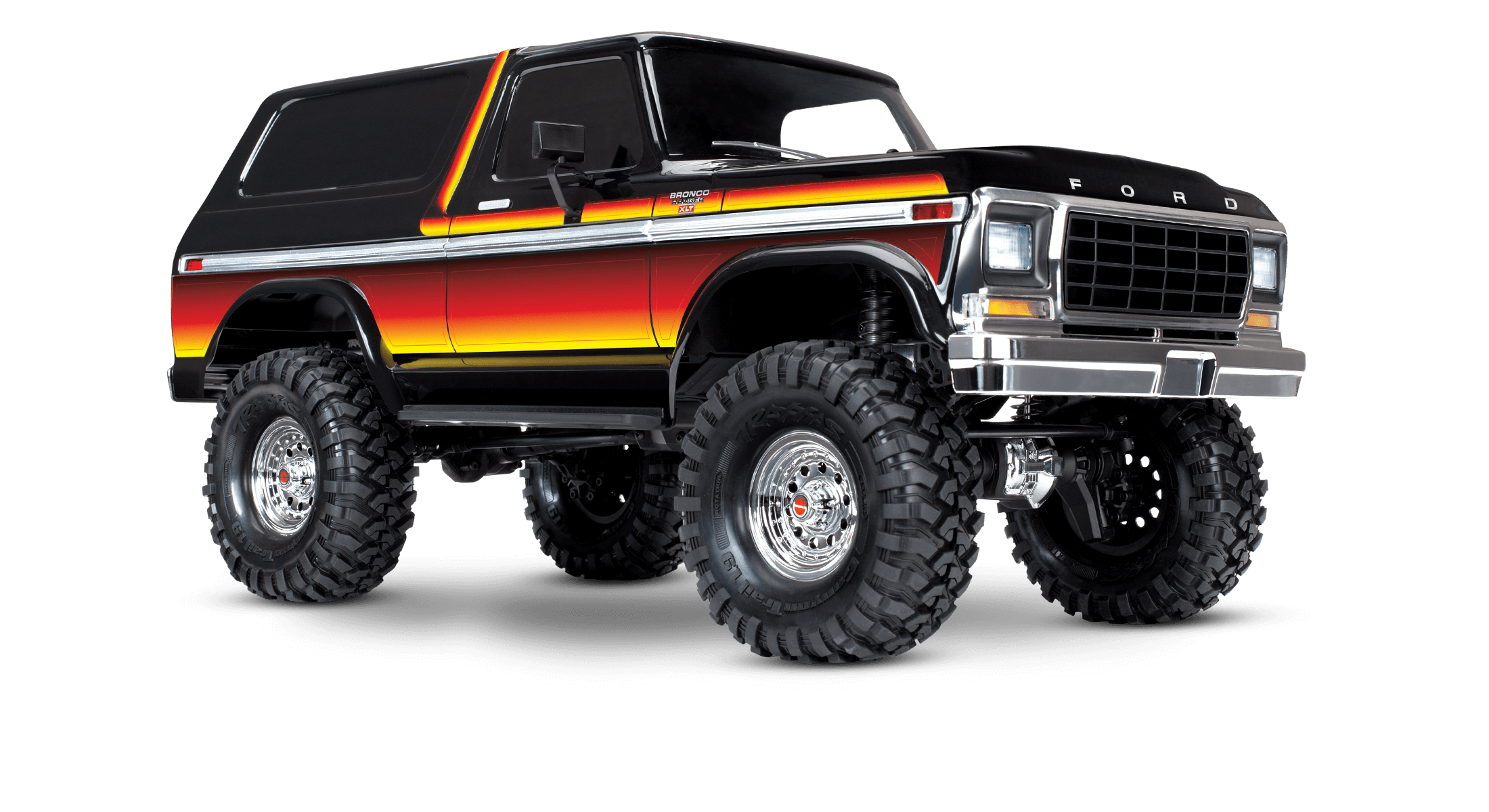

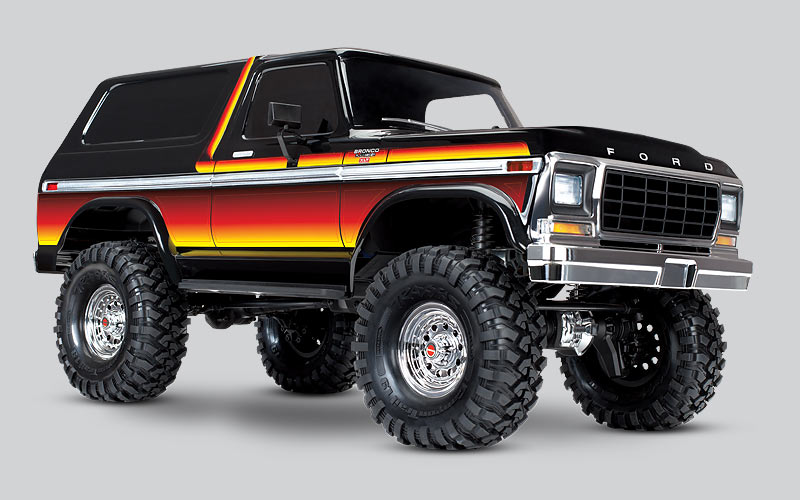

Originally introduced in 1966 as a 4X4 compact SUV, the Ford^® Bronco matured as a full-size truck in the late 1970s, cementing its status as a rugged off-roader. Traxxas honors the classic 1979 Ford Bronco with this beautifully detailed and faithful reproduction mounted on the incredibly capable TRX-4^® chassis. From the chrome wheels and bumpers to the gorgeous Sunset or red graphics, the TRX-4 recaptures the Bronco’s iconic era with the toughness and technology that could only come from Traxxas.

Video

Innovation

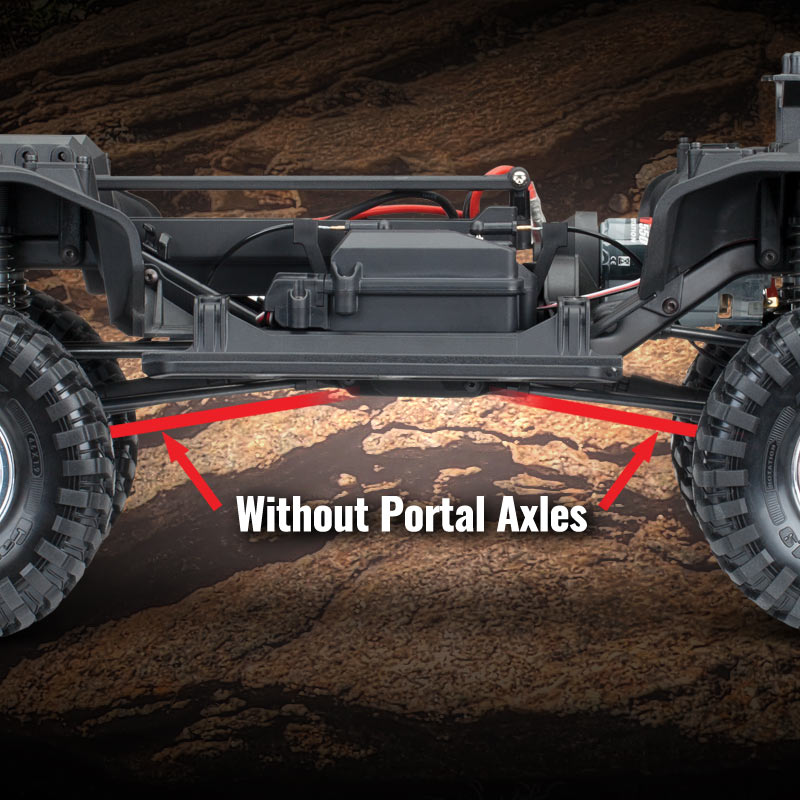

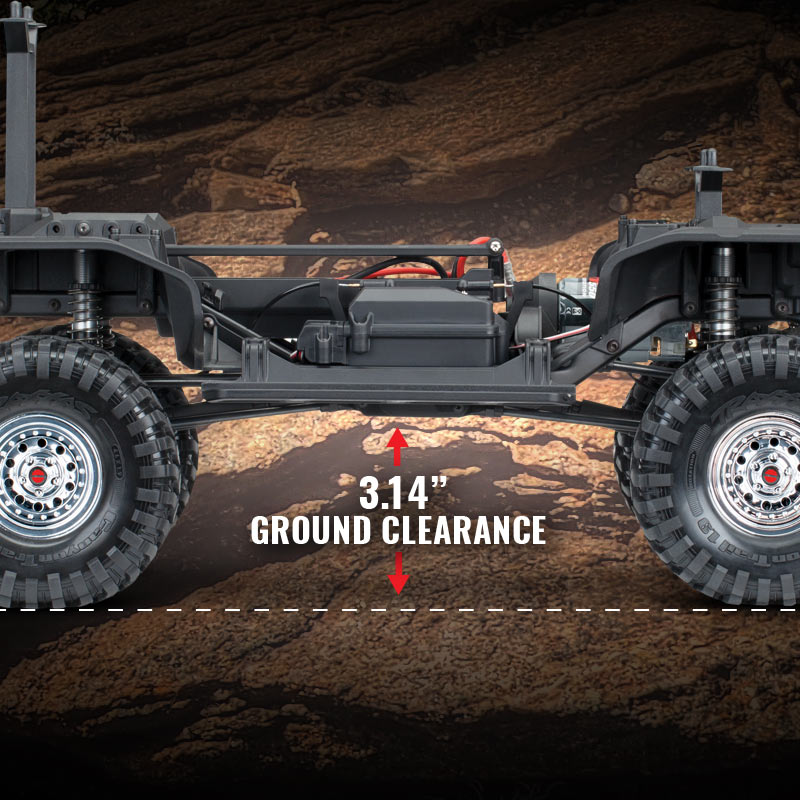

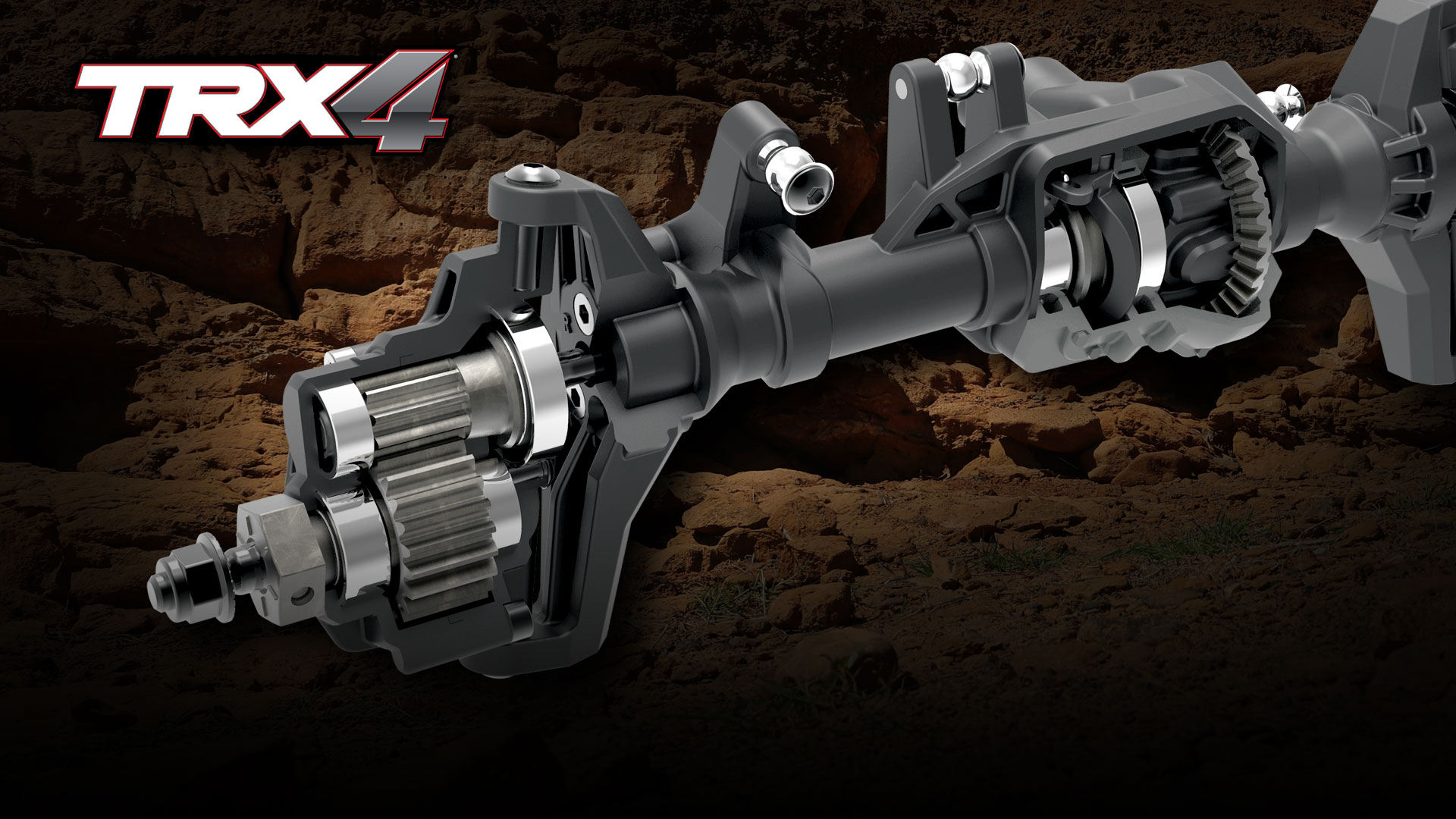

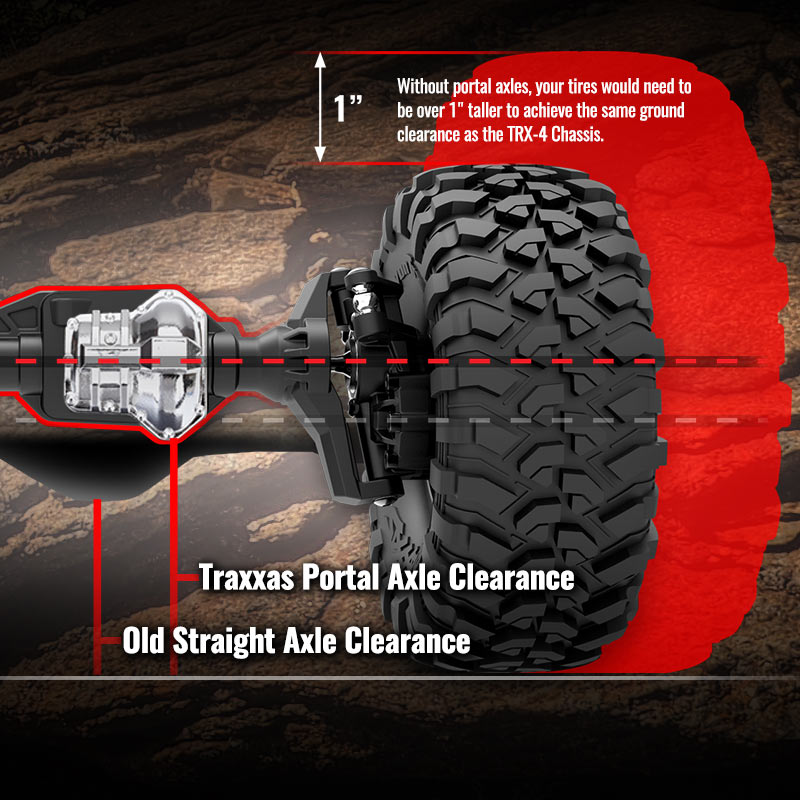

The Power of Portals

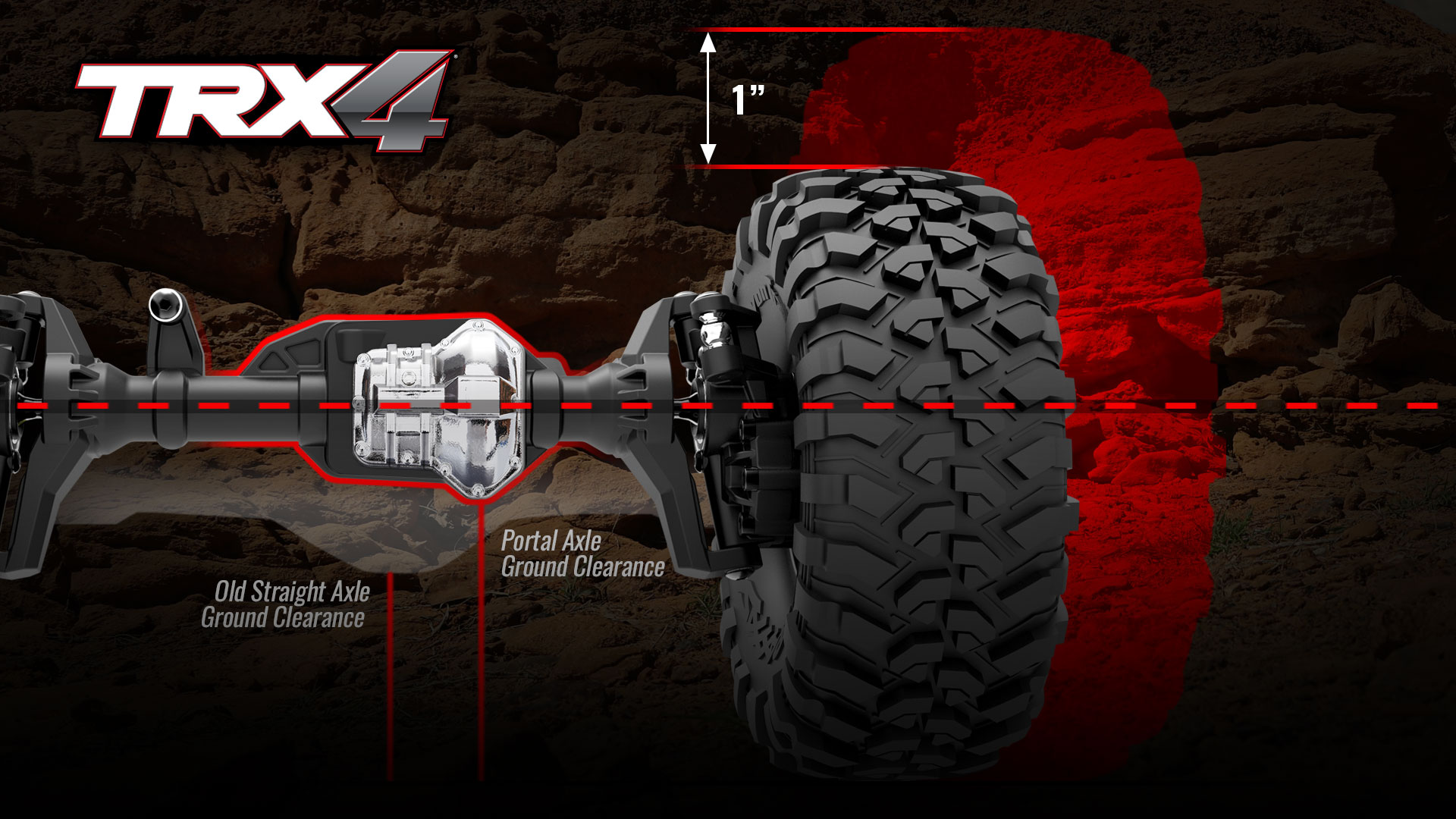

Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles, your tires would have to be over an inch taller than the tires on TRX-4 Bronco.

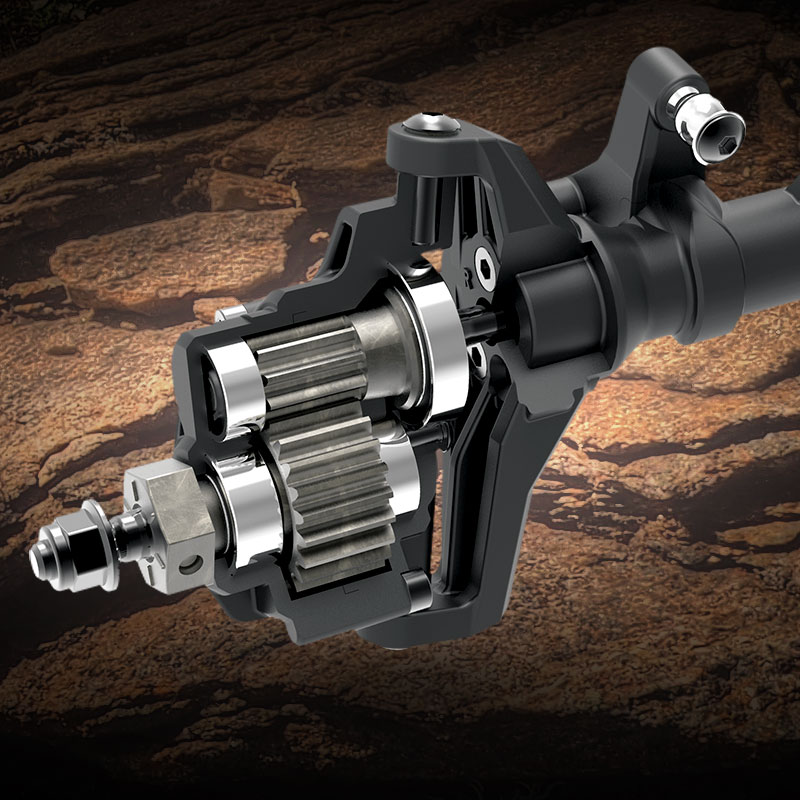

Torque Twist Eliminated

Portal axles use gear reduction at the wheels to virtually eliminate torque twist. The Titan 550 motor’s torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.

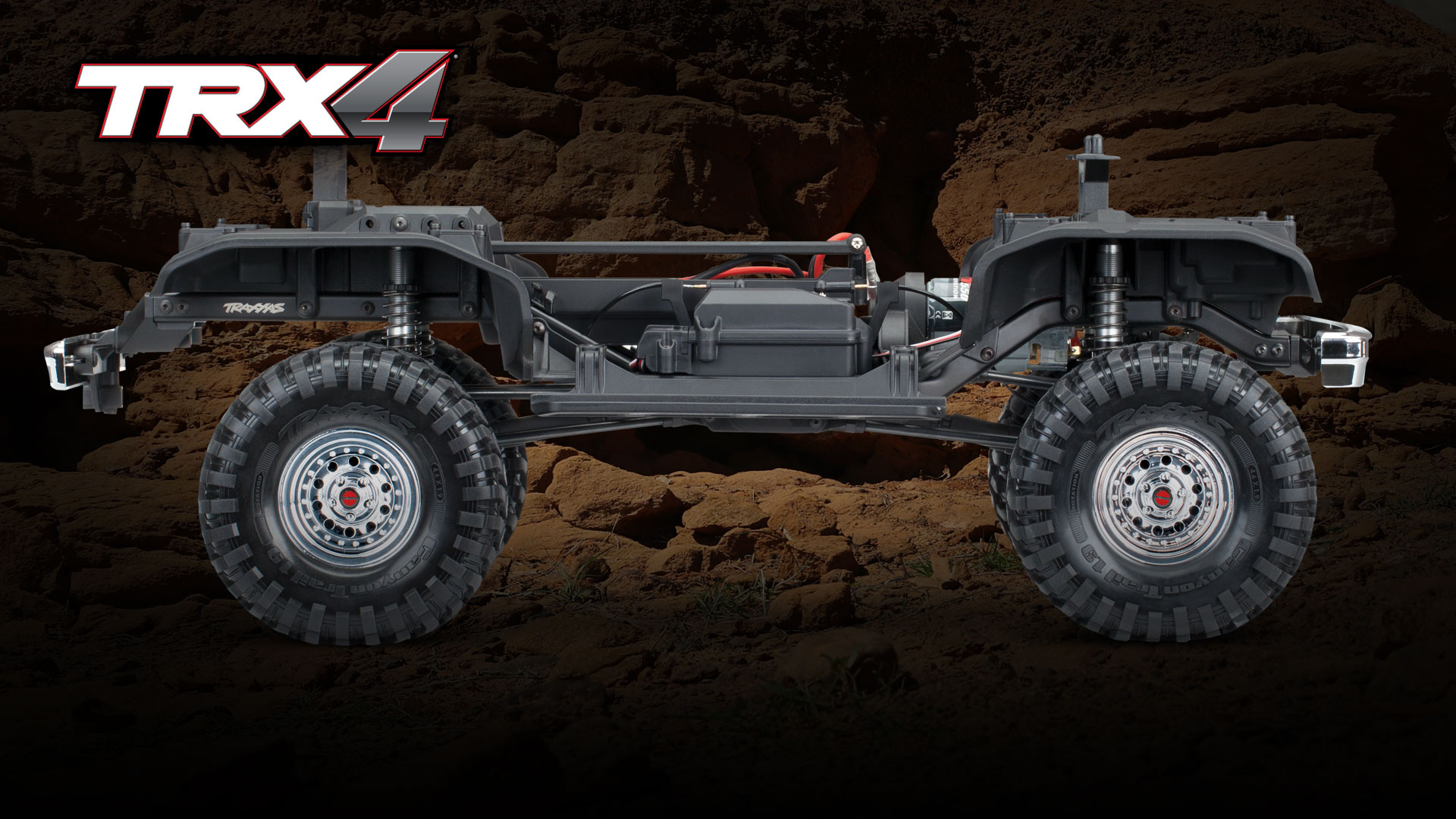

New Chassis Design

TRX-4 Bronco instantly obsoletes the status quo with greatly expanded features, versatility, and capability. Performance and technology combine in a revolutionary chassis that looks as good as it performs.

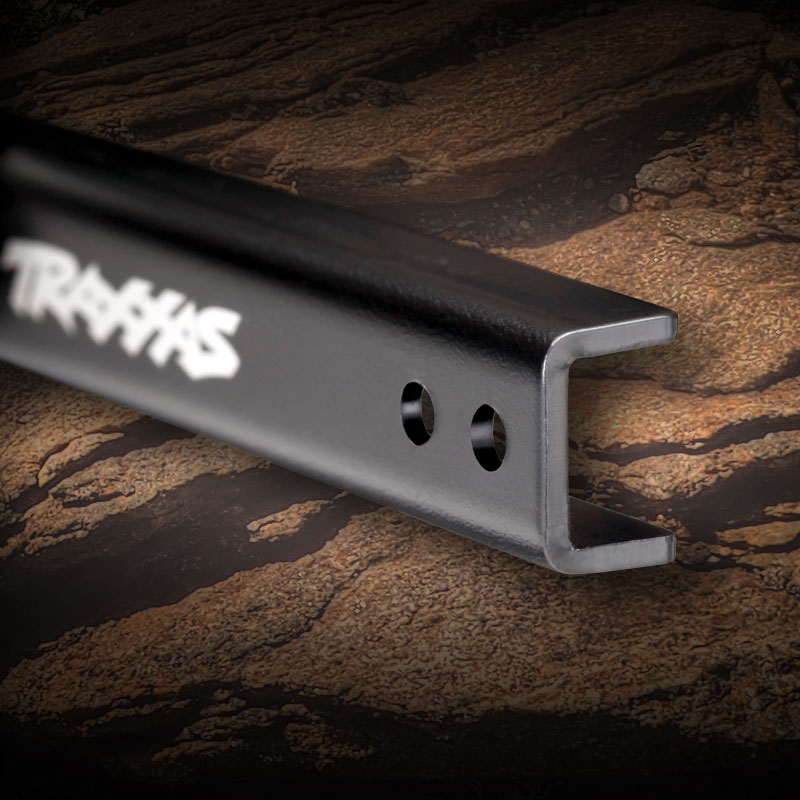

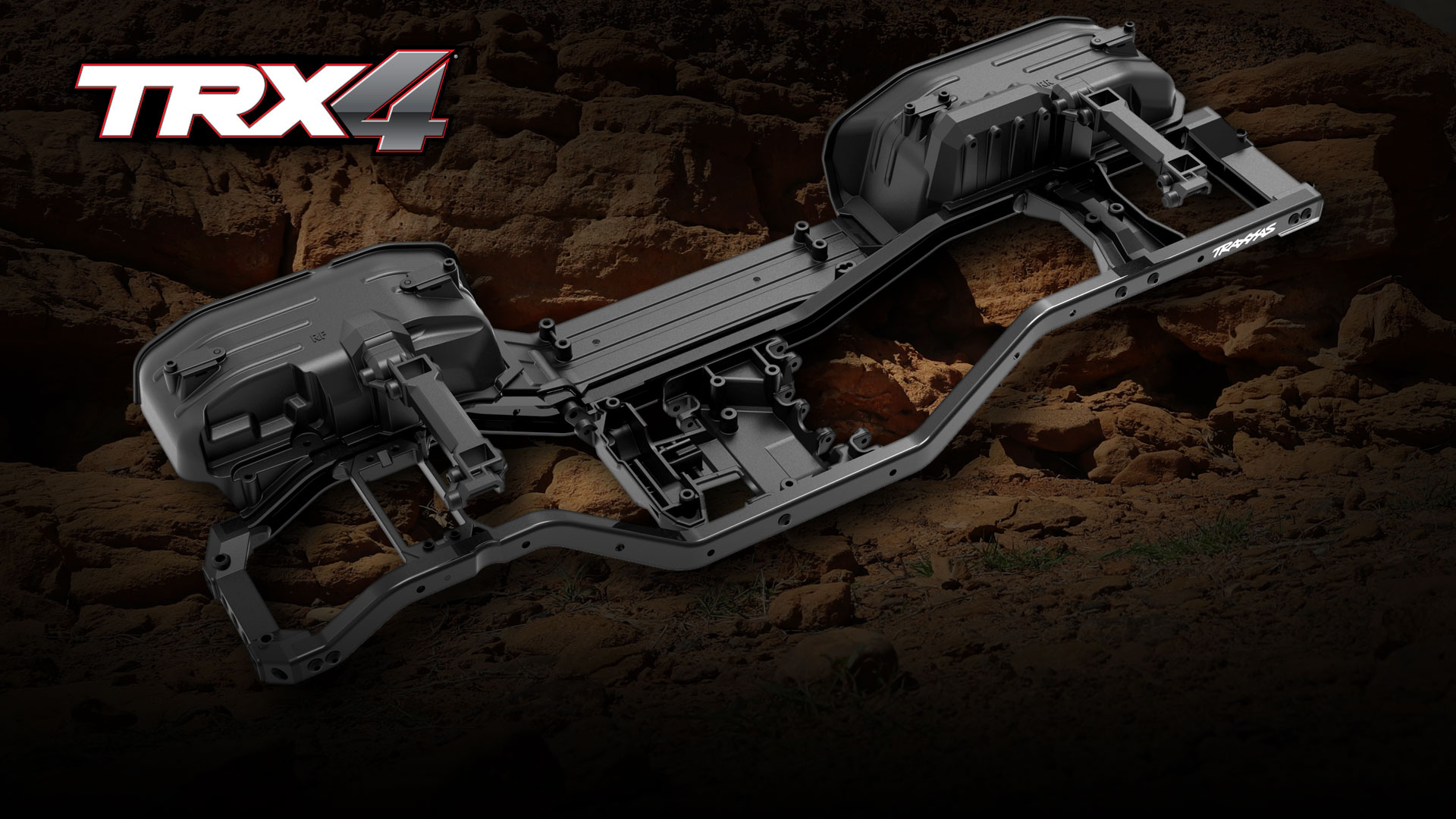

Rigid Steel Frame

A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone. You’ll feel the difference on trails when navigating technical terrain.

Scale Details

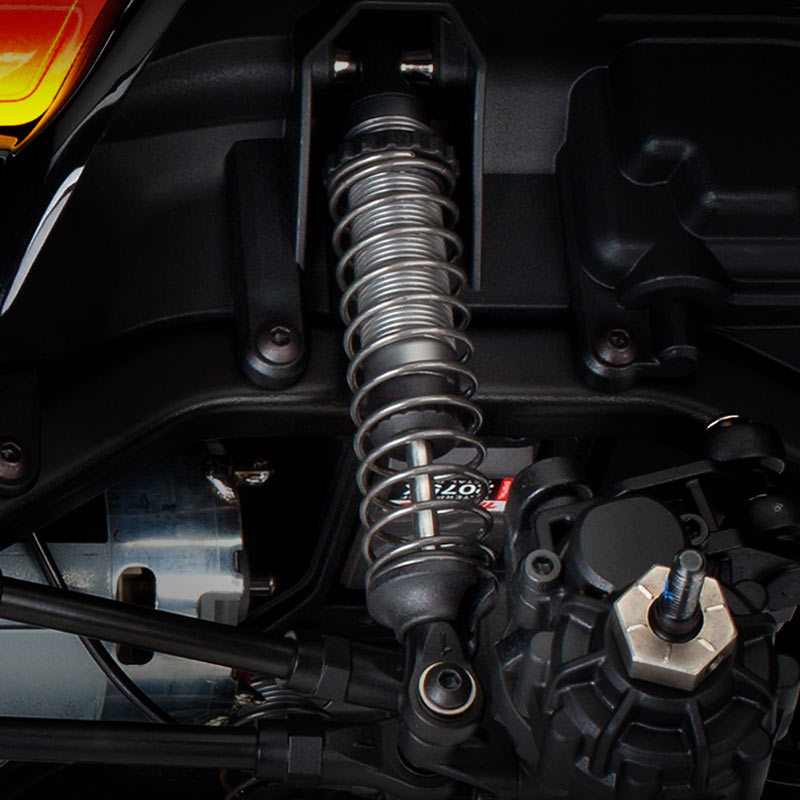

Oil-filled coil-over GTS shocks deliver silky-smooth damping performance and feature threaded aluminum shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better.

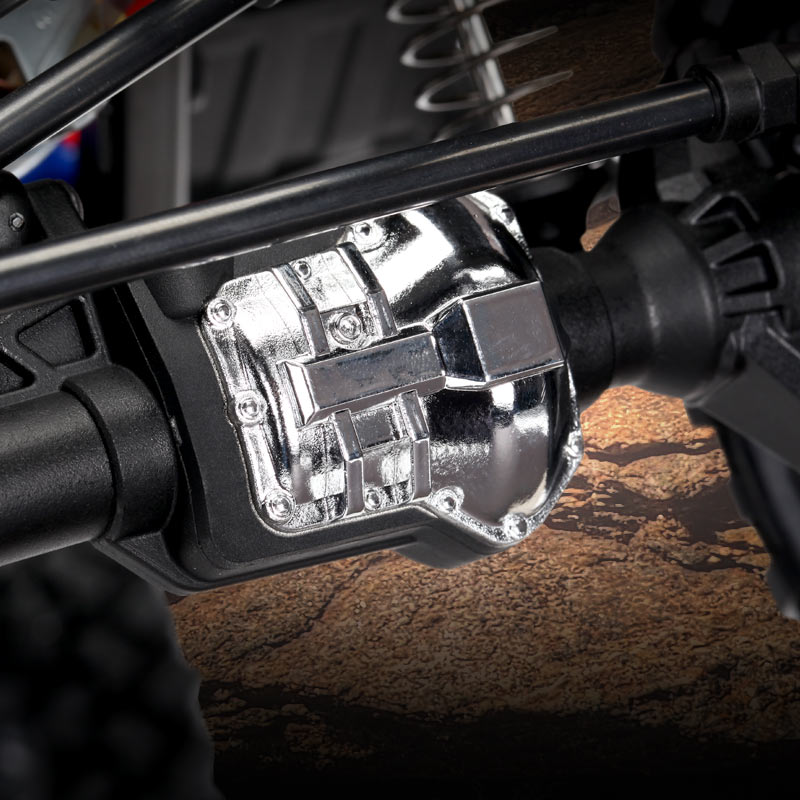

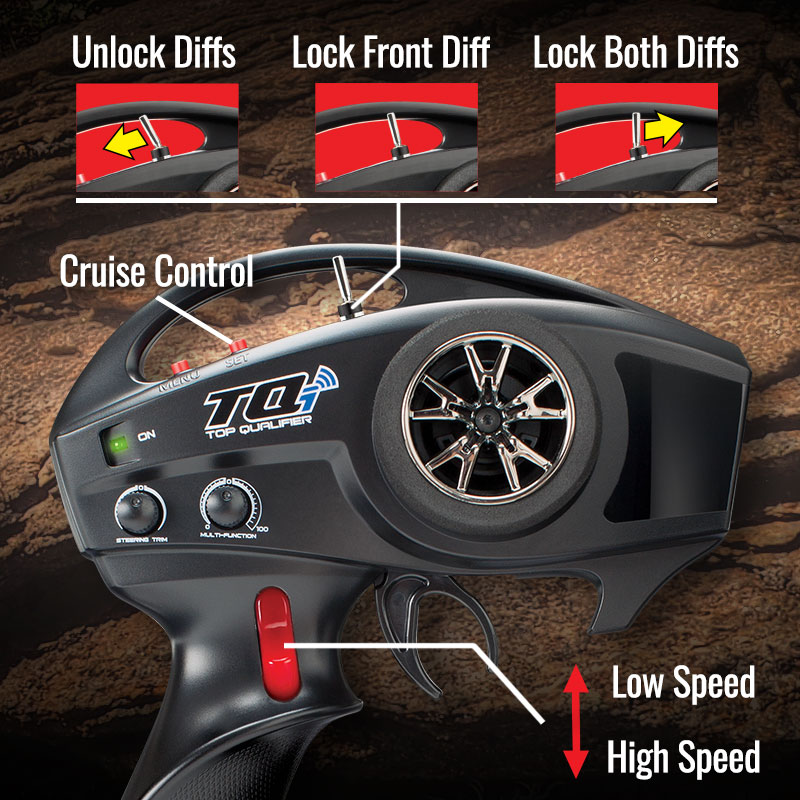

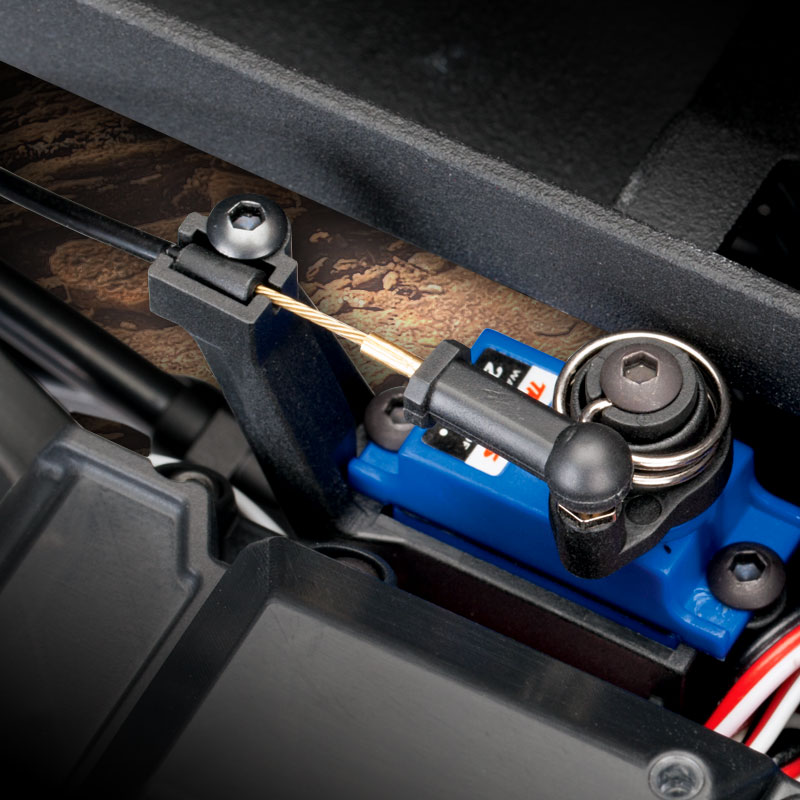

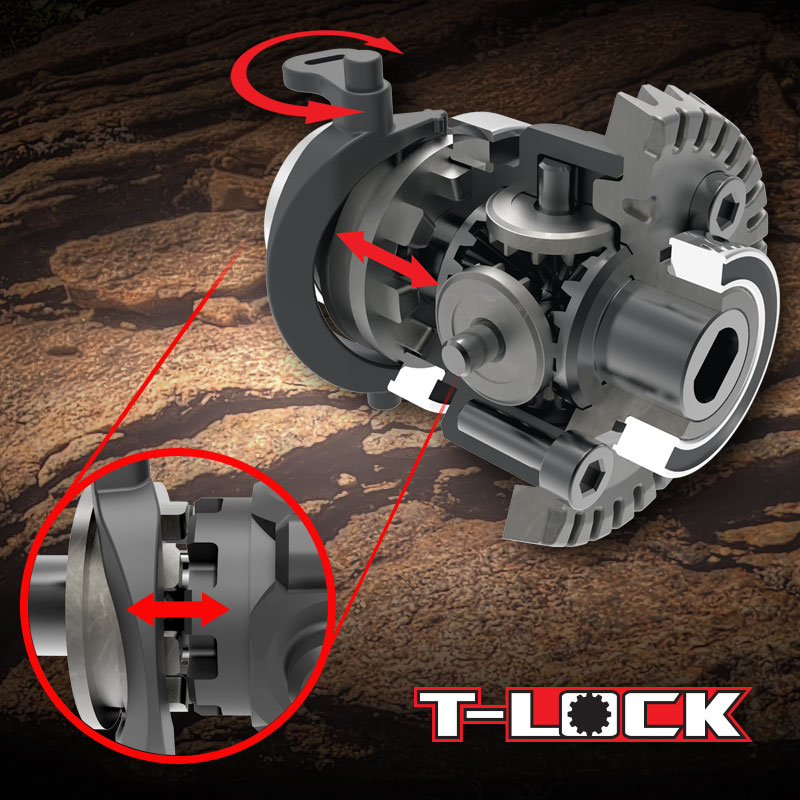

Remote Locking Differentials

Traxxas allows you to lock and unlock both the front and rear differentials remotely from your transmitter. New sleeved micro cables control the differential action for scale appearance, without limiting suspension articulation.

i^™ Radio System with Cruise Control" title="TQi^™ Radio System with Cruise Control" />

GTS Aluminum Shocks

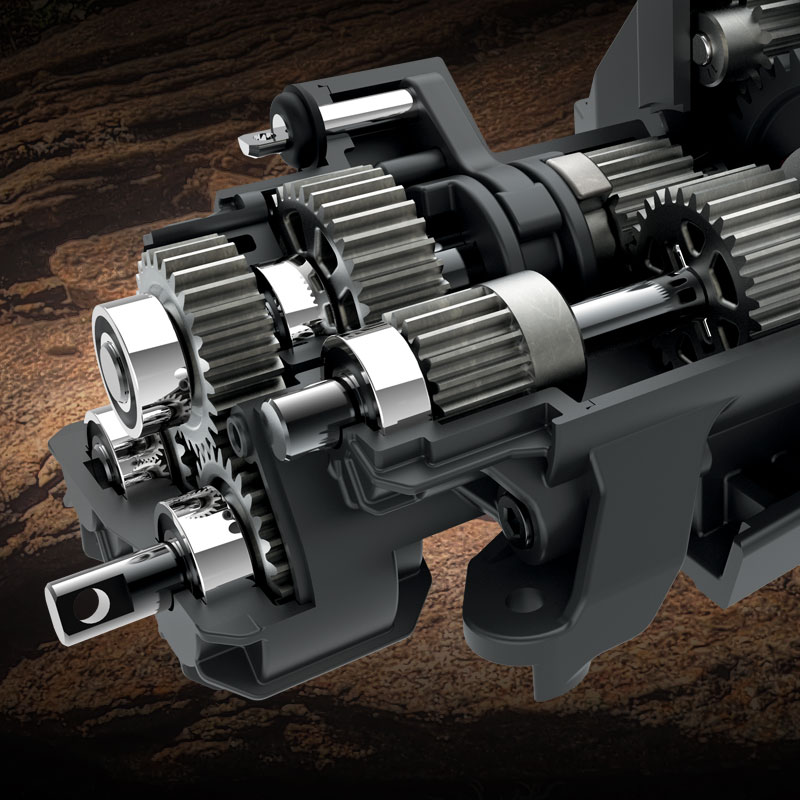

High/Low Range Transmission

When the going gets tough, shift into low range for incredible 4WD pulling torque. Shift into high range for blasting down the trail. TRX-4 Bronco adapts to any situation or driving style.

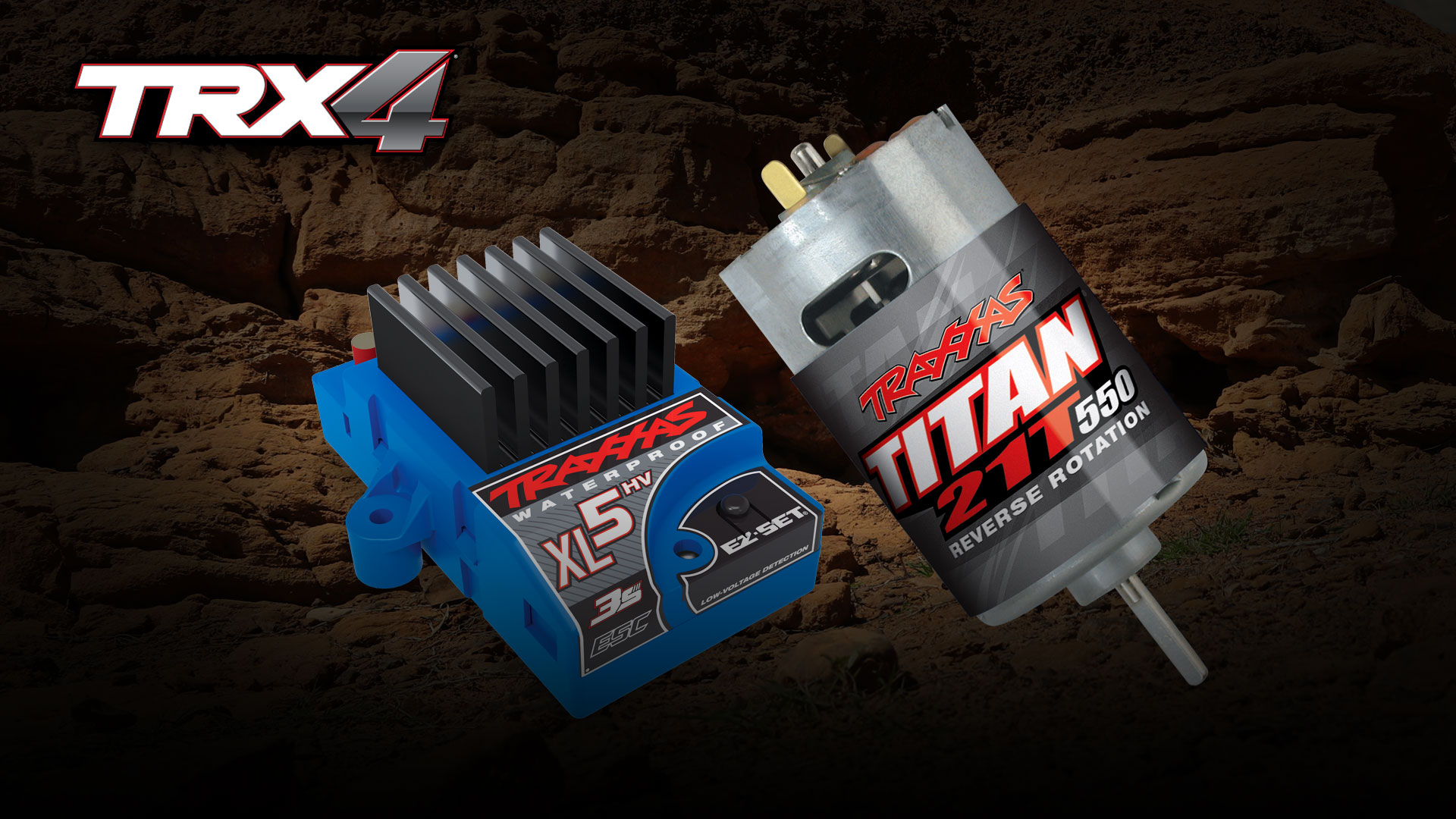

3s Power System

The XL-5™ HV electronic speed control brings 3s LiPo capability for stronge efficient running. The powerful 21T Titan^® motor provides torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3s 5000 mAh LiPo battery pack!

TQi™ Radio System with Cruise Control

The Traxxas TQi features our exclusive cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to match precisely the pace of your caravan of trail explorers.

Waterproof Electronics

TRX-4 is fully waterproof, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.

Chassis

Driveline

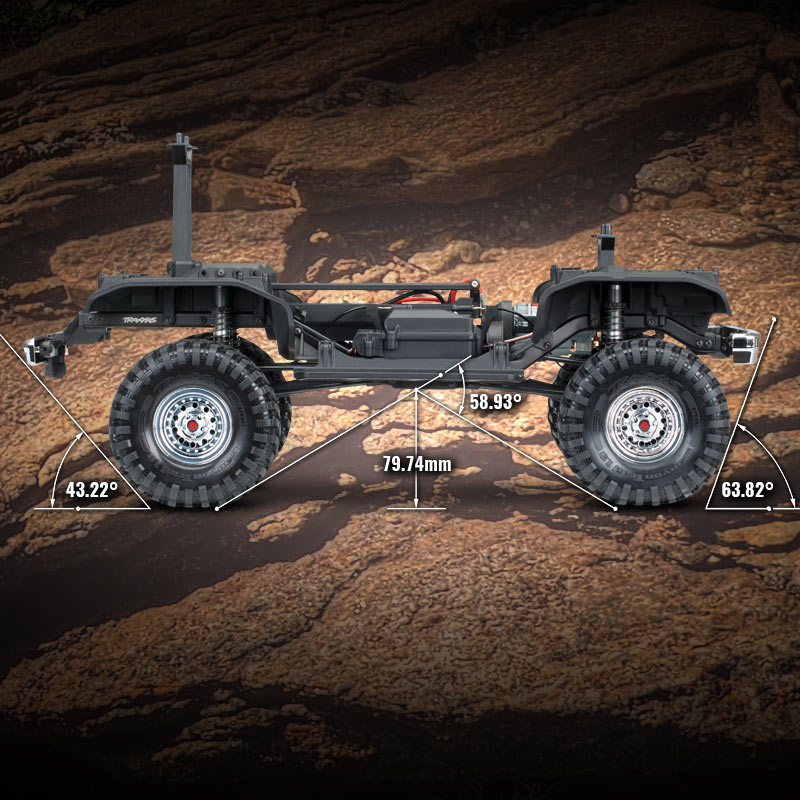

Geometry
