TRX-4 Mercedes G 500

Skip to the beginning of the images gallery

TRX-4 Mercedes G 500

Part Number:

82096-4

Gallery

Specs

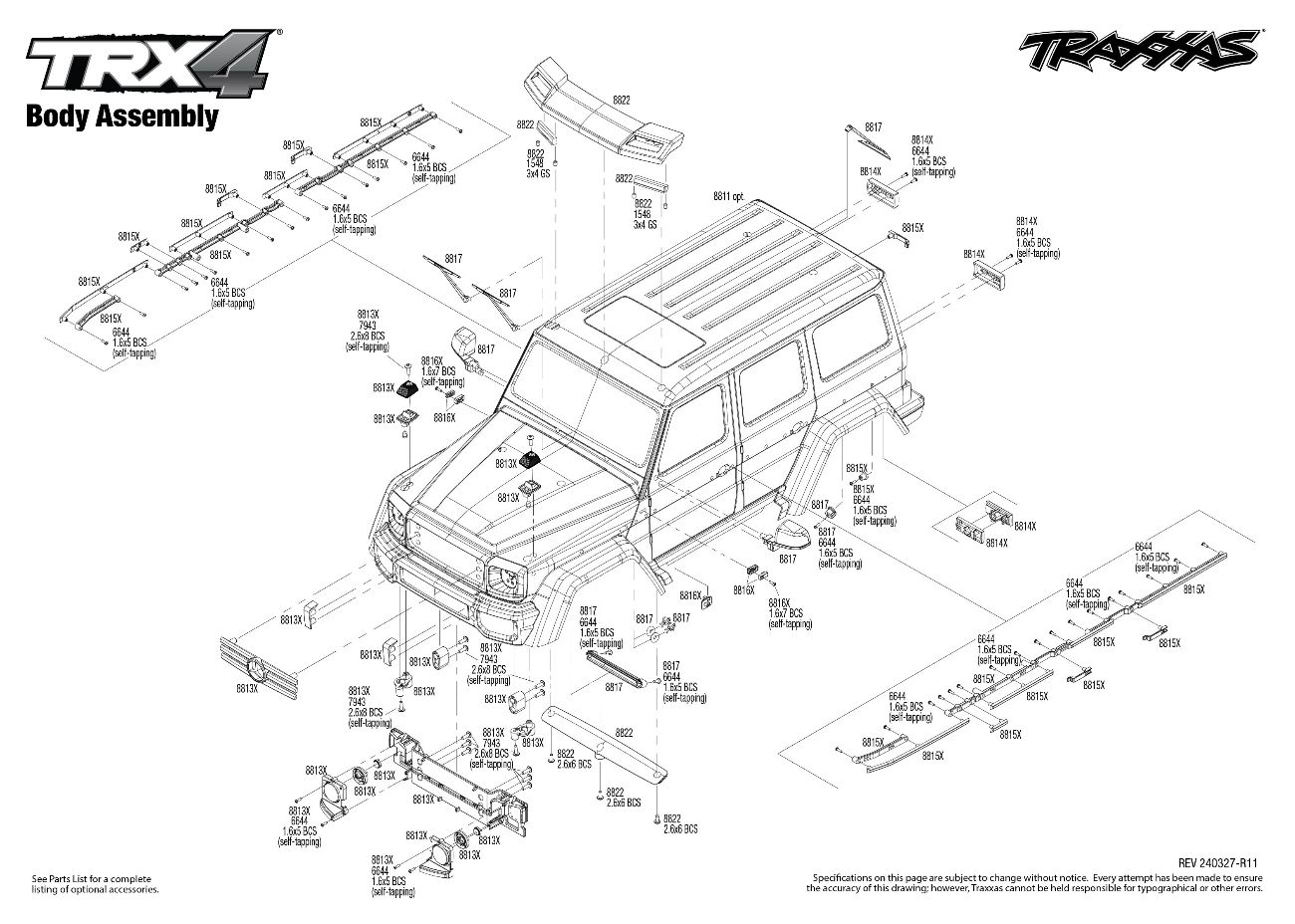

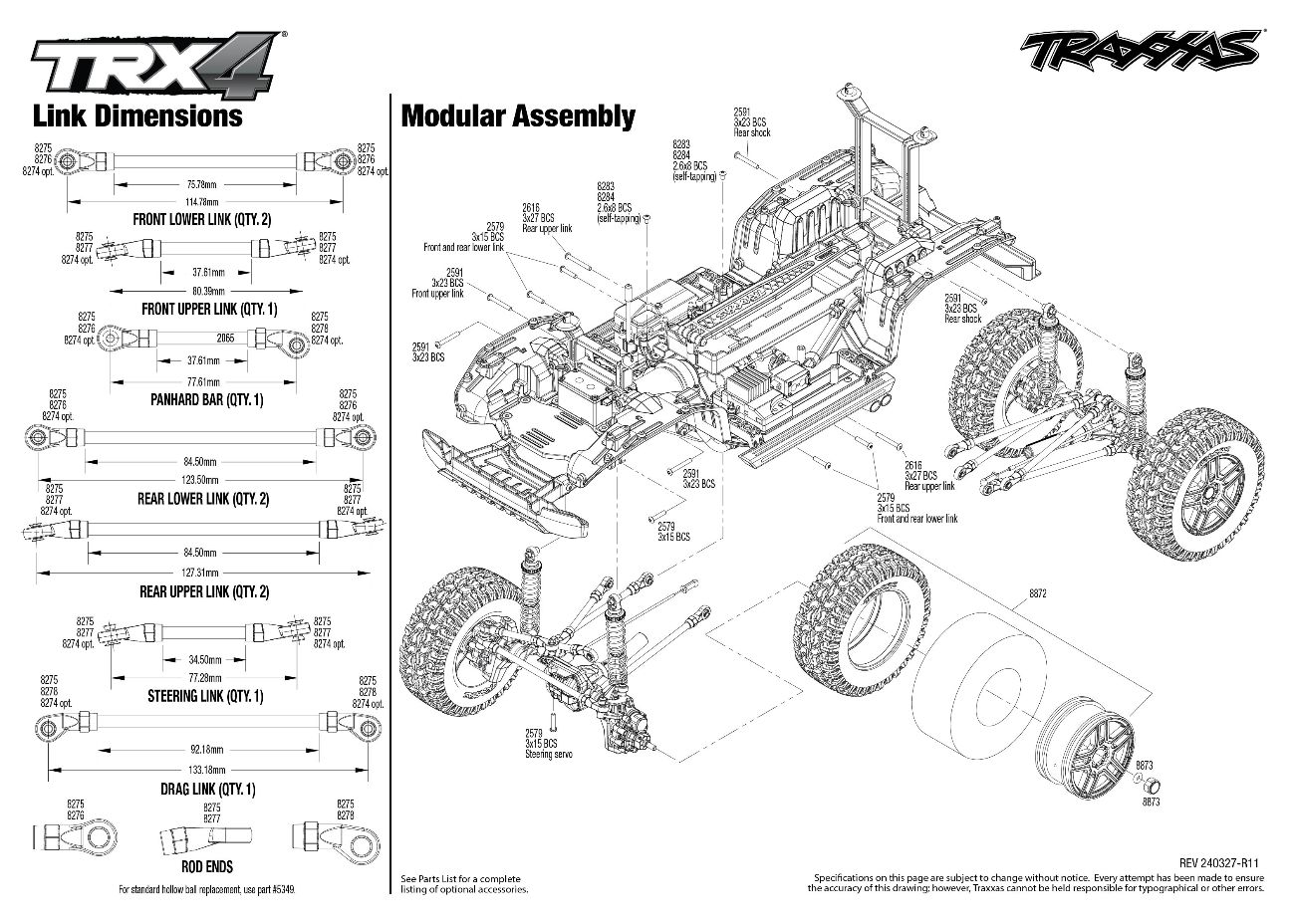

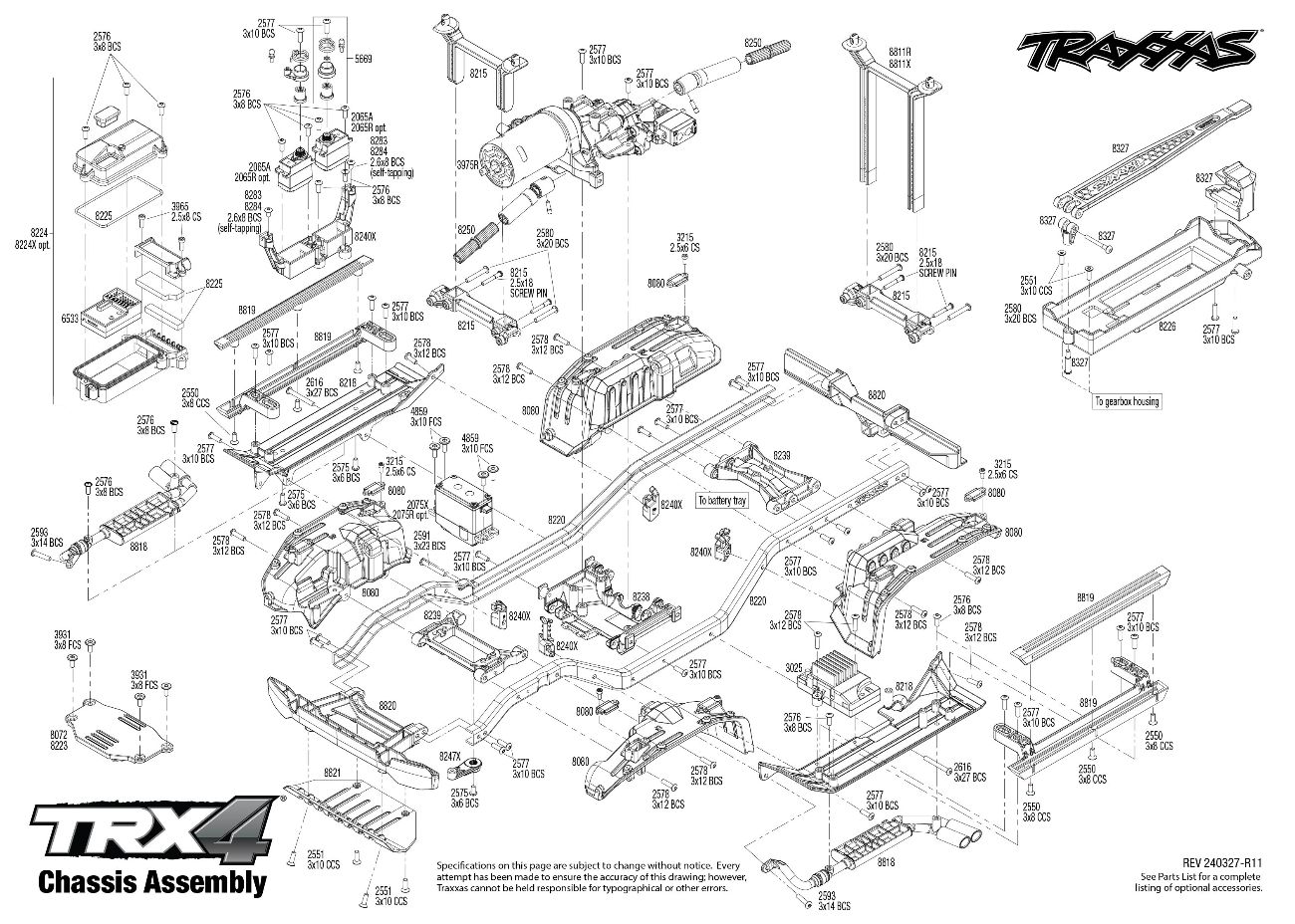

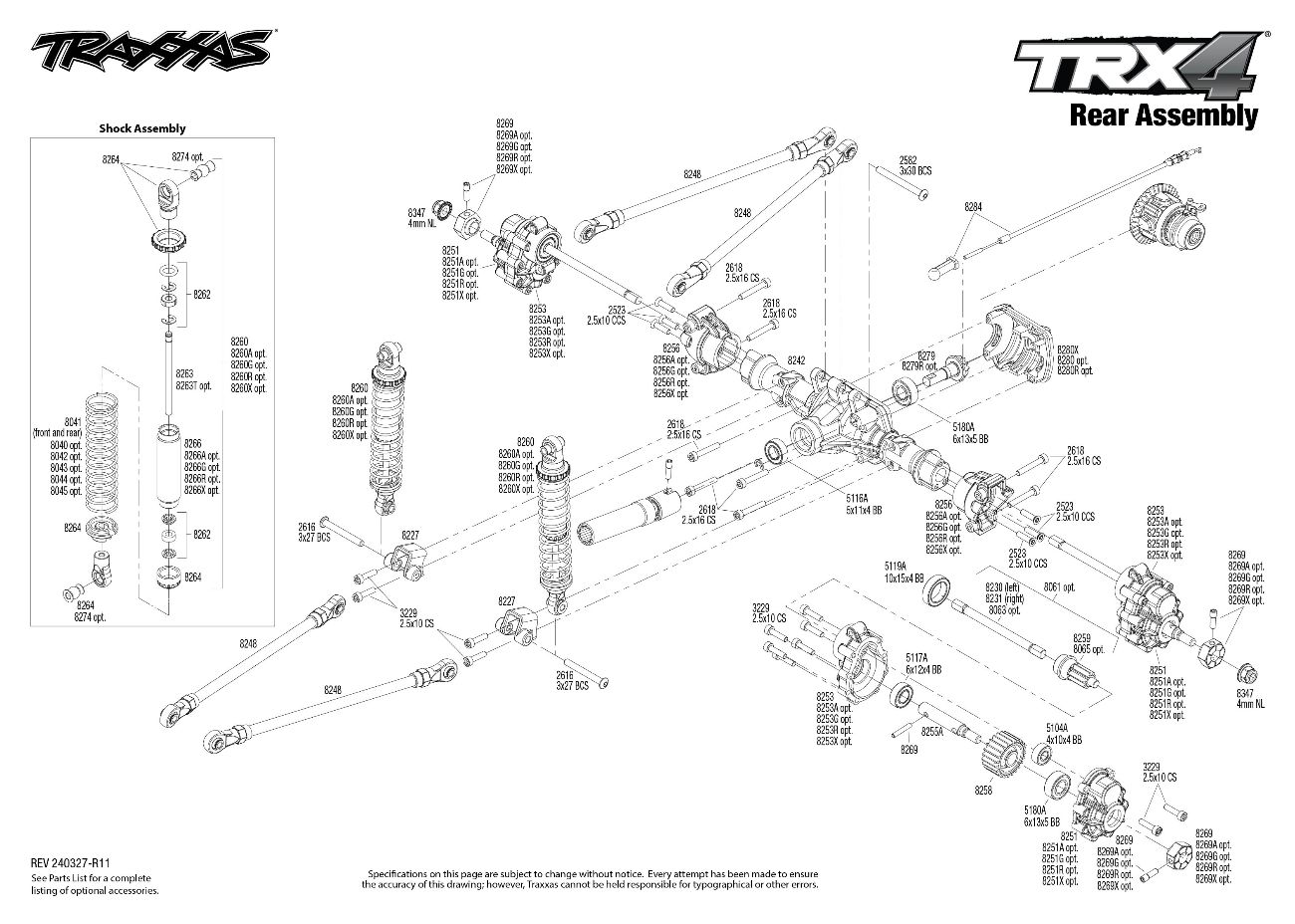

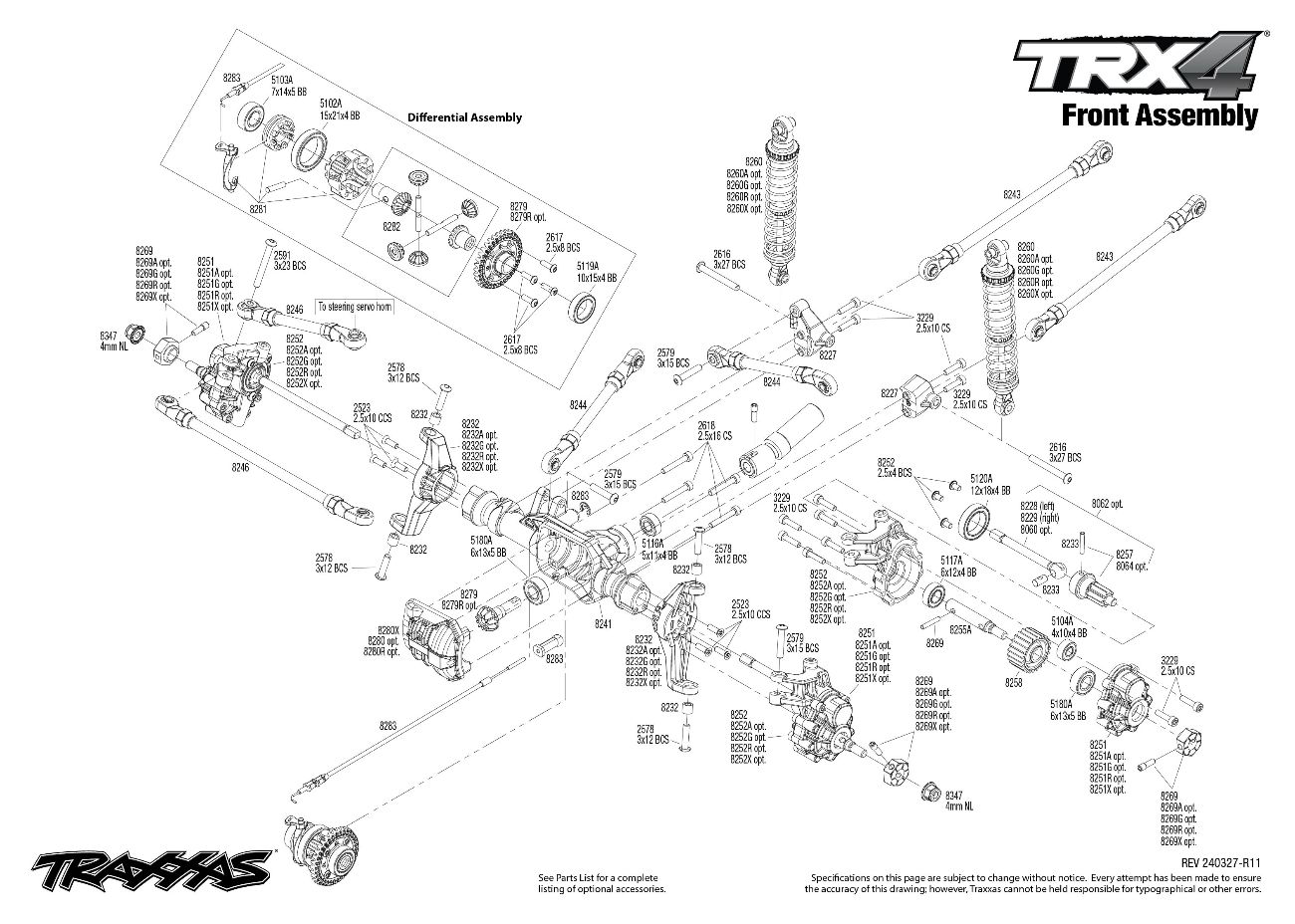

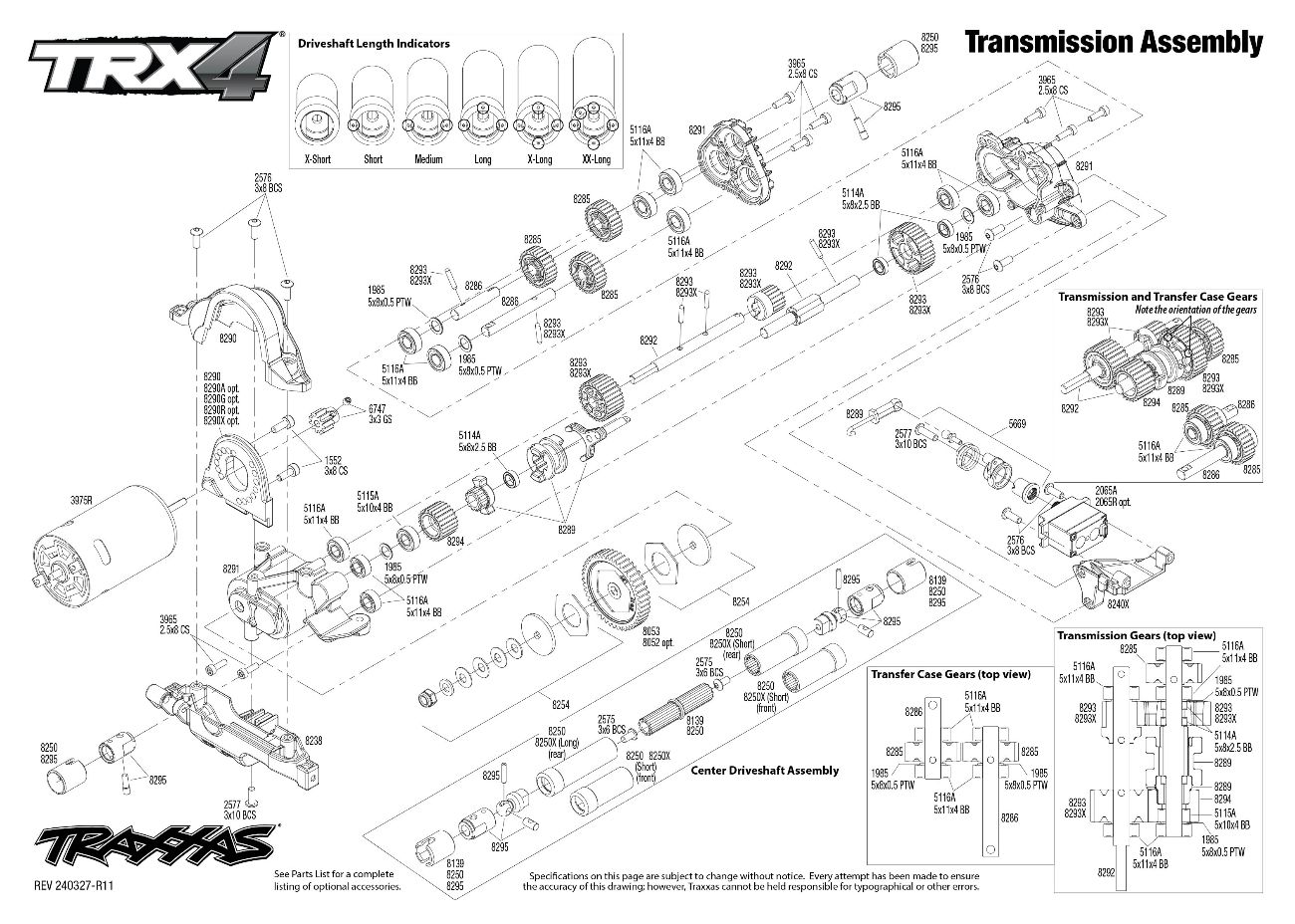

Exploded Views

Support

MODEL SPECS

Model Name:	TRX-4 Mercedes-Benz G 500 4x4�
Model Type:	Trail / Crawler
Model Skill Level:	1
Scale:	1/10
Weight:	6.85 pounds (3.01 kg)

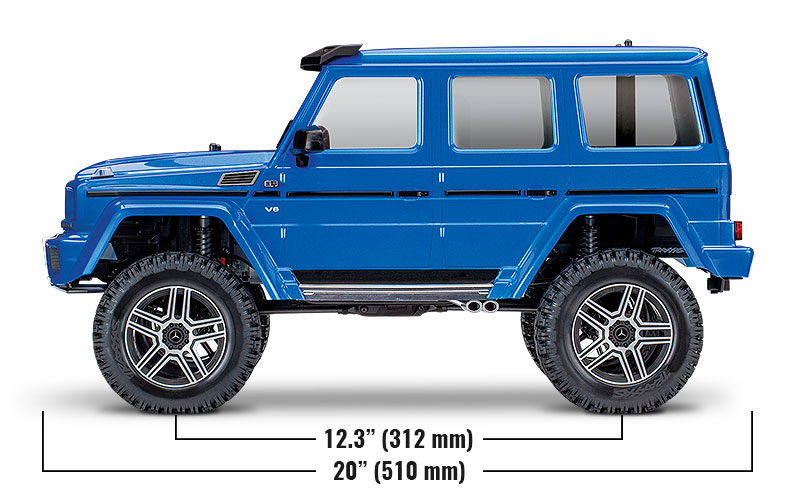

Length:	20.08 inches (510 mm)

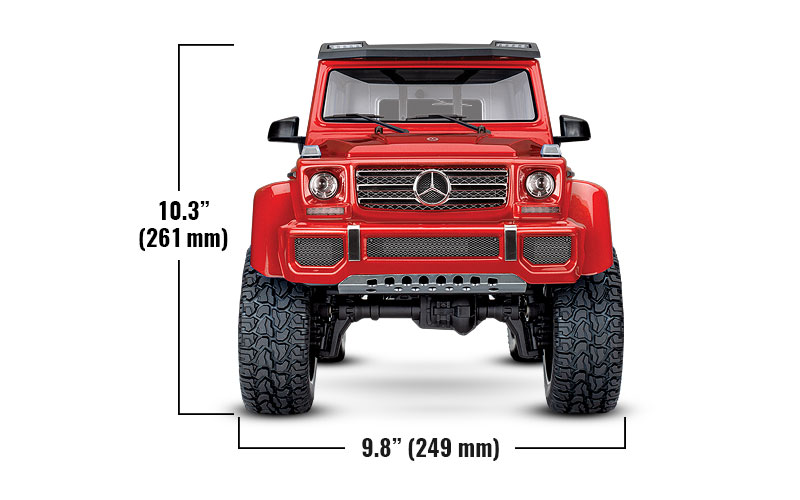

Width:	9.78 inches (249 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)
Height:	10.27 inches (261 mm)

Wheelbase:	12.28 inches (312 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Servo(s):	#2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with #6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm

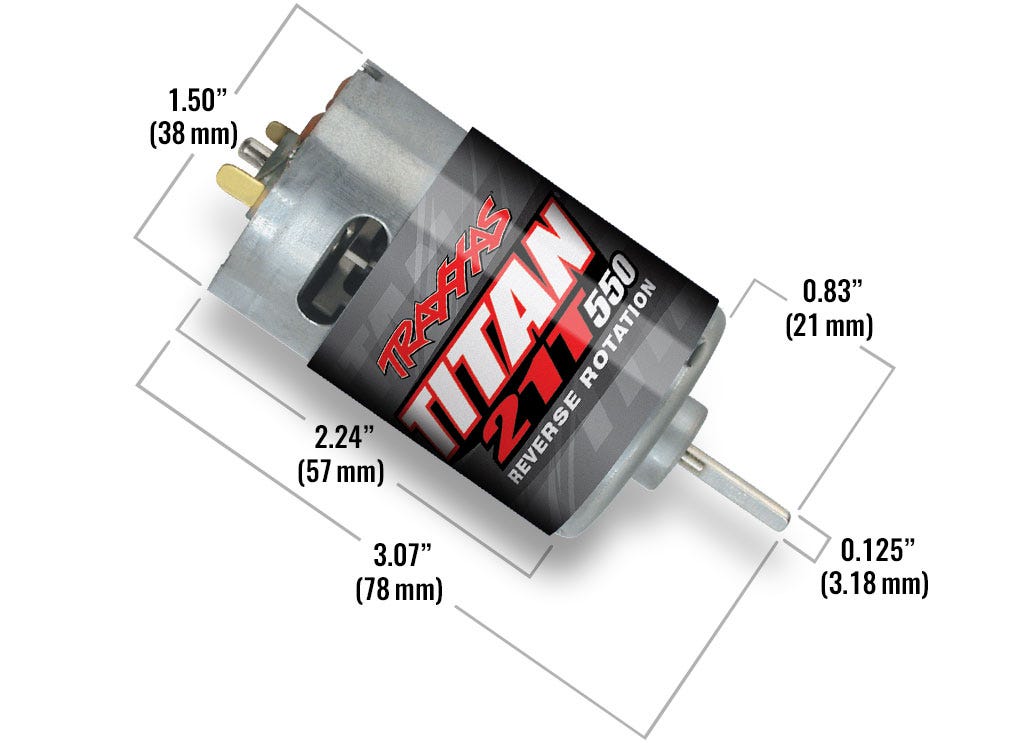

MOTOR SPECS

Motor Name:	Titan^® 550 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

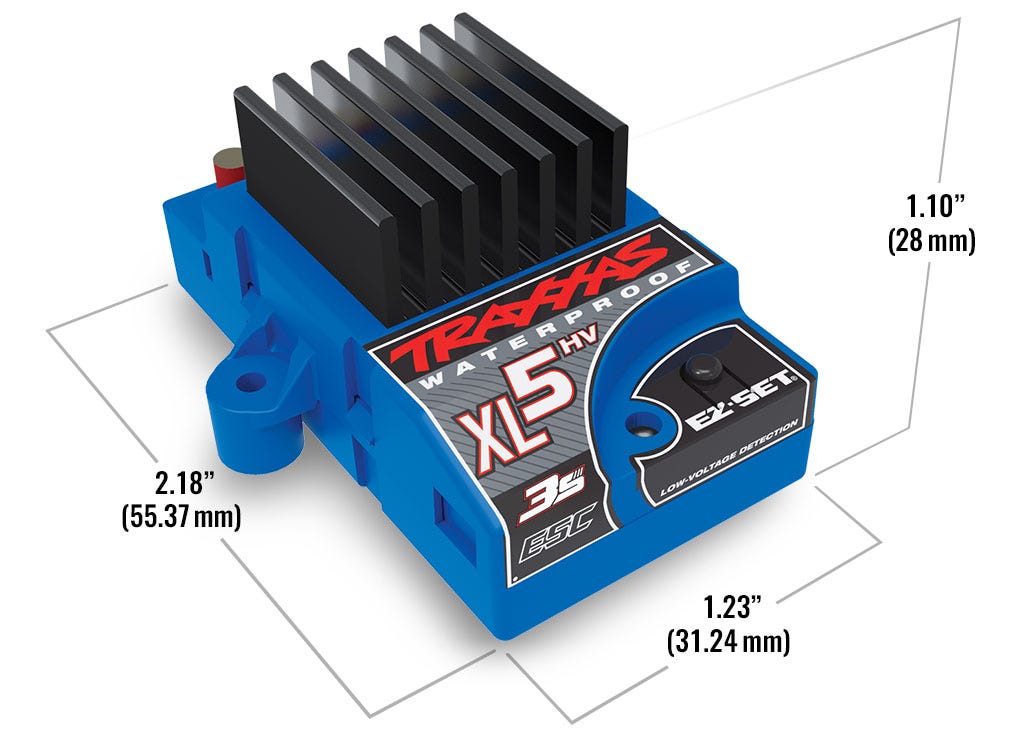

ESC SPECS

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.6 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge
