MODEL SPECS

Model Name:	TRX-4 Defender
Model Type:	Trail / Crawler
Skill Level:	1
Scale:	1/10
Weight:	7.43 pounds (3.37 kg)

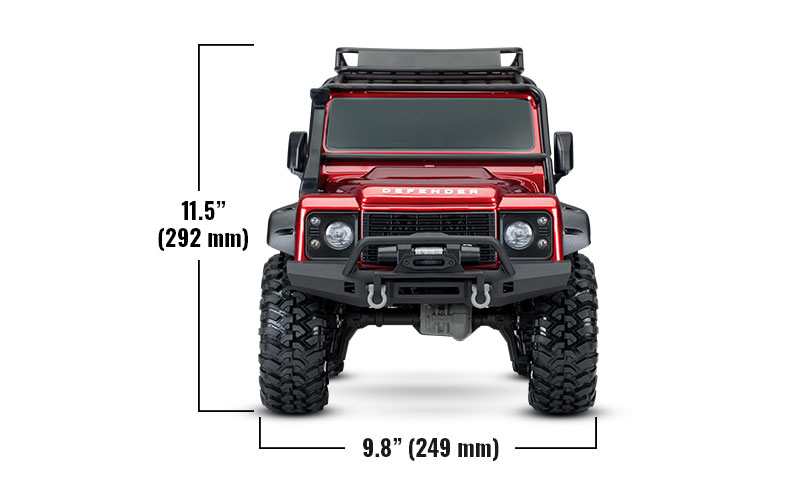

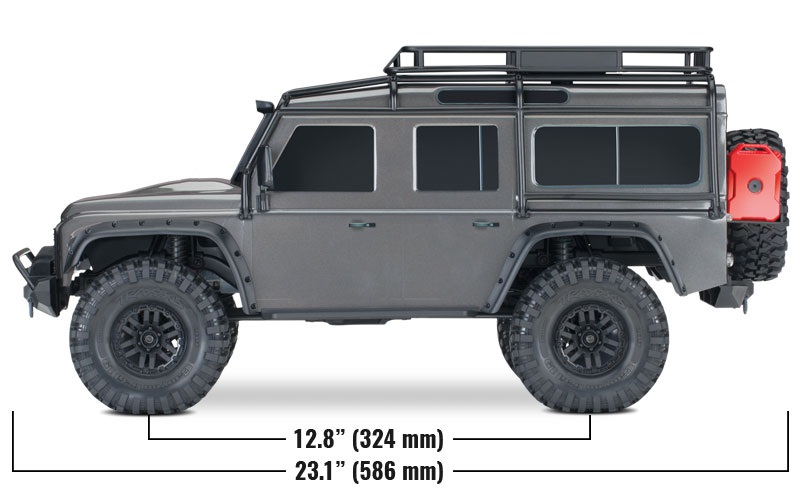

Length:	23.07 inches (586 mm)
Width:	9.78 inches (249 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)
Height:	11.48 inches (292 mm)

Wheelbase:	12.75 inches (324 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

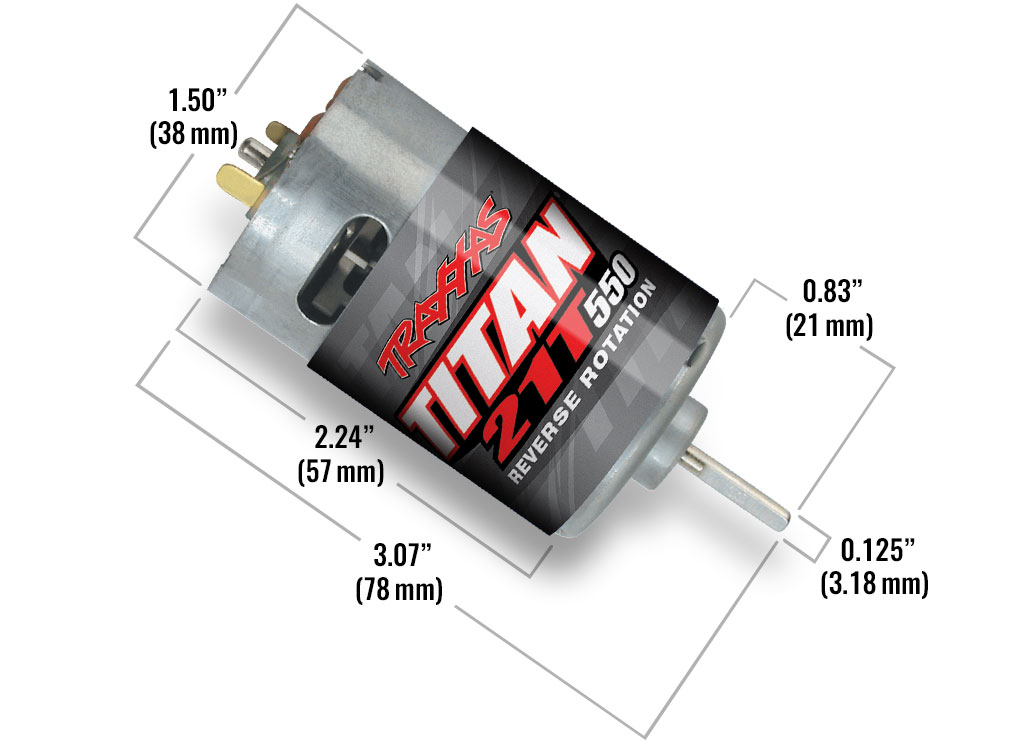

MOTOR SPECS

Motor Name:	Titan^® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

Clipless Officially Licensed Land Rover^® Defender^® Body

Injection molded scale details including grille, snorkel, and side mirrors
Rugged, functional roll cage
Tough fender flares
Front bumper with tow hooks and replica winch
Rear bumper with scale accessories and functional spare tire
Full Nylon composite wheel wells and floor pans
Quick and Easy Removal

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

Fully waterproof design
Five drive profiles

Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set^® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
Two stage low voltage protection (LVD)

Titan^® 550 Motor

Powerful Titan 21T reverse rotation motor with internal cooling fan
Precision, preset gear mesh adjustments
Motor retention separate from gear mesh

Portal Axles

Increase ground clearance (3.14″)
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System

4-channel transmitter
5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Exclusive Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
Patented waterproof receiver box with easy-access plug

Rigid Steel Frame

1.5 mm thick steel frame rails increase torsional rigidity
Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails

Innovative Battery Compartment

Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Drivetrain

Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case

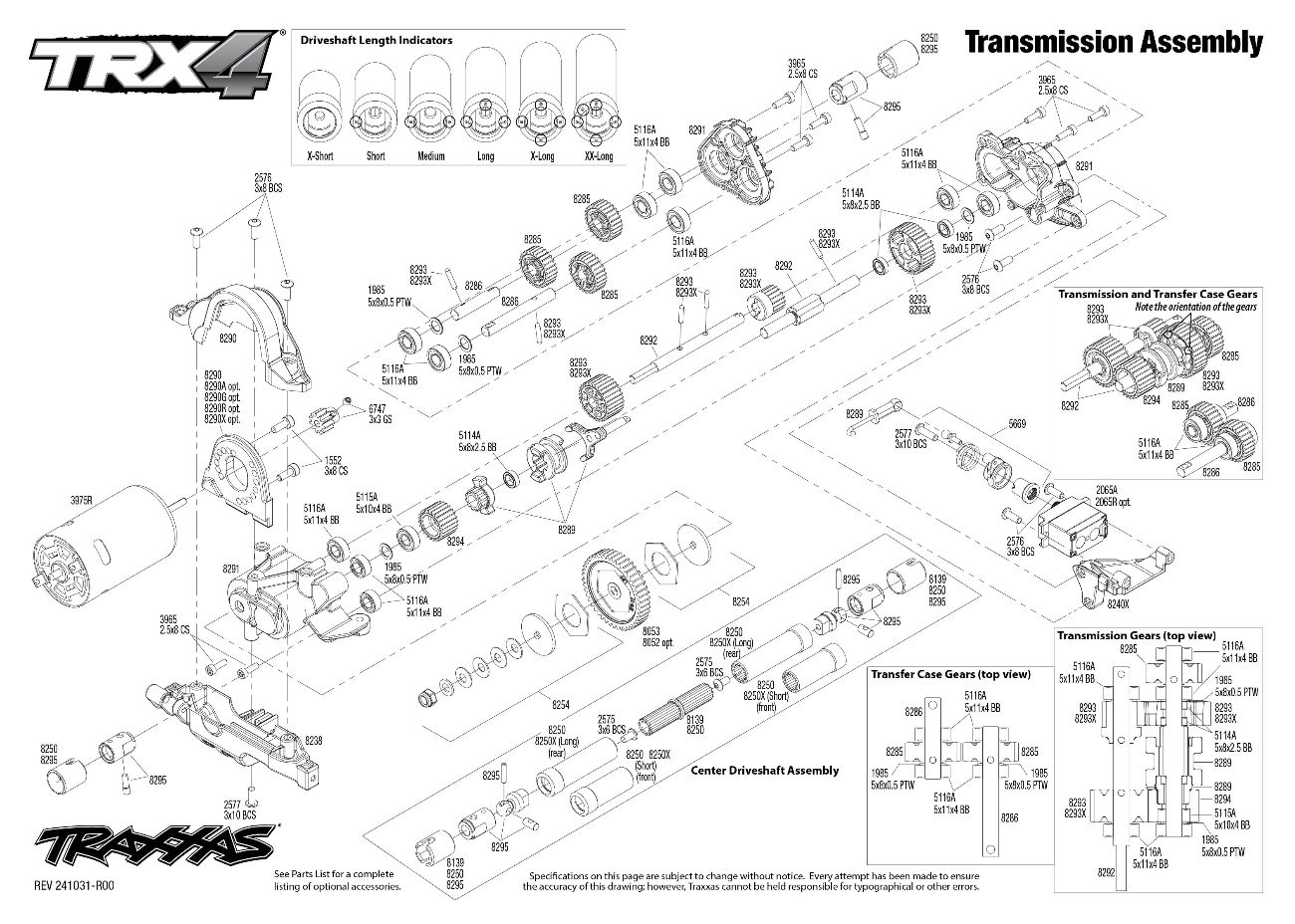

Transmission

Two speed high/low range with remote shifting
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing

Steering

Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer

Suspension

Front — 3 link with panhard
Rear — Triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends

Aluminum GTS Shocks

Oil-filled coilover GTS shocks
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

1.9″ Canyon Trail tires with trail-tuned foam inserts
Pre-glued and mounted to tough black scale wheels
Trail tuned S1 rubber compound
12 mm steel hex

Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

Learn More

Video

Innovation

Radically innovative technology combines with precision engineering to create a breed of Scale and Trail^® Crawler…Only from Traxxas.

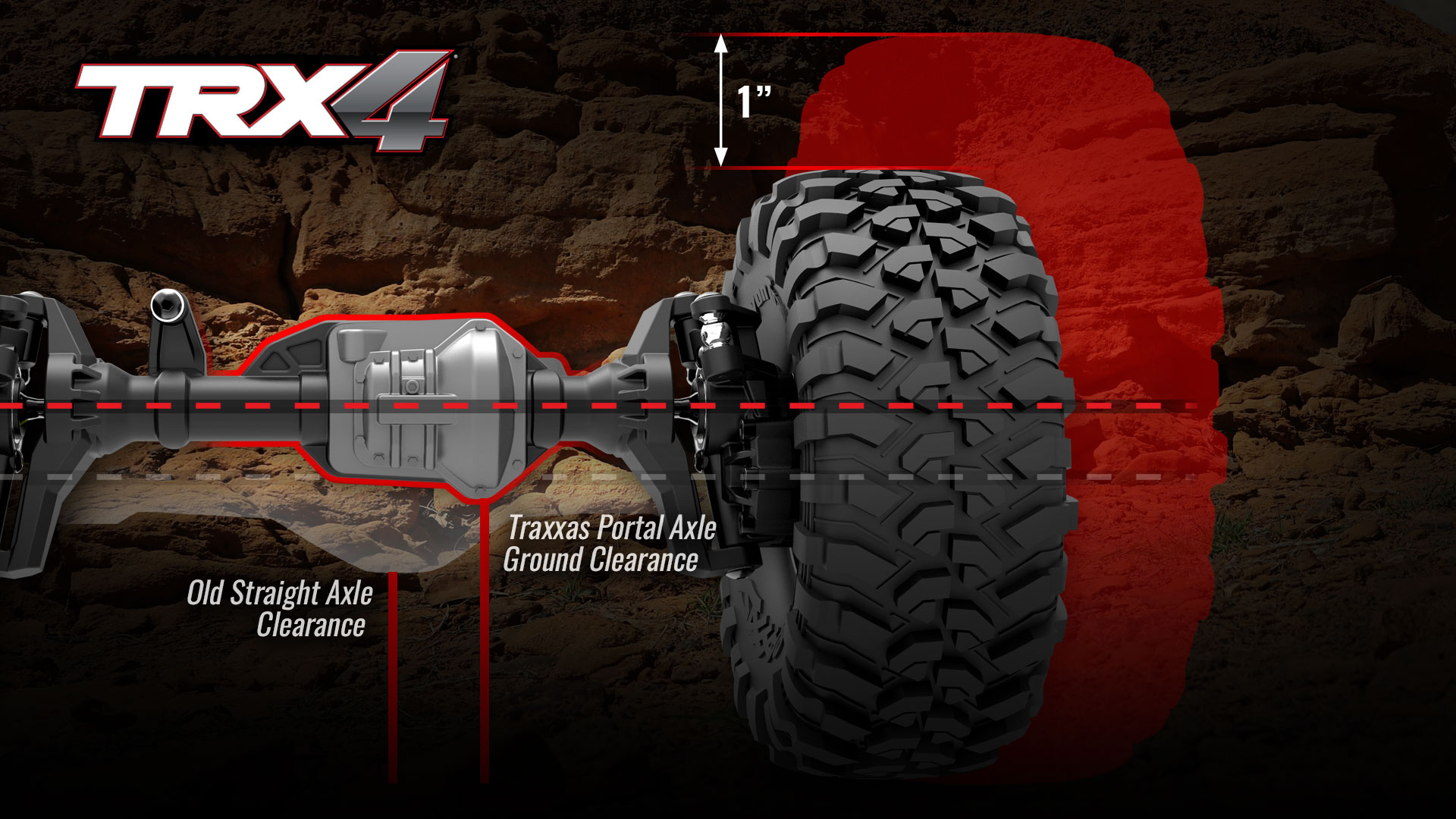

The Power of Portals

Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles, your tires would have to be over an inch taller than the tires on TRX-4.

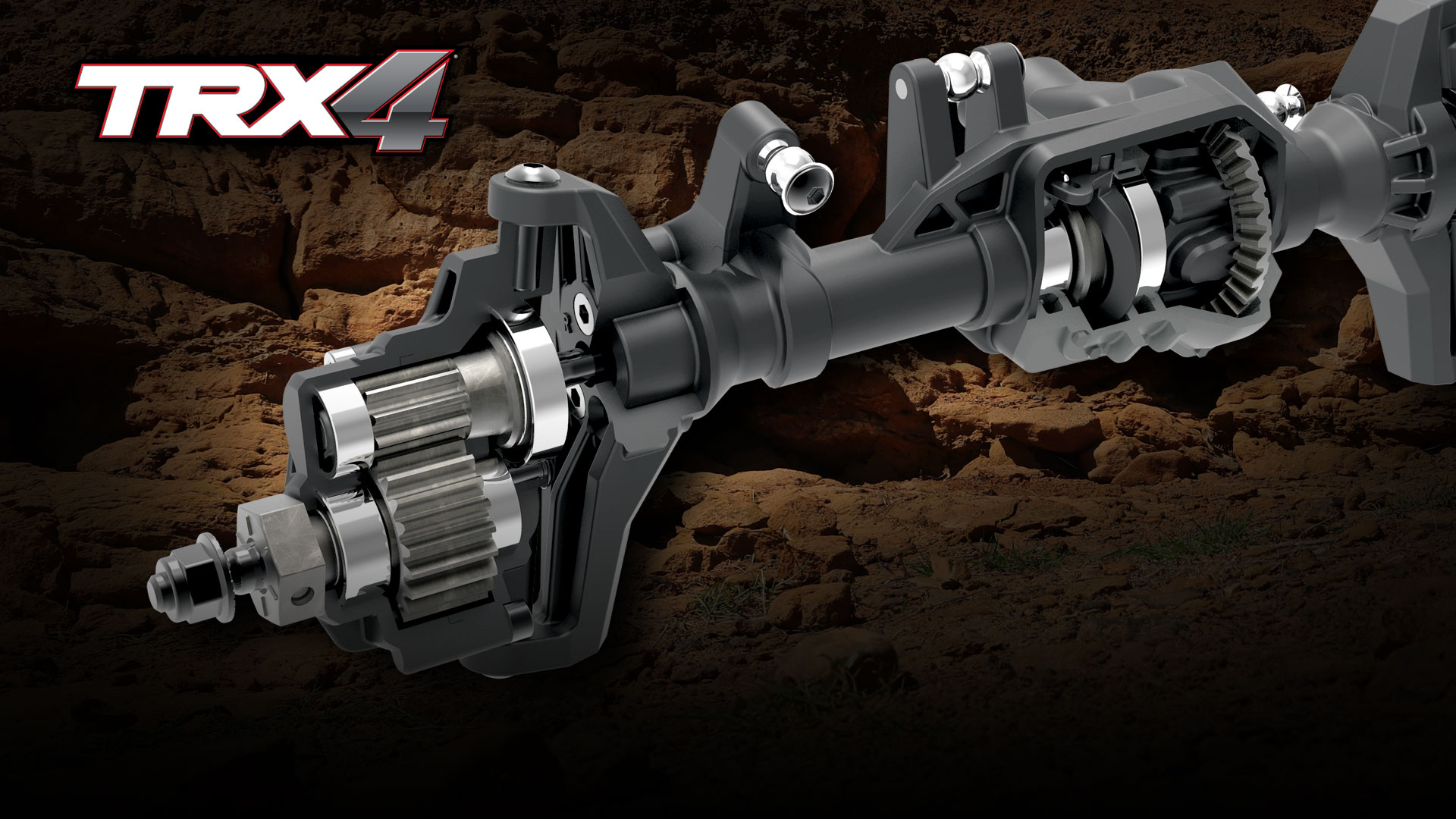

Torque Twist Eliminated

The portal axles use gear reduction at the wheels to virtually eliminate torque twist. The Titan^® 550 motor’s torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.

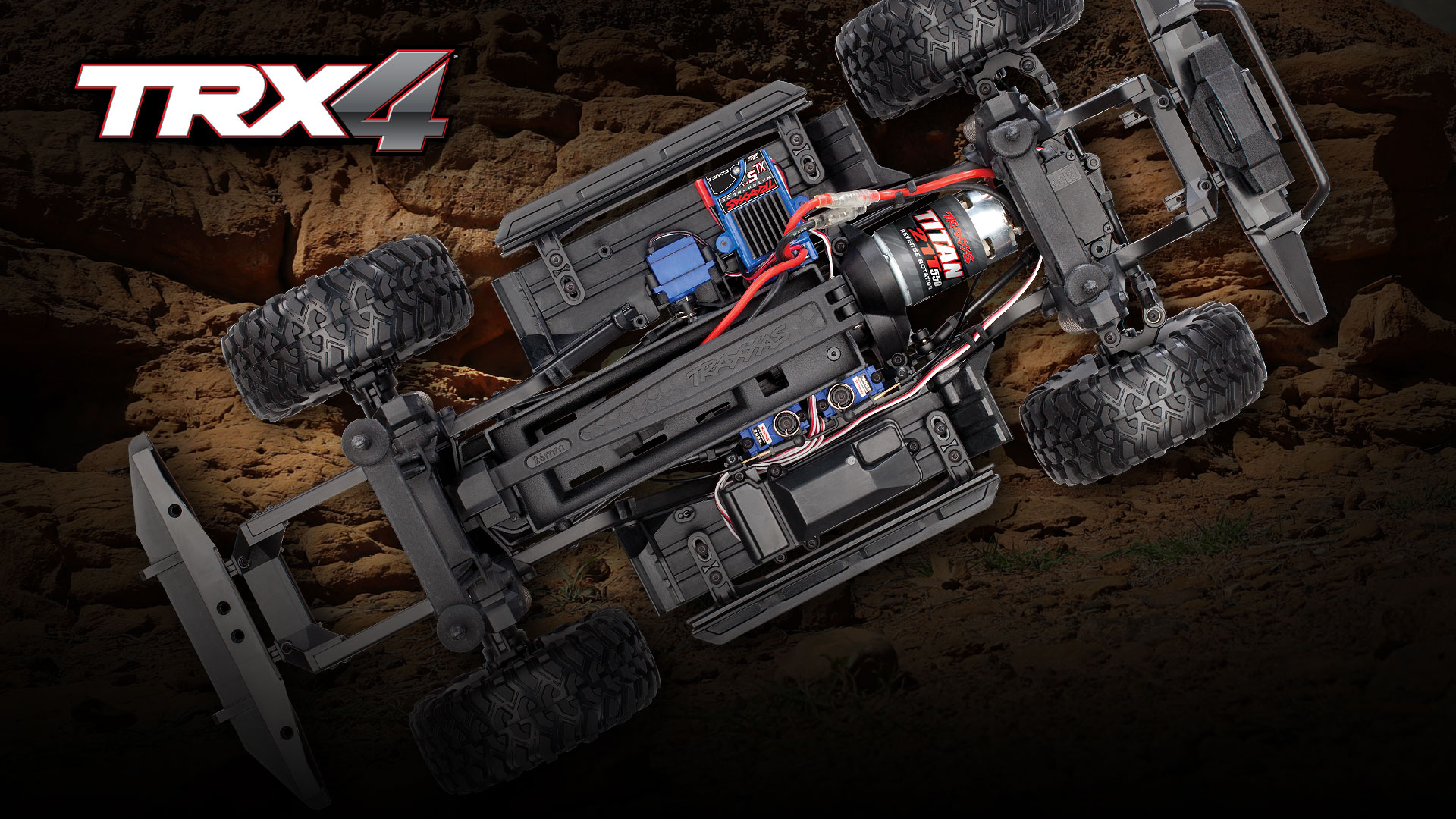

All-New Chassis Design

TRX-4 instantly obsoletes the status quo with greatly expanded features, versatility, and capability. Performance and technology combine in a revolutionary new chassis that looks as good as it performs.

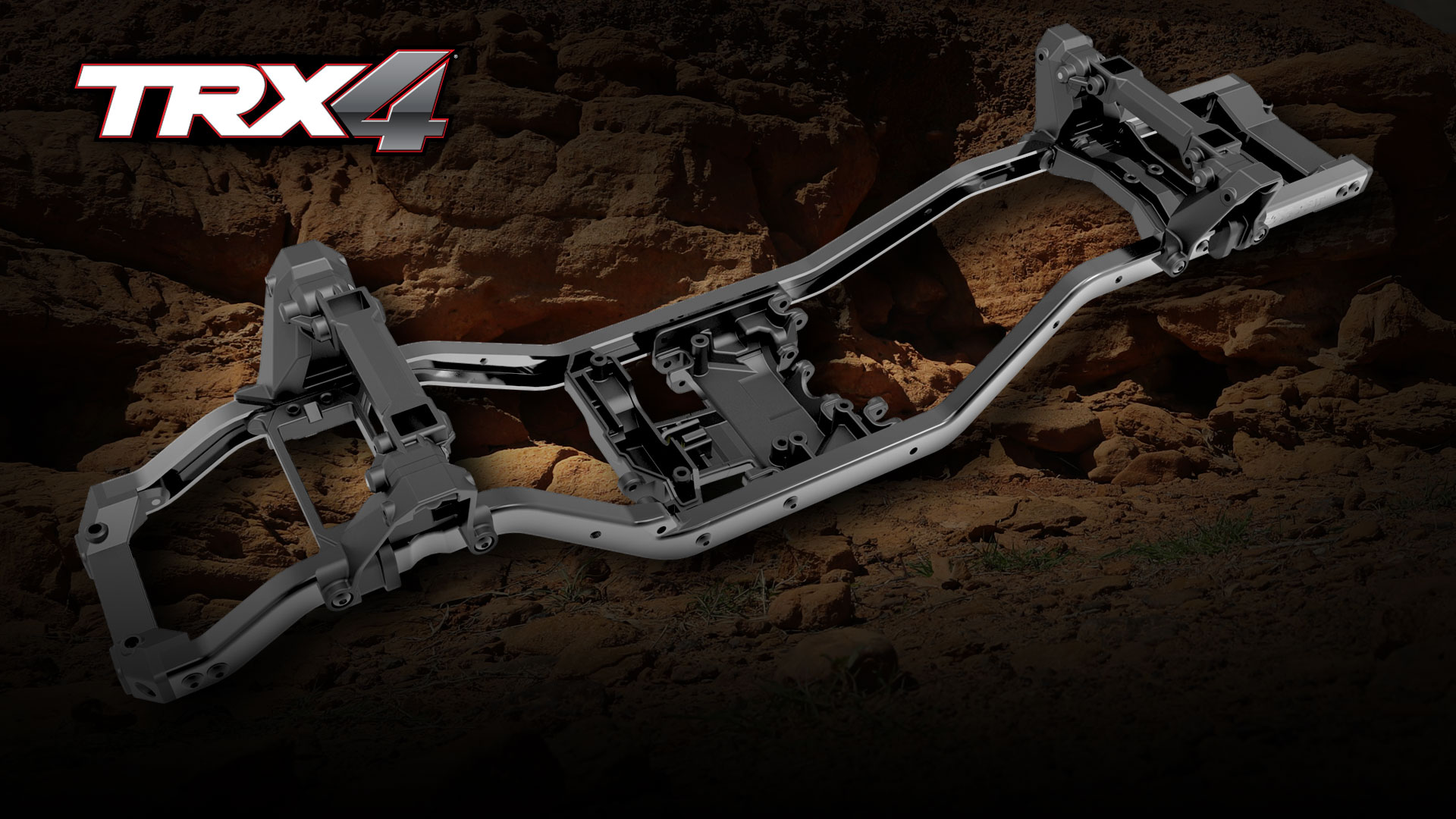

Rigid Steel Frame

A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone. You’ll feel the difference on trails when navigating technical terrain.

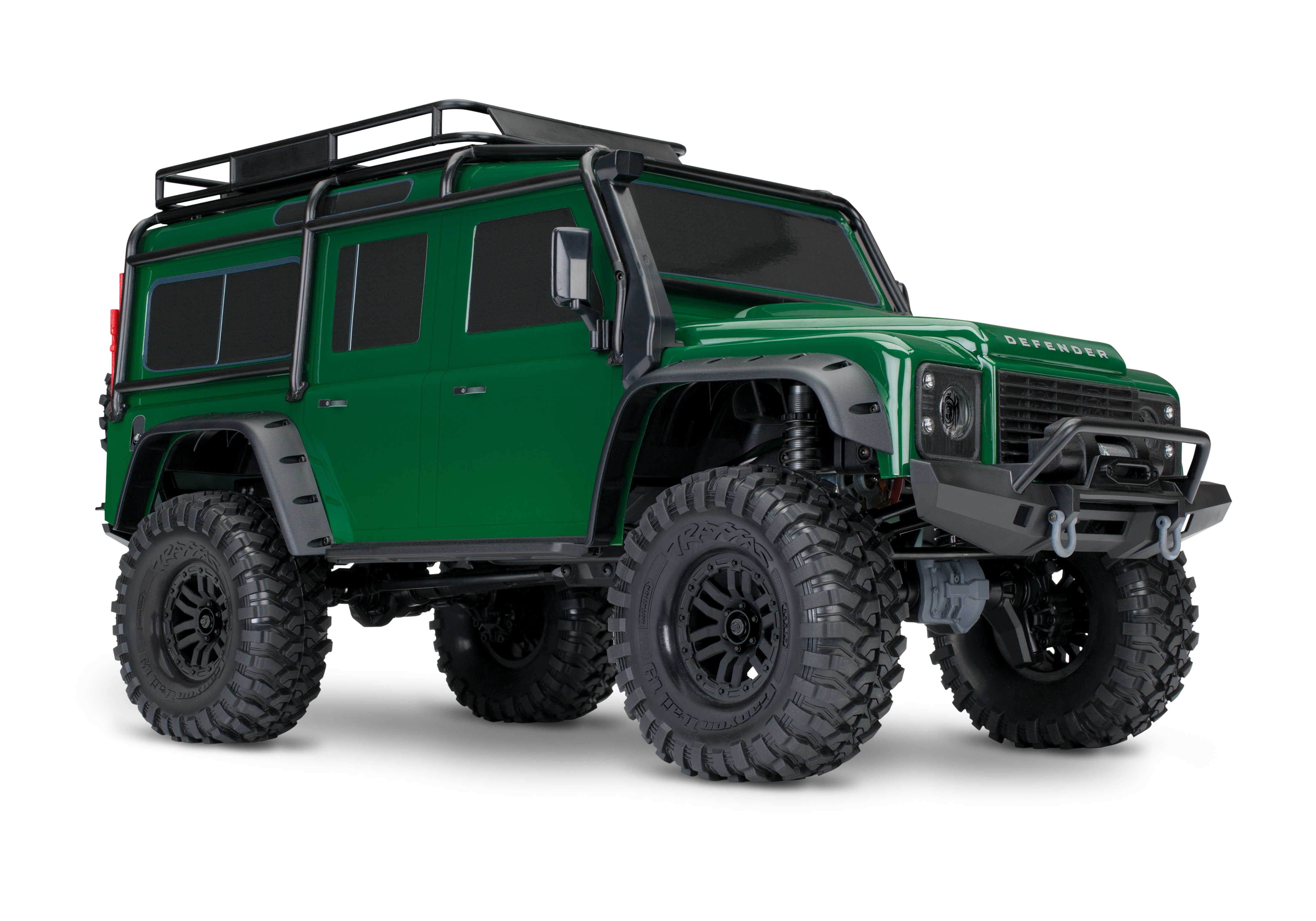

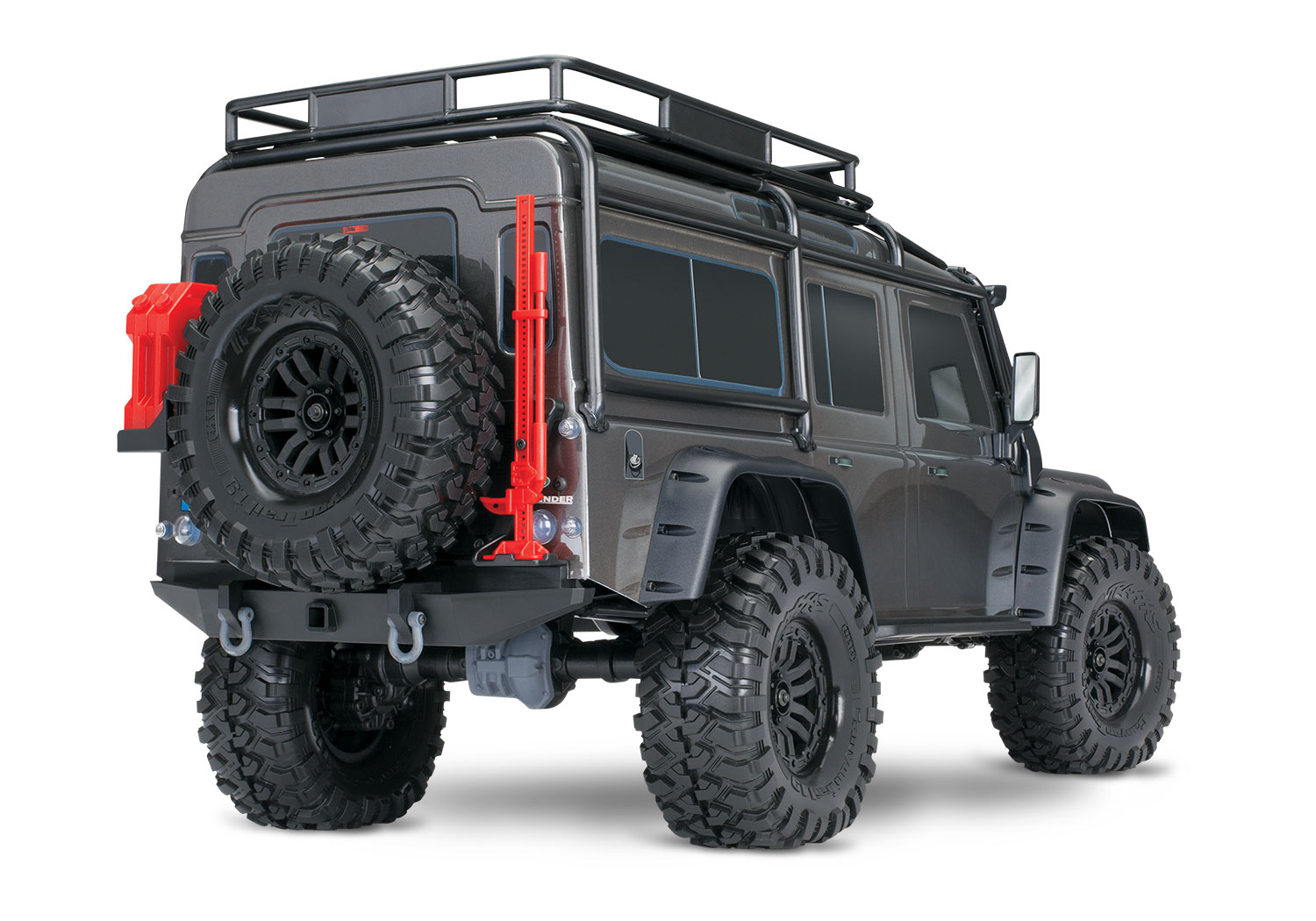

Scale Details

TRX-4 features a fully licensed and highly detailed Land Rover Defender body. Scale details abound from the detailed front grille and bumper to the functional spare tire in the back. Realistic lighting details, side mirrors, bumpers and even the included jack all add to the rugged and authentic appearance.

Remote Locking Differentials

Traxxas allows you to lock and unlock both the front and rear differentials remotely from your transmitter. New sleeved micro cables control the differential action for scale appearance, without limiting suspension articulation.

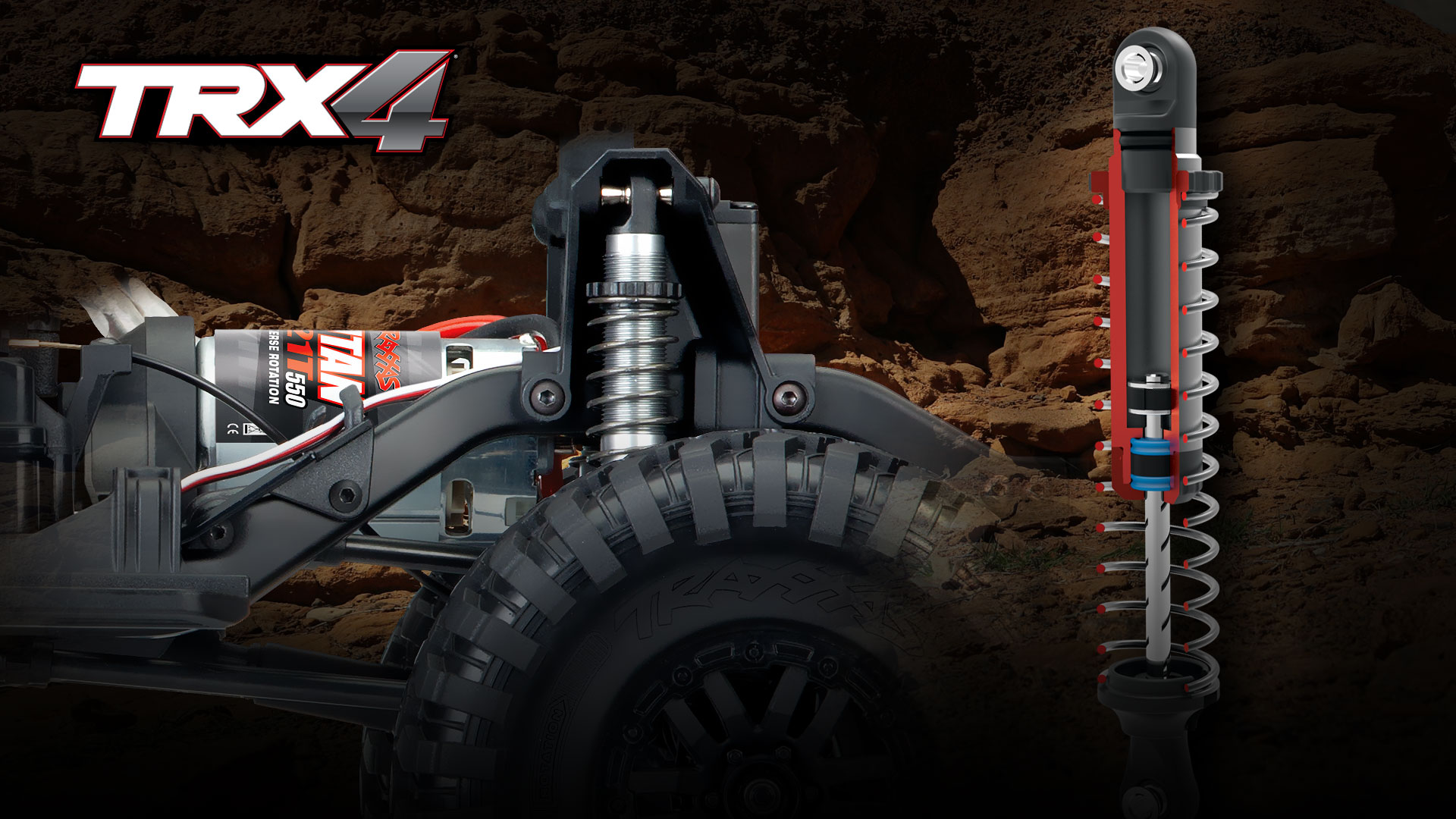

GTS Aluminum Shocks

Oil-filled coil-over GTS shocks deliver silky-smooth damping performance and feature threaded aluminum shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better.

High/Low Range Transmission

When the going gets tough, shift into low range for incredible 4WD pulling torque. Shift into high range for blasting down the trail. The TRX-4 Scale and Trail Crawler adapts to any situation or driving style.

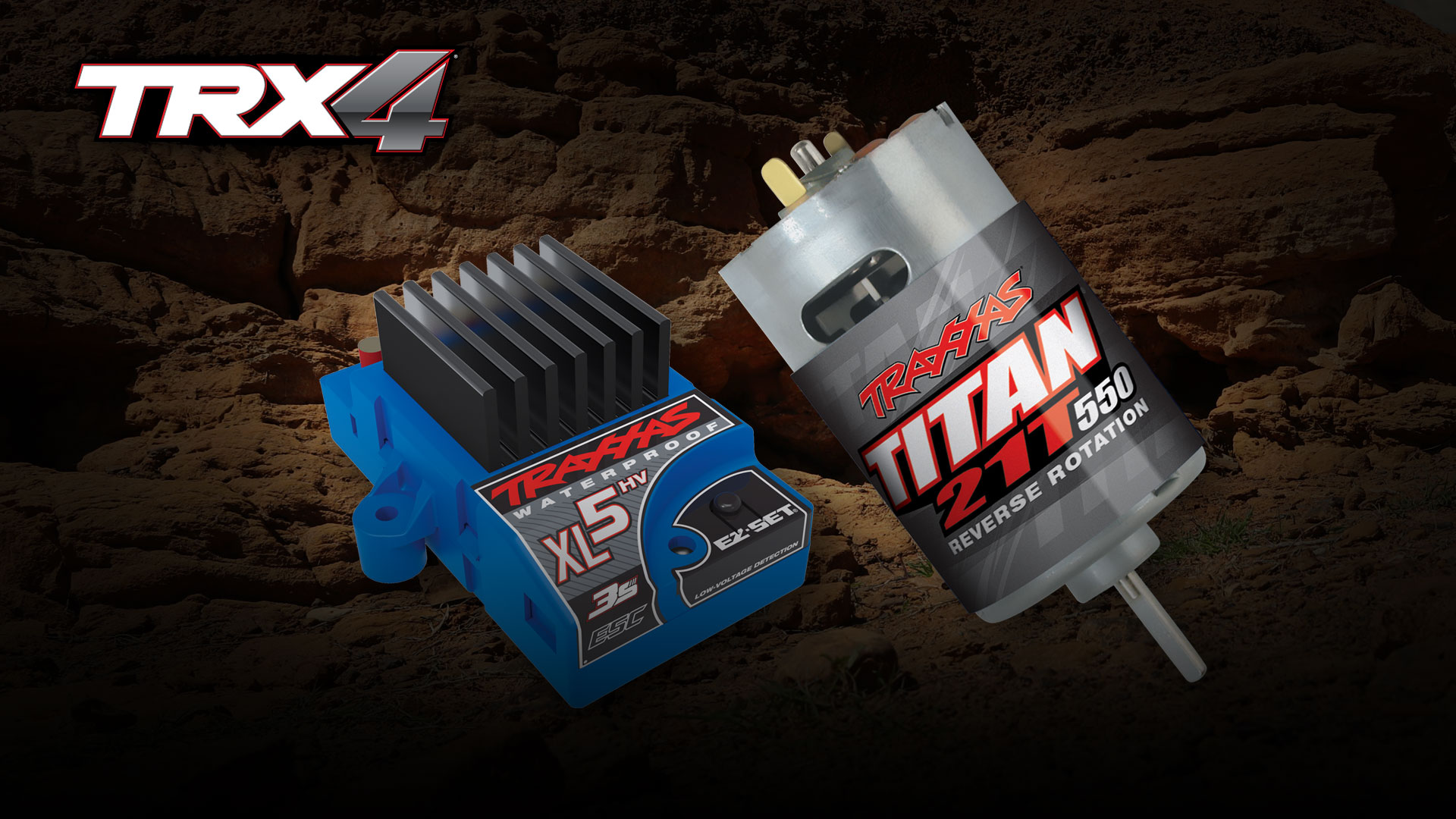

3S Power System

The XL-5™ HV electronic speed control brings 3s LiPo capability for stronger, more efficient running. The powerful 21T Titan^® motor provides torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3s 5000 mAh LiPo battery pack!

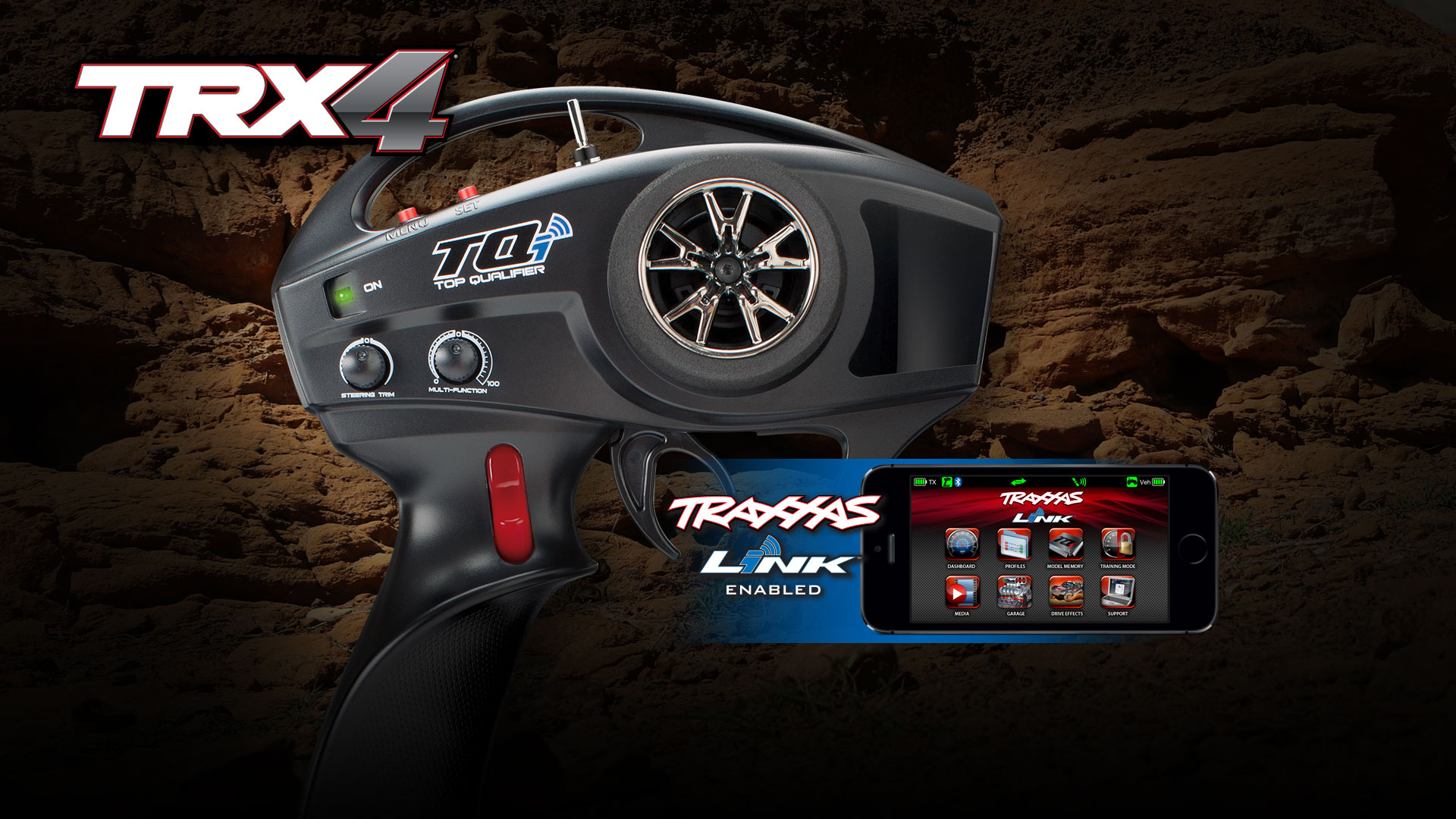

TQi Radio System with Cruise Control

The Traxxas TQi™ features our exclusive cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to match precisely the pace of your caravan of trail explorers.

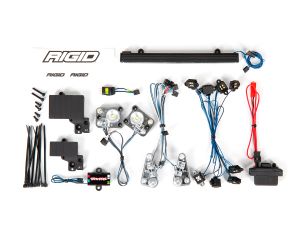

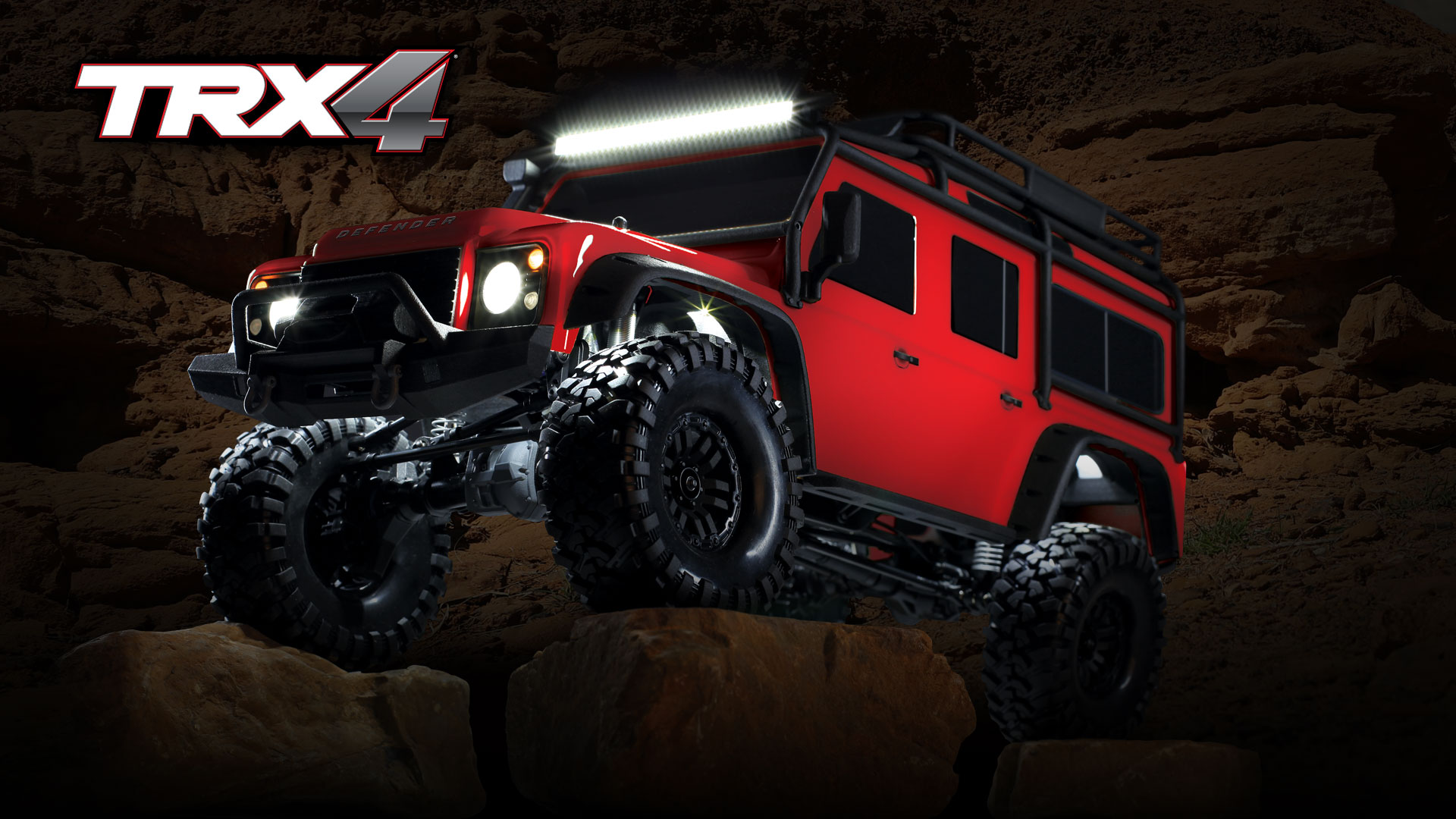

Accessory Light Kits

Optional light kits illuminate the trail ahead and provide an authentic appearance. A separate regulated power supply ensures powerful lighting with consistent brightness.(All light kits and light kit accessories are sold separately.)

Waterproof Electronics

TRX-4 is fully waterproof, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.
