Battery & Charger
Sold Separately
E-Revo
MODEL SPECS
Model Name:
E-Revo VXL Brushless
Model Type:
Monster Truck
Model Speed:
70+ mph
Model Skill Level:
3
Scale:
1/10
Weight:
11.2 pounds (5.08 kg)

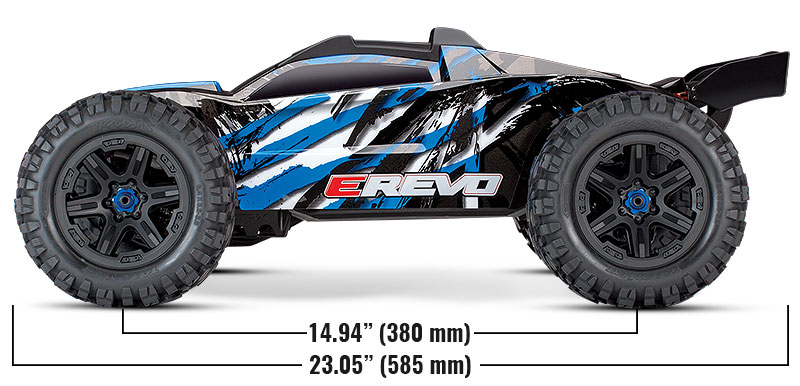

Length:
23.05 inches (585 mm)

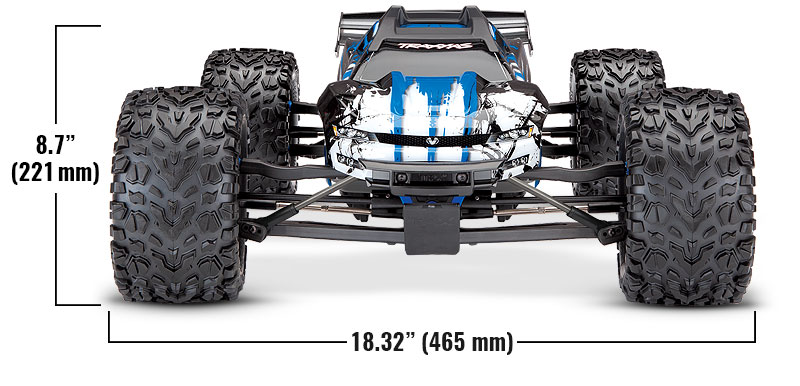

Width:
18.32 inches (465 mm)
Front Track:
18.32 inches (465 mm)
Rear Track:
18.32 inches (465 mm)
Height:
8.7 inches (221 mm)
Wheelbase:
14.94 inches (380 mm)
Center Ground Clearance:
2.9 inches (73 mm)
Drivetrain:
Shaft-driven 4WD
Transmission:
Single speed
Differential Type:
Sealed 4-gear (front and rear), sealed 4-gear (20M weight oil) (center)
Gear Pitch:
1.0 metric pitch
Servo(s):
2075 dual digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Compartment Specs:
156 mm X 50 mm X 29 mm

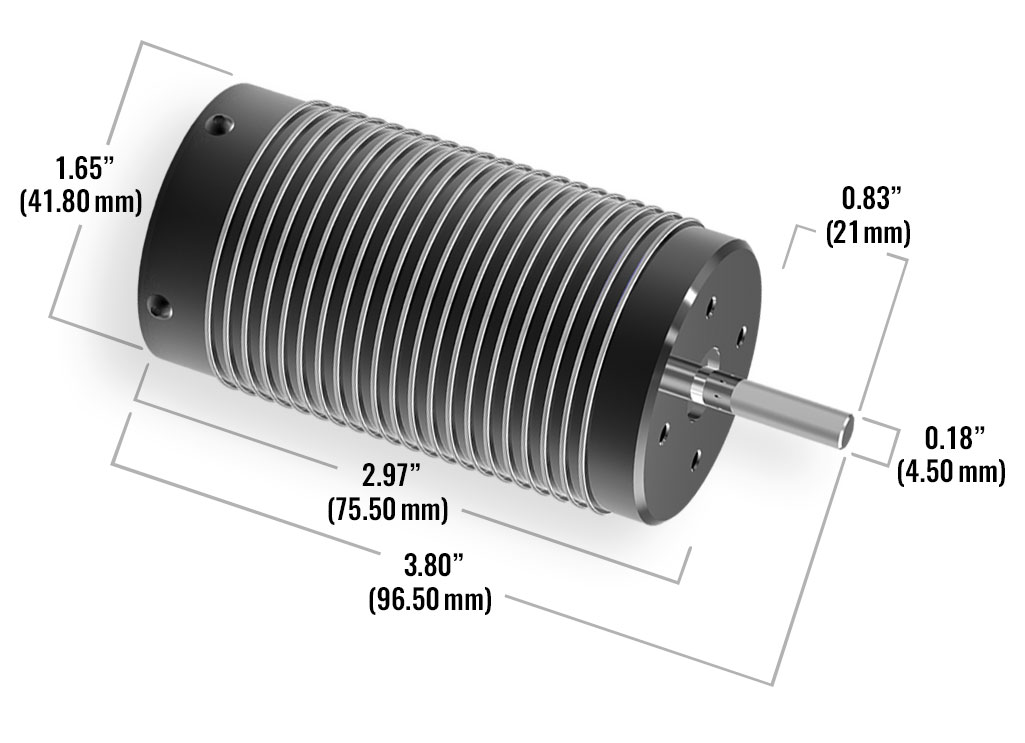

MOTOR SPECS
Motor Name:
2200 kV
Motor Type:
Sensorless brushless
Motor Weight:
14.32 ounces (406 g)
Motor Length:
2.97 inches (76 mm)
Motor Diameter:
1.65 inches (42 mm)
Motor Shaft Size:
5 mm
Motor Connector Type:
6.5 mm bullet

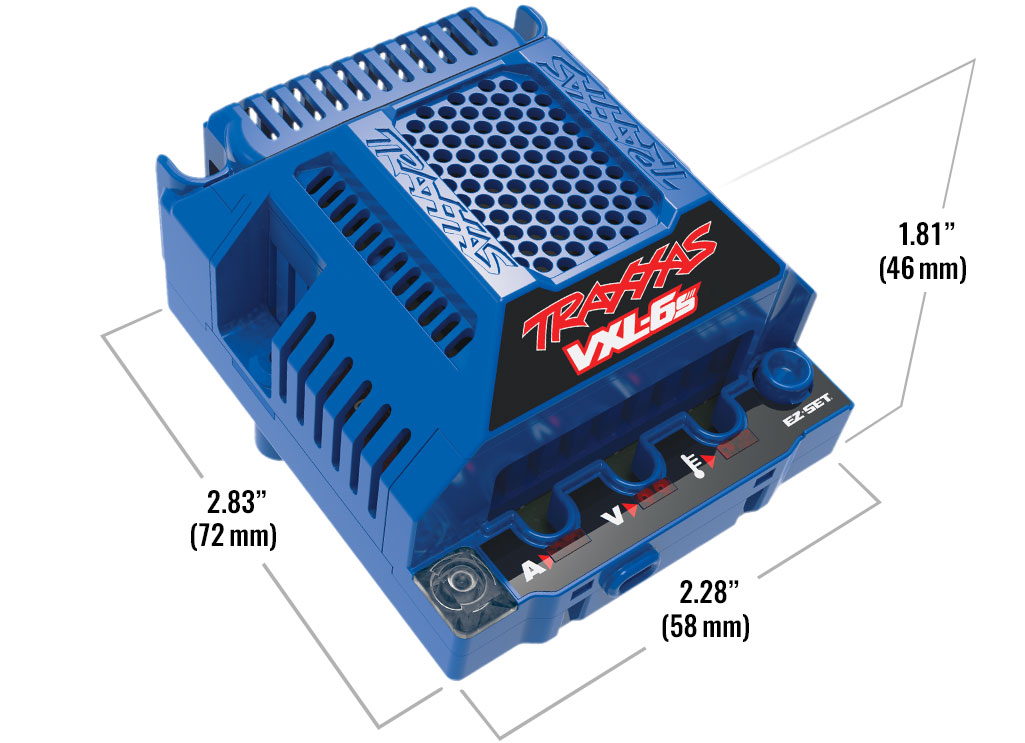

ESC SPECS
ESC Name:
Velineon® VXL-6s™
ESC Type:
Brushless
ESC Case Size:
2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:
7.30 ounces (207 g)
Motor Connectors:
6.5 mm bullet
Battery Connectors:
Traxxas High Current Connector

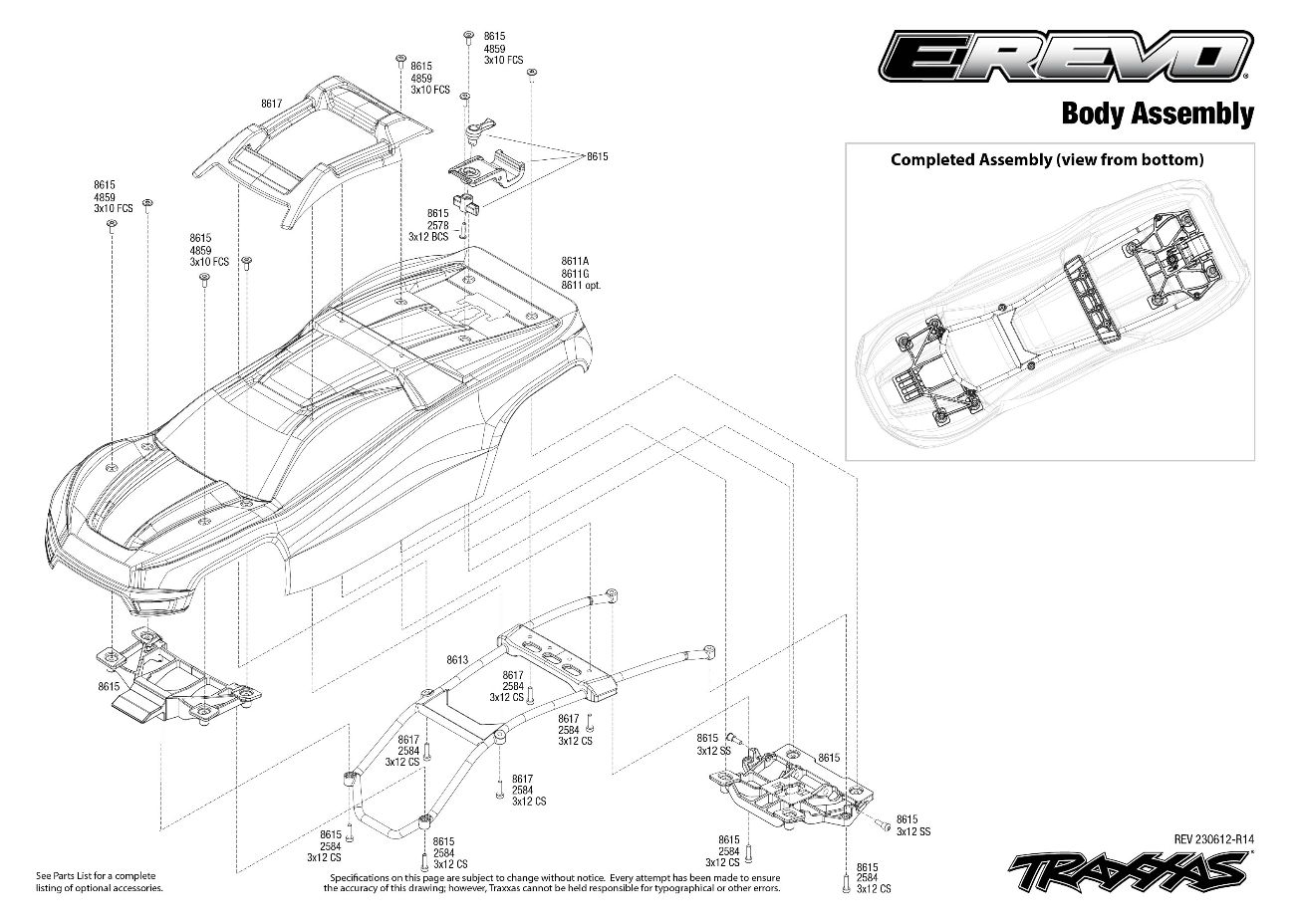

ProGraphix® Clipless Body Clipless body mounting system Tough internal frame Adjustable rear wing External reinforcement for rollover protection VXL-6s™ Waterproof Electronic Speed Control 6s LiPo compatible Integrated cooling fan Real-time telemetry via Traxxas Link Machined heat sink 3-LED status indicators Powered accessory ports 10-gauge silicone wire Velineon® Brushless Motor 4-pole 2200 kV 5 mm output shaft Finned can for better heat dissipation Traxxas Stability Management® (TSM) Includes exclusive Self-Righting capability Improves straight line acceleration and braking on low-traction surfaces Never dulls throttle or slows the truck Adjusts from off to 100% assistance from the transmitter Steering High-throw bellcrank steering design Dual waterproof digital 2075 servos for 250 oz.-in. of torque TQi™ 2.4 GHz Radio System 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link enabled models Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle endpoints Patented waterproof receiver box with easy-access plug Chassis Reinforced composite tub for greater durability Vented internal battery compartments with quick-release doors Low-CG design for improved handling Tough skid plates for driveline protection Transmission Mod-1 pinion and spur gears Fixed gear mesh system Torque-Biasing Center Drive Cush Drive (no slipper clutch) 5 mm aluminum motor plate Drivetrain Maxx® -Spec steel CV driveshafts 8 mm steel stub axles Heavy-duty telescoping center driveshafts Differentials Heavy-duty sealed 4-gear design Redesigned bulkheads with underside access Maxx-Spec ring and pinion gears Large 8 mm output shafts Steel drive cups Suspension Oil-filled GTR™ shocks with height-adjustable threaded aluminum bodies Inboard rocker arm suspension design for extreme articulation Low-CG design improves handling and protects components Upgraded heavy-duty axle carriers with oversized bearings Heavy-duty rocker arms and rod ends Wheels and Tires Aggressive Talon™ EXT all-terrain tires New tire construction resists ballooning Tough 3.8″ black wheels Splined 17 mm blue aluminum axle hubs Sealed Ball Bearings Hex hardware with Rust-Resistant Black Oxide Coating Requires Battery and Charger (Sold Separately)
No Parts available for this model
