| Model Name: | TRX-6 Ultimate RC Hauler |
|---|---|
| Model Type: | Trail / Crawler |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 10.7 pounds (4.83 kg) |

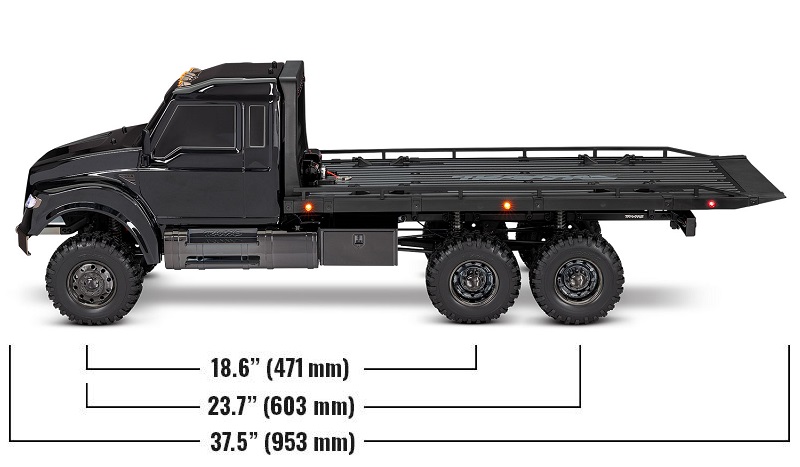

| Length: | 37.5 inches (953 mm) |

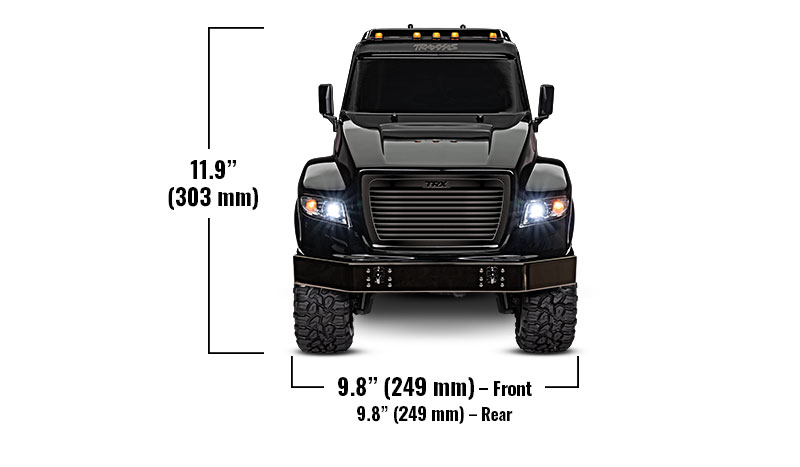

| Width: | 9.8 inches (249 mm) |
| Front Track: | 9.8 inches (249 mm) |
| Rear Track: | 9.8 inches (249 mm) |
| Height: | 11.9 inches (303 mm) |
| Wheelbase: | 23.7 inches (603 mm) |
|---|---|
| Center Ground Clearance: | 3.14 inches (80 mm) |
| Drivetrain: | Shaft-driven 6WD |
| Transmission: | 2-speed high/low, remote shifting |
| Differential Type: | 4-gear, remote locking |
| Gear Pitch: | 32 pitch |
| Servo(s): | 2075X metal gear, digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
| Battery Compartment Specs: | 159 mm X 47 mm X 23/26 mm |

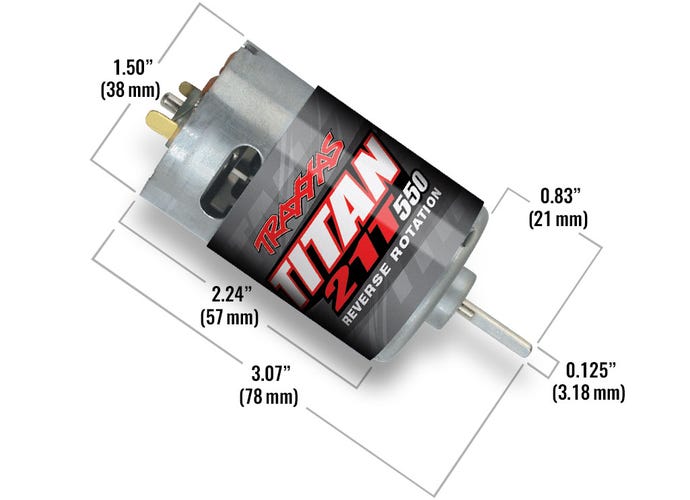

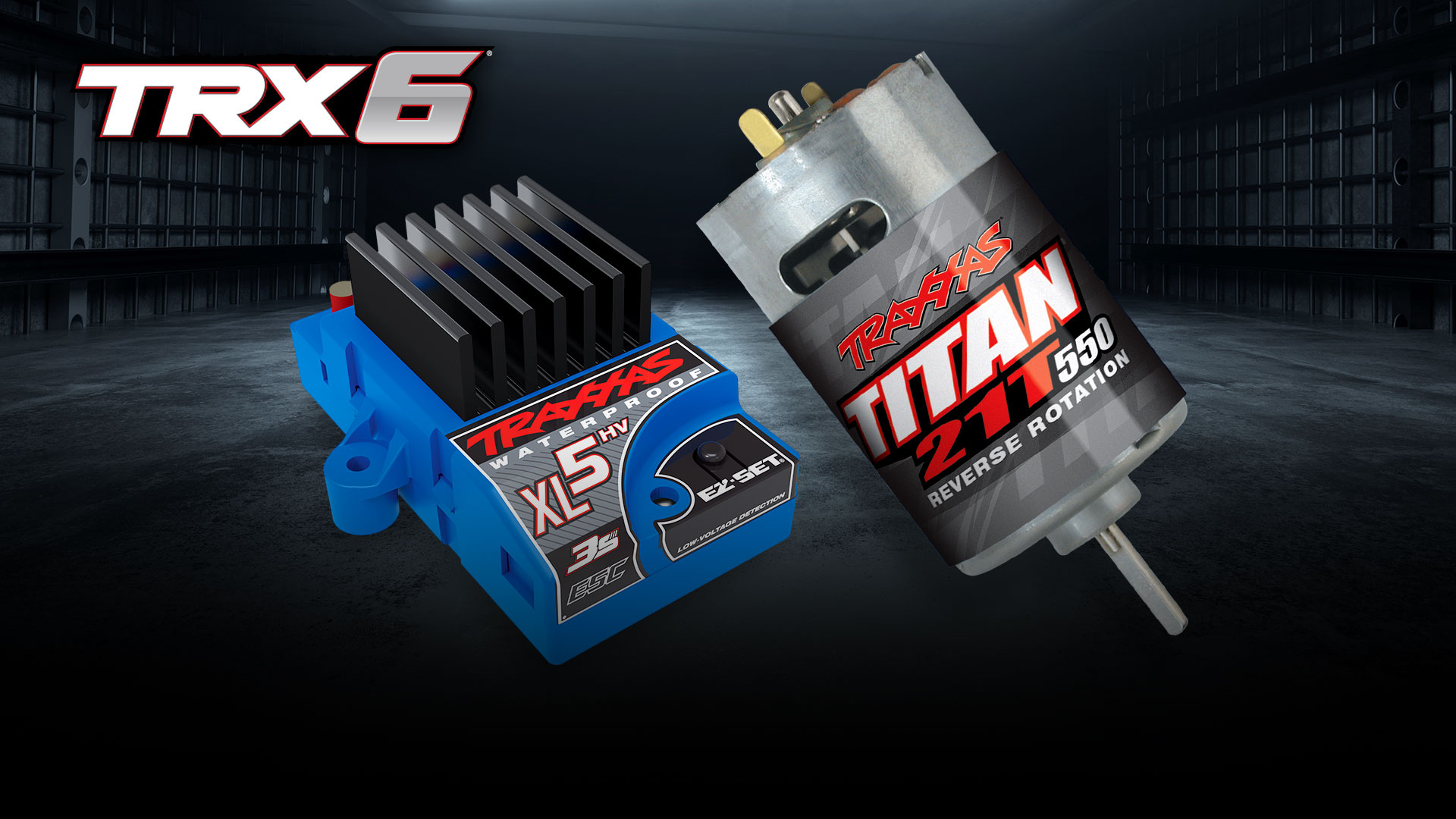

| Motor Name: | Titan® 550 21T Reverse Rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Motor Weight: | 8.47 ounces (240 g) |
| Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: | 1.53 inches (39 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |

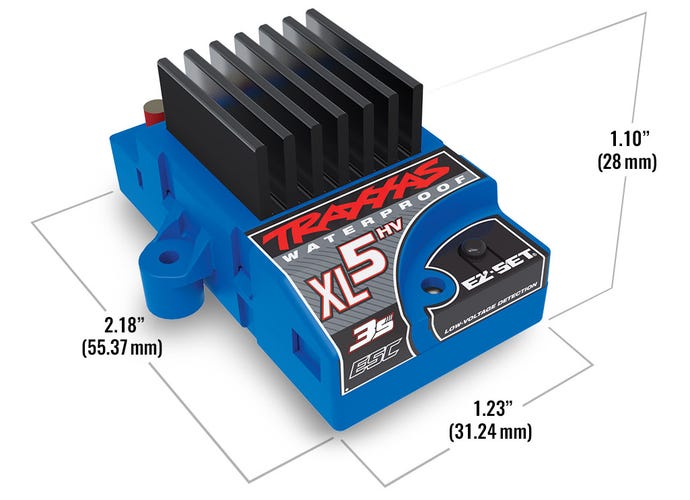

| ESC Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight: | 2.6 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 14 gauge |
TRX-6 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
Four AA alkaline batteries for the transmitter.
No Parts available for this model

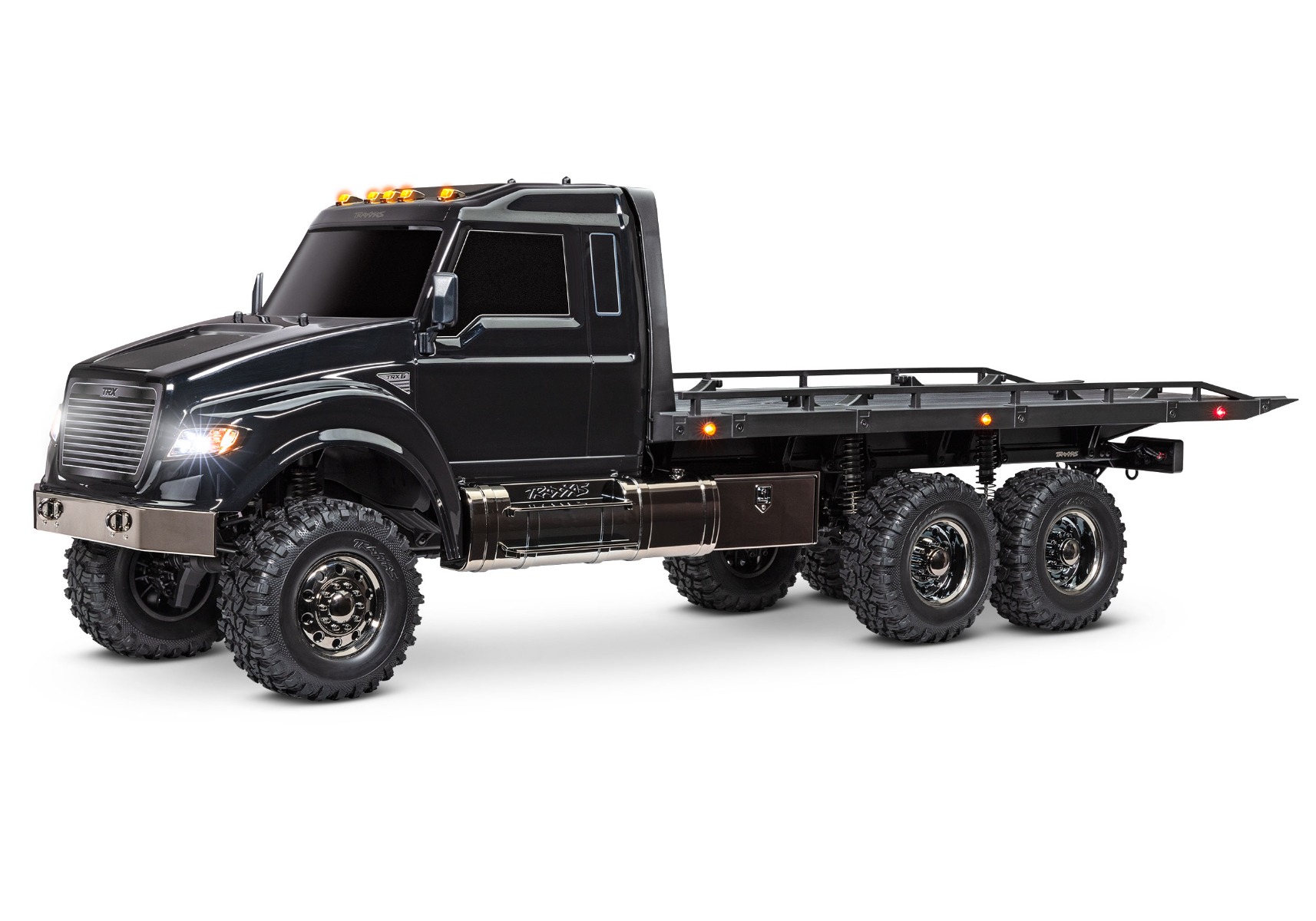

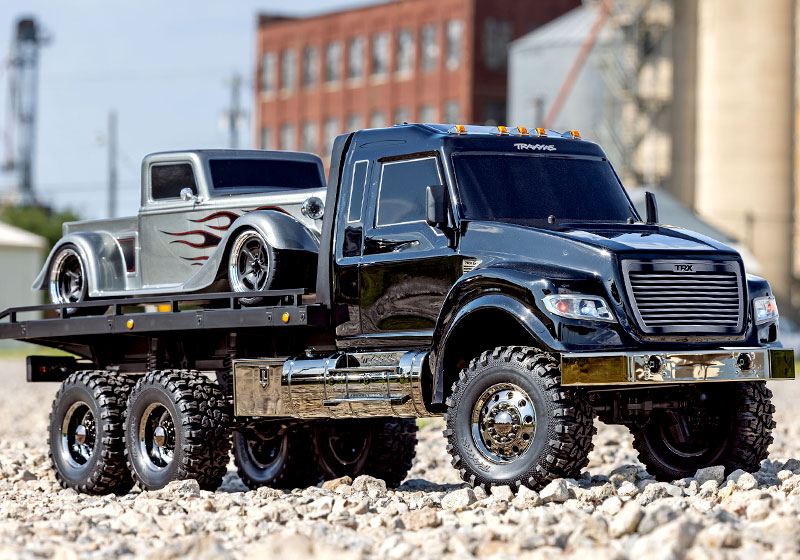

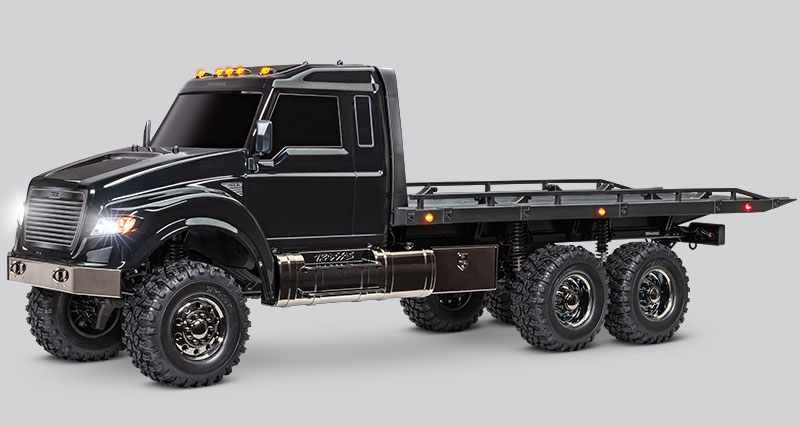

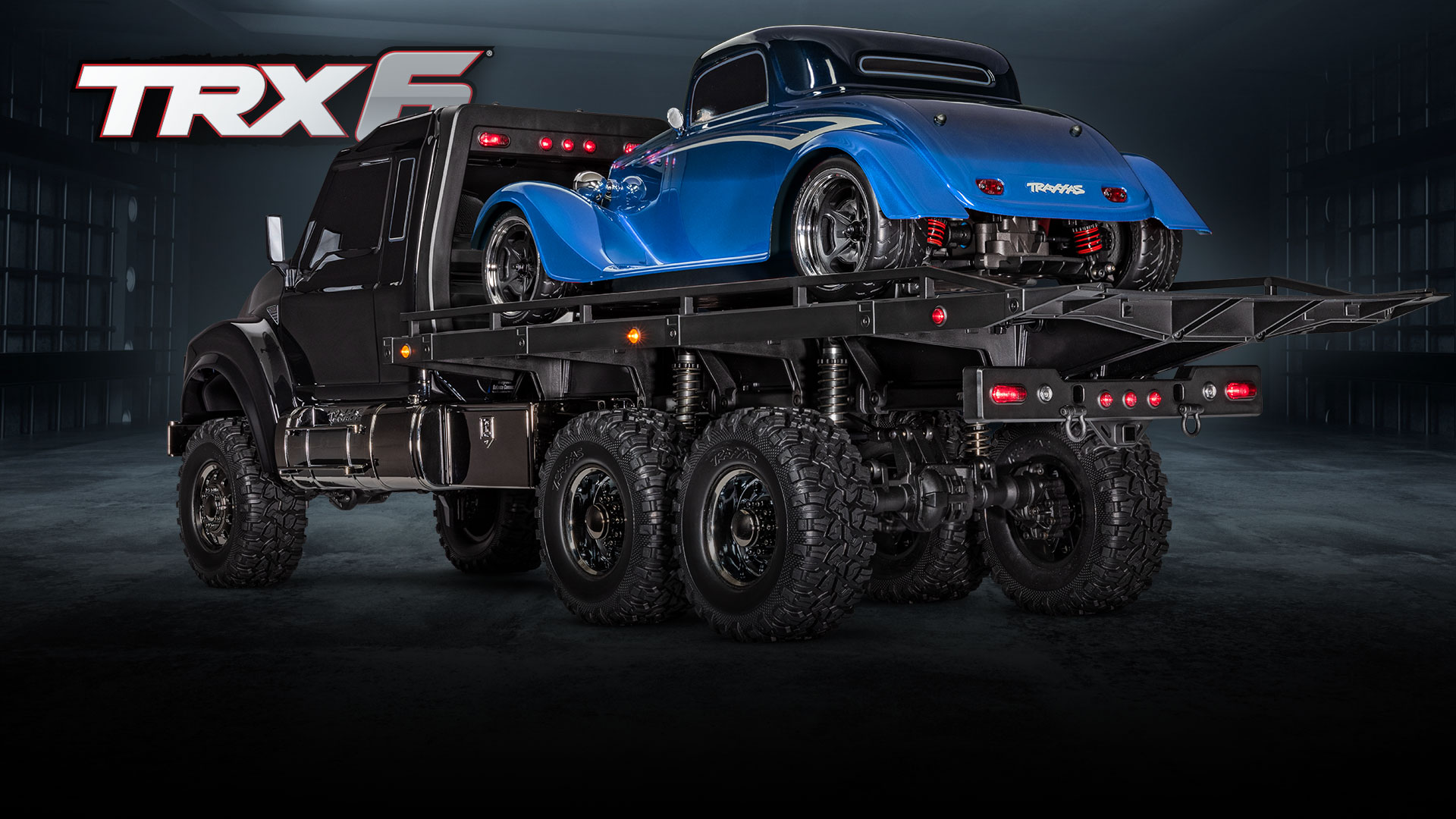

One look at the new TRX-6® Ultimate RC Hauler and you’ll know this truck means business. Based on the hugely capable TRX-6 platform, the RC Hauler is the biggest and baddest rig in the TRX lineup. The tough looks are backed up with even tougher performance. The rear bed features adjustable wheel chocks and tie-down bands to haul and display 4-Tec® models with style. A highly detailed LED lighting system and black-over-black chrome body accessories give the Hauler a tough, menacing look. The Ultimate RC Hauler is built Traxxas Tough™ with portal axles, high/low transmission, and T-Lock™ remote locking differentials. When you’re ready for big-scale RC fun, nothing comes close to the Traxxas Ultimate RC Hauler.

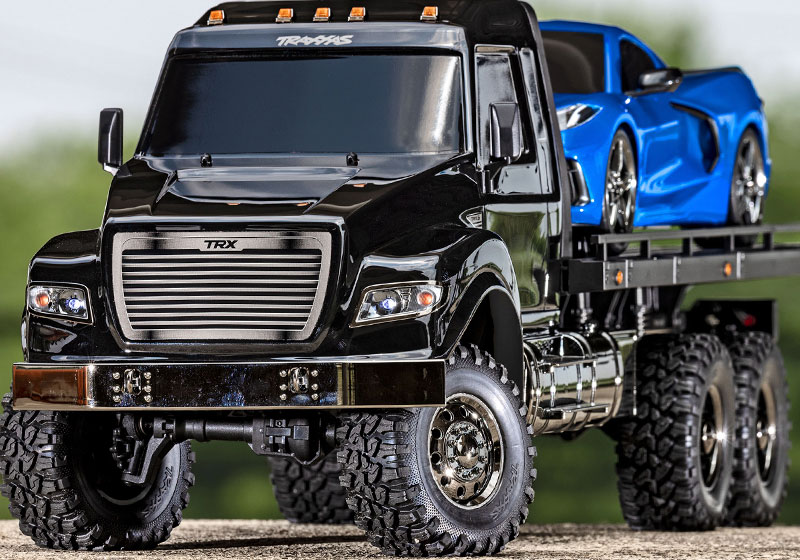

The Ultimate RC Hauler is the largest TRX-6® model with an extra long 23.7″ (603 mm) wheelbase and oversize bed to haul your 4-Tec models in style. The highly detailed truck features deep gloss black paint over molded black chrome body accessories for an intimidating look to match its big rig attitude.
Adjustable wheel chocks with tie-down bands on the Ultimate Hauler’s tow bed accommodate any 4-Tec 2.0 or 3.0 model and keep precious cargo secure. A powerful and true-to-scale LED lighting system with 25 individual lights makes twilight adventures a reality.
Built on the supremely capable TRX-6 platform, the Ultimate RC Hauler uses six drive wheels to get into the action with trail-conquering grip of three remote-locking T-Lock™ differentials to get back out. A remote-shifting high/low range transmission amplifies the motor’s torque down low to move heavy loads while still providing ample cruising speed when unloaded.

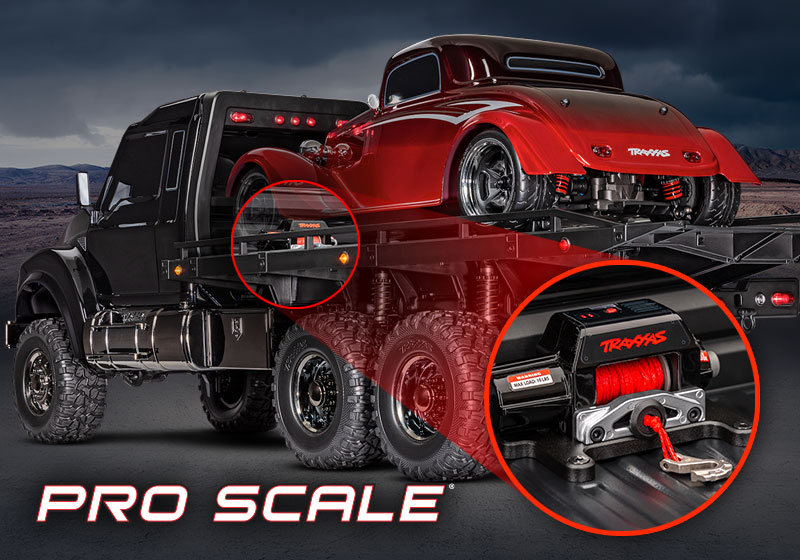

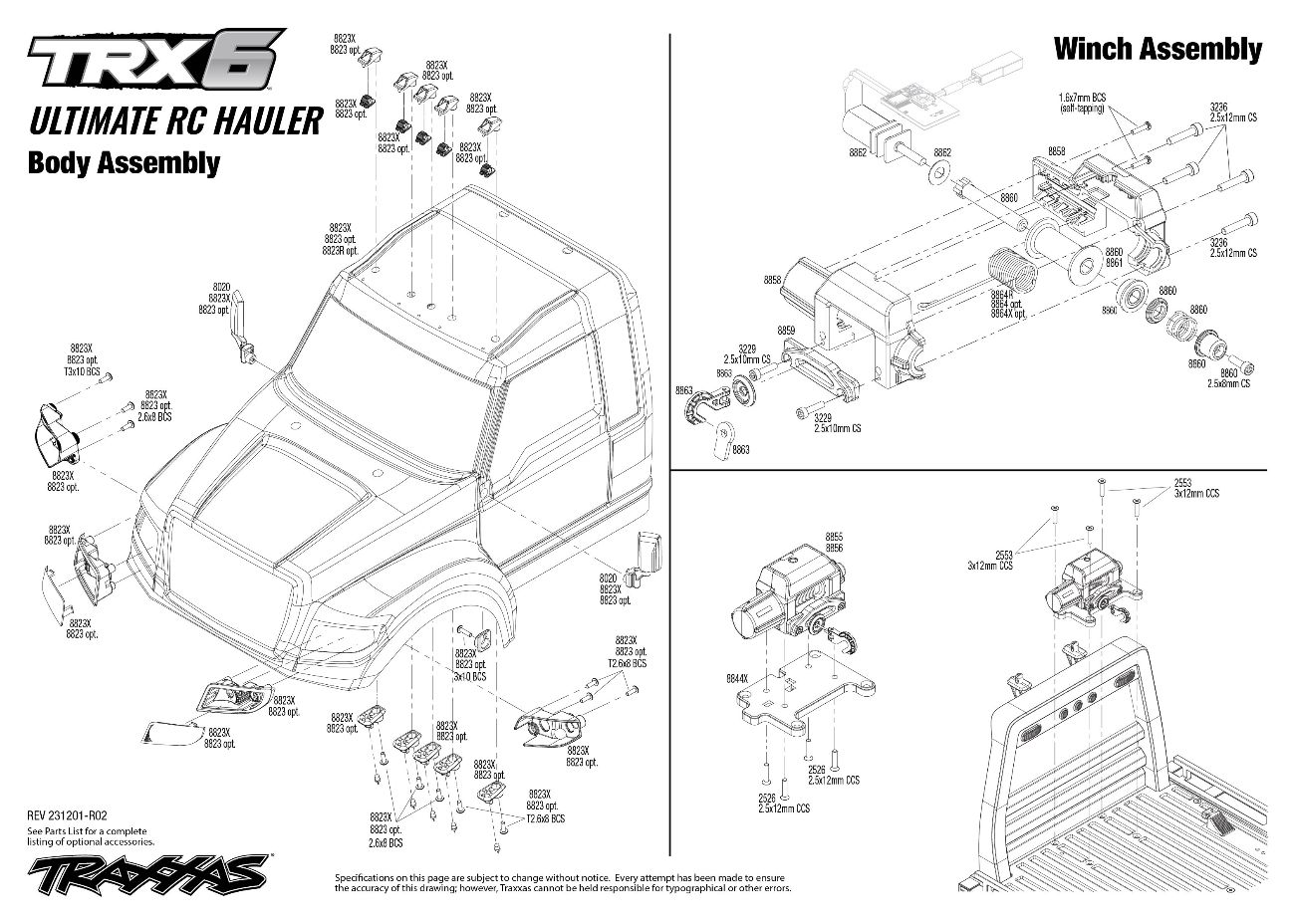

The Ultimate RC Hauler now includes a Traxxas Pro Scale Winch standard, raising the scale realism to a new level. Utilize the winch to pull and secure your 4-Tec models onto the Hauler's detailed bed with the included remote. The winch is pre-wired and ready to go out of the box. Learn more about the Pro Scale Winch here.
The Ultimate RC Hauler combines proven TRX-6 technology with detailed scale elements to create a whole new way to enjoy the RC experience.

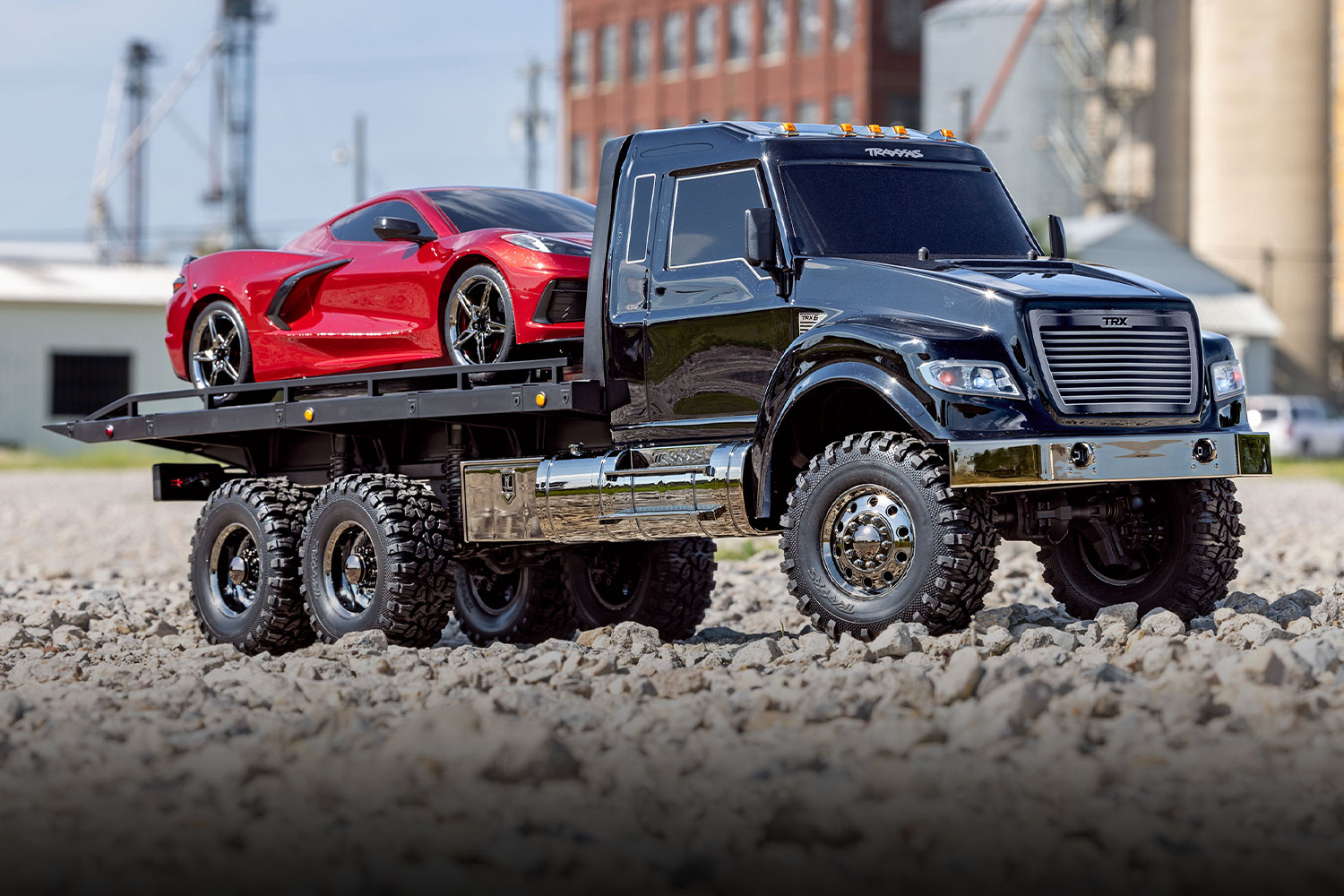

The Ultimate RC Hauler transports your 4-Tec in style with scale looks to match its rugged performance. Whether you’re cruising down the road or blazing an off-road trail, the RC Hauler gets there in style.

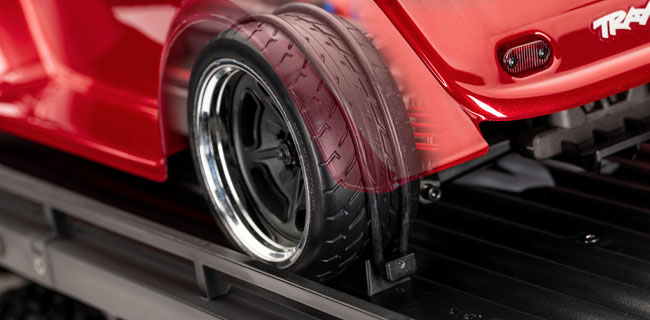

Load up the full range of 4-Tec 2.0 or 3.0 models with RC Hauler's unique full-length bed with adjustable wheel chocks. Transport your GR Supra GT4 or Corvette Stingray to race events or display your Factory Five Hot Rod with show-stopping style.

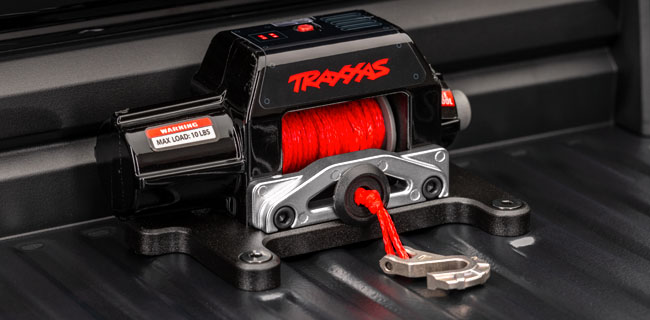

The Ultimate RC Hauler includes the Pro Scale Winch. This extra dose of scale realism is fully functional with an included remote to help pull cars onto the realistic tow truck bed.

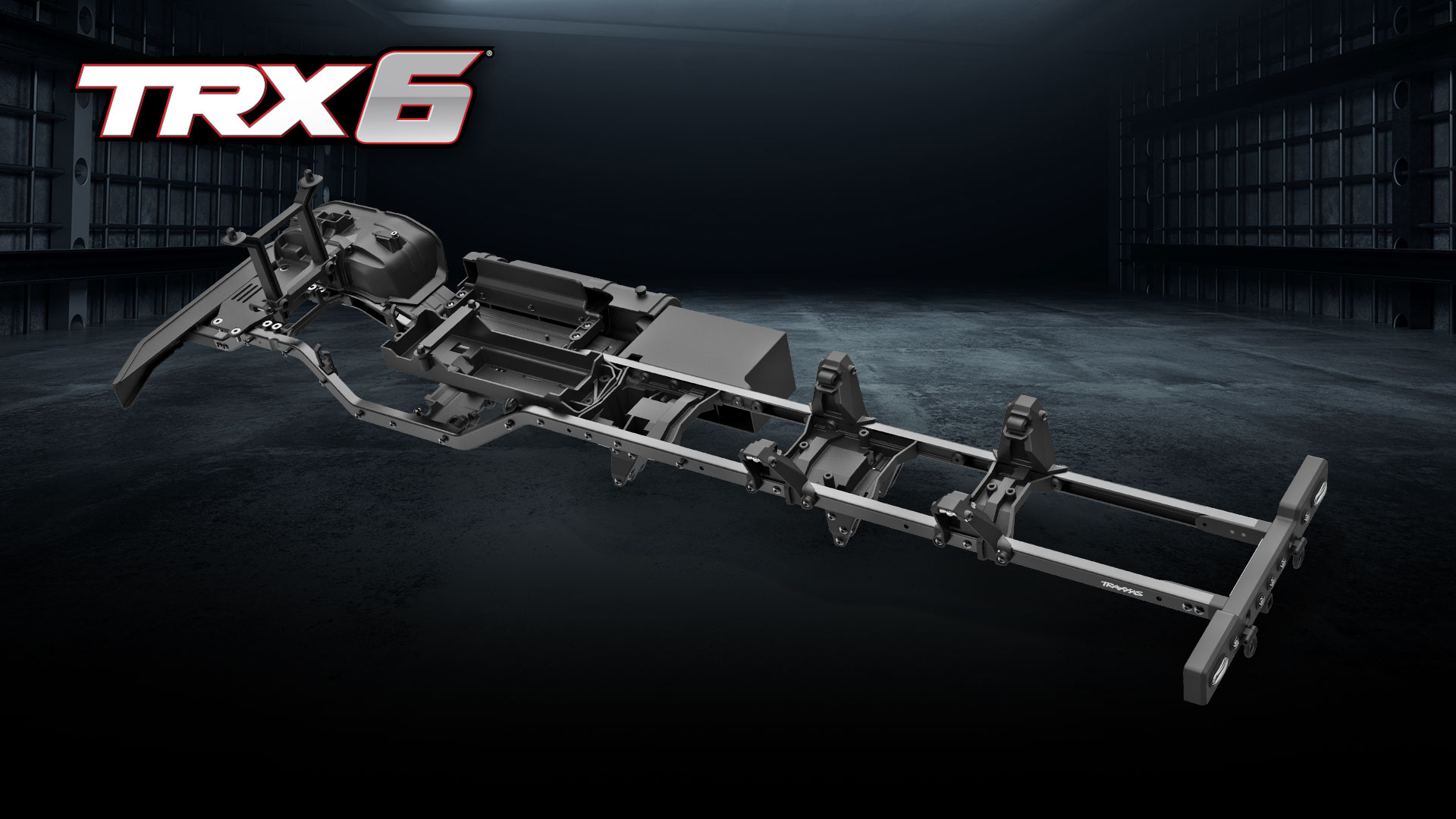

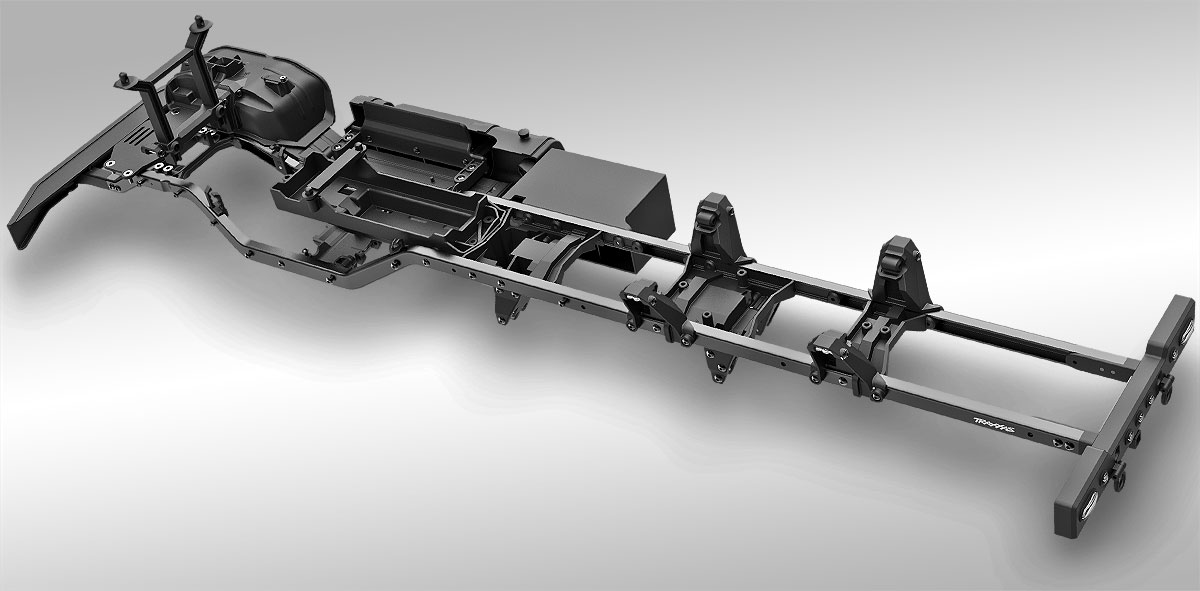

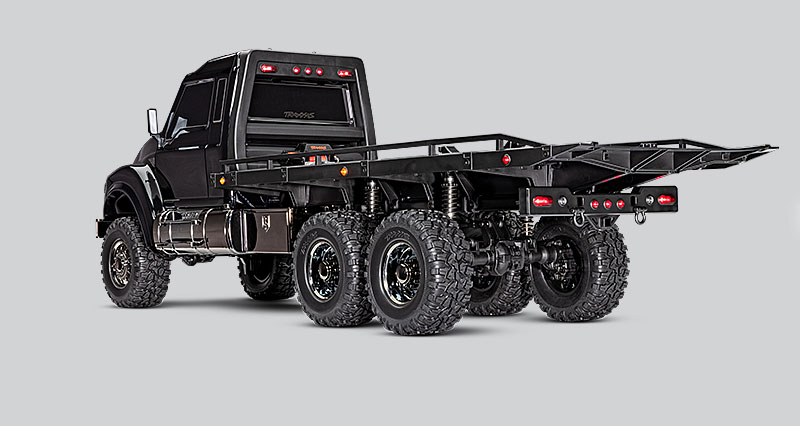

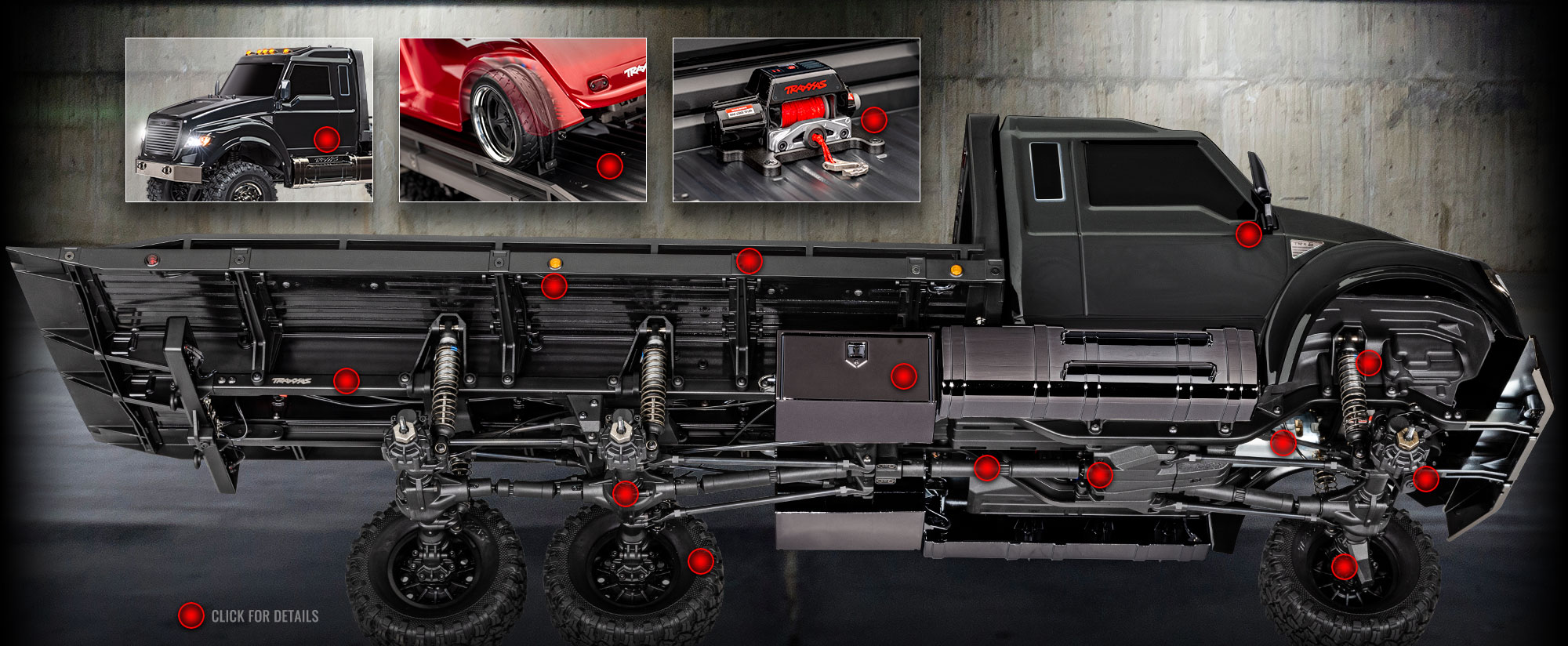

The key to the RC Hauler’s robust chassis are its one-piece frame rails. At over 30? long, these strong steel rails run from bumper to bumper for class-leading strength and maximum torsional rigidity.

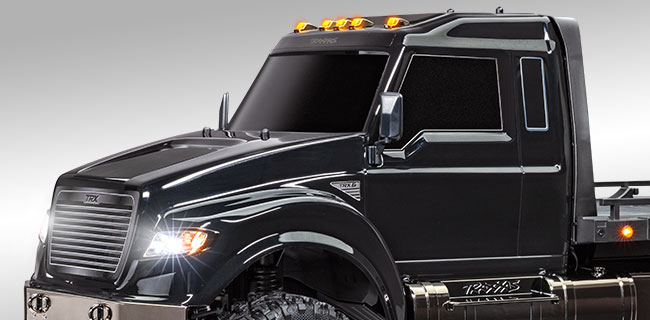

With 25 separate LEDs and a regulated power supply, the Ultimate RC Hauler sets a new standard for scale lighting. Bright white headlights, marker and clearance lights, and a full array of red tail lights track your progress.

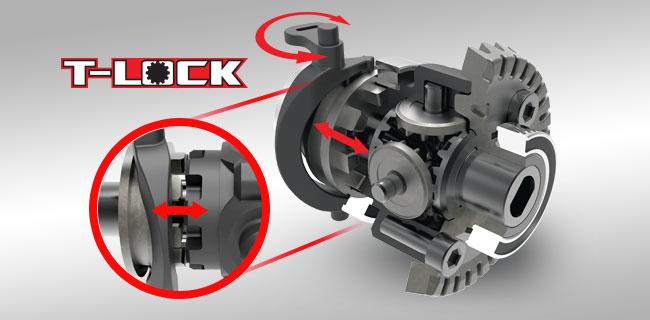

Traxxas gives you the freedom and versatility to lock and unlock both the front and rear differentials remotely from your transmitter. With its differentials unlocked, the RC Hauler defies its length with a tight turning radius and easy maneuverability. When heading off-road, lock just the front or lock the front and both rear axles for superior pull and grip over any terrain.

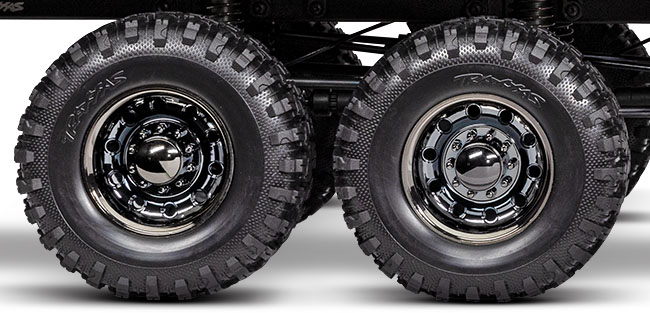

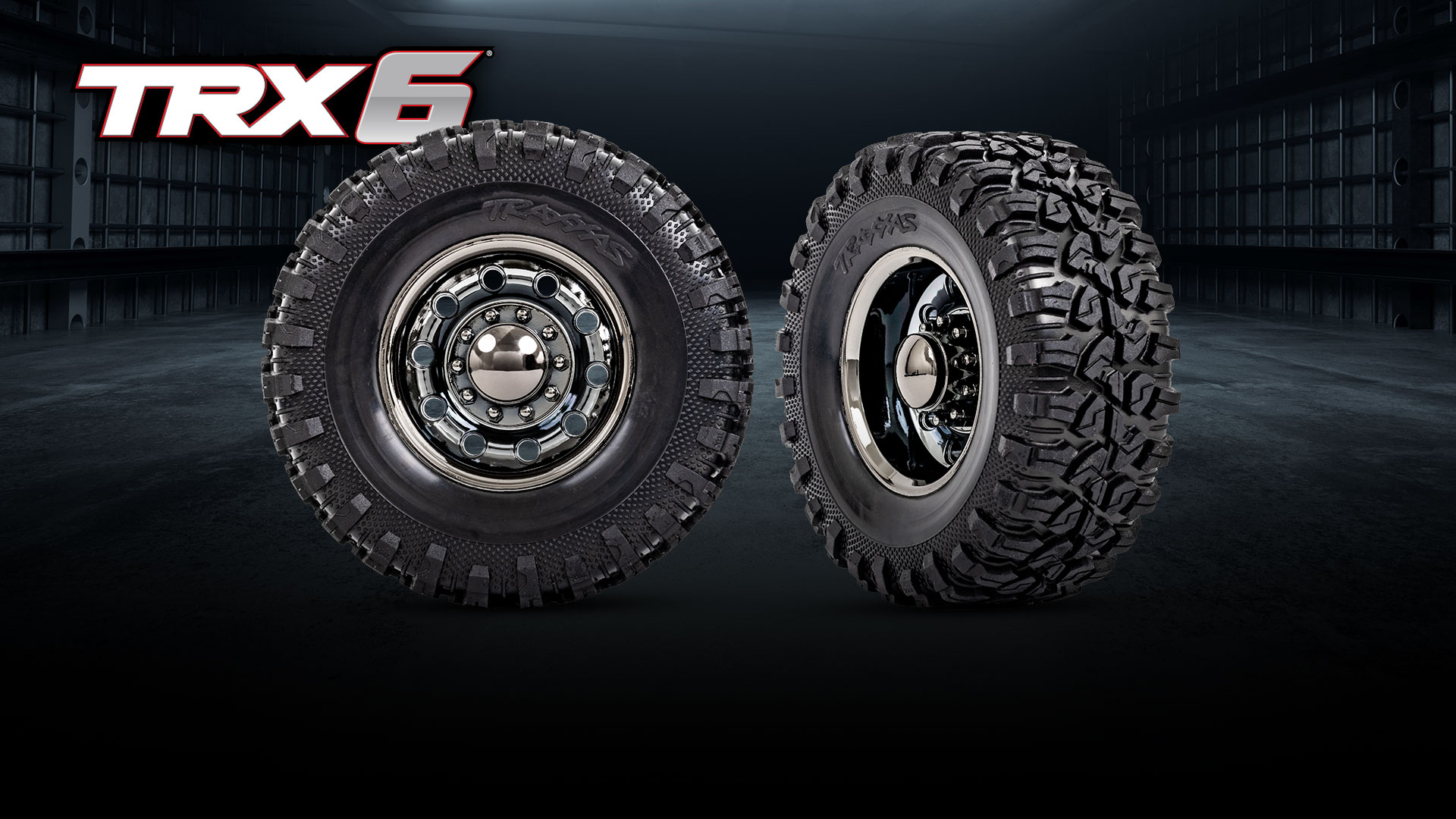

Large 2.2? big rig wheels come pre-glued to aggressive 4.6? Canyon RT tires. Deep tread blocks on the soft-compound tires flex to provide unparalleled grip on all types of terrain. A standard 12 mm hex provides compatibility across the full line of TRX-4 wheels and tires.

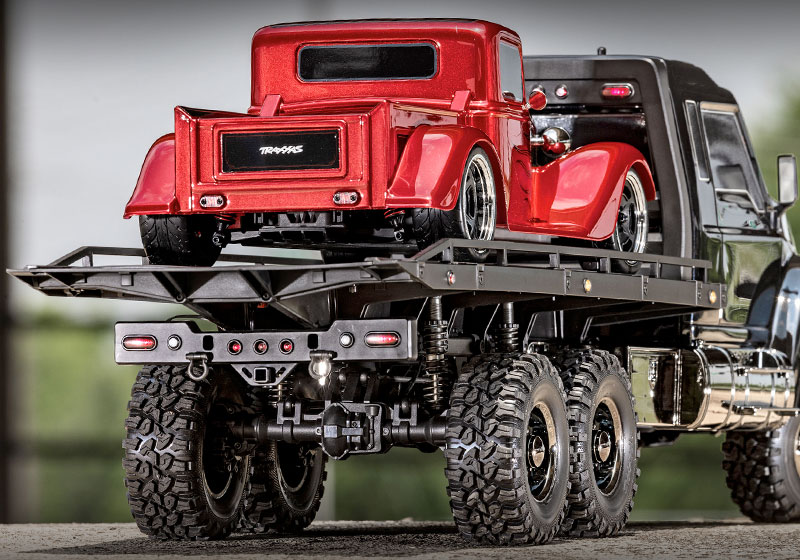

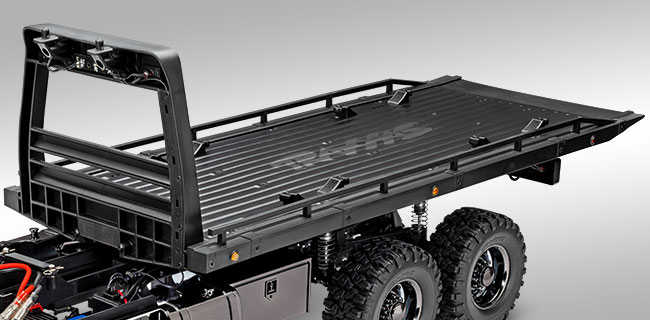

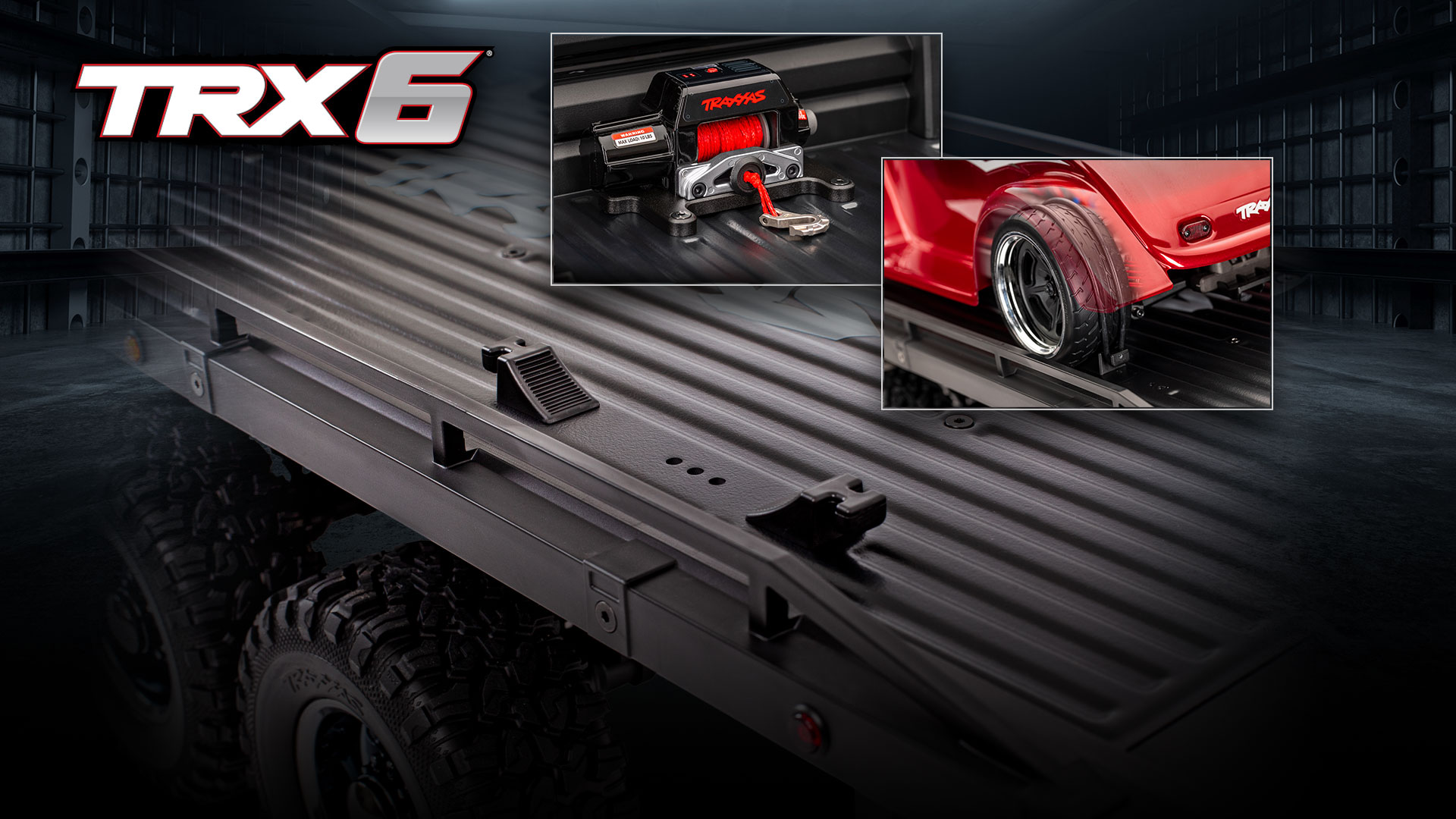

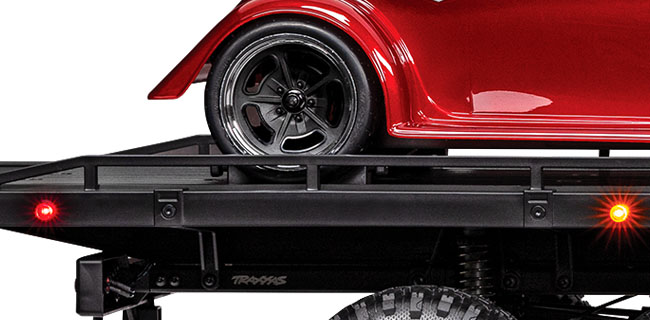

The realistic tow bed features adjustable wheel chocks with tie-down bands to secure your 4-Tec for transport. Full-length bed rails and functional LED lighting provide an extra layer of scale detail to the Hauler.

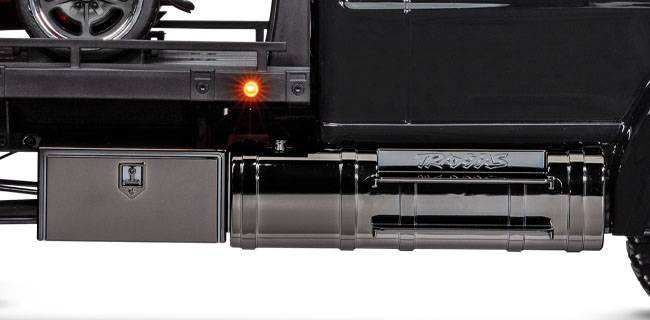

Molded black chrome body accessories give the Ultimate RC Hauler an aggressive look on the trail or the road. Detailed fuel tanks, tool boxes, big rig wheels, and rugged scale bumpers pair with blacked out paint and windows for a sinister presence.

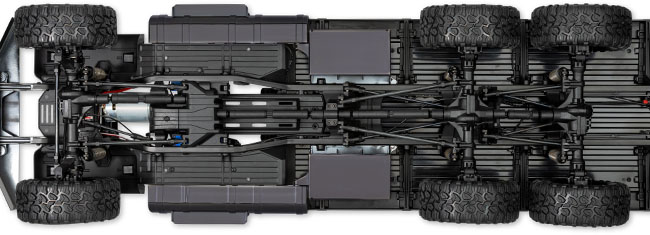

The Ultimate RC Hauler uses the same style hardened steel U-joints and center driveshafts as all proven TRX-4 models. A new bearing-supported center carrier reinforces the intermediate shaft to maintain alignment throughout the extended wheelbase design.

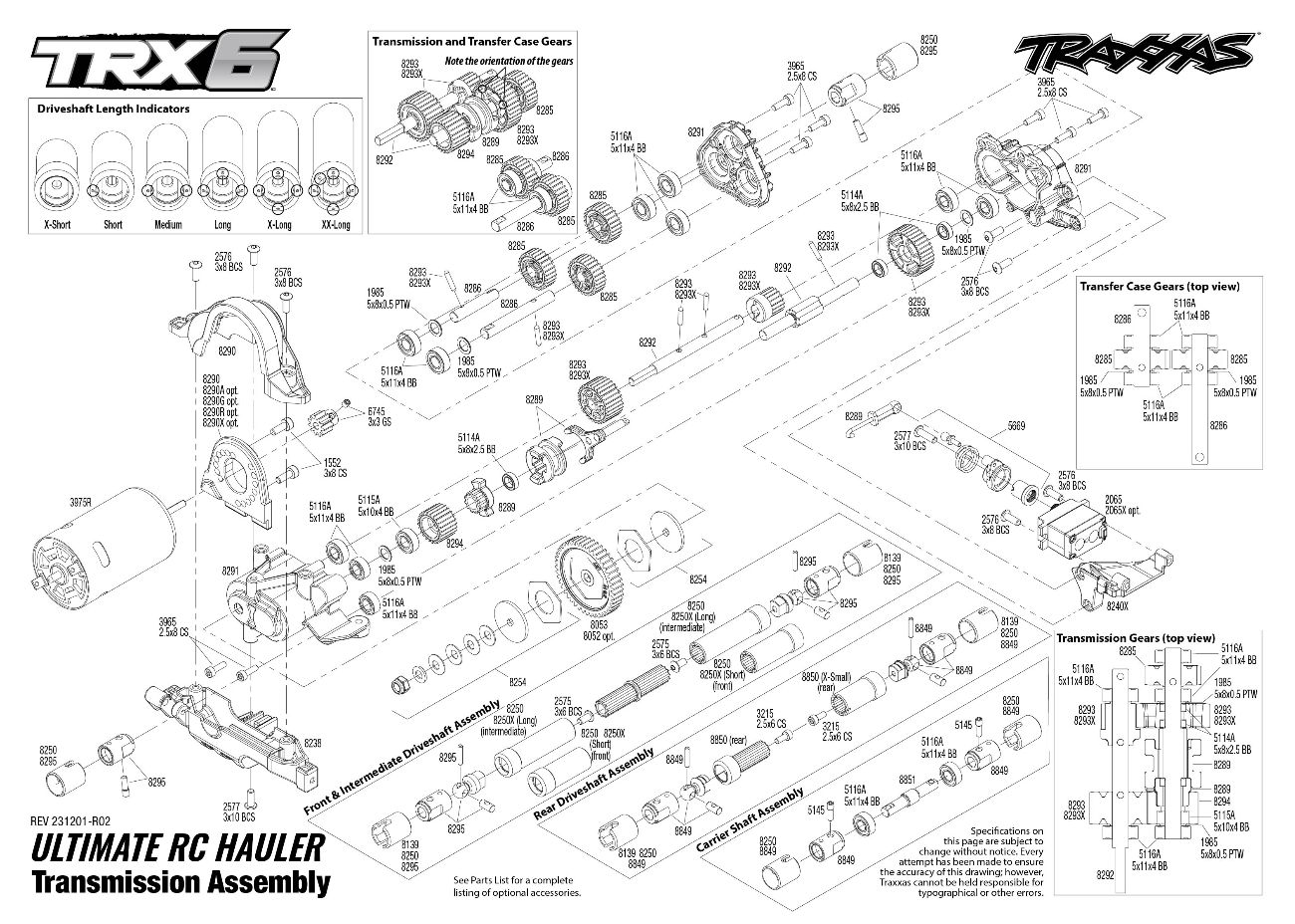

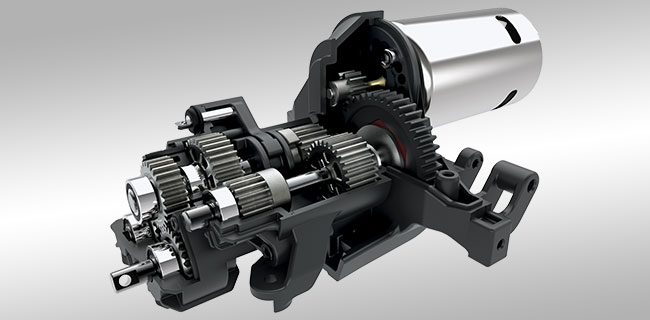

Big rigs utilize multi-gear transmissions to move heavy loads and climb steep grades. Use low gear to get your RC Hauler moving in rougher terrain, and then shift into high gear on the fly to make quick work of longer transits with the transmitter’s Cruise Control function.

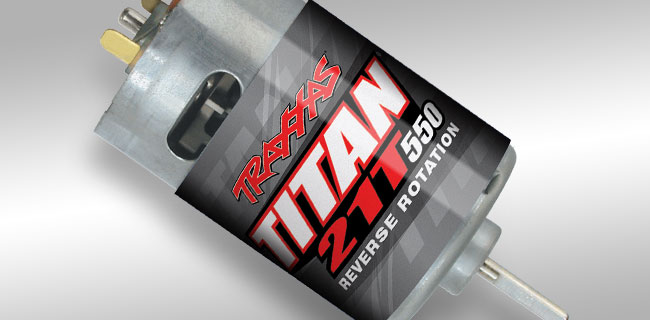

Moving heavy loads requires massive torque, and the TRX-6’s proven Titan motor is tuned to get things underway smoothly. An integrated cooling fan keeps temperatures down for long hauls and more fun behind the wheel.

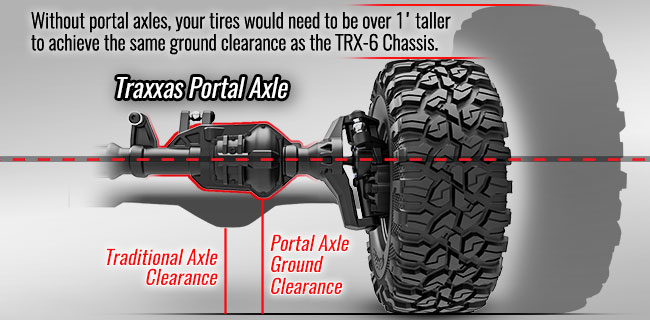

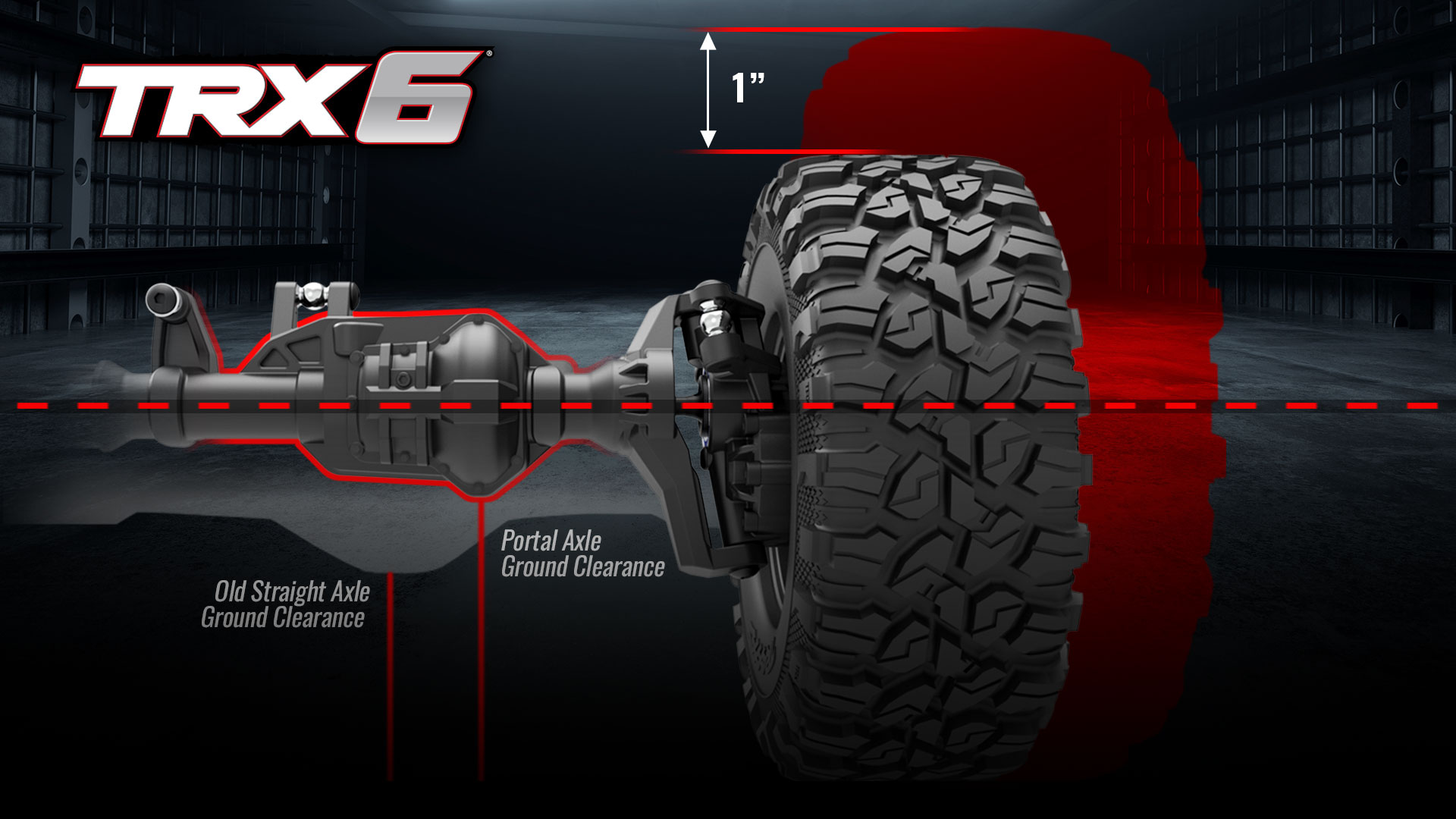

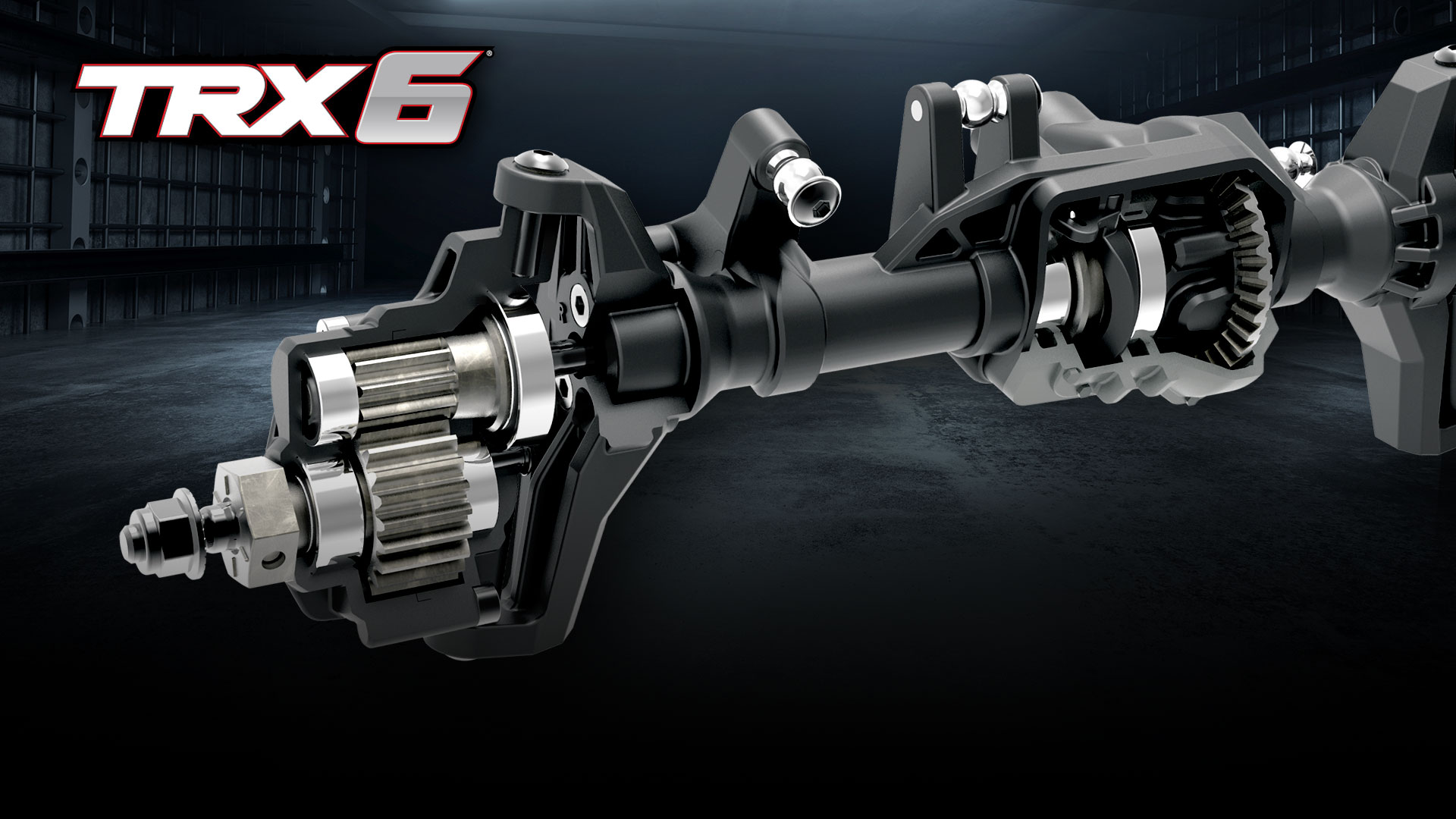

Three independent portal axles lift the center pumpkins higher than standard axles for superior ground clearance. Their innovative design also improves axle geometry and reduces axle strain on the driveshafts. Steel internals provide trouble-free performance haul after haul.

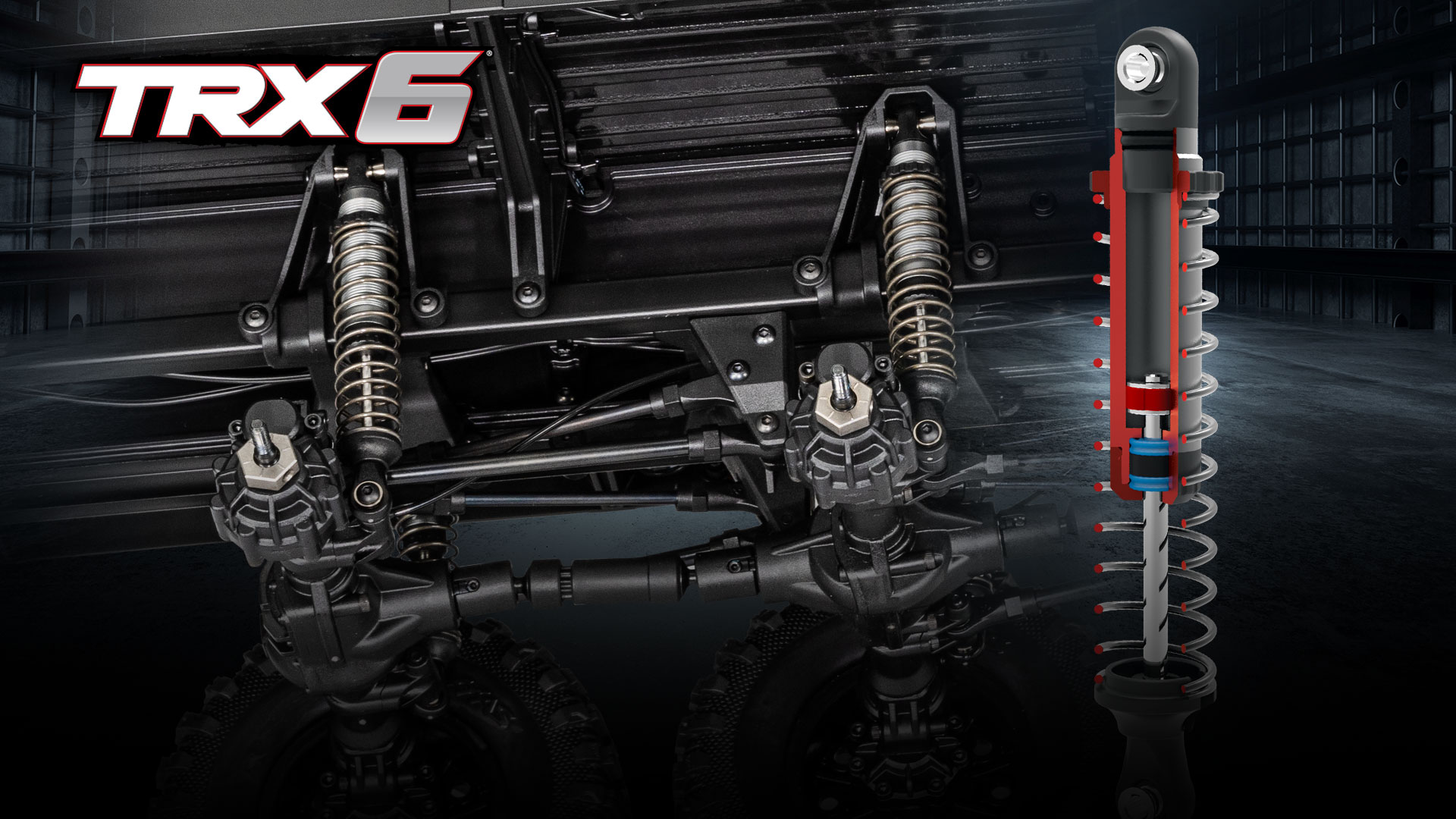

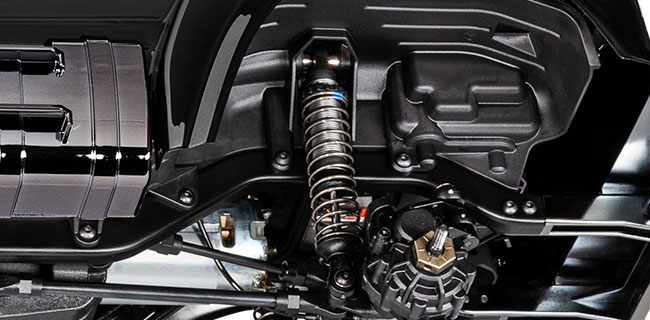

Six oil-filled coil-over GTS shocks smooth out bumpy roads for secure transport. These silver-anodized aluminum shocks deliver silky-smooth damping with threaded bodies for easy right height adjustment. They look great and perform even better with an O-ring cap seal and dual X-ring shaft seals.

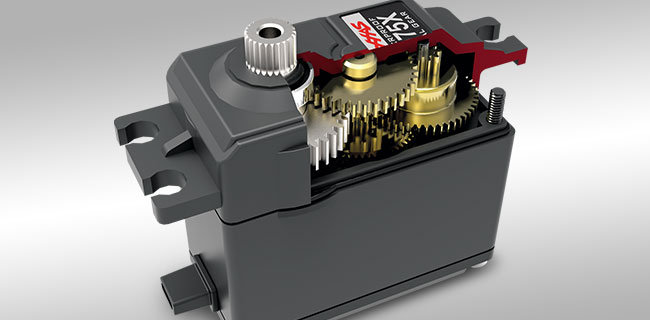

The Hauler’s metal gear digital servo and steel servo horn provide the durability and steering authority you need to confidently and reliably power through tough challenges.
