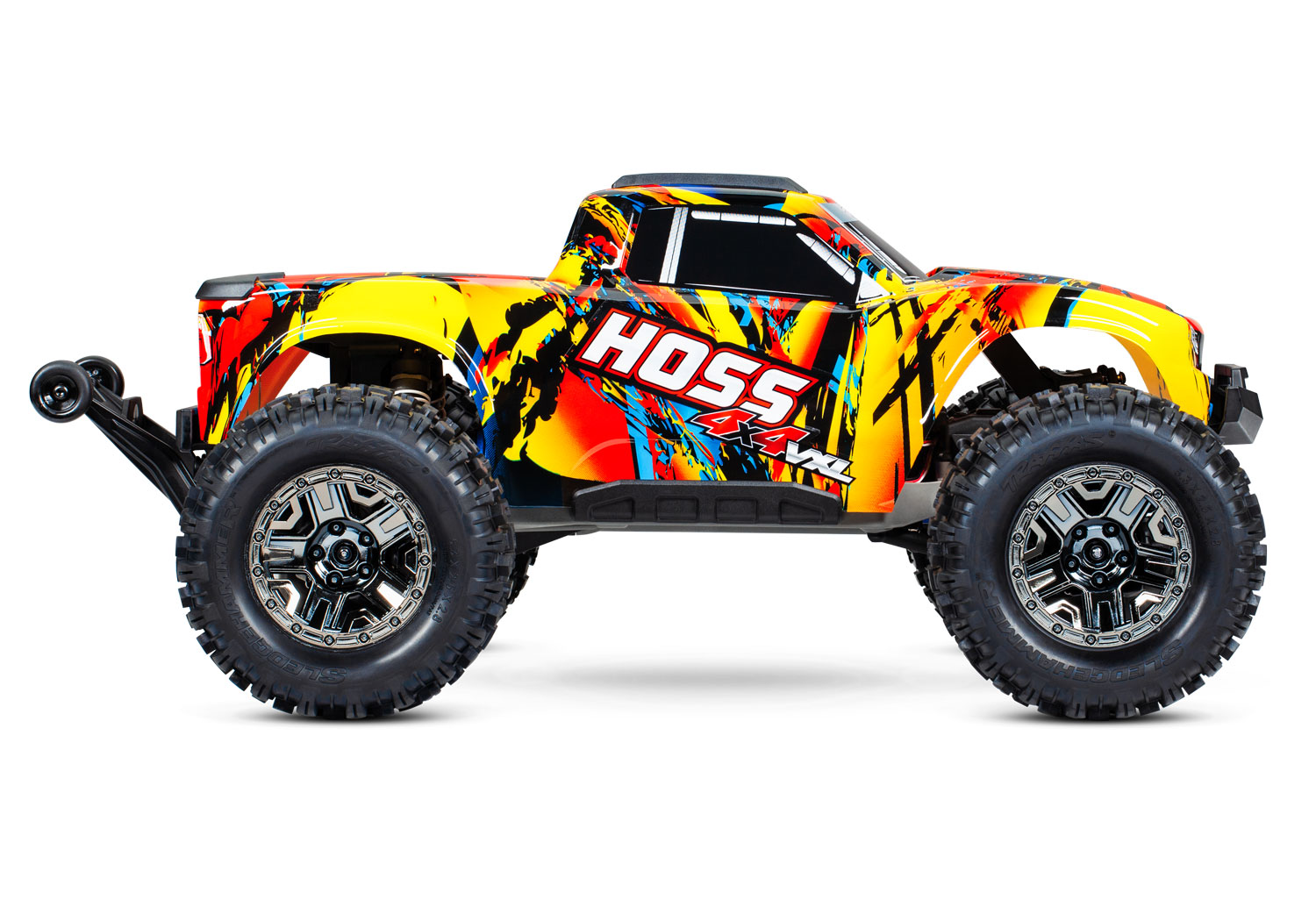

MODEL SPECS
Model Name:
Hoss 4X4 VXL TSM
Model Type:
Monster Truck
Model Speed:
60+ mph with optional gearing and 3s LiPo battery (items sold separately)
Model Skill Level:
4
Scale:
1/10
Weight:
6.3 lbs (2.9 kg)

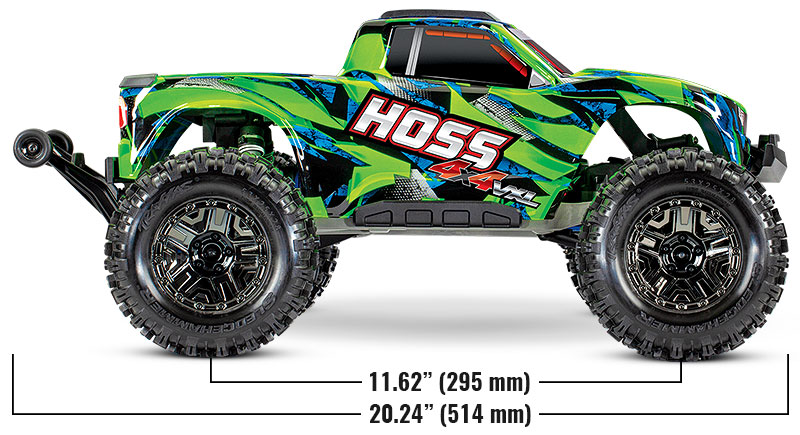

Length:
20.24 inches (514 mm)

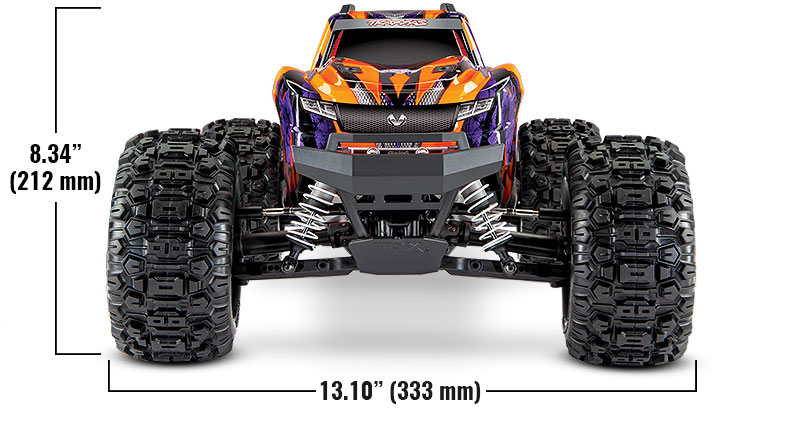

Width:
13.10 inches (333 mm)
Height:
8.34 inches (212 mm)
Wheelbase:
11.62 inches (295 mm)
Center Ground Clearance:
2.75 inches (70 mm)
Drive System:
Shaft-driven 4WD
Drivetrain:
Shaft-driven, 4WD
Differential Type:
Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):
10.99:1
Gear Pitch:
32 pitch
Servo(s):
2075 digital high-torque waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
Battery Compartment Specs:
162 mm X 50 mm X 26 mm *35 mm with optional battery strap (#9026, sold separately)

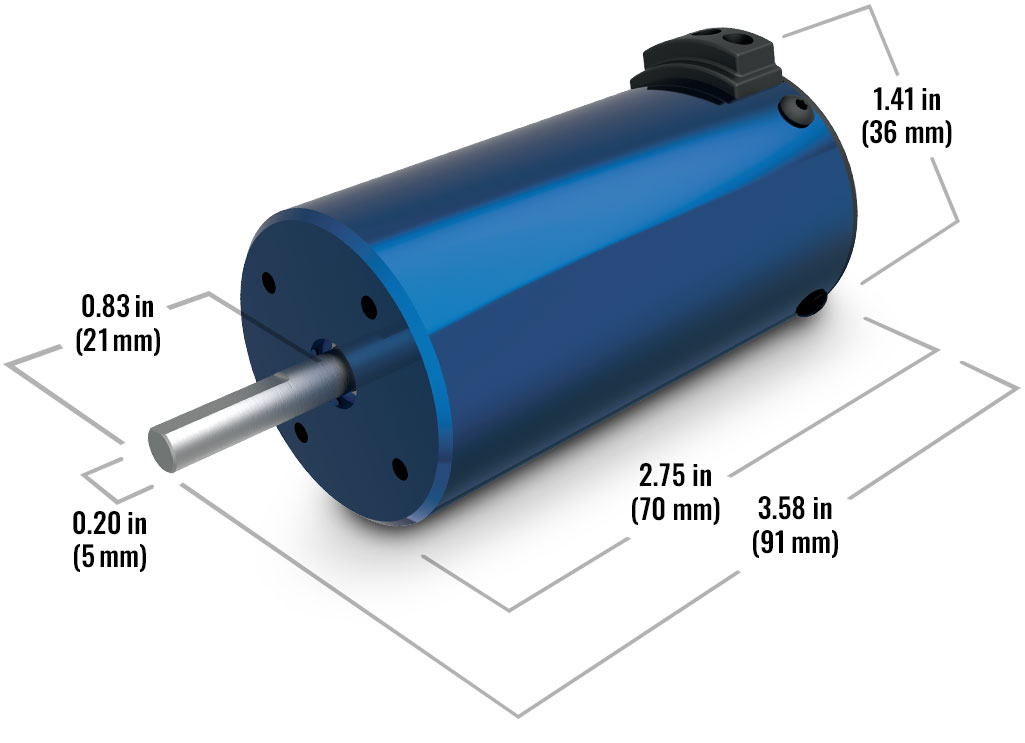

MOTOR SPECS
Motor Name:
Velineon® 540XL 2400 kV sensorless brushless
Motor Type:
Sensorless brushless
Motor Weight:
11.18 oz (317 g)
Motor Length:
3.58 inches (91 mm)
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
5 mm
Motor Connector Type:
Traxxas 6.5 mm bullet connectors

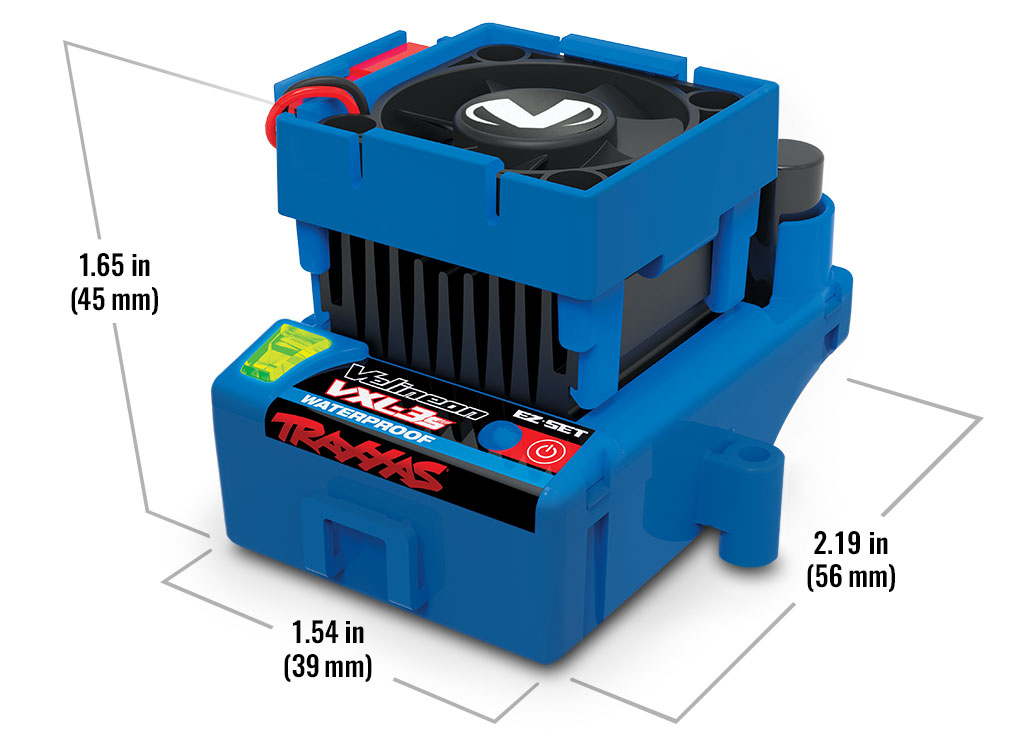

ESC SPECS
ESC Name:
Velineon® VXL-3s™ electronic speed control
ESC Type:
Fan-cooled brushless speed control
ESC Case Size:
2.19″ (56 mm) x 1.54″ (39 mm) x 1.65″ (45 mm)
ESC Weight:
3.84 oz (109 g)
Motor Connectors:
6.5 mm bullet connectors
Battery Connectors:
Traxxas High-Current Connector
ESC Power Wire:
12 gauge Maxx® Cable
VXL-3s™ Waterproof Electronic Speed Control Cooling fan with large heat sink Three Programmable Drive Profiles: Sport Mode - Forward / Brake / Reverse Race Mode - Forward / Brake Training Mode™ - 50% Forward / Brake / 50% Reverse (patented) Traxxas EZ-Set® one-button setup Built-in two-stage low-voltage detection for LiPo batteries NiMH battery packs: 6-9 cells (7.2 to 10.8 volts) LiPo battery packs: 2-3 cells (7.4 to 11.1 volts) Velineon® 540XL Brushless Motor Long format brushless motor 4-pole 2400 kV 5 mm output shaft Precision-balanced rotor Brilliant blue-anodized finish Up to 60+ mph with 3s LiPo battery (sold separately) Traxxas Stability Management® Helps prevents spinouts and loss of control Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz High Output Radio System Traxxas Link enabled 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required Multi-Function knob Adjustable steering and throttle percentage (dual rates) Adjustable steering and throttle sensitivity (exponential) Telemetry-ready 5-channel micro receiver Patented waterproof receiver box with easy-access plug Clipless ProGraphix® Body Easy one-handed removal Reinforced inner cage Strong oversized latch Rugged roof rollover protector Tailgate protector Chassis Modular composite tub design Secure battery hold-down latch Reinforced integrated wheelie bar High-approach bumpers Integrated nerf bars for side impact resistance Suspension Adjustable 4 mm steel toe and camber links New impact-resistant suspension arm composite Oil-filled Ultra Shocks Rugged front and rear shock towers White powder-coated springs Steering Chassis-mounted 2075 servo Dual bellcrank design with integrated servo saver Drivetrain Full-time shaft-driven 4-wheel drive Torque-Biasing Center Drive™ absorbs shocks and distributes power evenly Extreme heavy-duty driveshafts Oil-filled steel gear front and rear differentials Large 32-pitch steel spur gear Anodized-aluminum center driveshaft Tall 5.3″ Sledgehammer® Wheels and Tires Large 2.8″ black chrome wheels Large 2.8″ black chrome wheels Sealed Ball Bearings Hex hardware with Rust-Resistant Black Oxide Coating
