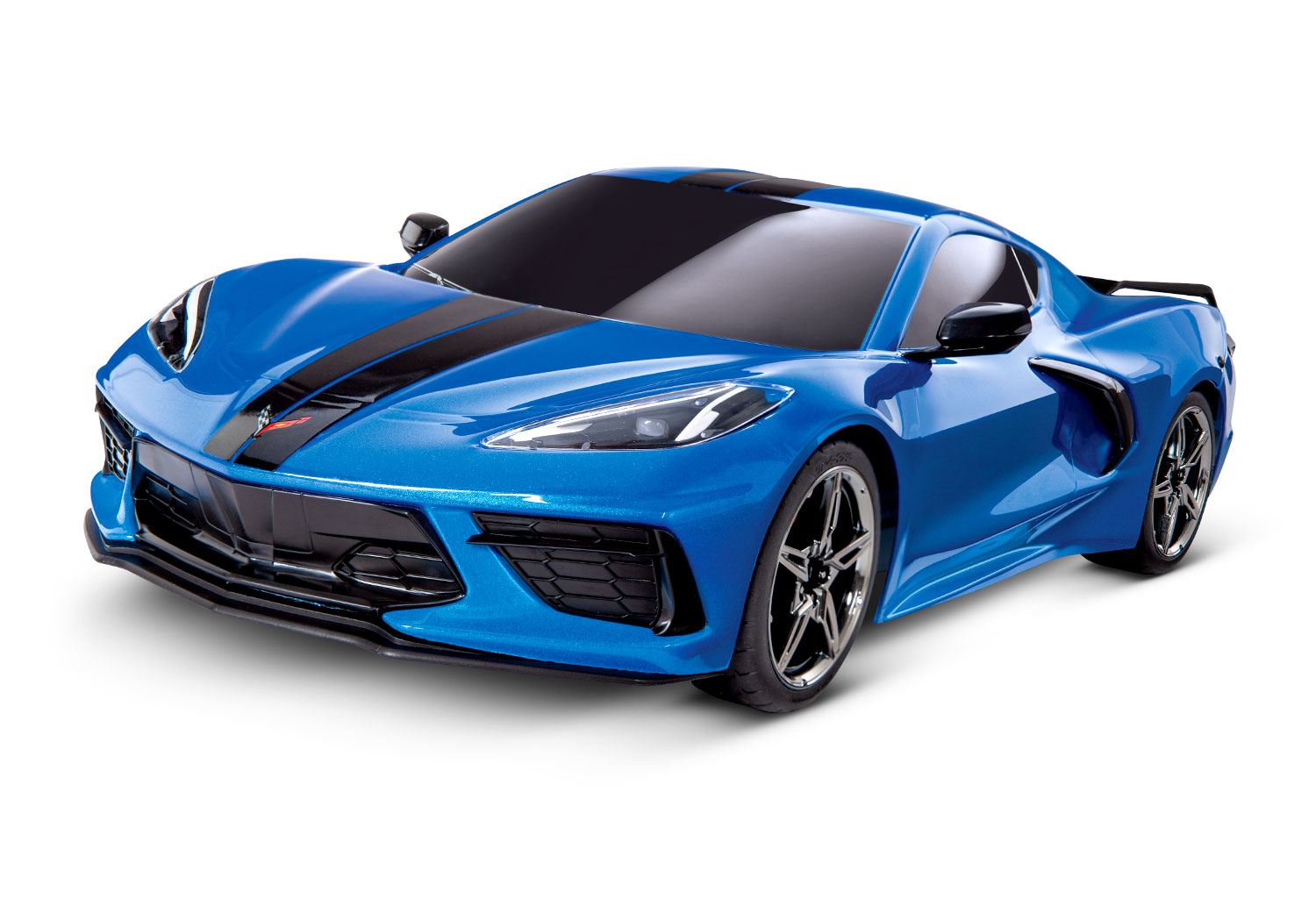

4-Tec 3.0, C8 Corvette Body
MODEL SPECS
Model Name:
Corvette Stingray
Model Type:
On-Road Cars
Model Speed:
30+ mph (with included optional pinion gear)
Model Skill Level:
1
Scale:
1/10
Weight:
3.92 lbs (1.78 kg)

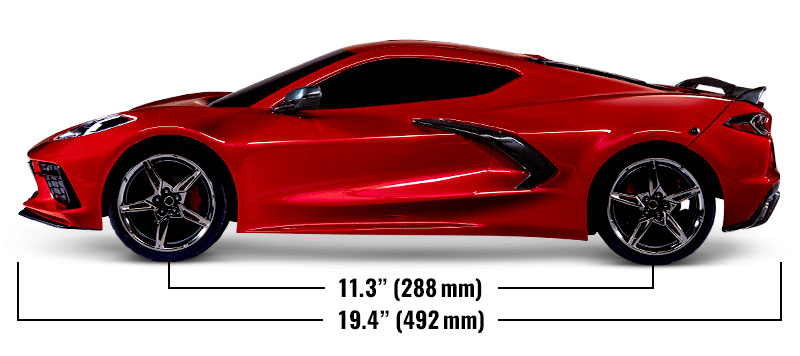

Length:
19.4 inches (492 mm)
Width:
8.9 inches (227 mm)

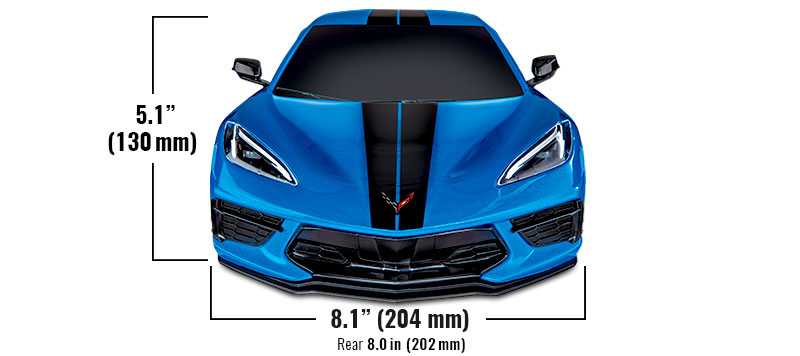

Front Track:
8.2 inches (207 mm)
Rear Track:
8.9 inches (227 mm)
Height:
5.1 inches (130 mm)
Wheelbase:
11.3 inches (288 mm)
Center Ground Clearance:
0.3 inches (9 mm)
Drivetrain:
Shaft-driven 4WD
Transmission:
Single speed direct drive
Differential Type:
Sealed, hardened steel bevel, limited slip
Gear Pitch:
48 pitch
Servo(s):
2075 digital high-torque waterproof
Radio System:
TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs:
158 mm X 46 mm X 23 mm

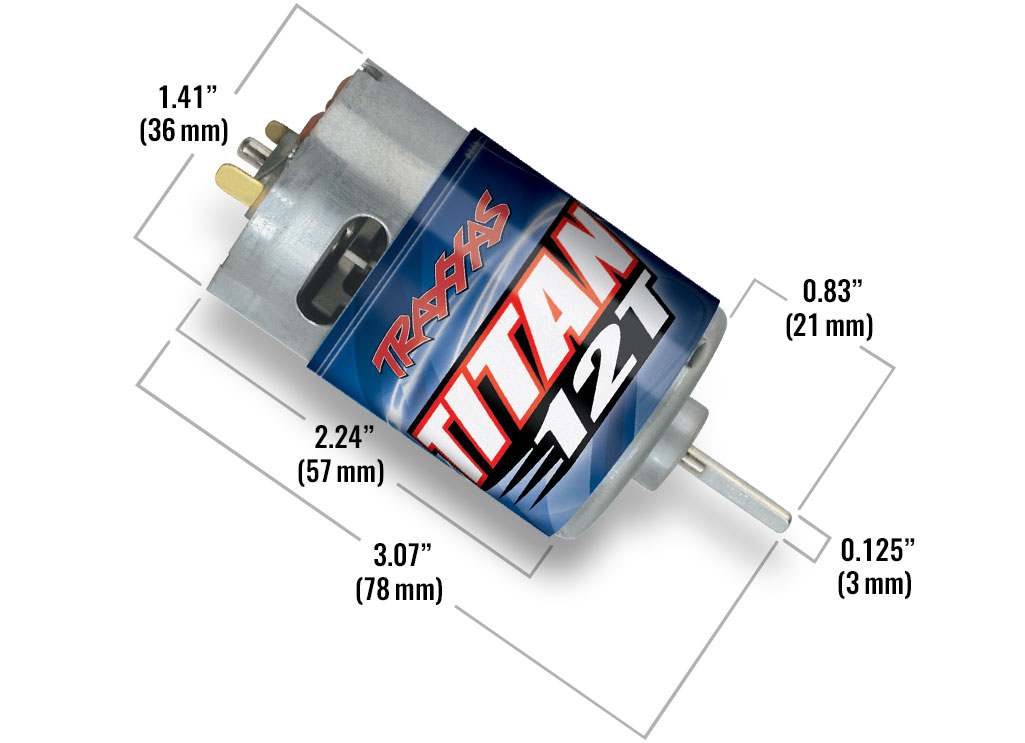

MOTOR SPECS
Motor Name:
Titan® 12T 550
Motor Type:
High-speed brushed motor
Motor Weight:
8.47 ounces (240 g)
Motor Length:
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:
1.41 inches (36 mm)
Motor Shaft Size:
3 mm
Motor Connector Type:
Bullet

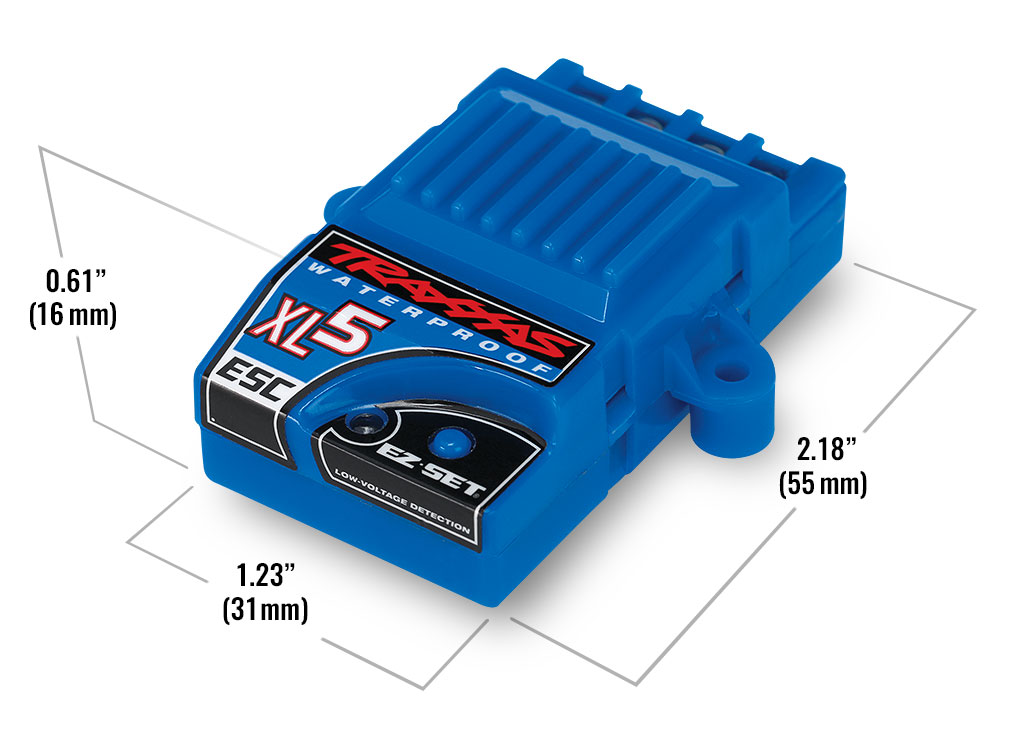

ESC SPECS
ESC Name:
Waterproof XL-5 ESC with low-voltage detection
ESC Type:
Brushed
ESC Case Size:
1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight:
2.44 ounces (69 g)
Motor Connectors:
Bullet
Battery Connectors:
Traxxas High Current Connector
ESC Power Wire:
14 gauge
Officially Licensed Corvette Stingray Body Clipless body eliminates body post holes Highly-detailed replica engine bay Front grilles, rear diffuser, side intakes, side mirrors, and spoiler LED-ready front and rear lenses Replica black chrome wheels with lug nut detail Replica brake discs with red calipers Clipless Body Mounts Easy removal of the body Front bumper/splitter incorporates the front body mount Rear window assembly incorporates the rear body mount High-Performance Waterproof XL-5™ Electronic Speed Control Innovative waterproof design Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Traxxas EZ-Set® one-button setup LiPo and NiMH compatible with two-stage low-voltage detection Titan® 550 Motor Powerful Titan 12T 550 modified motor with internal cooling fan Oversized armature for big torque and increased power handling Virtually maintenance-free operation Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions Molded wire retainer keeps motor wires secure TQ™ 2.4 GHz Radio System Traxxas 6519 3-channel micro receiver Patented O-ring sealed watertight receiver box keeps the micro receiver dry Low Center of Gravity (Low CG) Chassis Positions weight low for improved handling Smooth underside resists drag and snags Angled front bumper improves approach angle Improves rigidity and tightens tolerances Allows for easy maintenance Adjustable Battery Hold Down Easy, secure battery installation Swivels to allow different height batteries Locks securely without pins or parts to lose Efficient Direct All-Wheel Drive Full-time shaft driven 4-wheel drive Steel center driveshaft with center bearing support Once-piece steel axles Direct drive Sealed, silicone-filled differential Brushless ready for easy Velineon brushless power upgrade Steering High-torque waterproof Traxxas 2075 steering servo Precise servo saver integrated into servo horn High steering angle option High Performance Suspension Captured links won’t pop off Geometry tuned for precise handling Dual rear camber link mounts Adjustable droop Springs and Shocks Fully adjustable oil-filled Ultra Shocks™ with X-ring technology Red powder coated shock springs feature a responsive spring rate Wheels and Tires Replica Corvette Stingray black chrome wheels High-performance tires with long-wearing compound Wider rear tires for a more aggressive stance Replica brake discs incorporate standard 12 mm wheel hexes Brake calipers can be mounted in forward or trailing edge positions Rubber-Sealed Ball Bearings Precision Hex Hardware Backed by Unparalleled Traxxas Support and Parts Availability Requires Battery and Charger (Sold Separately)
