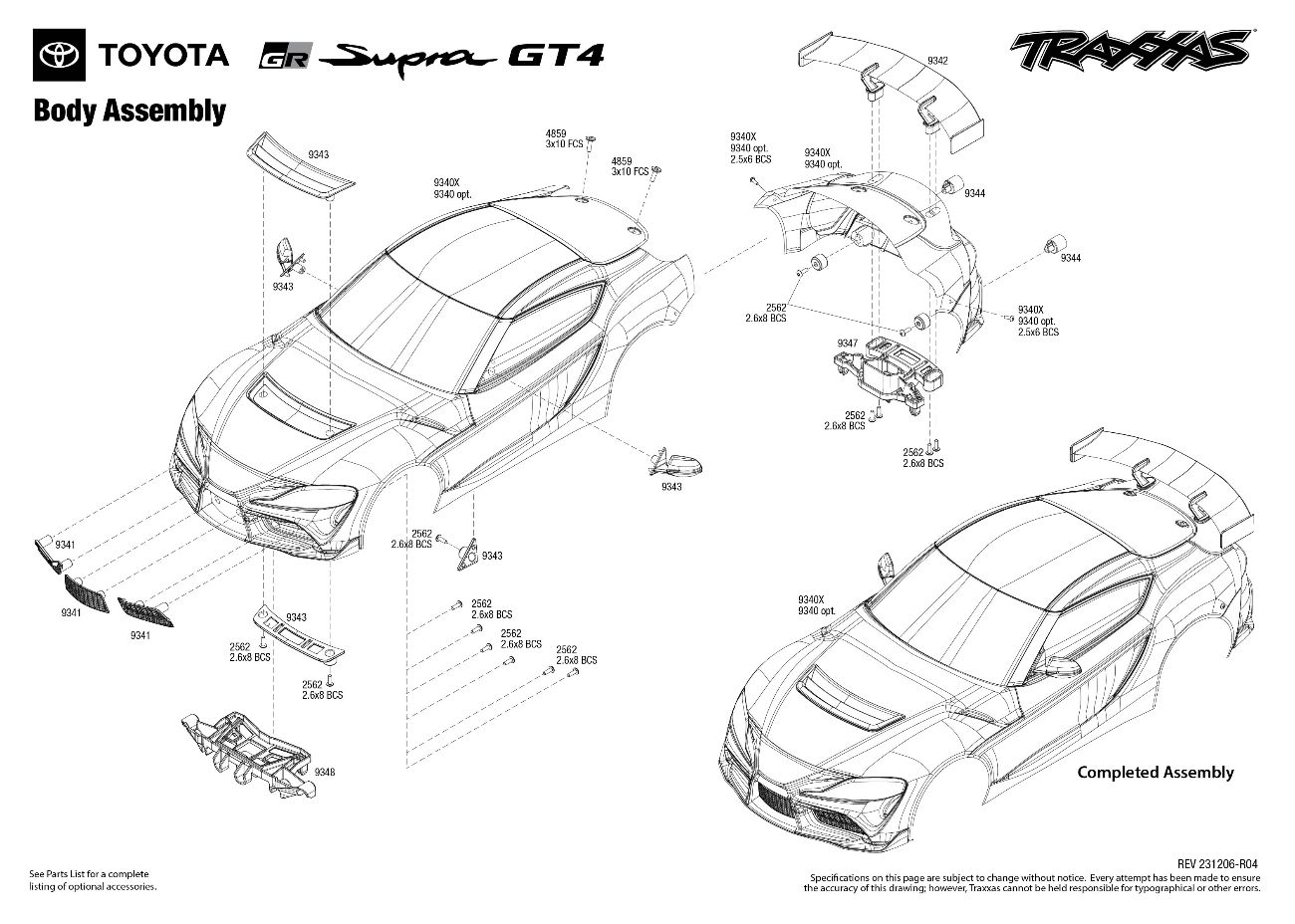

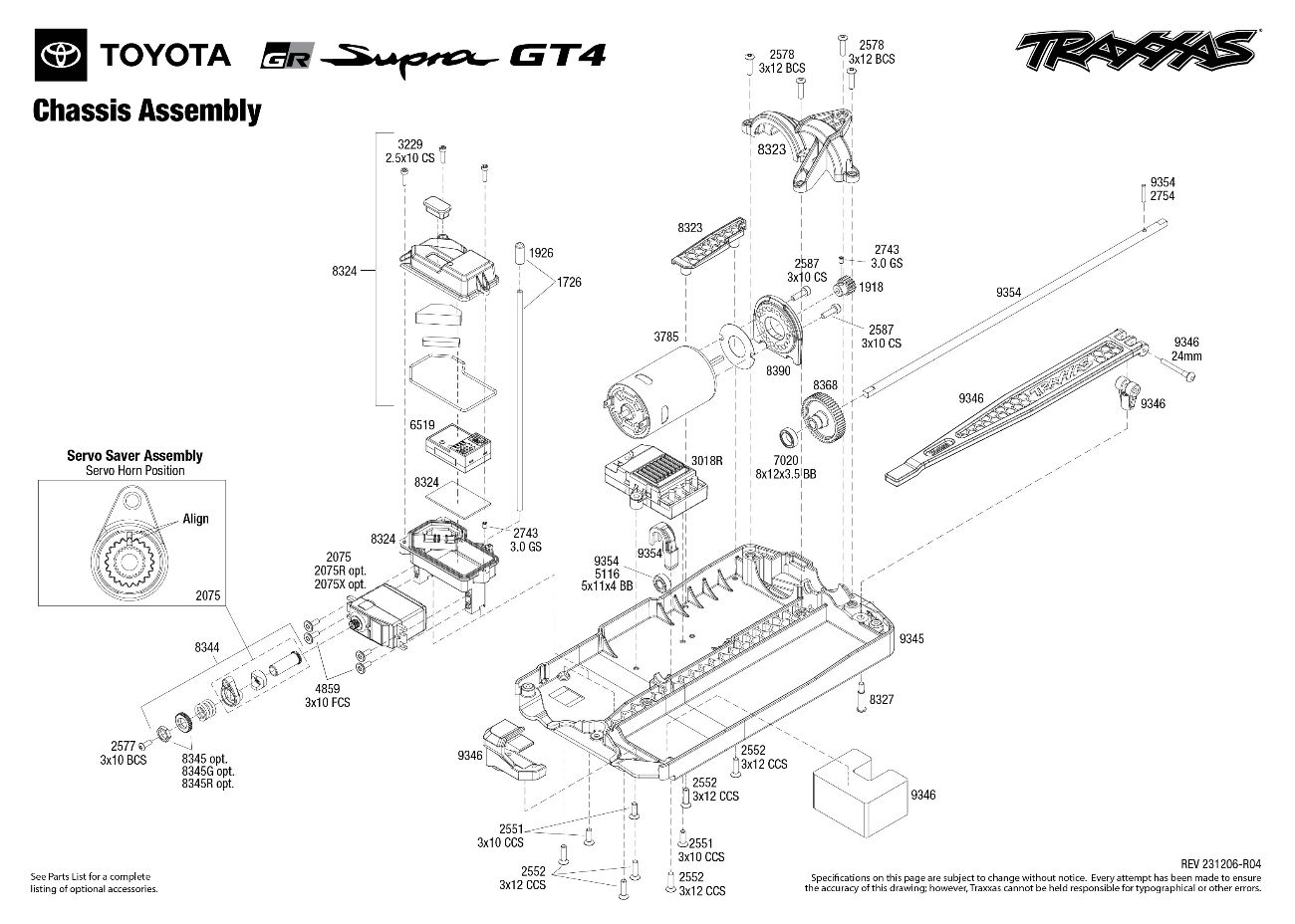

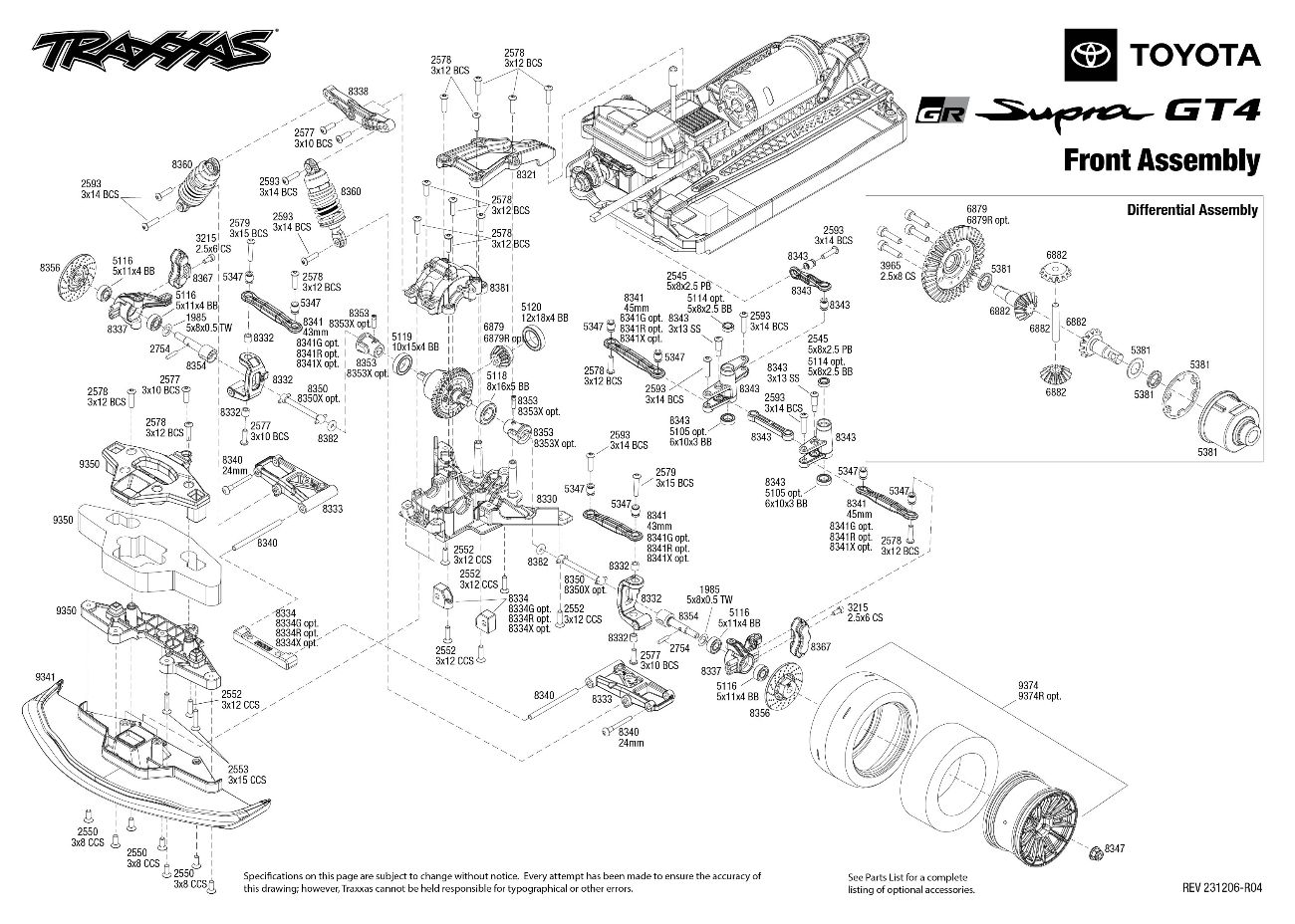

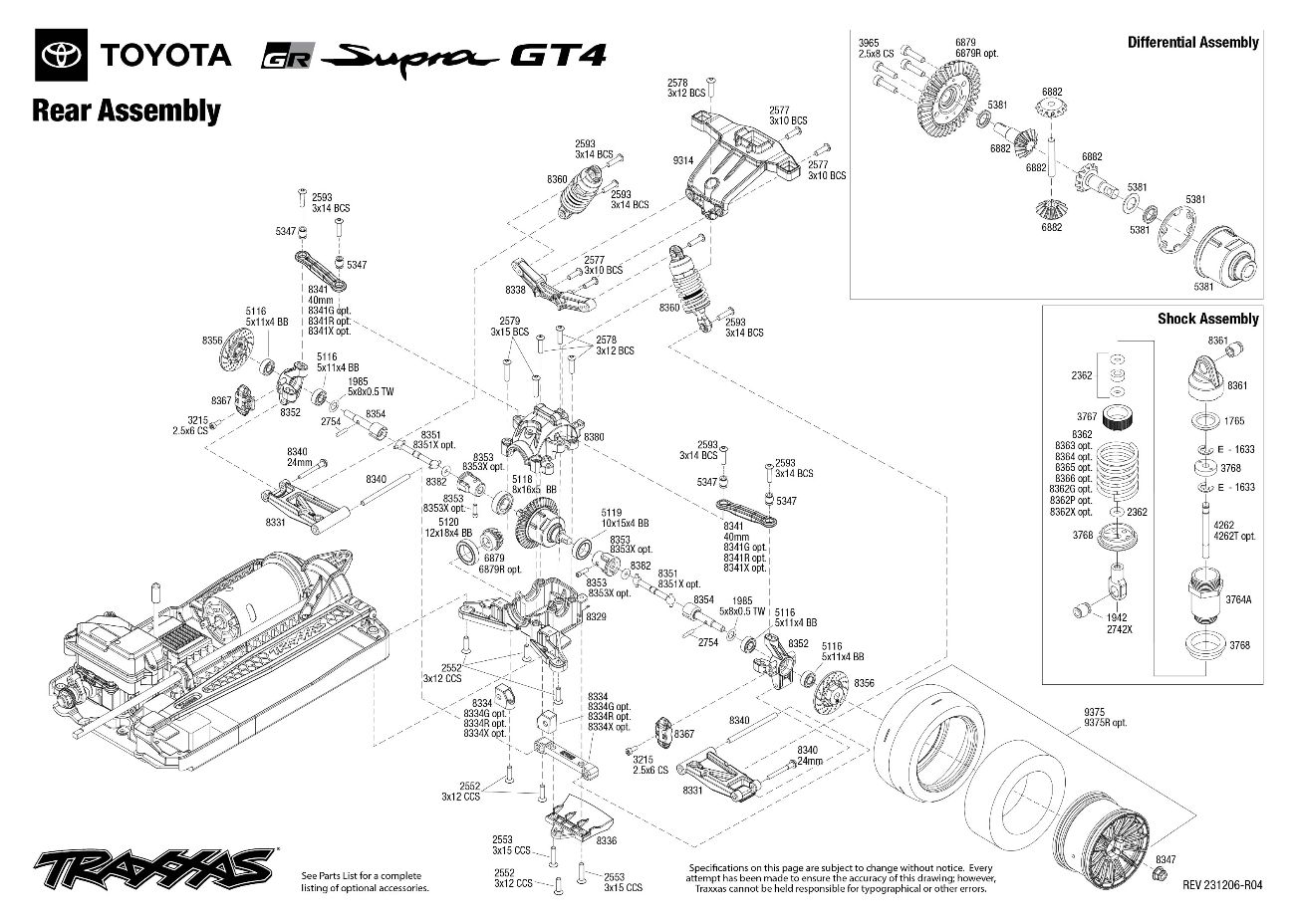

Exploded Views

Support

MODEL SPECS

Model Name:	Toyota GR Supra GT4
Model Type:	On-Road Cars
Model Speed:	30+ mph (with included optional pinion gear)
Model Skill Level:	1
Scale:	1/10
Weight:	3.92 lbs (1.78 kg)

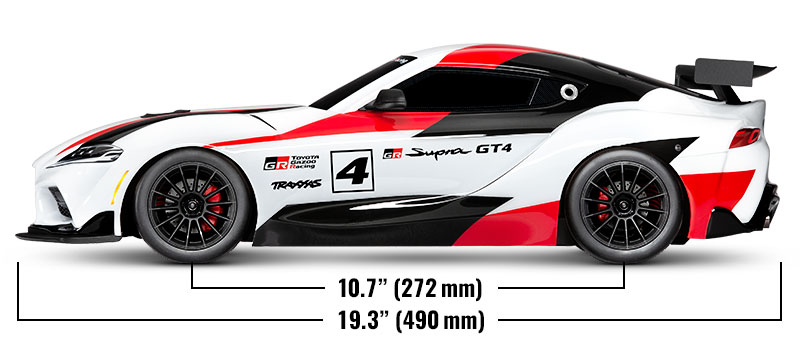

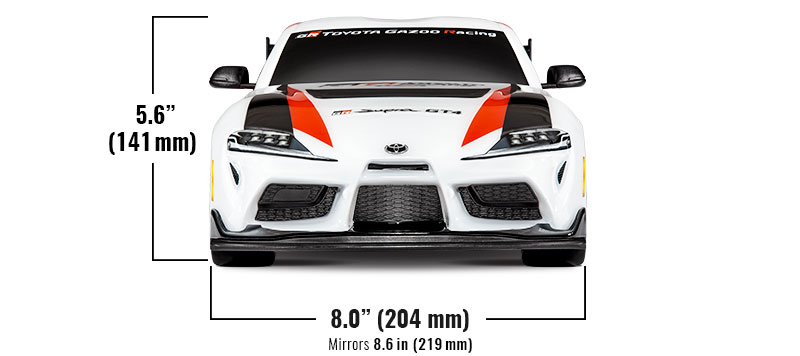

Length:	19.3 inches (490 mm)
Width:	8.6 inches (219 mm)
Front Track:	8.0 inches (204 mm)
Rear Track:	8.0 inches (204 mm)
Height:	5.6 inches (141 mm)

Wheelbase:	10.7 inches (272 mm)
Center Ground Clearance:	0.5 inches (14 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed direct drive
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs:	174 mm X 48 mm X 23 mm or 26 mm

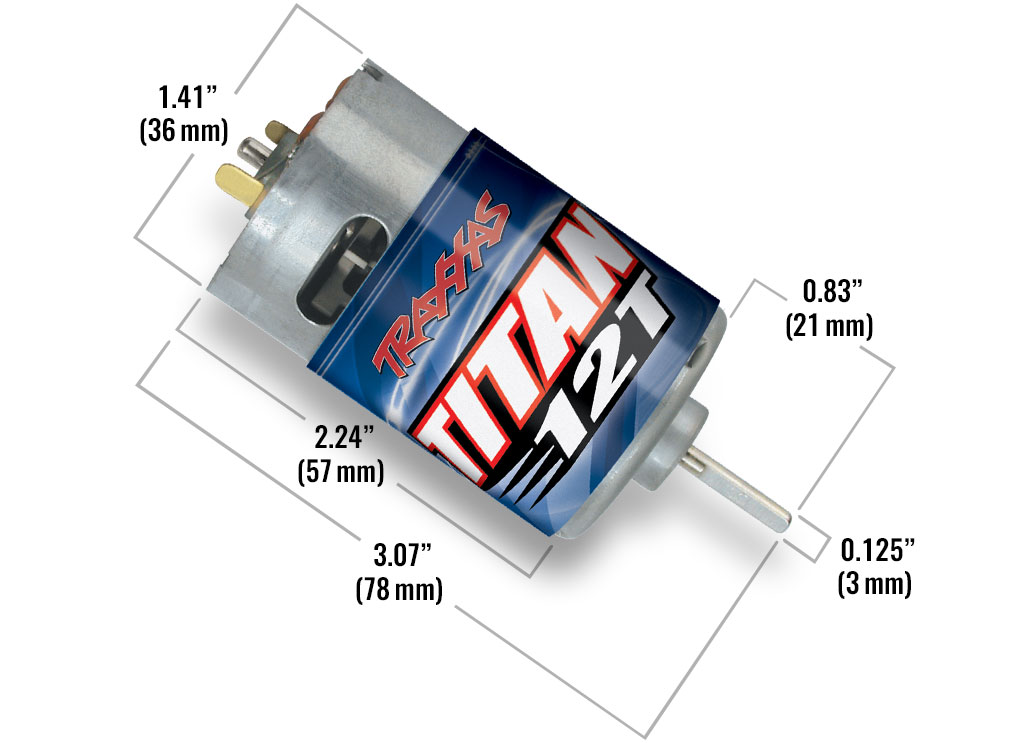

MOTOR SPECS

Motor Name:	Titan^® 12T 550
Motor Type:	High-speed brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.41 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC SPECS

ESC Name:	Waterproof XL-5 ESC with low-voltage detection
ESC Type:	Brushed

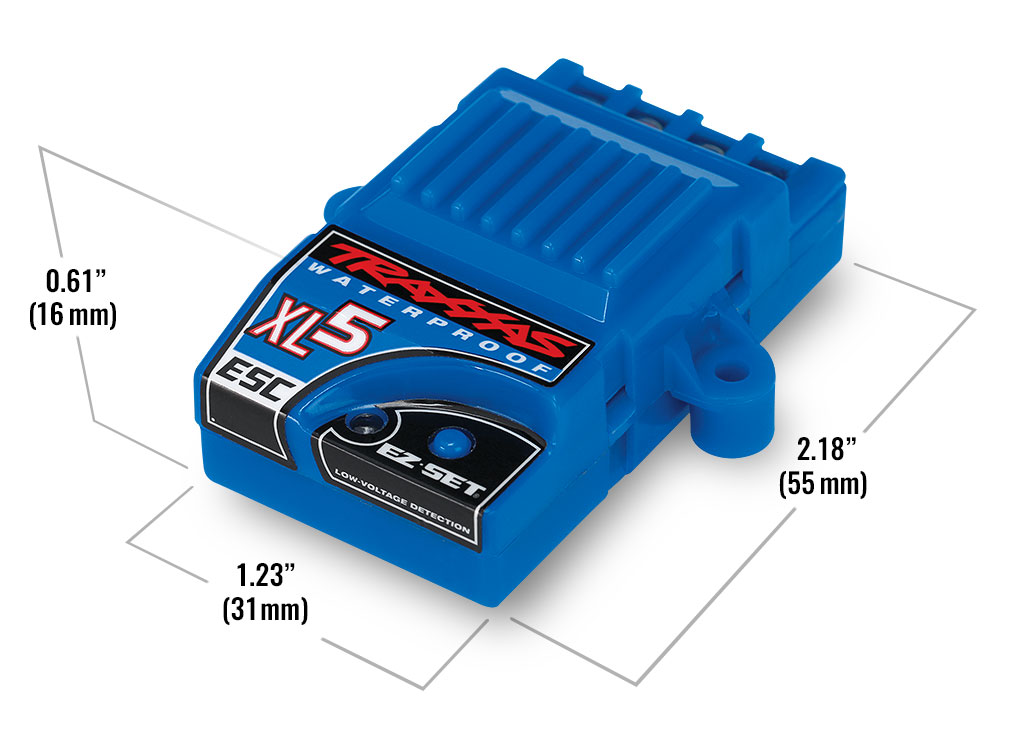

ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High Current Connector
ESC Power Wire:	14 gauge

Available for purchase and resale only in the US (excluding HI), Mexico, Puerto Rico, and U.S. Virgin Islands

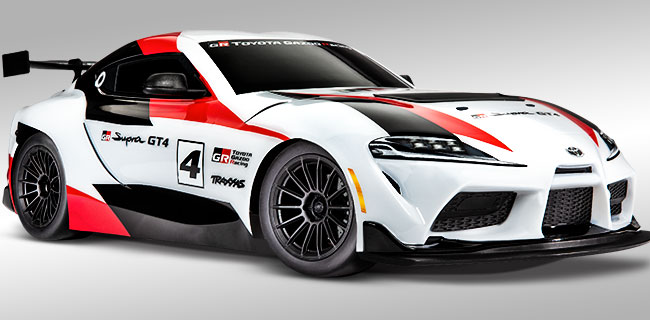

Officially Licensed Toyota^® GR Supra GT4 Body

Clipless body eliminates body post holes

Grilles, hood vent, side mirrors, exhaust tips, and wing

Replica black multi-spoke wheels with lug nut detail
Replica brake discs with red calipers

Clipless Body Mounts

Easy removal of the body
Front bumper/splitter incorporates the front body mount
Rear window assembly incorporates the rear body mount

High-Performance Waterproof XL-5™ Electronic Speed Control

Innovative waterproof design

Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)

Traxxas EZ-Set^® one-button setup
LiPo and NiMH compatible with two-stage low-voltage detection

Titan^® 550 Motor

Powerful Titan 12T 550 modified motor with internal cooling fan
Oversized armature for big torque and increased power handling
Virtually maintenance-free operation
Fixed gear mesh motor plate makes setting gear mesh simple with 11 different gearing positions

Molded wire retainer keeps motor wires secure

TQ™ 2.4 GHz Radio System

Traxxas 6519 3-channel micro receiver
Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Low Center of Gravity (Low CG) Chassis

Positions weight low for improved handling
Smooth underside resists drag and snags
Angled front bumper improves approach angle

Improves rigidity and tightens tolerances
Allows for easy maintenance

Adjustable Battery Hold Down

Easy, secure battery installation
Swivels to allow different height batteries
Locks securely without pins or parts to lose

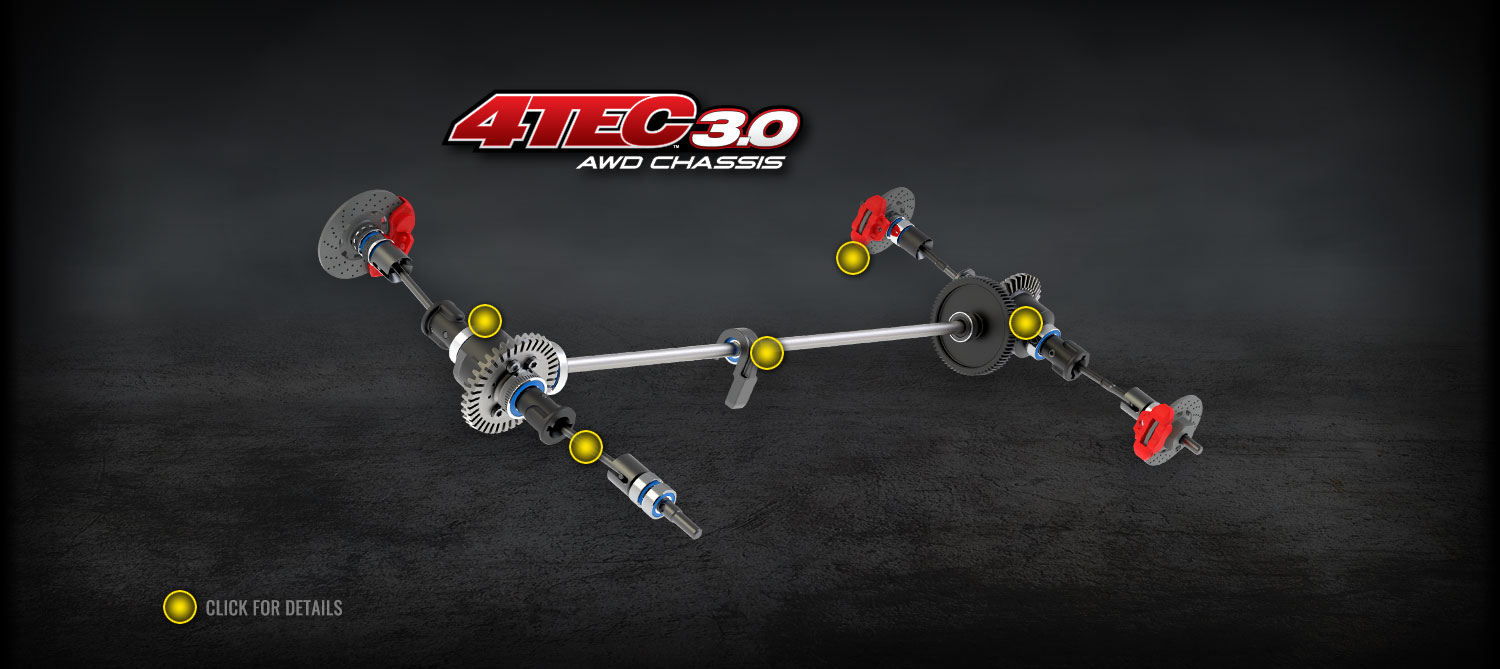

Efficient Direct All-Wheel Drive

Full-time shaft driven 4-wheel drive
Steel center driveshaft with center bearing support
Once-piece steel axles
Direct drive
Sealed, silicone-filled differential
Brushless ready for easy Velineon brushless power upgrade

Steering

High-torque waterproof Traxxas 2075 steering servo
Precise servo saver integrated into servo horn

High steering angle option

High Performance Suspension

Captured links won’t pop off
Geometry tuned for precise handling
Dual rear camber link mounts
Adjustable droop

Springs and Shocks

Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
Red powder coated shock springs feature a responsive spring rate

Wheels and Tires

Replica Toyota GR Supra GT4 black multi-spoke wheels
High-performance racing slicks with long-wearing compound
Ultra-wide racing slicks provide ultimate traction
Replica brake discs incorporate standard 12 mm wheel hexes
Brake calipers can be mounted in forward or trailing edge positions

Rubber-Sealed Ball Bearings

Precision Hex Hardware

Backed by Unparalleled Traxxas Support and Parts Availability

Requires Battery and Charger (Sold Separately)

Learn More

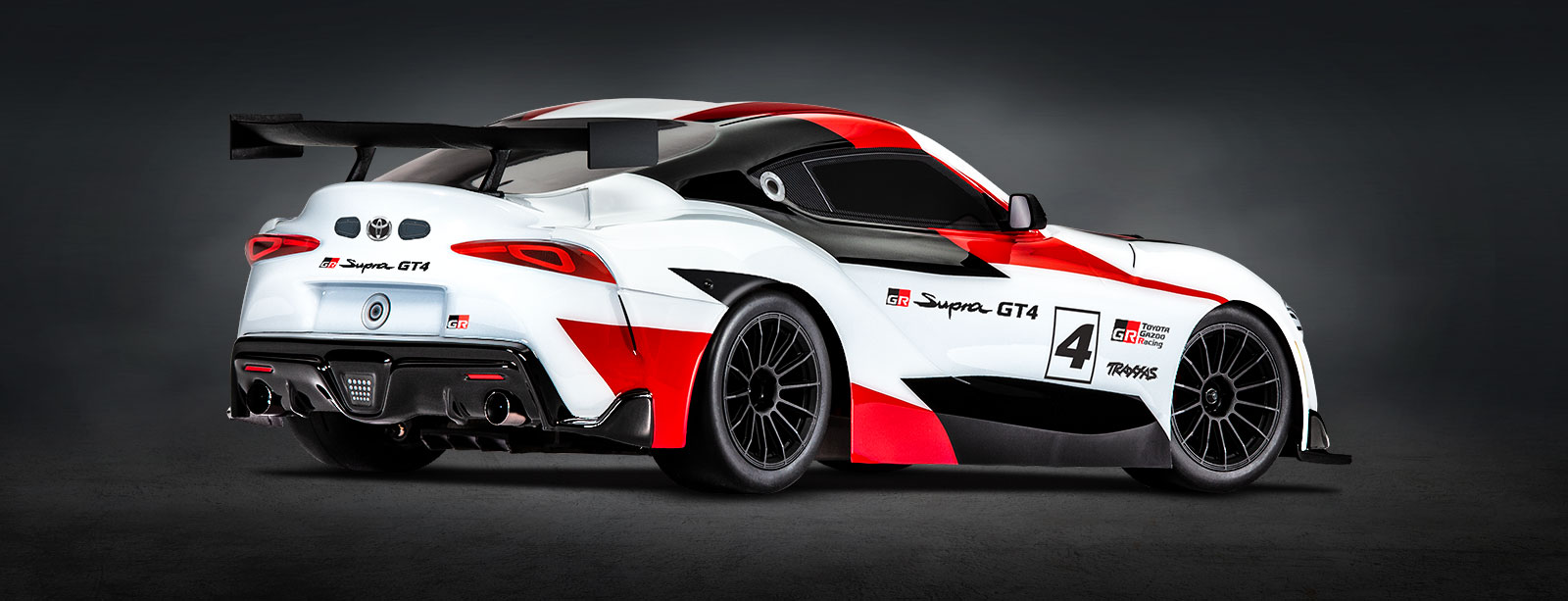

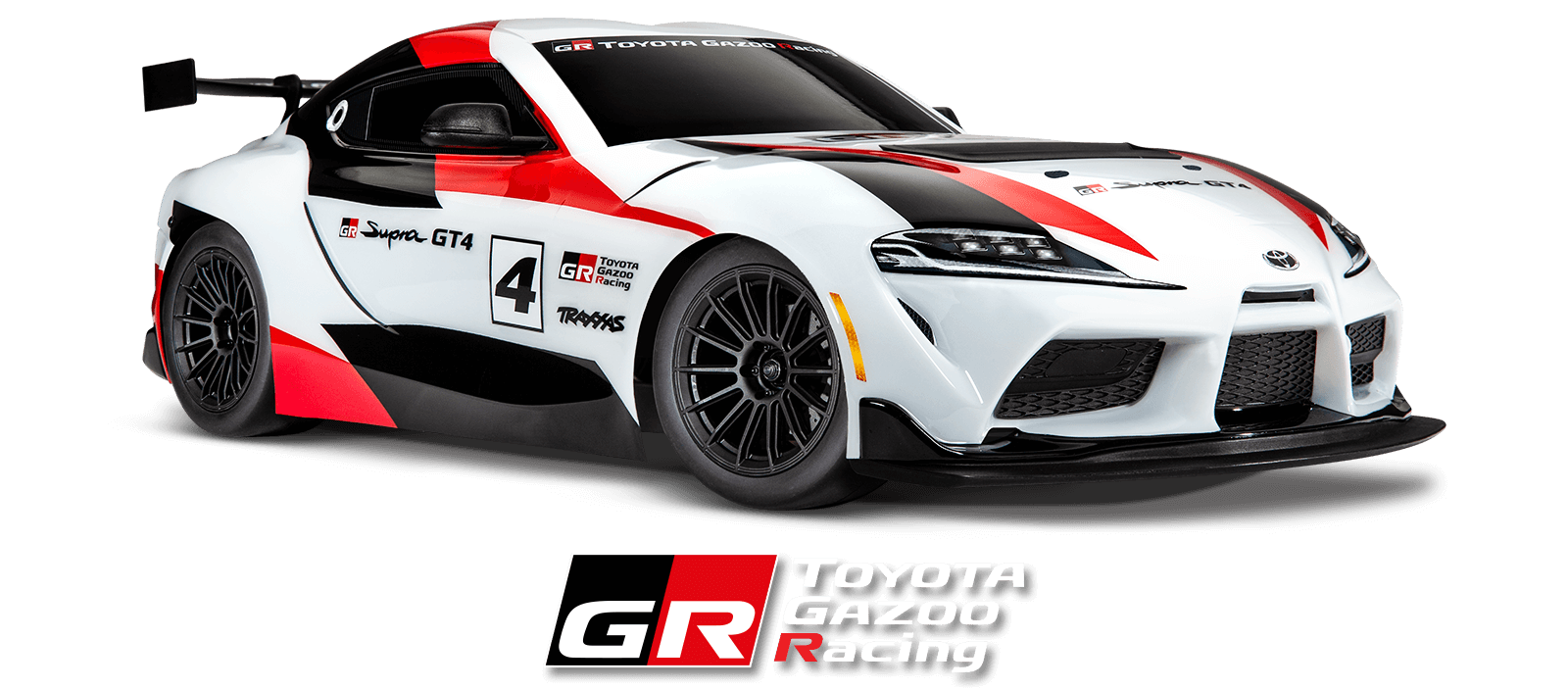

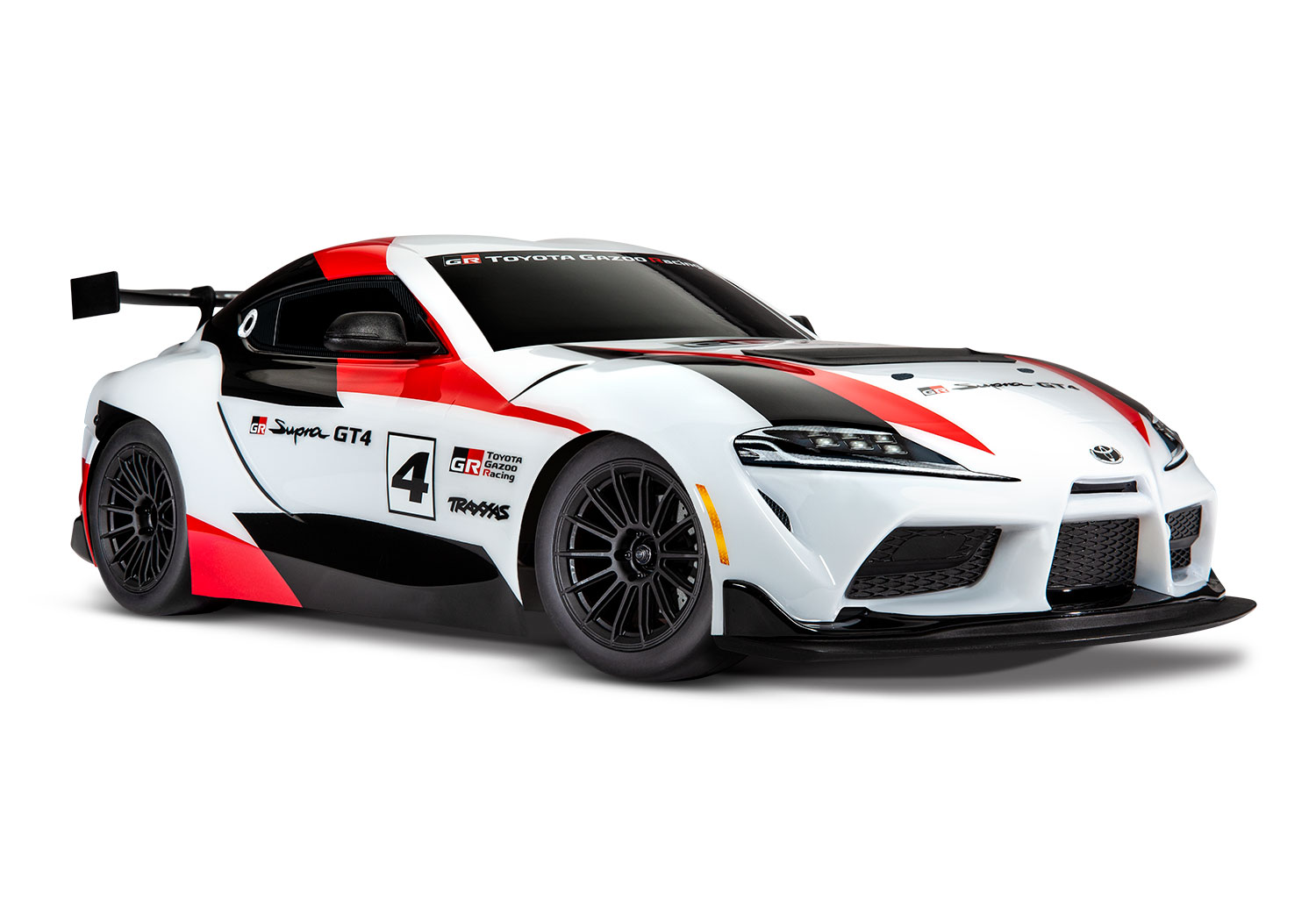

TOYOTA GR SUPRA GT4

The Toyota GR Supra GT4 marks the return of a legendary name to the racing circuit and now there’s a new way to bring the action home. The Traxxas 1/10 scale GR Supra GT4 captures the muscular curves and fine detail of the all-new Supra with the proven performance of the Traxxas 4-Tec^® 3.0 chassis. Feel the surge of power as the replica GR Supra rockets off the line with AWD grip and exhilarating 30+ mph top speed. Ultra-wide racing slicks hold tight in the corners with a double-link suspension and oil-filled shocks to soak up the bumps. The 1/10 scale GR Supra GT4 replica delivers fun, thrills, and rugged RC performance from Traxxas – The Fastest Name in Radio Control^®.

4-TEC 3.0 PERFORMANCE

Traxxas modified the already capable 4-Tec platform for maximum performance with a longer wheelbase and wider track developed specifically for the Supra 4-Tec 3.0. The longer, wider footprint improves stability and refines handling to deliver the steering precision and balanced feel of a GT4 race car.

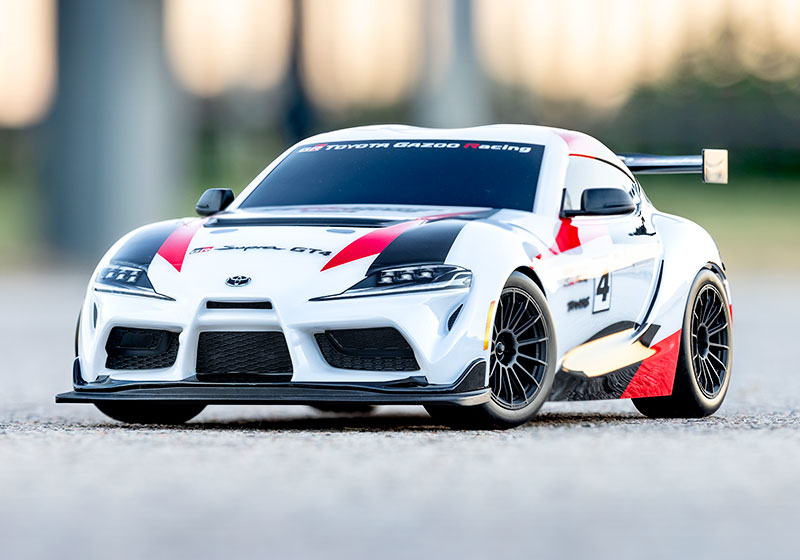

RACE-BRED STYLING

Toyota’s 60+ years of racing experience transformed the Supra platform into a track-dominating GT4 race car. Traxxas faithfully captures the essence of the GR Supra GT4’s racing pedigree down to the smallest detail. Replica aero trim, molded scale parts, and wide racing slicks provide an RC racing experience like no other.

CLIPLESS BODY MOUNTING

Traxxas’ exclusive clipless body mounting system maintains the uninterrupted clean lines and functional aero of the Supra's exotic shape. The uniquely engineered clipless frame with its integrated quick release latch system secures the body invisibly. The hidden mechanism delivers a firm and incredibly rugged hold and releases in seconds to provide chassis access.

Video

INNOVATION

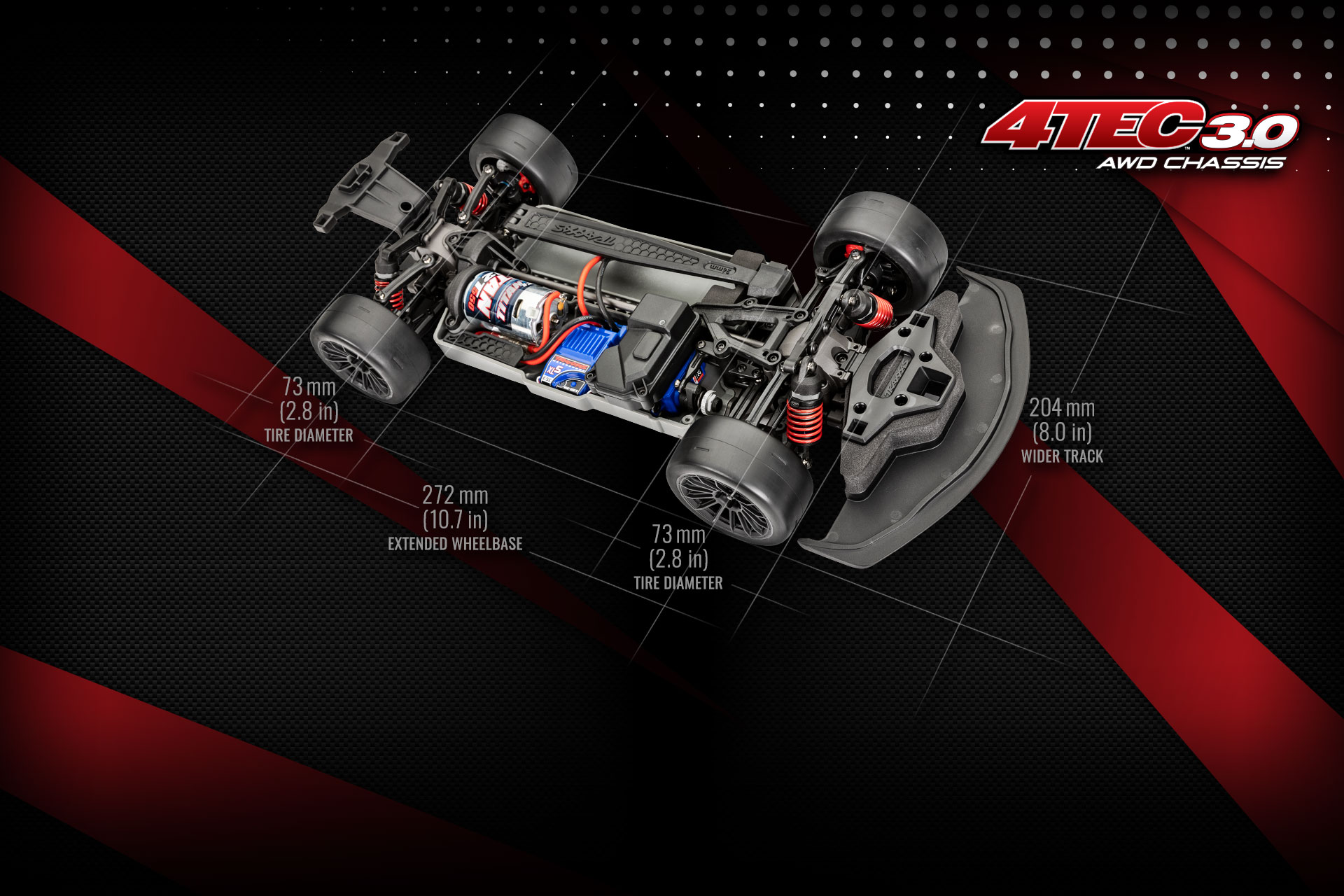

4-Tec 3.0

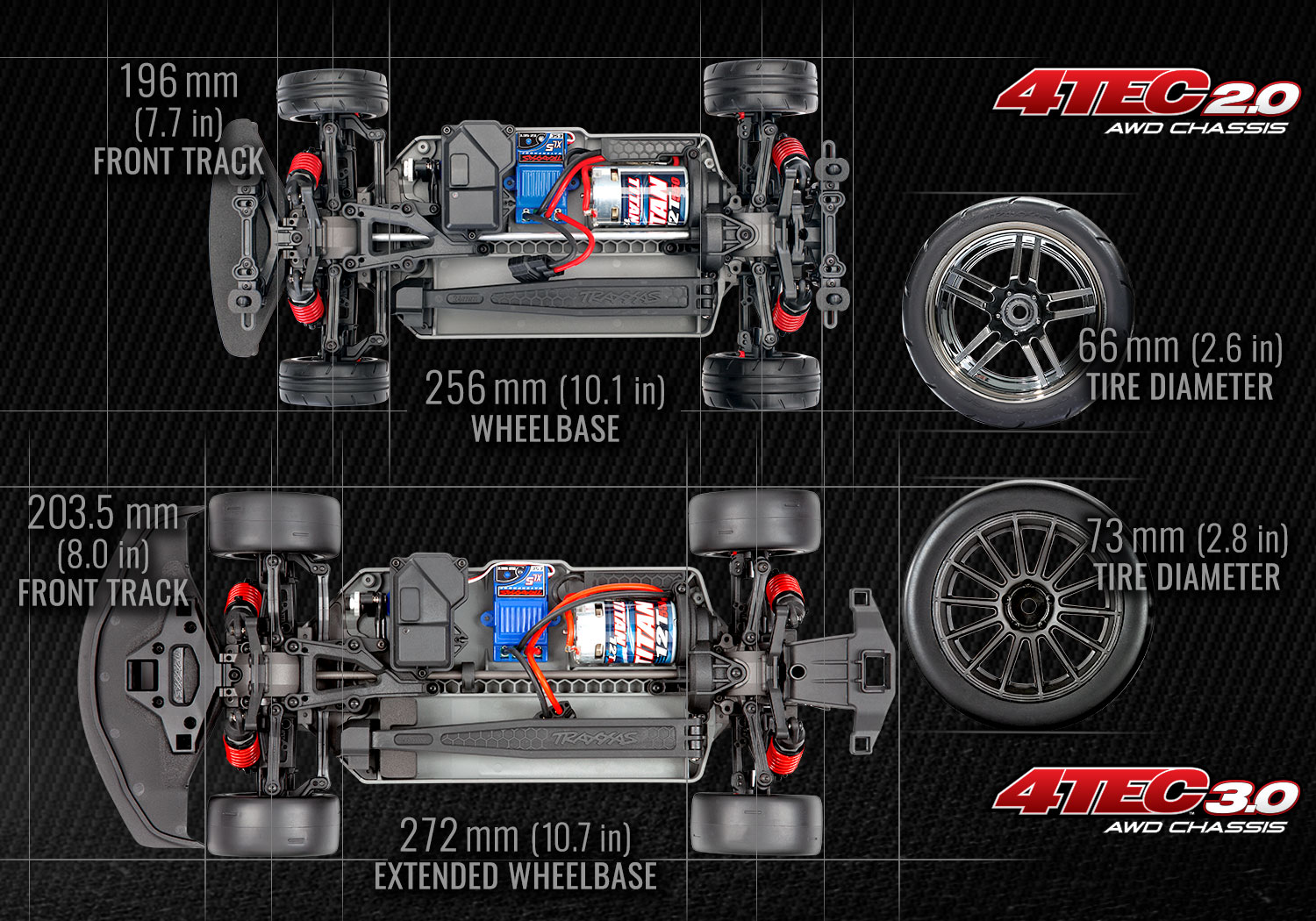

Supra’s 3.0-spec chassis is longer than the previous 4-Tec with an extended wheelbase, larger wheels and tires, and a wider track to enhance stability and handling. Proven Ultra Shocks deliver road-tuned handling with full adjustability.

Clipless Body Mounting System

No posts, no clips—just drop the body onto the chassis and snap into place for a perfect stance and secure hold. When you need to access the chassis, simply depress the tabs under the chassis and lift up. Patent Pending

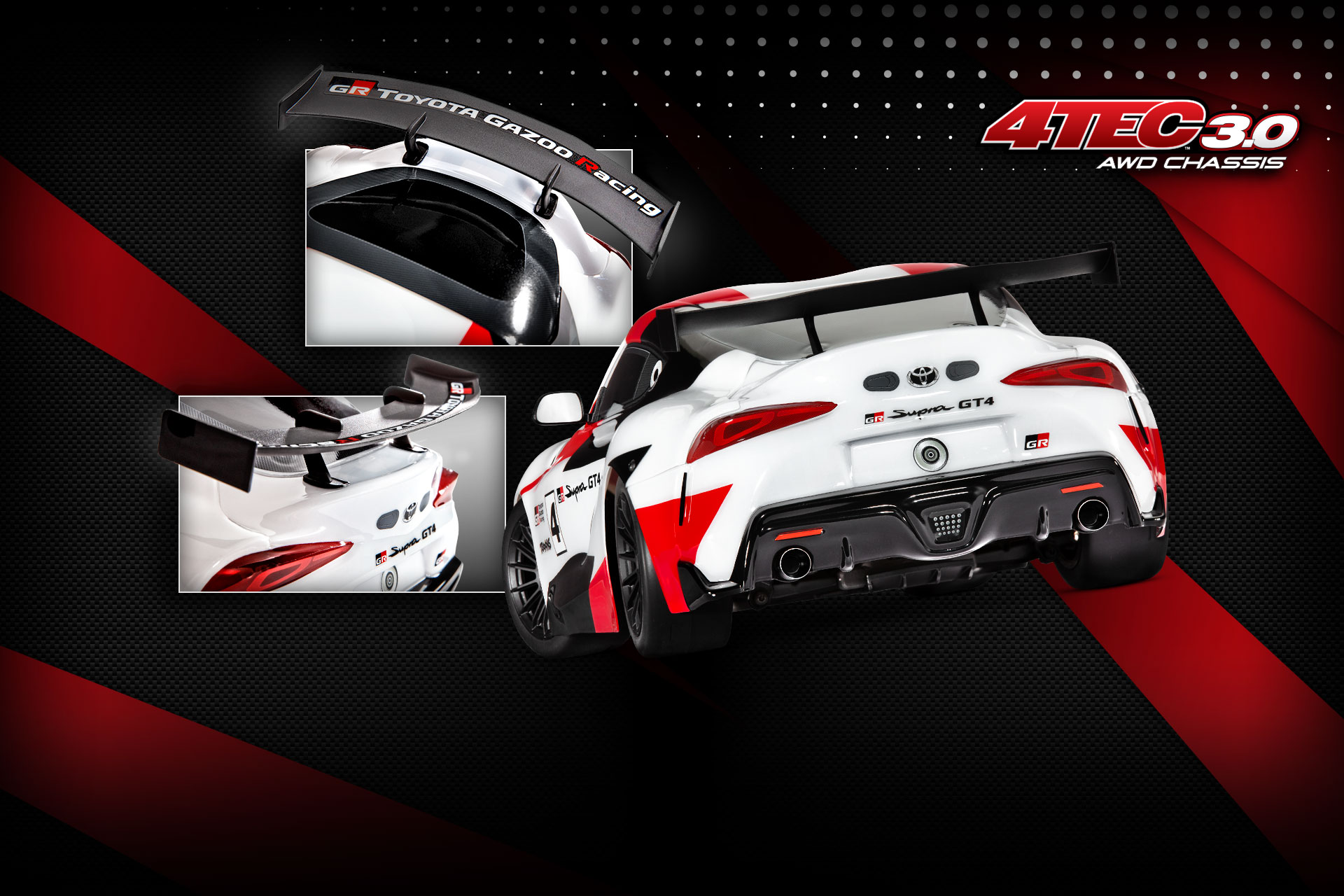

Replica GT4-Spec Wing

Race cars need functional aero to reduce drag and provide high-speed downforce. The 4-Tec Supra accurately replicates the full-size car’s front splitter and rear wing with tough molded composite pieces for a truly authentic look.

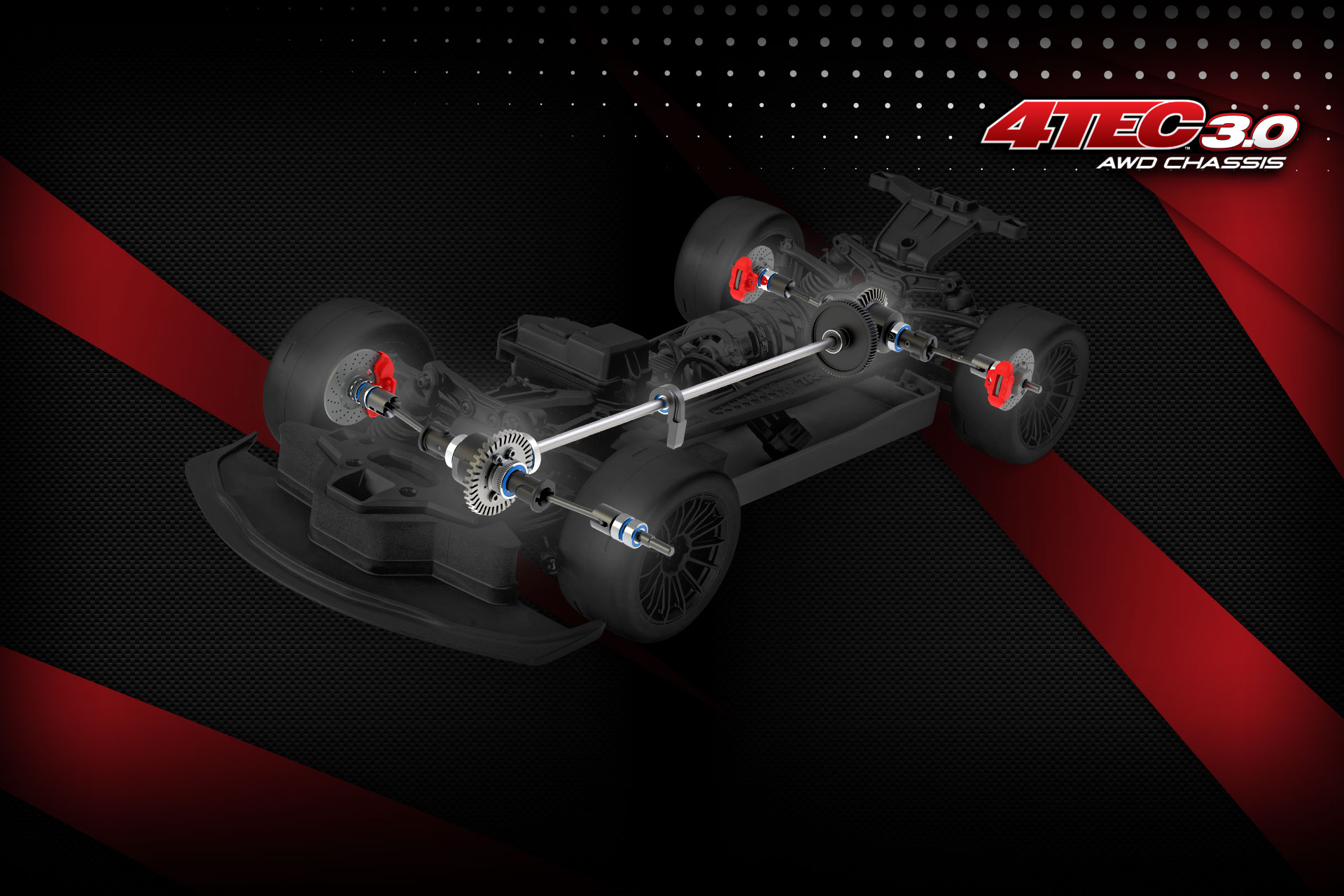

All-Wheel Drive

A highly efficient shaft-driven all-wheel drive system rides on sealed bearings and provides maximum acceleration and responsiveness.

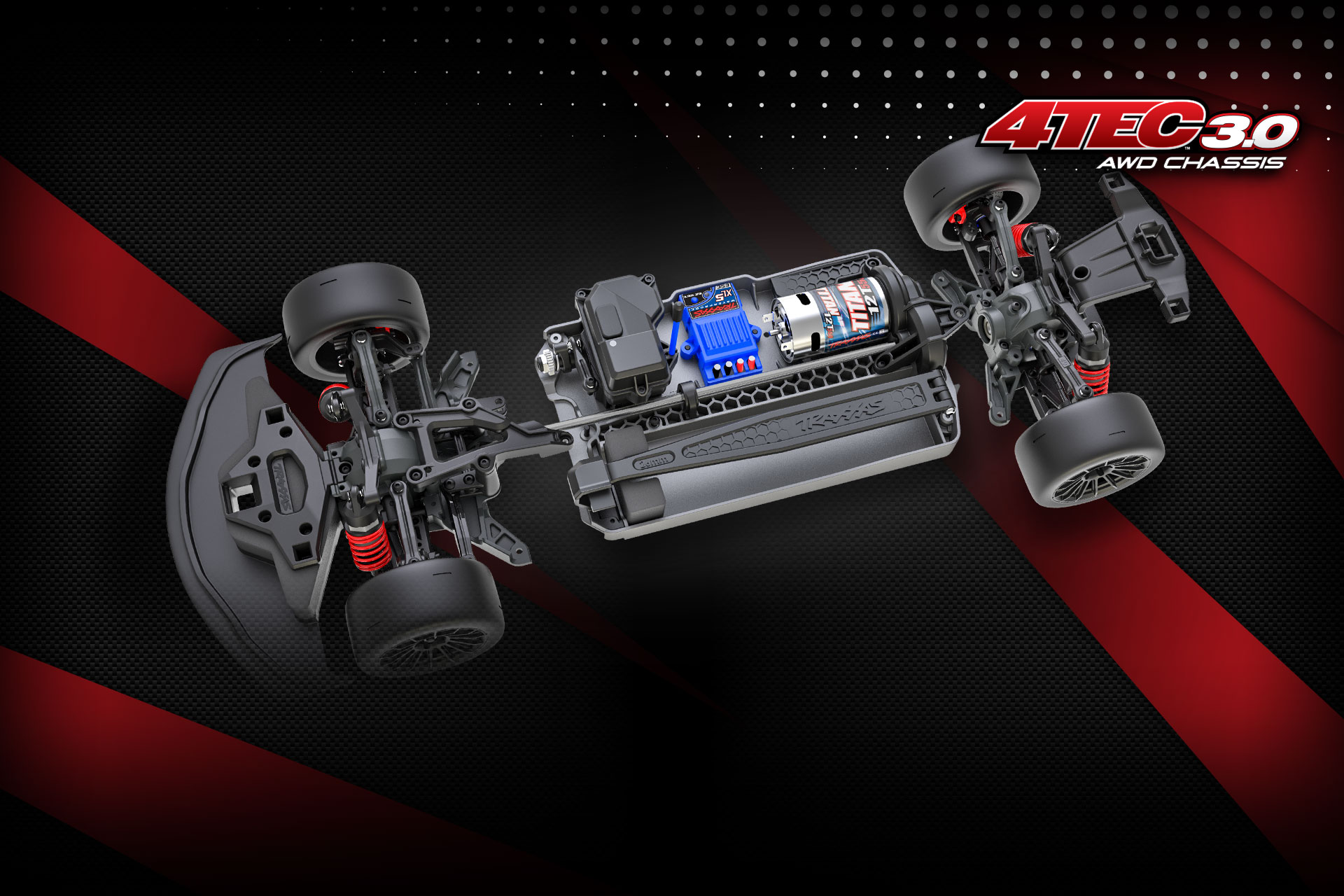

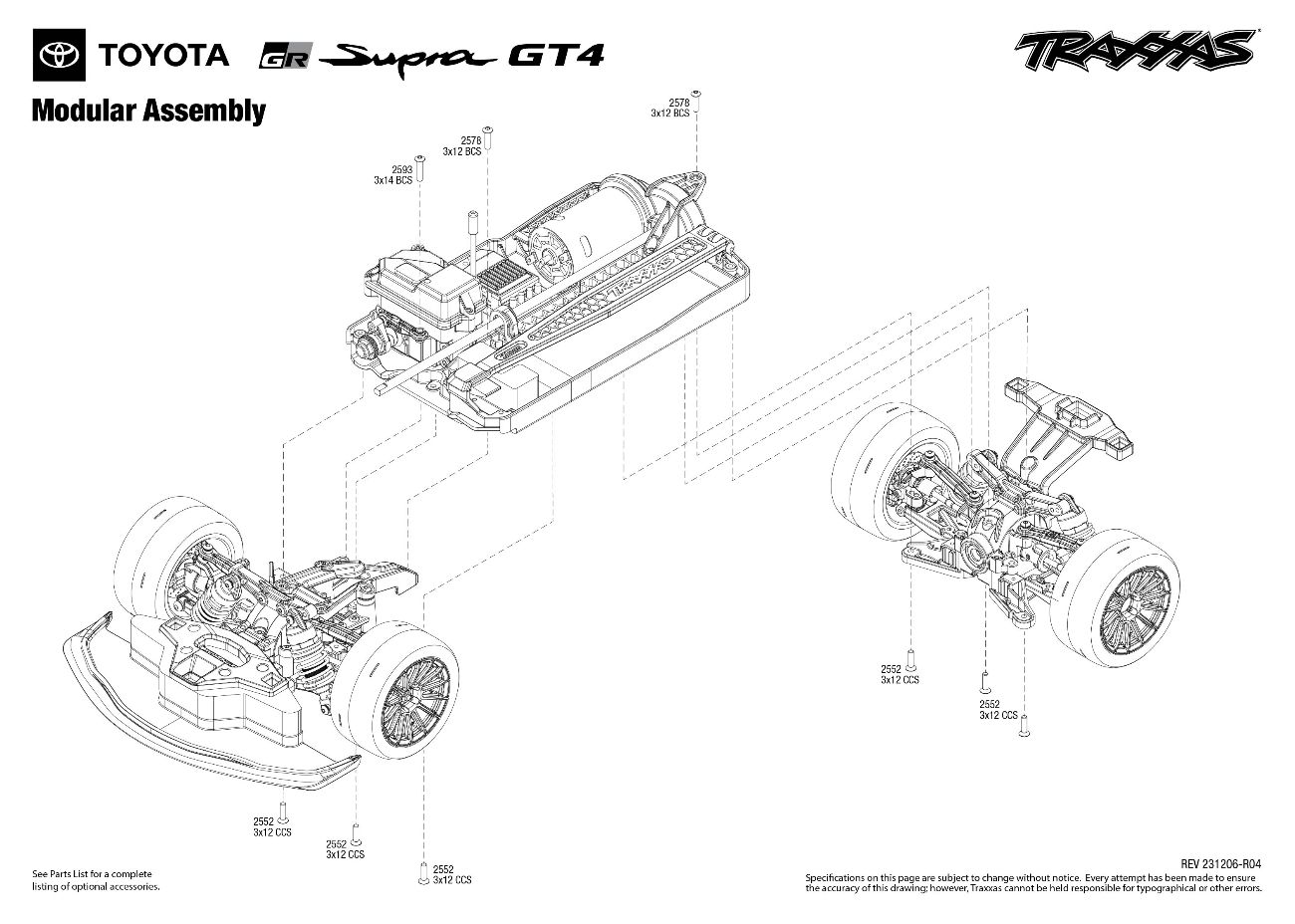

Modular Simplicity

Rigid Traxxas modular design utilizes three precision engineered modules to provide unprecedented stiffness and tight tolerances.

Adjustable Battery Hold Down

A quick-release, dual-height battery mount accommodates a wide range of batteries including long format NiMH and LiPo battery packs.

Waterproof All-Weather Performance

Race fearlessly in the rain and slide your Supra on wet pavement for realistic “skidpad” driving—Traxxas waterproof electronics take splashes in stride.

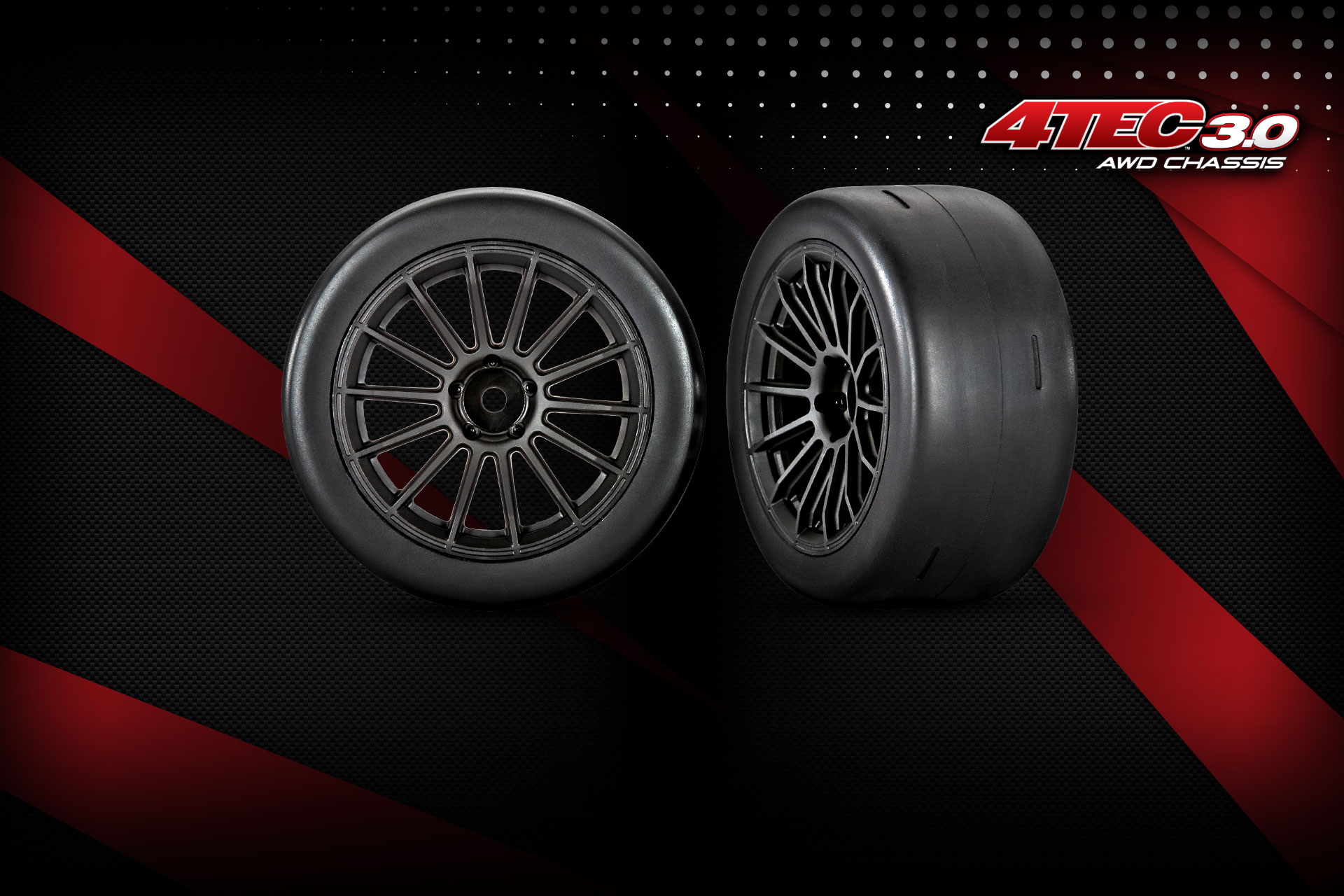

Replica Race Wheels

The Supra’s black multi-spoke wheels and ultra-wide slick tires recreate the GT4’s racing rubber while providing improved stability and handling. The wider wheels and tires fill the fenders to duplicate the GT4’s race-ready stance. With equal-width tires front and rear, steering response is predictable and aggressive thanks to the wide design and sticky tire compound.

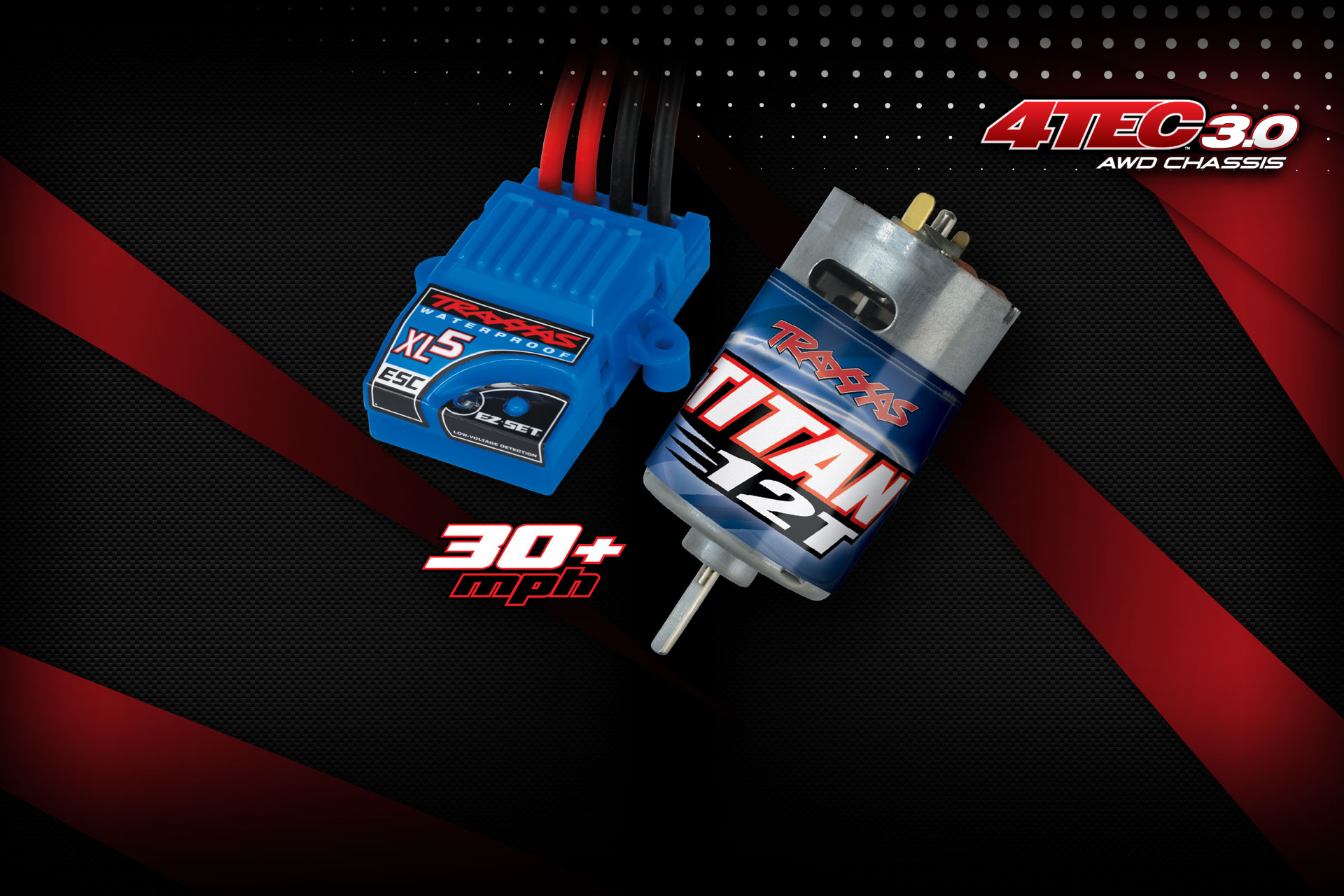

30+ mph Titan Power

High-torque and Traxxas tough, the Titan^® 550 motor and speed control give the GR Supra GT4 powerful acceleration on the way to 30+ mph. Just starting out? Activate Training Mode™ to cut speed and power by 50%.

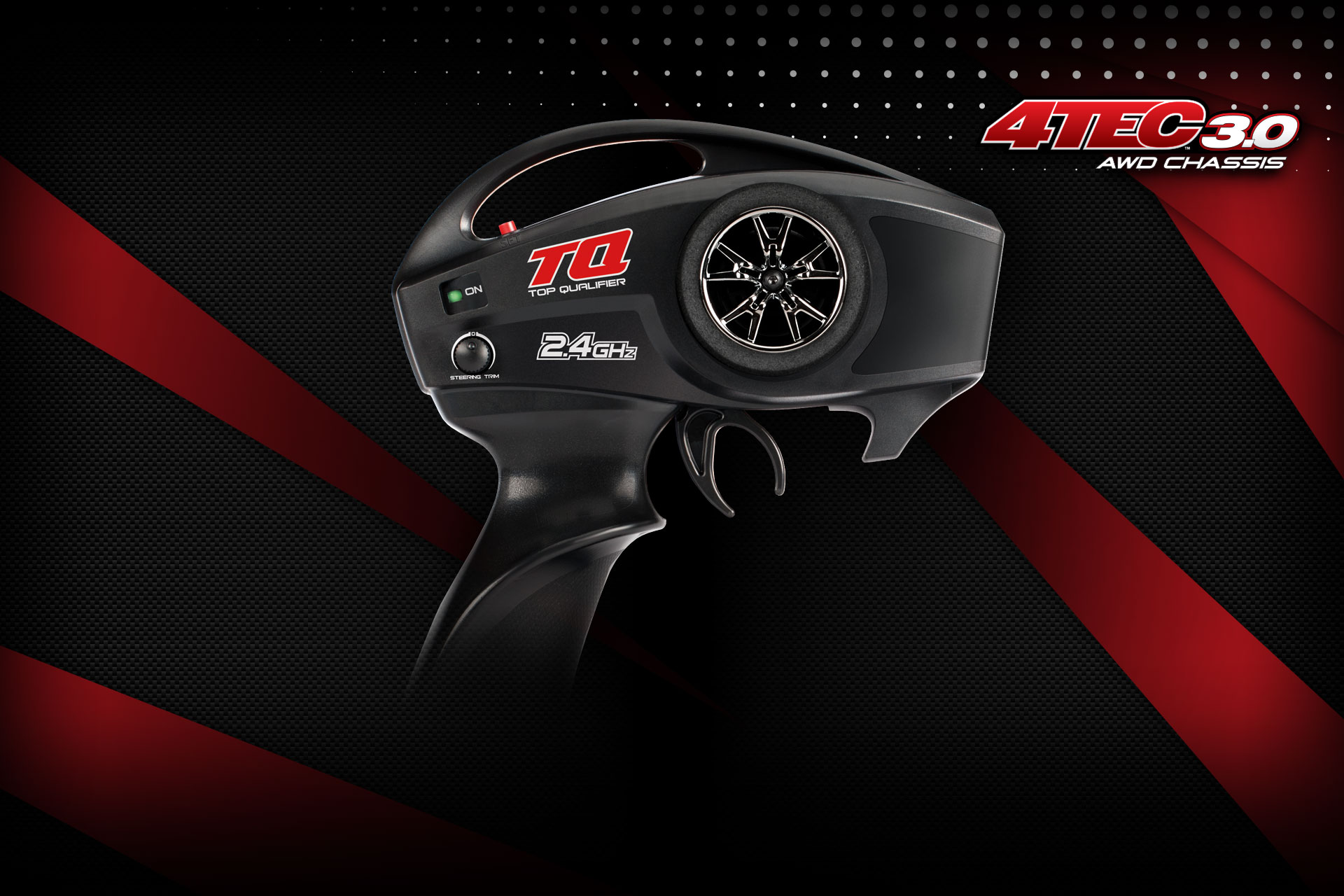

Precision 2.4 GHz Control Radio System

With the TQ™ 2.4 GHz radio system, you just switch it on and drive. There are no channels or frequencies to manage, so the focus is on having fun. The TQ’s ergonomic design is comfortable for all-day driving, and its sleek lines are enhanced by an internal antenna that is impervious to damage.

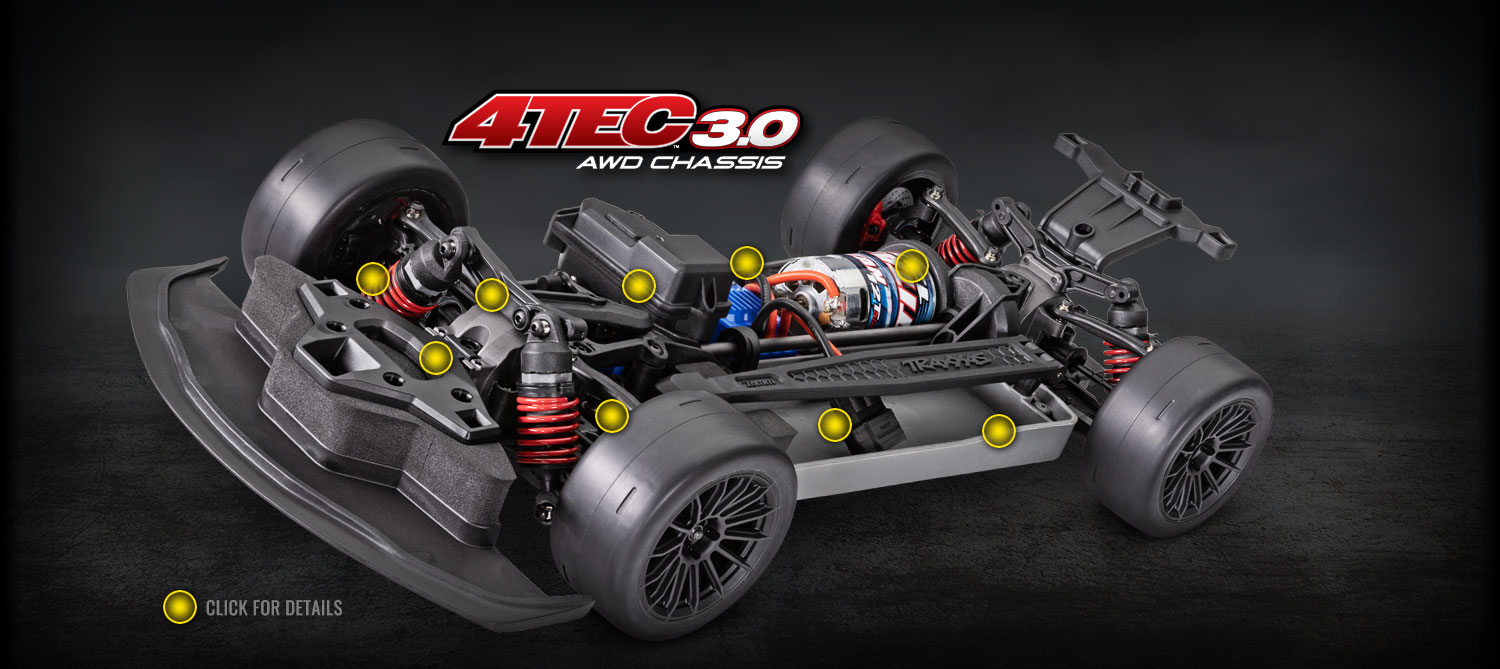

Details

Look beneath the GR Supra GT4’s race-inspired lines to reveal the individual design details that make the 4-Tec 3.0 chassis as easy to operate as it is exciting to drive.

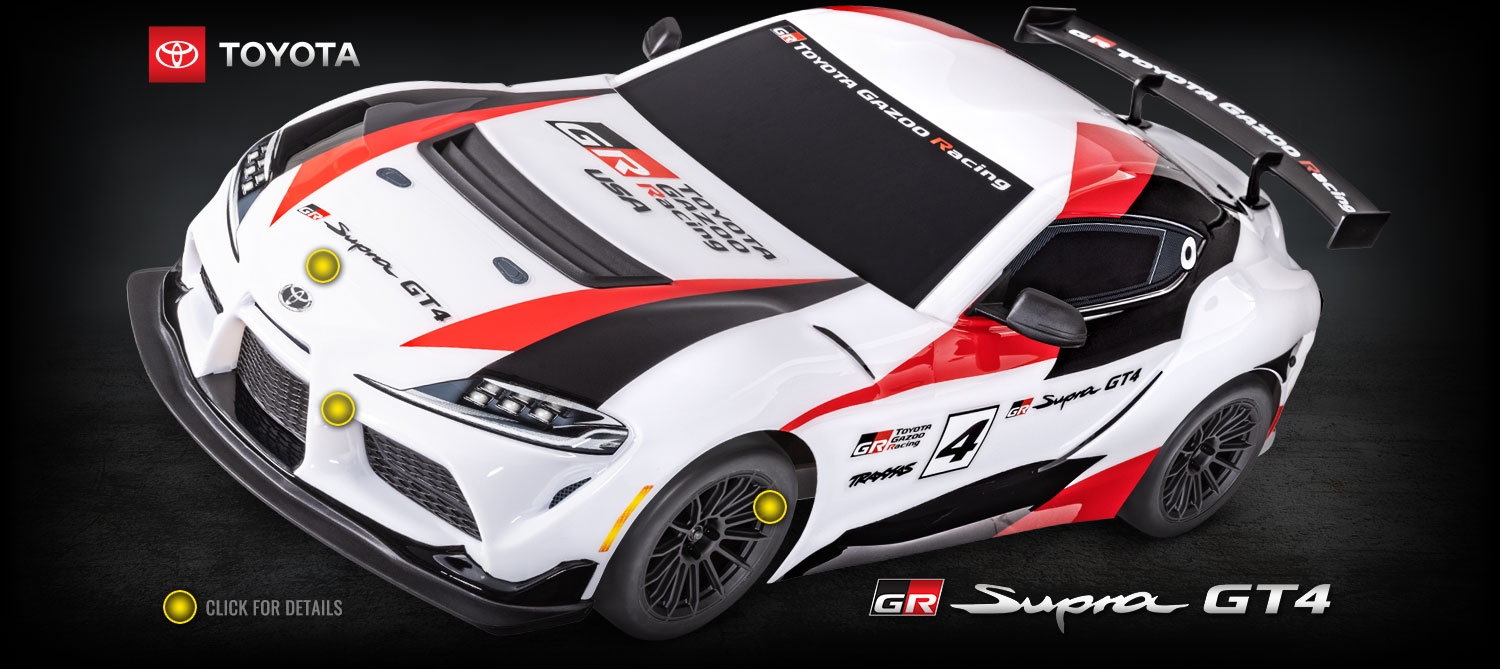

Detailed Replica Body

Countless hours of aero testing allow the GR Supra GT4 race car to slice through the wind with dagger-like precision. Traxxas accurately recreates both the beauty and form of the full-size car down to the smallest details. The injection molded grilles, side mirrors, and wing set the Traxxas Supra’s tough polycarbonate body apart with elevated scale realism.

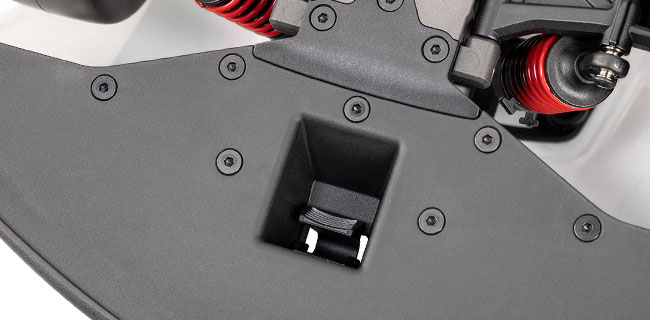

New Clipless Body Mounting System

The Supra’s sculpted body incorporates mounts into the internal frame. Traditional body posts have been eliminated leaving only the sleek lines of the GT4 race car. When it’s time to change the battery, just reach under the car to release the secure front and rear latches and the entire body releases in seconds.

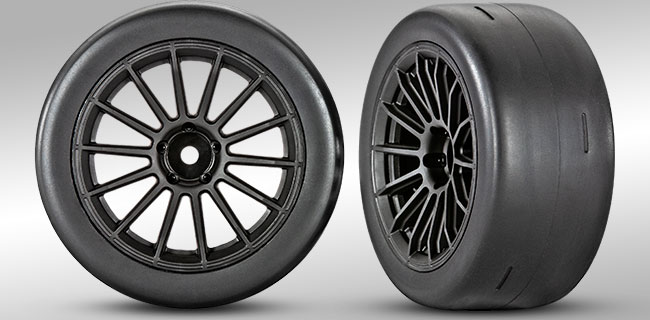

Replica Wheels and Tires

The Supra’s 2.0? multi-spoke wheels and meaty racing rubber are taller than the standard 4-Tec 2.0 for increased stability and improved handling.

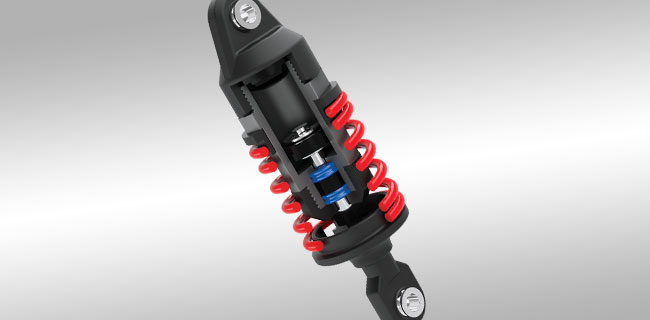

Oil-Filled Ultra Shocks™

4-Tec 3.0 rides on oil-filled Ultra Shocks utilizing X-ring technology for a perfect seal and silky-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. Redesigned shock caps feature hollow balls for better articulation and durability.

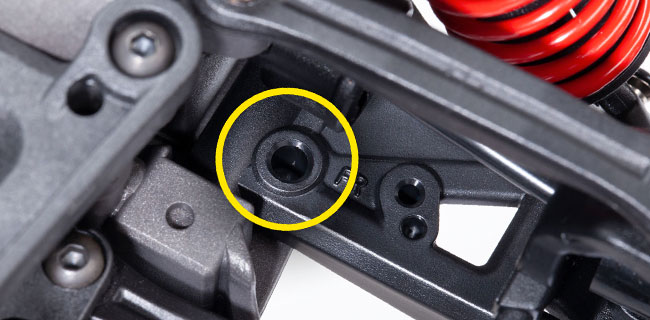

High Performance Suspension Adjustments

The 4-Tec’s high performance suspension features bosses molded into the arms to adjust droop. Suspension droop is the amount of downward travel on the wheels. Droop adjustment allows the 4-Tec 3.0 to be tuned for better stability in the corners.

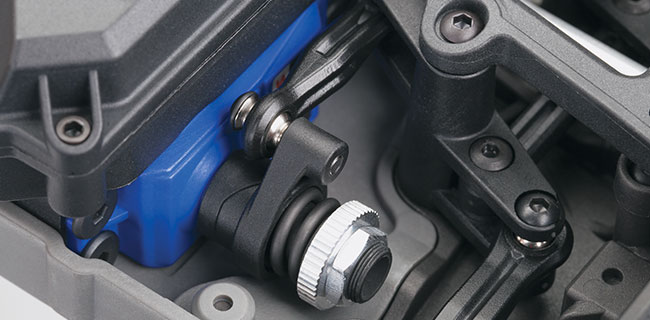

Integrated Servo Saver

Conventional servo savers earned a reputation for sloppy steering in on-road cars. The 4-Tec 3.0 incorporates the servo saver into the horn for precise and responsive handling in all situations. An integrated collar allows the spring tension to be adjusted for personalized settings or track conditions.

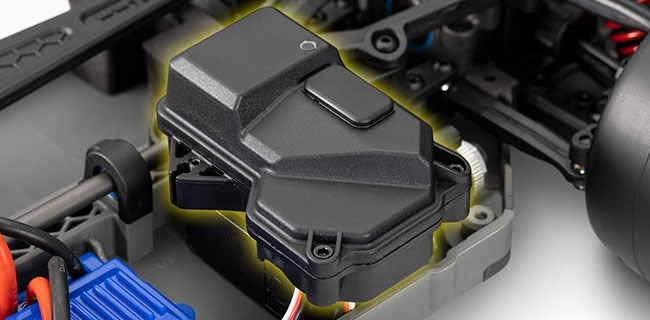

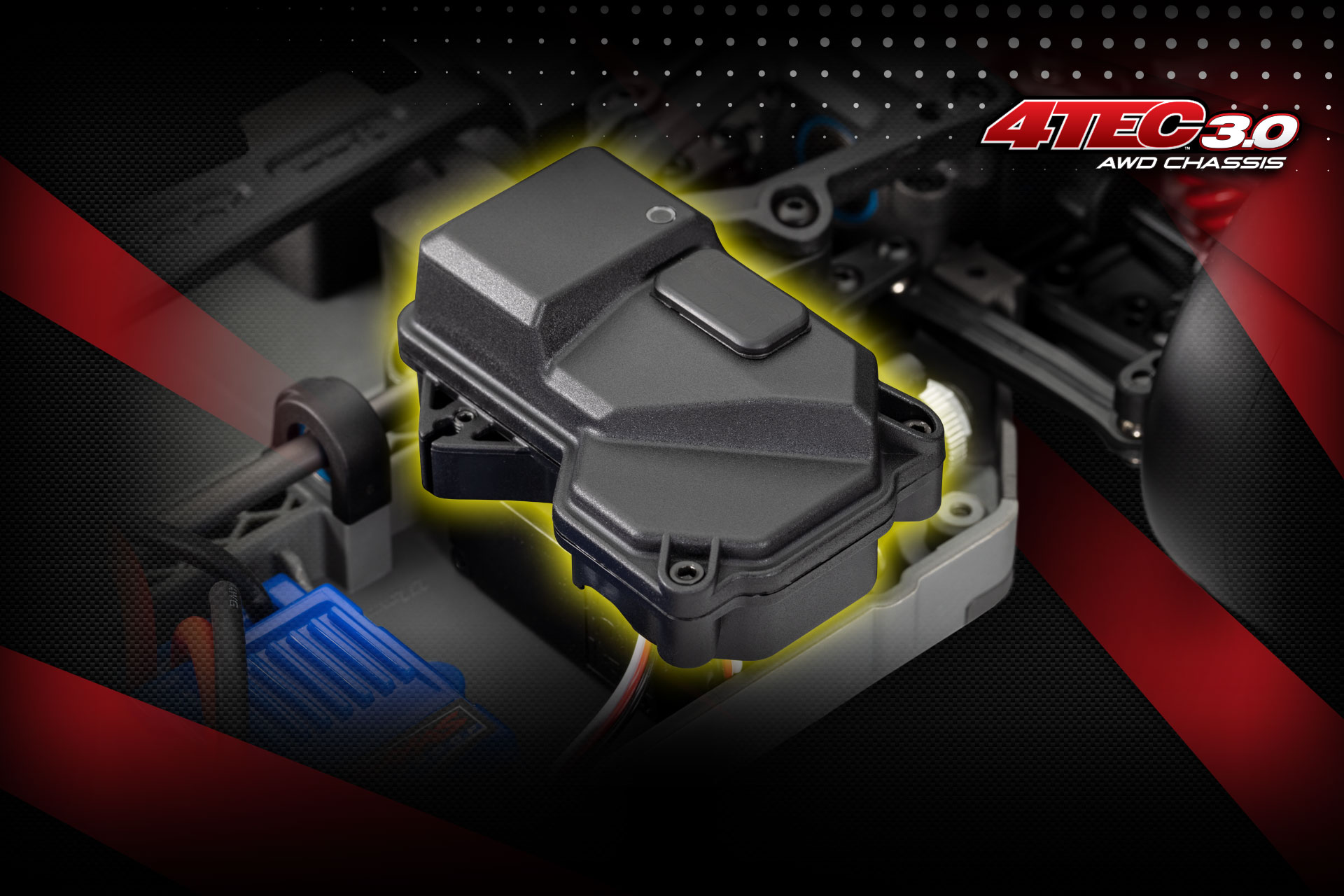

Waterproof Receiver Box

Real world driving requires dealing with the elements. The 4-Tec 3.0 comes fully protected with a patented waterproof receiver box. The innovative receiver box keeps the micro receiver dry, even in the worst weather.

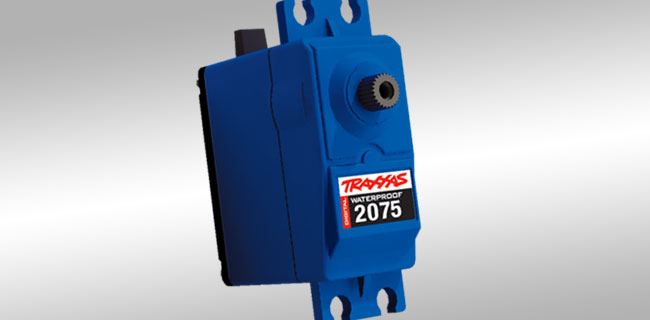

High-Torque Waterproof Steering Servo

A high-performance race car needs a powerful steering servo for responsive performance, and Traxxas delivers with the 2075 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the 2075 provides 125 oz-in of steering muscle.

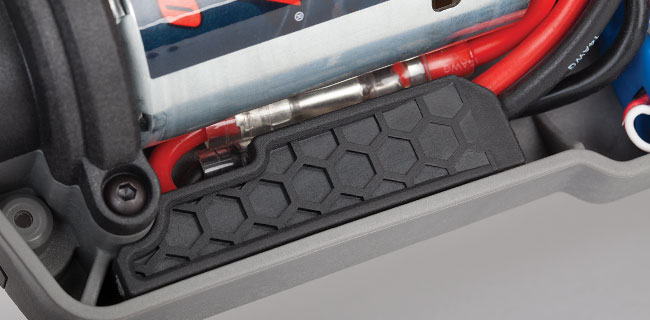

Molded Wire Retainer

A simple wire clip would look out of place with this futuristic high tech chassis. Traxxas engineers designed a trick molded wire retainer to keep wiring secured safely out of the way.

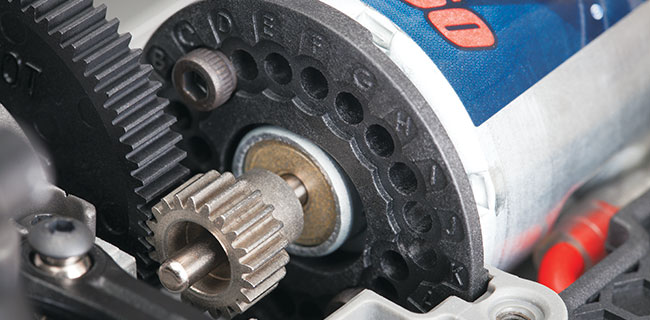

Fixed Gear Mesh System

4-Tec 3.0 makes it easy to set gear mesh with precision thanks to the innovative fixed gear positioning system. Use the convenient chart included in the user manual to select the proper locations for the motor mounting plate based on the selected spur and pinion gears. And, when the action gets rough on-track, the fixed gear system holds firm to prevent gear damage under impacts.

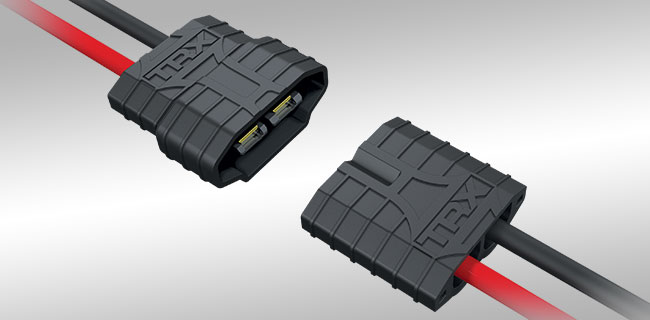

High-Current Connector

The Traxxas High-Current Connector funnels maximum power from your battery to the 4-Tec’s electronics. This innovative connector also enables your iD-equipped charger and battery to communicate. This ensures optimum charge settings specific to your battery for quicker, safer, more complete charging and extended battery life. Click here to find a battery and charger for your 4-Tec.

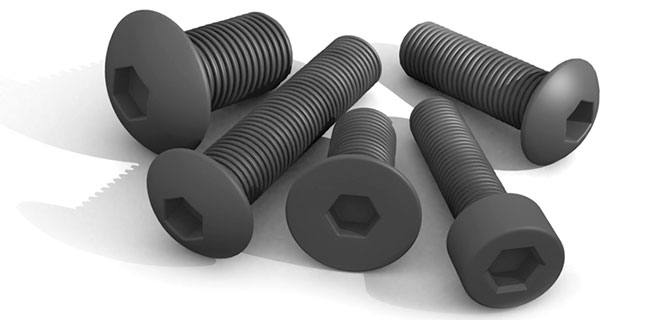

Hex Hardware

4-Tec 3.0 uses pro-quality, high-grade, metric hex-drive hardware throughout for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

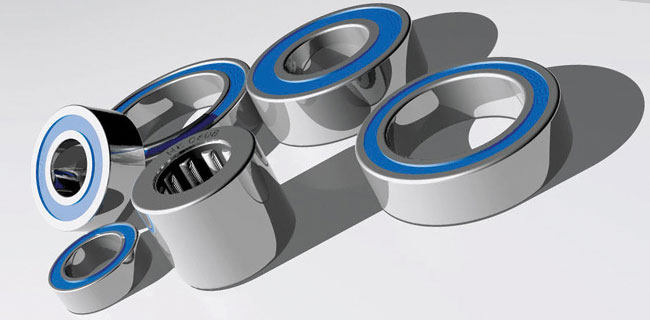

Rubber-Sealed Ball Bearings

Precise rubber-sealed bearings offer super low-friction performance and maximum protection in dusty environments. These virtually maintenance free bearings are used in all exposed locations on the car.

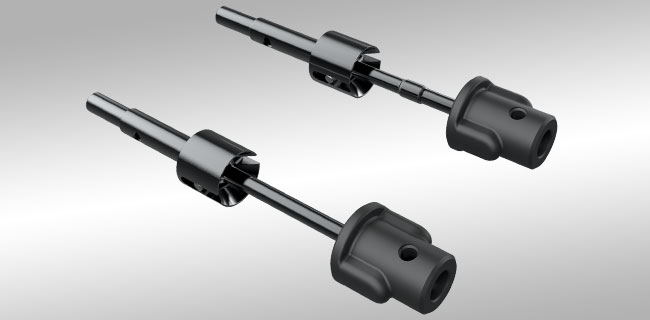

One-Piece Driveshafts

One-piece steel driveshafts save weight and send power directly to the wheels for lightning quick response times. Extended drive cups allow for maximum articulation and ultimate durability.

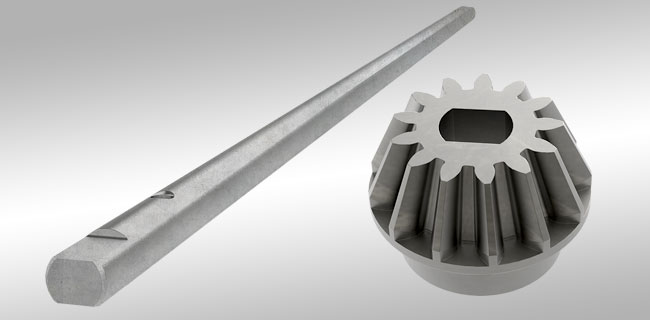

Steel Center Driveshaft

4-Tec 3.0 distributes power to all four wheels through a one-piece center driveshaft. There are no dogbones to wear and no drive cups to wobble. The steel driveshaft runs straight and true with a center support bearing to handle the high RPM of Velineon brushless upgrades.

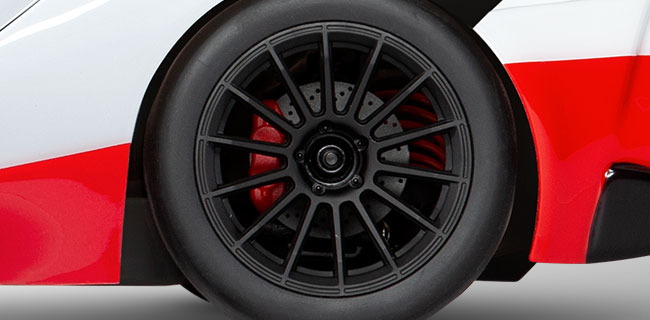

Fully Authentic Look

Bold red brake calipers highlight the Supra’s race-bred performance with replica brake discs. The brake calipers even switch from leading to trailing orientation to give your ride that fully authentic look.

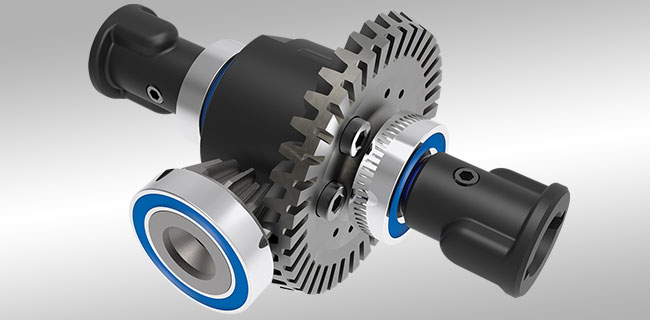

Proven Sealed Differentials

4-Tec 3.0 features the same sealed, beveled-gear differential in the front and rear as the ultra-rugged Slash^® 4X4. Tune the performance by varying the viscosity of the fluid inside.

4-Tec 3.0 Toyota Supra
