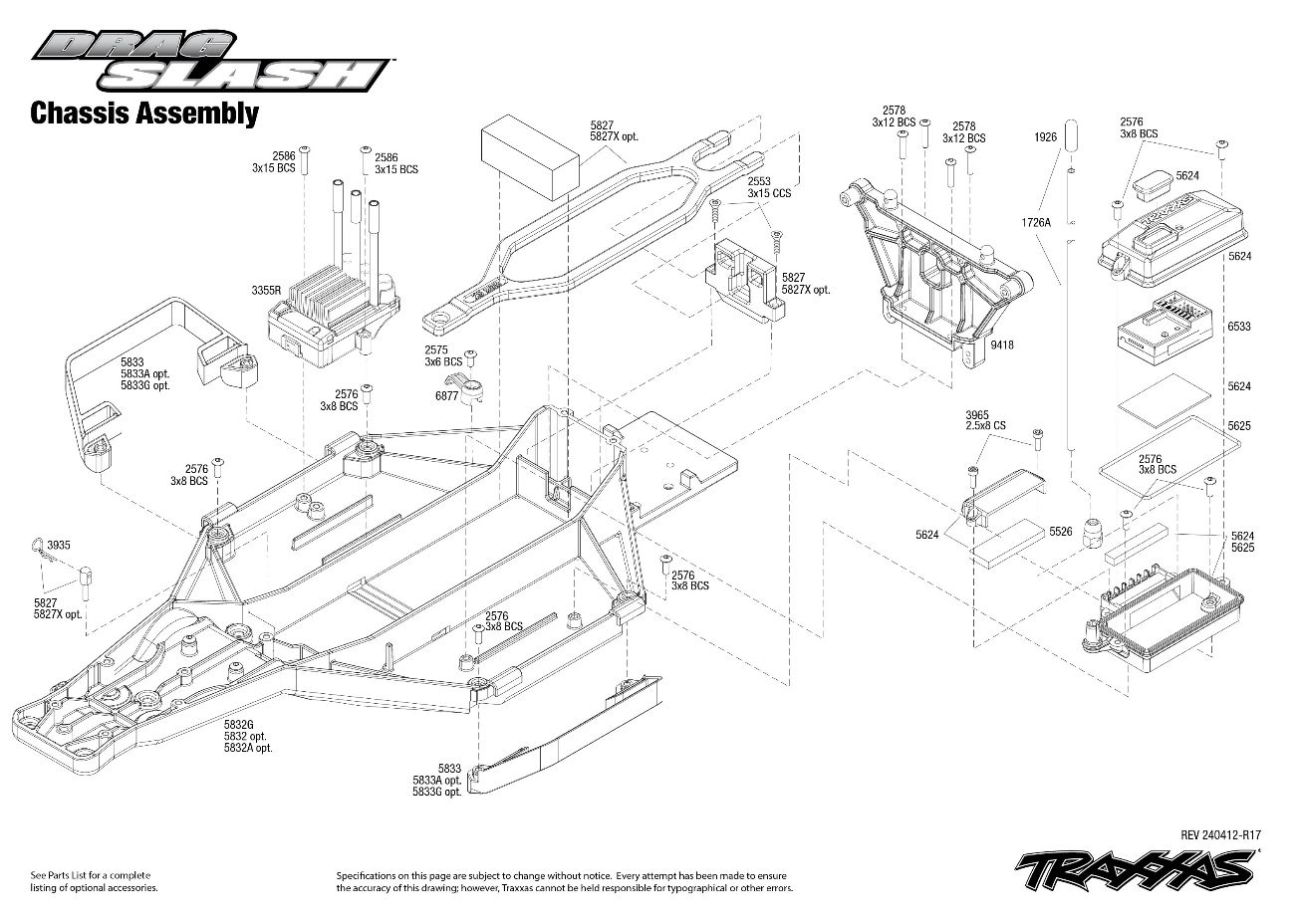

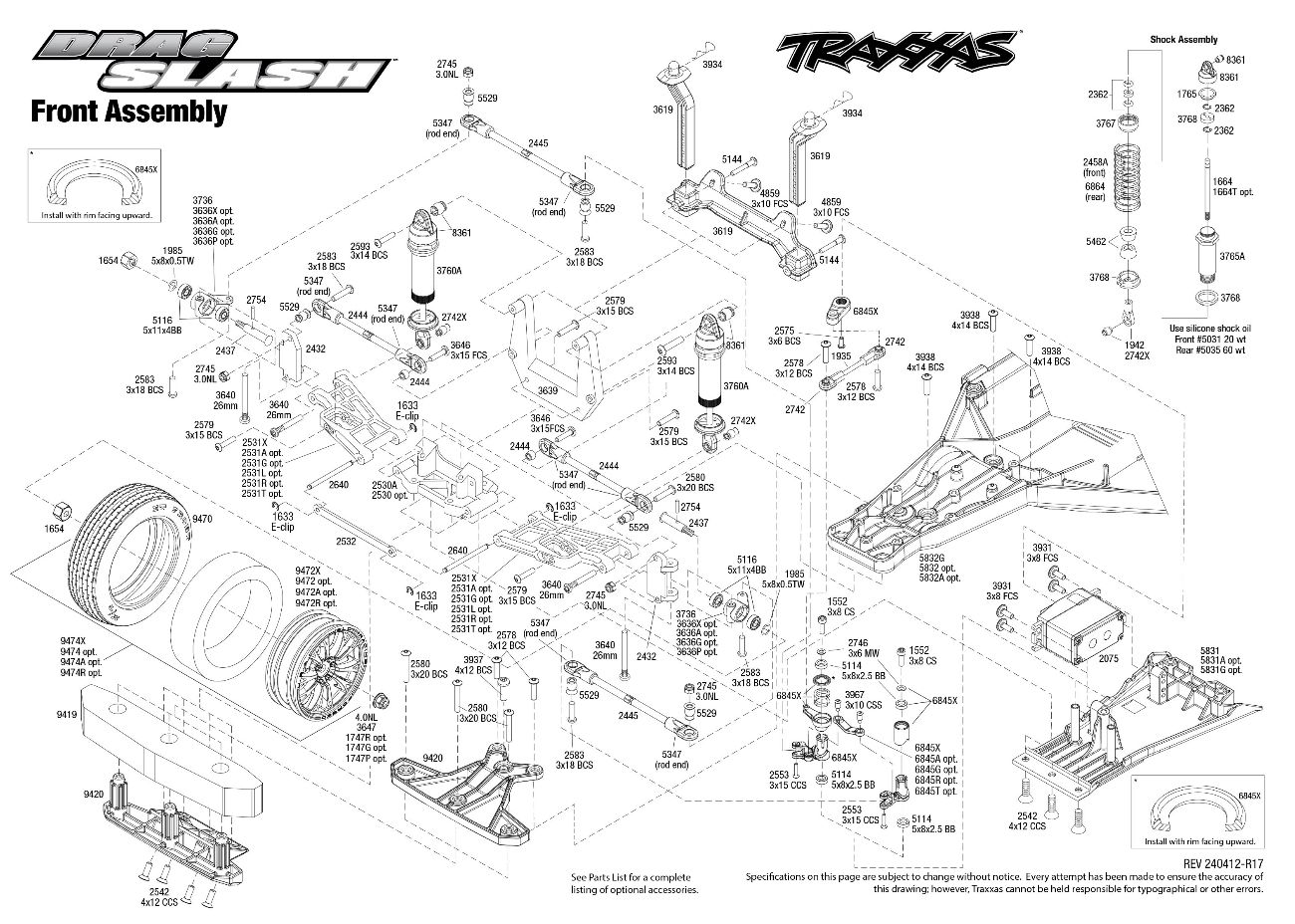

Exploded Views

Support

Model Name:	Drag Slash w/TSM
Model Type:	On-Road Cars
Model Skill Level:	4
Scale:	1/10

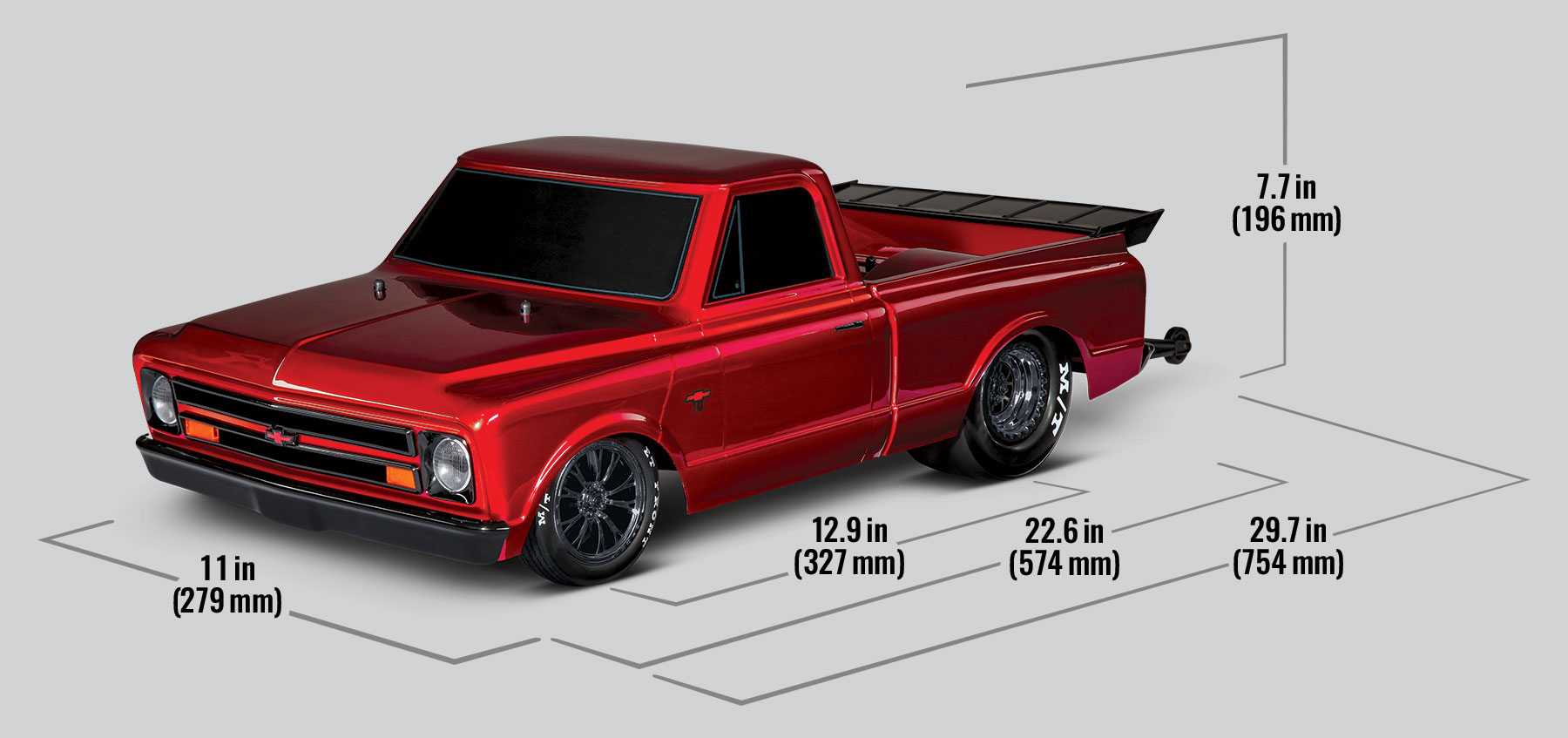

Weight:	5.23 pounds (2.37 kg)
Length:	29.7 inches (754 mm) (with wheelie bar)
Width:	10.97 inches (279 mm)
Front Track:	9.31 inches (236 mm)
Rear Track:	8.07 inches (205 mm)
Height:	7.7 inches (196 mm)

Wheelbase:	12.86 inches (327 mm)
Drivetrain:	2WD
Transmission:	Heavy-duty Magnum™ 272R
Differential Type:	Sealed bevel-gear differential
Gear Ratio (Internal):	9.82:1
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 3-channel transmitter with TSM^® receiver
Battery Compartment Specs:	165 mm X 49.5 mm X 23 mm, 25 mm

Durable ProGraphix^®
Officially Licensed Chevrolet^® C10 Body

Available in six rich metallic colors

Available in six rich metallic colors
High-performance injection-molded rear wing
Injection-molded bi-level grille
High-performance injection-molded rear wing
Injection-molded bi-level grille
Provides traction-enhancing downforce
LED-ready headlight surrounds
Provides traction-enhancing downforce
LED-ready headlight surrounds
Deeply recessed bed recreates “tubbed” look
Reduces drag and turbulence
Reduces drag and turbulence

Deeply recessed bed recreates “tubbed” look
VXL-3s™ Waterproof Electronic Speed Control

Traxxas EZ-Set^® one-button setup

Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
High-efficiency heat sink
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon^® 3500 kV Brushless Motor

Ultra high-temperature sintered Neodymium magnets
Low-maintenance, unique Traxxas design
Efficient, high-speed ball bearings
Precision-balanced rotor

Brilliant blue-anodized finish

Traxxas Stability Management^® (TSM)

Improves straight line acceleration and braking on low-traction surfaces
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter
Drag Race Mode to disable TSM where prohibited

TQi™ 2.4 GHz High Output Radio System

TQi 3-channel transmitter
Patented waterproof receiver box

Trans Brake switch for lightning-fast launches

5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports

Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)

Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Programmable multi-function knob

Adjustable steering and throttle percentage (dual rates)

Adjustable steering and throttle sensitivity (exponential)

Adjustable steering and throttle end points

Low Center of Gravity (Low CG) Chassis

Positions weight low for improved stability
Adjustable battery hold down
Smooth underside reduces drag

Chassis-mounted front bumper for extra protection

All-New Magnum 272R™ Transmission

Redesigned heavy-duty low-CG case
Heavy-duty 3.2 mm aluminum motor plate
Case supported bearings
Fixed gear mesh
High-strength steel gears
Sealed bevel-gear differential
Easy differential access

Drivetrain

Modified extreme-duty driveshafts
Torque Control™ slipper clutch

Extended Wheelie Bar

5 position adjustability
Reinforced double-ladder construction
Large and small wheels included to refine tuning

Steering

Chassis-mounted 2075 servo
Dual-bellcrank steering with integrated servo saver

High Performance Suspension

4 mm adjustable steel turnbuckles
Heavy-duty captured links won’t pop off

Drag-Tuned Ultra Shocks™

Fully adjustable and oil-filled with X-ring technology
Stiffer springs and silicone oil for improved traction
Custom bump stops provide solid ride control

Replica Mickey Thompson^®

Wheels and Tires

Replica Weld wheels for a classic look

Replica Weld wheels for a classic look
Unique compound balances long life and superior grip
Unique compound balances long life and superior grip
Molded high-density tire foam
Molded high-density tire foam
Webbed inner structure for increased durability
Webbed inner structure for increased durability

Rubber-Sealed Ball Bearings
Precision Hex Hardware
Backed by Unparalleled Traxxas Support and Parts Availability
Requires Battery and Charger (Sold Separately)

Learn More

Innovation

Traxxas combines legendary Slash durability with the latest high-tech features to create a world-class drag racer. Wrapped in a beautiful fully-detailed Chevrolet^® C10 or Ford^® Fox Mustang body, the result is nothing short of perfection.

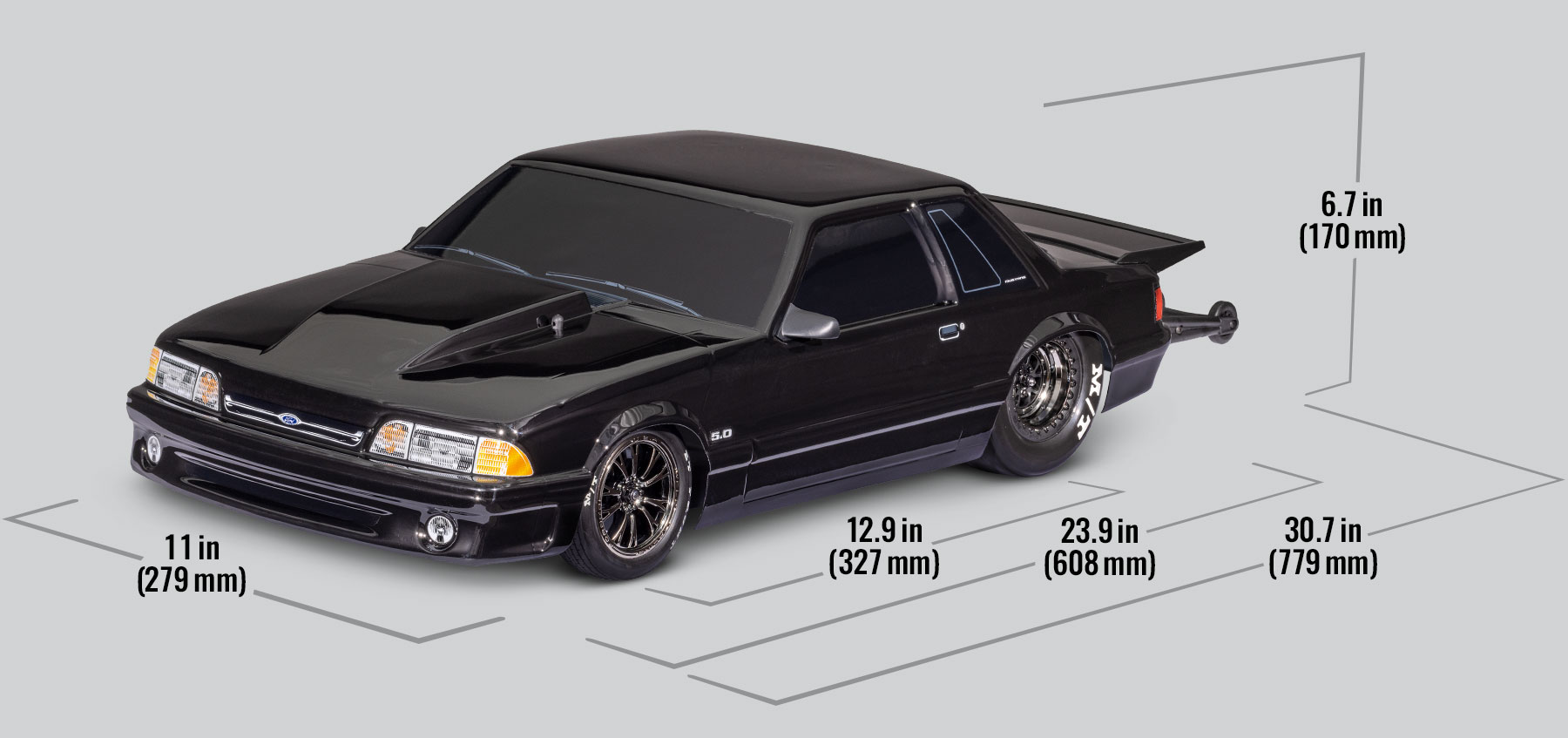

Ford Mustang Now Available

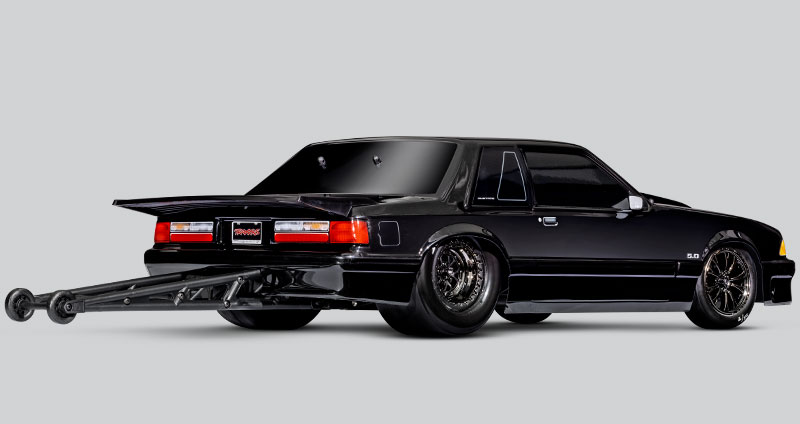

The new Drag Slash Mustang allows Ford fans join the no prep drag racing scene in classic 80’s style. Modeled after the notchback 5.0 Mustang Fox body, the latest Drag Slash brings the full racing experience to drivers of all skill levels.

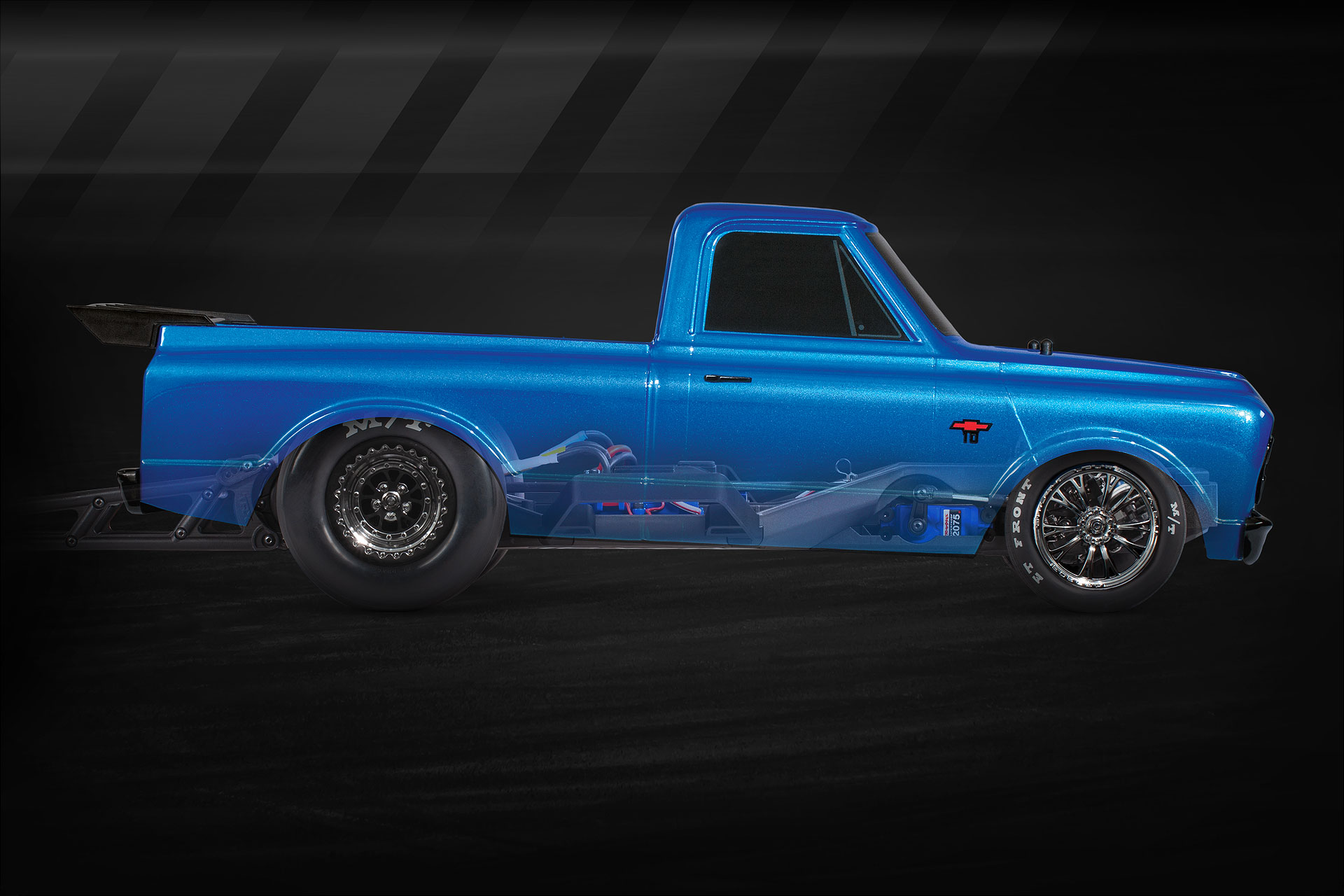

Slash for the Streets

Drag Slash is built on the proven low center of gravity chassis to hold the battery and electronics close to the pavement for track-hugging stability. Modular construction and premium hex hardware make Drag Slash easy to maintain for peak performance.

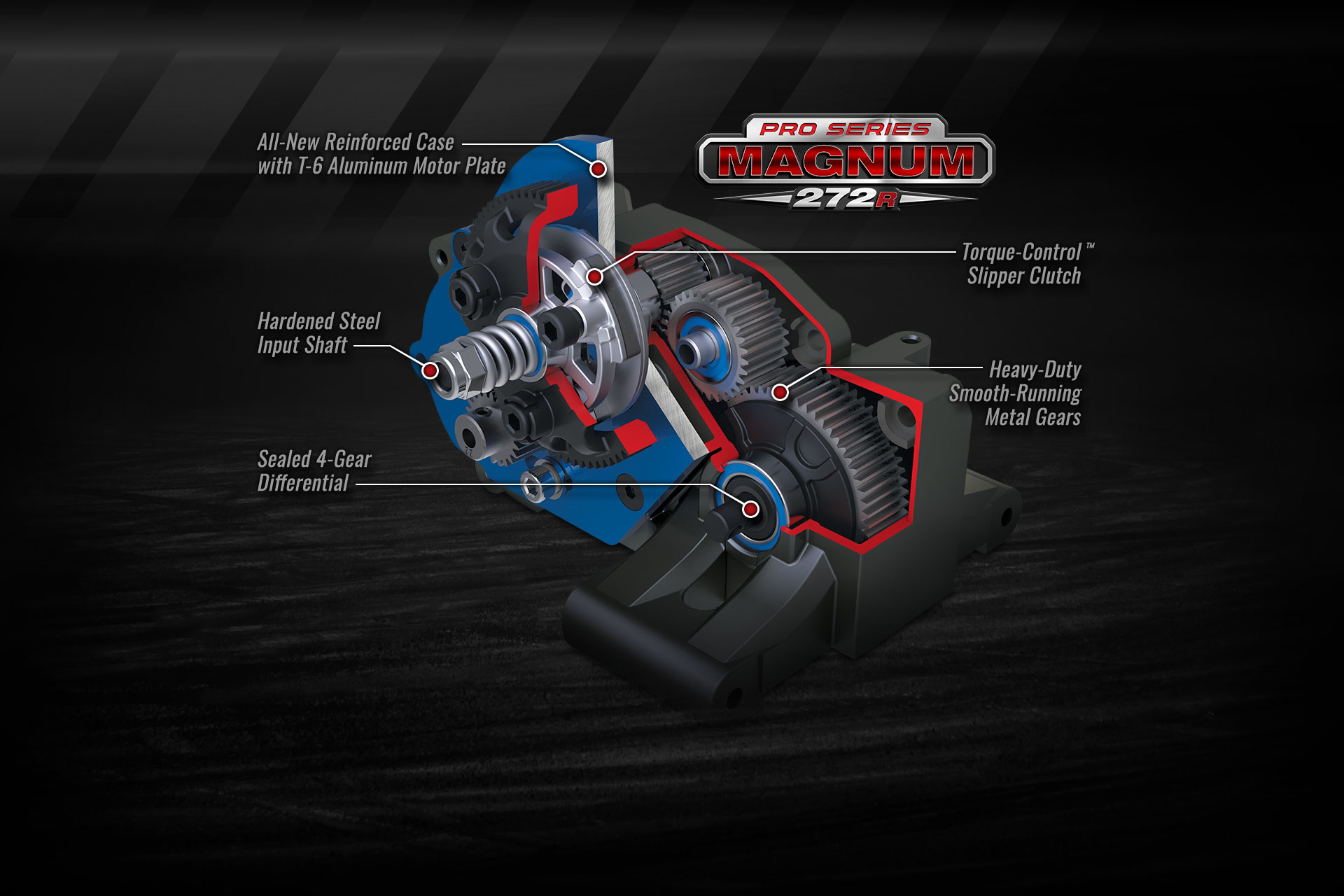

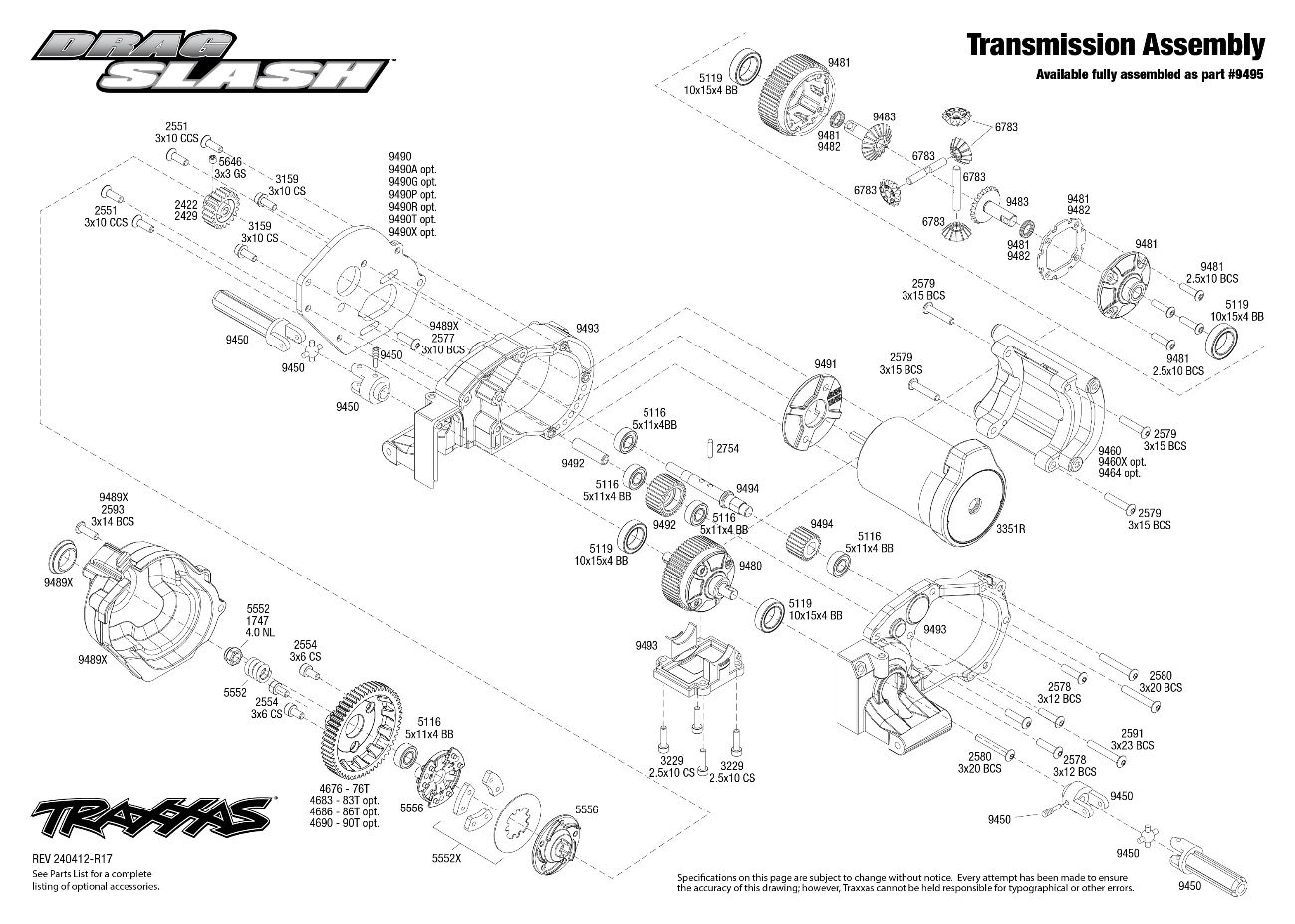

Magnum 272R TRANSMISSION

Feature-packed to perform, the Magnum 272R™ transmission comes equipped with a silicone-filled differential, aluminum motor plate, steel gears, and an integrated input gear and top shaft. A new gearbox with reinforced arm mounts houses the components.

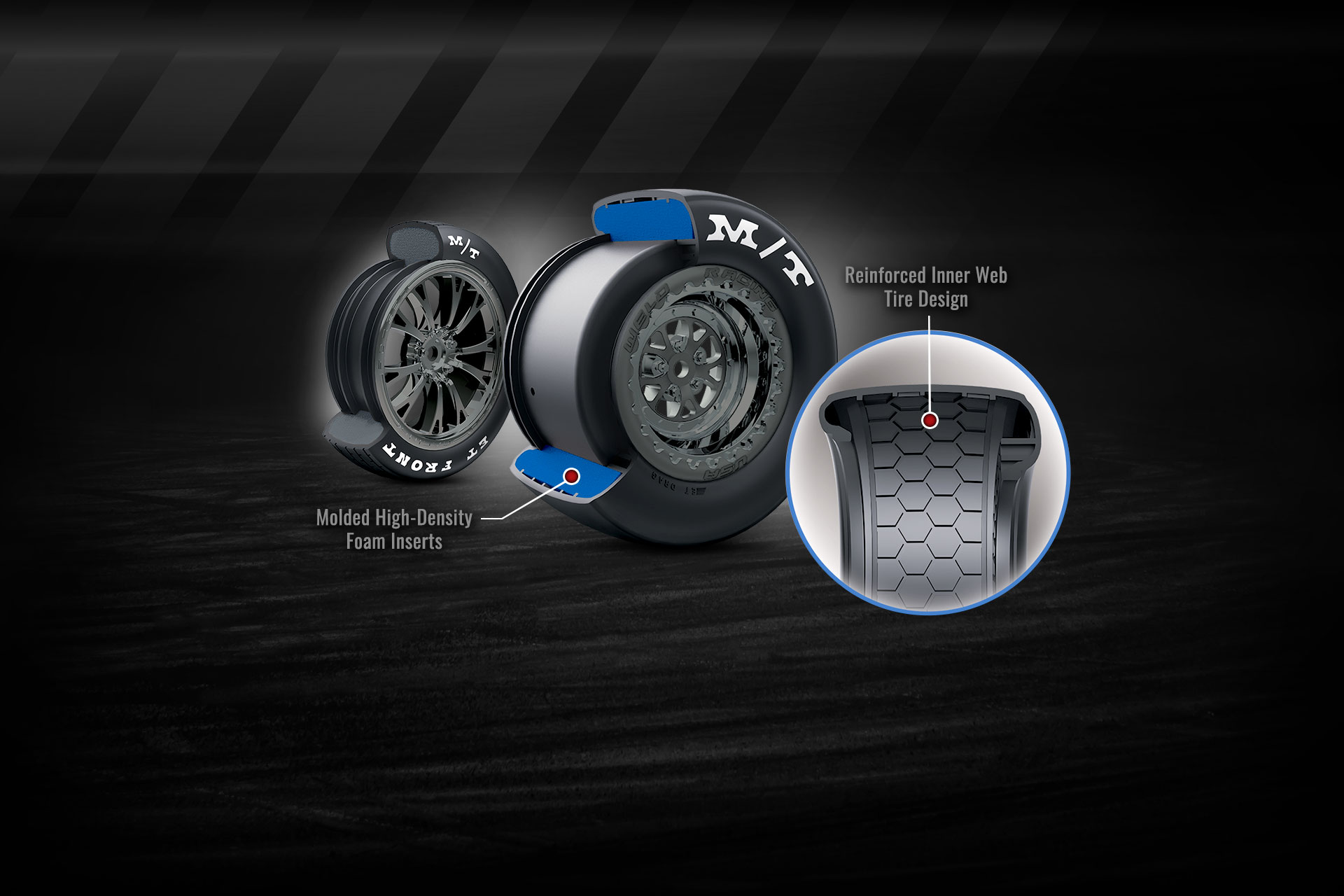

Performance Tires & Wheels

Wide Mickey Thompson slicks on Weld Racing^® wheels are a classic combo. Traxxas replicates the legendary look—and performance. Developed with extensive testing, the slicks’ unique compound is formulated to balance long tire life with maximum traction.

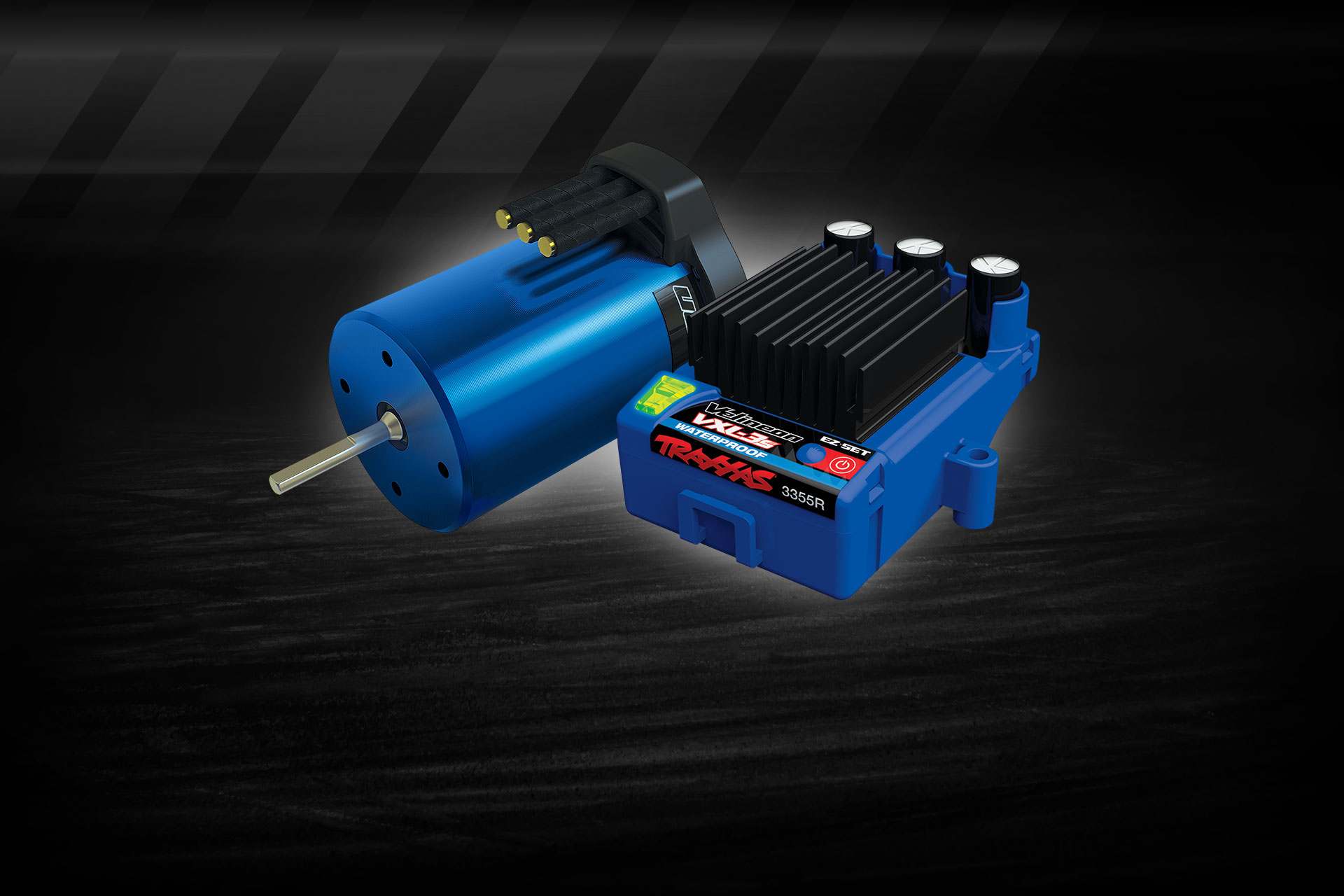

Extreme Power

The Velineon^® VXL-3s™ system is paired with optimized gearing to take advantage of the maximum torque output from the Velineon 3500 motor. The VXL-3s system delivers strong, reliable muscle to lay down the quickest passes, run after run.

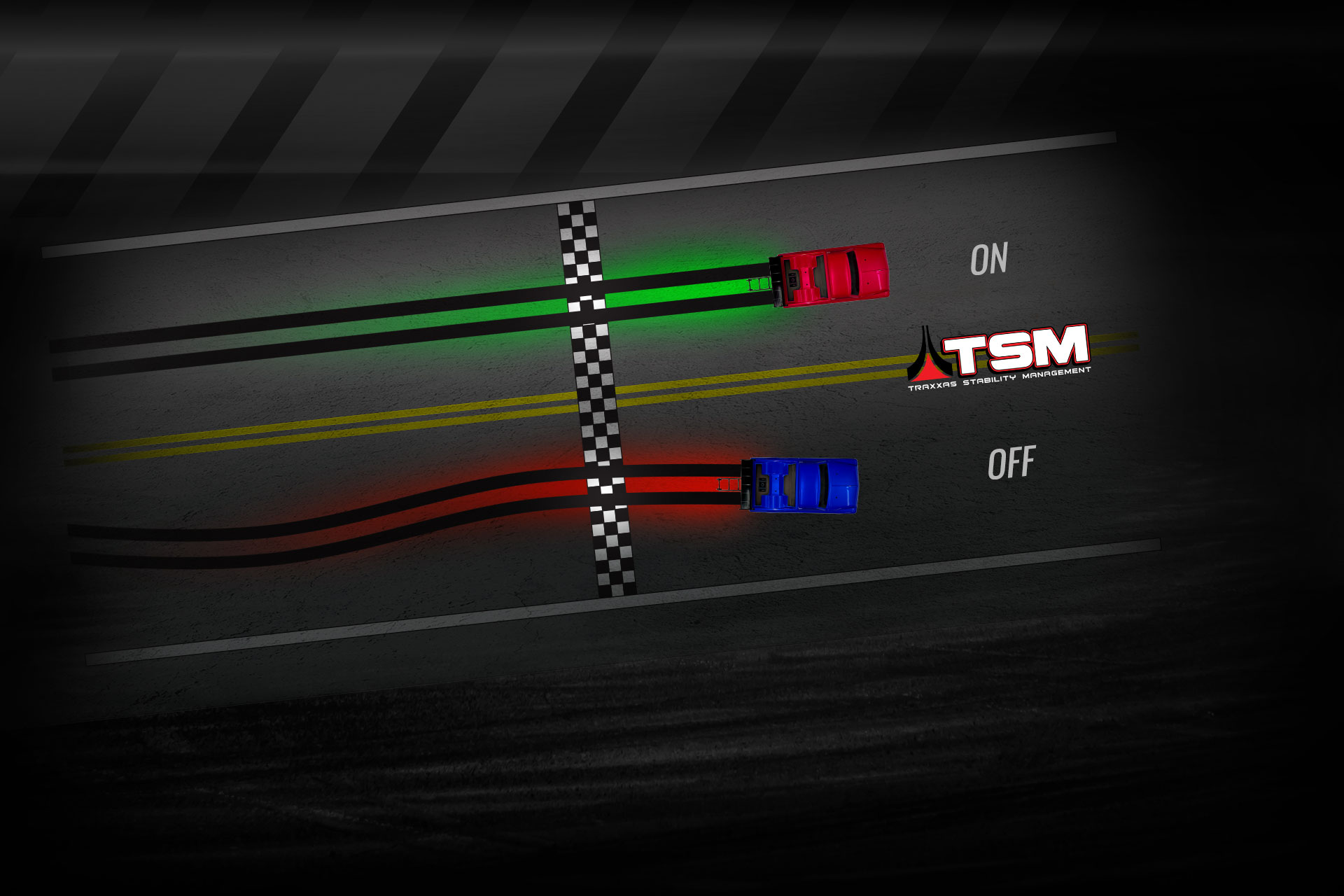

Traxxas Stability Management (TSM)

TSM^® makes racing more fun by allowing the driver to experience the fastest possible straight line acceleration with incredible stability and precise control. Adjust the level of TSM assistance from 100% down to zero for racing classes when assistance is prohibited.

Exclusive Drag Race Mode

Press a button on the TQi™ receiver to enable Traxxas’ exclusive Drag Race Mode. When activated, Drag Race Mode disables TSM during acceleration to help you hone your racing skills. Once you cross the finish line, TSM dramatically improves braking performance and prevents spin outs.

TQi with Trans Brake

Trans Brake allows unbeatable launch precision and lightning-fast reaction time. Depress the Trans Brake and hold throttle trigger at your desired position; release the Trans Brake and the Velineon system instantly applies the throttle level you set. Patent Pending

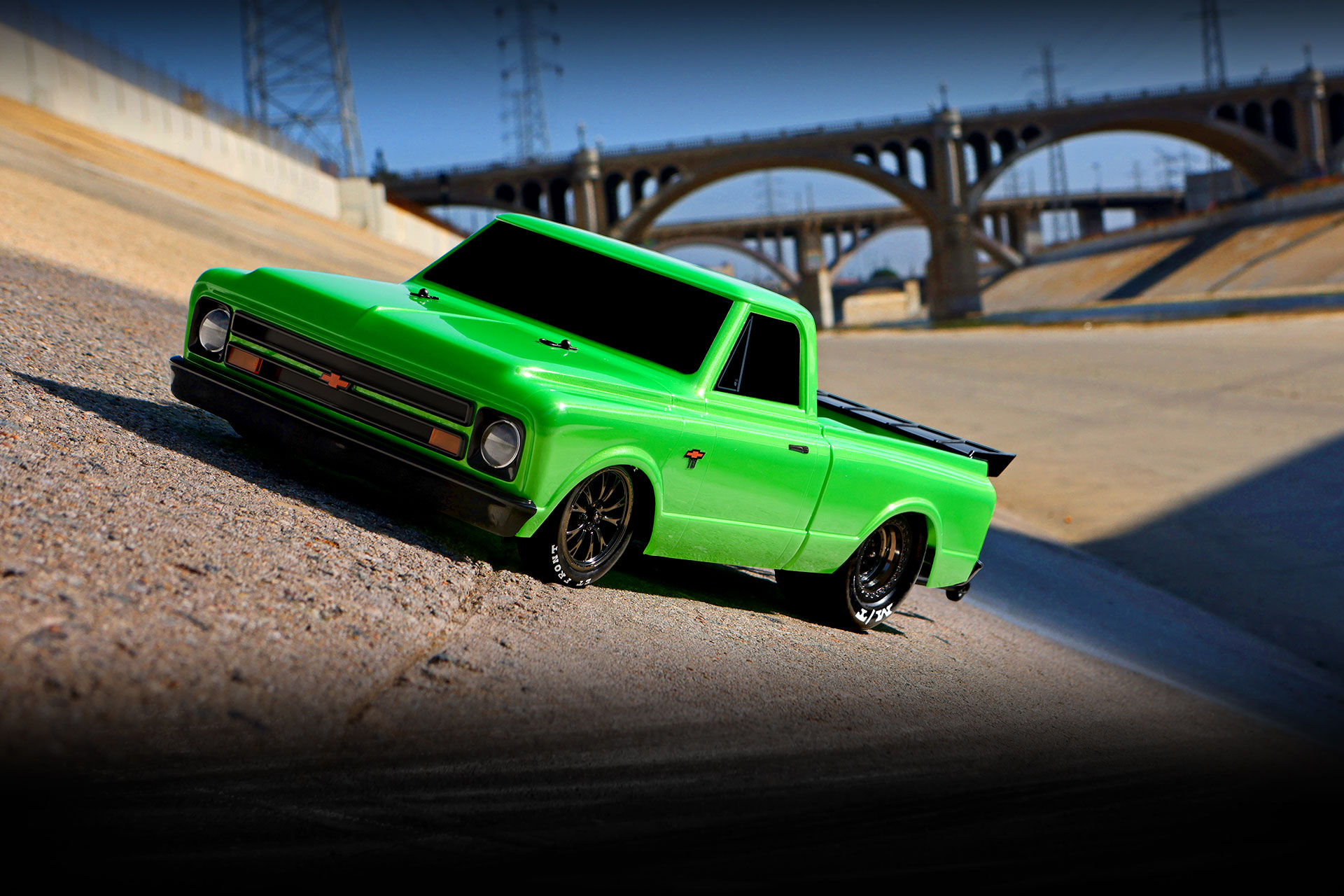

Classic Style

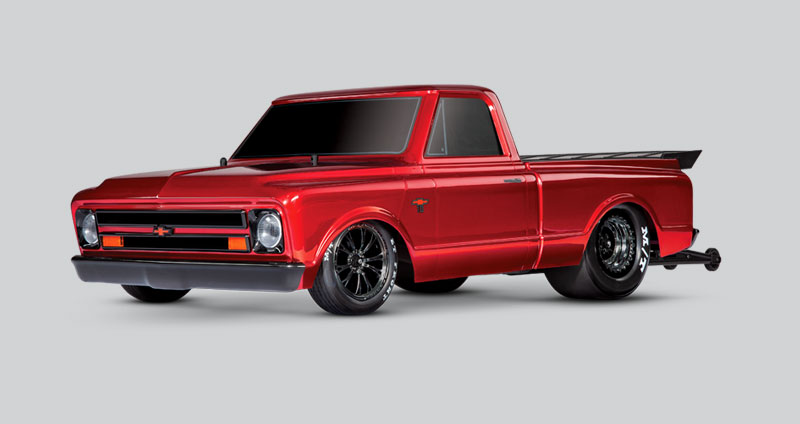

No matter which body you choose, Drag Slash is a stunner at the strip. The beautifully rendered ‘67 Chevy C10 pickup comes fully detailed with a molded bumper and grille with LED-read light buckets front and rear. The Ford-licensed Mustang body is modeled after the notchback 5.0 Fox-chassis with its lighter weight and increased structural rigidity. Both bodies feature molded rear wings to keep the chassis planted at speed and bring home the win.

Wheelie Bar

An extended length wheelie bar with 5 fixed levels of adjustment provides ultimate rigidity and arrow straight launches in any track conditions. Two sizes of wheels are included to further refine tuning. From low and mean to wild, wheels-up action the full length of the track, Drag Slash does it all.

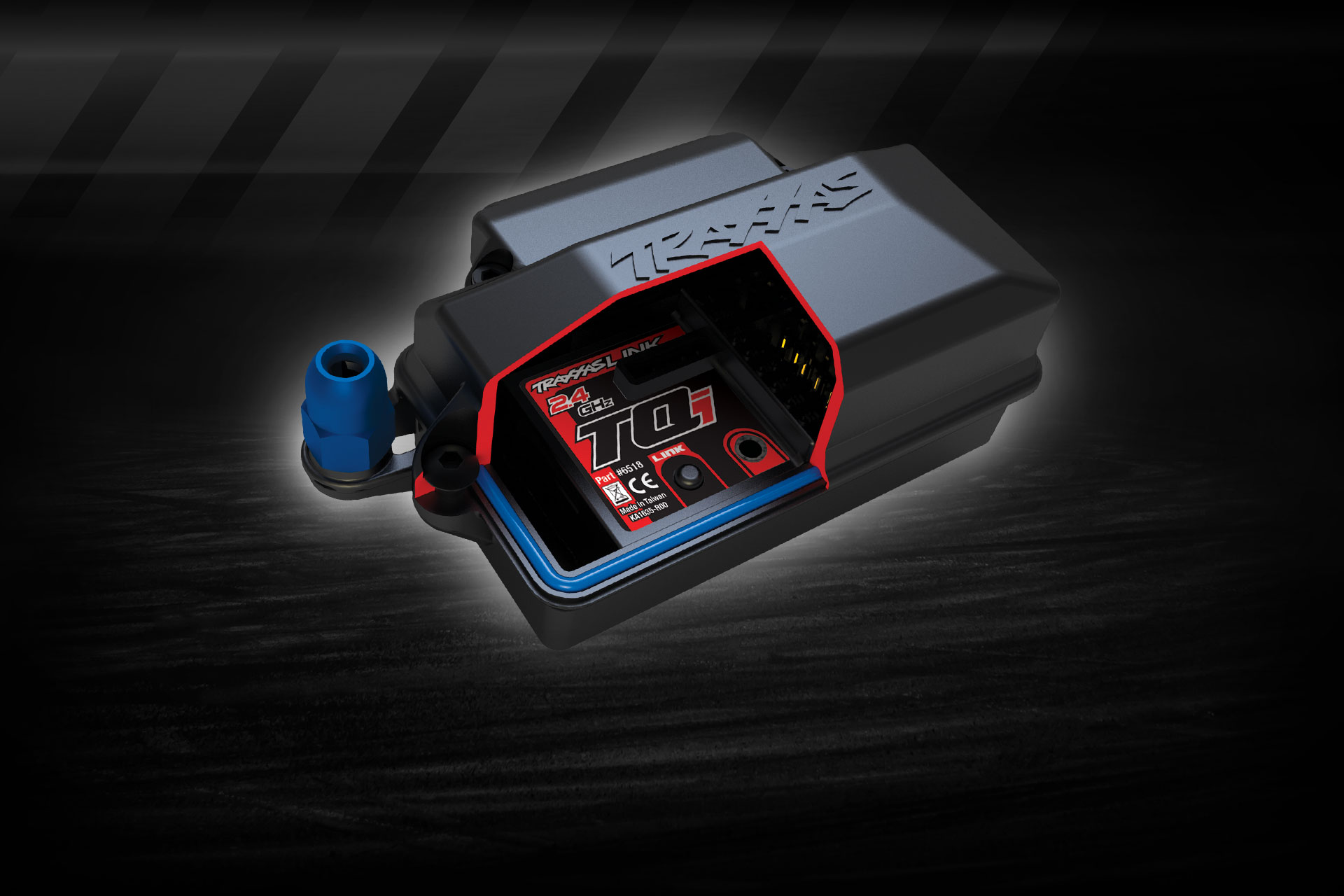

Waterproof

Not every drag race takes place on a smooth prepared track; that’s just part of the “no prep” scene. The Drag Slash’s waterproof electronics are ready to take on any back street grudge match, regardless of rain or water on the track.

Accessories

Drag Slash is incredibly well equipped right out of the box—but out of the box is just the beginning. Traxxas offers a full line of accessories and upgrades including LED lighting kits, aluminum components, color-molded parts, tuning fluids, and more.
