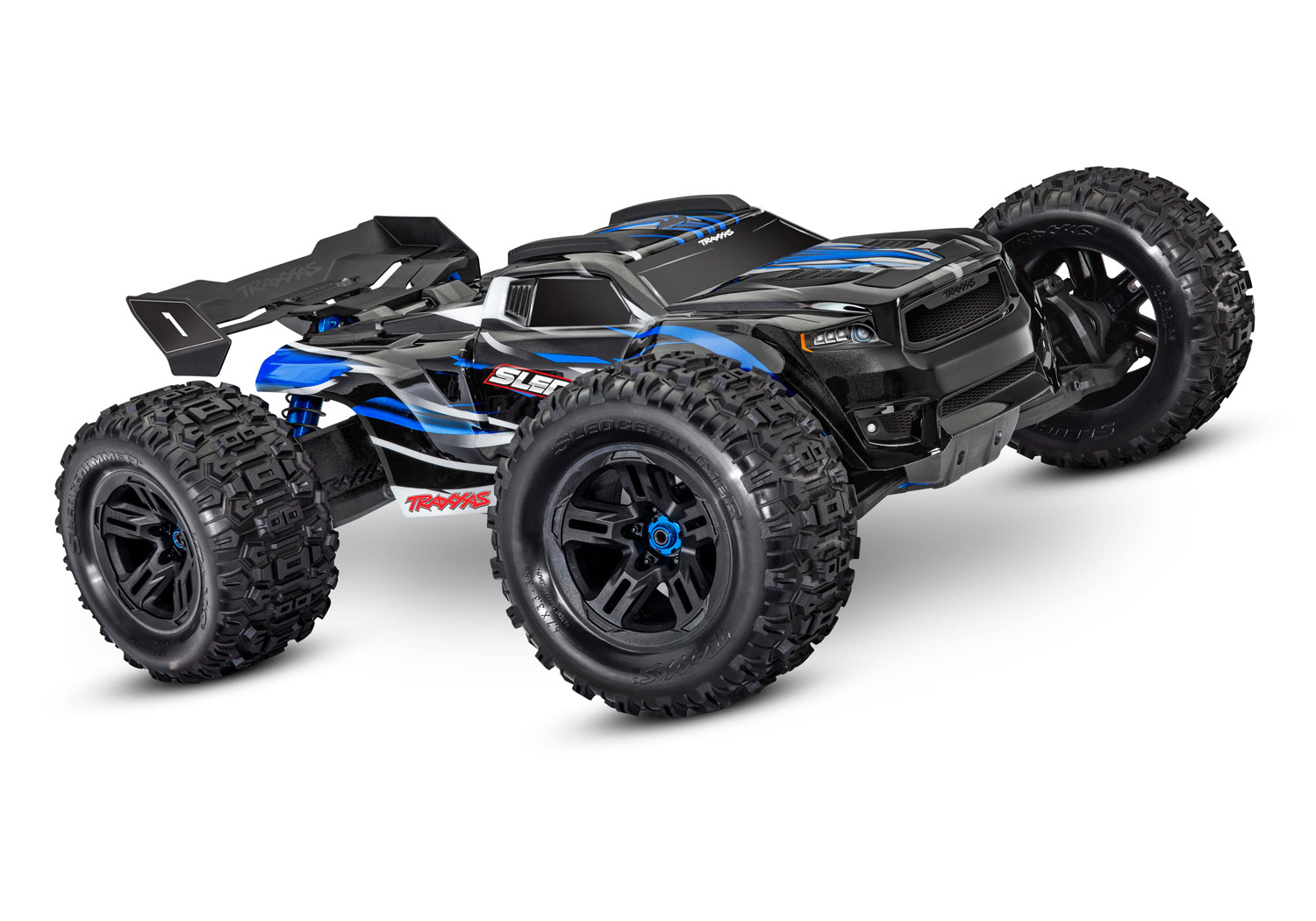

1/8 Sledge 4WD Off-Road Truck

Model Name:	Sledge
Model Type:	Monster Truck
Model Speed:	70+ mph with 6s LiPo battery and optional gearing
Model Skill Level:	4
Scale:	1/8
Weight:	12.74 lbs (5.77 kg)

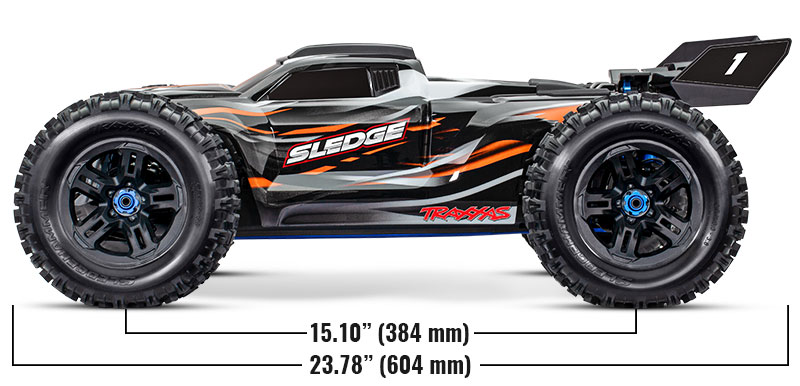

Length:	23.78 inches (604 mm including wing)

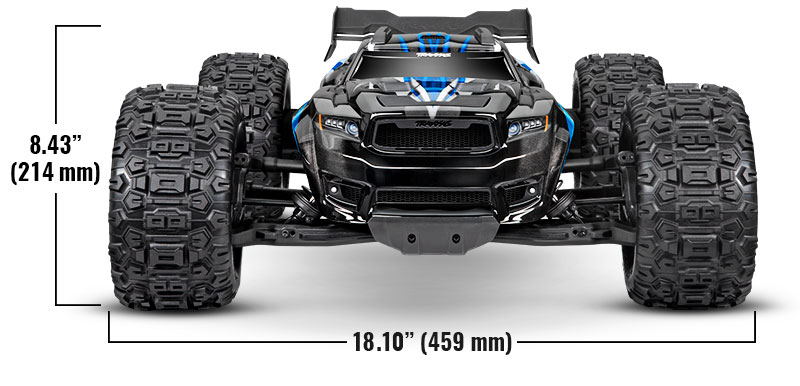

Width:	18.10 inches (459 mm)
Front Track:	18.10 inches (459 mm)
Rear Track:	18.10 inches (459 mm)
Height:	8.43 inches (214 mm)

Wheelbase:	15.10 inches (384 mm)
Center Ground Clearance:	1.95 inches (50 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Ratio (Internal):	17.2:1
Gear Pitch:	1.0 metric pitch
Servo(s):	2275 digital metal-gear waterproof (347 oz-in)
Radio System:	TQi™ 2.4 GHz transmitter with TSM^® receiver
Battery Compartment Specs:	181 mm X 57 mm X 45 mm

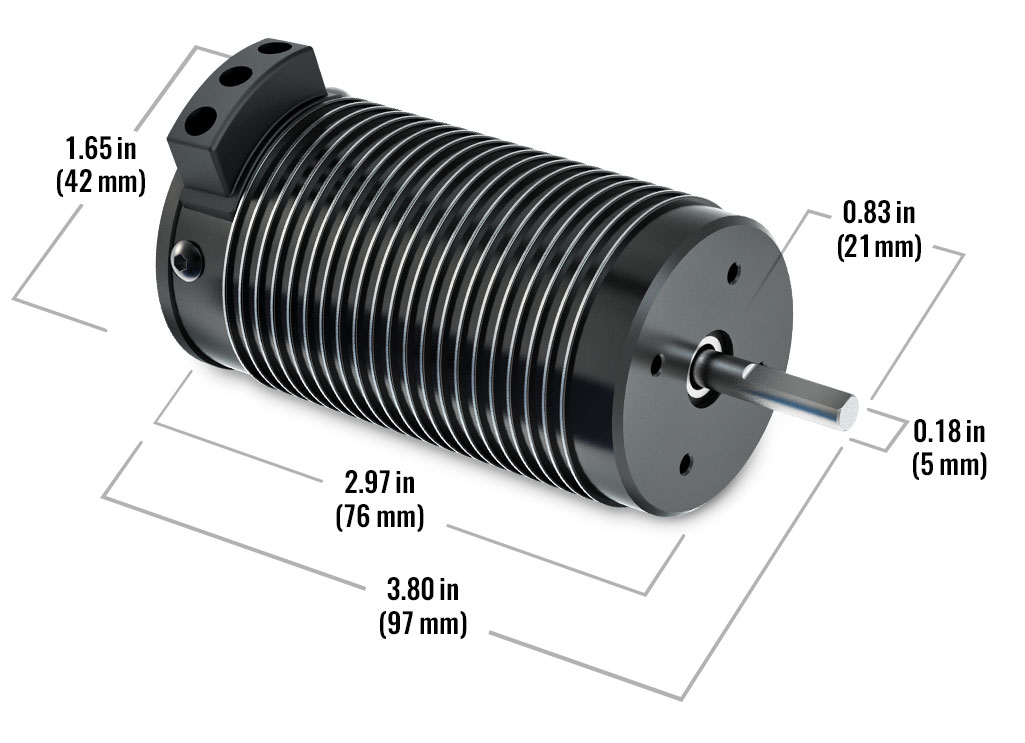

Motor Name:	4-pole 2000 kV
Motor Type:	2000 kV sensorless brushless
Motor Weight:	14.32 oz (406 g)
Motor Length:	2.97 inches (76 mm)
Motor Diameter:	1.65 inches (42 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	Traxxas 6.5 mm bullet connectors

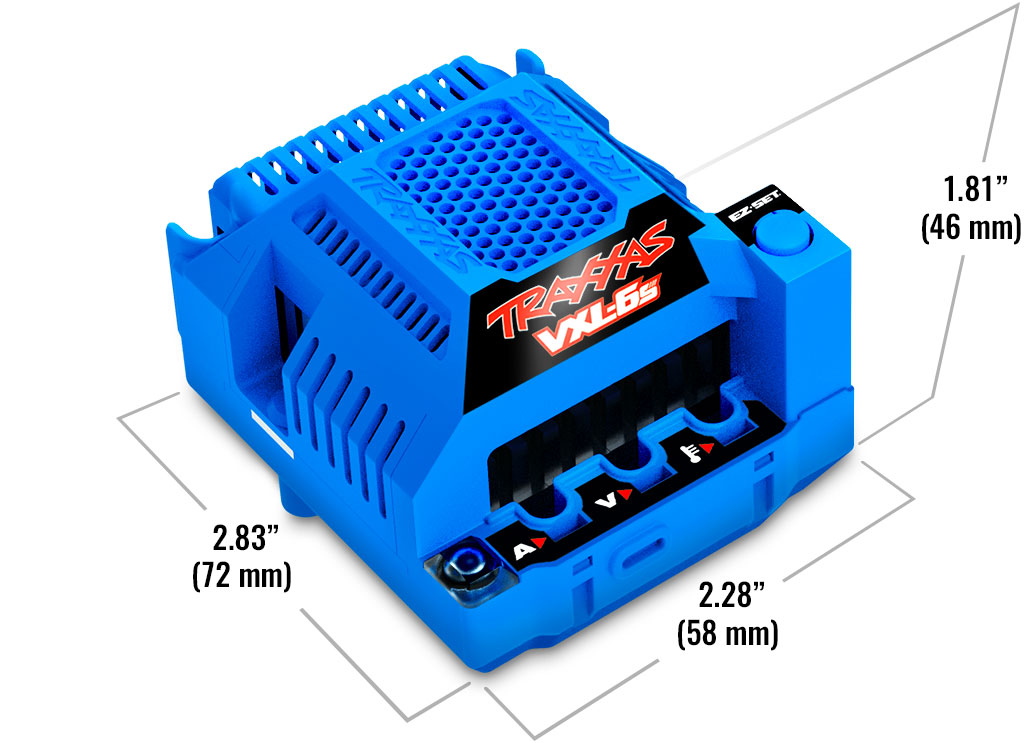

ESC Name:	VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
ESC Weight:	7.30 oz (207 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
