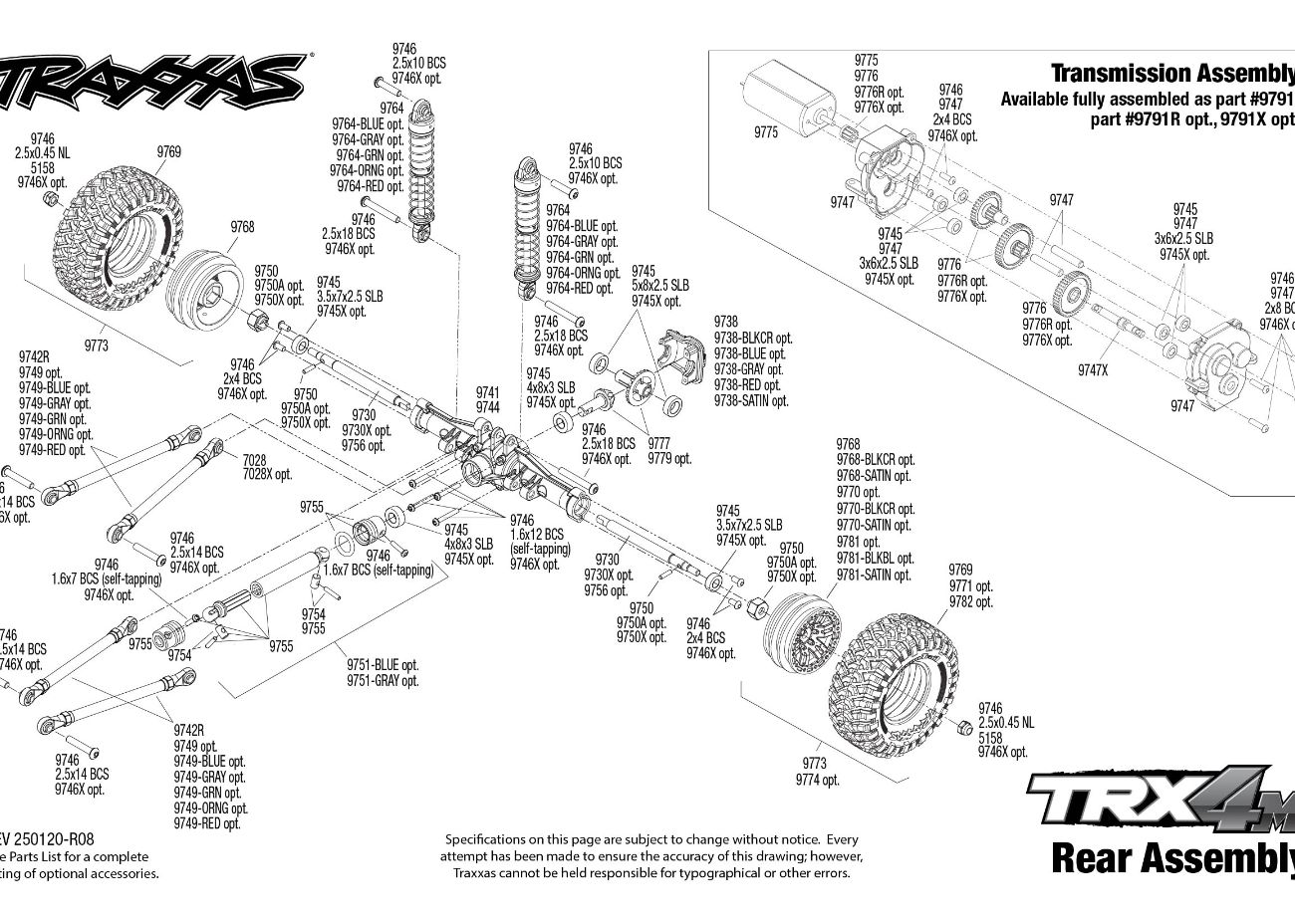

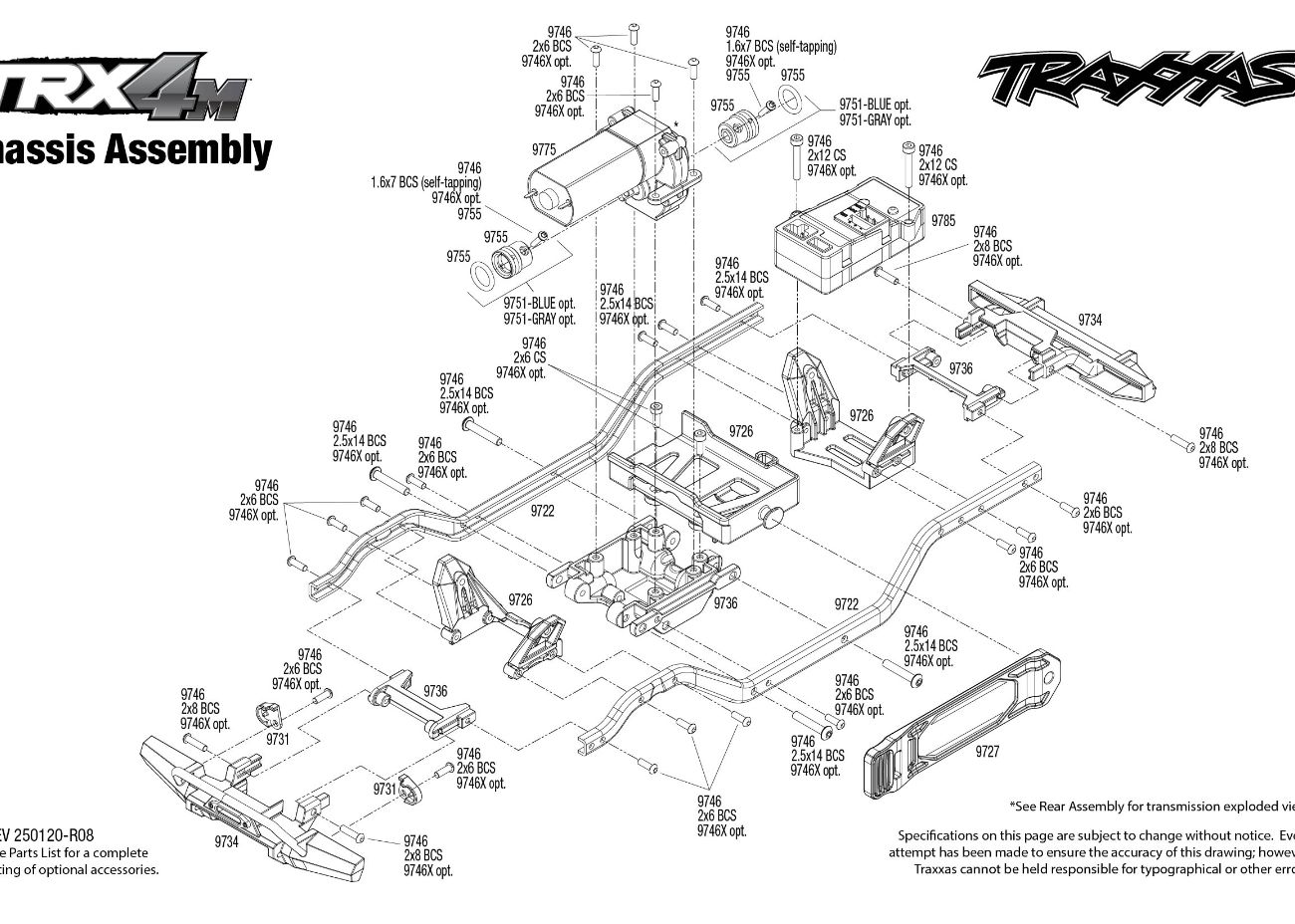

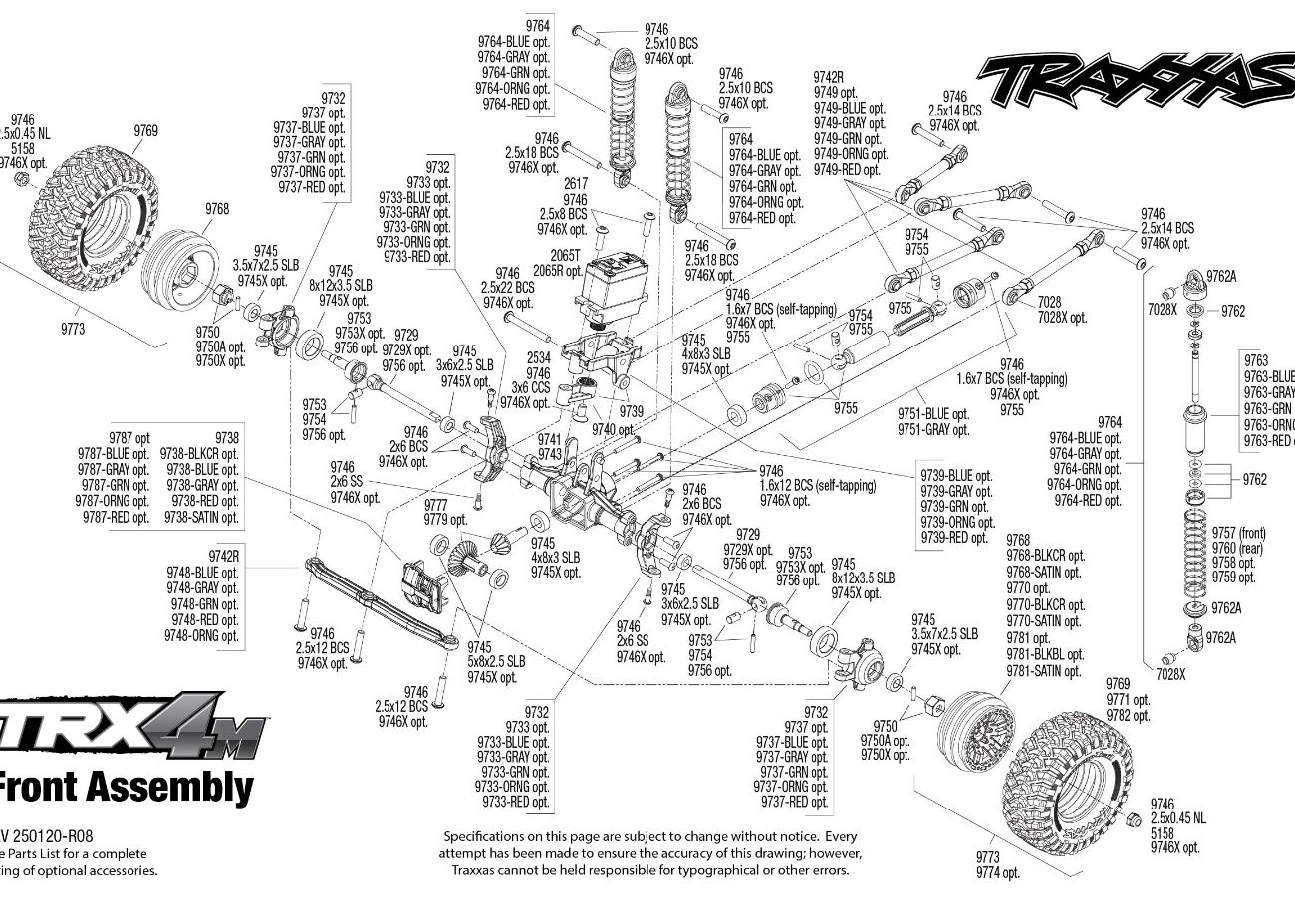

Exploded Views

Support

MODEL SPECS

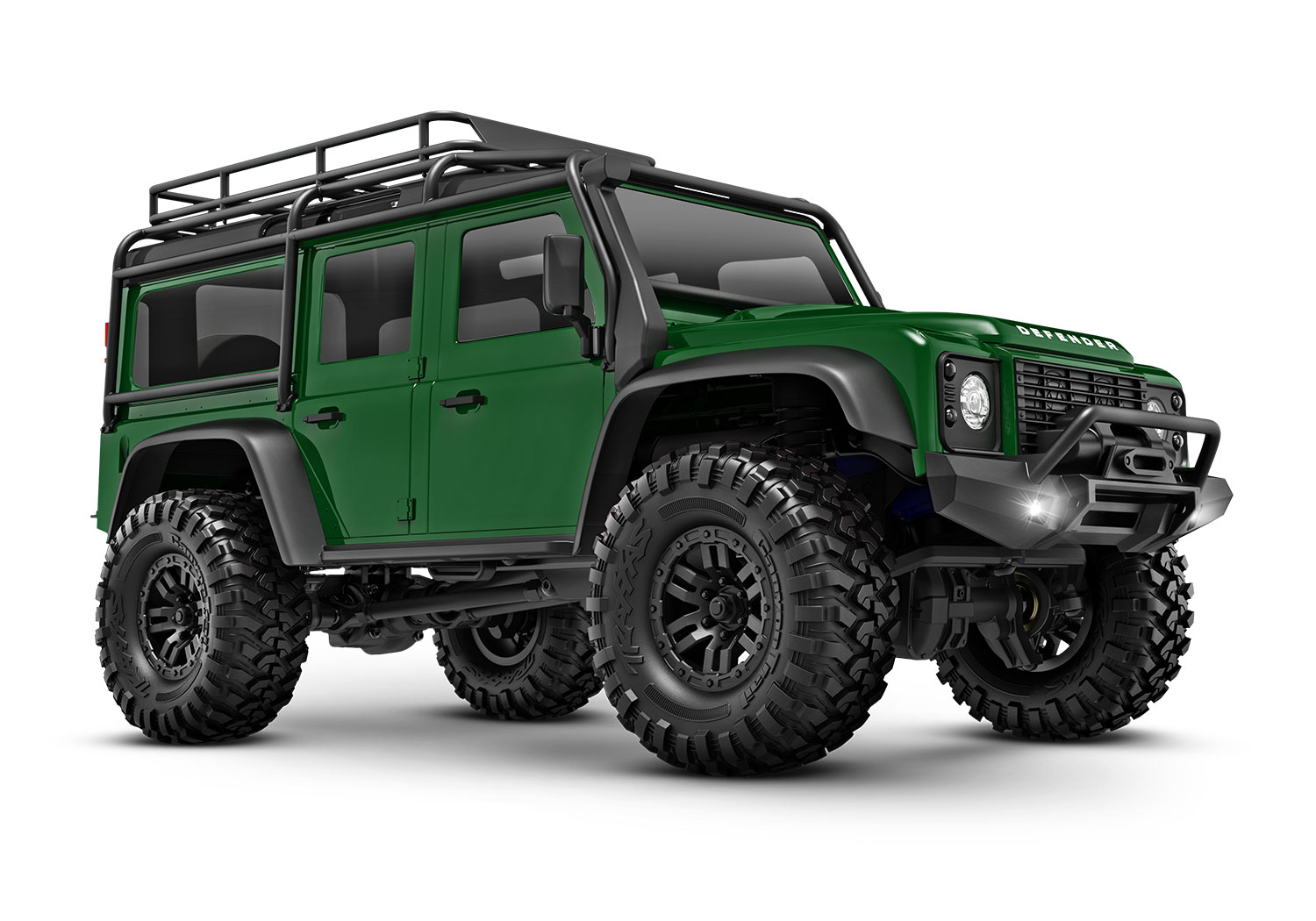

Model Name:	TRX-4M Land Rover Defender
Model Type:	Trail / Crawler
Model Skill Level:	1
Scale:	1/18
Weight:	1.06 pounds (483 g)
Length:	11 inches (279 mm)
Width:	4.9 inches (124 mm)
Front Track:	4.9 inches (124 mm)
Rear Track:	4.9 inches (124 mm)
Height:	5.3 inches (135 mm)

Wheelbase:	6.1 inches (155 mm)
Center Ground Clearance:	1.12 inches (29 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed direct drive
Differential Type:	Locked spool
Gear Ratio (Internal):	11.38
Servo(s):	2065T
Battery Compartment Specs:	51 mm X X 31 mm

MOTOR SPECS

Motor Name:	Titan 180
Motor Type:	87-turn brushed motor
Motor Weight:	1.16 ounces (33 g)
Motor Length:	1.66 inches (42 mm)
Motor Diameter:	.81 inches (21 mm)

ESC SPECS

ESC Name:	ECM 2.5™
ESC Type:	Brushed
ESC Case Size:	1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
ESC Weight:	.92 ounces ( 26 g)

Officially Licensed Land Rover^® Defender^® Clipless Body

Highly-detailed ABS hard body

Molded-in color won’t chip or flake
Tough fender flares and rock sliders
Realistic side mirrors, door handles, & wipers
LED bumper lights

Heavy-duty latching clips

Hold tightly on the trail
Release in just seconds

ECM-2.5™ Electronic Control Module

Incorporates ESC, receiver, and LED controller in one chassis
Fully waterproof for all-weather fun
Three drive profiles

Sport Mode — forward / brake / reverse
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set^® one-button setup
Built-in Pro Scale^® LED functionality
Two stage low voltage protection (LVD)
Motor overload protection

TQ™ 2.4 GHz Transmitter

Full-size 2-channel transmitter
All-day comfort with precise long-range control

Titan^® 180 87-Turn Brushed Motor

Fixed gear mesh doesn’t require adjustment
Forward mounting position for improved crawling dynamics

Heavy-Duty Steel Ladder Frame

Deep C-channel design
Thicker center section for maximum rigidity
Rails run from bumper to bumper

Drivetrain

Full-time shaft-driven 4-wheel drive
Solid steel axles
Spool-equipped front and rear axles
Heavy-duty CV center driveshafts

Low-CG Battery Tray

Concentrates weight lower for improved stability
Wide rubber strap secures battery in place

Optional Transmission Ratios (sold separately)

Optional Low Range or Speed Gearing transmissions
Modular design swaps out in minutes

Steering

Heavy-duty 2065T steering servo

Metal main gear

Superior 45° steering angle
Direct steering (no servo saver)

Suspension

Triangulated 4 link front and rear
Heavy-duty rod ends

Oil-Filled GTM™ Shocks

Provides smooth controlled damping
Realistic driving body movements
Adjustable pre-load spacers
Easily refreshed with available rebuild kits

Wheels and Tires

Highly-detailed 1″ wheels

7 mm hex

Canyon AT tires
Trail-tuned rubber compound

Battery and Charger Included

High-capacity 2-cell LiPo battery with iD^®

7.4 volts
750 mAh for over an hour of run time

2-amp USB-powered charger
iD^® technology for faster, safer charging

Low-Maintenance Self-Lubricating Bushings
Durable Hex hardware

Learn More

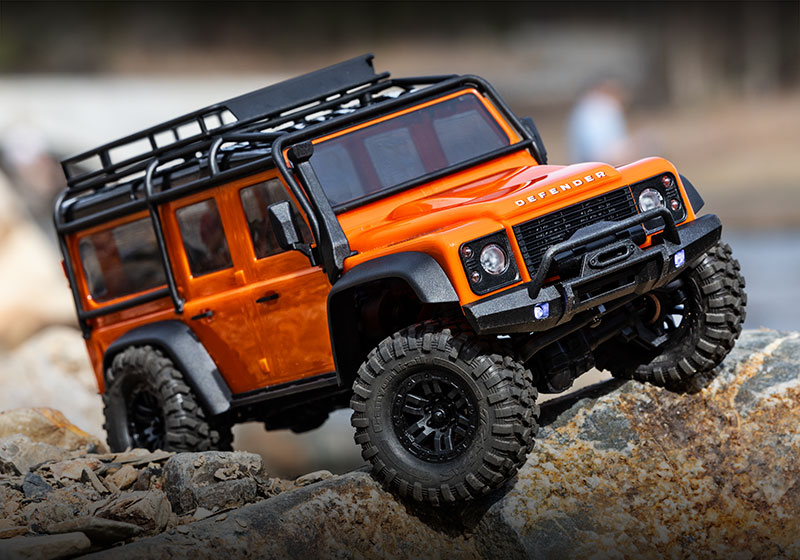

TRX-4M^®: Big Fun and Adventure in a Smaller TRX-4

Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.

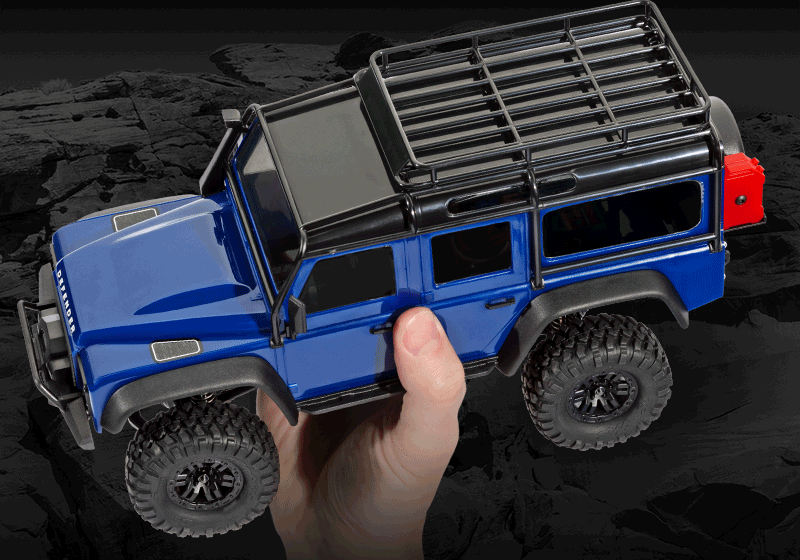

The Right Size for Fun

TRX-4M is the perfect size to fit in a backpack for fun on the go. It’s small, powerful, and maneuverable so just about any space becomes an instant trail or crawling course. Whether it’s a mountain of books indoors or a rock garden in the backyard, TRX-4M is always ready for big fun and adventure.

All-Terrain Versatility

TRX-4M is equipped to take on tough off-road terrain with grippy soft-compound tires, precision-engineered 4-link suspension geometry, and smooth oil-filled shocks. High center ground clearance, big approach angles, and low CG give the TRX-4M impressive capability everywhere it goes.

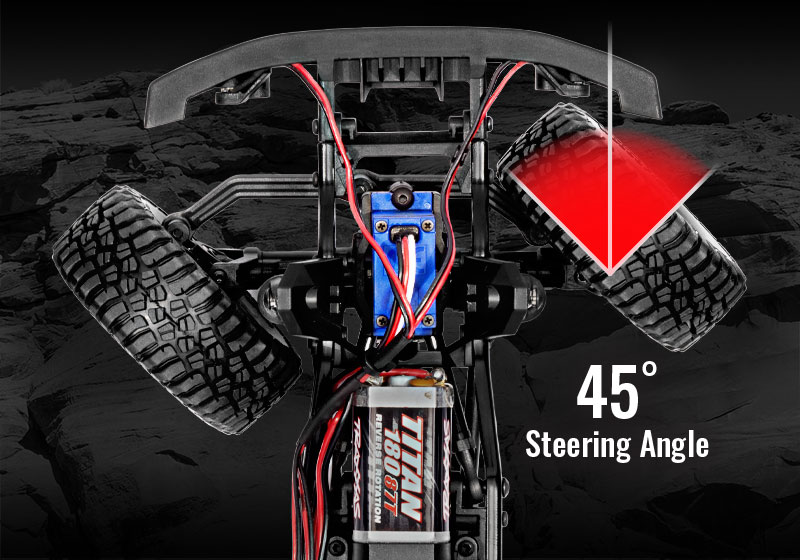

45° Steering Angle

A full 45° steering angle gives TRX-4M an exceptionally tight turning radius and extreme maneuverability in small spaces where every inch counts. A heavy-duty 2065T steering servo delivers powerful steering authority, even on thick carpet.

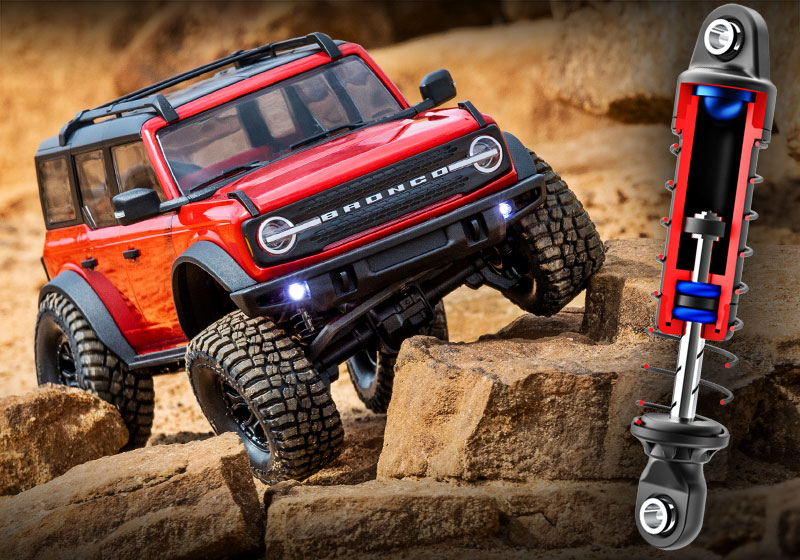

Oil-Filled GTM™ Shocks

TRX-4M’s oil-filled GTM shocks offer smooth suspension damping to keep the wheels firmly planted on uneven surfaces. The added control also keeps the body from bouncing around on rough terrain for a more realistic driving experience.

Detailed ABS Body With Clipless Mounting

The innovative clipless body removes and installs in just seconds with no clips to lose or frustrating hook and loop tabs. Tough, highly detailed ABS bodies feature molded-in color with a deep glossy finish that won’t chip or scrape off.

Waterproof Electronics

TRX-4M is the truck that goes where you want to go, without boundaries or restrictions. Only Traxxas’ fully-waterproof innovation gives you the freedom to drive through wet grass, puddles, and streams that force others to turn around.

Video

Action

In-Depth Overview

Innovation

TRX-4M captures all the functionality of a full-size TRX-4 in a smaller 1/18 size for an all-new driving experience.

Ultimate Small-Scale Crawler

TRX-4M provides all the fun and versatility of a compact crawler without any of the limitations. TRX-4M is larger and yet more maneuverable than 1/24 scale vehicles with its tighter turning radius. TRX-4M’s tires and superior ground clearance open the door for tough off-road terrain and big challenges.

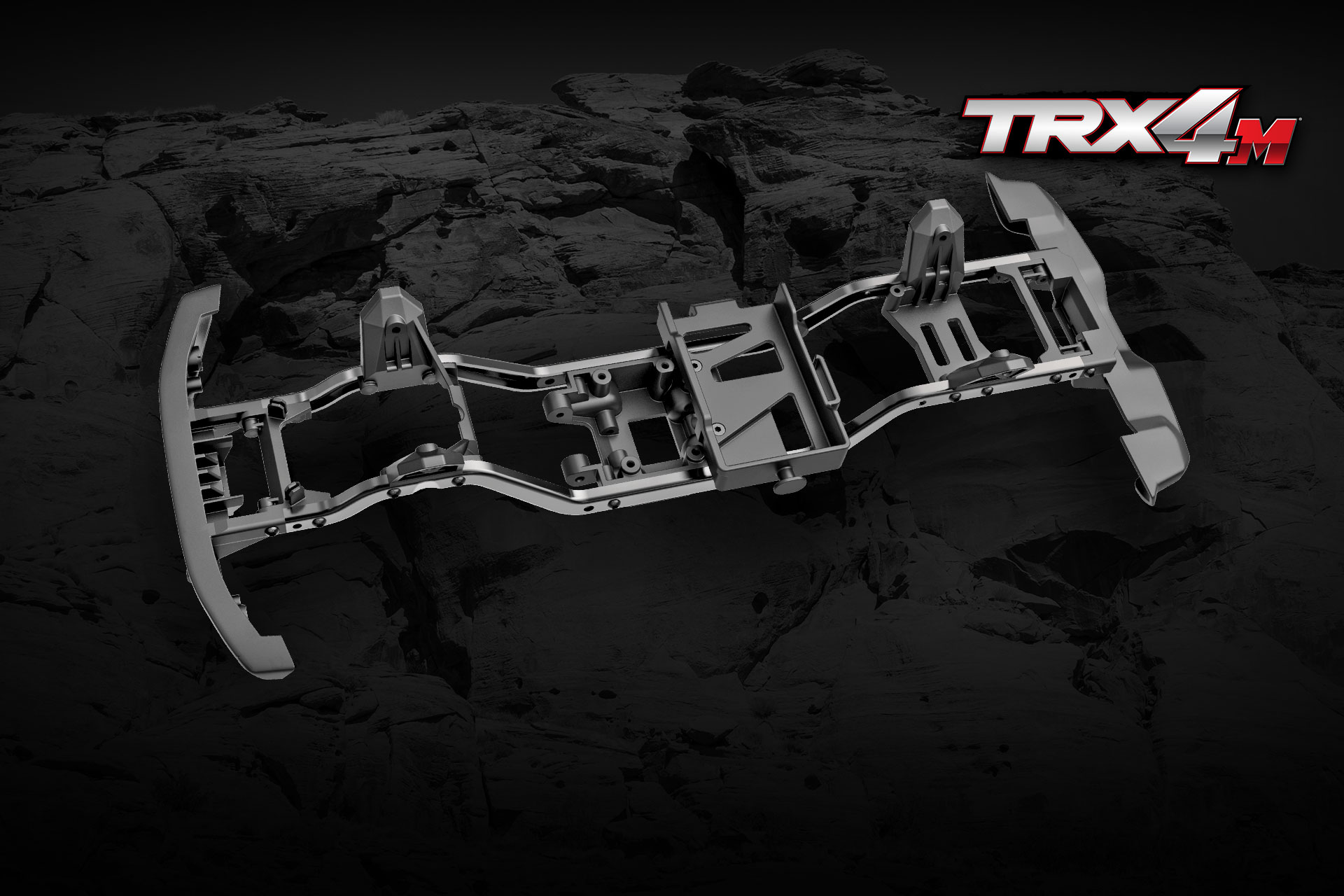

Heavy-Duty Steel Ladder Frame

TRX-4M performs like a full-size crawler because it’s built like one. A rigid steel ladder frame virtually eliminates flex to put more power to the ground. The steel frame rails are taller through the middle section for increased strength where it’s needed most.

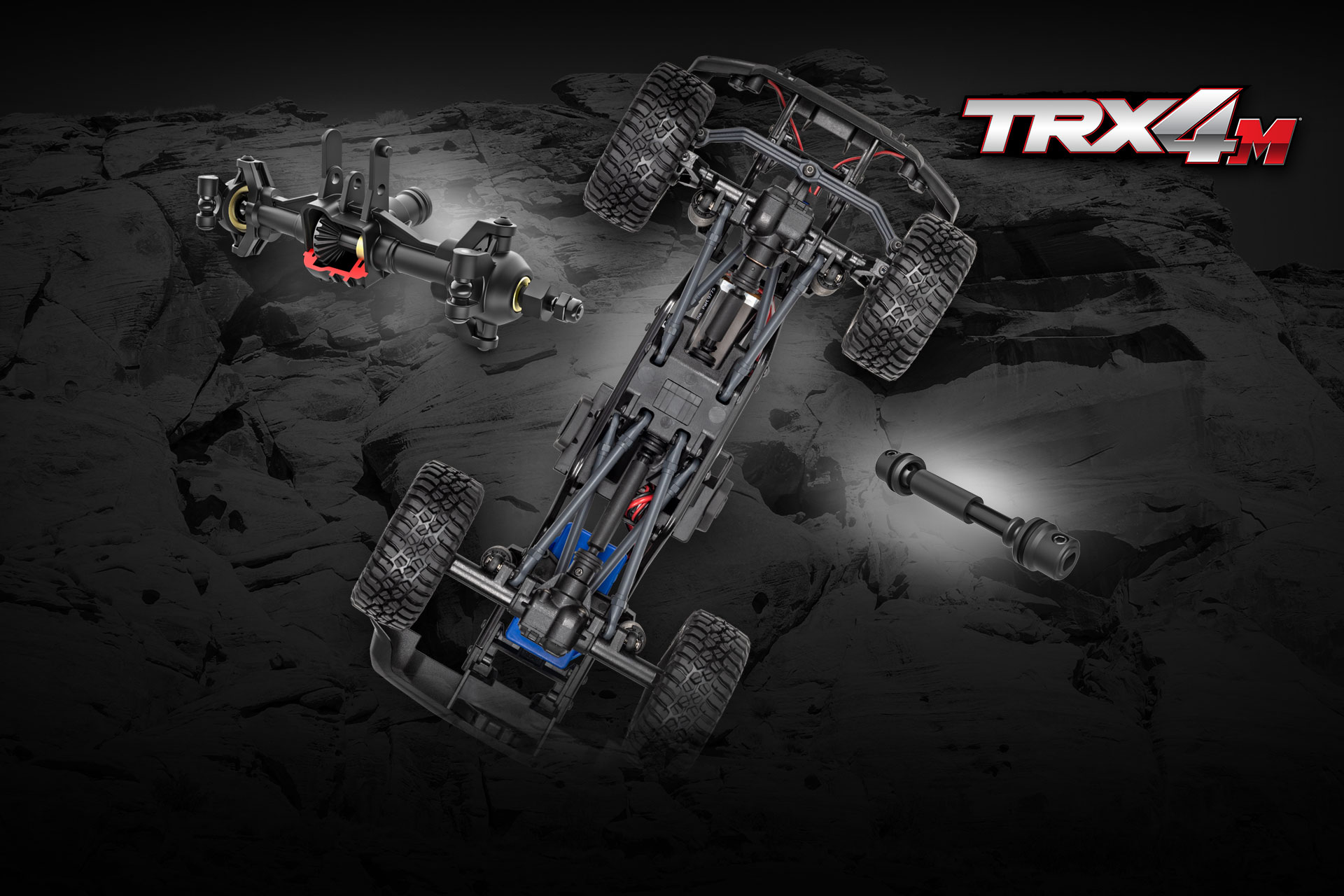

Trail-Ready Chassis and Driveline

TRX-4M rides on a sophisticated four-link suspension with heavy-duty linkages. Spool-equipped solid axles supply non-stop climbing power to all four wheels with excellent articulation to climb over the toughest obstacles. Heavy-duty telescoping center driveshafts send the motor’s torque to the axles with a smooth-running CV design.

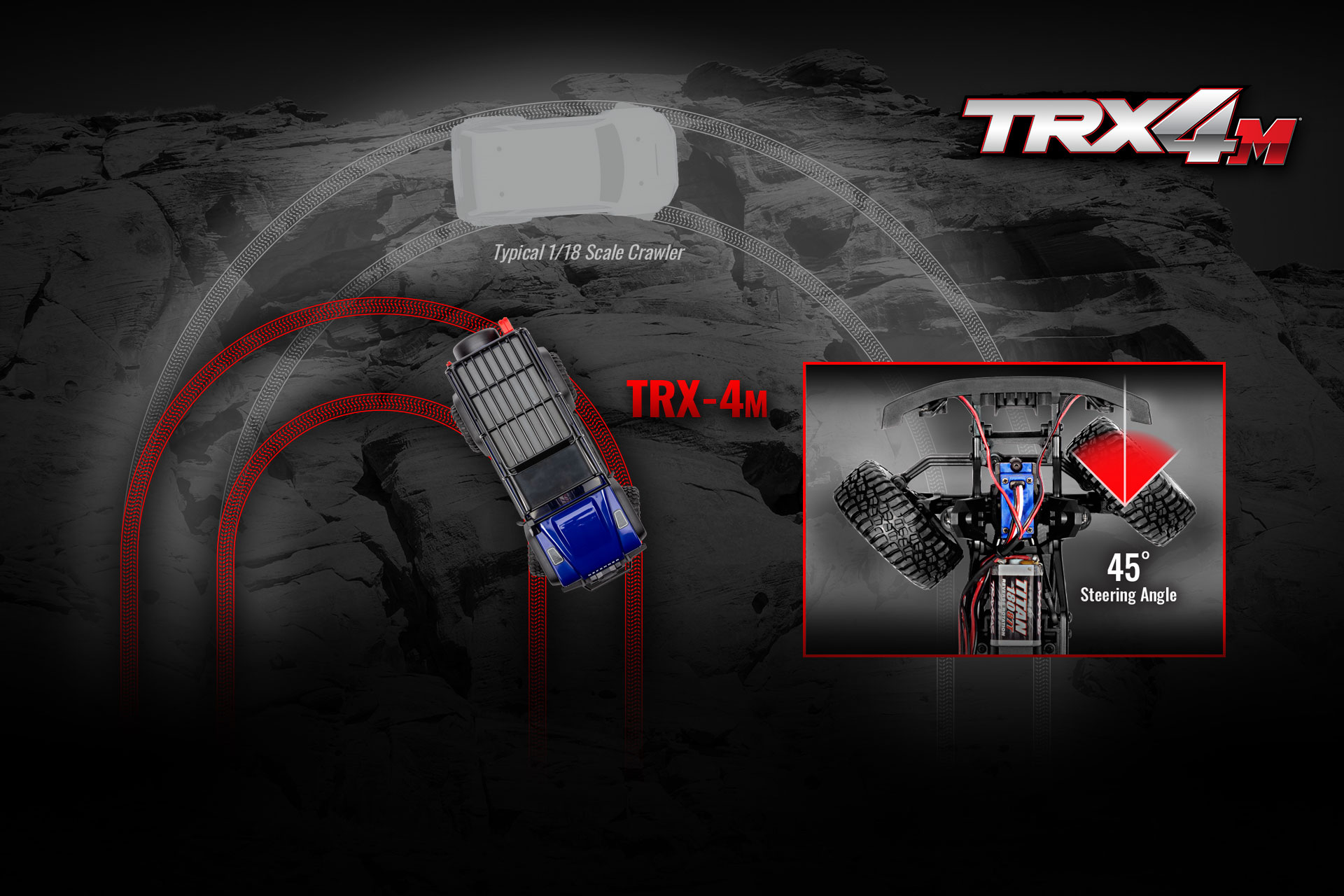

Tight Turning Radius

TRX-4M outmaneuvers much smaller trucks thanks to its exceptional 45° steering angle—an impressive feat considering its larger and more versatile size.

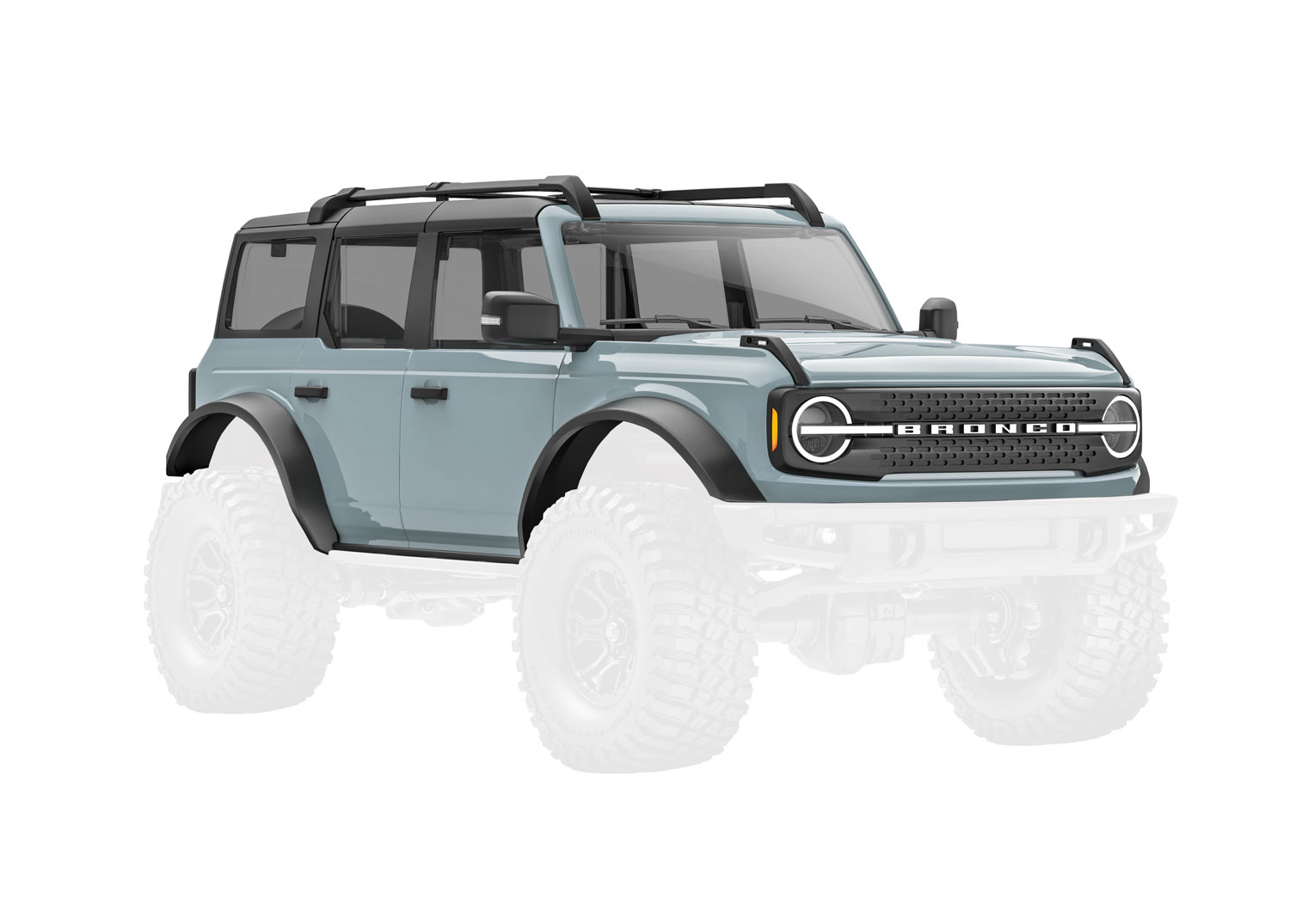

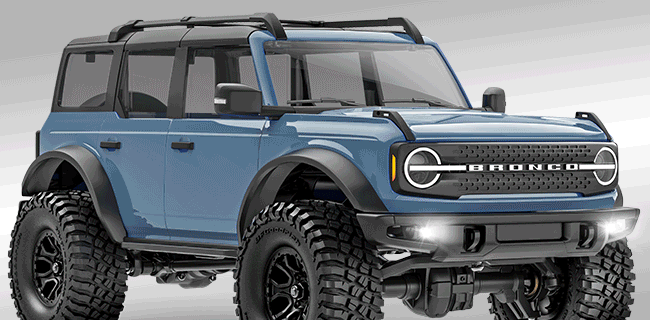

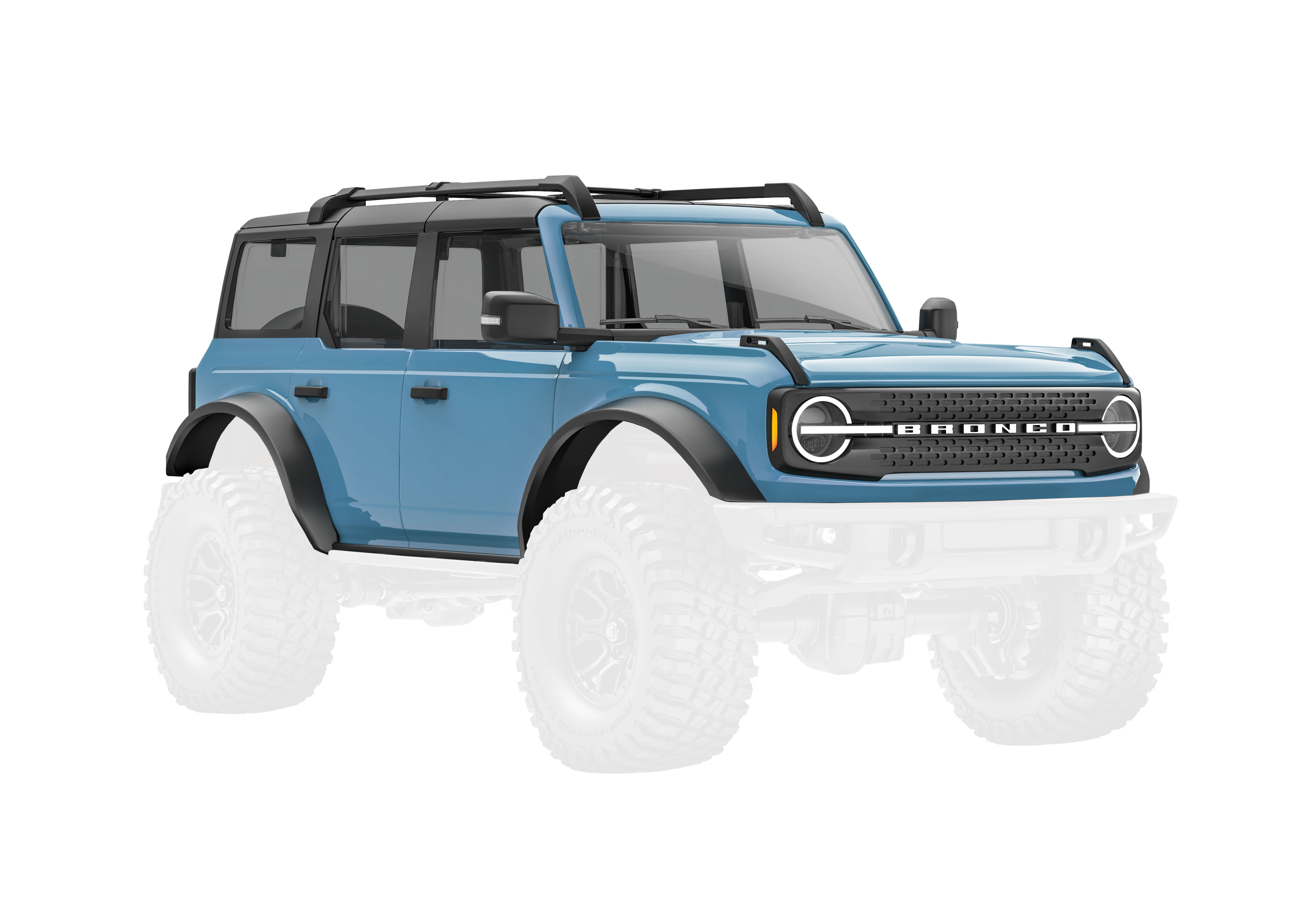

Detailed ABS Bodies

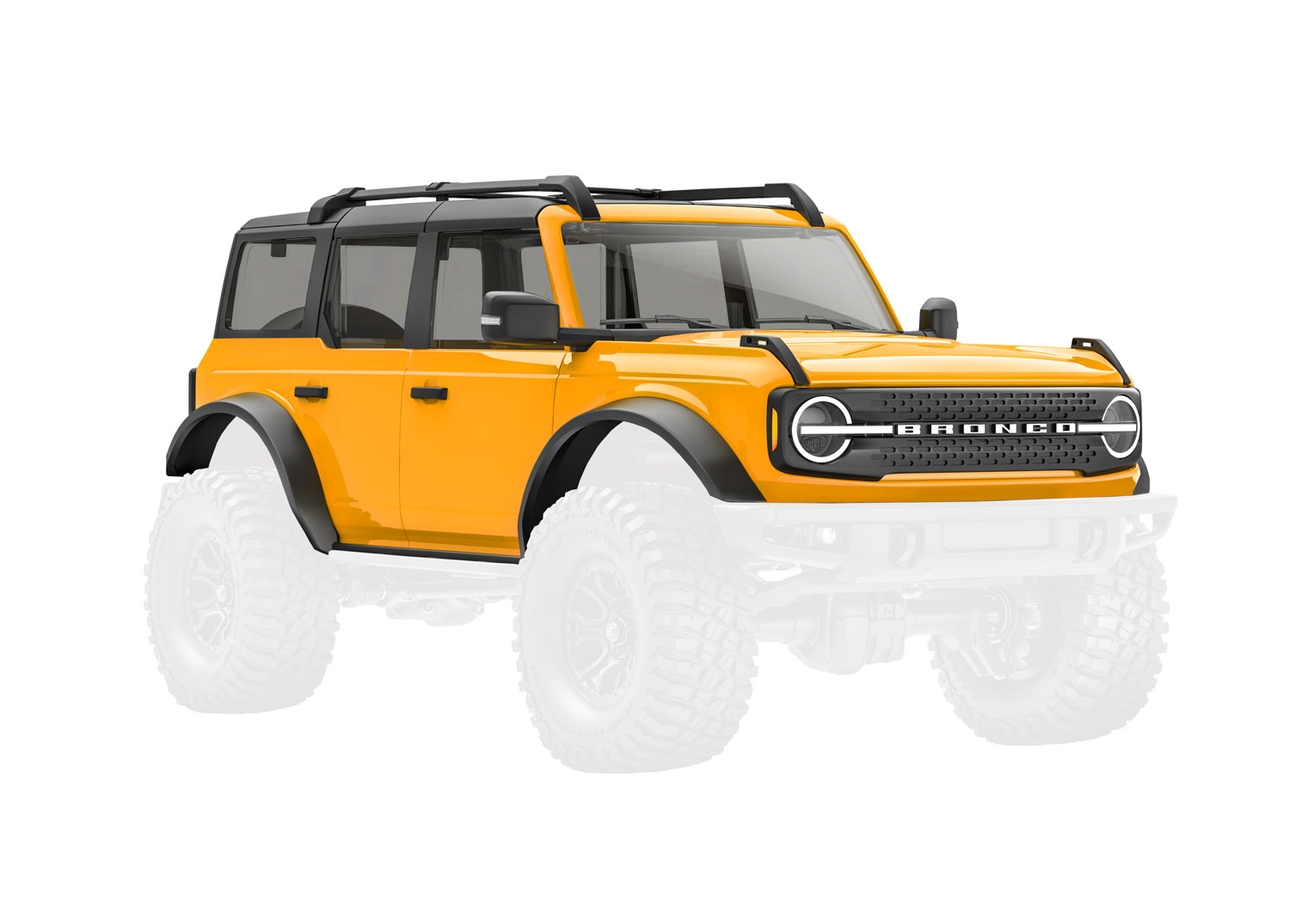

Constructed out of tough ABS, TRX-4M bodies faithfully capture all the details of the full-size Bronco and Defender in exacting 1/18 scale. Tinted windows, spare tire carriers, and other molded body accessories give TRX-4M a truly authentic appearance.

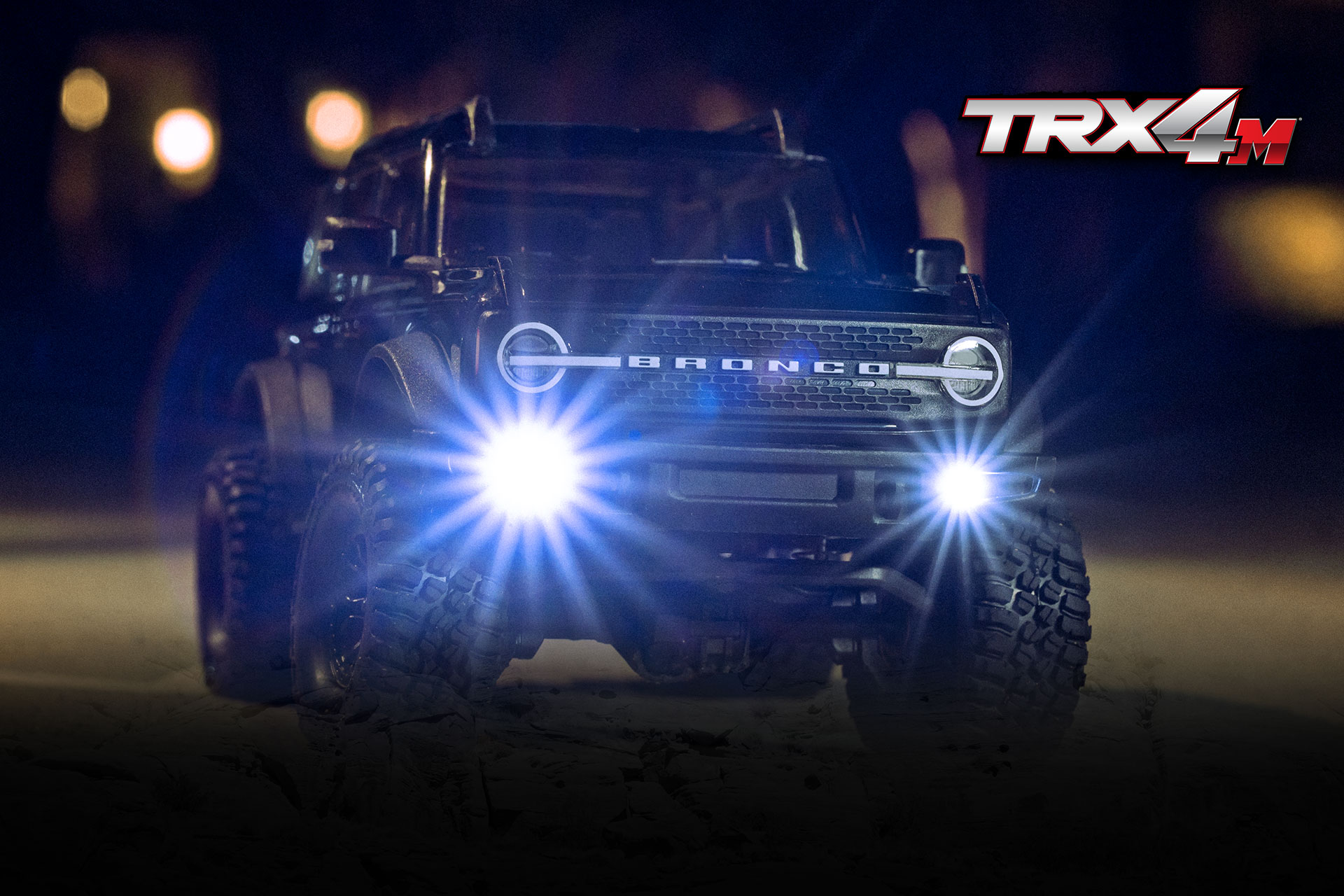

LED Driving Lights

TRX-4M’s standard LED driving lights create new avenues for fun as you challenge your driving skills through sofa-cushion tunnels or over garden obstacles when the sun goes down.

Soft-Compound Tires

TRX-4M’s larger 1/18 size puts more rubber to the ground for exceptional off-road performance. Detailed wheels and tires are sized just right to carry TRX-4M up and over real-world obstacles with a stunning scale appearance.

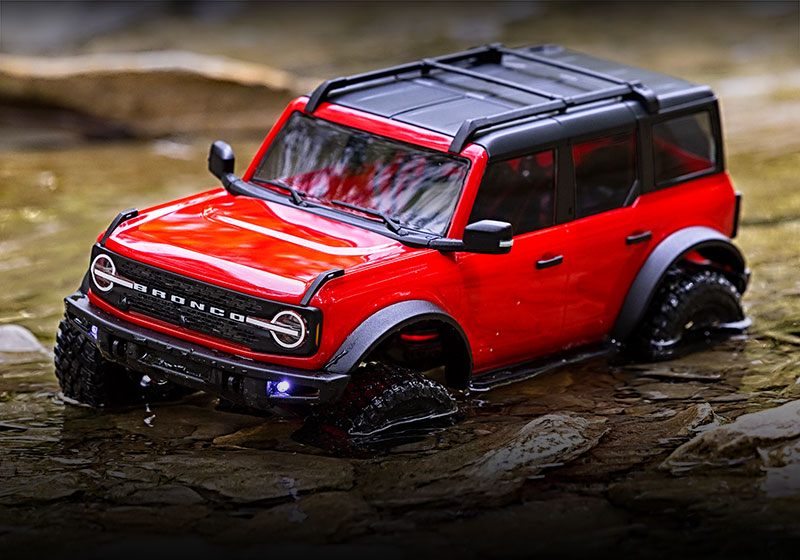

Waterproof Electronics

You’ll never need to change course to avoid puddles, mud, or snow. We built TRX-4M for all-weather adventure with fully-waterproof electronics.

Innovative New Electronics

The all-in-one ECM-2.5™ incorporates all the features of an XL-5™ speed control, TQ receiver, and Pro Scale^® Lighting Control Module into one sleek waterproof package. The ECM-2.5 features three realistic driving modes with smooth, precise control and outstanding throttle response.

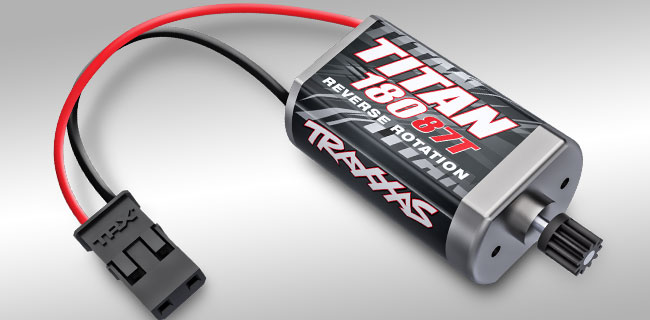

Titan^® 180 87T Motor

The powerful 87-turn Titan 180 motor delivers precise low-speed torque to propel the TRX-4M up and over technical obstacles. On the trail, the TRX-4M offers surprising speed to keep pace as you walk alongside to find the next challenge.

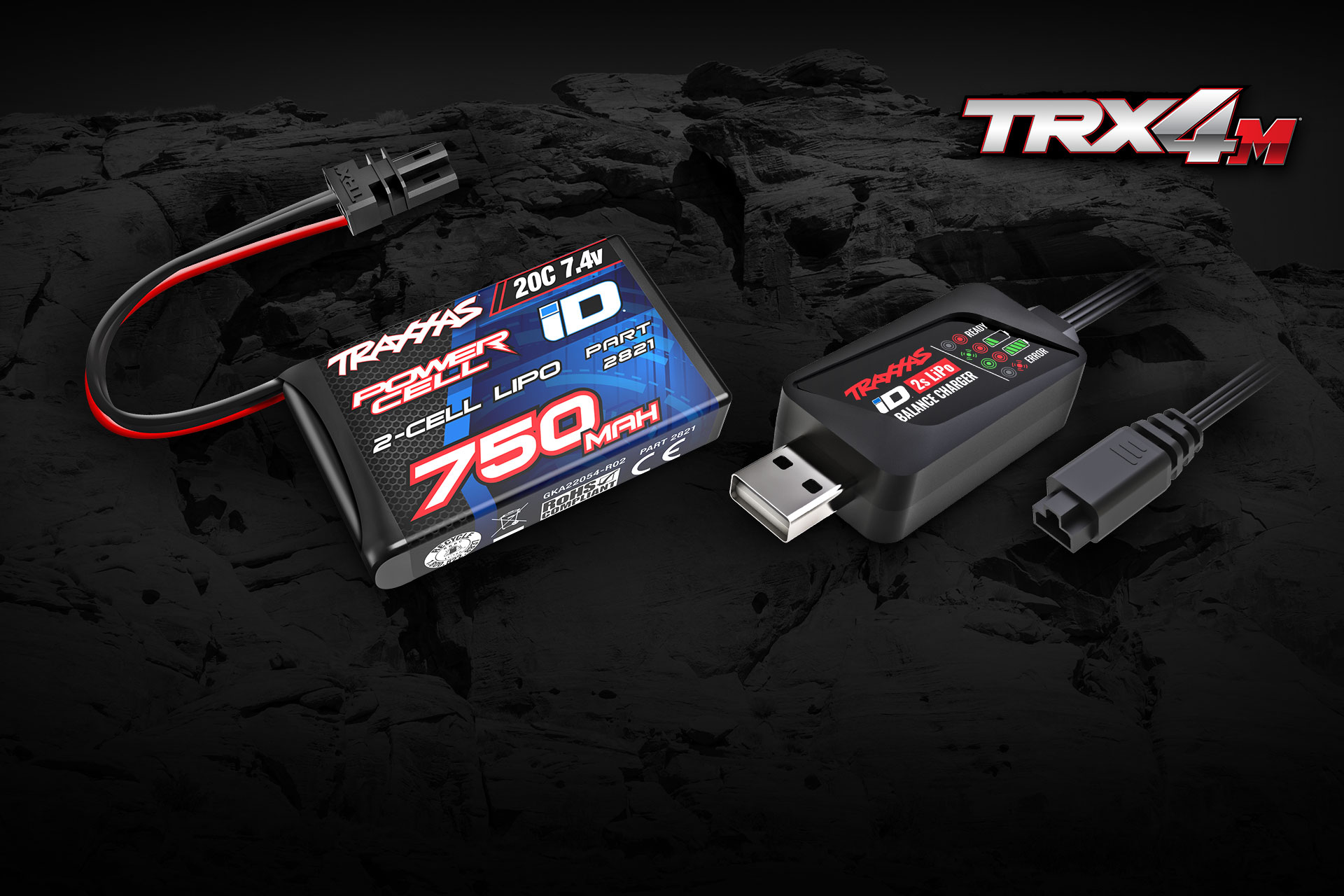

High Capacity LiPo Battery and Fast Charger

A high-capacity 750 mAh 2-cell LiPo battery provides over an hour of runtime with 7.4 volts of high-performance power and Traxxas iD^® safety and simplicity. The included USB-powered charger provides quick and reliable fast charging at up to 2-amps of charging capability.

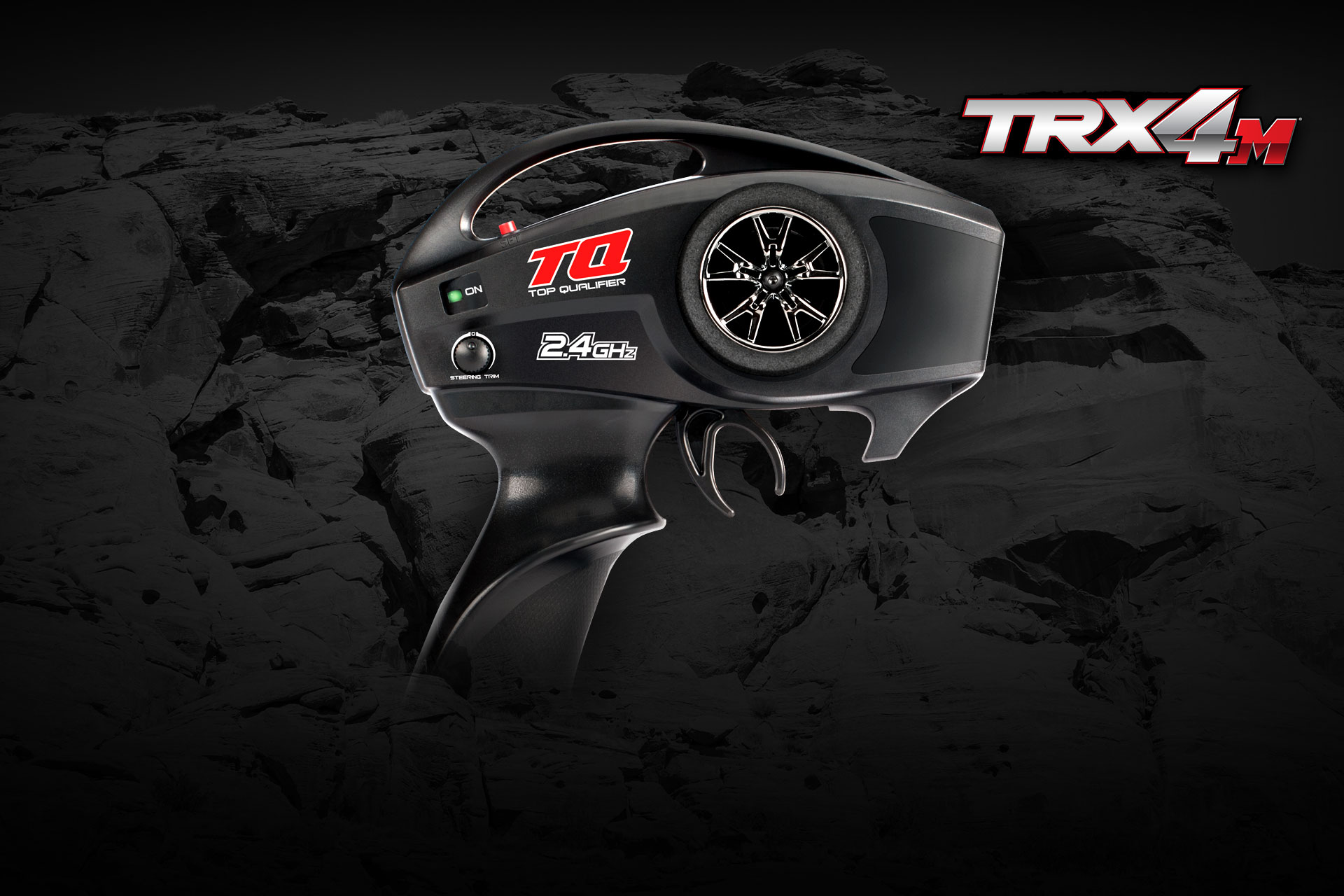

TQ Transmitter

TRX-4M comes with a full-size TQ transmitter for all-day comfort, reliability, and precise long-range control.

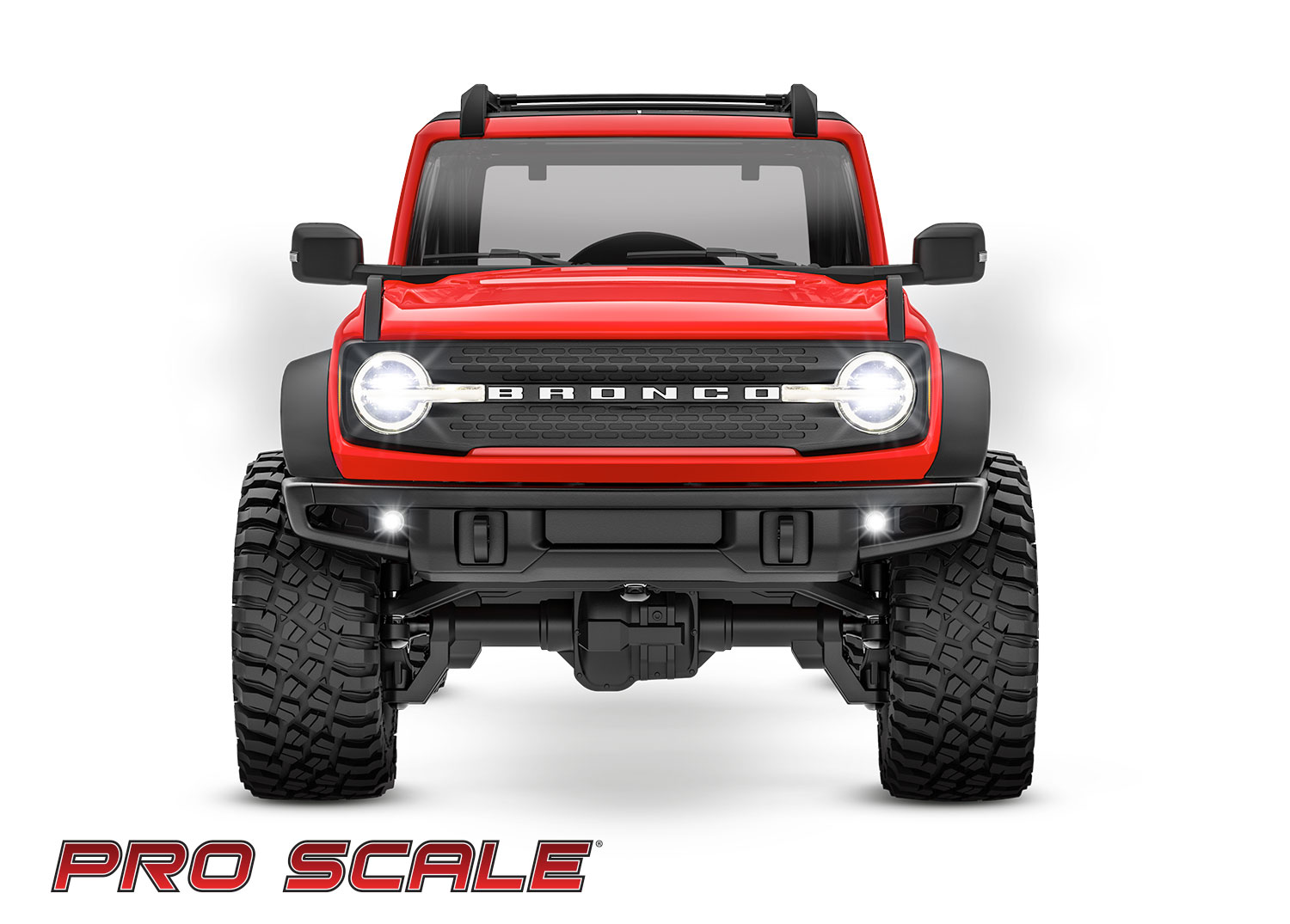

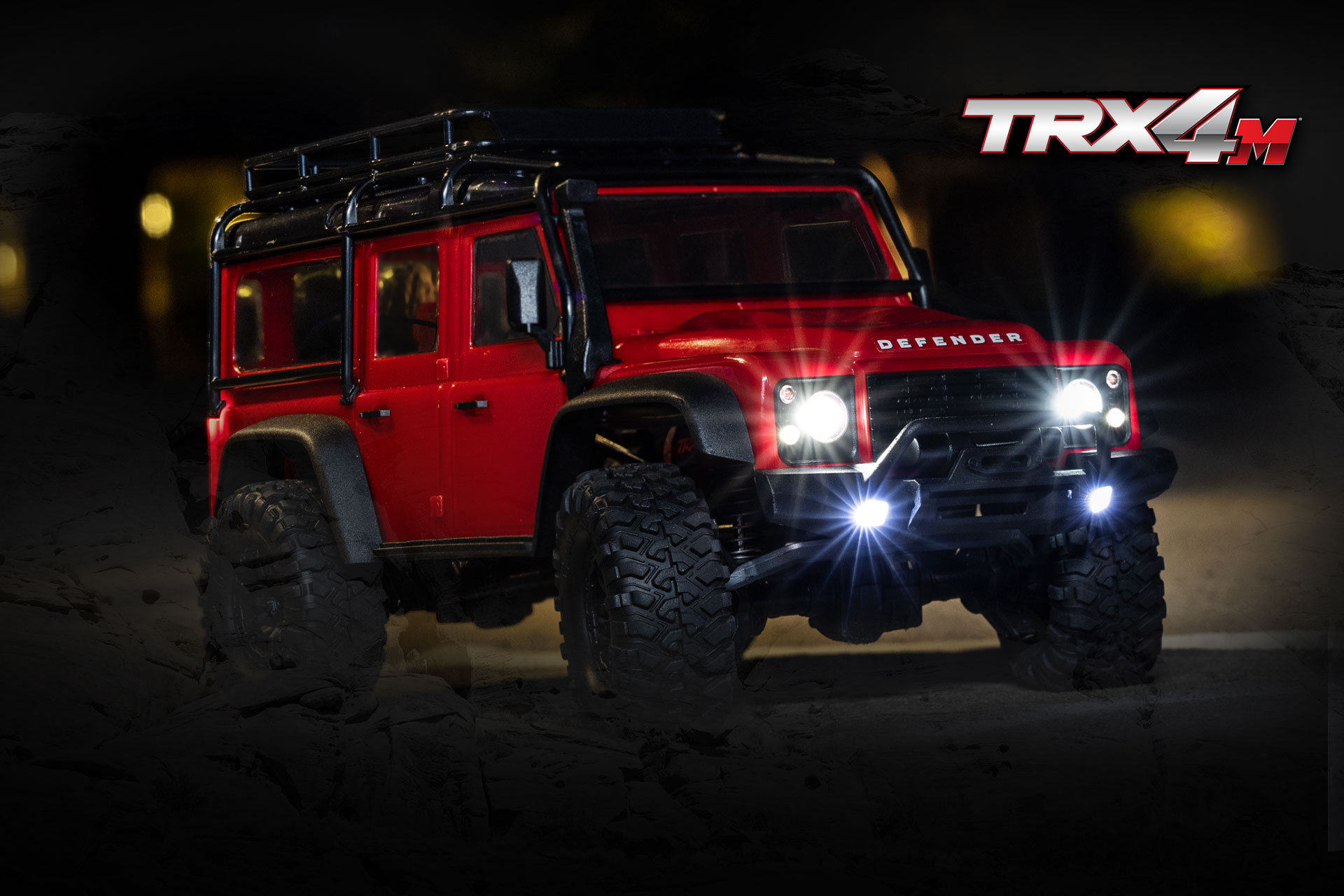

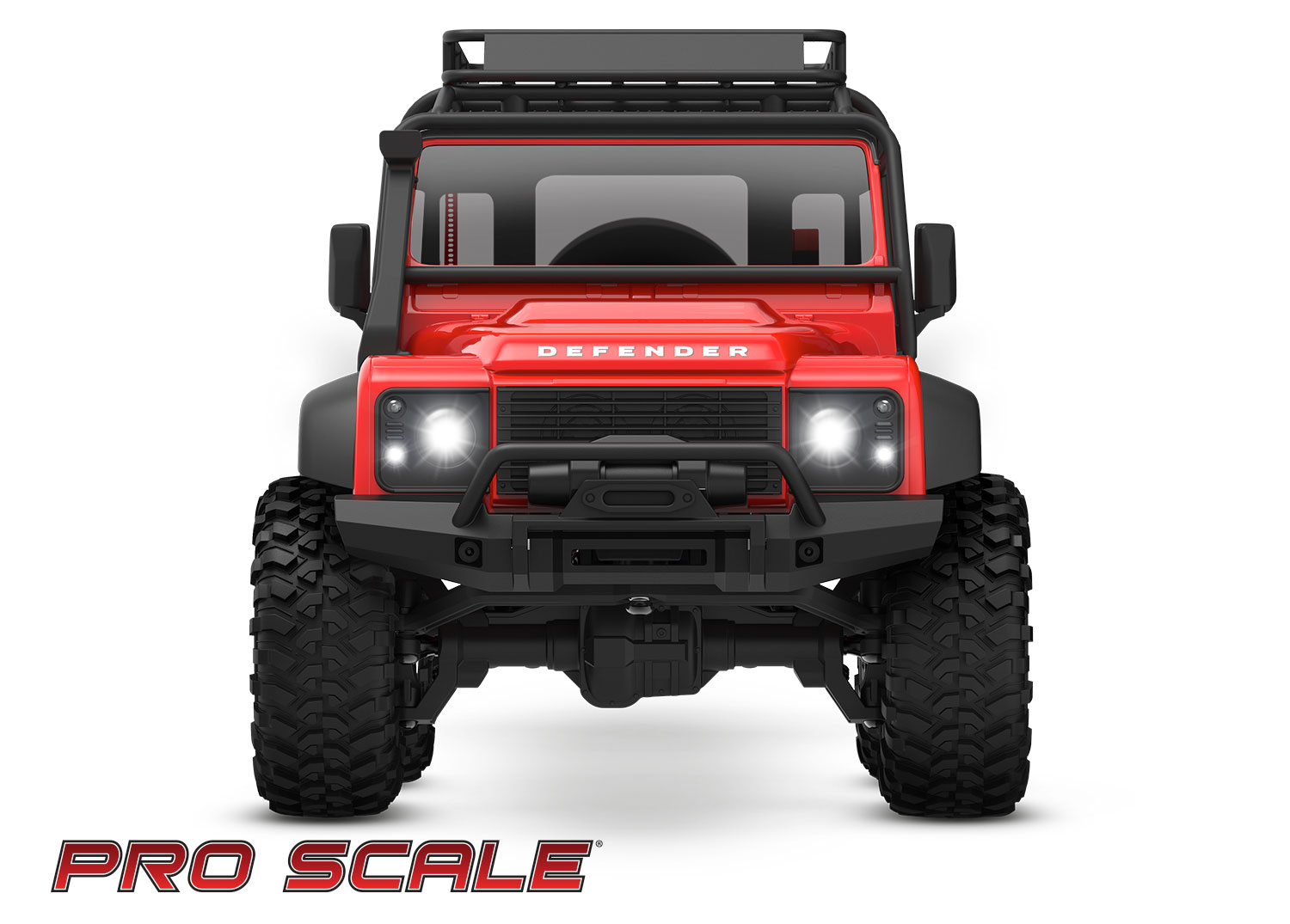

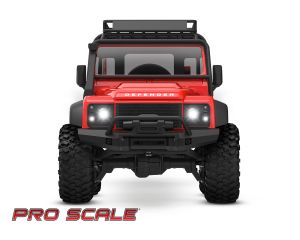

Pro-Scale Lighting Functions

Easily add accessory brake lights, reverse lights, headlights, and more by simply installing the Pro Scale LED light kit and plugging it into the ECM. The lighting control functions are already built in to the ECM-2.5™. Learn more about Bronco and Defender Pro Scale lighting (sold separately).

Details

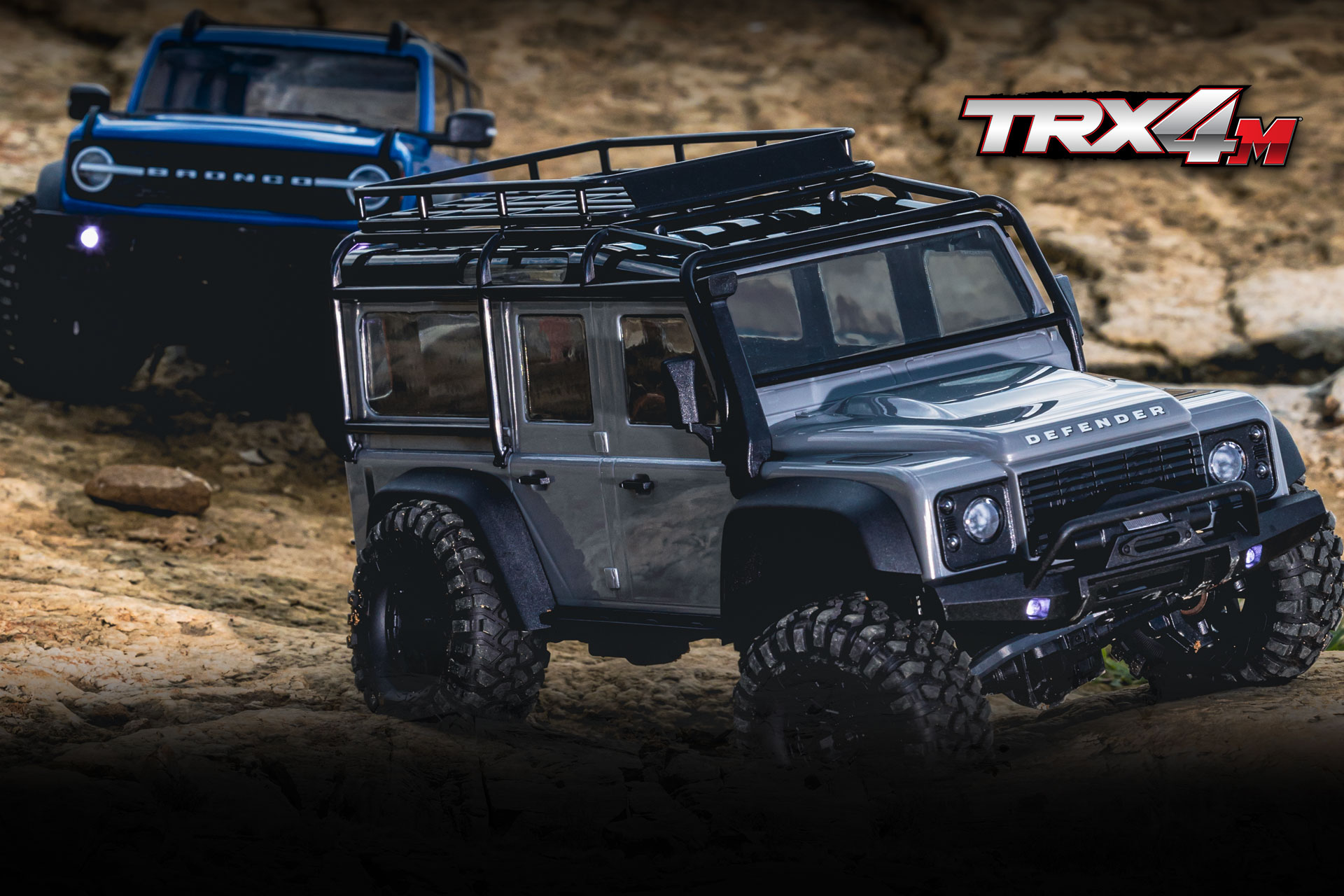

Realistic Body Elements

Great care was taken to replicate the full-size bumpers, fender flares, roof rack, and spare tire in precise 1/18 scale. Even the smallest features like side mirrors, door handles, and wipers are molded in exacting detail for exceptional scale realism.

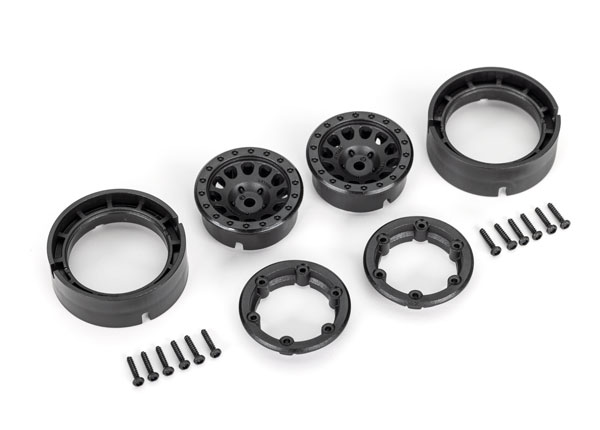

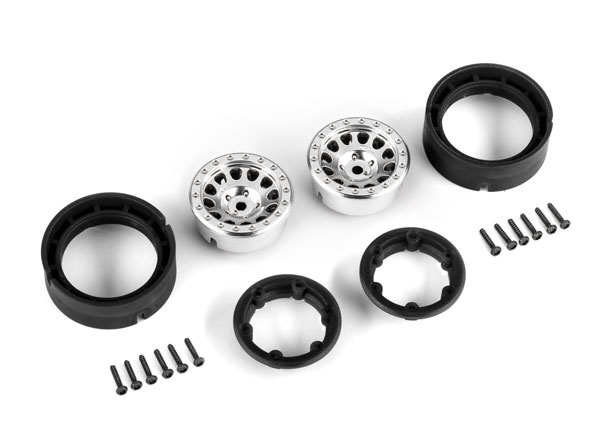

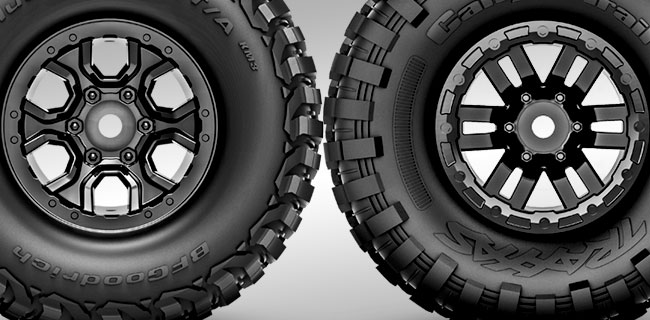

Detailed 1.0″ Wheels

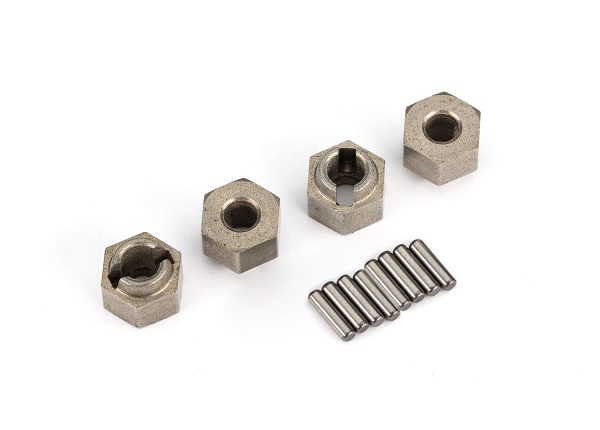

TRX-4M’s replica 1.0″ wheels are authentic scale replicas with molded lug nut and beadlock details. TRX-4M utilizes a standard 7 mm hex, making wheel swaps quick and easy.

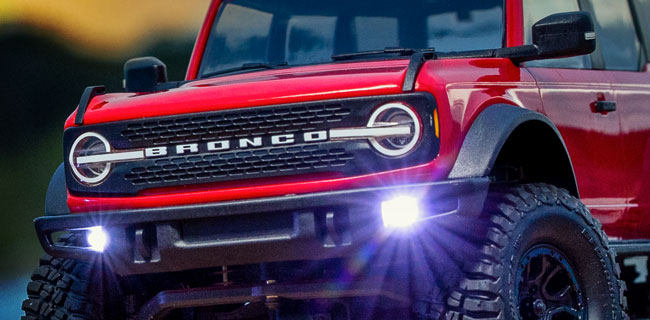

LED Lighting

TRX-4M includes standard LED lighting in the front bumper. Add optional Pro Scale^® LED lights and your TRX-4M comes to life with functional brake lights, headlights, reverse lights, and even emergency flashers (Pro Scale lights sold separately).

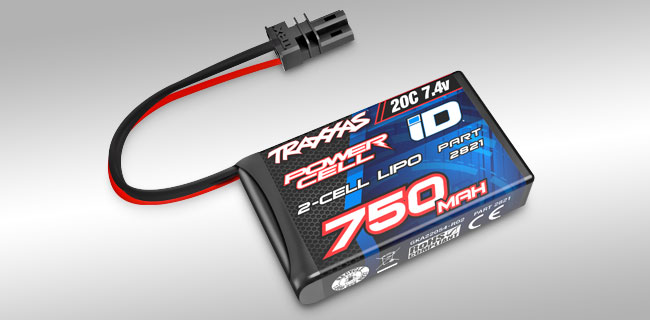

Included 2s LiPo Battery with iD^®

The included 2-cell LiPo battery provides 7.4 volts of high-performance power and over an hour of runtime with Traxxas iD^® safety and simplicity. The specially-designed iD connector plugs directly into the ECM-2.5.

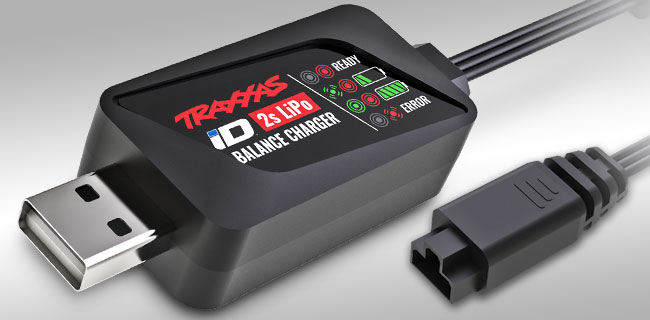

2-Amp USB Fast Charger with iD^®

The included 2-amp USB-A charger provides fast and convenient charging almost anywhere. Traxxas iD technology is the easier and safer way to charge LiPo batteries. Just plug the iD battery in and the charger does the rest. When the LED light turns green, the battery is charged.

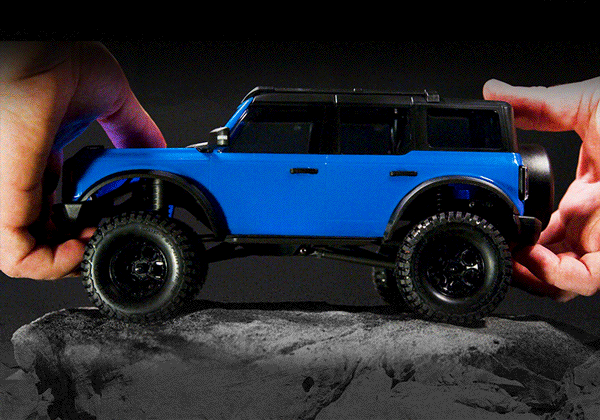

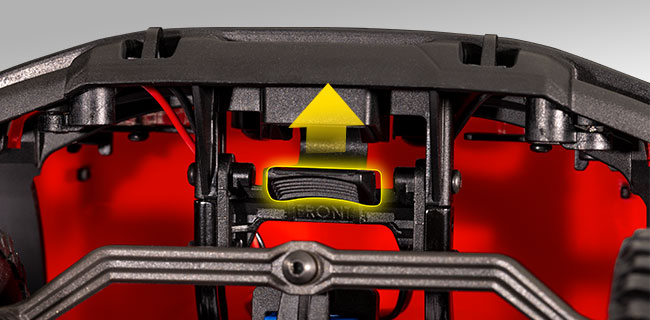

Clipless Body Mounting System

Traxxas’ innovative clipless body mounting solution holds the replica bodies firmly in place no matter how rough the action gets. A quick pull on the hidden clips releases the body in seconds, with no body clips to lose or messy hook and loop tape.

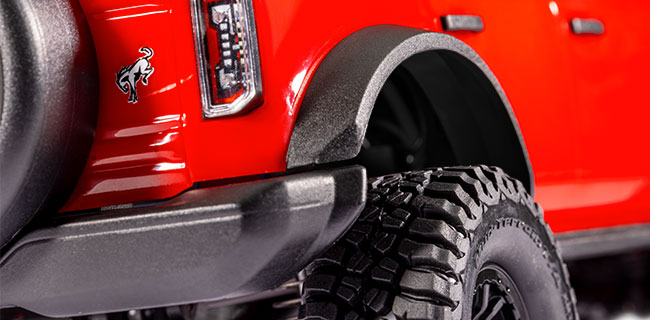

Molded Fender Flares

Tough fender flares give TRX-4M an aggressive appearance and protect the body from scrapes and damage.

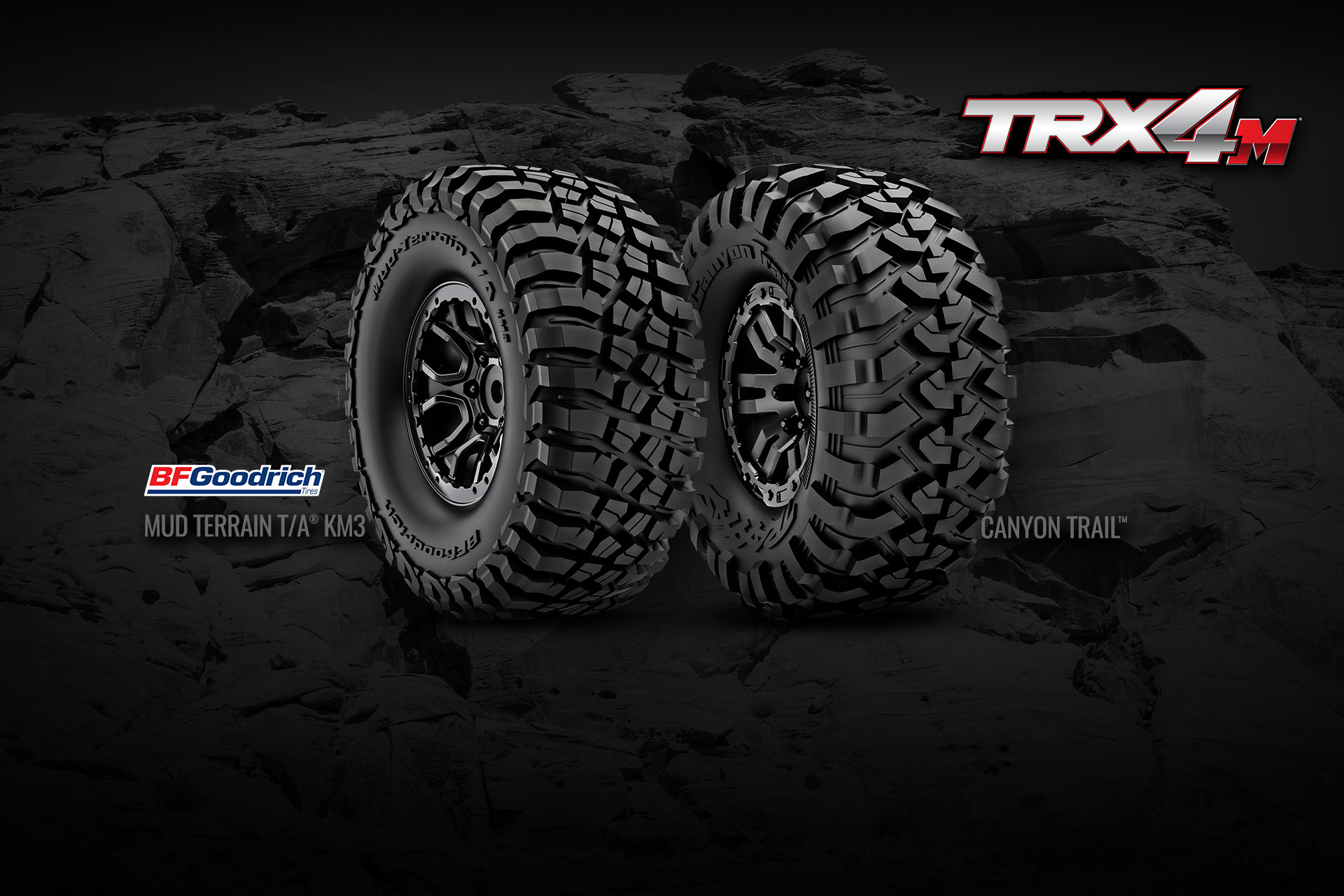

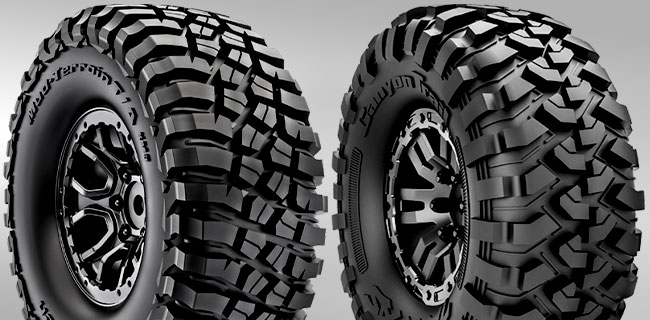

High-Performance Tires

Licensed BFGoodrich^® Mud Terrain T/A^® KM3 tires on the Bronco are accurate down to the smallest detail with an authentic lug pattern and raised sidewall lettering. The Defender’s Canyon Trail™ tires are scaled versions of standard TRX-4 rubber with aggressive lugs for dynamic traction.

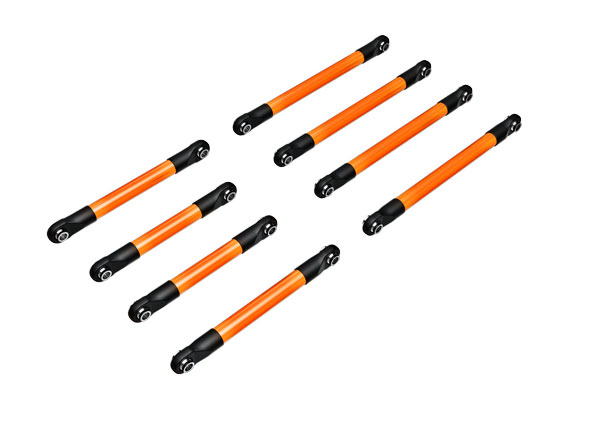

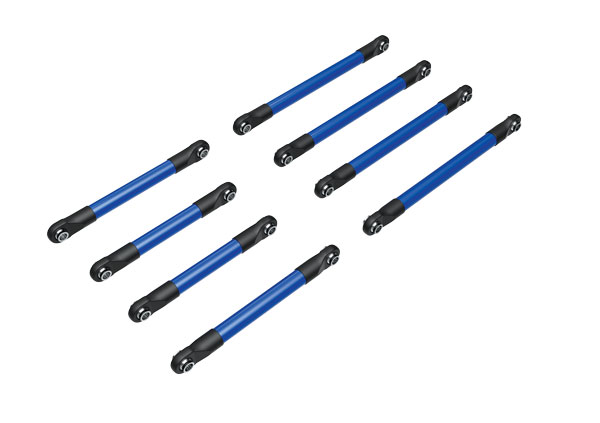

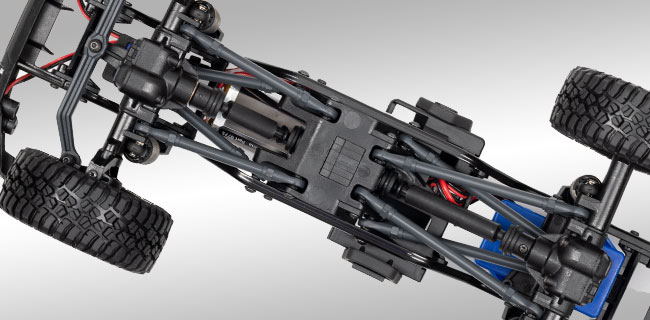

Triangulated Four-Link Suspension

TRX-4M rides on a sophisticated four-link suspension with heavy-duty triangulated rods. Solid front and rear axles provide excellent articulation to climb over the toughest obstacles.

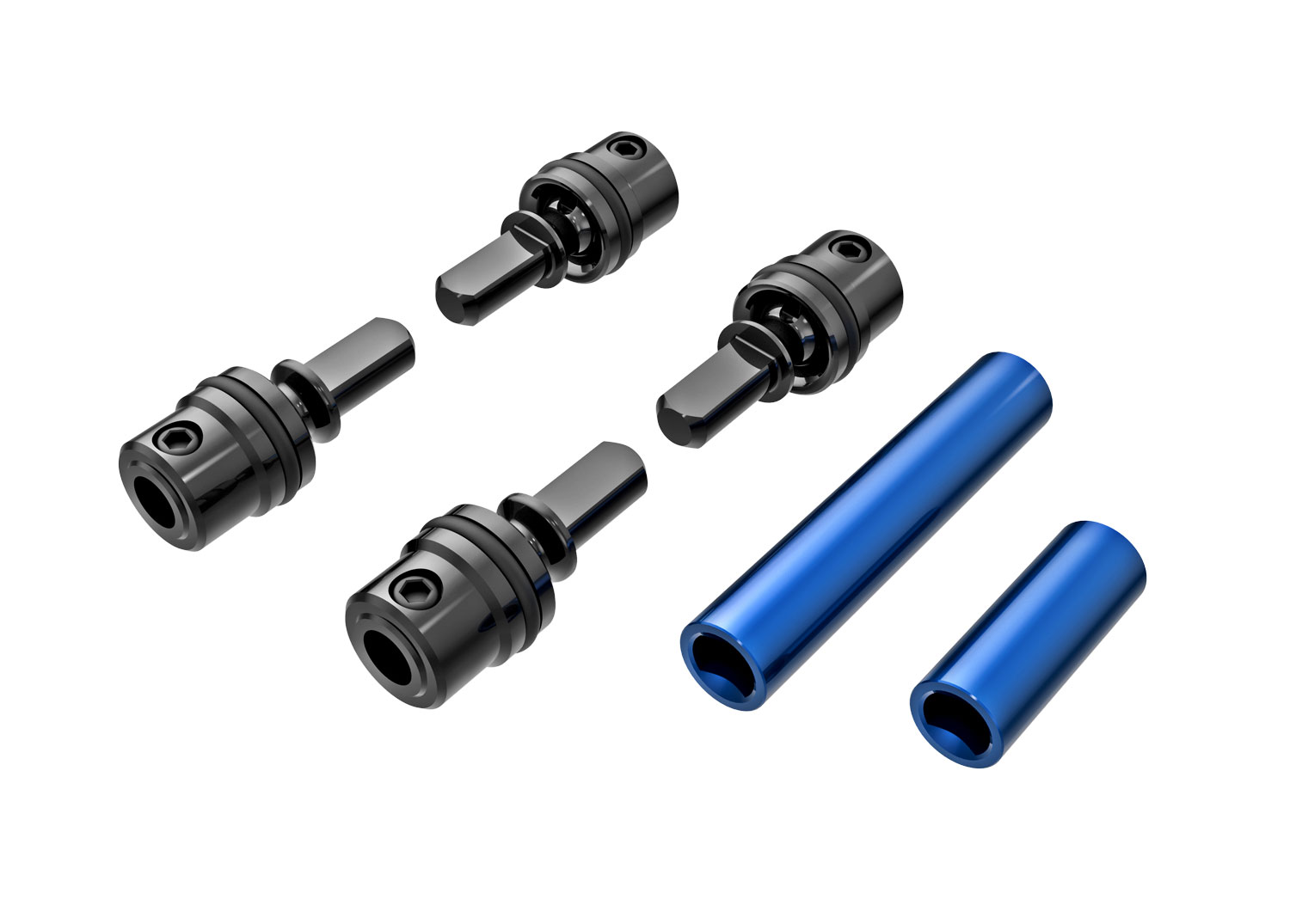

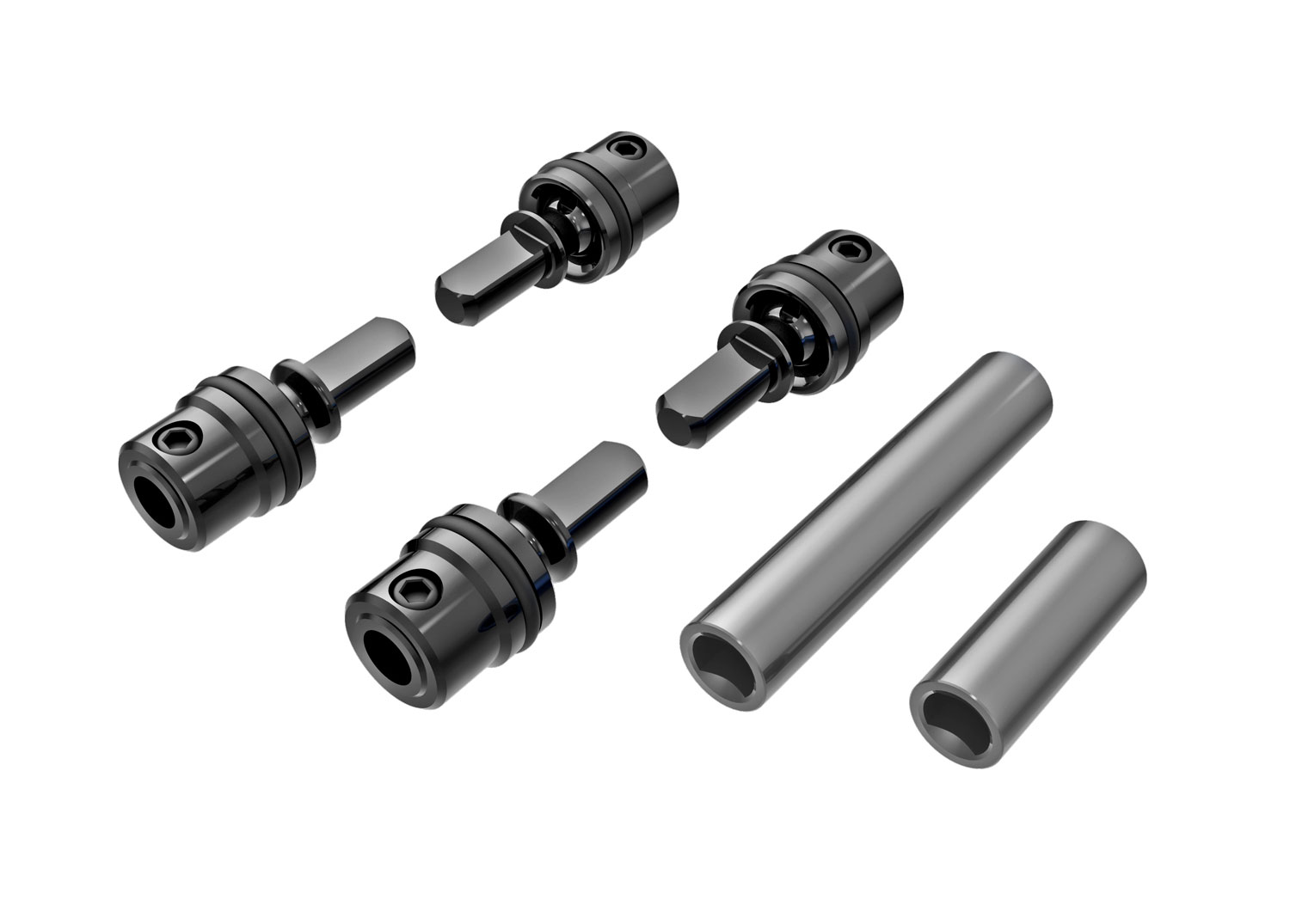

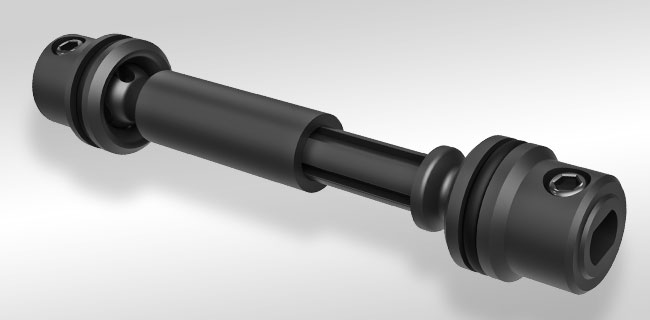

Heavy-Duty Center Driveshafts

TRX-4M’s heavy-duty center driveshafts telescope freely to allow maximum suspension travel. Smooth-running CV joints are engineered for long-lasting, trouble-free performance.

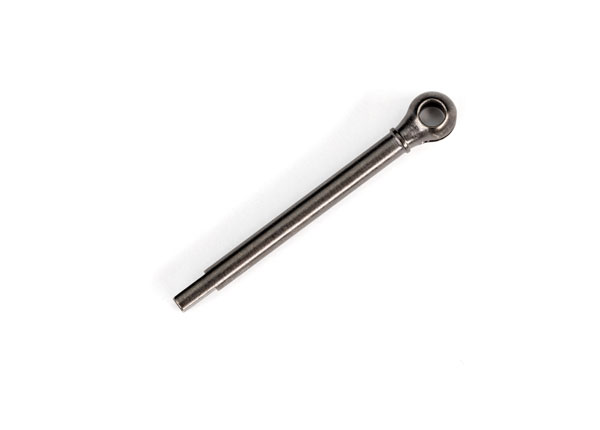

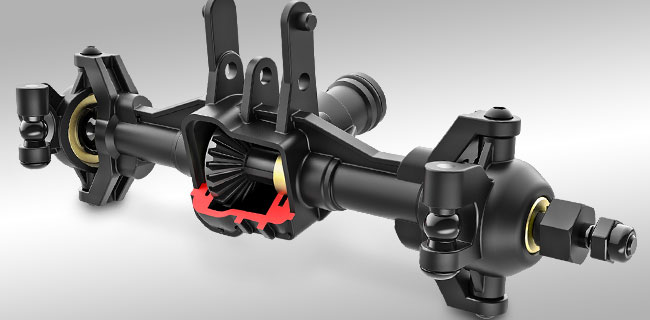

Spool-Equipped Front & Rear Axles

TRX-4M’s front and rear axles are locked with spools to supply non-stop climbing power to all four wheels. Tough, steel constant-velocity (CV) joints allow increased steering angle at the front wheels for tight turns.

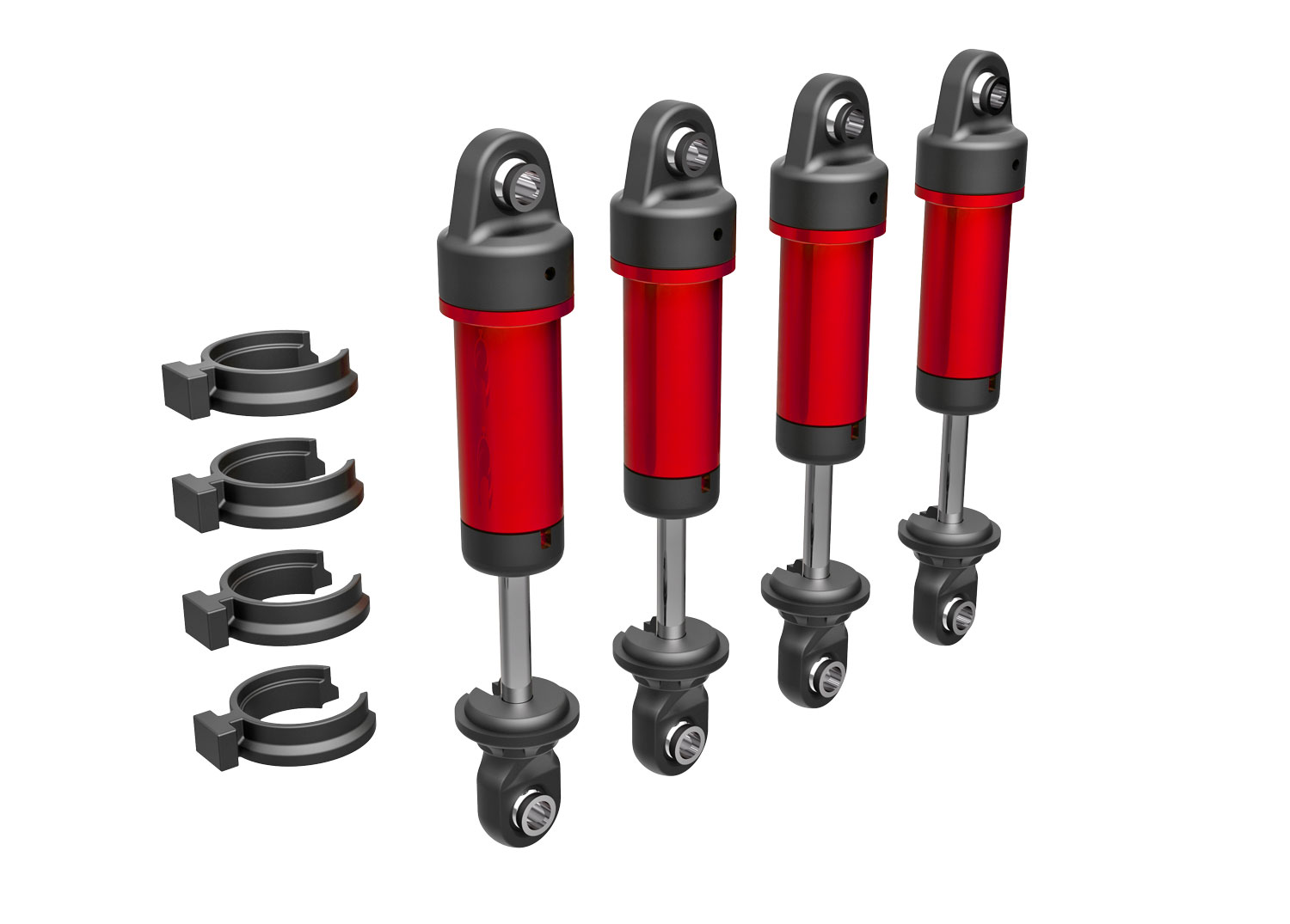

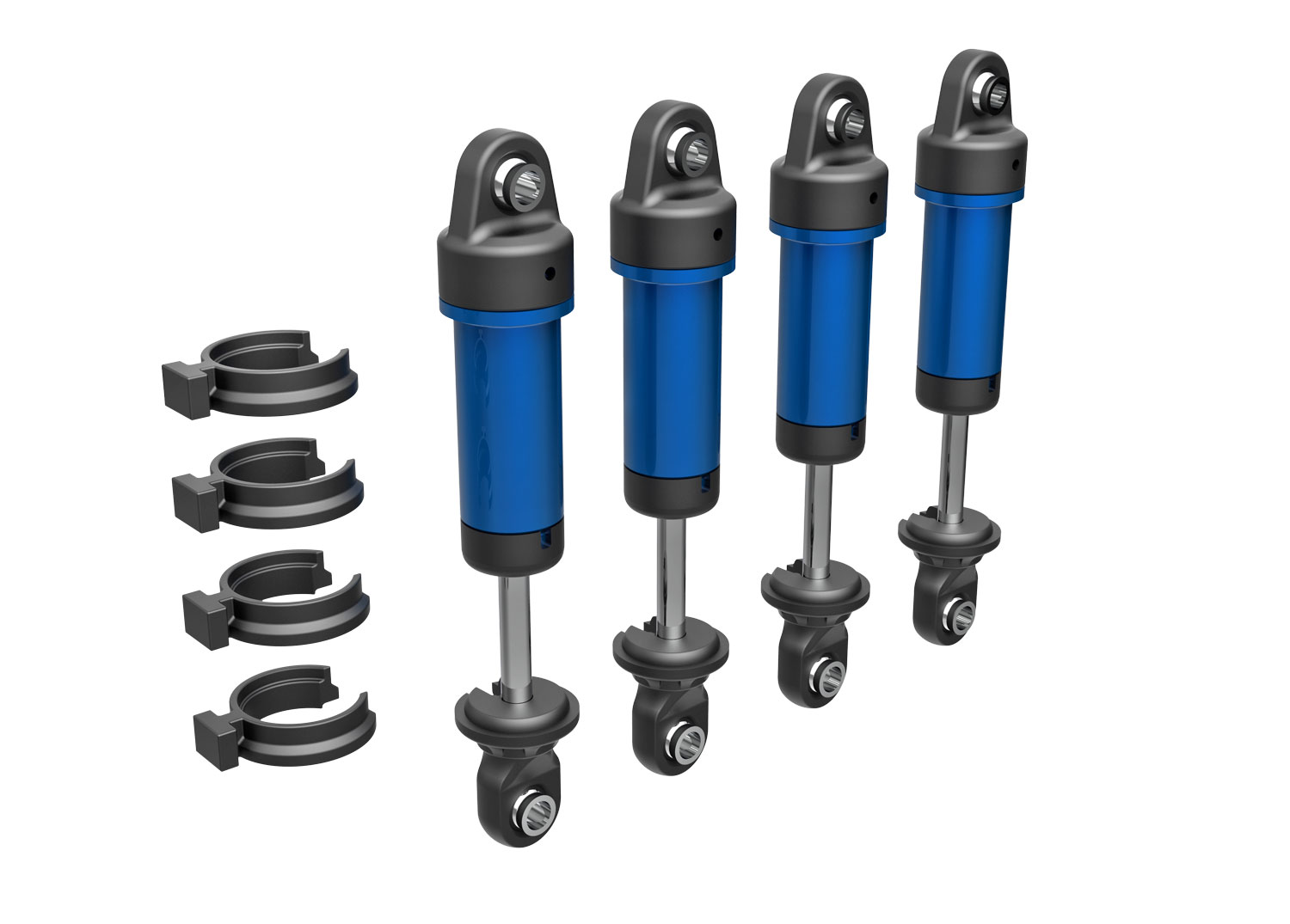

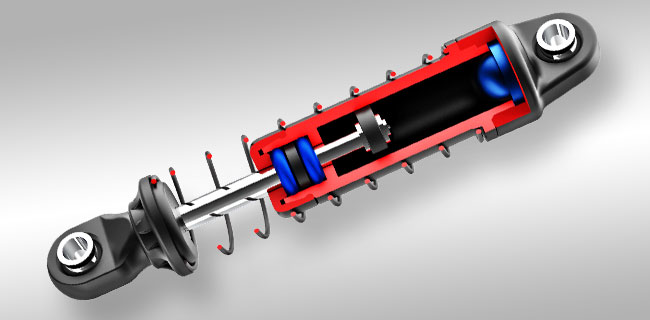

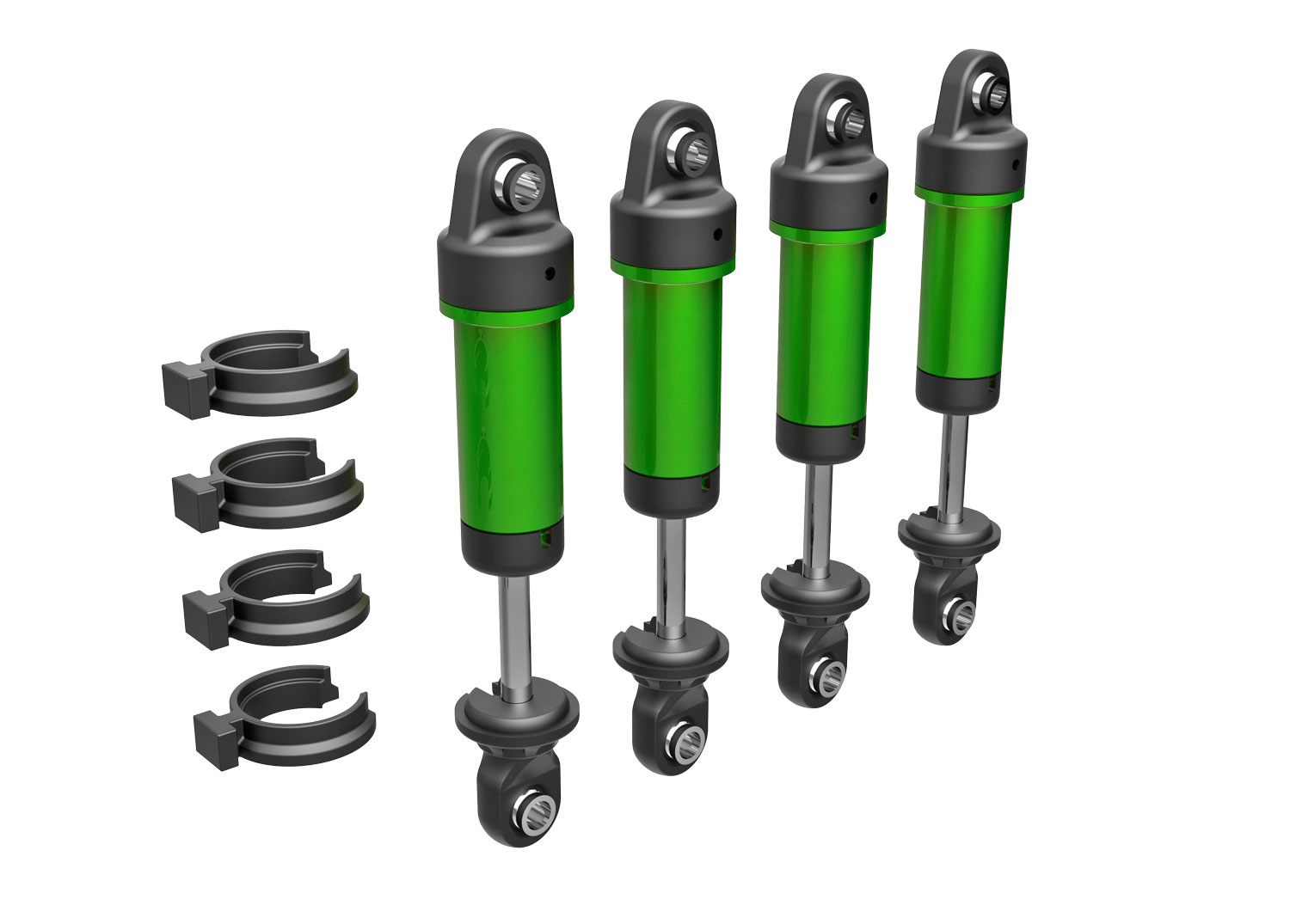

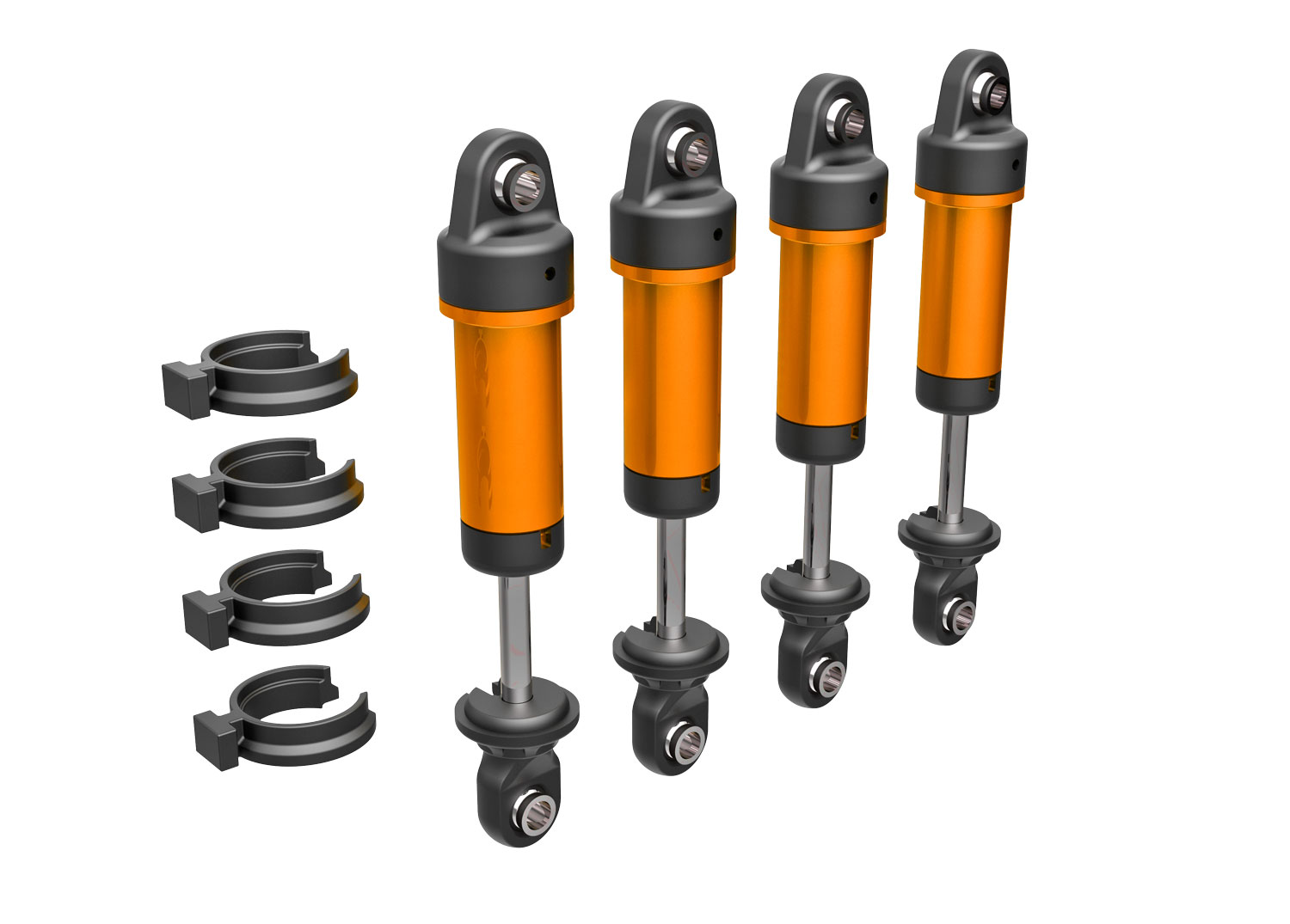

Oil-Filled GTM Shocks

TRX-4M’s oil-filled GTM shocks feature dual O-ring seals at the shaft for a perfect seal and smooth performance. Tuned specifically for the TRX-4M, GTM shocks smooth out bumps for a realistic and controlled ride.

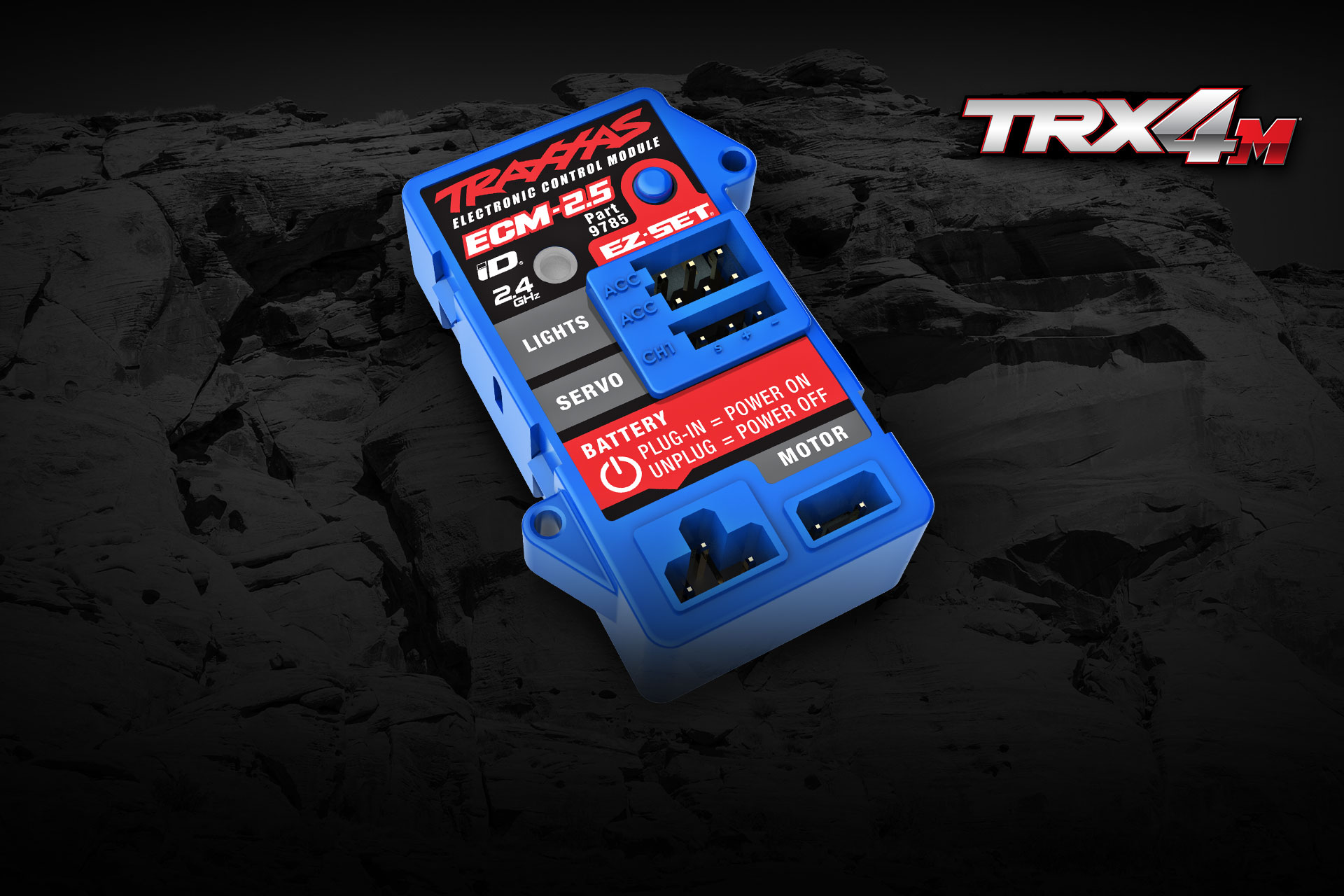

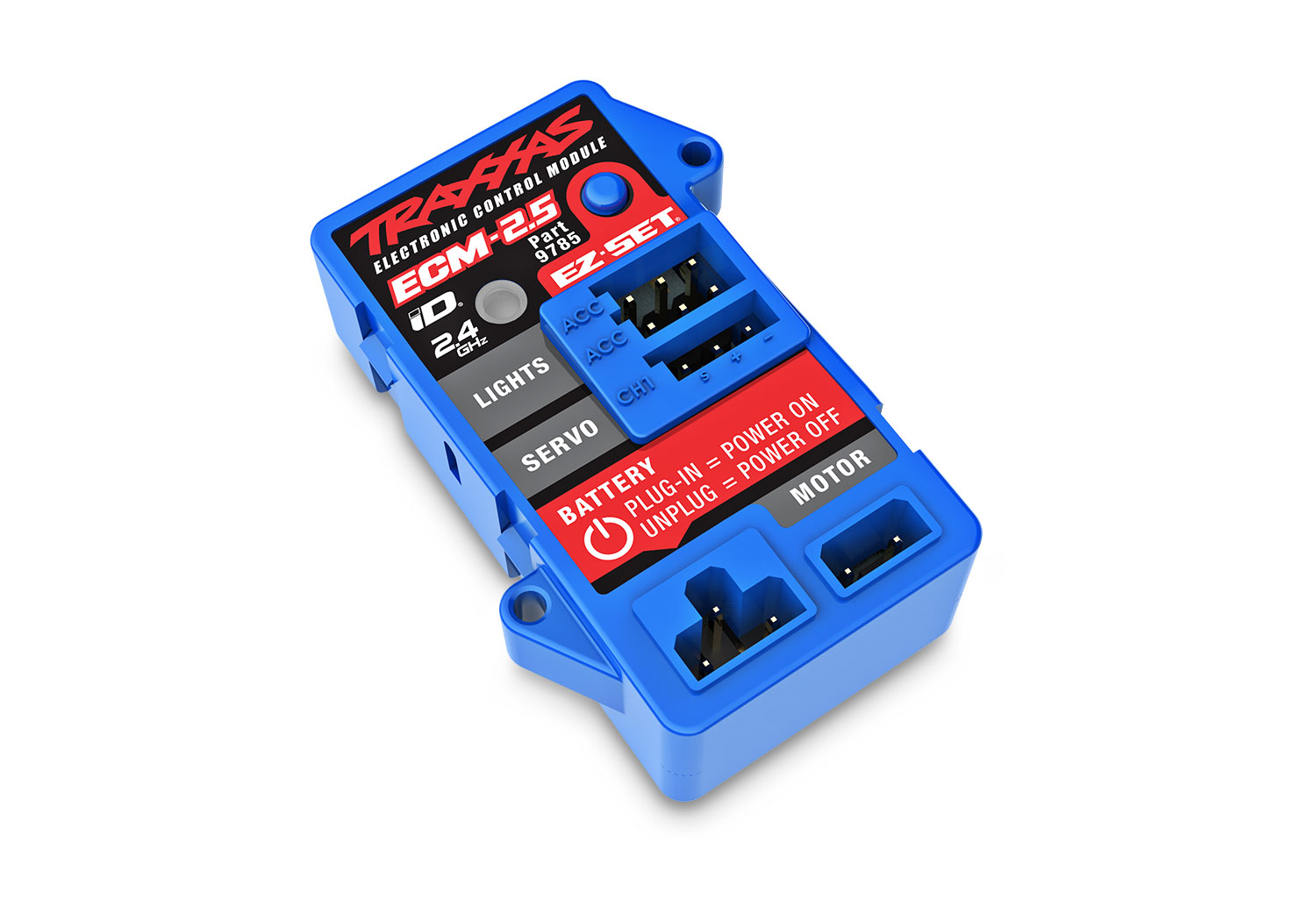

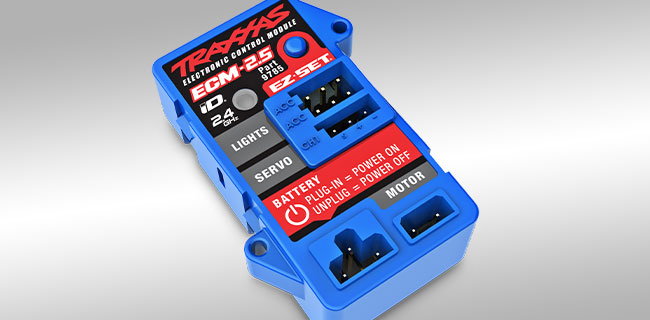

ECM-2.5 Electronic Control Module

ECM-2.5 features low voltage detection for 2s LiPo batteries and EZ-Set^® one-button programming to select driving modes. Choose Sport Mode for all-around driving, or Trail Mode for smooth drag braking on steep descents. For a smooth scale look while creeping over technical terrain, Crawl Mode applies full brakes the instant the throttle is released and allows drivers to continue through to reverse without a second push on the trigger.

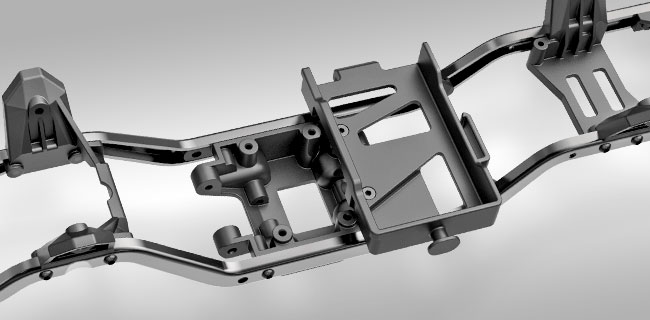

Low-CG Battery Tray

TRX-4M’s battery tray lies deep in the chassis to concentrate weight as low as possible. A lower center of gravity increases stability and reduces the risk of a rollover. A wide rubber strap keeps the battery safely locked in place and prevents the weight from shifting.

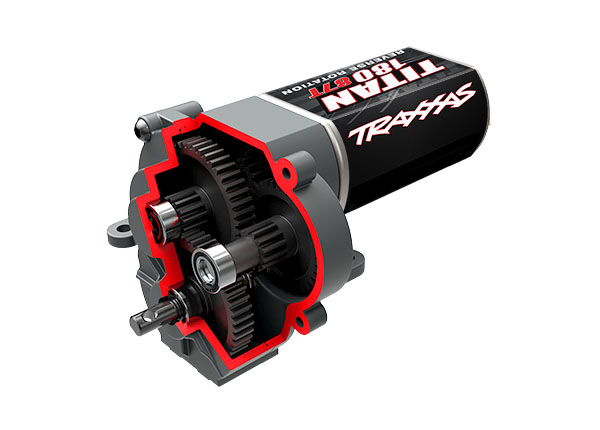

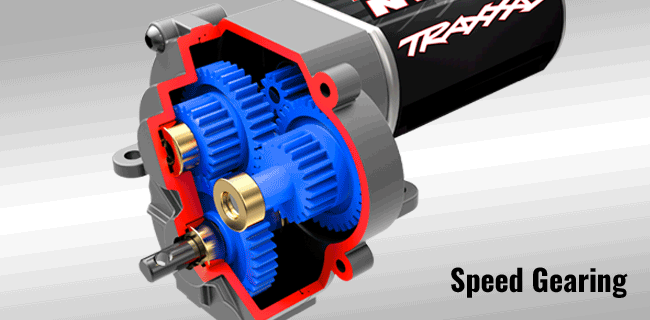

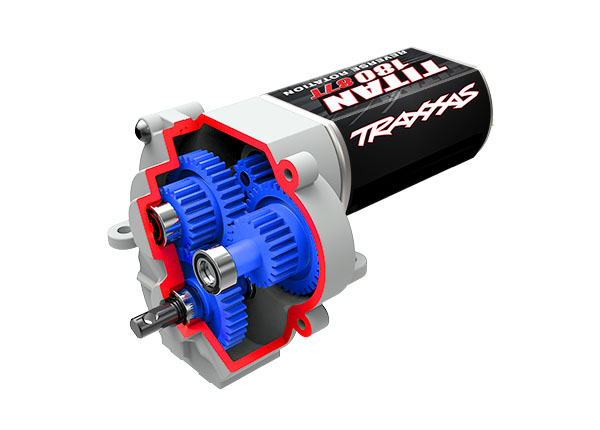

Optional Transmission Ratios

TRX-4M’s modular assembly allows you to swap out different transmissions to change the performance characteristics of the truck. Install the low-range transmission for smooth low-speed torque or boost your top end with the speed gearing option (Optional ratios sold separately).

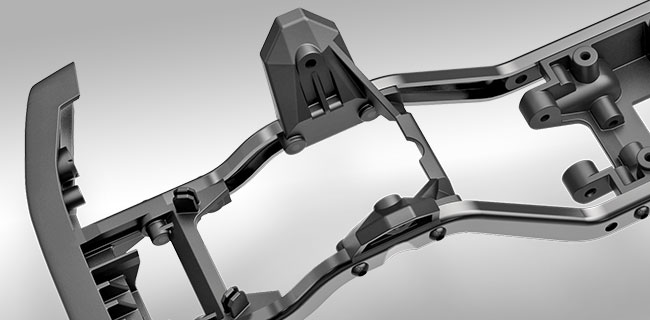

Steel C-Channel Frame Rails

Heavy-duty frame rails are formed with a deep C-channel for maximum rigidity. The rails are taller through the middle section for increased strength where it’s needed most.

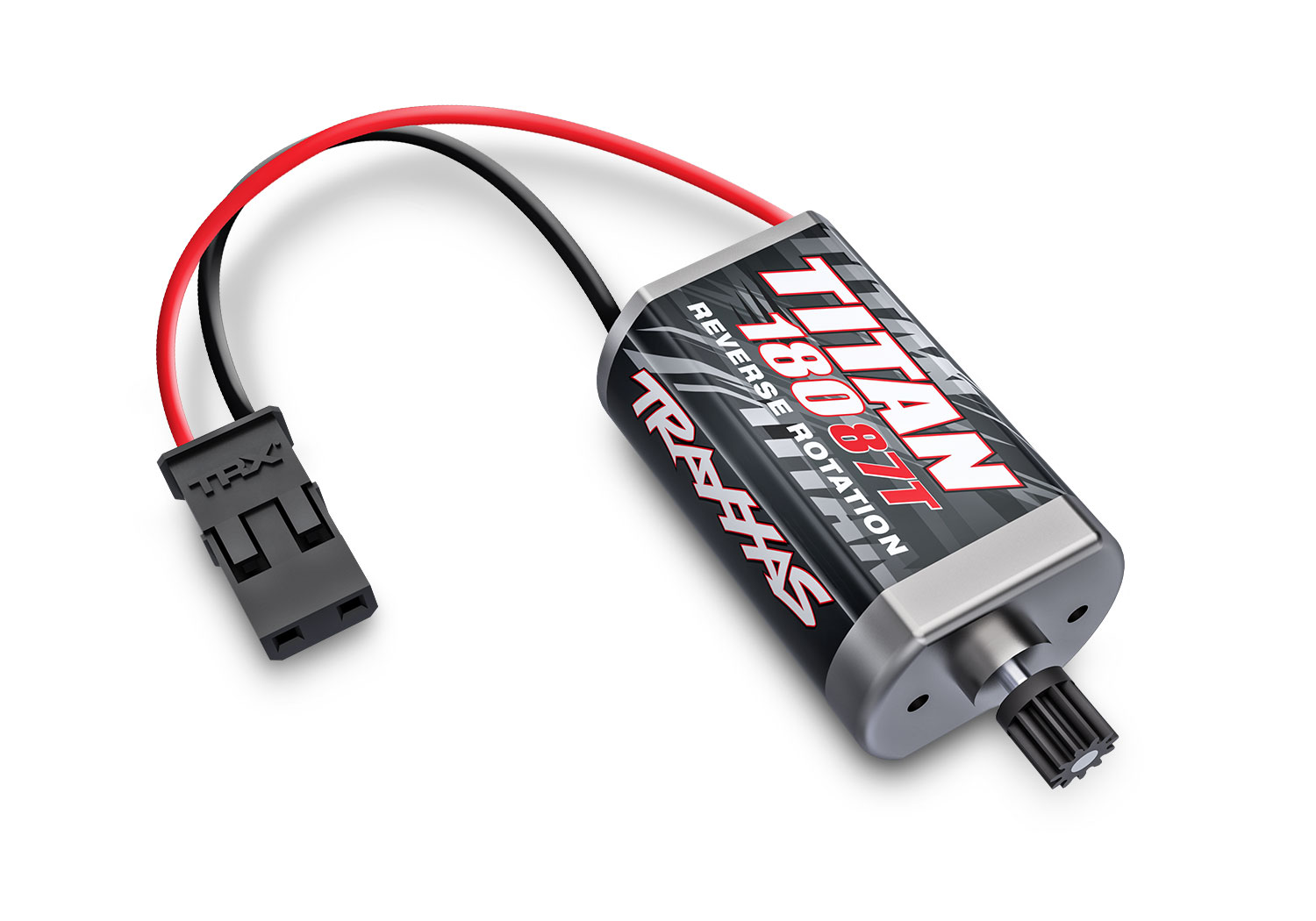

Forward-Mounted Motor

The Titan^® motor mounts securely to the transmission module with a fixed gear mesh that never needs adjustment. The motor’s mounting position shifts the weight bias forward for improved crawling dynamics over obstacles.

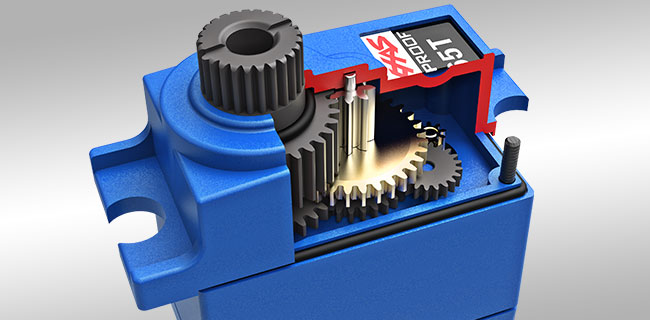

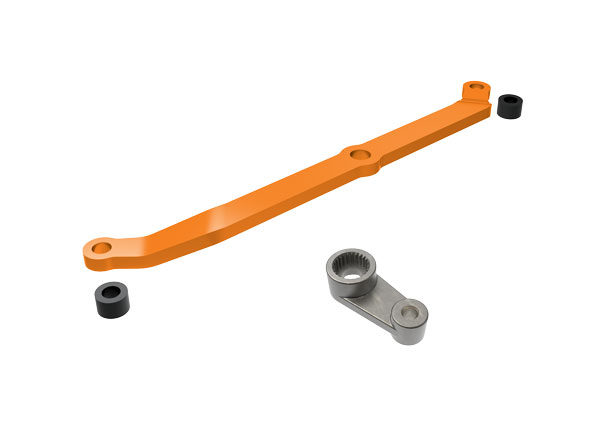

Heavy-Duty Steering Servo

TRX-4M’s heavy-duty 2065T servo operates on full 6-volt power with a metal main gear for precise control and powerful steering authority. The rugged one-piece drag link sits high up in the axle to avoid snags and impacts.

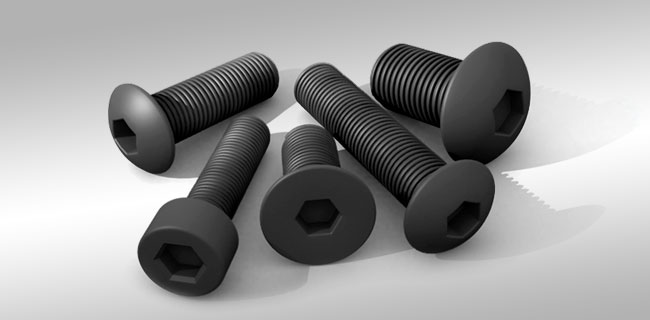

High-Quality Hardware

TRX-4M rides on low-maintenance self-lubricating bushings for long-lasting performance. TRX-4M is assembled with high-quality hex hardware for long-term durability and secure fastening.
