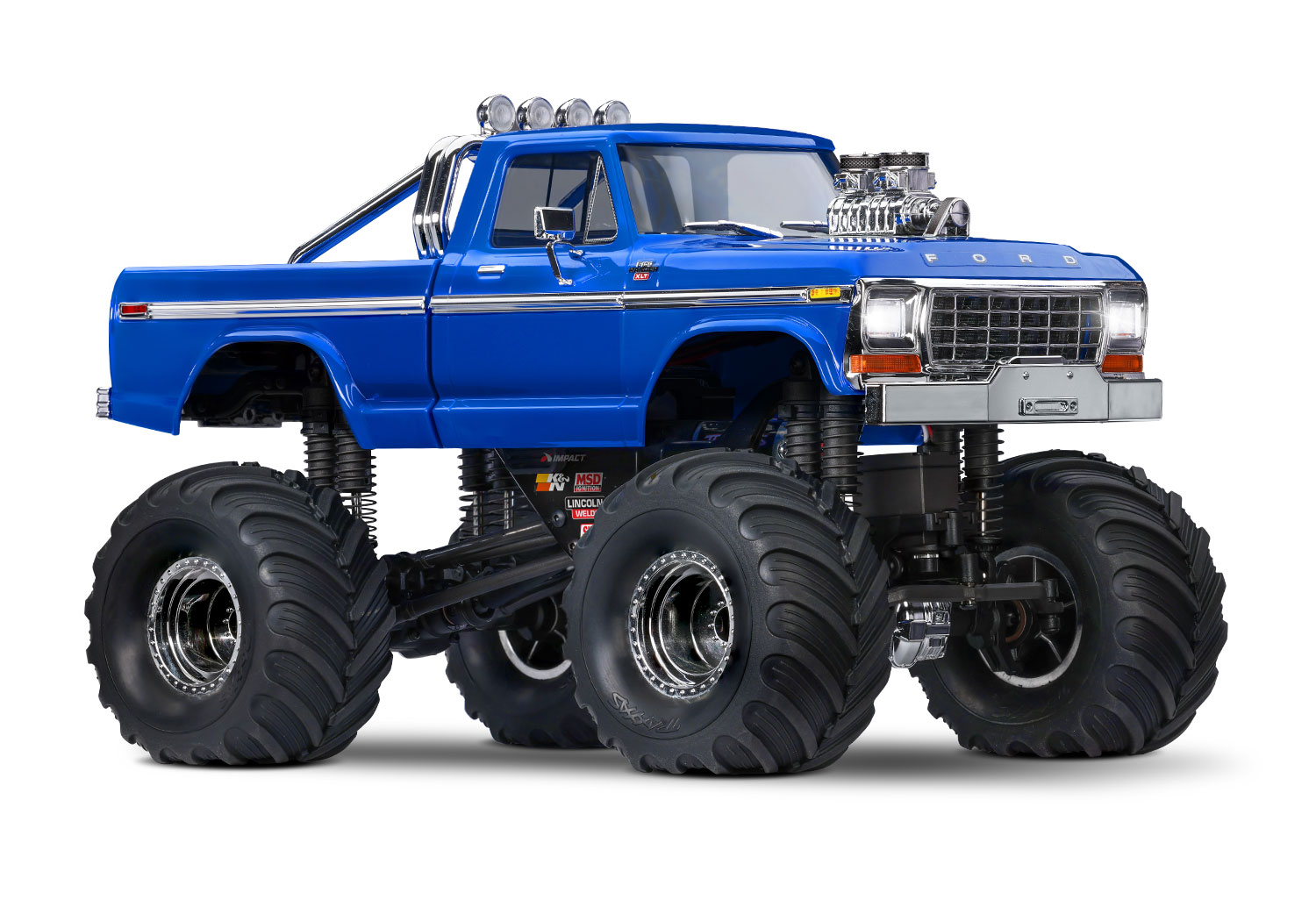

| Model Name: | TRX-4MT Ford F-150 Monster Truck |
|---|---|
| Model Type: | Monster Truck |
| Model Skill Level: | 1 |
| Scale: | 1/18 |
| Weight: | 1.27 pounds (577 g) |

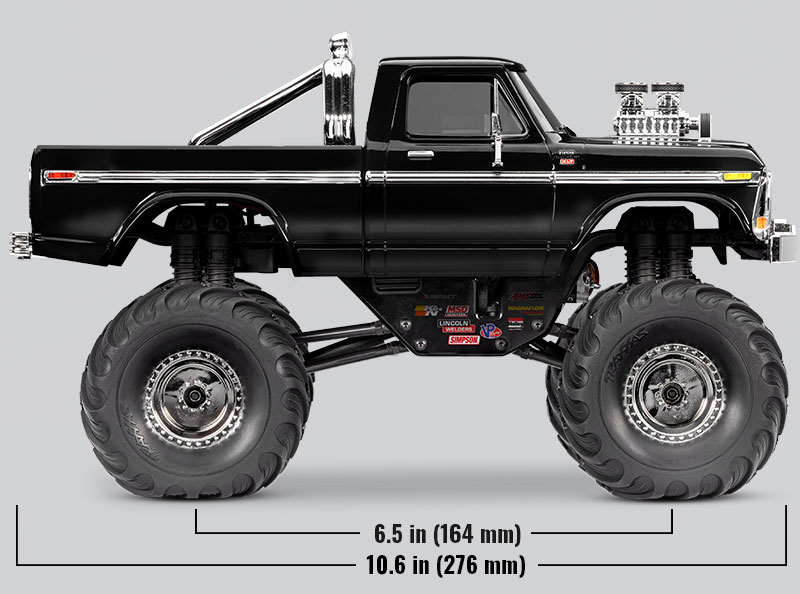

| Length: | 10.6 inches (276 mm) |

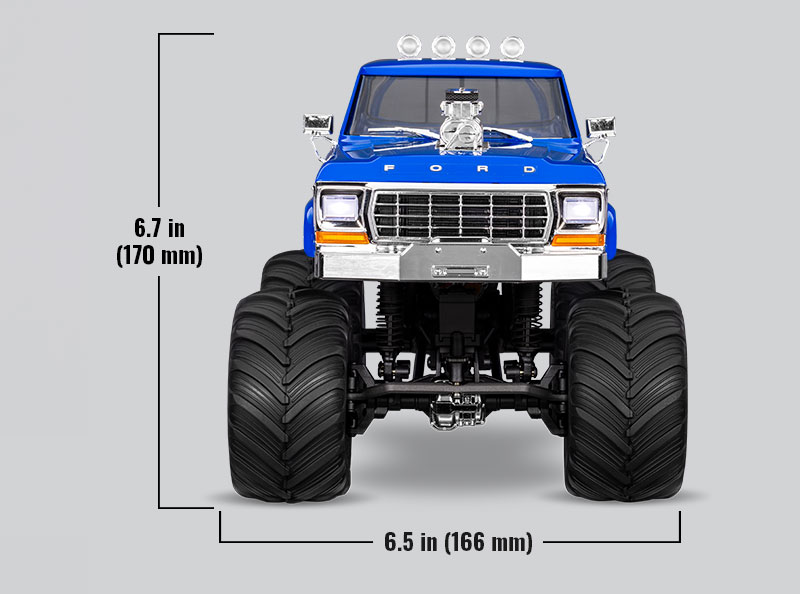

| Width: | 6.5 inches (166 mm) |
| Front Track: | 6.5 inches (166 mm) |
| Rear Track: | 6.5 inches (166 mm) |
| Height: | 6.7 inches (170 mm) |
| Wheelbase: | 6.45 inches (164 mm) |
|---|---|
| Center Ground Clearance: | 2.16 inches (55 mm) |
| Battery Type: | Lithium polymer (LiPo) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed direct drive |
| Differential Type: | Locked spool |
| Gear Ratio (Internal): | 11.38 |
| Gear Pitch: | 64 pitch |
| Servo(s): | 2065R |
| Battery Compartment Specs: | 51 mm X 31 mm X |

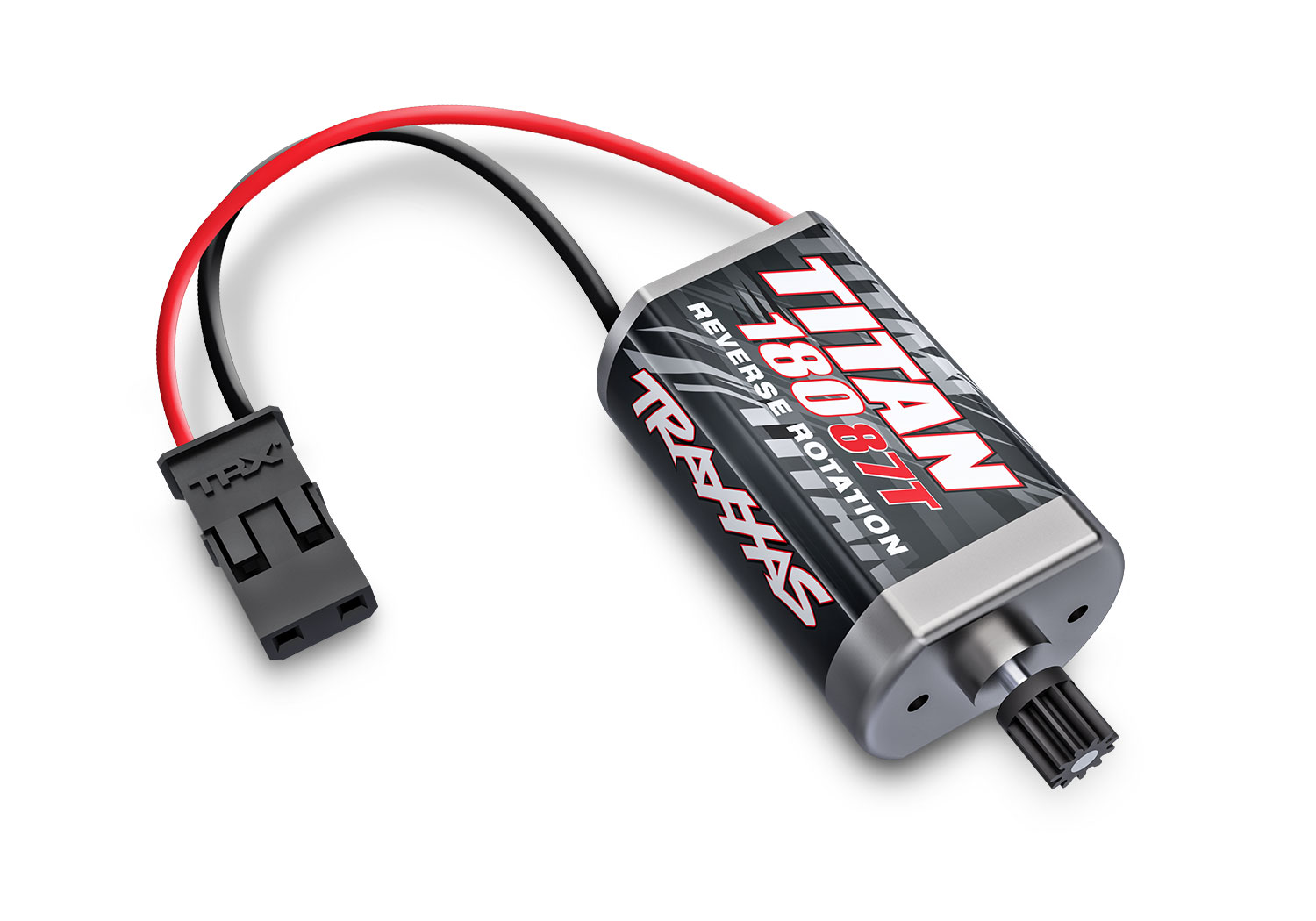

| Motor Name: | Titan 180 |
|---|---|
| Motor Type: | 87-turn brushed motor |
| Motor Weight: | 1.16 ounces (33 g) |
| Motor Length: | 1.66 inches (42 mm) |
| Motor Diameter: | .81 inches (21 mm) |
| ESC Name: | ECM 2.5™ |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
| ESC Weight: | .92 ounces ( 26 g) |

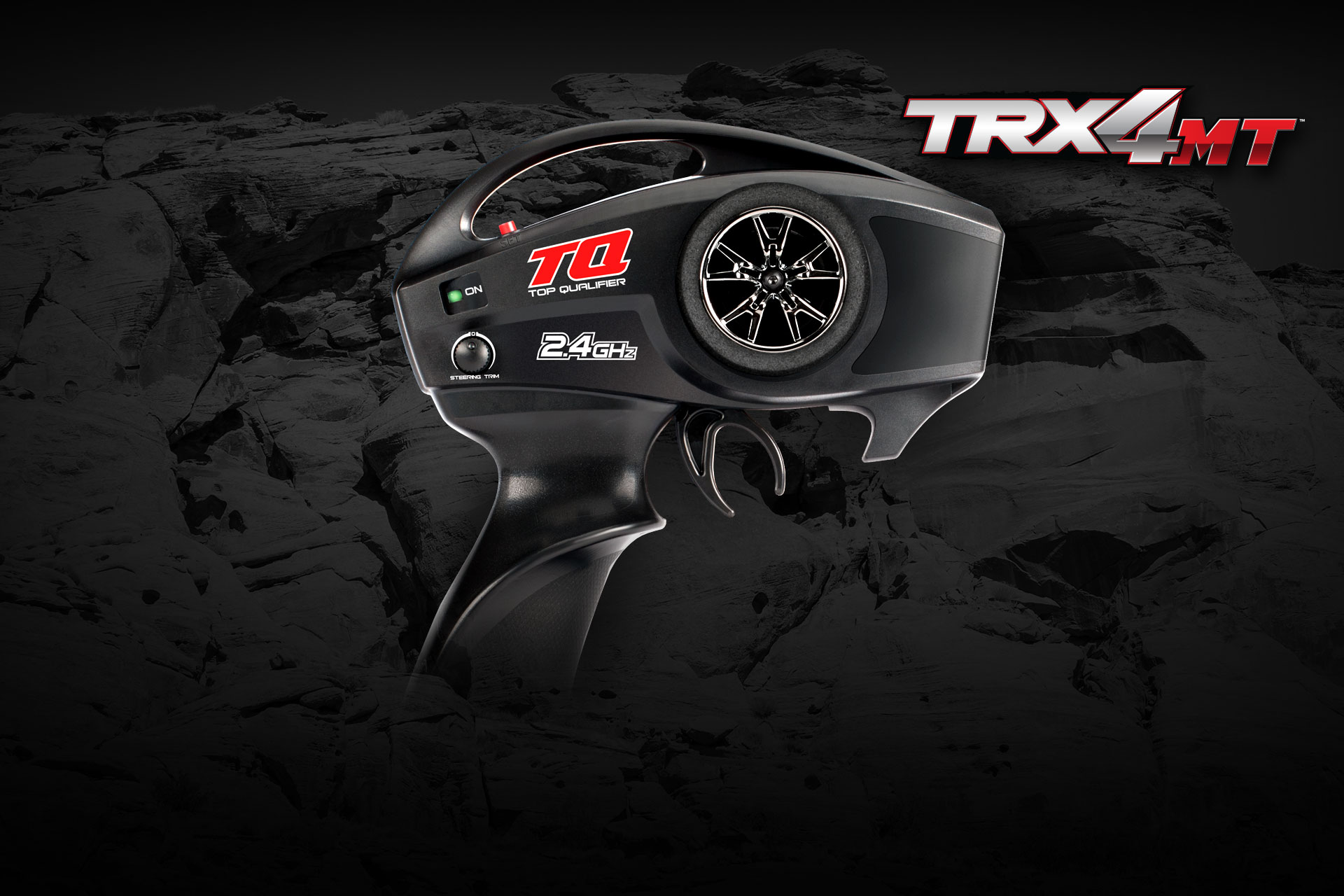

Four AA alkaline batteries for the transmitter
| Parts Sub-Categories |
|---|

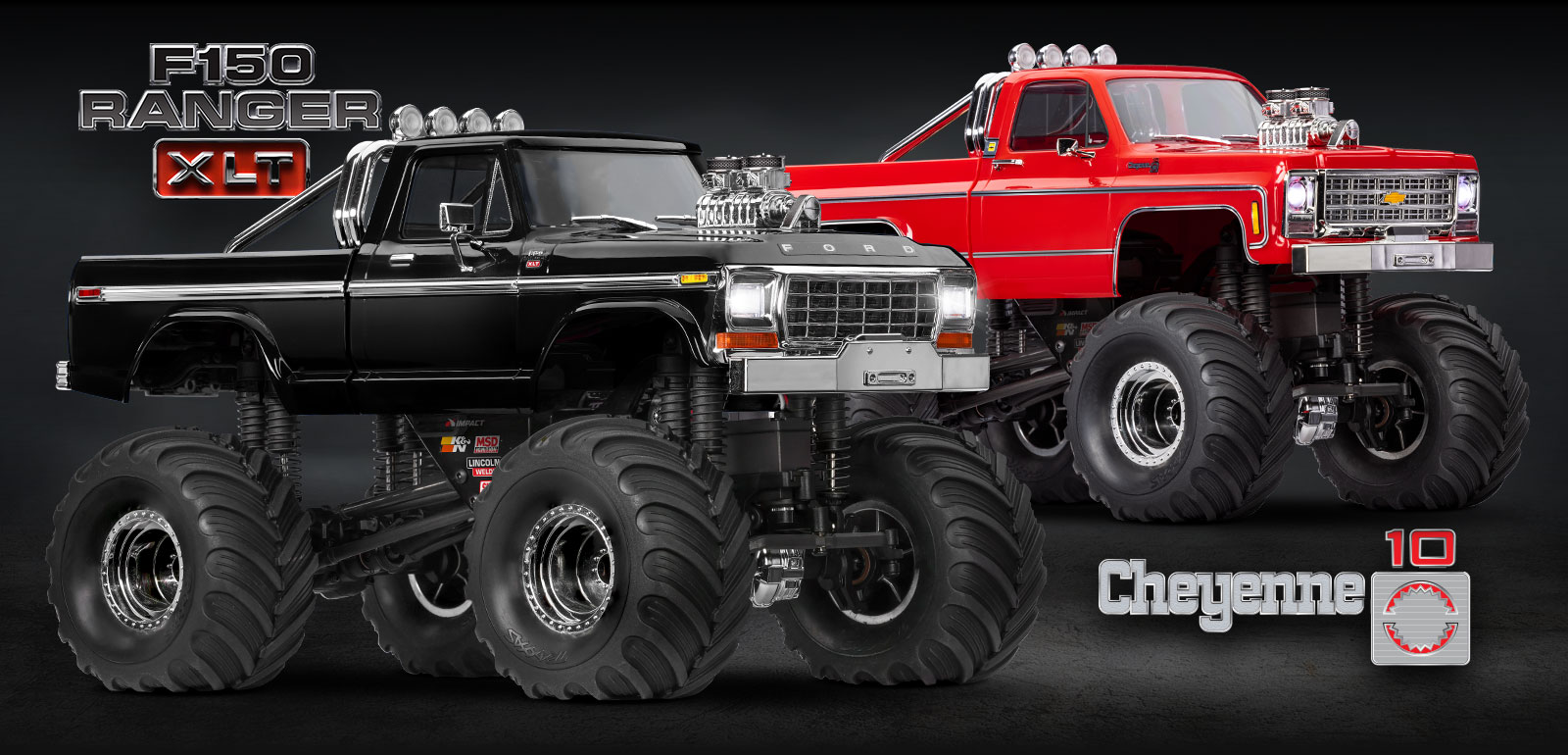

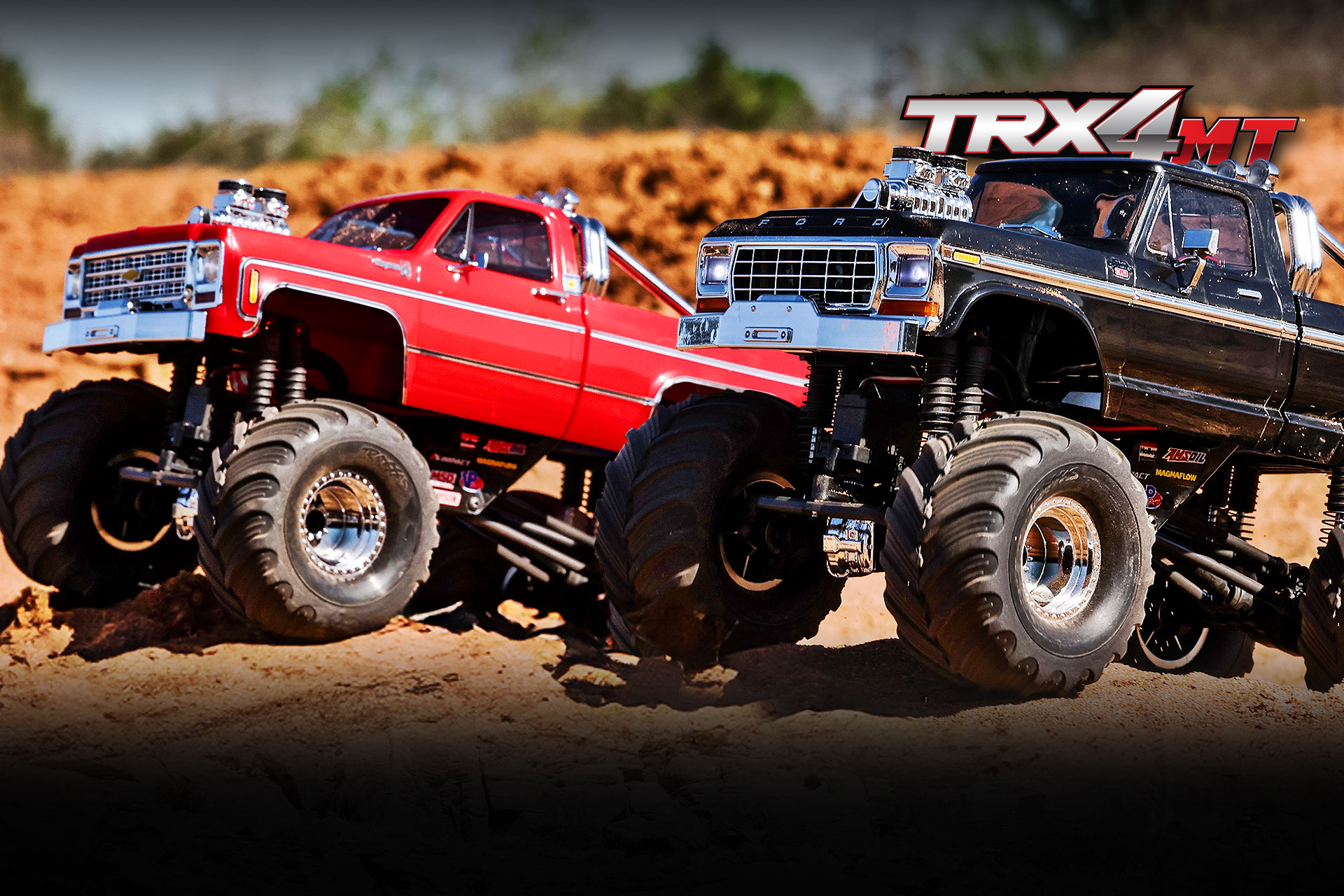

Traxxas delivers solid-axle monster truck performance and durability to 1/18 scale fans with the new TRX-4MT™. A factory-installed Long Arm Lift Kit with eight shocks and large Terra Groove tires give TRX-4MT unrivaled capabilities and towering ground clearance. Available with highly detailed Ford® F-150® or Chevrolet® K10 bodies, TRX-4MT sets the standard for authentic monster truck performance in a convenient, take-anywhere size.

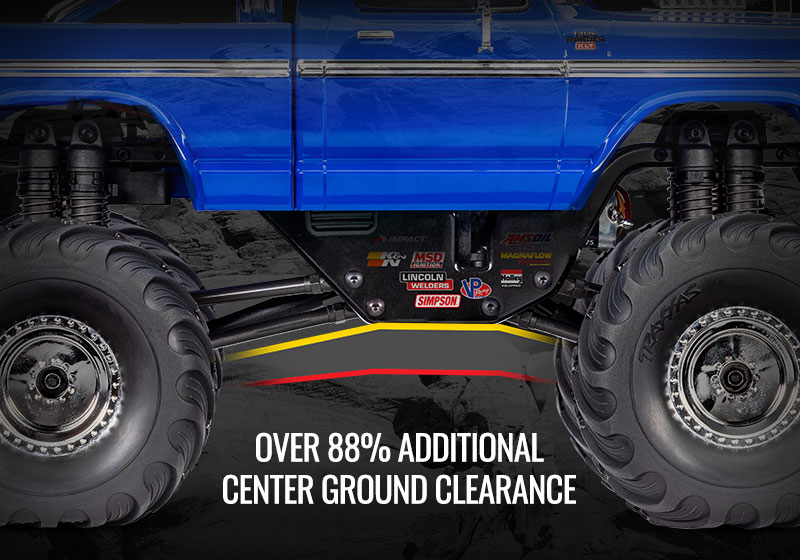

TRX-4MT’s factory Installed Long Arm Lift Kit and large Terra Groove tires raise the center ground clearance 88% for an authentic monster truck stance. Eight individual shocks on revised shock mounts with extended links ensure the truck maintains its carefully tuned suspension geometry for peak performance.
Huge Terra Groove tires give TRX-4MT the authentic “hand carved” look of full-size monster trucks. Mounted on chrome deep-dish wheels with beadlock trim, Terra Groove tires provide excellent traction with an aggressive tread pattern that bites into loose surfaces. The sticky rubber compound is also great on carpet, grass, and pavement.

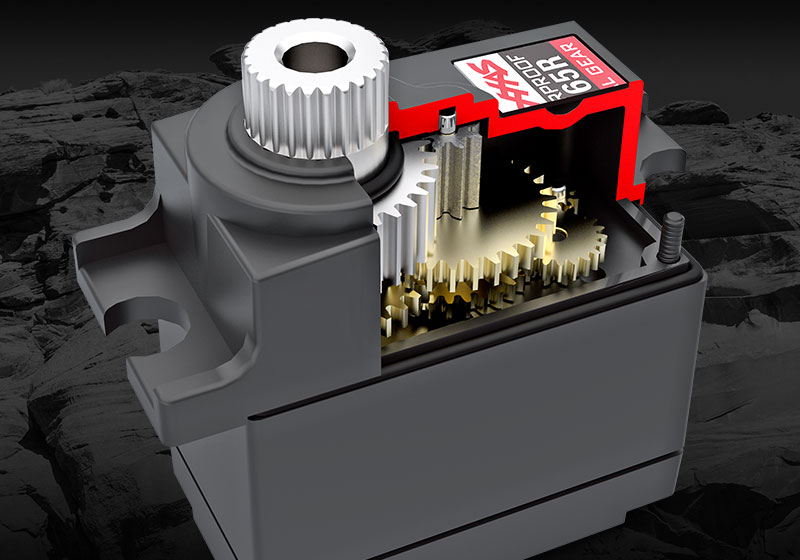

TRX-4MT comes factory-equipped with the upgraded 2065R servo to turn its oversize Terra Groove monster truck tires with authority. This fully waterproof servo features an all-metal-gear drivetrain for maximum durability under the toughest conditions.
The rugged ABS clipless body holds tight over jumps but releases in just seconds with a hidden latching system to preserve its clean lines. Working headlights and beautifully detailed chrome accessories complement TRX-4MT’s high gloss paint for authentic show-stopping looks.

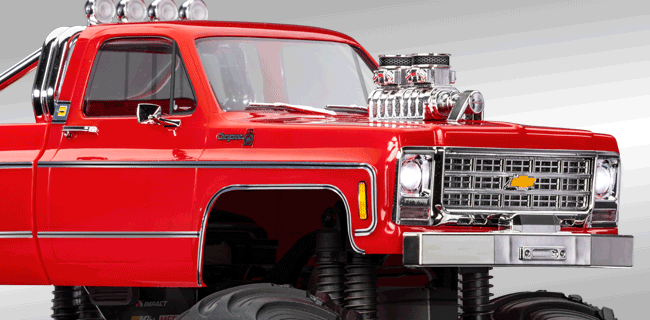

Traxxas took great care to replicate classic Ford and Chevrolet monster trucks in 1/18 scale. Unique chrome bumpers and engine details, roll bars with replica lights, side mirrors, door handles, and even wipers are molded in exacting detail for exceptional scale realism.

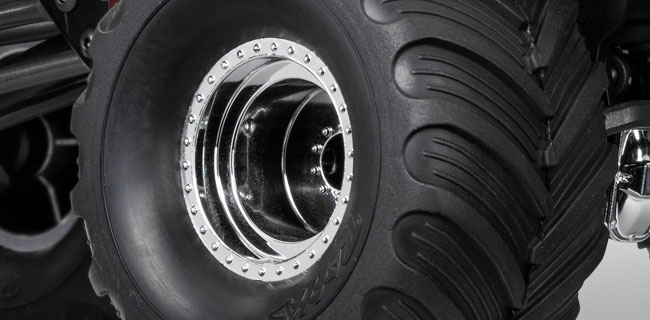

TRX-4MT's deep-dish chrome wheels feature beadlock-style trim to replicate full-size monster trucks in exacting detail. The wheels utilize a standard 7 mm hex, making wheel swaps quick and easy.

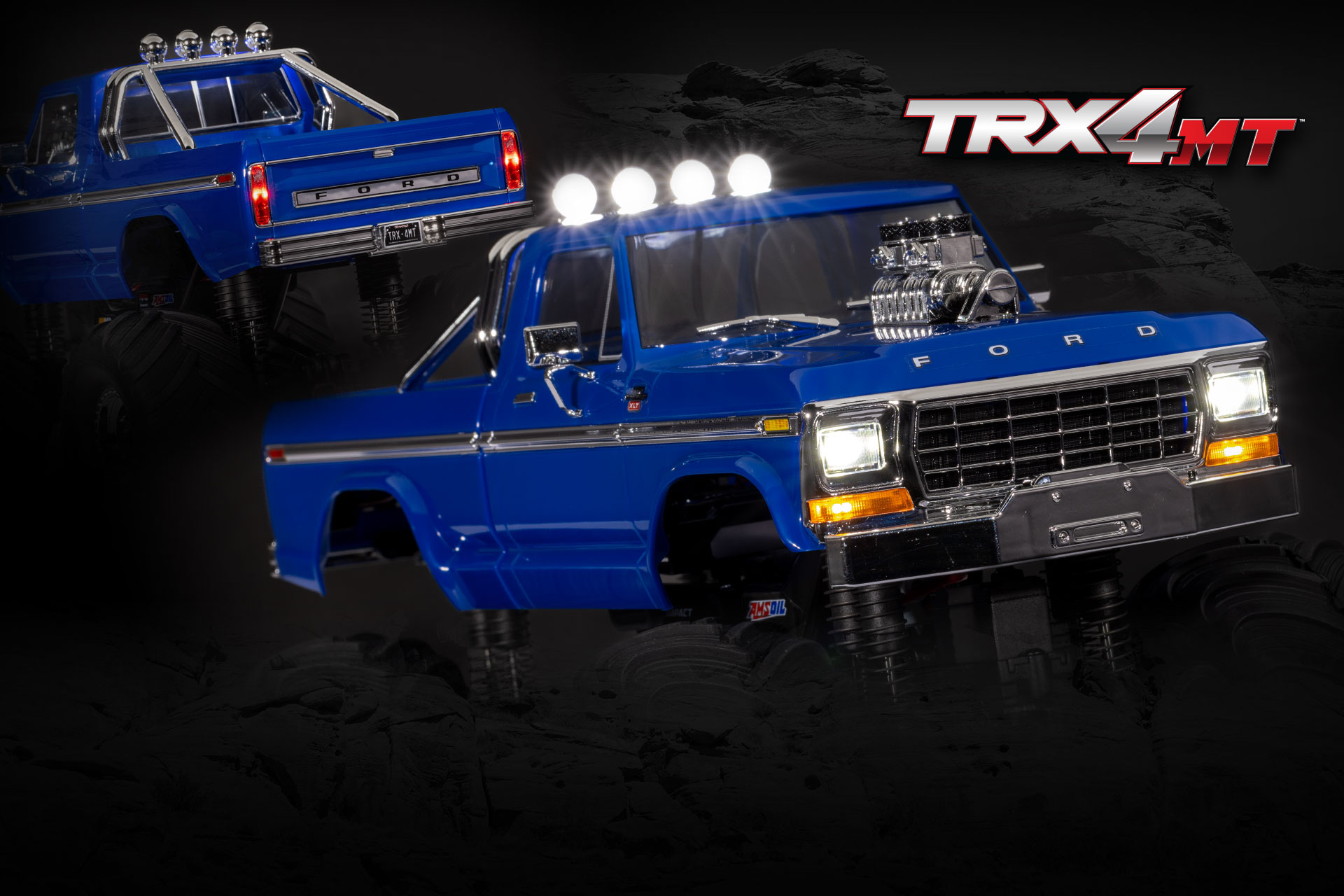

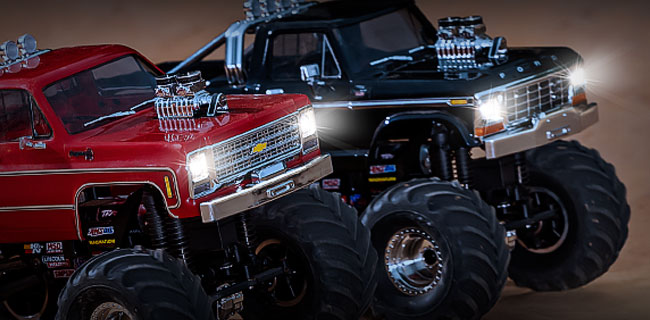

TRX-4MT features standard LED headlights in the front grille and LED-ready light buckets on the roll bar. Add optional Pro Scale® LED lights and the trucks come to life with functional brake lights, reverse lights, and even emergency flashers (Pro Scale lights sold separately).

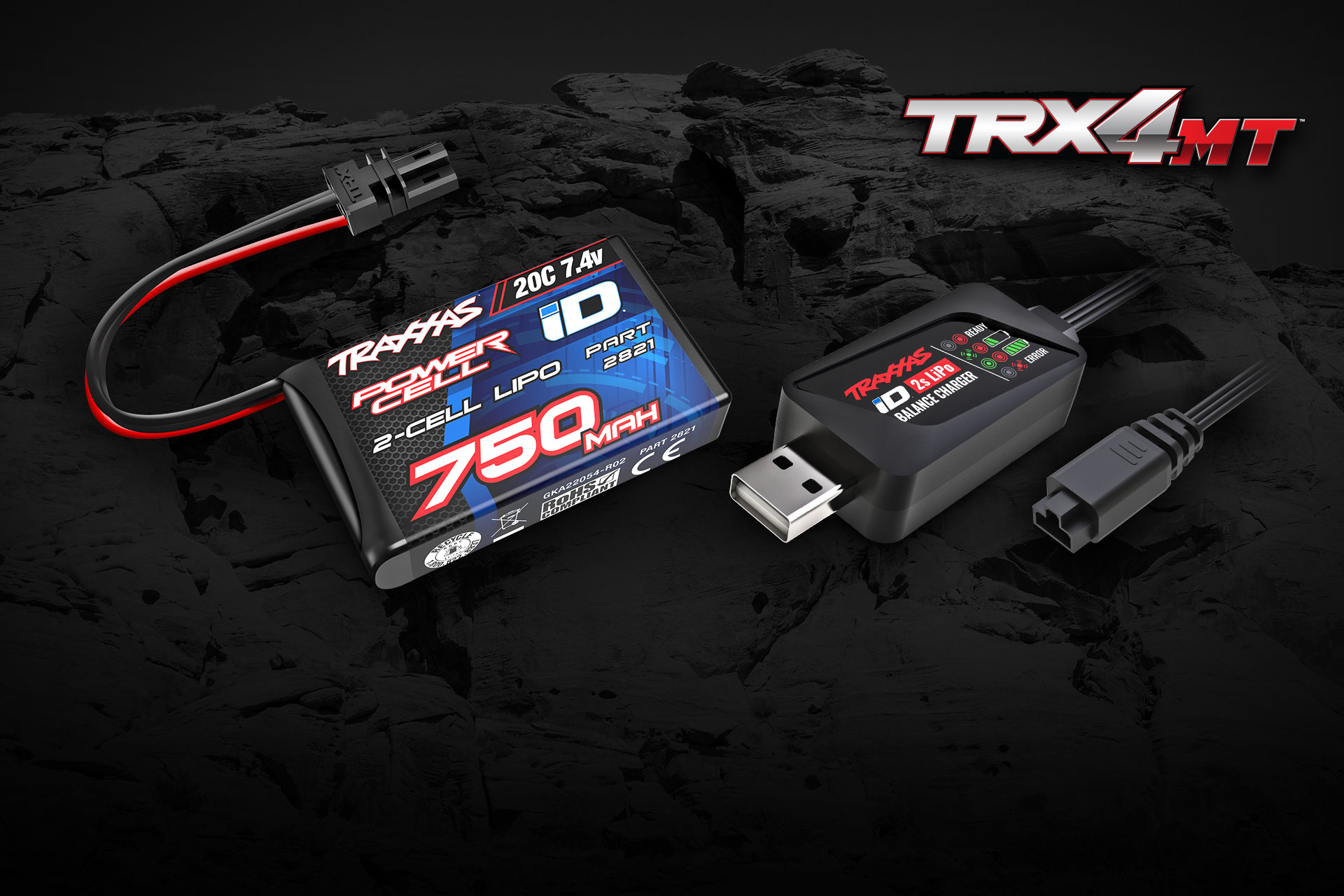

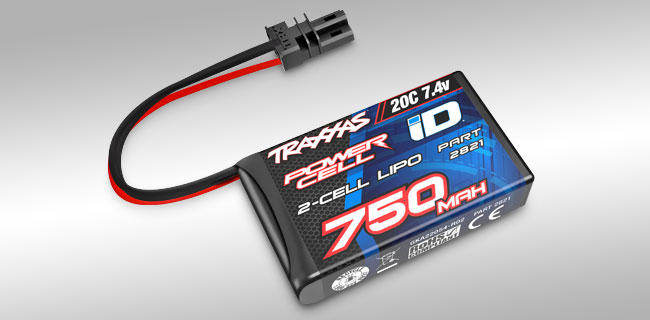

The included 2-cell LiPo battery provides 7.4 volts of high-performance power and up to an hour of runtime or more with Traxxas iD® safety and simplicity. The specially-designed iD connector plugs directly into the ECM-2.5.

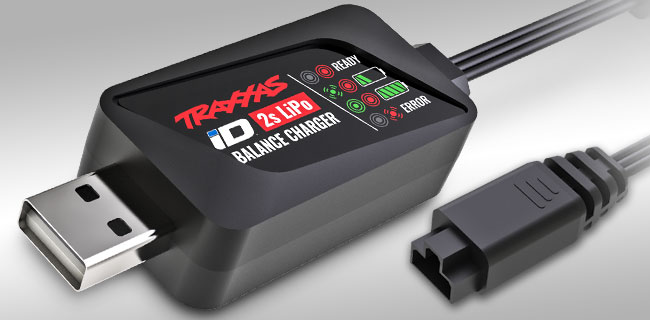

The included 2-amp USB-A charger provides fast and convenient charging almost anywhere. Traxxas iD technology is the easier and safer way to charge LiPo batteries. Just plug the iD battery in and the charger does the rest. When the light turns solid green, the battery is charged.

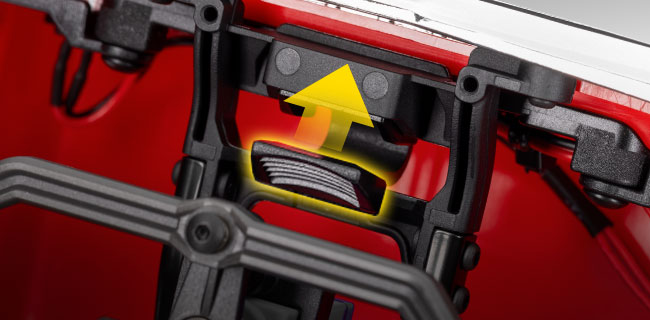

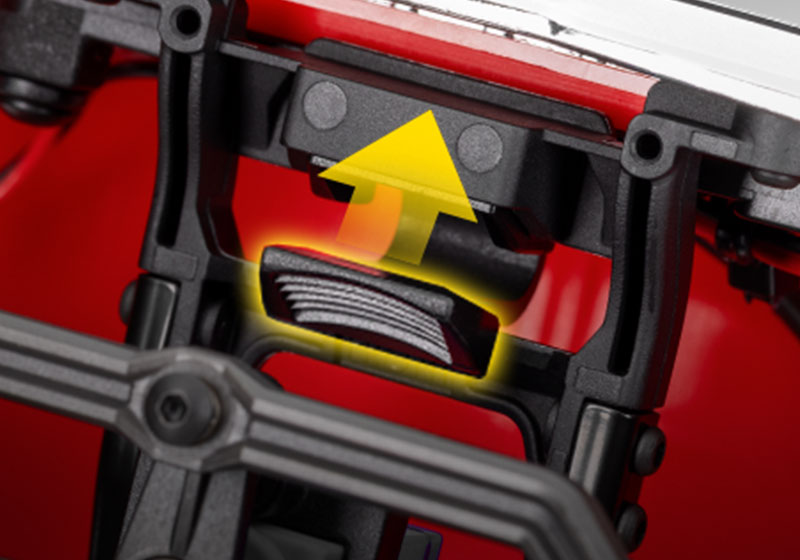

Traxxas’ innovative clipless body mounting holds the replica bodies firmly in place no matter how rough the action gets. A quick pull on the hidden clips releases the body in seconds, with no body clips to lose or hook and loop tape.

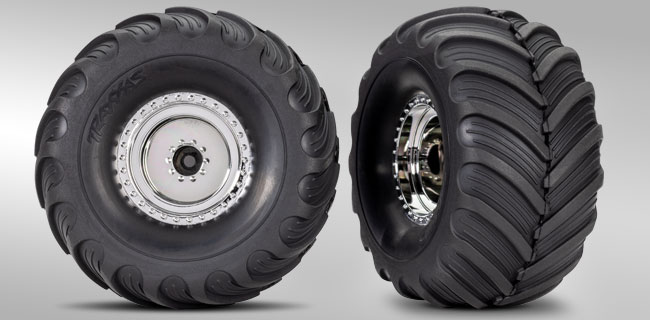

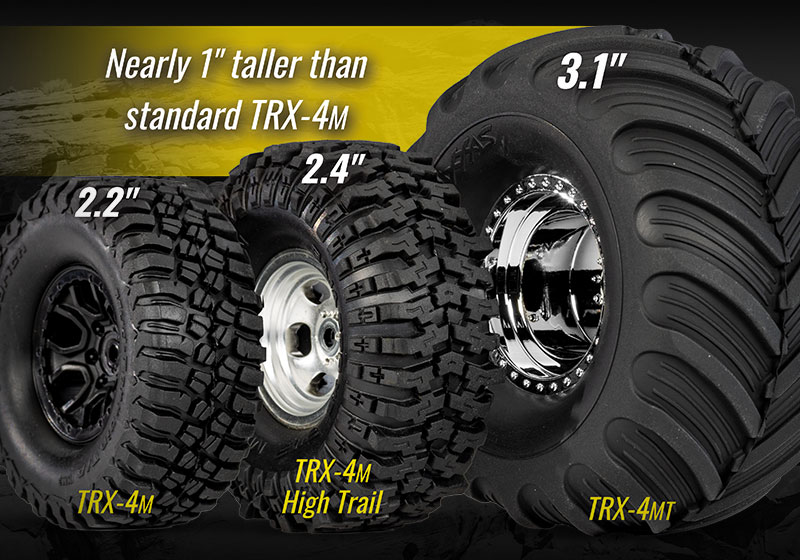

Huge 3.1? Terra Groove monster truck tires replicate the hand-carved look of full-size monster truck tires and give TRX-4MT a towering stance. The oversize tires raise the center ground clearance and improve traction on loose surfaces with their aggressive tread pattern. Deep-dish chrome wheels round out the package for a stunning scale appearance.

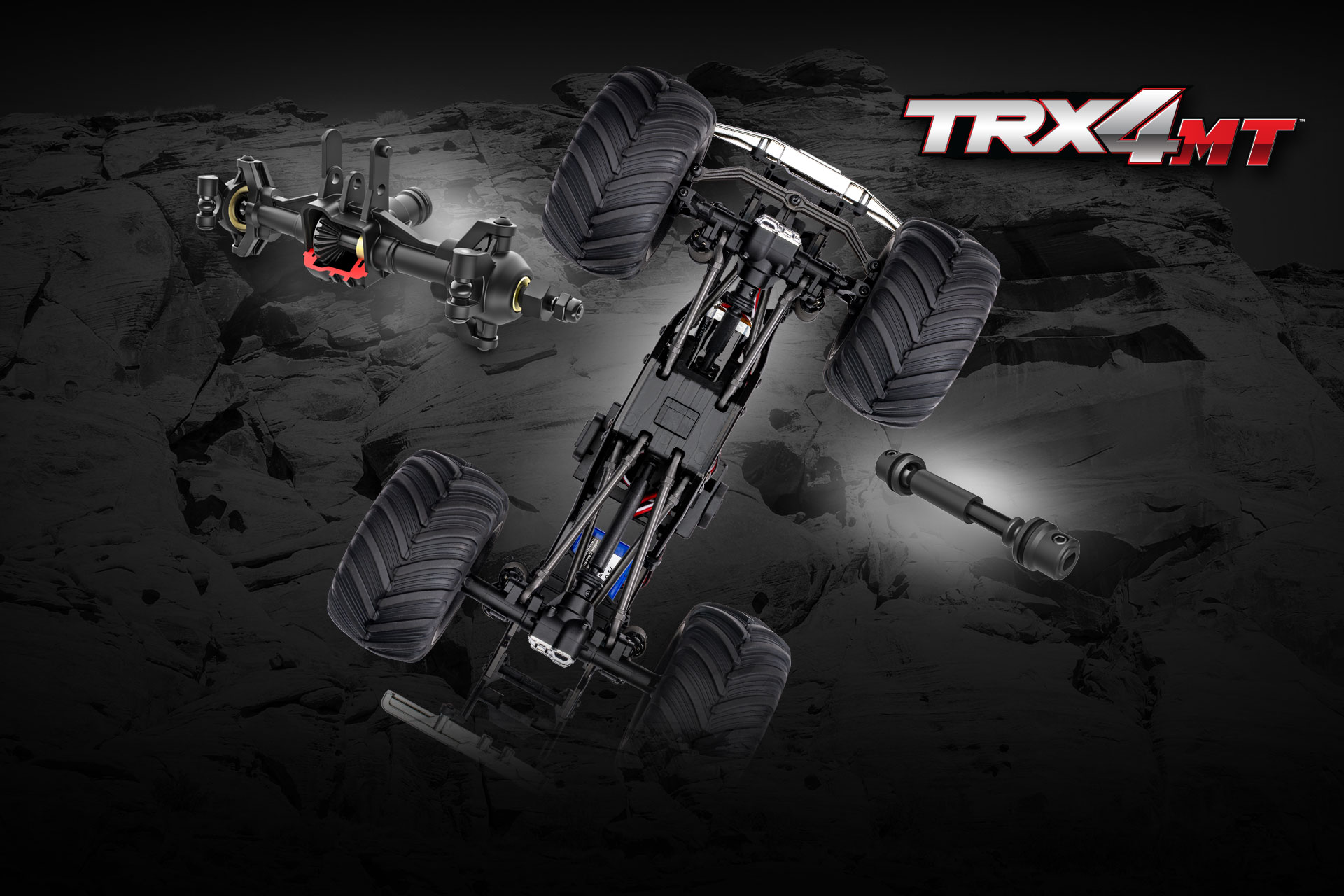

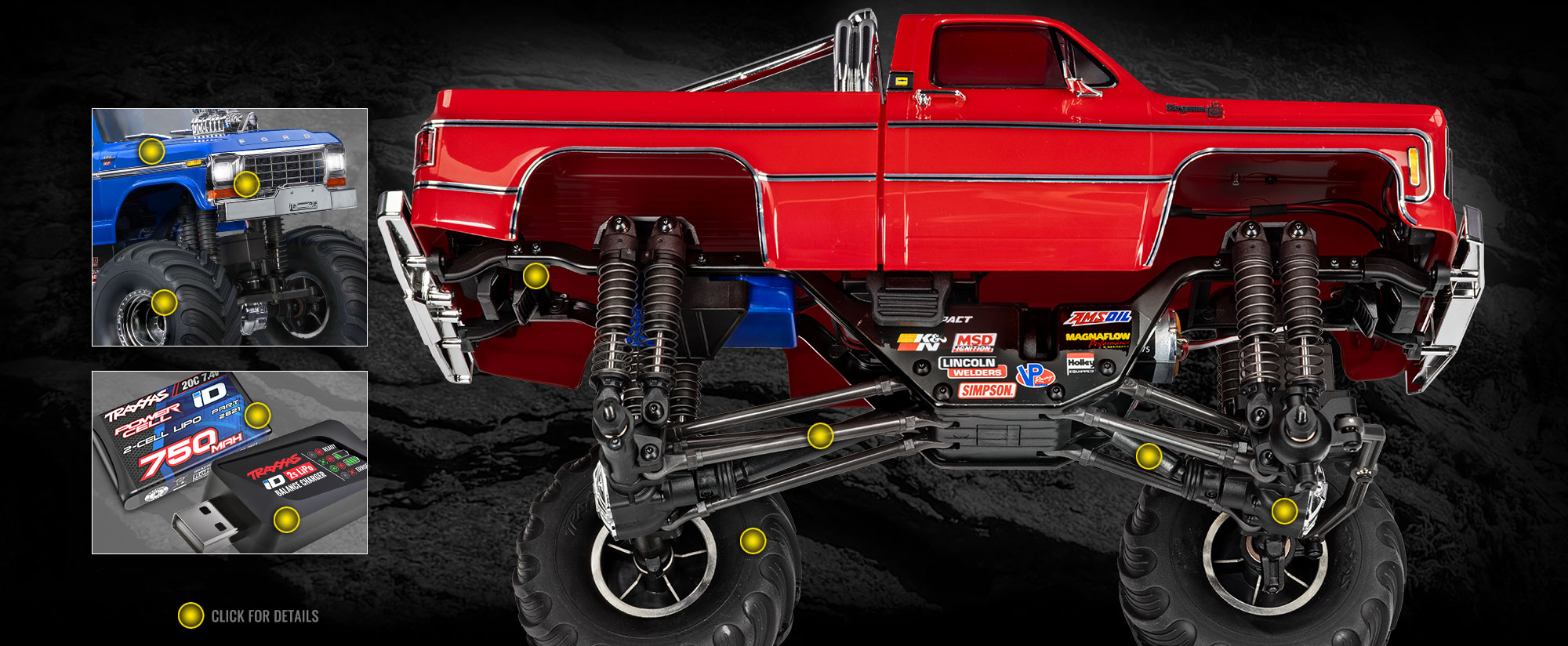

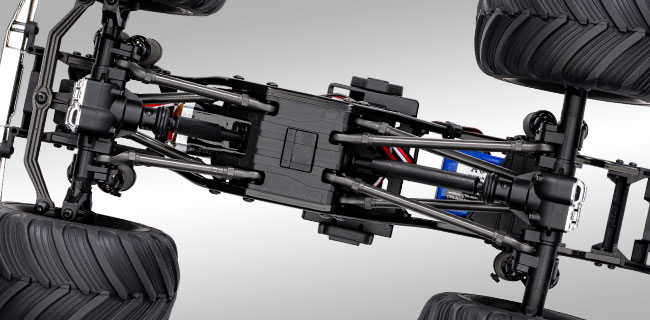

TRX-4MT rides on a lifted four-link suspension with heavy duty triangulated rods. Solid front and rear axles provide excellent articulation to climb over the toughest obstacles.

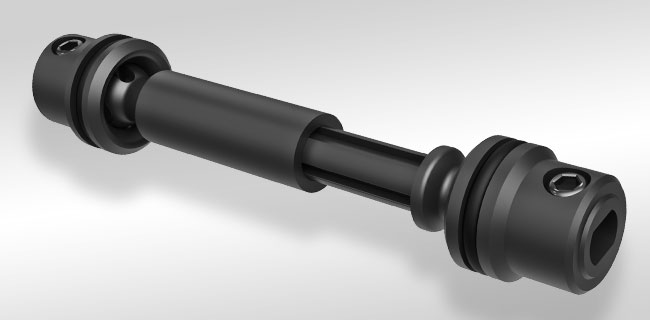

TRX-4MT’s heavy duty center driveshafts telescope freely to allow maximum suspension travel. Smooth-running CV joints are engineered for long-lasting, trouble-free performance.

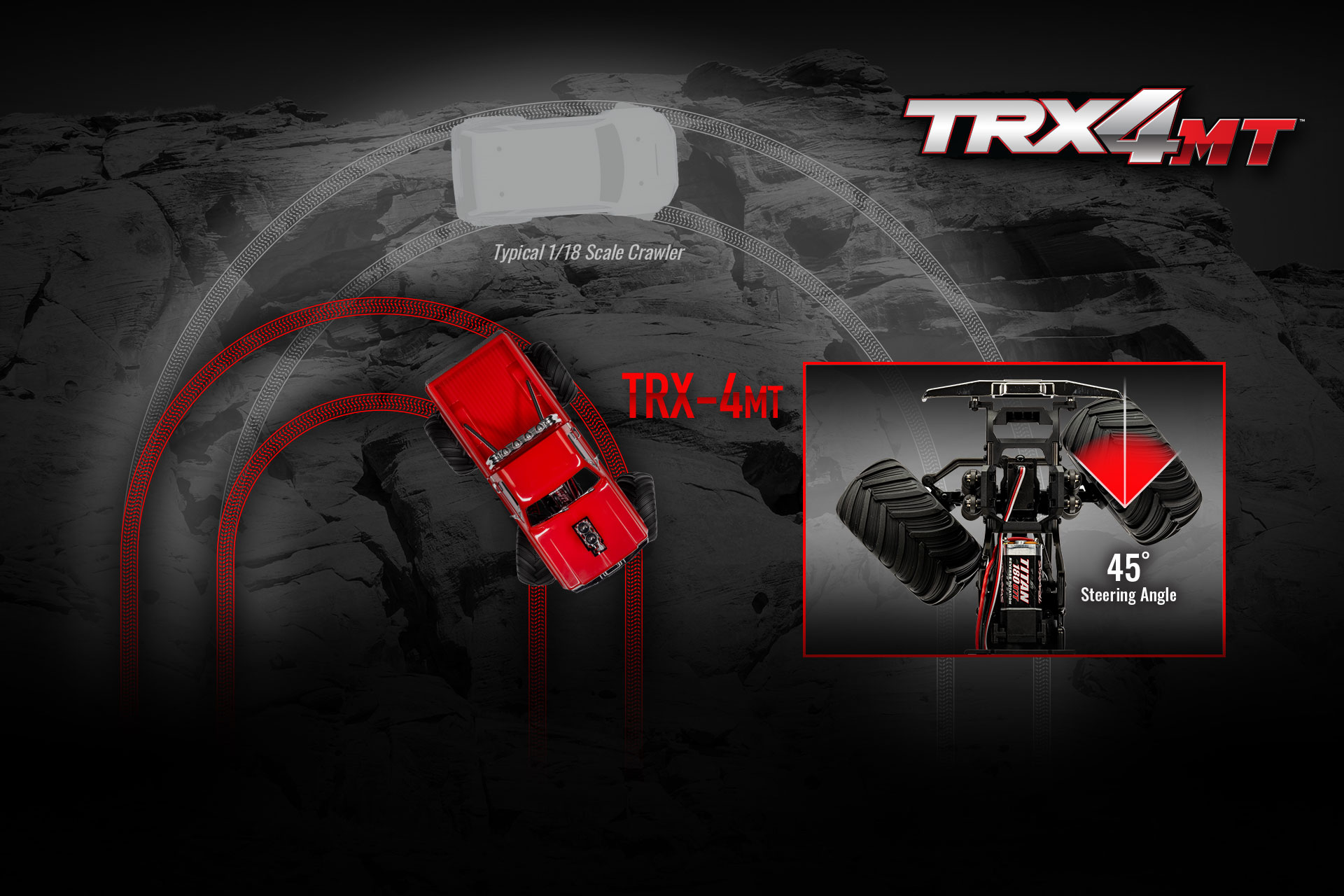

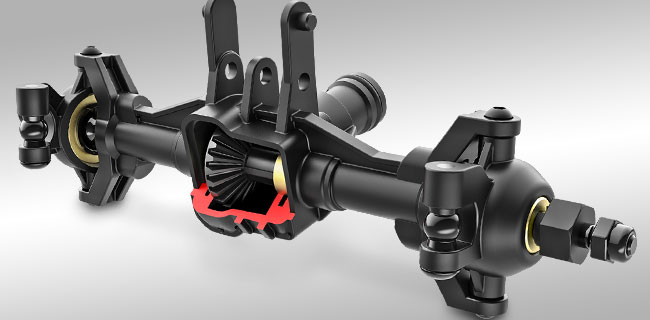

TRX-4MT’s front and rear axles are locked with spools to supply non-stop climbing power to all four wheels. Tough, steel constant-velocity (CV) joints allow increased steering angle at the front wheels for tight turns.

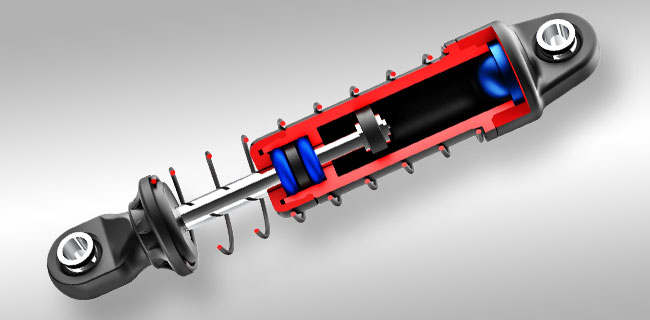

TRX-4MT utilizes four oil-filled GTM™ shocks with dual O-ring seals for a perfect seal and smooth performance. Four additional cosmetic shocks complete the classic monster truck look with specially tuned springs for a realistic and controlled ride.

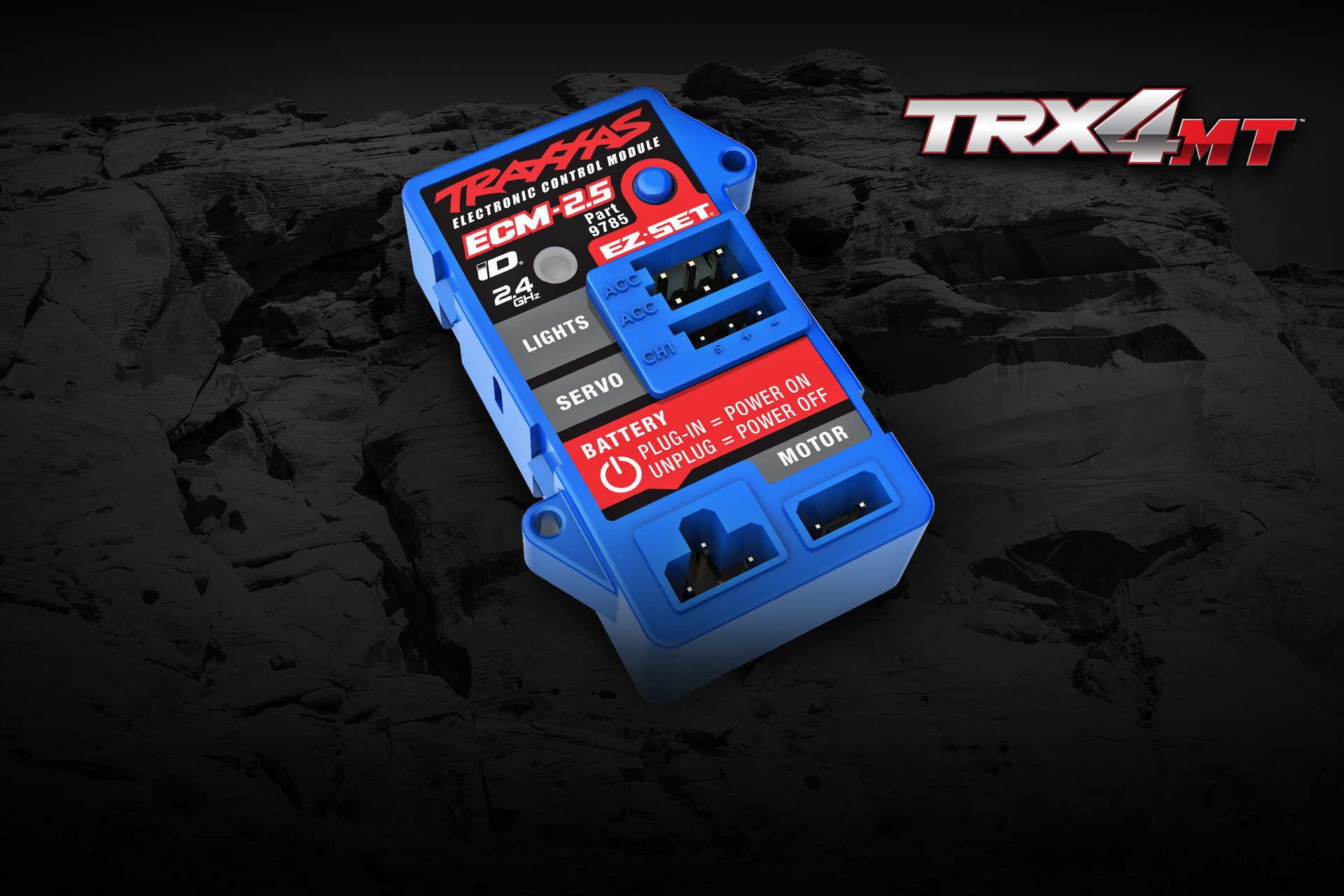

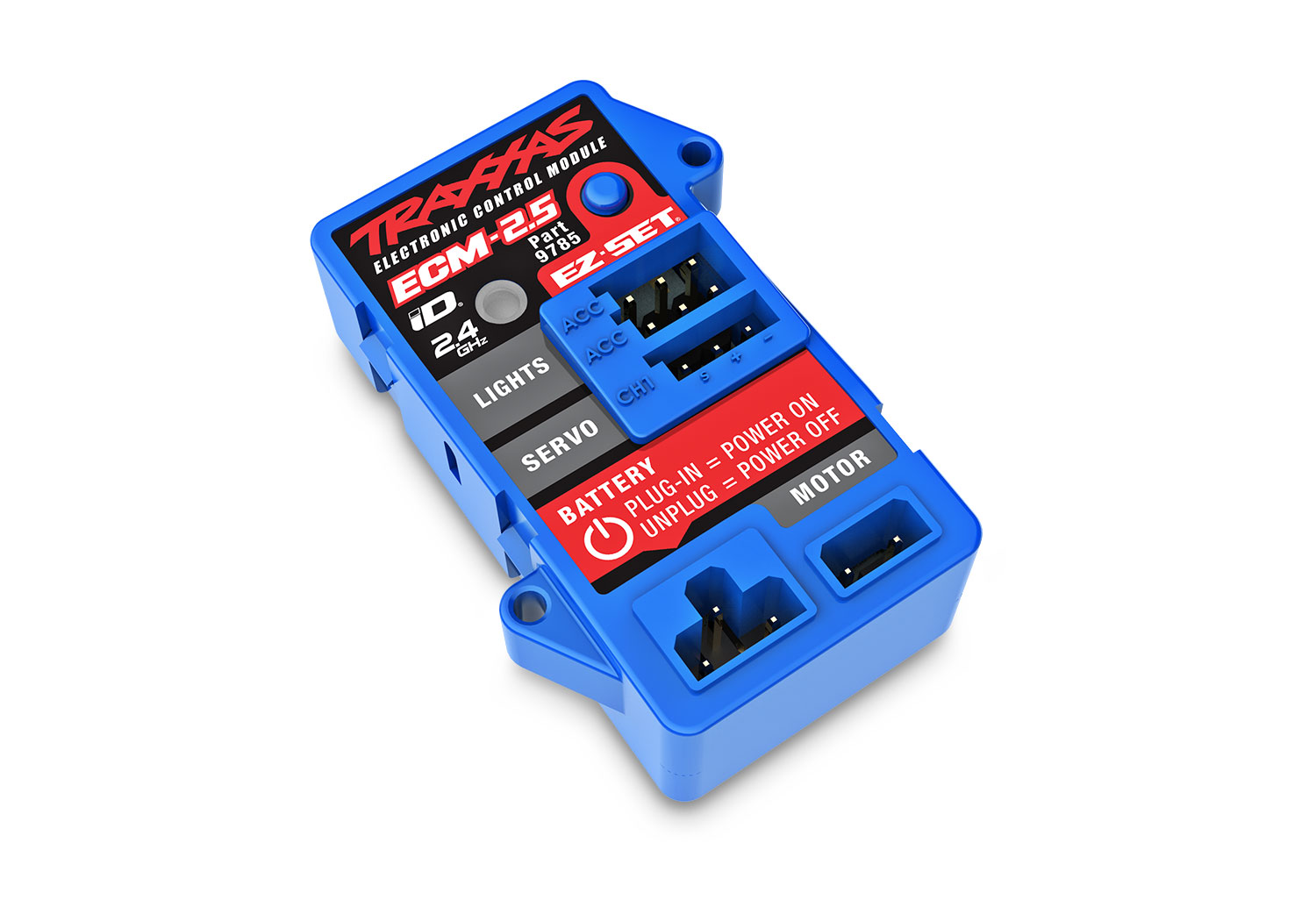

The ECM-2.5 features low voltage detection for 2s LiPo batteries and EZ-Set® one-button programming to select driving modes. Choose Sport Mode for all-around driving, or Trail Mode for smooth drag braking on steep descents. For a smooth scale look while creeping over technical terrain, Crawl Mode applies full brakes the instant the throttle is released and allows drivers to continue through to reverse without a second push on the trigger.

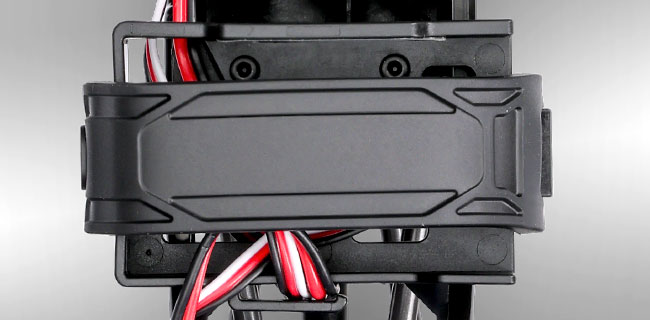

A wide rubber strap keeps the battery safely locked in place and prevents the weight from shifting.

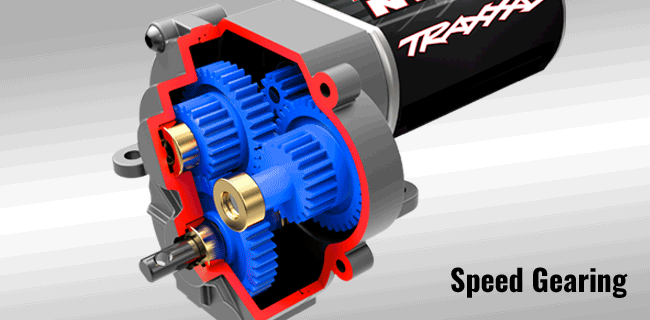

TRX-4MT’s modular assembly allows you to swap out different transmissions to change the performance characteristics of the truck. Install the low-range transmission for smooth low-speed torque or boost your top end with the speed gearing option (optional ratios sold separately).

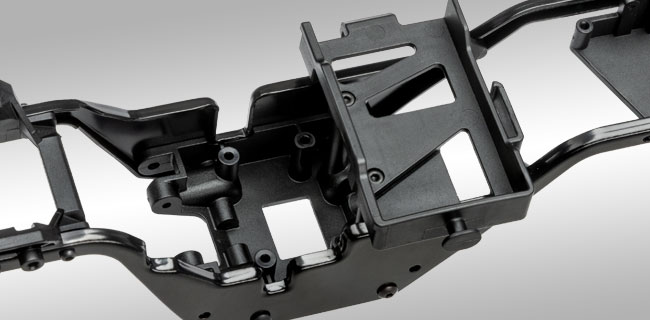

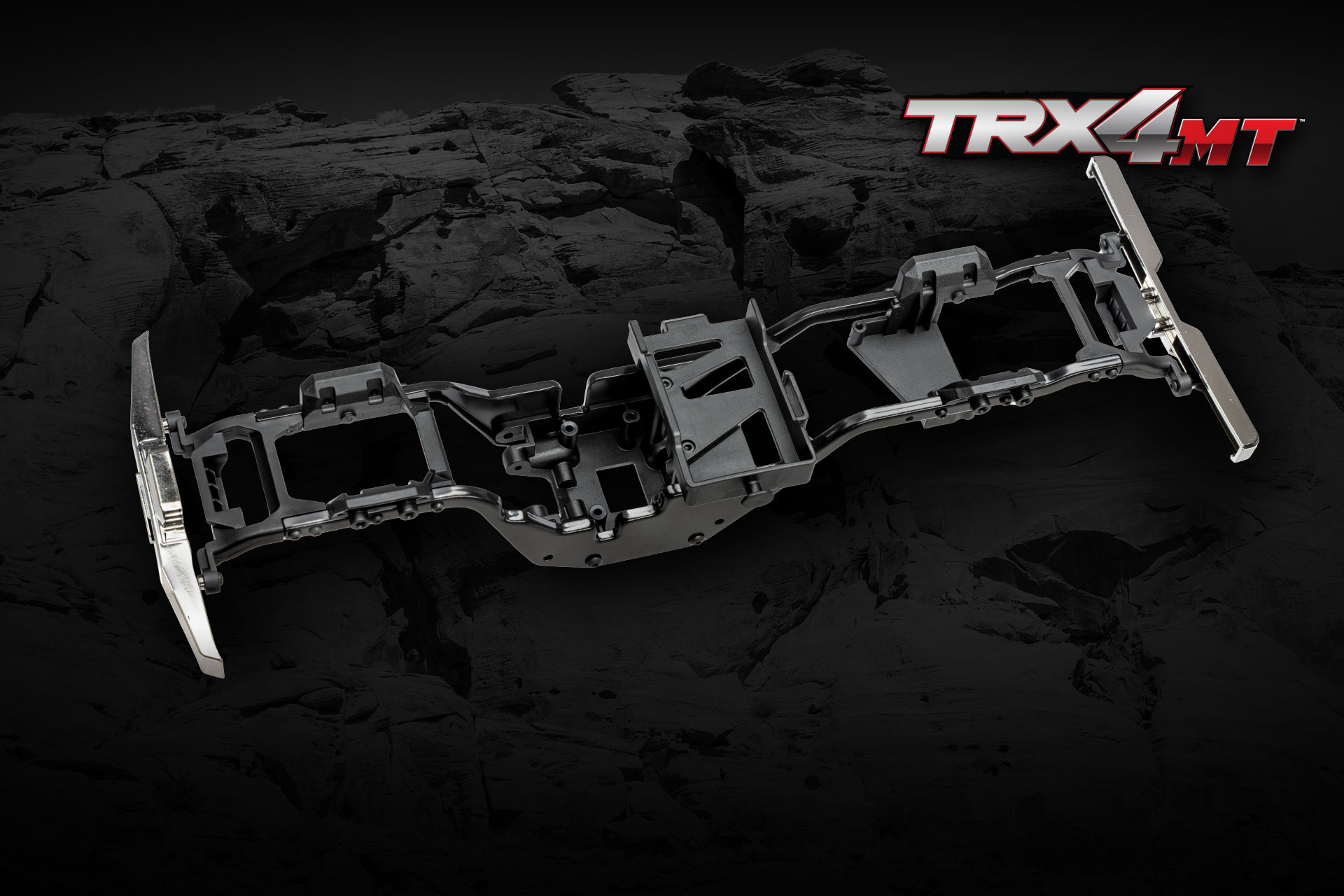

TRX-4MT’s extended heavy duty steel frame rails are formed with a deep C-channel for maximum rigidity. Extended side panels in the center section replicate the monster truck look and increase strength where it’s needed most.

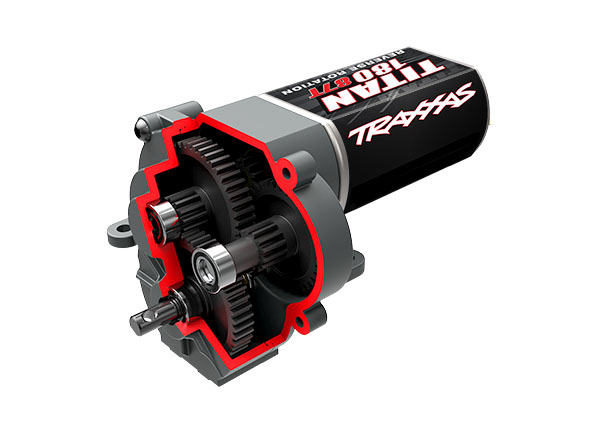

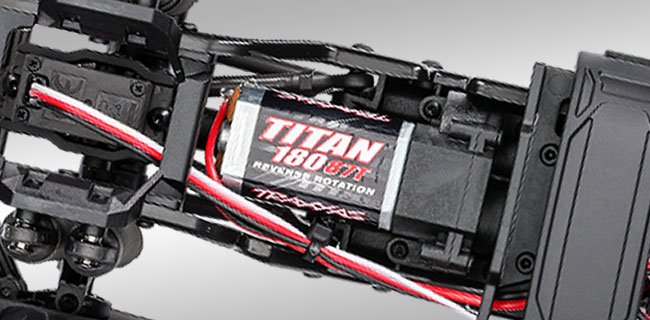

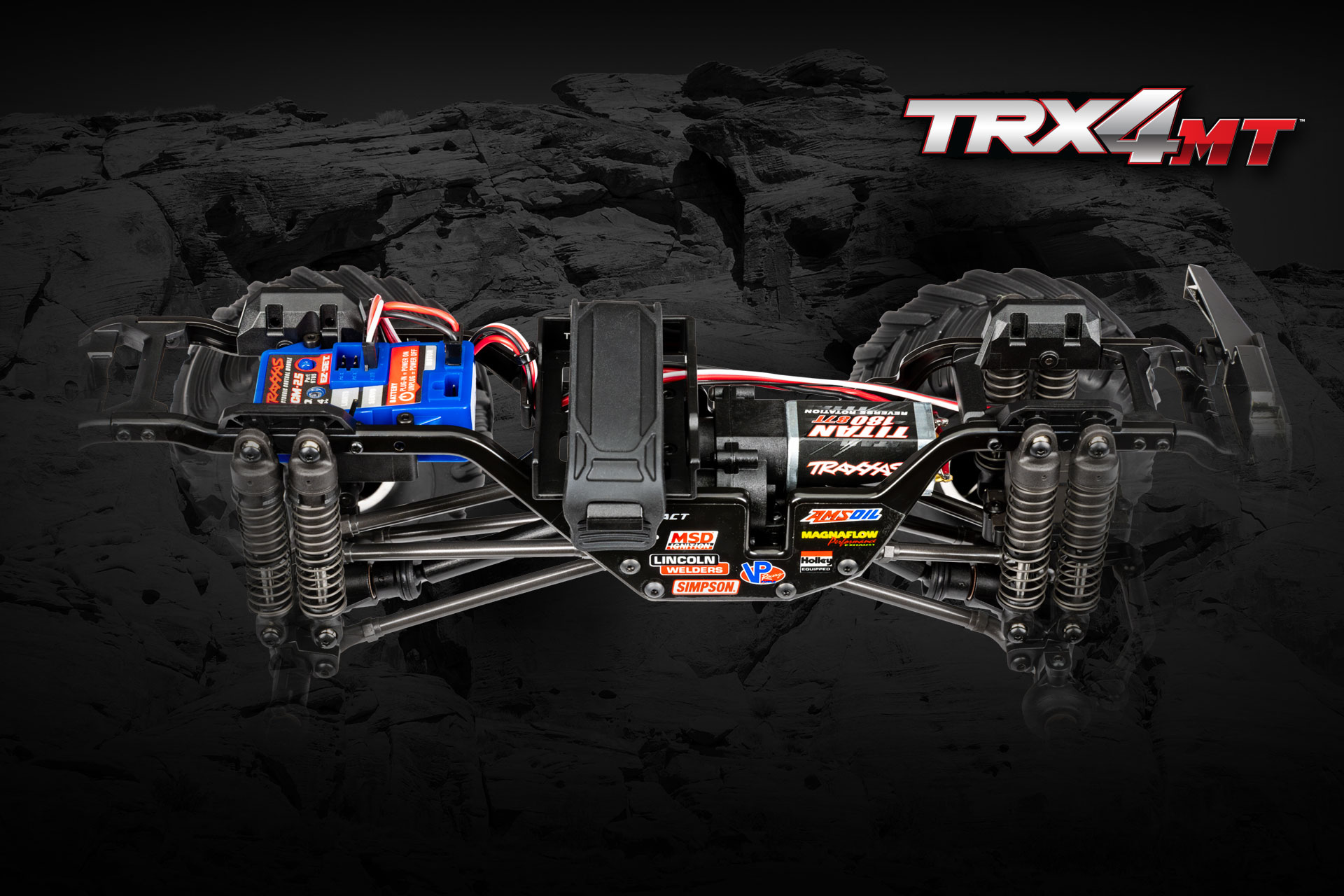

The Titan® motor mounts securely to the transmission module with a fixed gear mesh that never needs adjustment. The motor’s mounting position shifts the weight bias forward for improved crawling dynamics over obstacles.
TRX-4MT’s 2065R steering servo operates on full 6-volt power for maximum steering authority with a full metal gear drivetrain for exceptional durability and precise control. The rugged one-piece drag link sits high up in the axle to avoid snags and impacts.

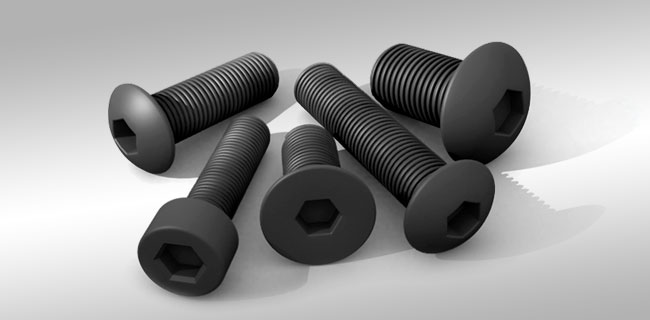

TRX-4MT rides on low maintenance self-lubricating bushings for long lasting performance. TRX-4MT is assembled with high-quality hex hardware for long-term durability and secure fastening.

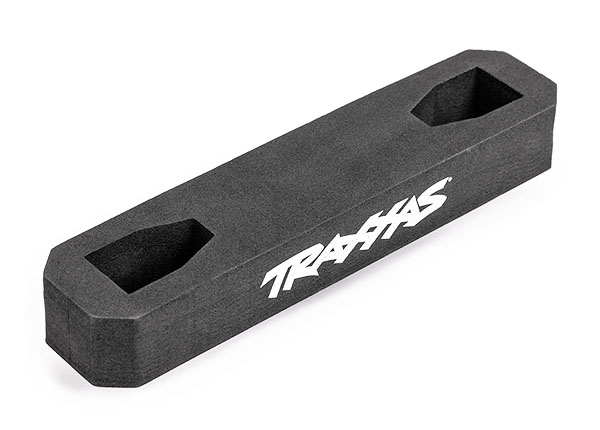

Display Stand

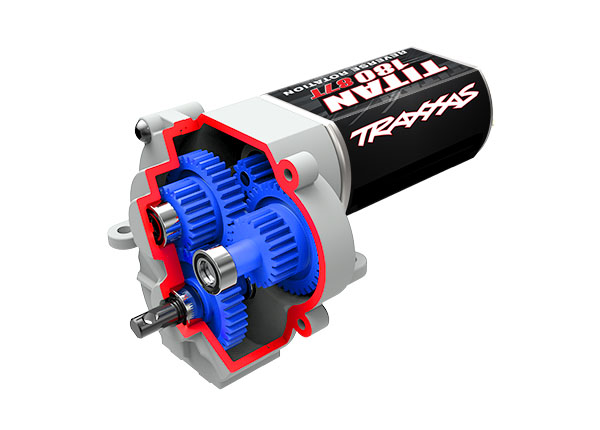

Speed Transmission
Low-Range Transmission

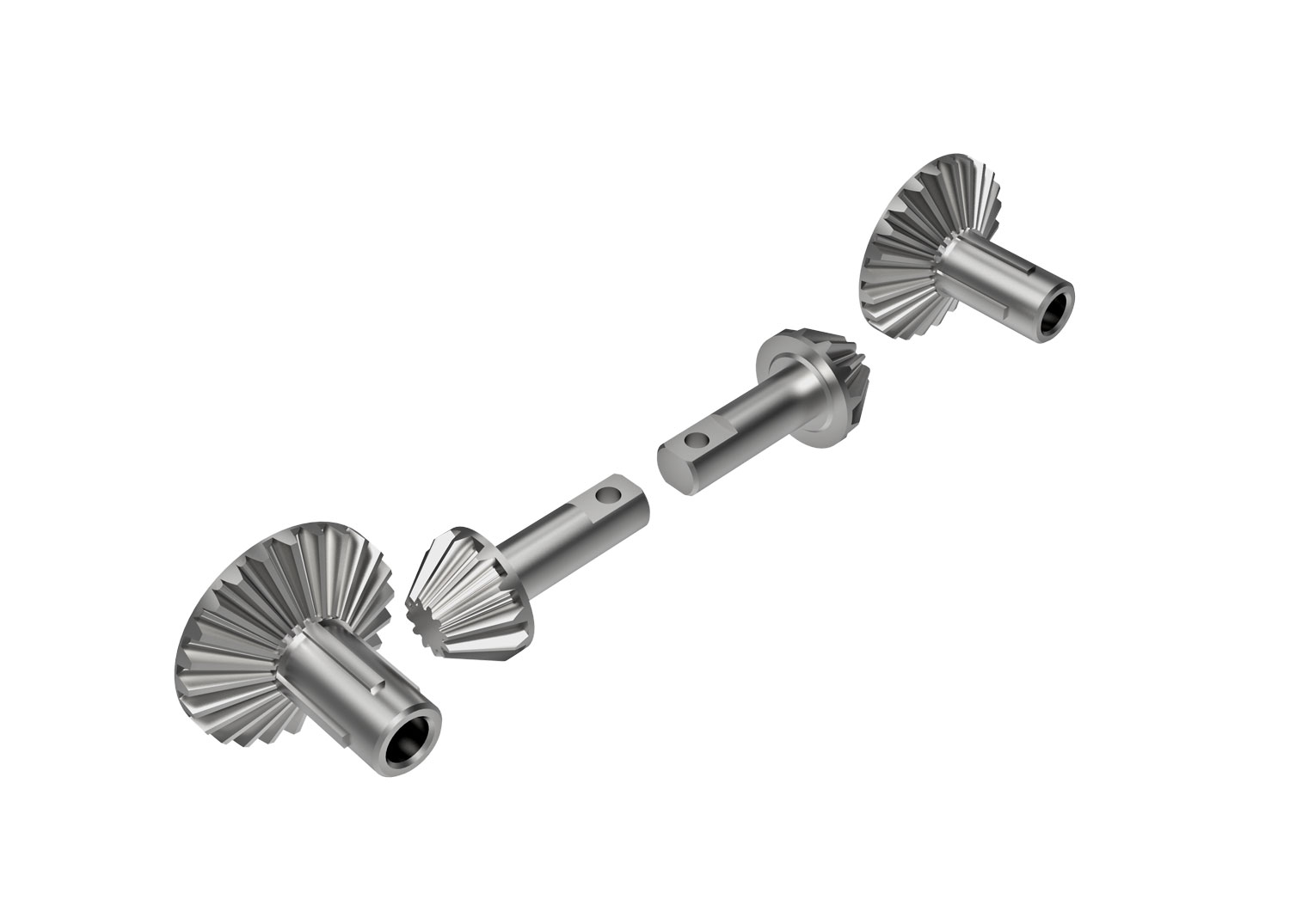

Metal Axle Gears

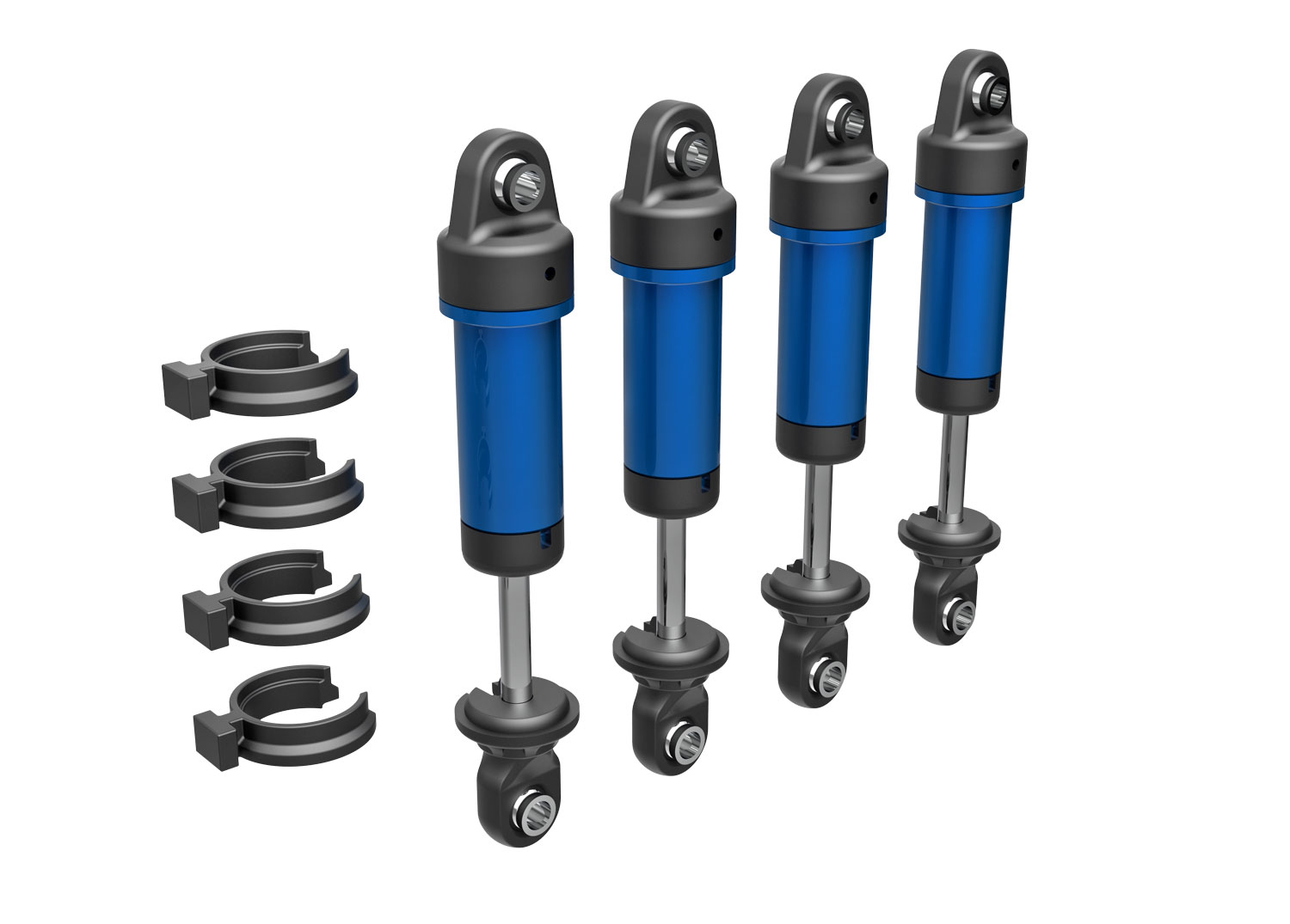

Blue Aluminum GTM Shocks
Gray Aluminum GTM Shocks

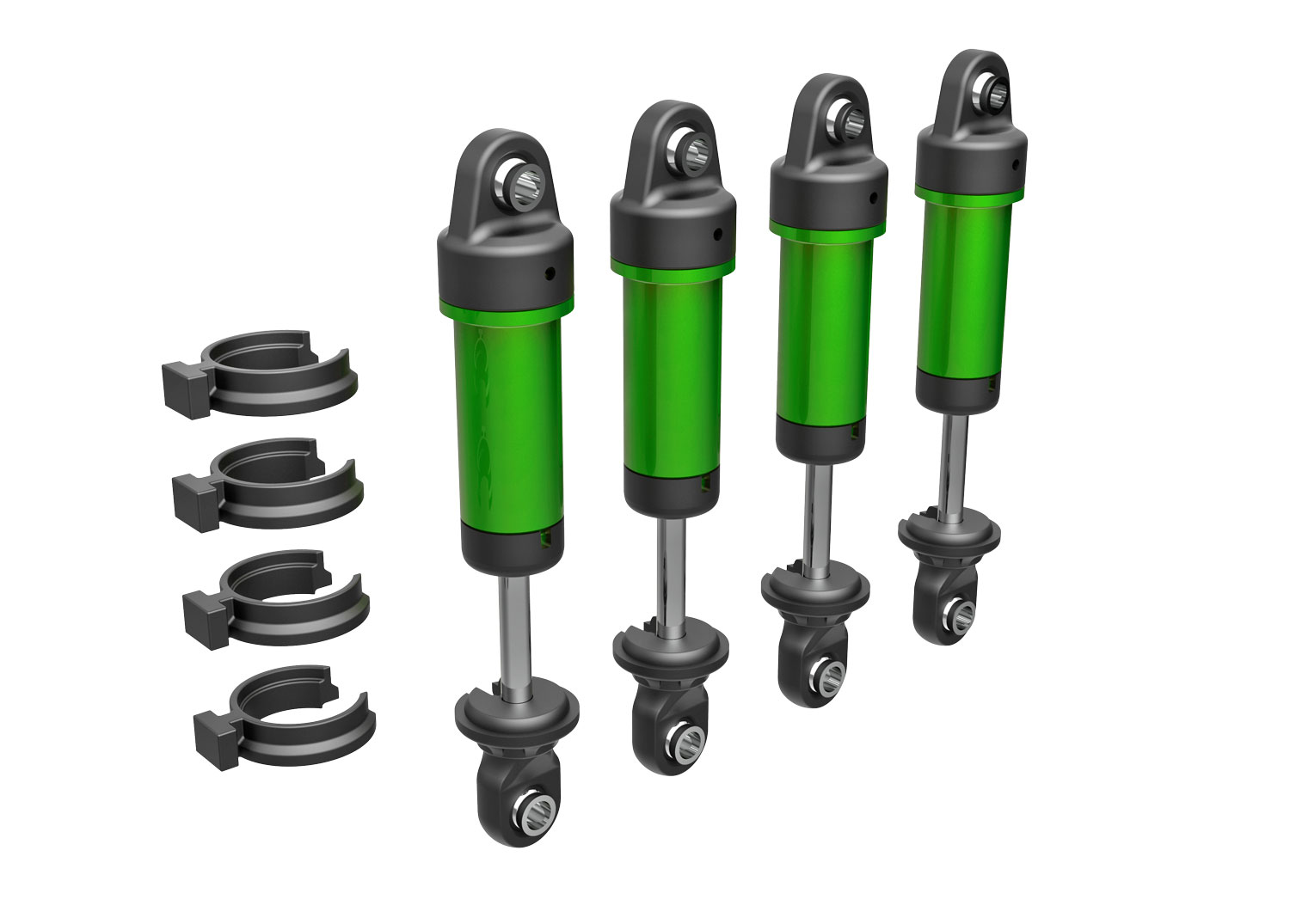

Green Aluminum GTM Shocks

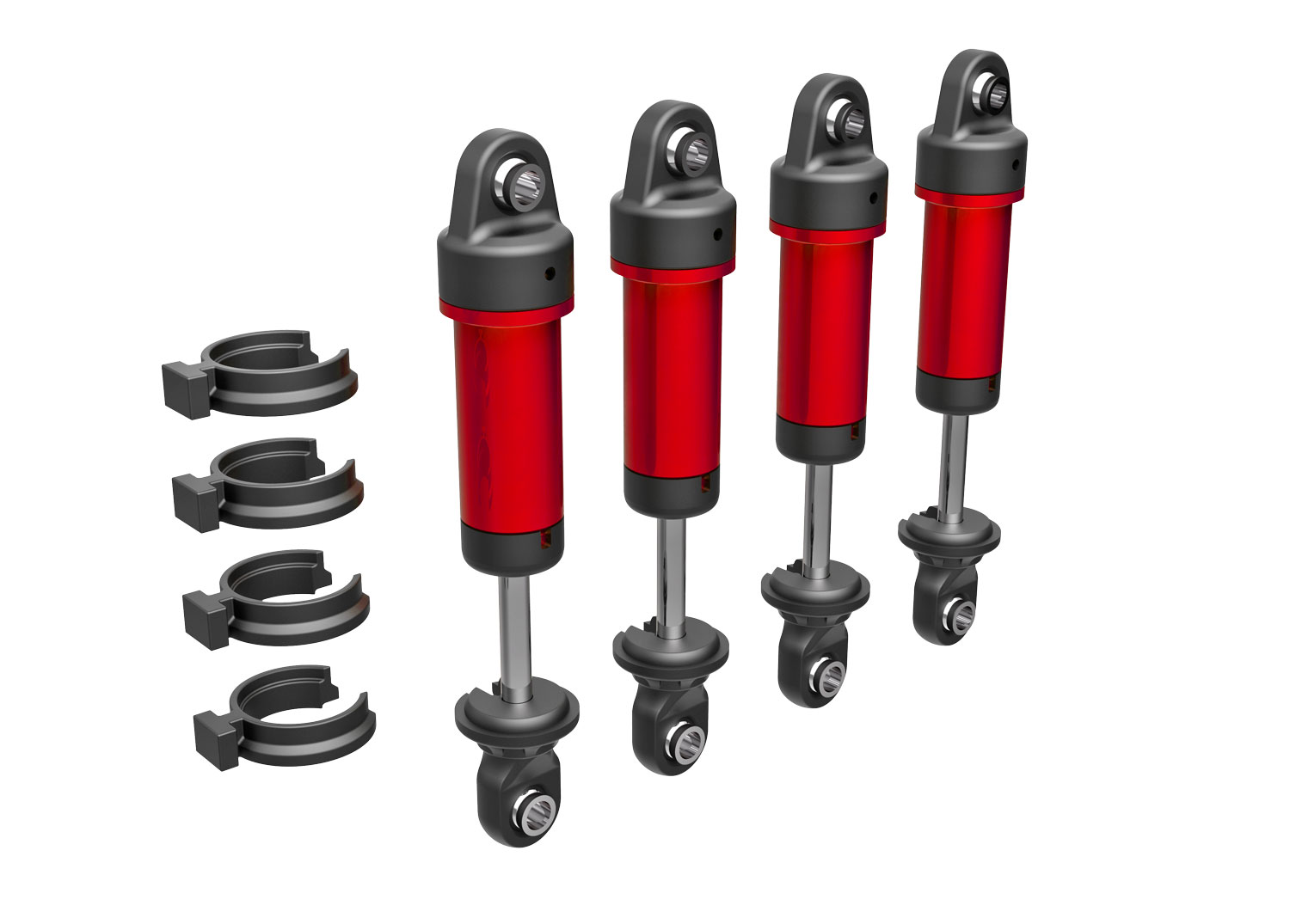

Red Aluminum GTM Shocks

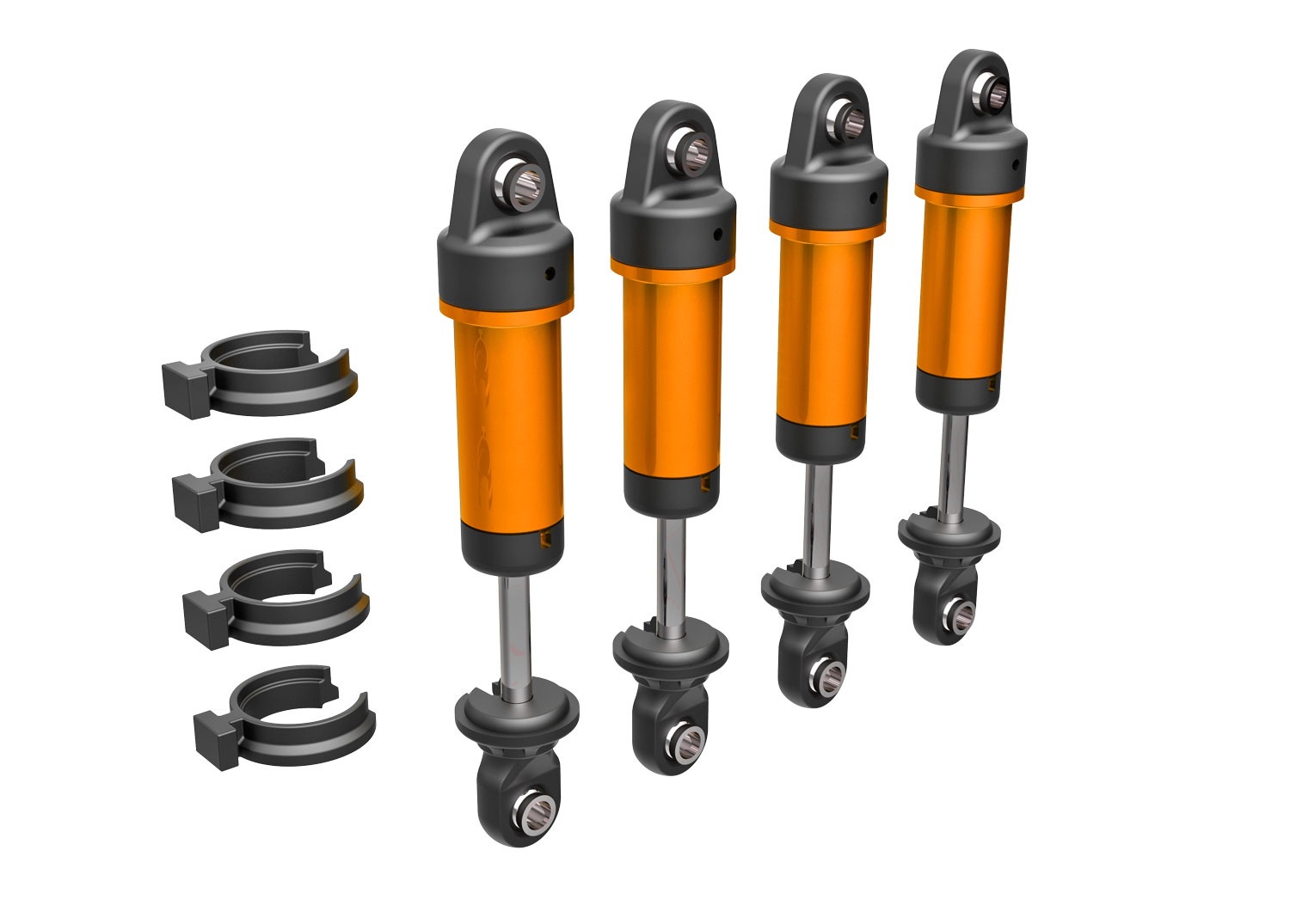

Orange Aluminum GTM Shocks
Blue Aluminum Heat Sink

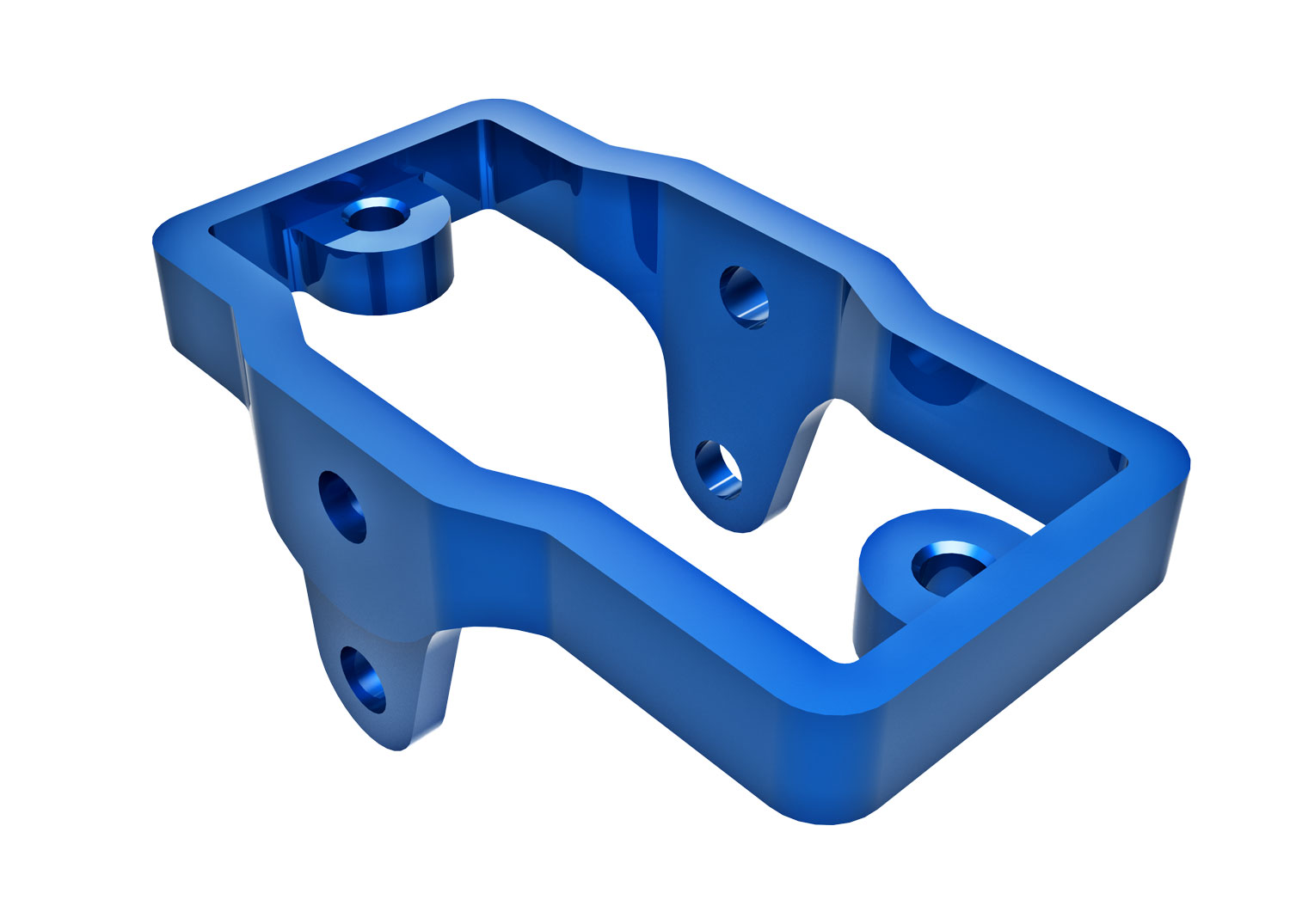

Blue Aluminum Servo Mount

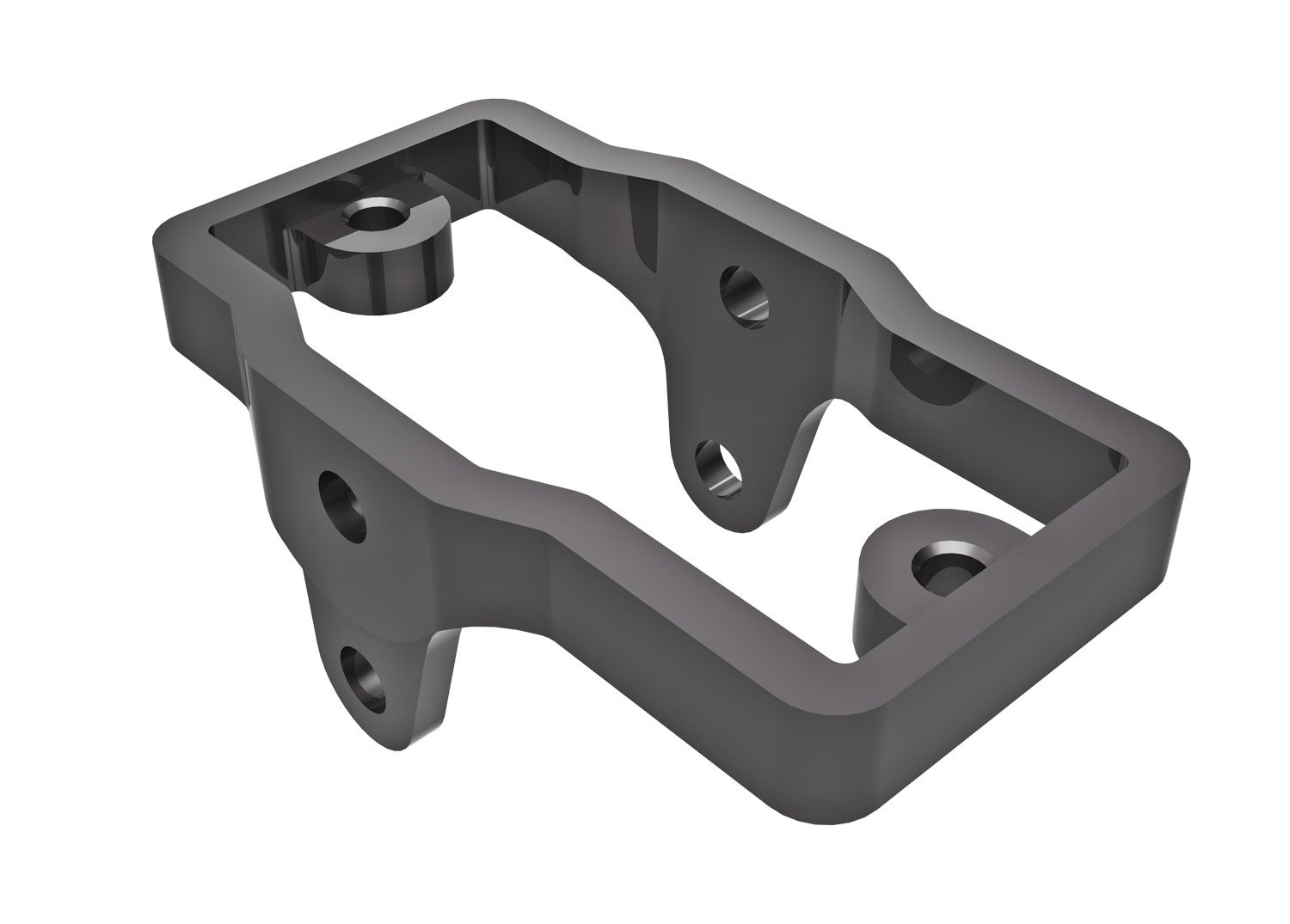

Dark-Titanium Aluminum Servo Mount
Green Aluminum Servo Mount

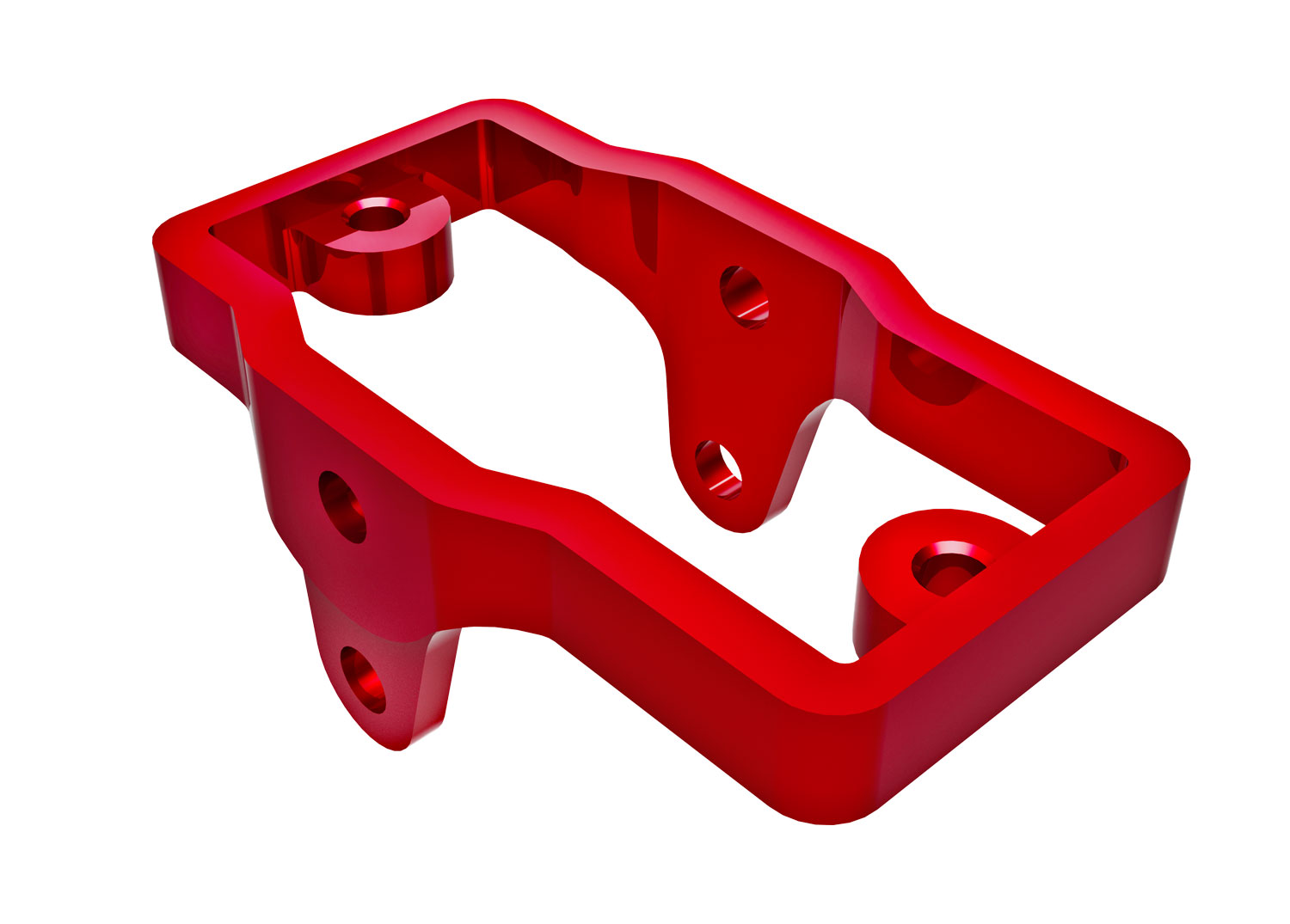

Red Aluminum Servo Mount

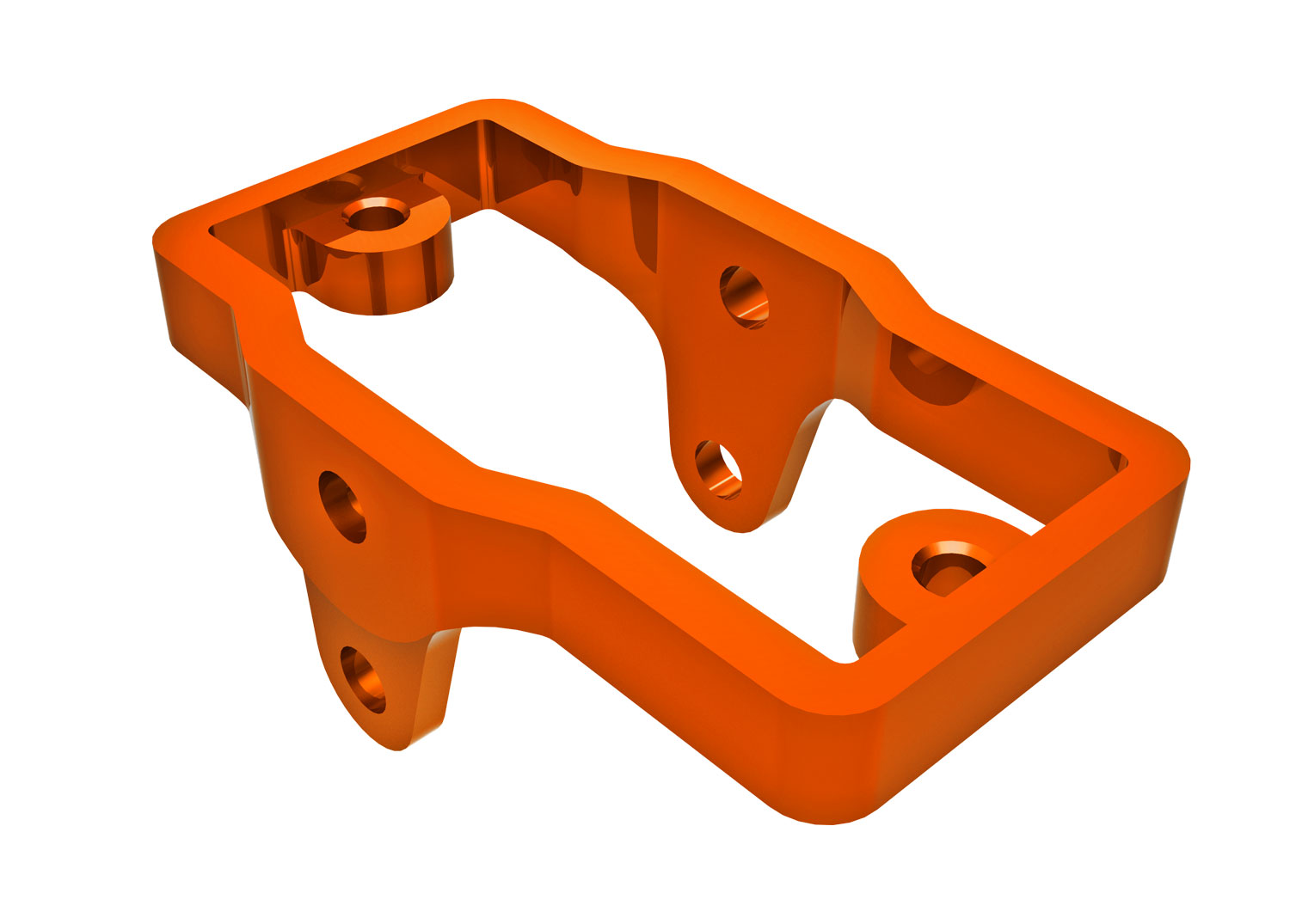

Orange Aluminum Servo Mount

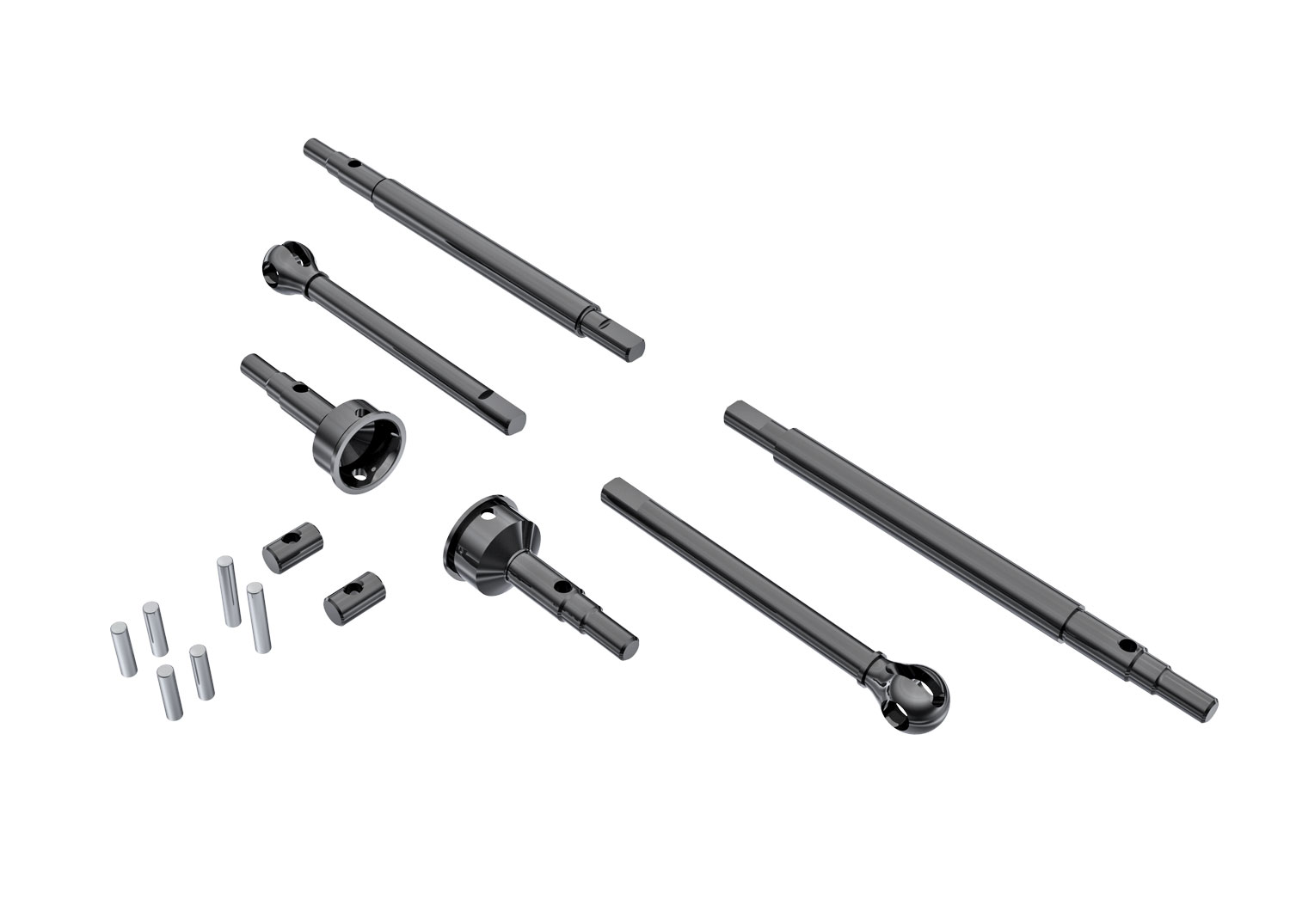

Hardened Steel Axles

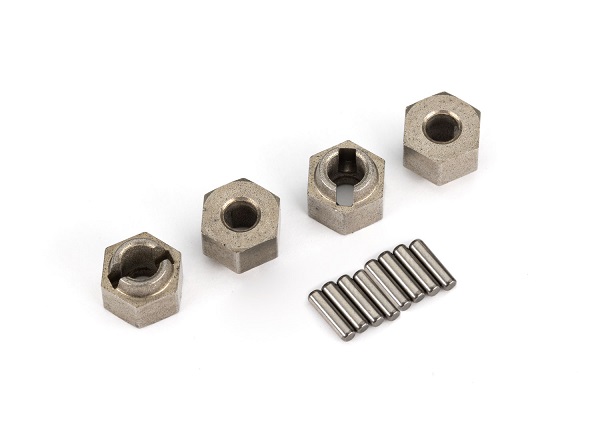

Steel Wheel Hubs

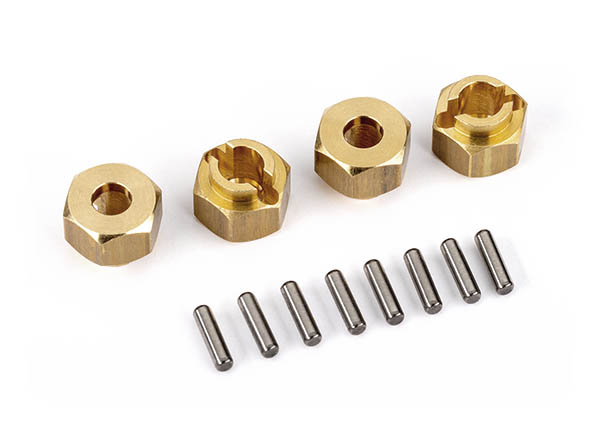

Brass Wheel Hubs

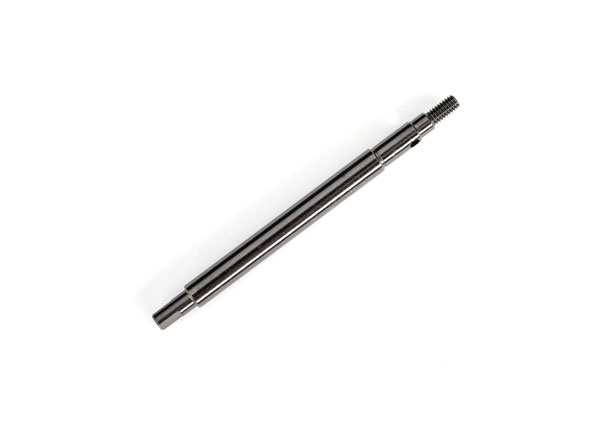

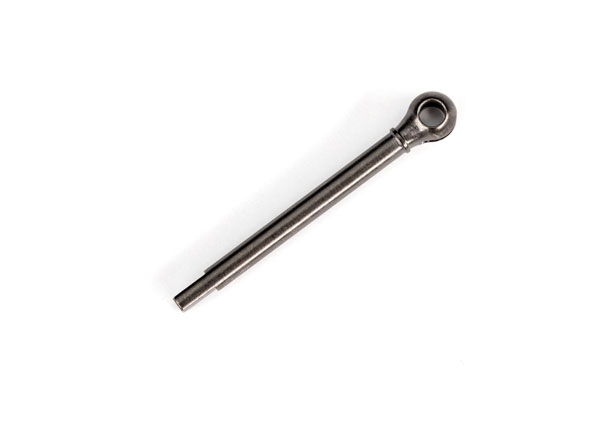

Hardened Steel Front Axle Shaft
Hardened Steel Rear Axle Shaft

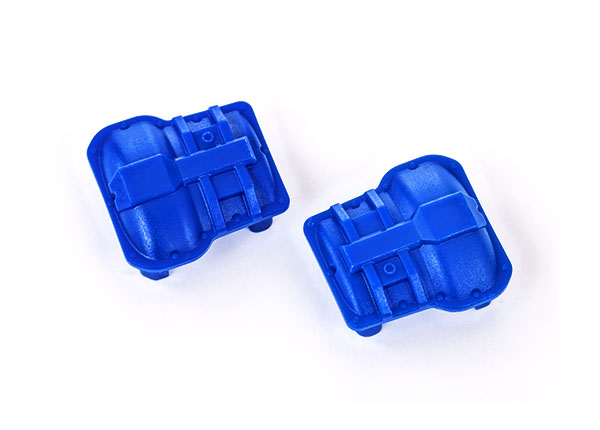

Blue Differential Covers

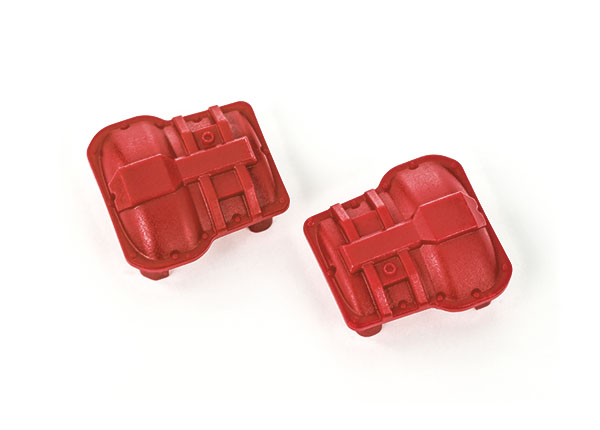

Red Differential Covers
Blue Aluminum Steering Link
Gray Aluminum Steering Link

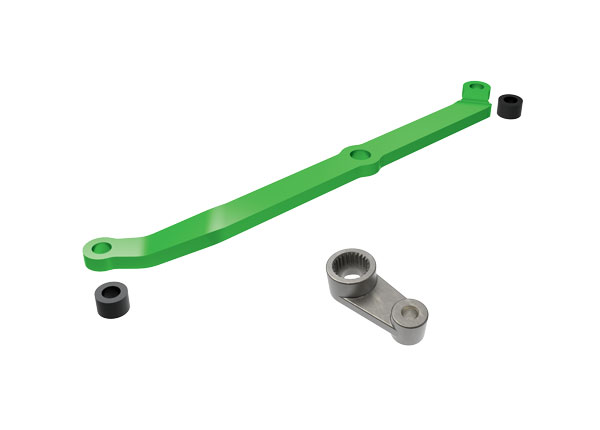

Green Aluminum Steering Link

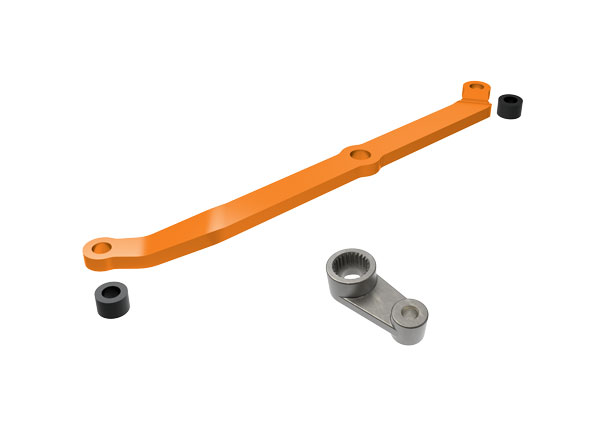

Orange Aluminum Steering Link

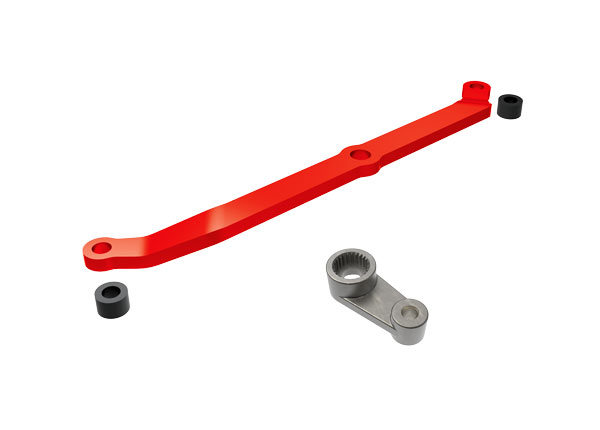

Red Aluminum Steering Link
