50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
Traxxas Stability Management® (TSM)
Helps prevents spinouts and loss of control
Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
Factory-installed telemetry sensors
5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Clipless Body Mount System
Quick one-handed installation and removal
Uses pivoting rear latch mechanism
Eliminates body posts and clips
Reinforced for extra protection
Drivetrain
Full-time shaft-driven 4-wheel drive
Machined, hardened steel pinion and spur gear
All-metal gears and CV driveshafts
Torque-Biasing Center Drive™ absorbs shocks and distributes power
24 mm splined wheel hexes
Wheel hexes retained with a clip
17 mm hex on outside of wheel
Sealed, silicone fluid-filled diffs with large module ring and pinion gears
Splined outdrives attached with external thru-bolt method
Fully machined aluminum stub axles
Splined aluminum center driveshaft
Fixed Motor Mounting System
Rigid aluminum motor mounts
Preset gear mesh adjustments
No manual adjustments required
Motor retention separate from gear mesh

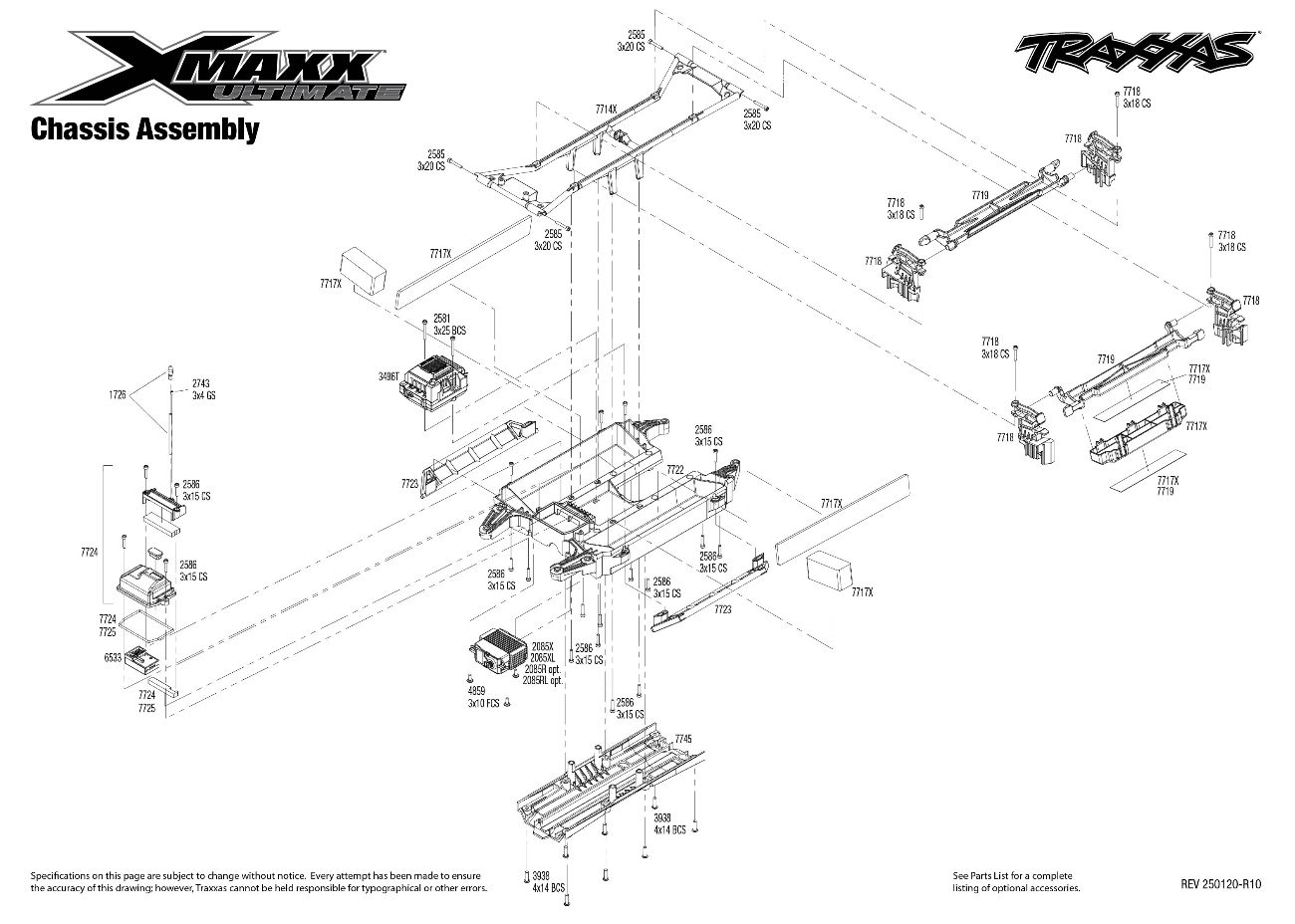

Heavy-Duty Modular Composite Chassis
Interlocking front and rear bulkheads
Motor mounts to rear bulkhead to eliminate gear crunching flex
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt and grit
Snap-Lock Battery Retention System
No body clips or hook and loop straps
Battery hold-downs pivot for easy access
Adjustable for battery size
More secure than conventional retention systems
Integrated into chassis top brace for improved battery tray and chassis stiffness
Bumpers
Front energy absorbing rubber impact bumper
Lower front and rear skids for impact and abrasion resistance
Integrated nerf bars for side impact resistance
Steering
6061-T6 aluminum steering bellcranks
2085X high-output metal gear steering servo
Double-shear aluminum servo horn
Heavy-duty servo saver spring
Suspension
TUBES 7075-T6 Aluminum front toe links
All critical suspension points have double shear strength
High strength steel suspension pins used throughout
Suspension pins retainers won’t come loose or “back-out”
C-hub and steering block geometry maximizes steering angle
Adjustable roll center
Steel upper and lower tie bars
Full contact sealed bearings used in exposed locations
Aluminum GTX™ Shocks
Machined aluminum threaded body
Extra-large bore and capacity
Ultra-smooth TiN-coated 5.2 mm damper shafts
Lower seal cartridge includes integrated wiper seal combination
Adjustable aluminum upper spring retainer
Aluminum shock caps with pivot balls
Fixed shock locations
Lower spring perches bolted on
Wheels/Tires
Massive 8.4″ Sledgehammer® belted tires
Virtually eliminates ballooning at high speeds
Open tread block design
2-piece foam insert
High-strength glue and bead design
Large, dual-diameter wheels

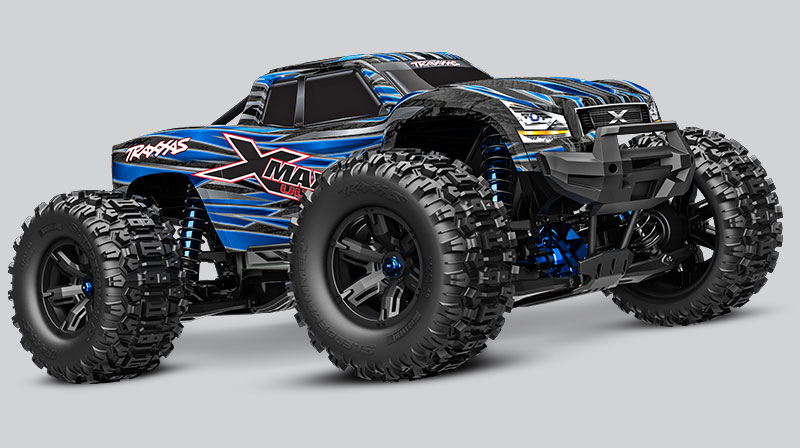

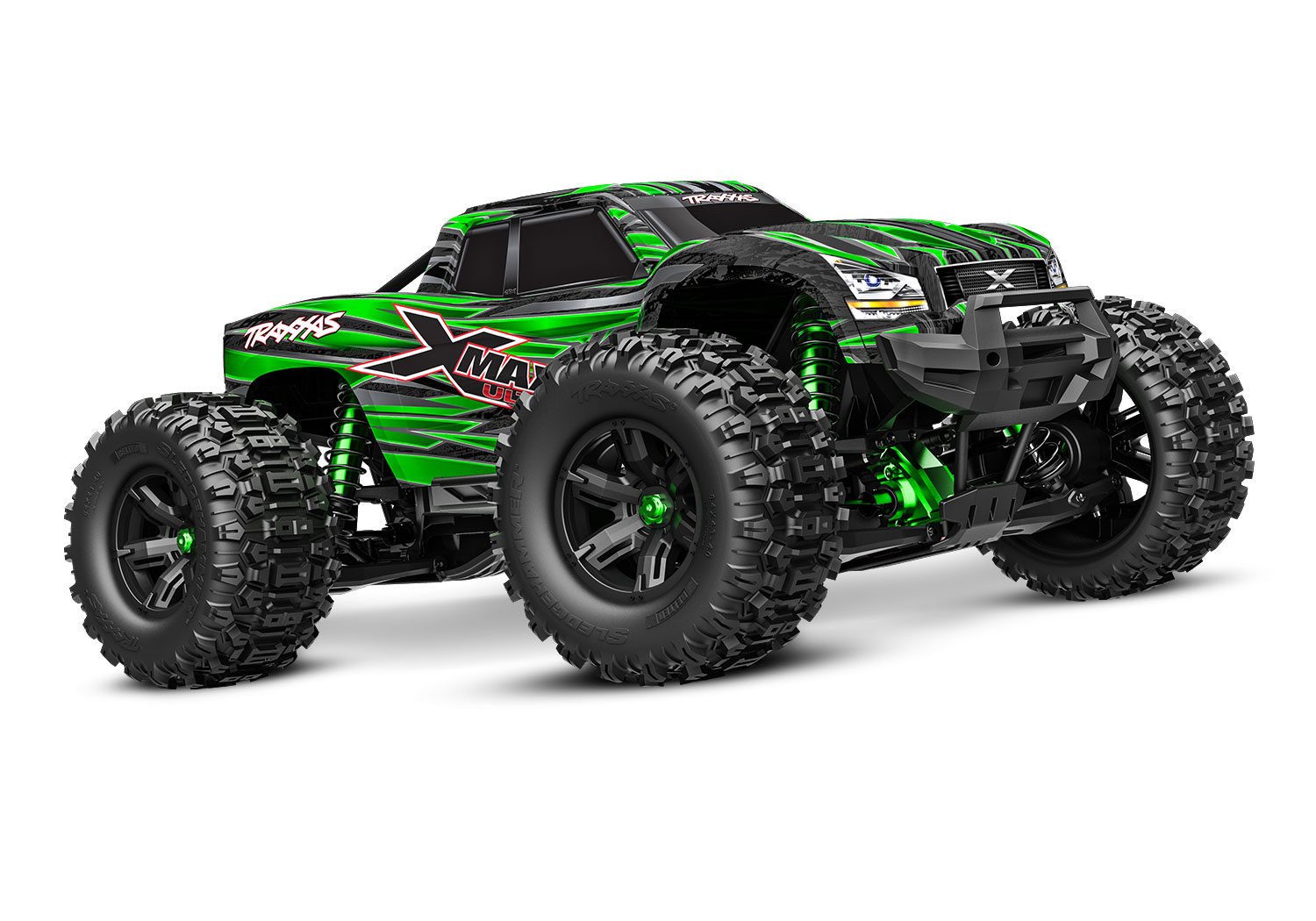

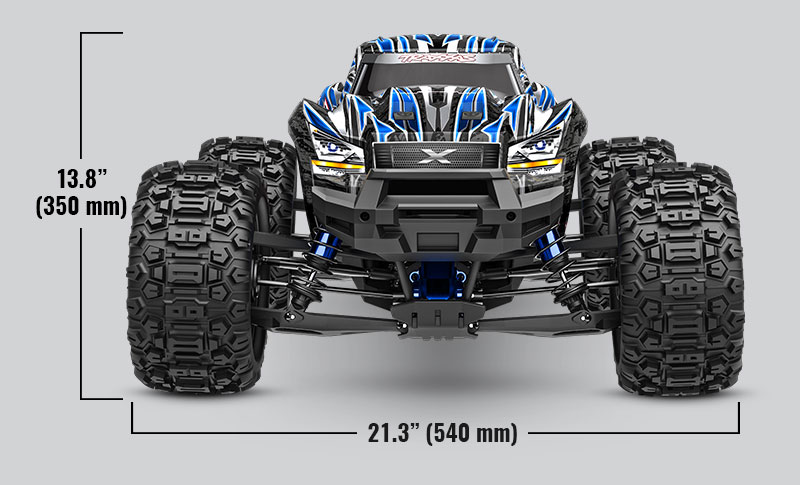

MODEL 77097-4:X-Maxx® Ultimate: fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system, VXL-8s™ brushless power system, and ProGraphix® clipless body.
What’s In The Box:
X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor

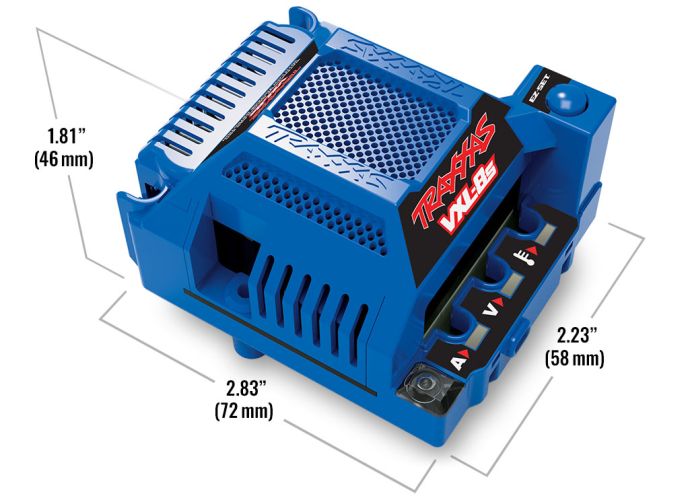

VXL-8s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi 2.4 GHz radio system with factory-installed wireless module
High quality maintenance tools
What You’ll Need:
Batteries
IMPORTANT: X-Maxx Ultimate requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or greater, Power Cell LiPo batteries with iD are recommended (part 2890X).

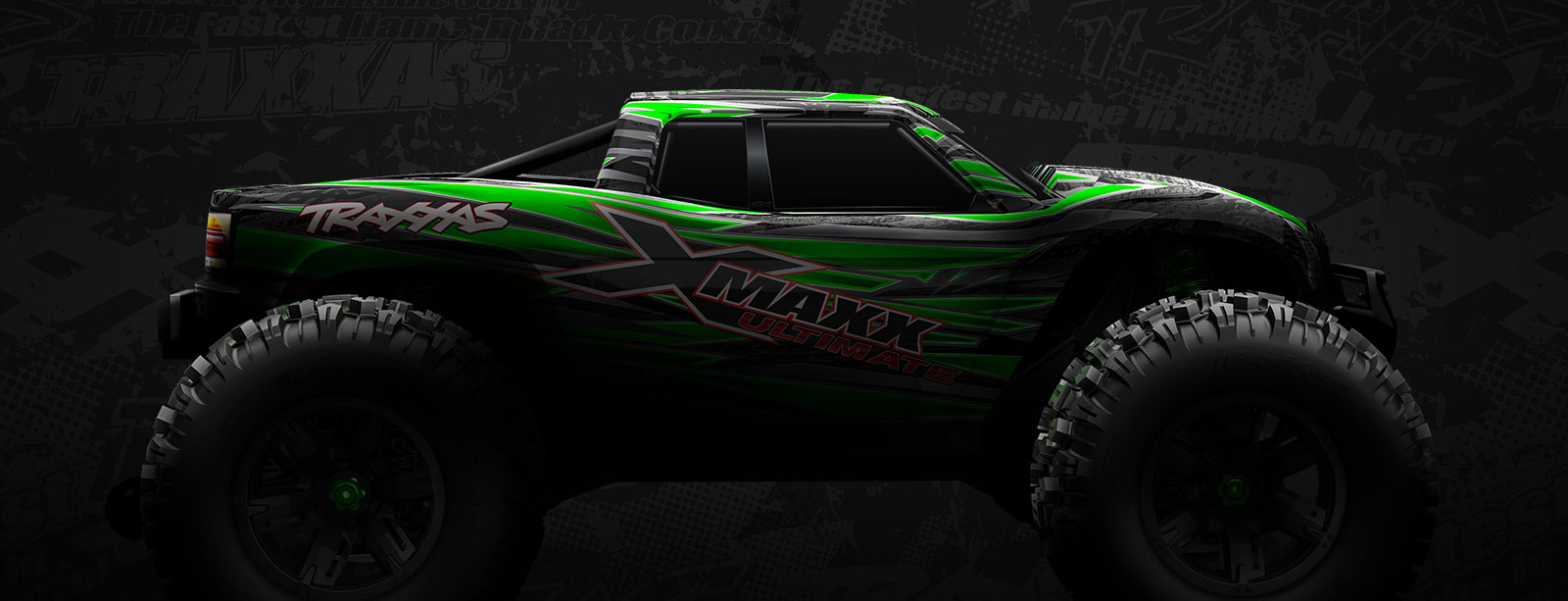

X-Maxx® is the truck that defines Traxxas Tough. The new 2024 Limited Edition X-Maxx Ultimate comes outfitted with over $1,000 in high-strength aluminum and performance upgrades, along with all-new belted Sledgehammer® tires. Don't miss your chance to own the Ultimate X-Maxx - reserve at your dealer now!
ULTIMATE DURABILITY
How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.
INCLUDED WIRELESS MODULE
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.

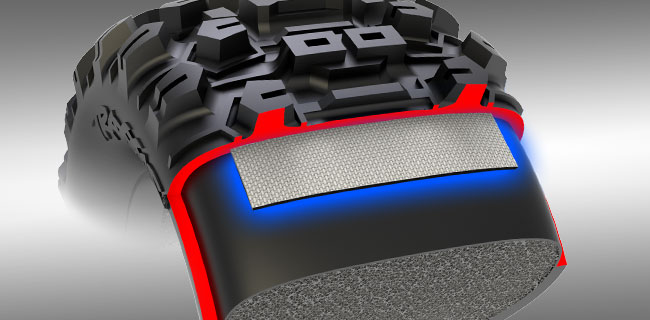

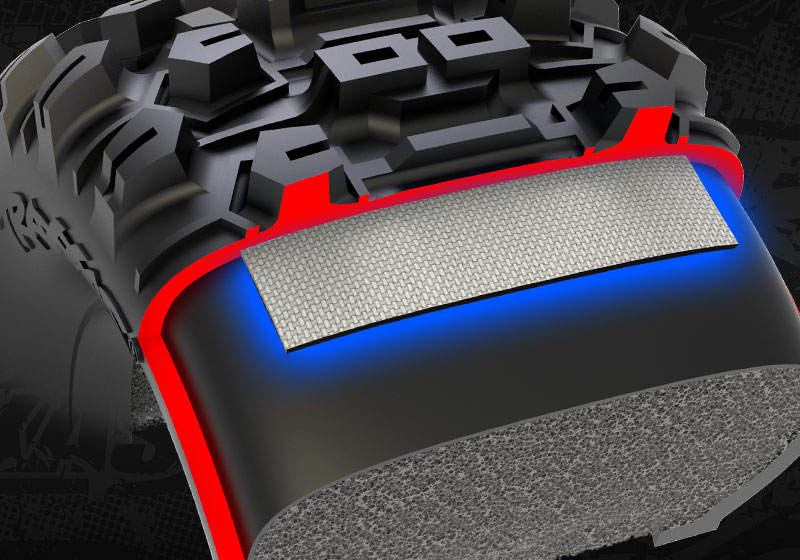

BELTED TIRES
X-Maxx Ultimate’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
Video
Details

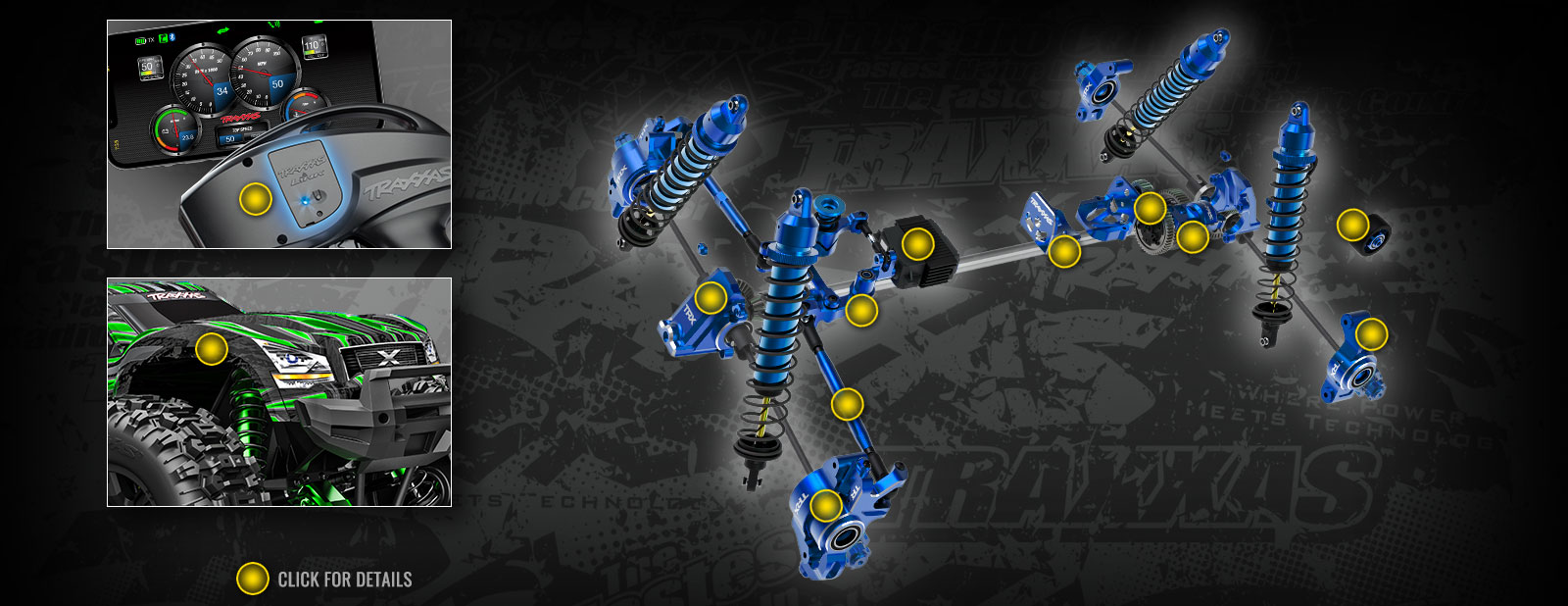

See all the high-performance upgrades that transform X-Maxx into the ultimate 8s tough truck.

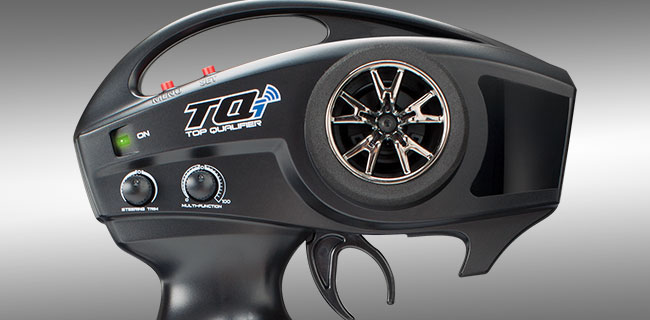

TQi™ Transmitter with Wireless Module
With 50+ mph of 8s power on tap, X-Maxx Ultimate needs maximum precision and control. X-Maxx Ultimate’s factory-installed Wireless Module adds powerful TQi tuning and telemetry tools on your mobile device. Use the free Traxxas Link™ app to control steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the high-definition graphic interface.

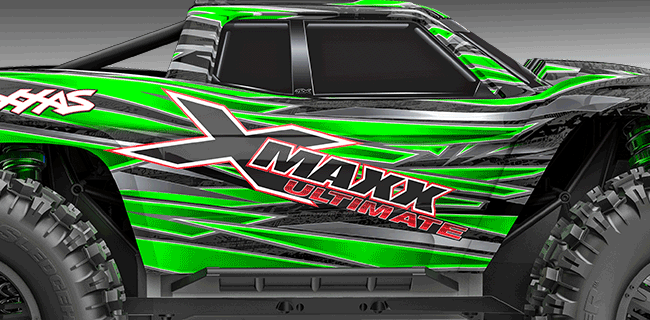

Limited Edition ProGraphix® Body
X-Maxx Ultimate comes with a limited edition body and graphics to set it apart from the pack. Tough body reinforcements and a rigid internal frame provide extra protection during rollovers to keep your body looking fresh even longer.

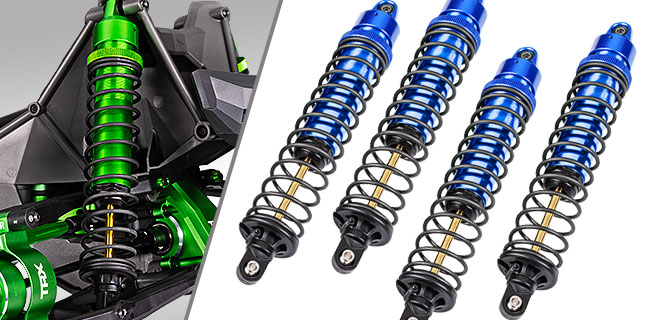

Aluminum GTX™ Shocks
X-Maxx Ultimate adds ultra-smooth TiN-coated shafts, color-matched aluminum shock caps, and threaded adjustment rings to its proven GTX shocks. GTX shocks soak up massive bumps to smooth out the roughest terrain. Their large oil volume dissipates heat for all-day shredding while an integrated wiper seal keeps the shafts clean.
Belted Sledgehammer Tires
In addition to their high-speed performance, belted Sledgehammer tires deliver extreme traction and control on a variety of off-road surfaces. At 8.4? tall, Sledgehammer tires give X-Maxx Ultimate a more powerful stance with increased ground clearance. The tires’ open block tread design won’t clog up with mud and debris for unmatched traction in loose surfaces.

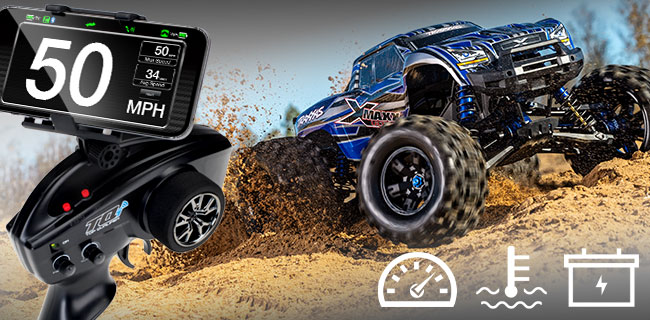

Factory-Installed Telemetry
Factory-installed telemetry sensors collect and record X-Maxx Ultimate’s telemetry data as you drive. Add the free Traxxas Link app to your mobile device to view real-time speed, RPM, temperature, and battery voltage data. The full-color dashboard is fully customizable with up to nine different dial or digital readout gauges.

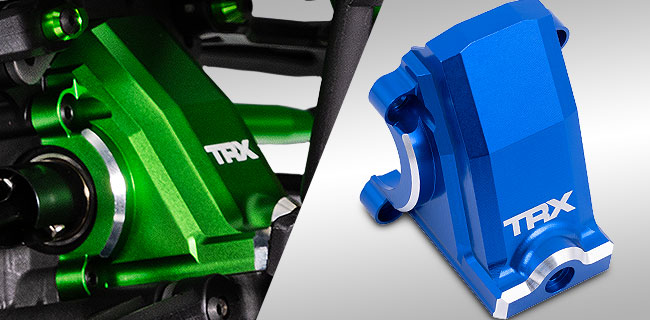

Aluminum Differential Housings
Front and rear machined aluminum housings eliminate flex to keep X-Maxx’s huge differentials in perfect alignment jump after bone-crushing jump. The housings are milled from high-grade 6061-T6 aluminum for maximum strength and protected by a brilliant anodized finish.

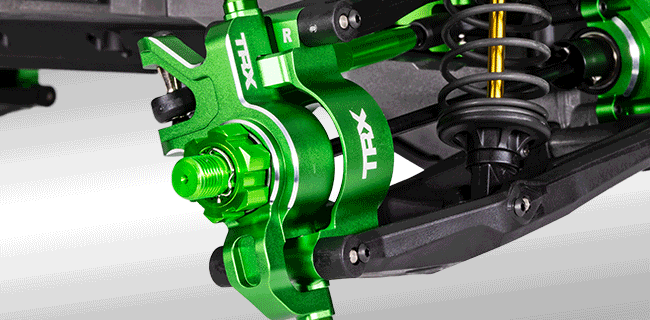

Aluminum Caster and Steering Blocks
X-Maxx Ultimate’s caster and steering blocks combine the brute strength of 6061-T6 aluminum with carefully engineered steering and suspension geometry. The brilliant anodized finish adds high-tech style with laser-etched logos to show off your genuine Traxxas performance parts.
TUBES Toe Links
Adjustable TUBES toe links make it easy to dial-in the perfect settings for greater precision and control. TUBES are lighter than steel and stronger than titanium with a unique hollow tube design which maximizes rigidity while reducing weight. Made from ultra-high-grade 7075-T6 aluminum, TUBES feature a brilliant, anodized finish for extra style.

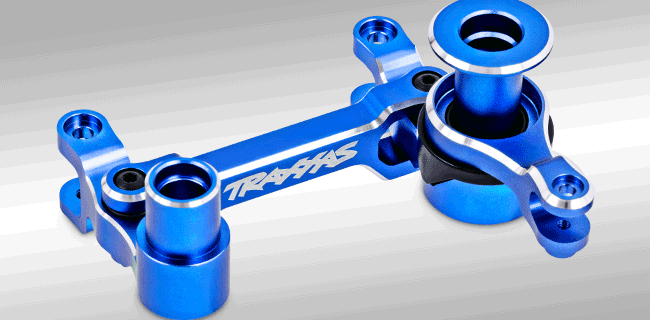

Precision Steering
Machined from tough 6061-T6 aluminum, X-Maxx Ultimate’s ultra-rigid bellcrank assembly drastically enhances steering precision and strength. Tight tolerances and a special servo saver bushing the bellcranks to pivot smoothly on sealed ball bearings with a heavy-duty servo saver spring for added protection.

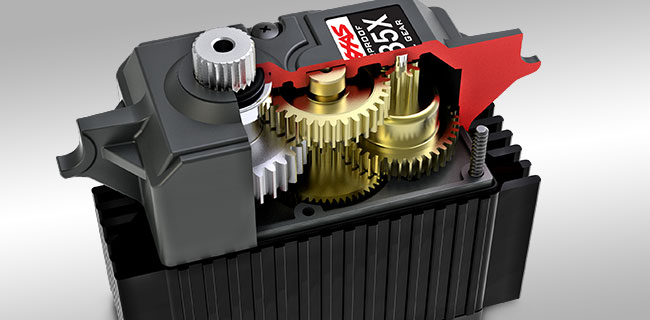

High-Torque Metal Gear Servo
Turning X-Maxx Ultimate’s huge 8.4? Sledgehammer tires is the powerful 2085X metal-gear servo. With 450 oz-in of torque, X-Maxx Ultimate has extra power on tap for extreme driving on any surface. An aluminum double-shear servo horn eliminates flex for fast, responsive steering at high speeds.

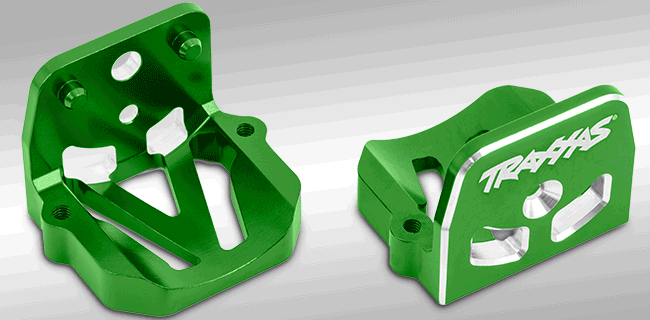

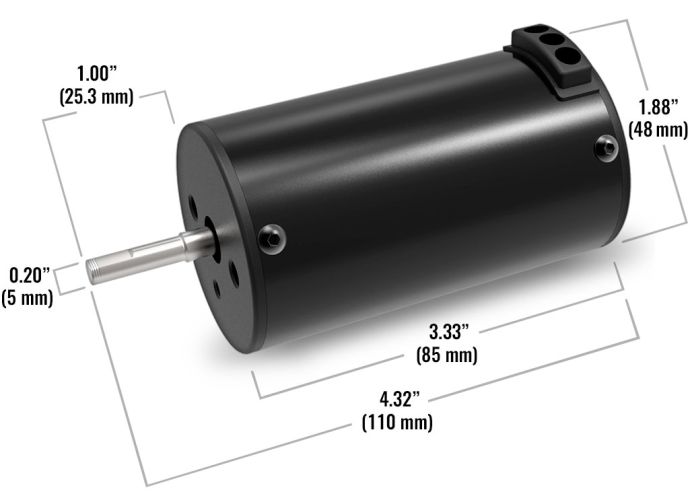

Aluminum Motor Mounts
High-strength aluminum motor mounts and washers lock the massive 1200XL Big Block motor firmly into place to keep the gears perfectly aligned even on the biggest jumps. The mounts utilize the standard truck’s keyed gear mesh system for easy and precise adjustments.
Machined Pinion and Spur Gears
X-Maxx Ultimate features a pinion and spur gear machined from hardened steel for maximum power handling and durability.
Aluminum Transmission Cover
The aluminum transmission cover is color-matched to the truck with a laser-etched logo for extra style. Carefully milled from 6061-T6 aluminum, the cover locks in the chassis tightly to keep the transmission gears in perfect alignment. It also works perfectly with the 7886 high-speed overdrive gear set for extreme speed runs.

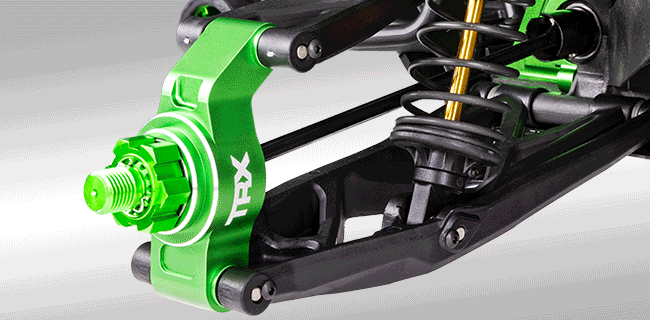

Aluminum Hub Carriers
6061-T6 aluminum stub axle carriers add both strength and beauty to X-Maxx Ultimate without compromising its carefully tuned suspension geometry.

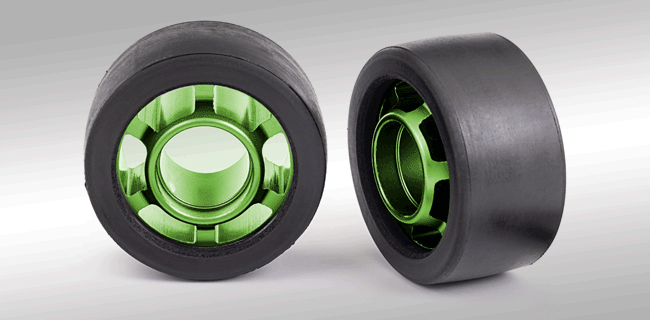

Aluminum Wheelie Bar Wheels
Aluminum wheelie bar wheels add brilliant eye-catching style to the already outrageous X-Maxx Ultimate. Outfitted with aluminum axles and sealed ball-bearings, the wheels feature durable soft-compound tires to help harness X-Maxx’s brutal horsepower as it wheelies for days.

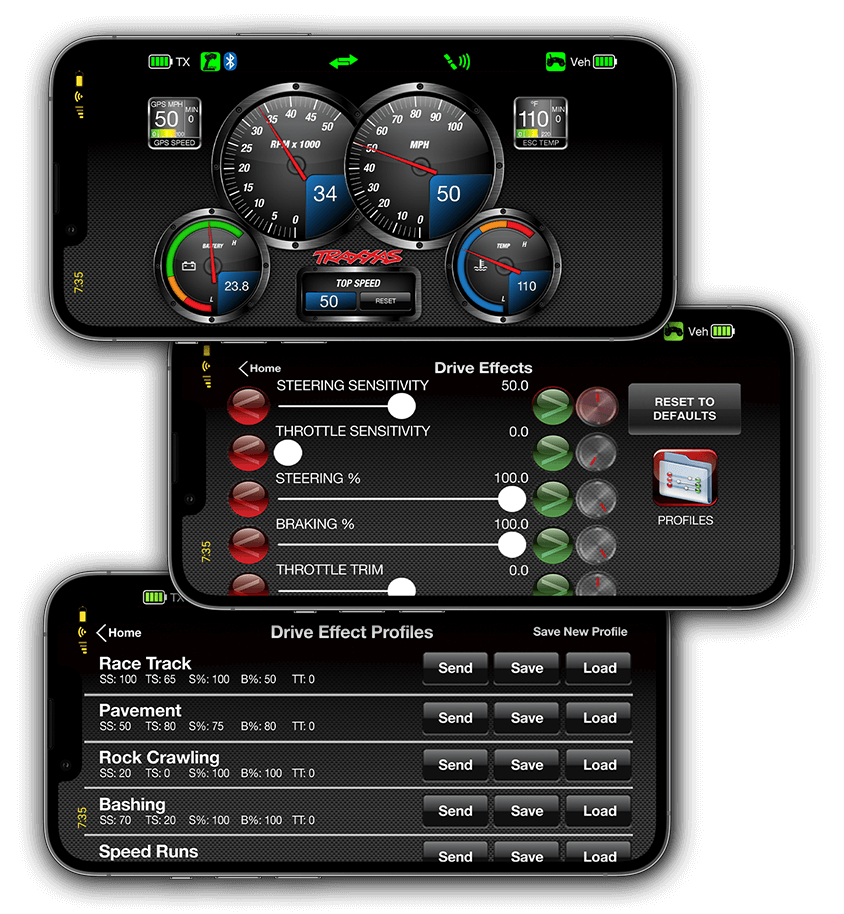

TRAXXAS LINK
Wirelessly adjust your transmitter settings and receive real-time telemetry from your model with Traxxas Link.
UNLOCK THE FULL POTENTIAL OF YOUR TRAXXAS TQi™ RADIO SYSTEM
SEE REAL-TIME TELEMETRY
View and record speed, temperature, and voltage data while you drive
CONTROL YOUR TRANSMITTER SETTINGS
Make tuning adjustments on the fly and save your favorite settings
MANAGE YOUR MODELS AND PROFILES
Save individual setting and tuning data for up to 30 different vehicles
