1/10

Size

Crawl Speed

Speed

Brushed Motor

Power

Battery & Charger

Sold Separately

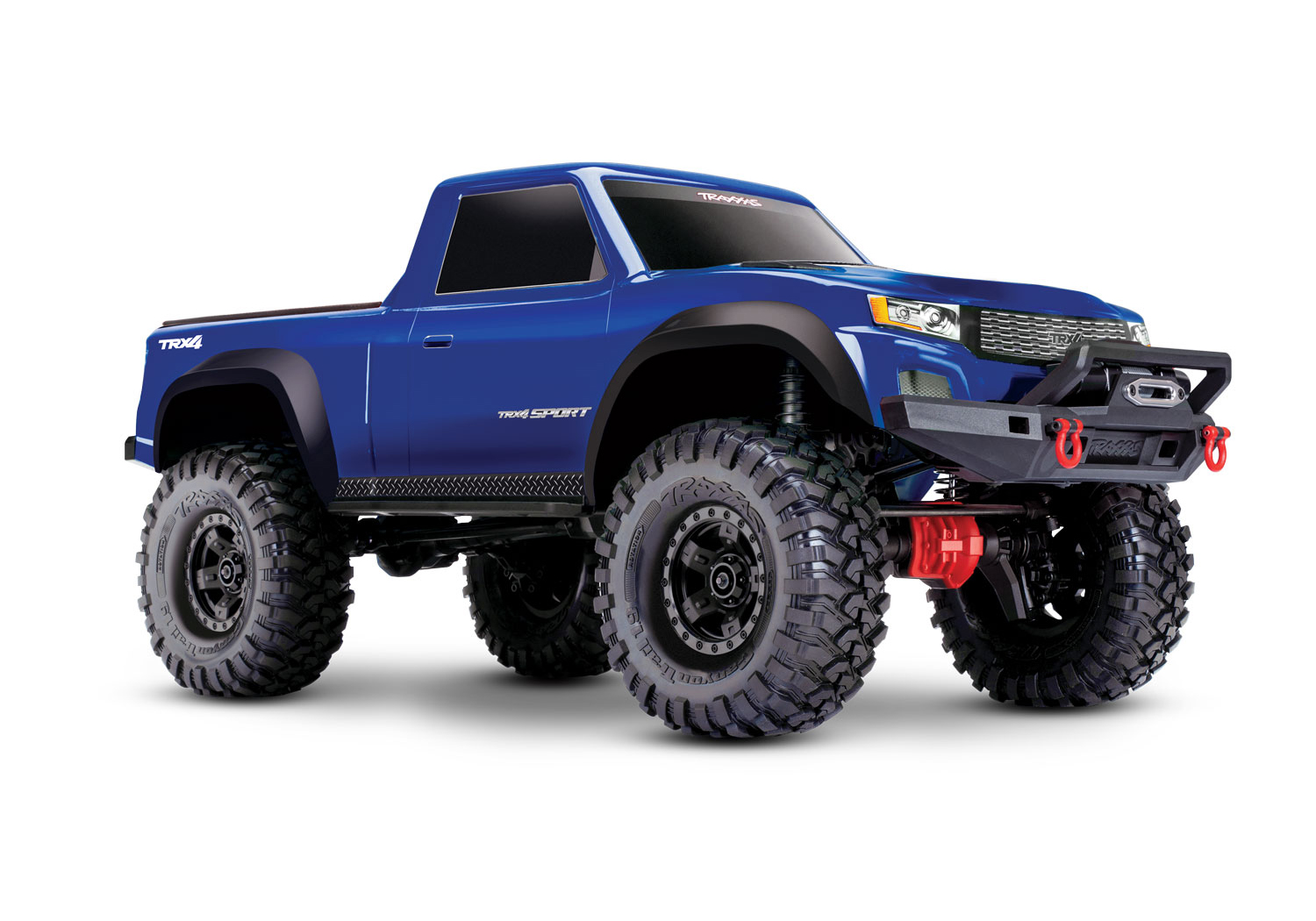

TRX-4 Sport

Part Number:

82224-4

Accessories Batteries & Chargers Tools & Hardware

Gallery

Specs

Features

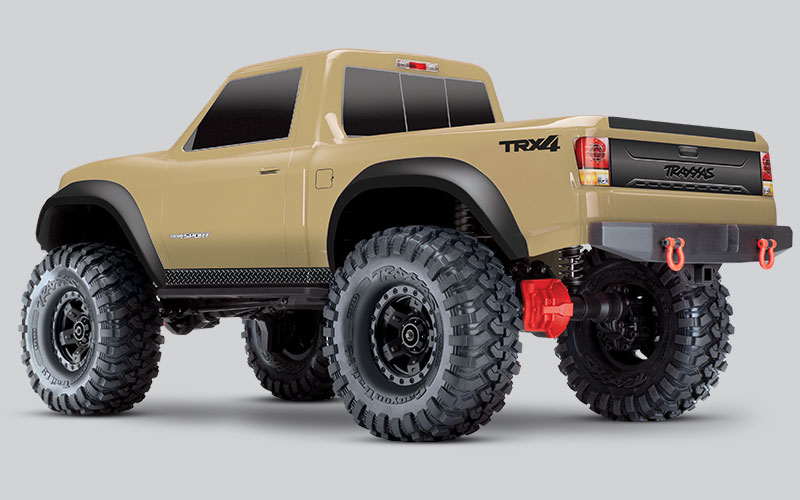

What's Included

Parts Finder

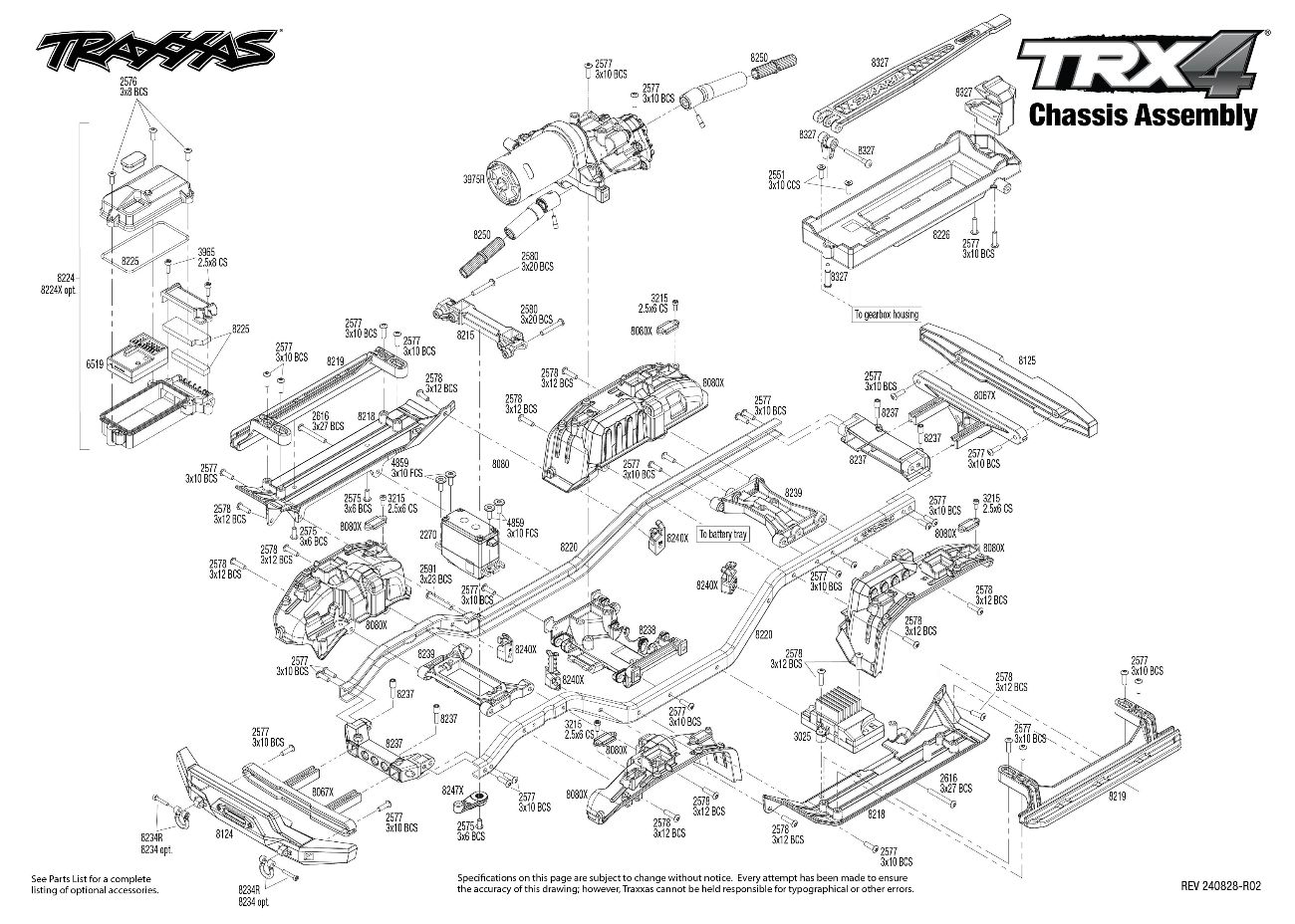

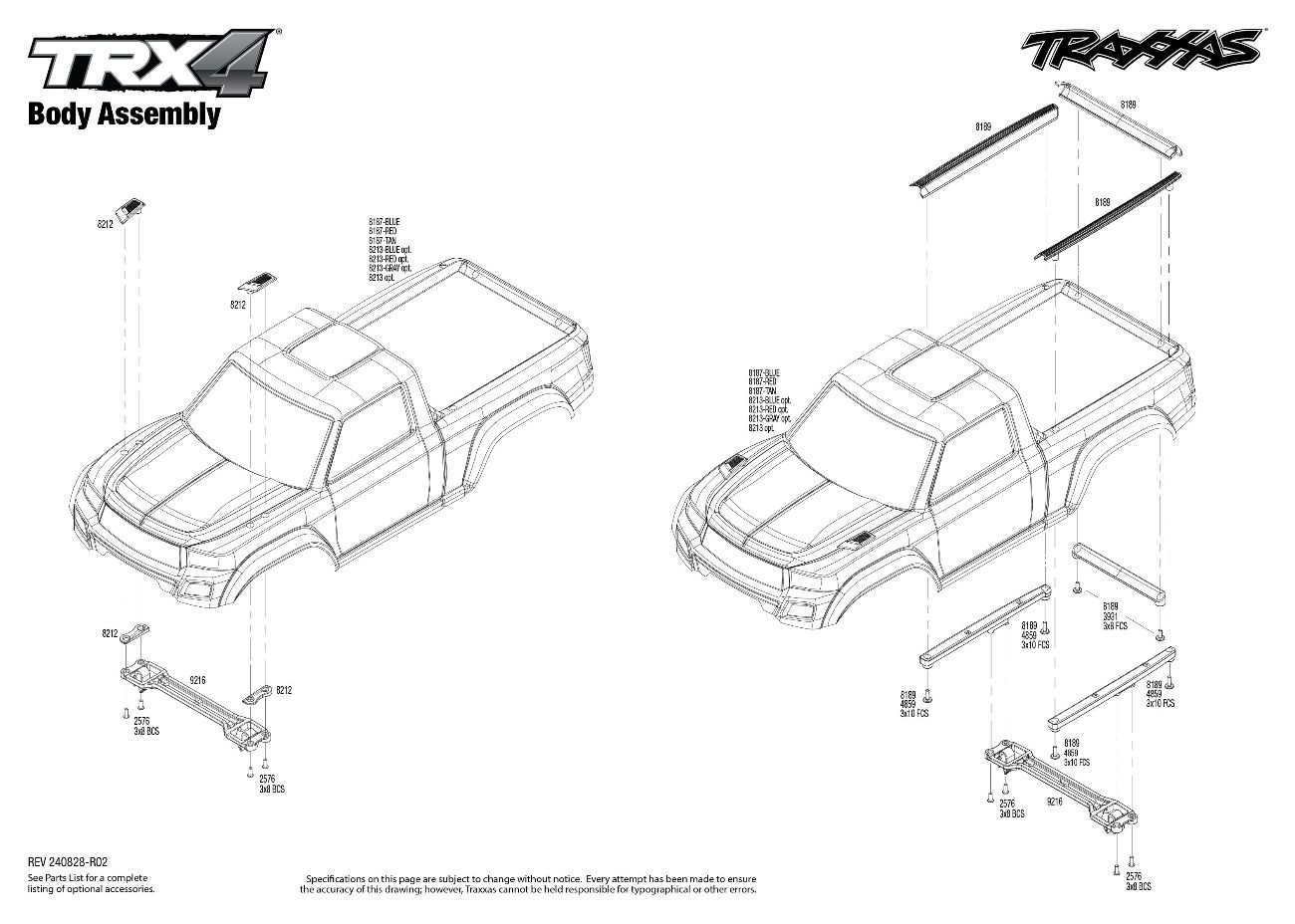

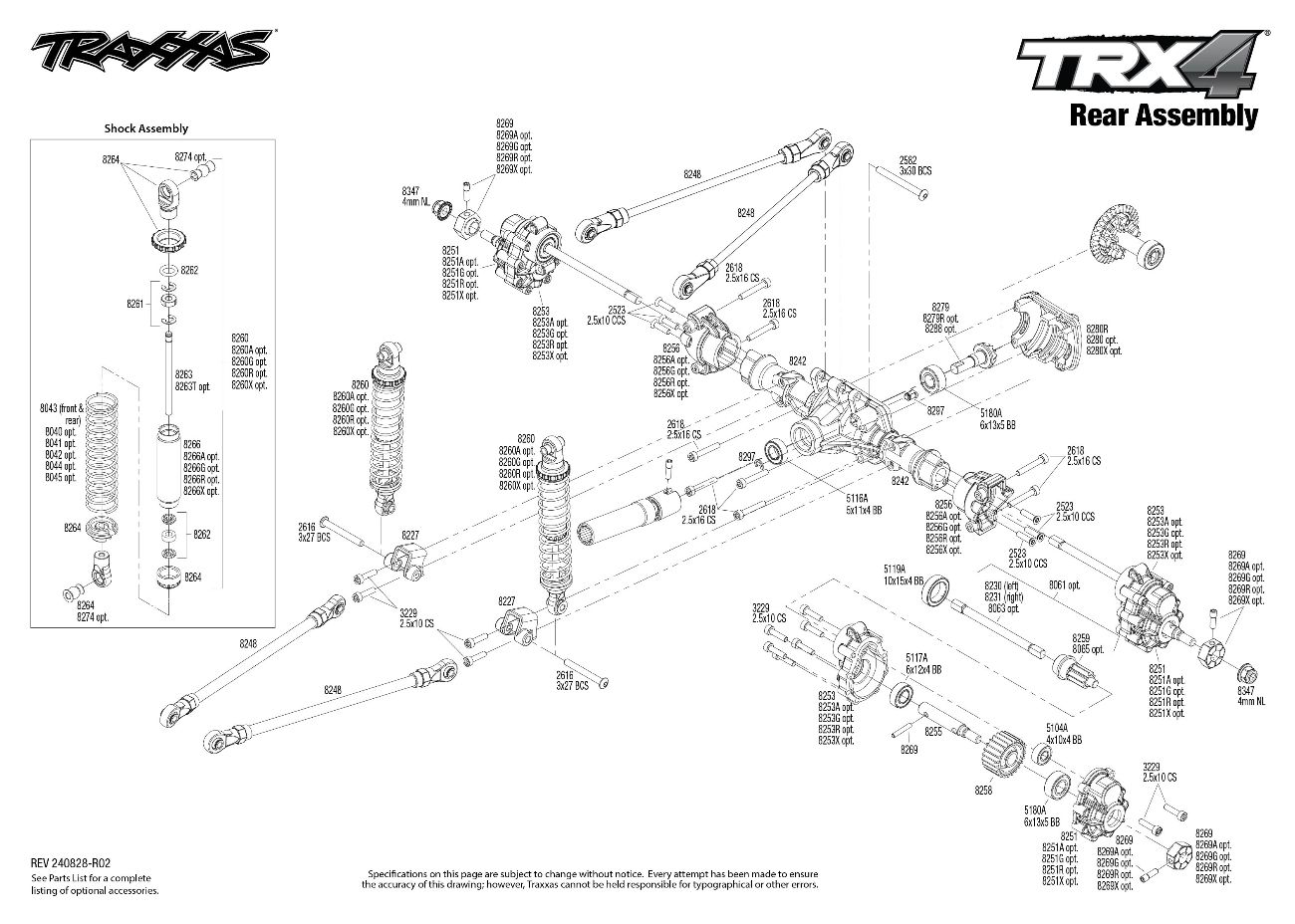

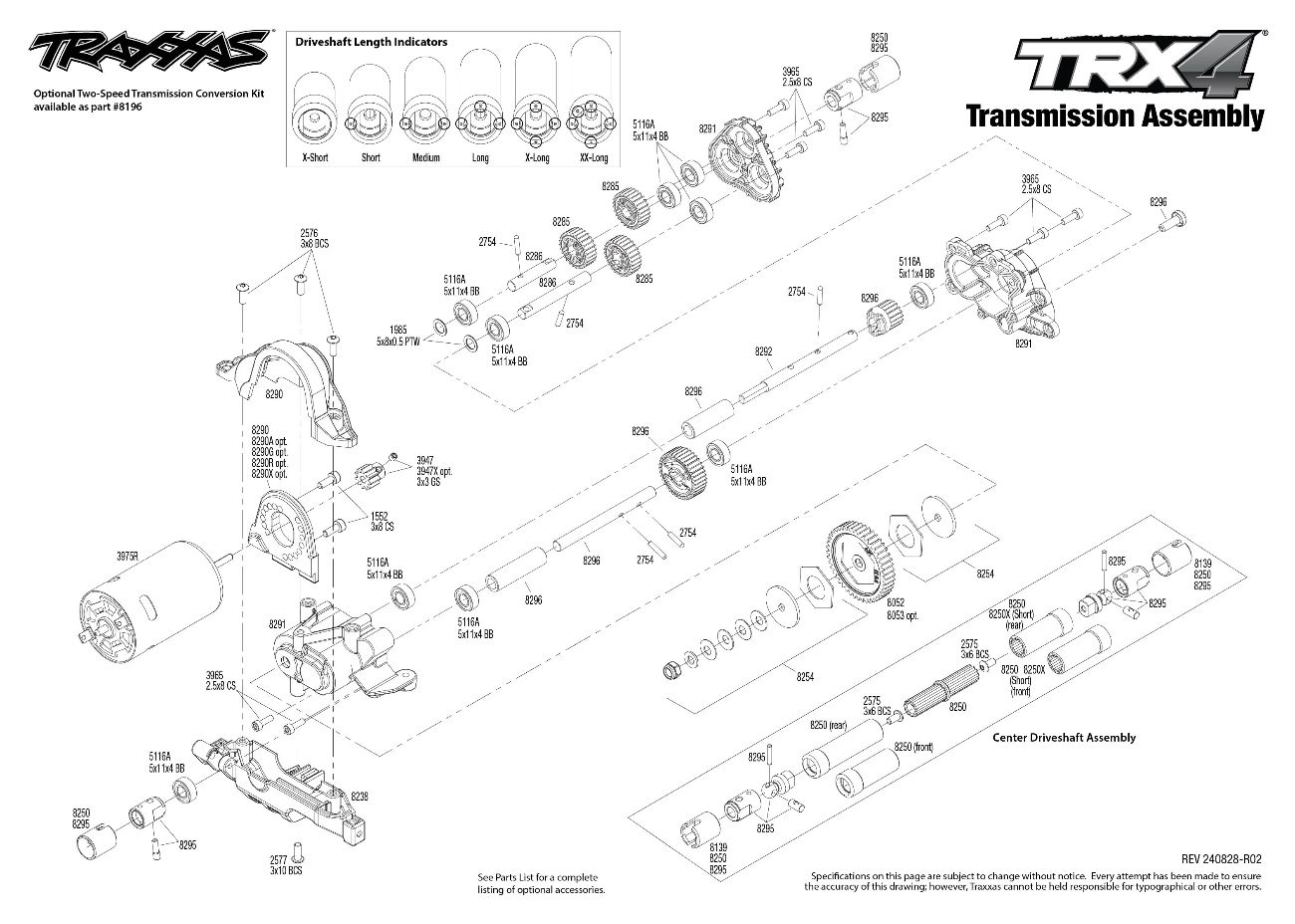

Exploded Views

Support

MODEL SPECS

TRX-4 Sport Specs

TRX-4 Sport Specs

Model Name:	TRX-4 Sport Clipless
Model Type:	Trail / Crawler
Model Skill Level:	1
Scale:	1/10
Weight:	5.79 pounds (2.63 kg)

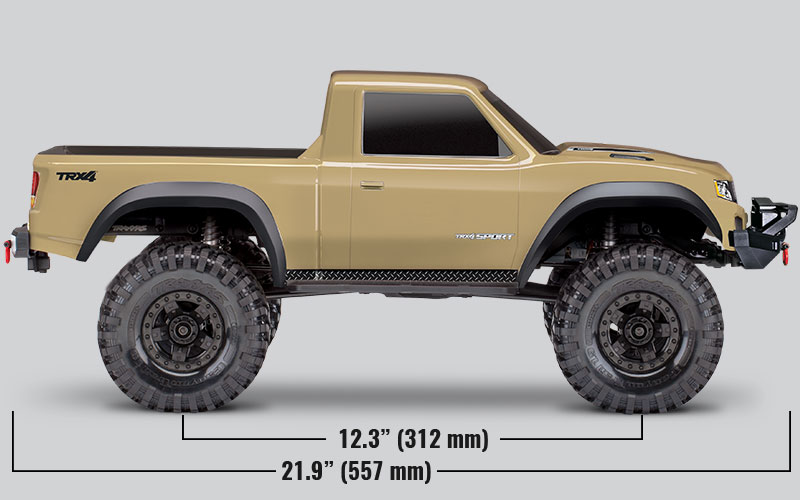

Length:	21.93 inches (557 mm)

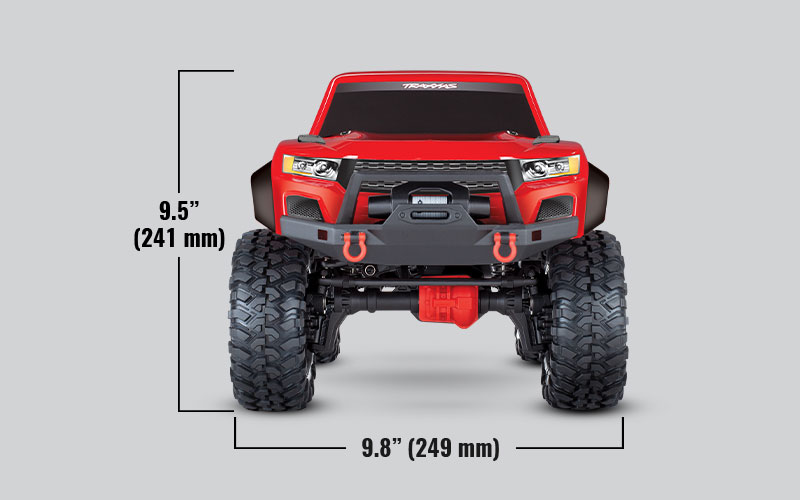

Width:	9.78 inches (249 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)

Height:	9.47 inches (241 mm)
Wheelbase:	12.28 inches (312 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Spool (no differential)
Gear Pitch:	32 pitch
Servo(s):	2075X metal gear, digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel radio
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

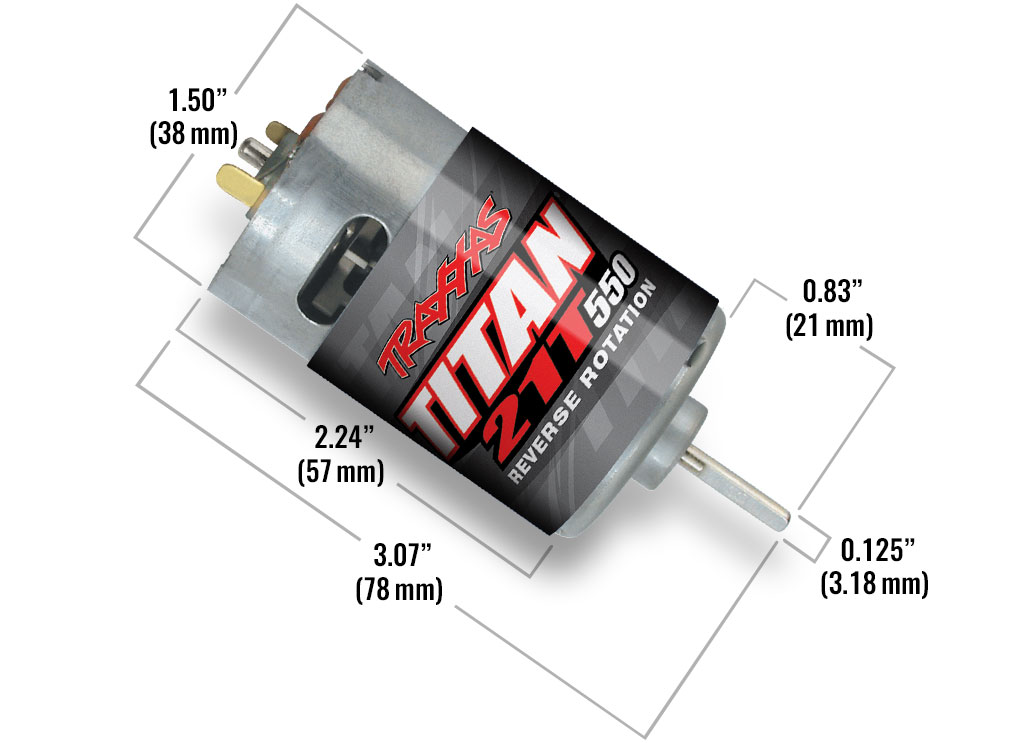

MOTOR SPECS

Motor Name:	Titan^® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

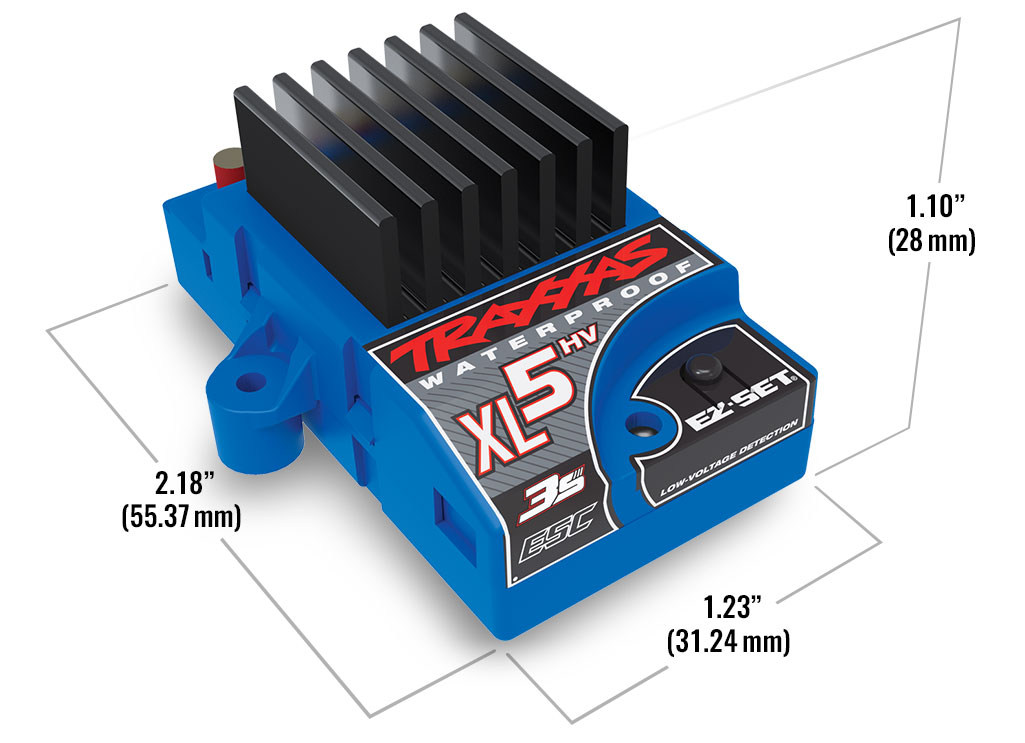

ESC SPECS

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge

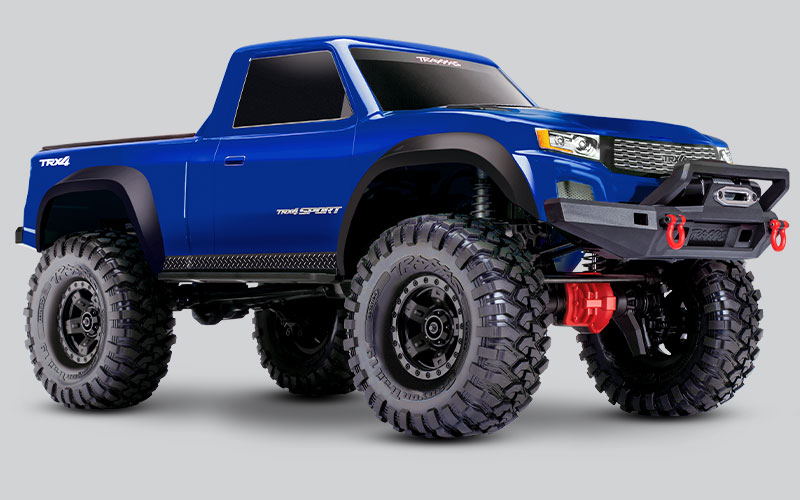

Tough, Clipless Pickup Truck Body

Clipless design for smooth body appearance
Rugged internal body cage for added rigidity
Low profile bumpers for increased clearance
Red differential covers and D-rings

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control

Fully waterproof design
Five drive profiles

Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set^® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
Two stage low voltage protection (LVD)

Titan^® 550 Motor

Powerful Titan 21T reverse rotation motor with internal cooling fan
Precise preset gear mesh adjustments
Motor retention separate from gear mesh

TQ™ 2.4 GHz 2-Channel

Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Rigid Steel Frame

1.5 mm thick steel frame rails increase torsional rigidity
Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails

Innovative Battery Compartment

Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Portal Axles

Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

Drivetrain

Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Spool-locked front and rear differentials
Steel gear transfer case

Transmission

Single-speed with steel gears
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing

Steering

Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer

Suspension

Front — 3 link with panhard
Rear — triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends

Aluminum GTS Shocks

Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

Rugged black 5-spoke wheels
Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex

Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

Learn More

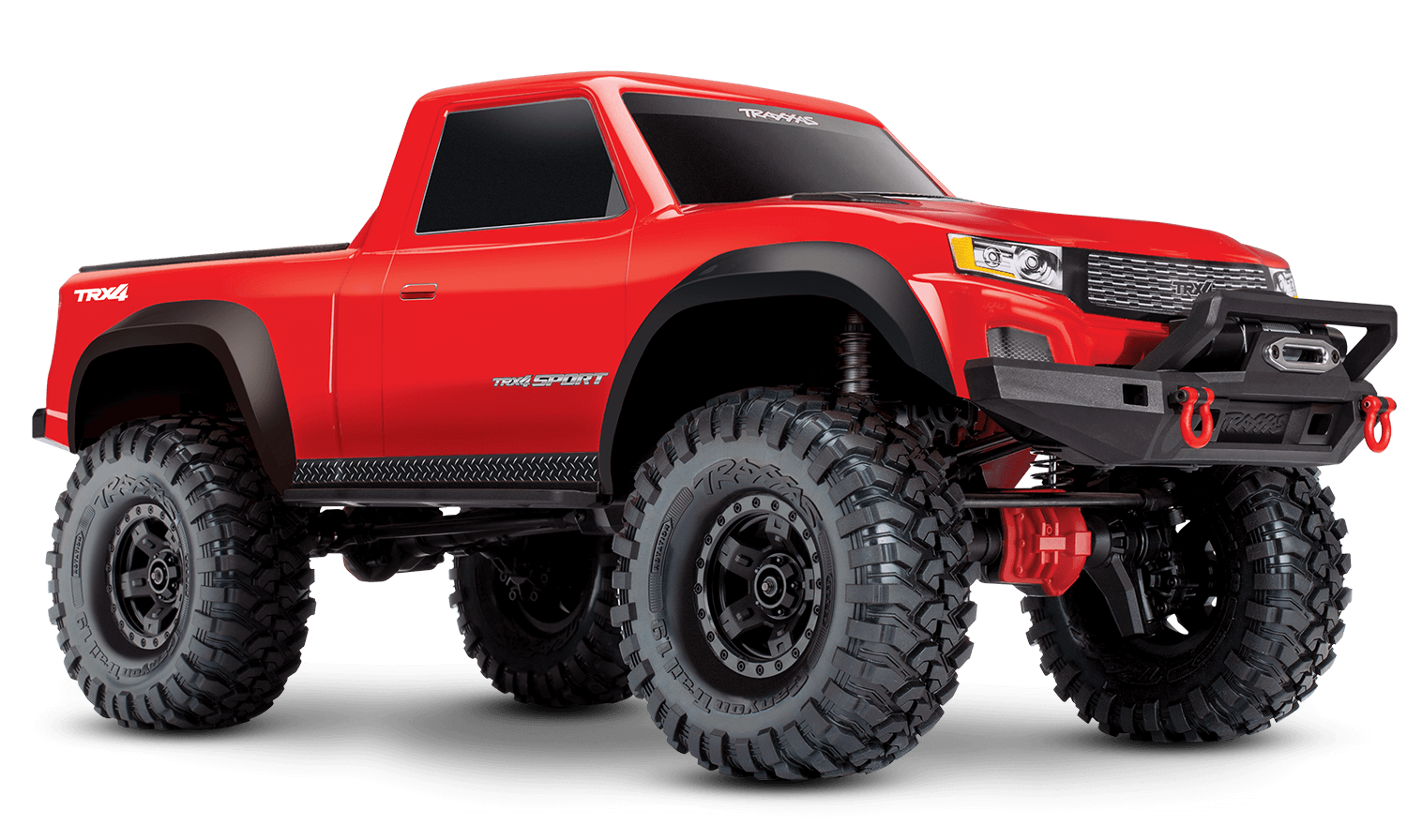

PURPOSE BUILT

TRX-4^® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.

Video

Chassis

Driveline

Geometry

Electronics

Heavy-Duty Steel Frame Rails

Heavy-Duty Steel Frame Rails

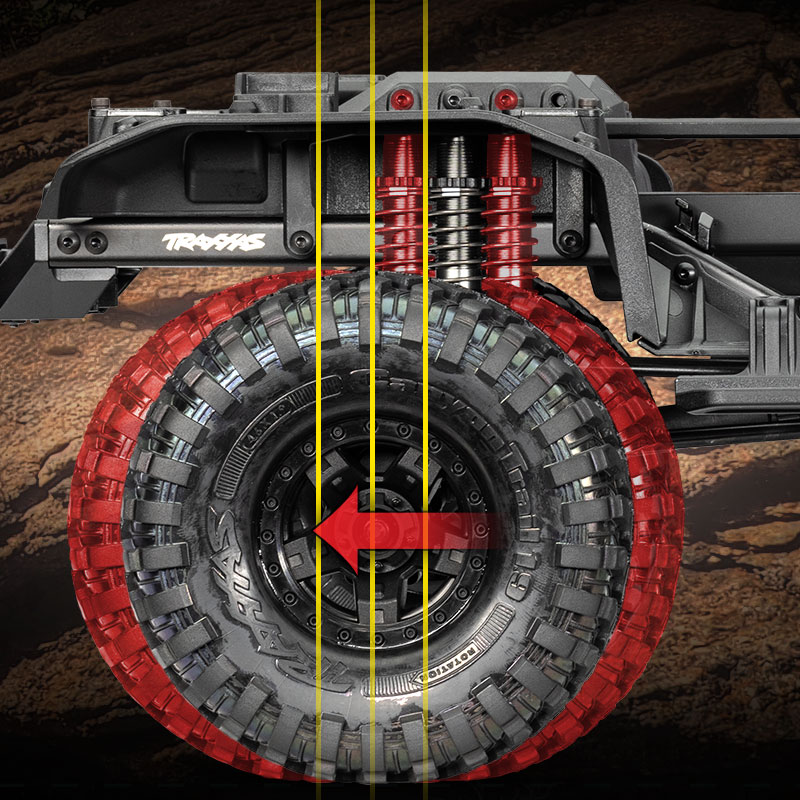

Adjustable Wheelbase

Adjustable Wheelbase

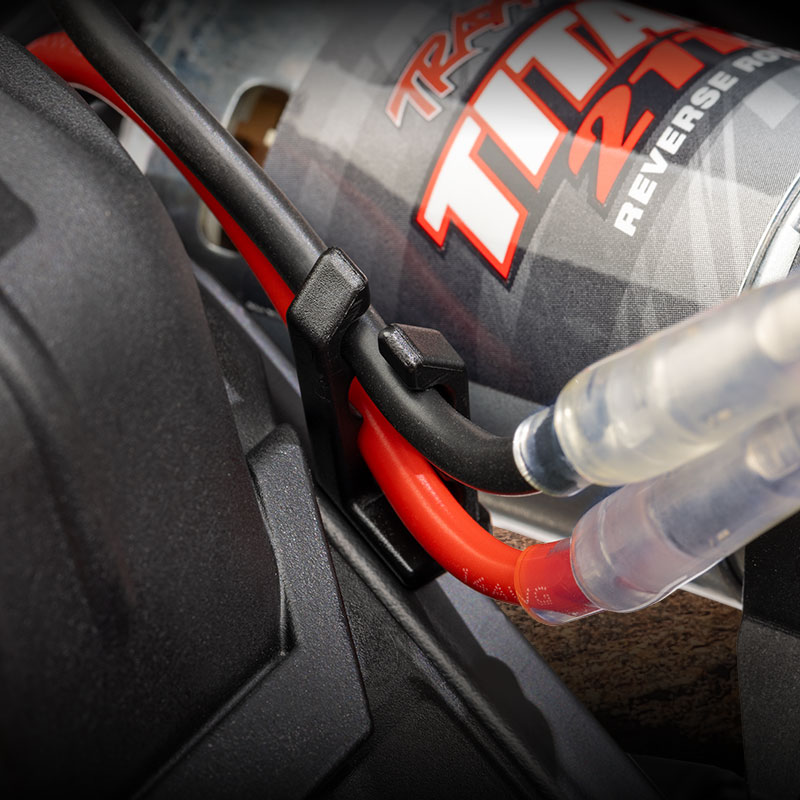

Molded Wire Retainers

Molded Wire Retainers

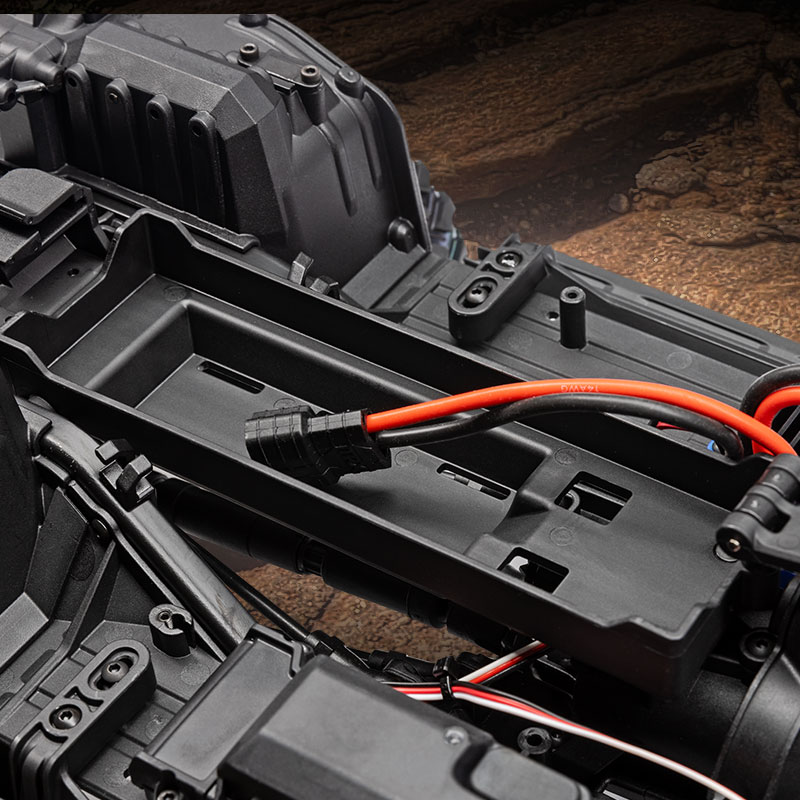

Dual Battery Tray

Dual Battery Tray

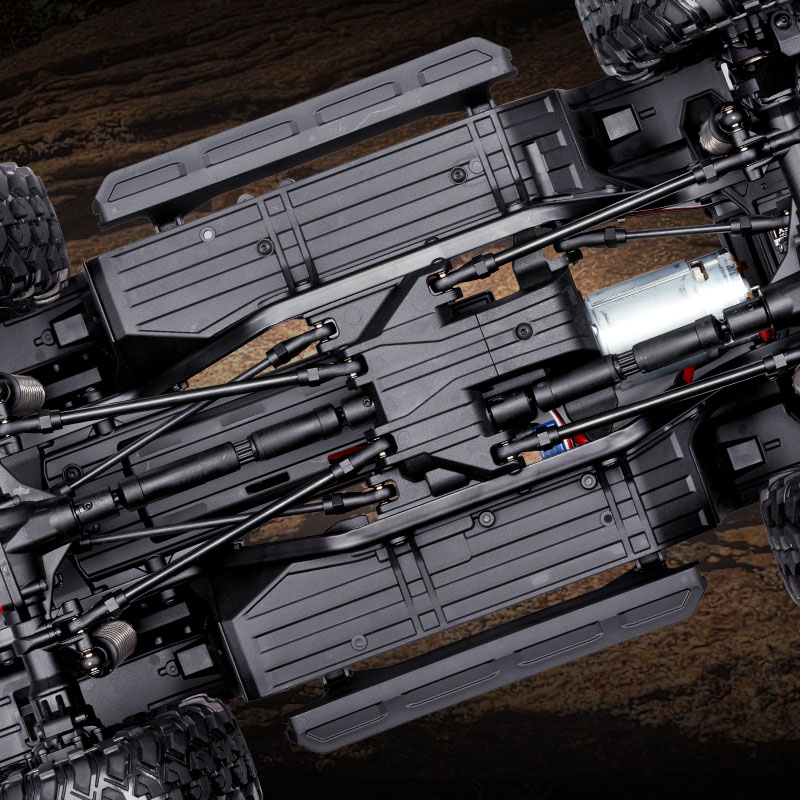

Floor Pans

Floor Pans

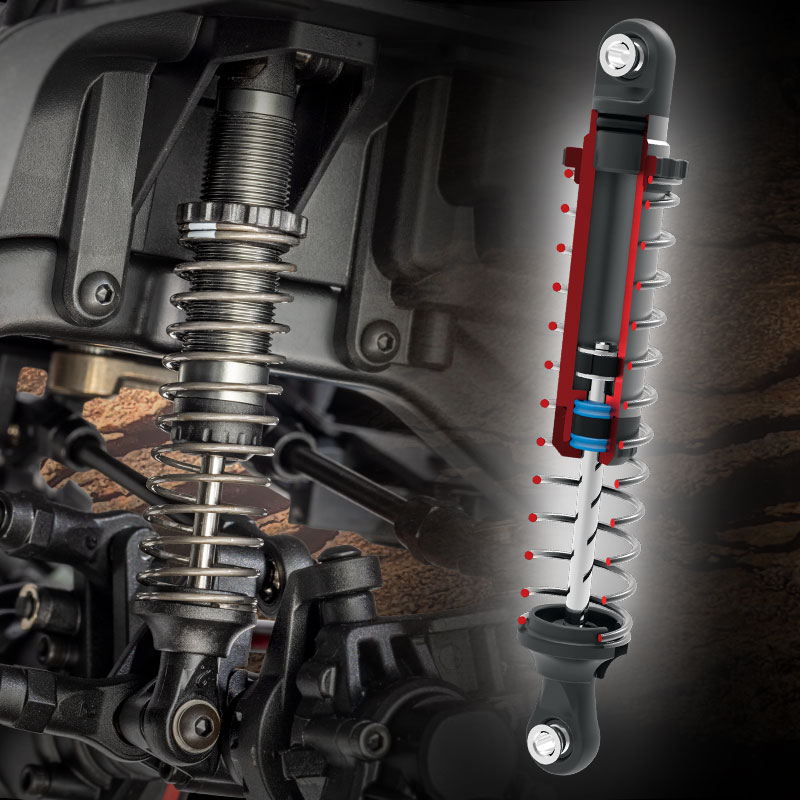

Aluminum Scale Shocks

Aluminum Scale Shocks

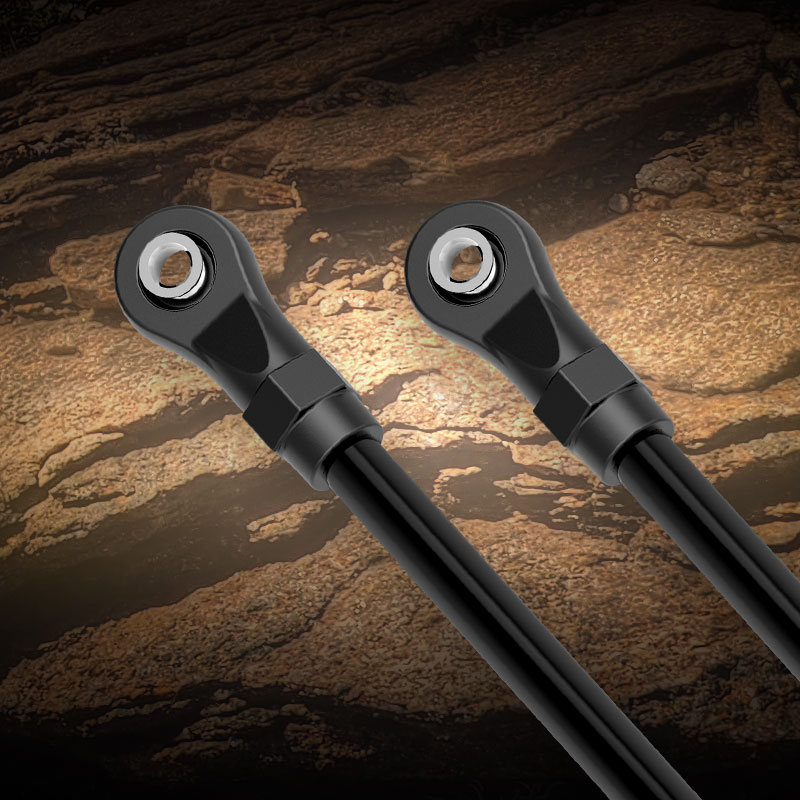

Heavy-Duty Steel Links

Heavy-Duty Steel Links

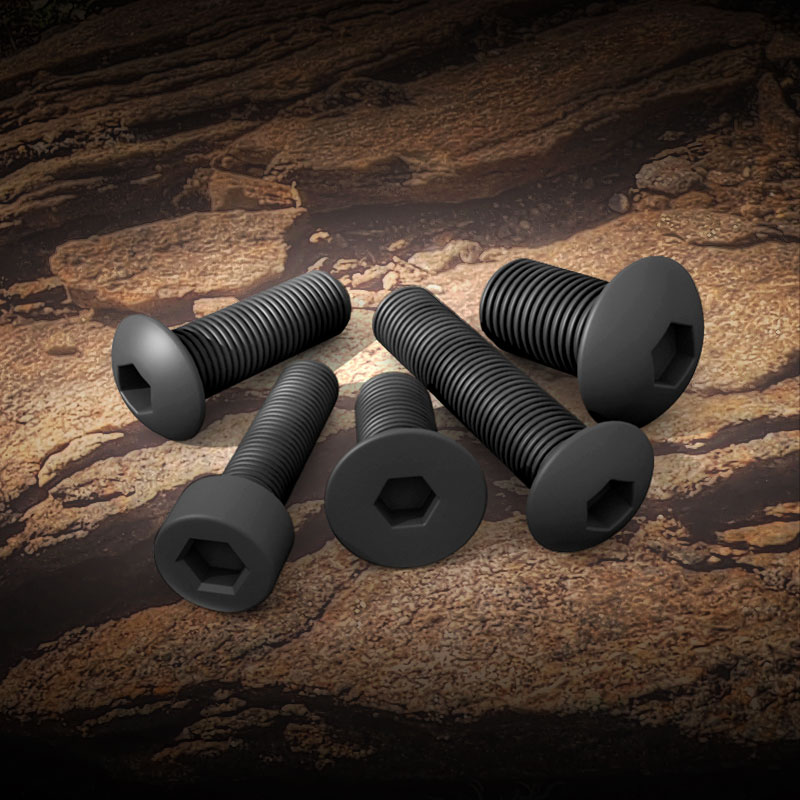

Precision Hex Hardware

Precision Hex Hardware

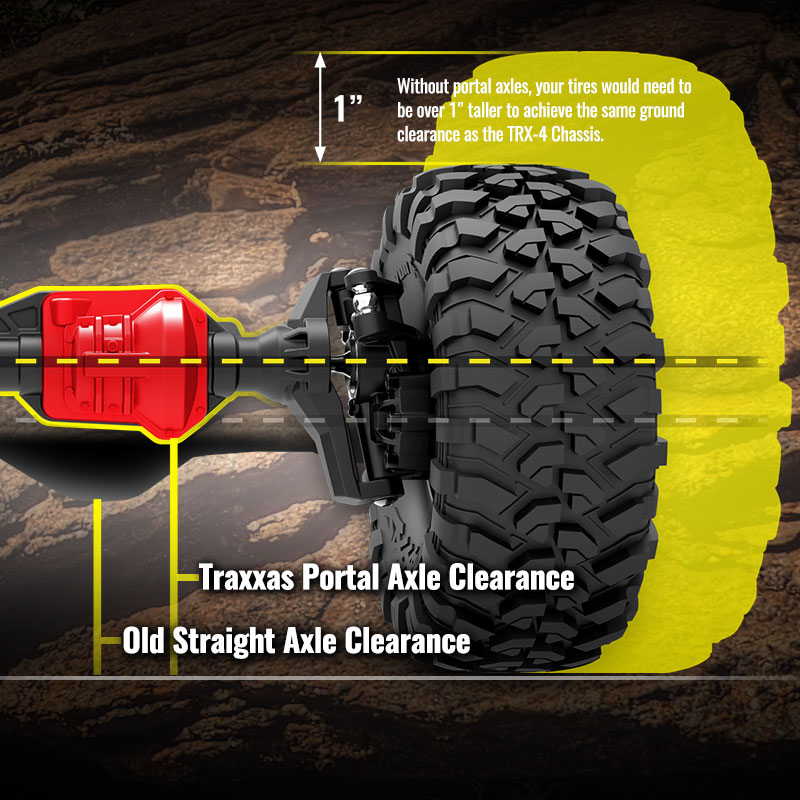

Portal Axles

Portal Axles

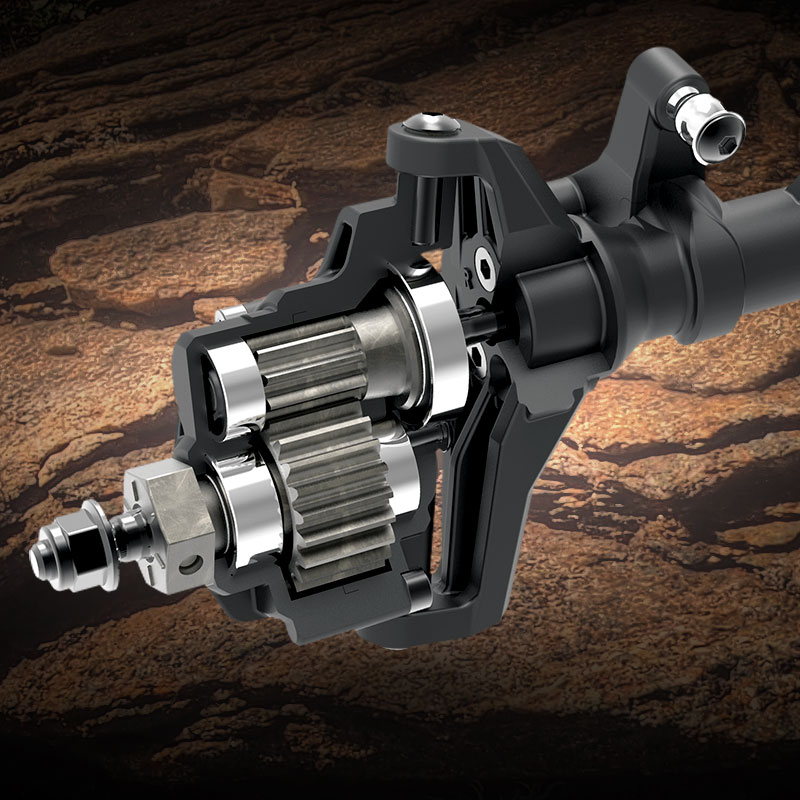

Torque Twist Eliminated

Torque Twist Eliminated

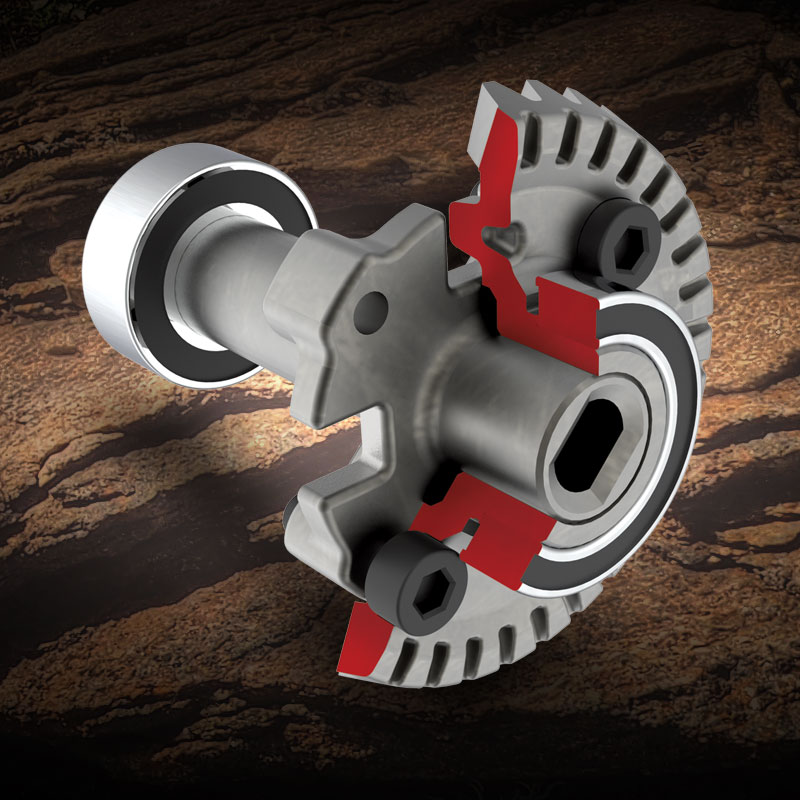

Locked Differentials

Locked Differentials

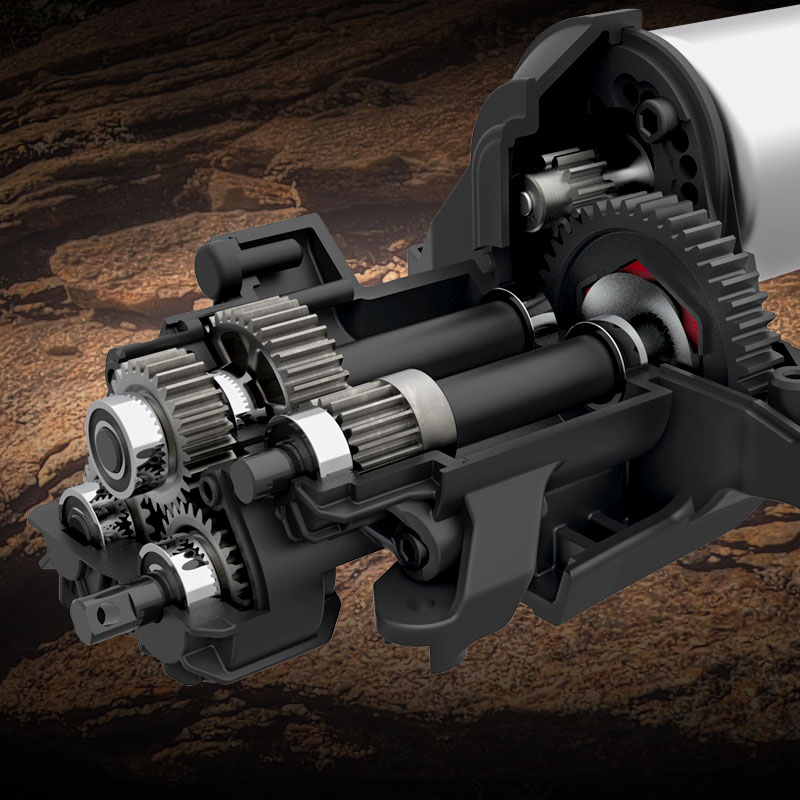

Steel Gear Transmission

Steel Gear Transmission

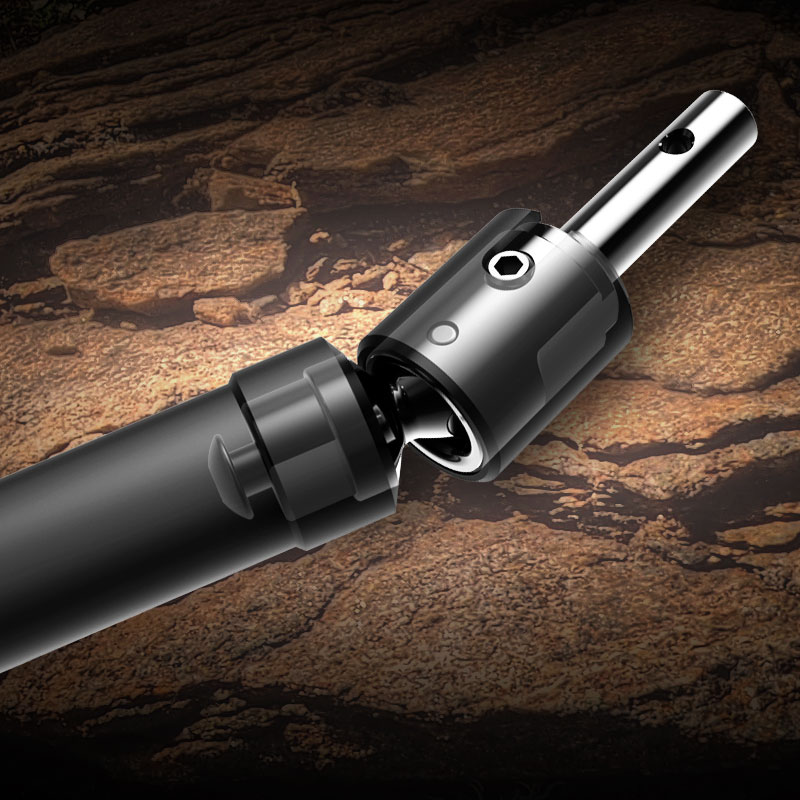

Hardened Steel U-Joints

Hardened Steel U-Joints

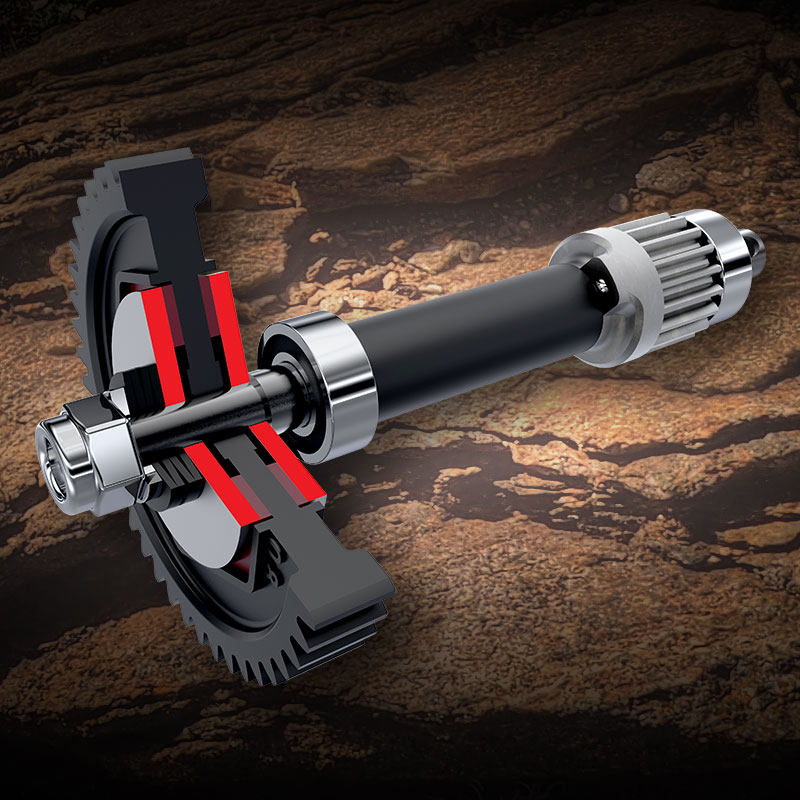

Twin Friction Plate Slipper Clutch

Twin Friction Plate Slipper Clutch

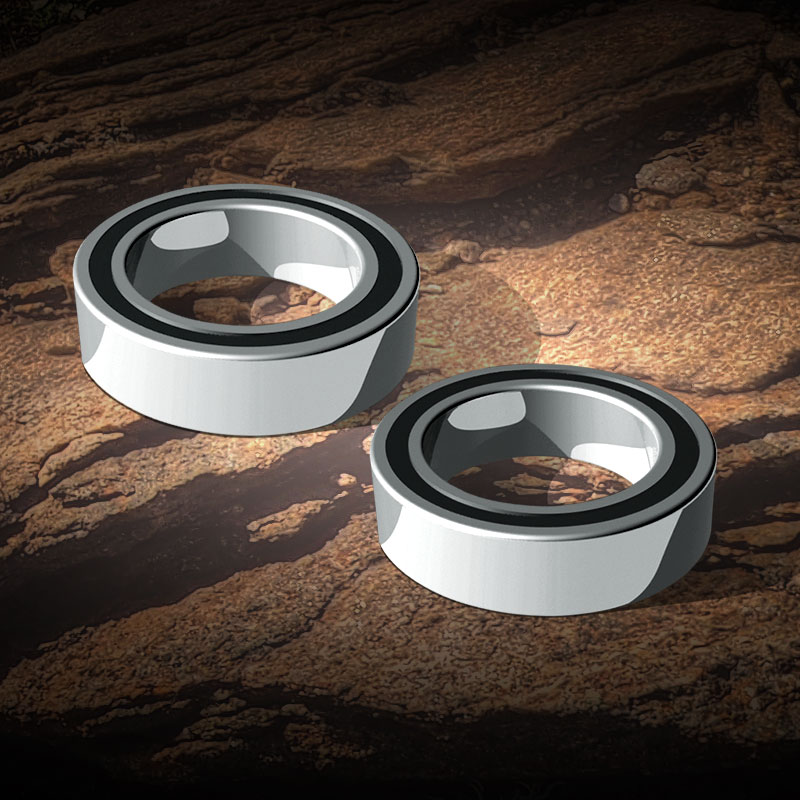

Sealed Ball Bearings

Sealed Ball Bearings

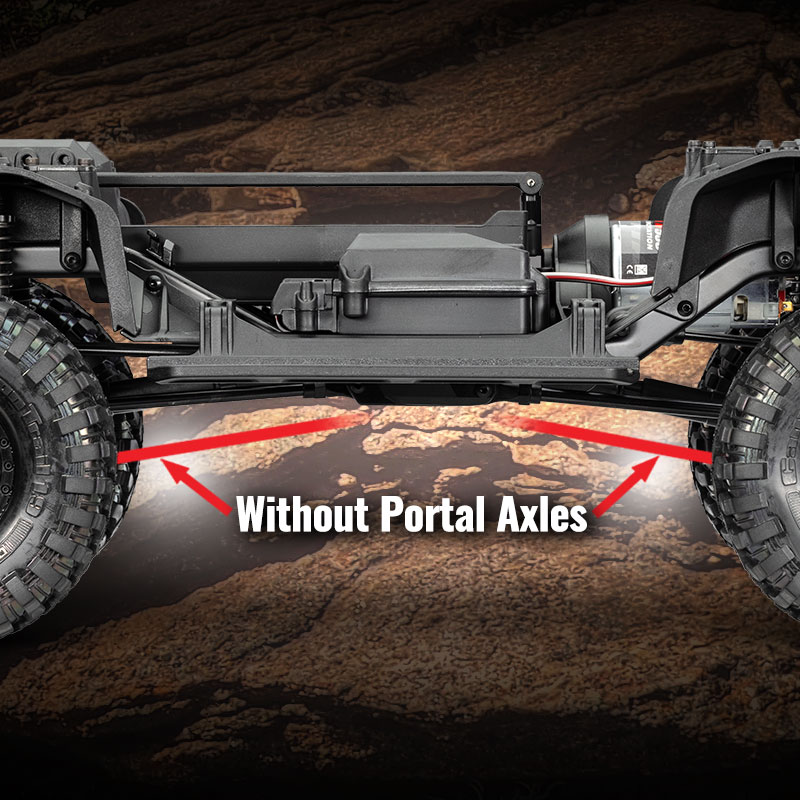

Raised Center Driveshafts and Suspension Links

Raised Center Driveshafts and Suspension Links

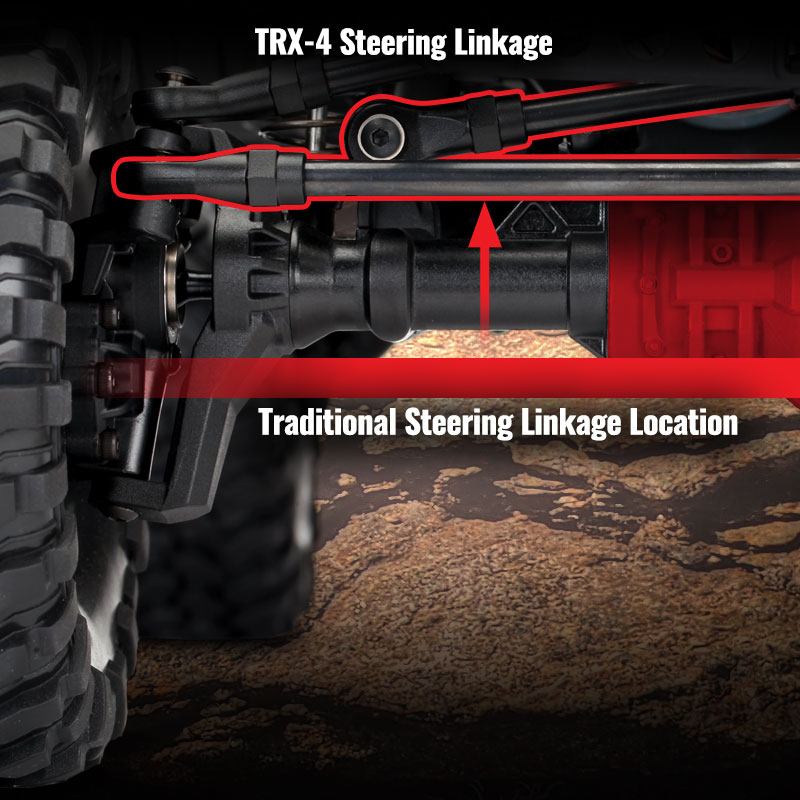

High Steering and Drag Links

High Steering and Drag Links

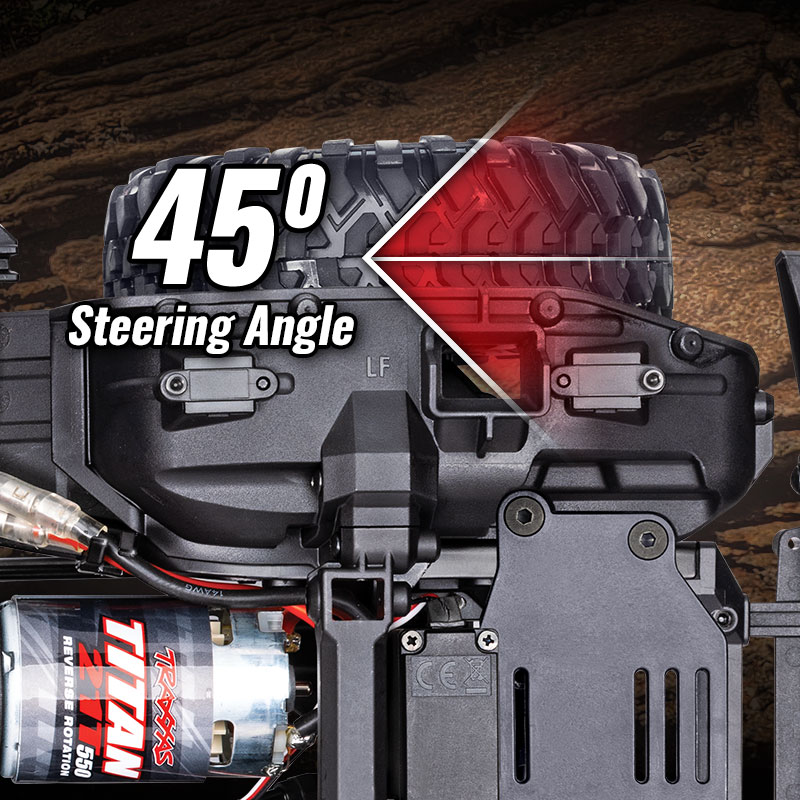

45-Degree Steering Angle

45° Steering Angle

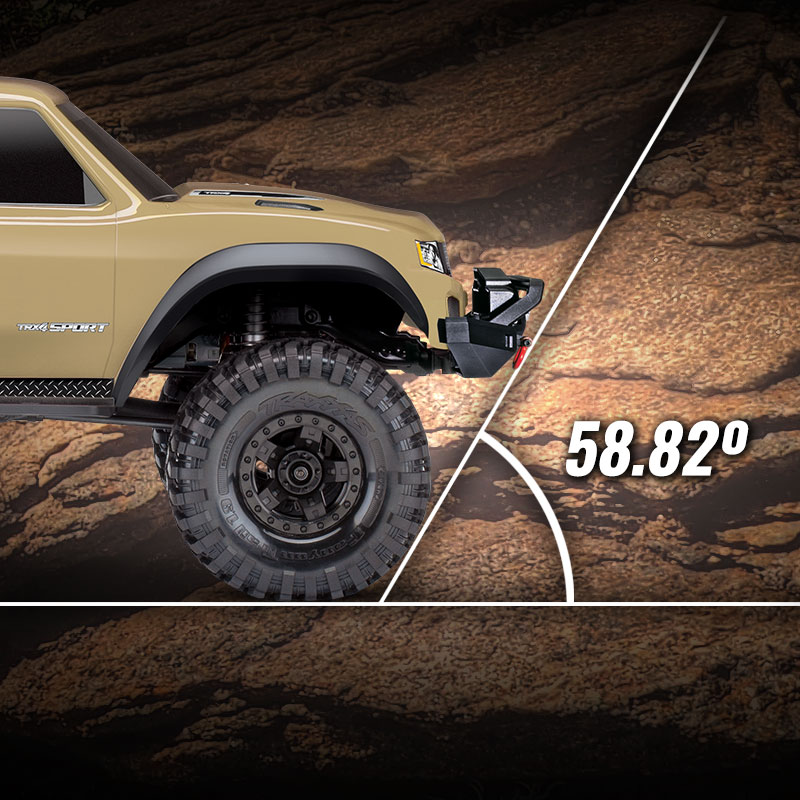

Extreme Approach Angles

Extreme Approach Angles

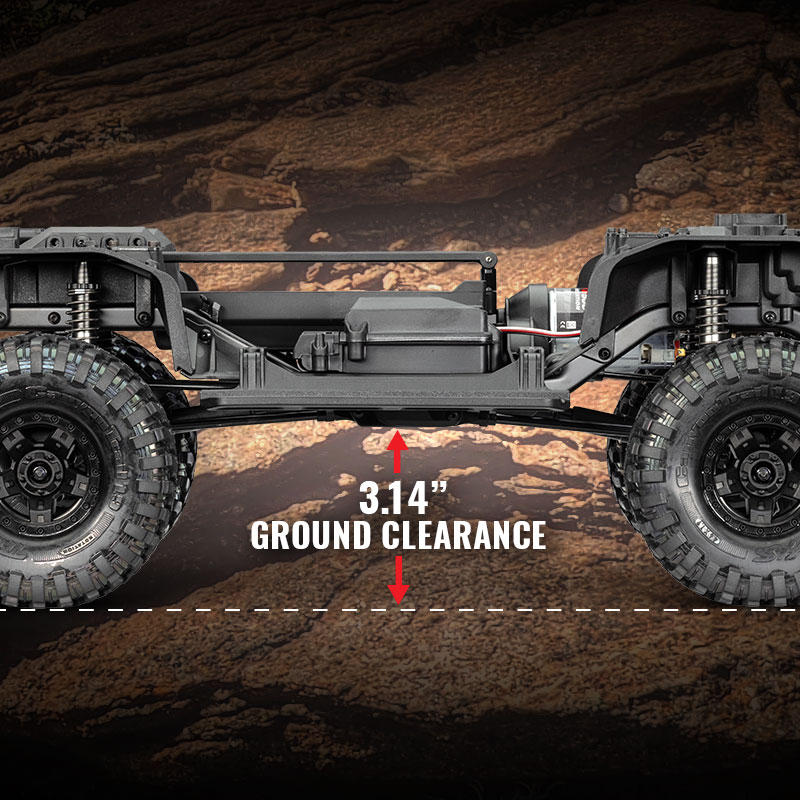

High Ground Clearance

High Ground Clearance

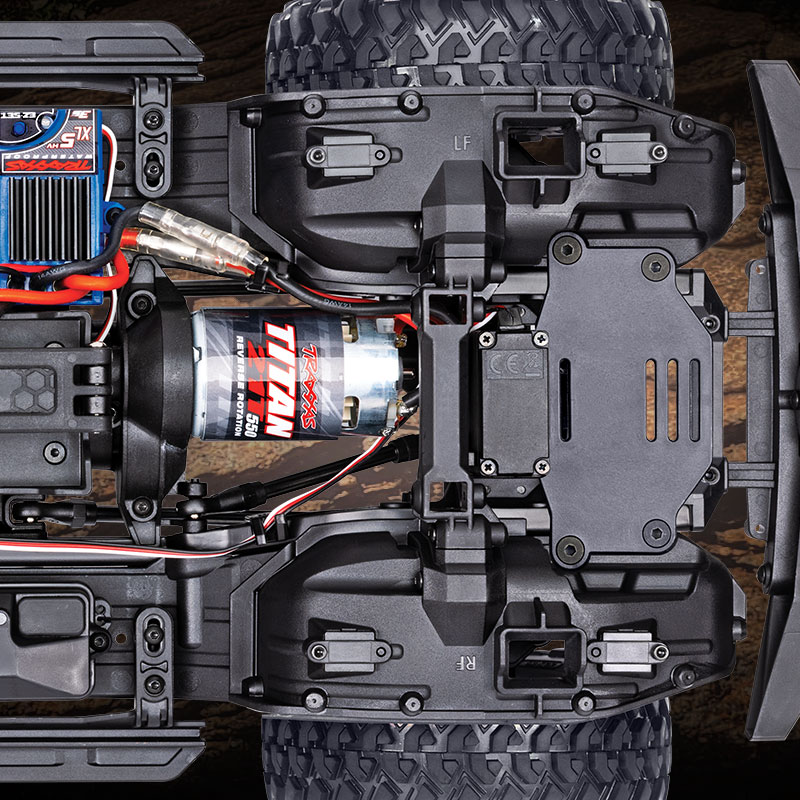

Front Motor Design

Front Motor Design

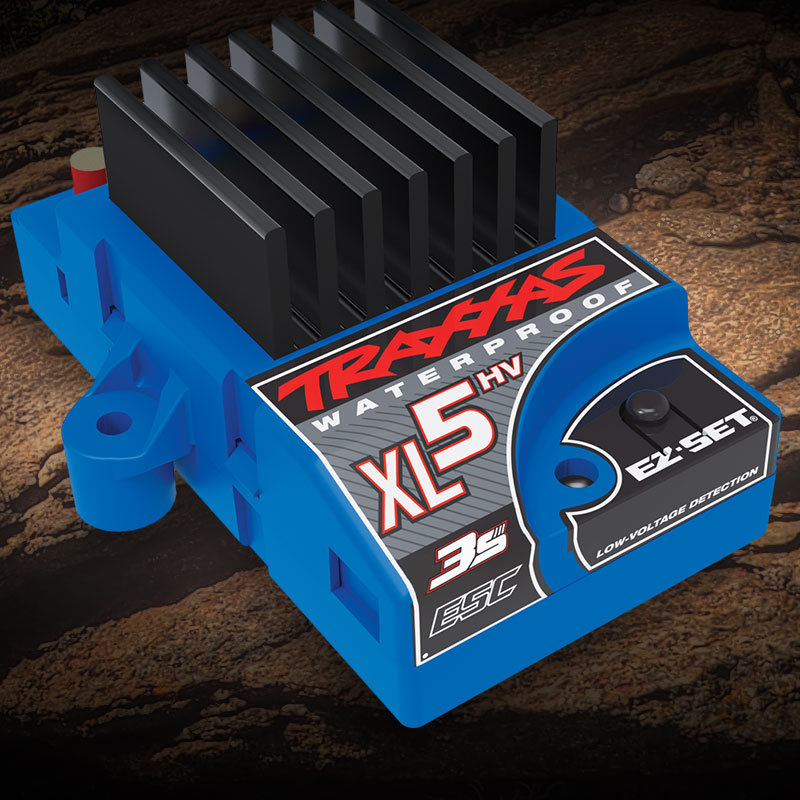

New XL-5 HV ESC

XL-5™ HV ESC

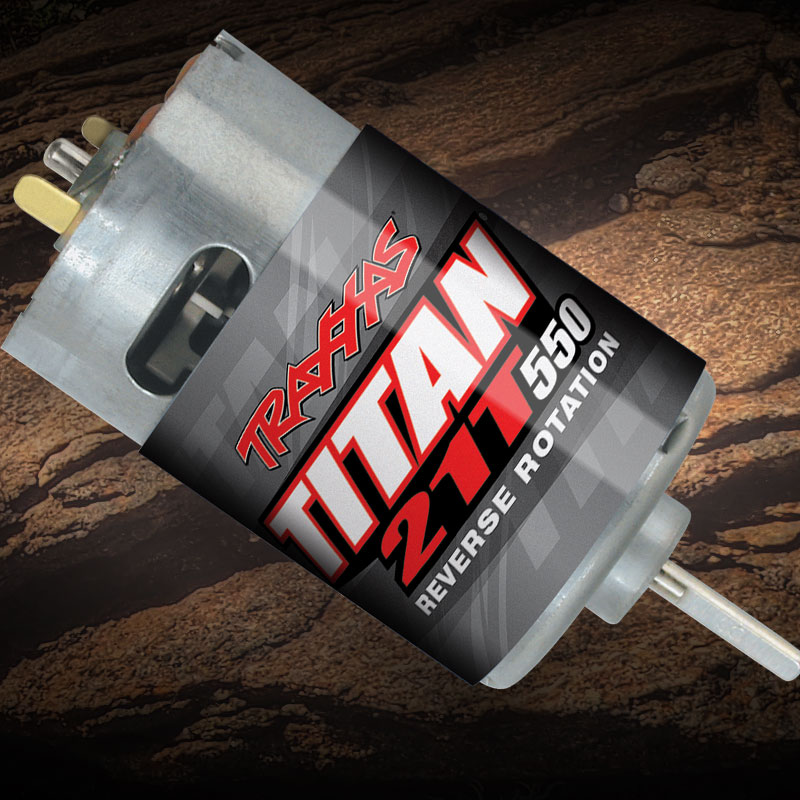

Titan 21T 550 Motor

Titan 21T 550 Motor

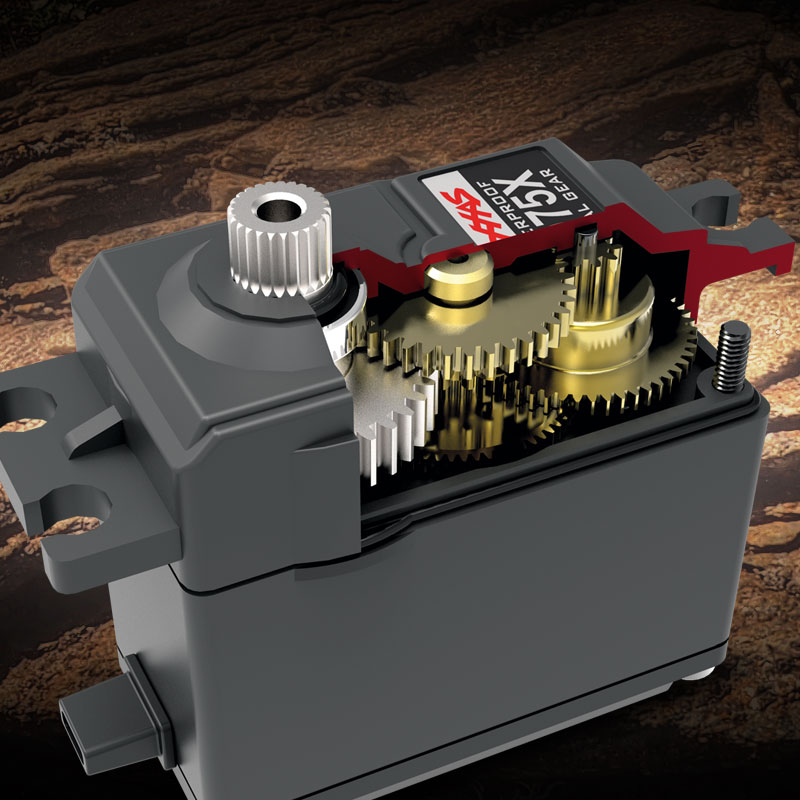

Waterproof Metal Gear Servo

Waterproof Metal Gear Servo

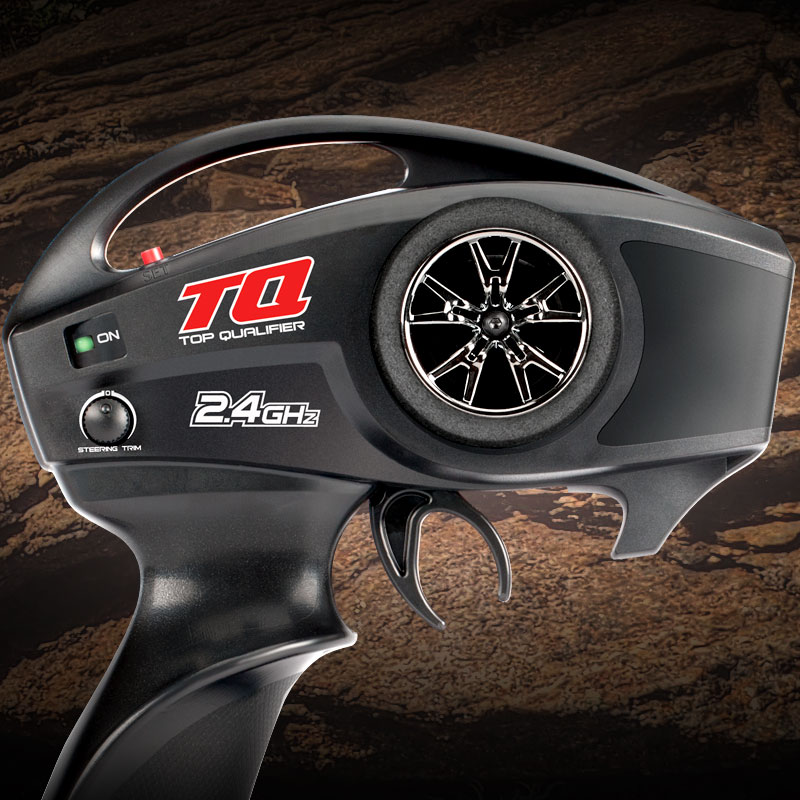

TQ™ 2-Channel Radio System

TQ™ 2-Channel Radio System
