Wide World of TRX-4 Sports: Part 2

We Build a Competition Camper to Join Our Sport Expedition

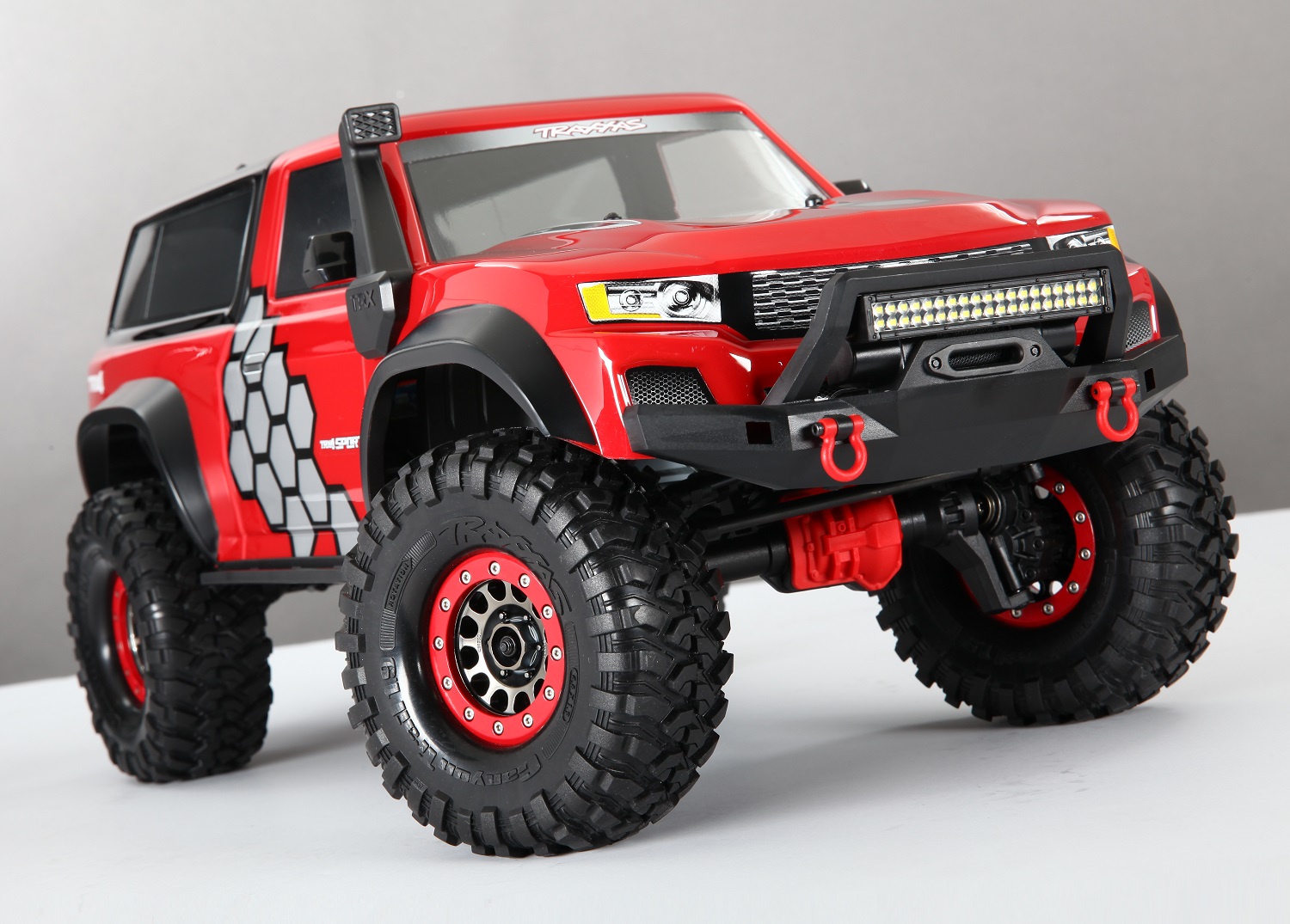

In Part 1 of our TRX-4 Sport build, we outfitted a silver Sport with a full Expedition Rack and scale accessories. This time around, we’re jumping in with a TRX-4 Sport RTR and going deeper into the options list with red-anodized shocks and beadlock rings, and boosting steering torque with Traxxas’ most powerful servo. Our Sport also wears a light bar and rock lights so we can see where we’re wheeling after dark, and the camper-back body really transforms the truck’s profile.

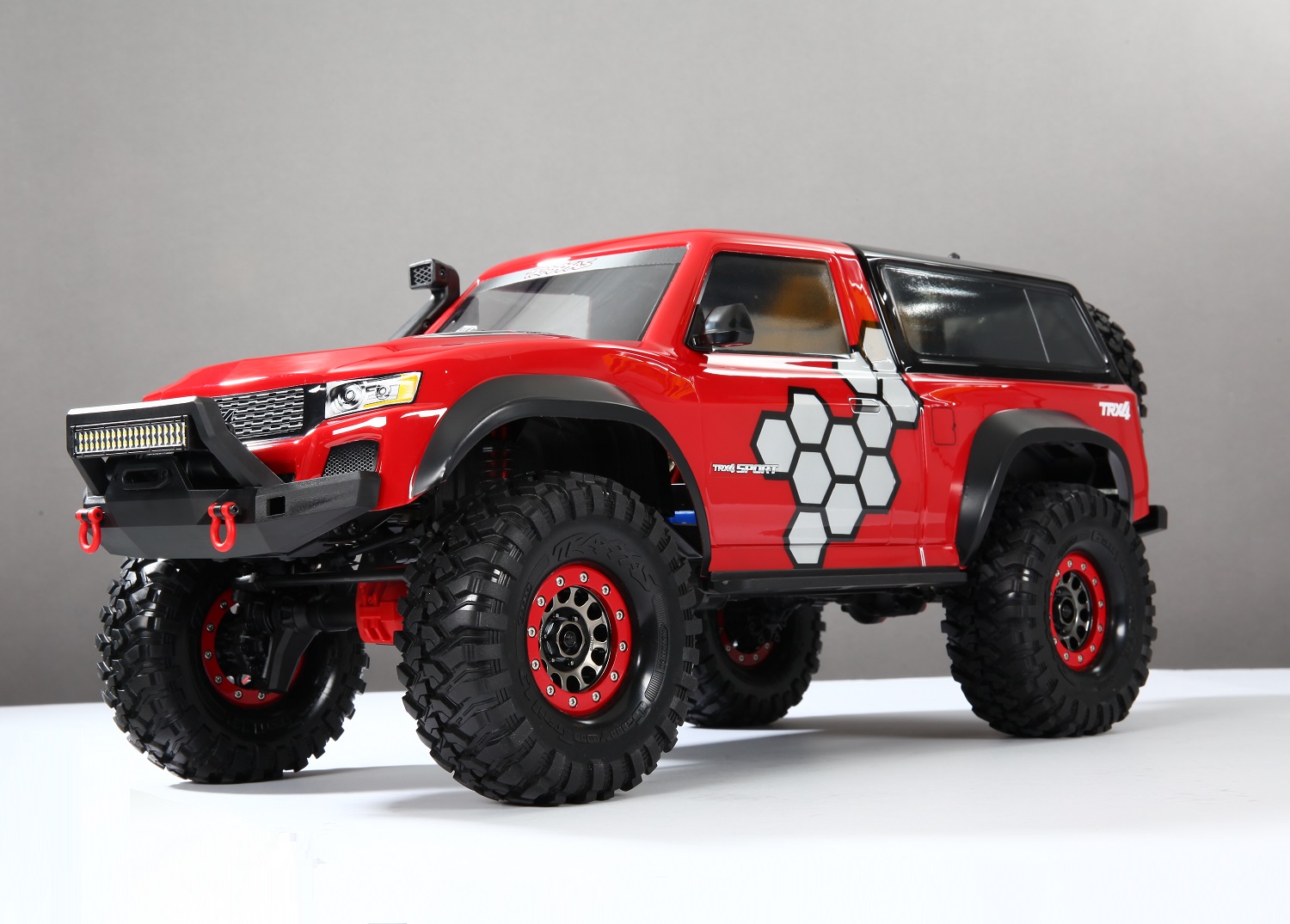

Part 2: TRX-4 Sport RTR Comp Camper

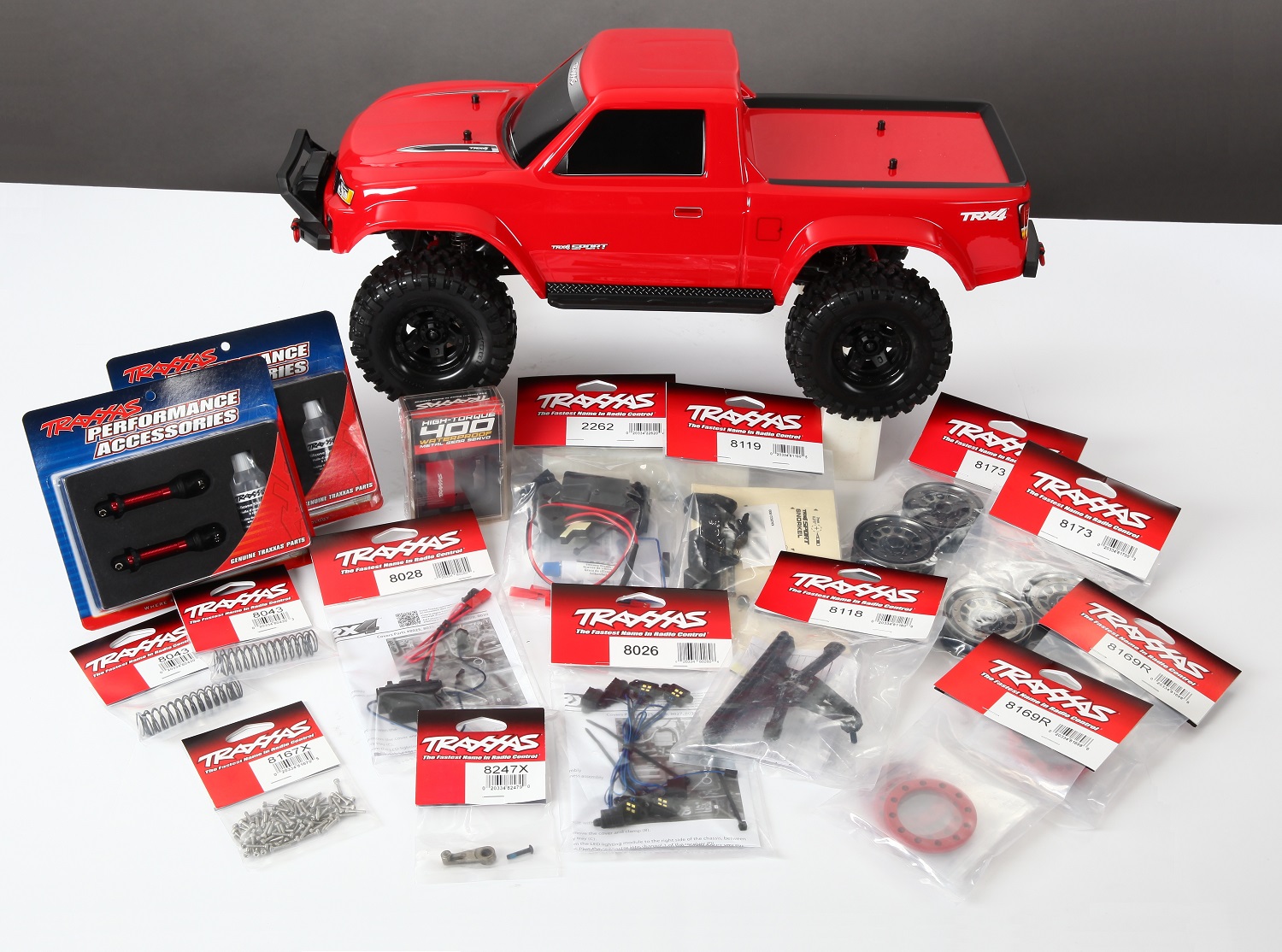

Here's our project all laid out on the bench. Maybe it's time to think about a tool kit?

Time for a Tool Kit?

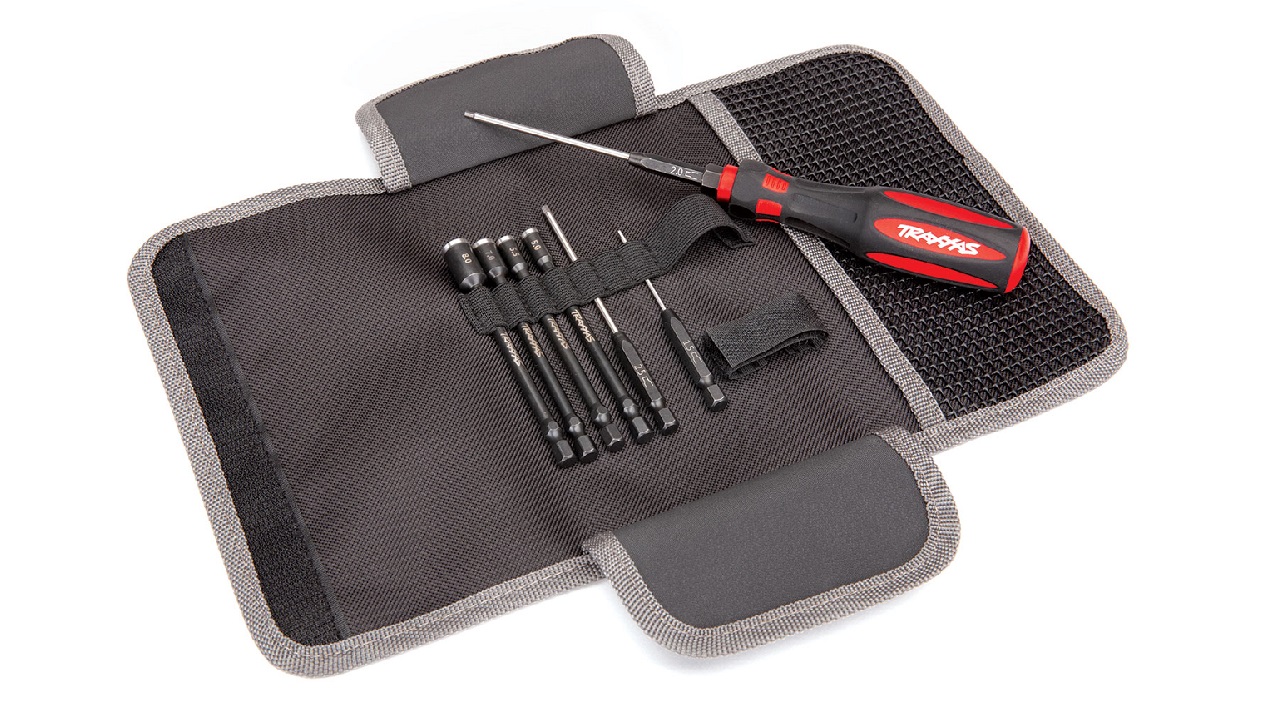

You can see from the parts laid out on our work bench that this is going to involve more than just a few parts. Of course you can use the tool kit that came with the TRX-4 to install your accessories, but after turning the 10th screw with a hex wrench, your thumbs will be begging for a reprieve. The Traxxas 8712 tool kit includes premium hex bits and nut drivers to perform upgrades or maintenance on your TRX-4. Perhaps more importantly, the kit also includes a comfortable overmolded grip to give you plenty of turning torque without stressing your hands. 8012 Tool Kit


Red Competition Camper Parts List

82024-4 TRX-4 Sport RTR 8112 TRX-4 Sport body with camper 8080 Narrow inner fenders 2255 High-Torque 400 Brushless servo 8260R Red-anodized GTS shocks (x2) 8043 GTS Springs, 0.30 rate (x2) 8167X Stainless hardware for Method 105 beadlocks	8247X Metal servo horn 8088 LED Bumper bar 8028 LED power supply 2262 High-Output BEC 8119 Snorkel and side mirrors set 8118 Spare tire mount 8169R Red 1.9” beadlock rings 8173 Method 105 1.9” beadlock wheels, black chrome (x3) 8170 Canyon Trail 1.9” tires (x3)

Add all accessories for this build to your cart with one click!

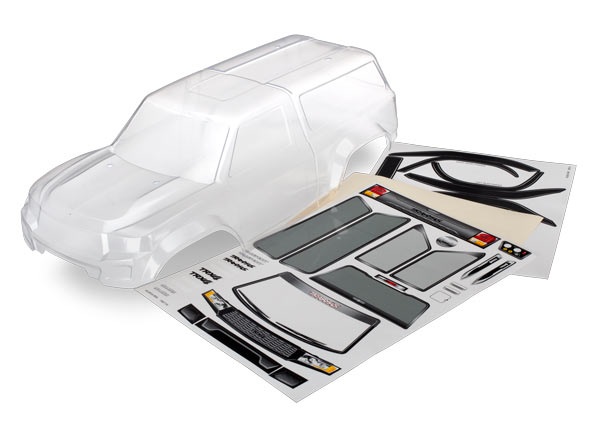

The 8112 Sport camper body includes all the decals and window masks you need.

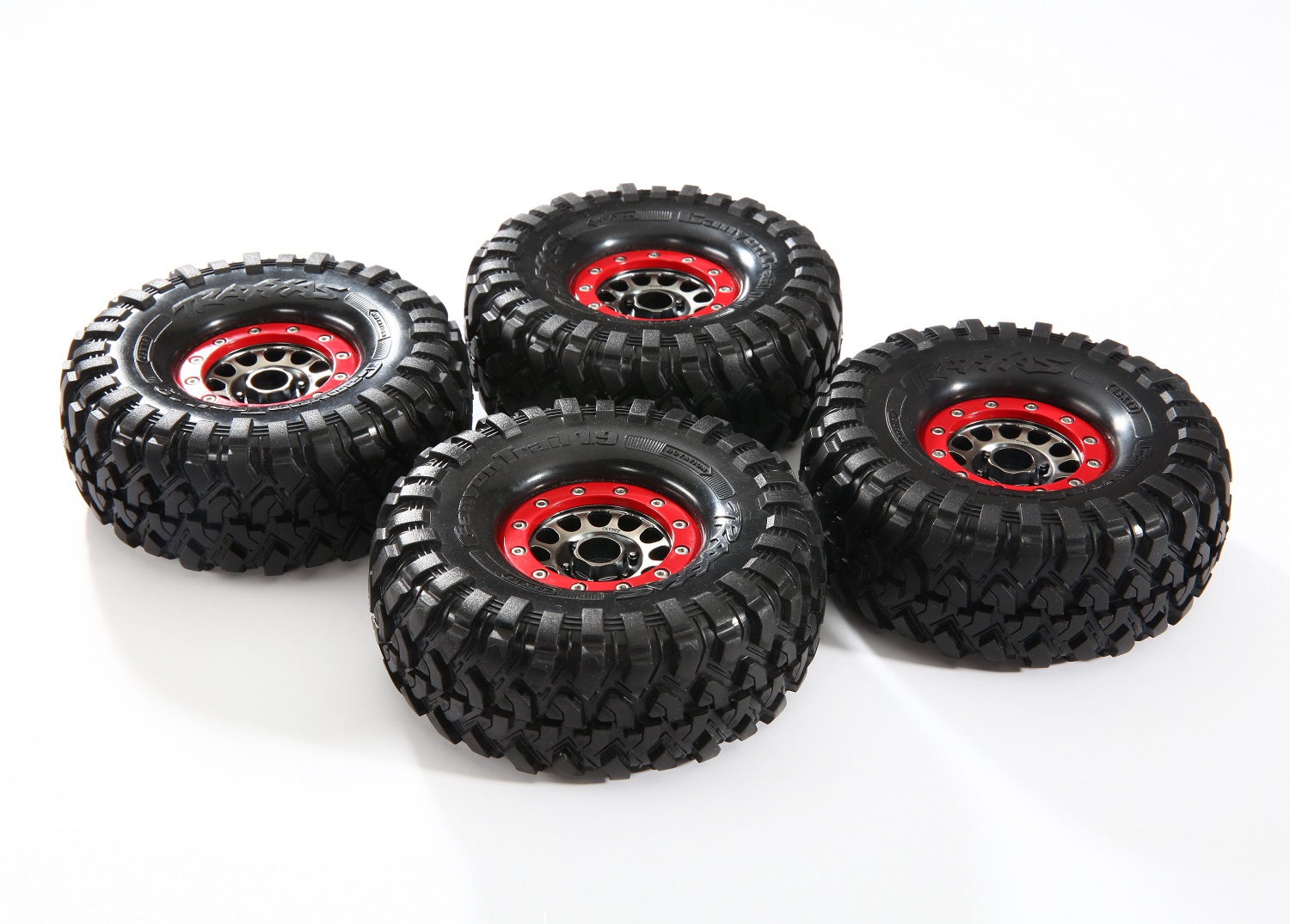

Wheels and Tires

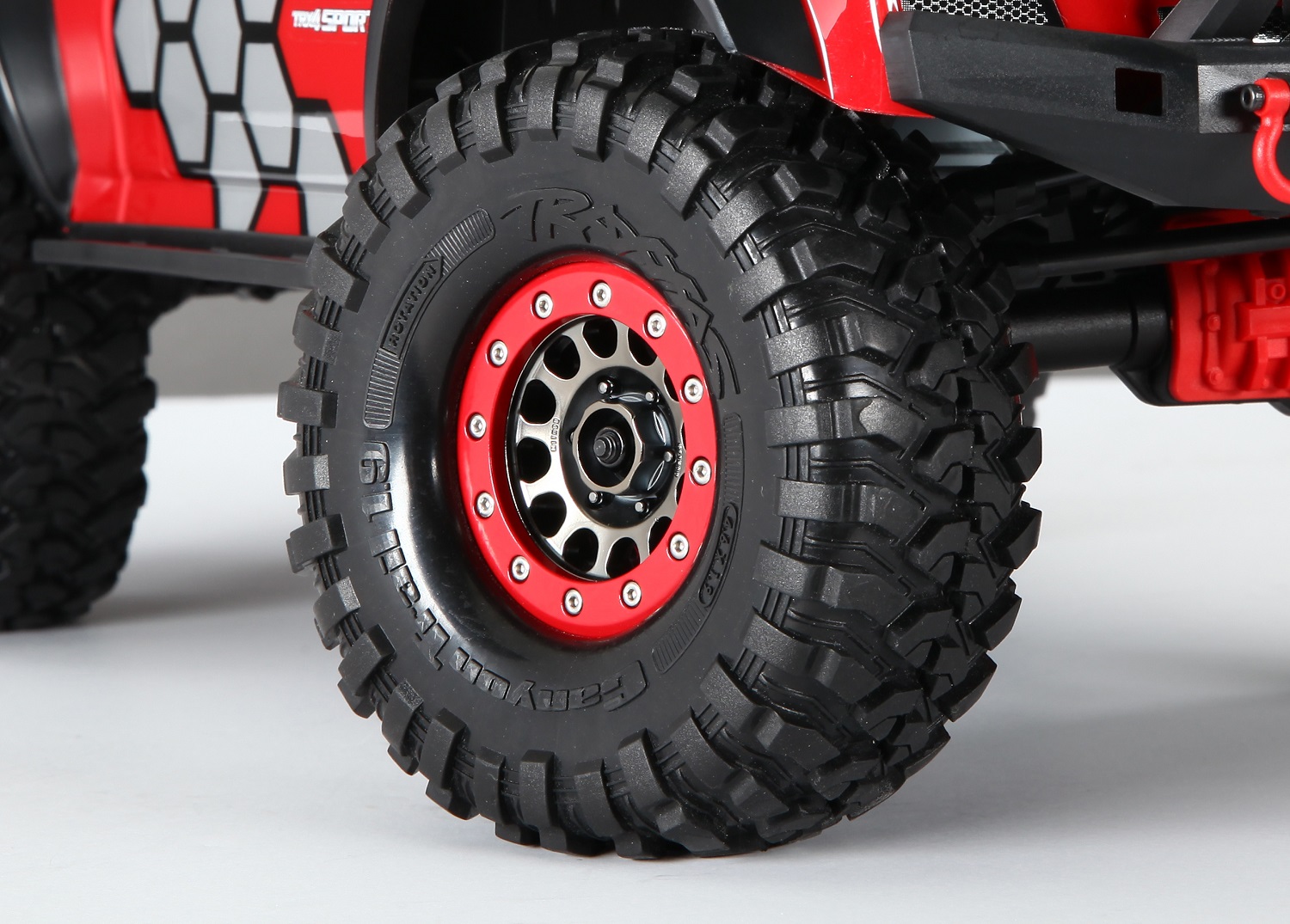

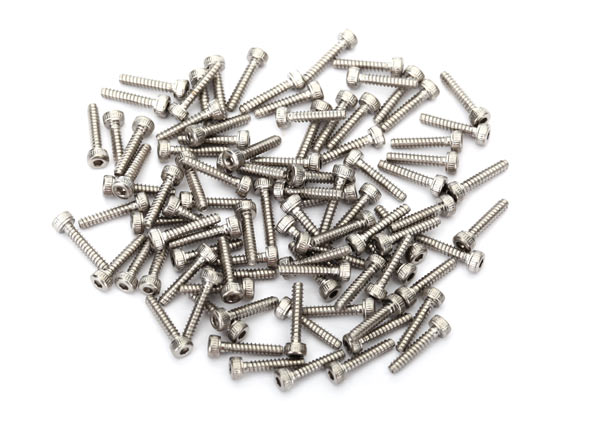

The Method 105 beadlock wheels are sold without rings, so you can choose any color you like. We went red, you can also get the rings in black, green, blue, orange, and silver. The beadlock rings include black screws, which we replaced with the 8167X stainless steel screw kit for corrosion resistance and their beautiful shine.

Steering Authority

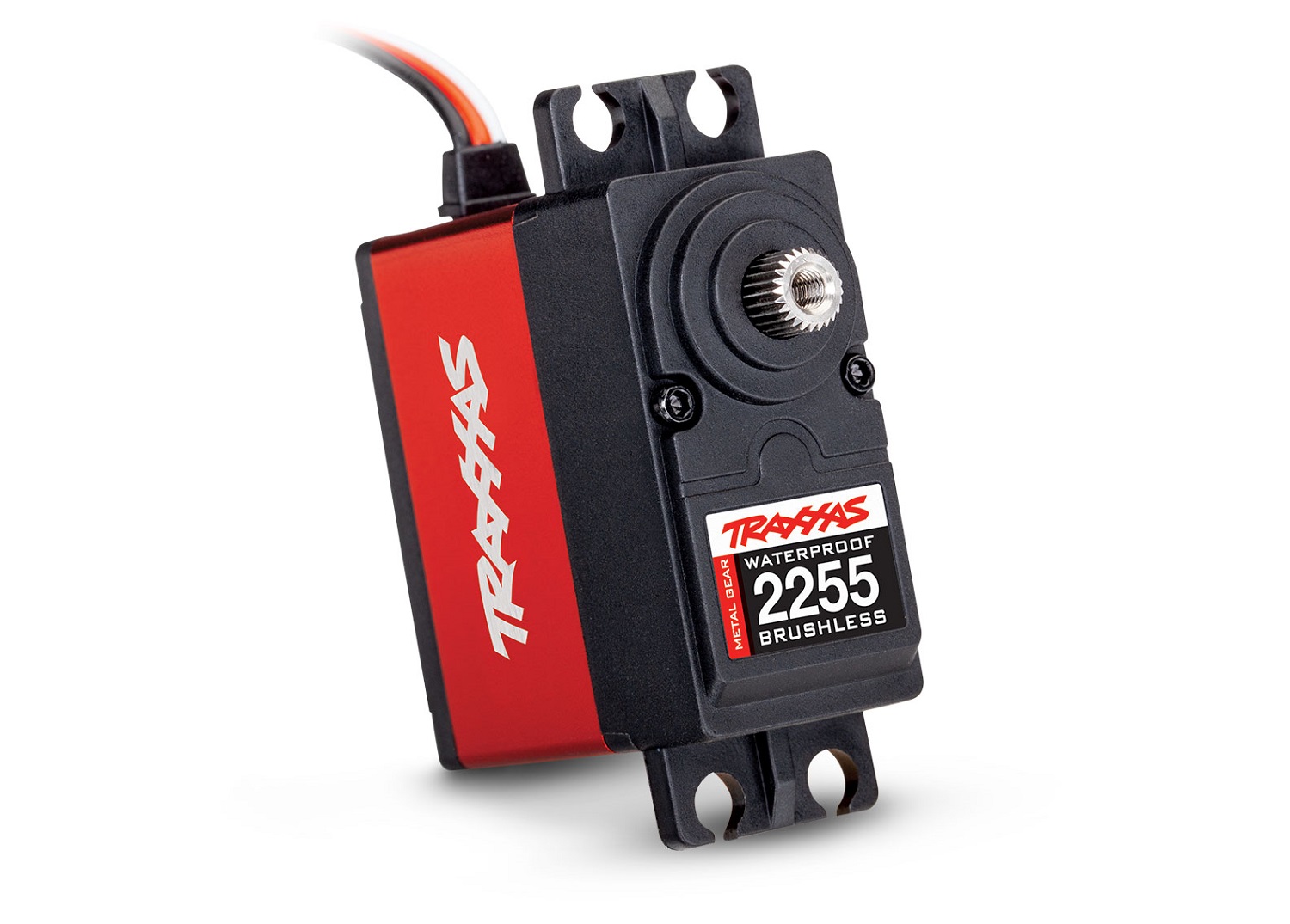

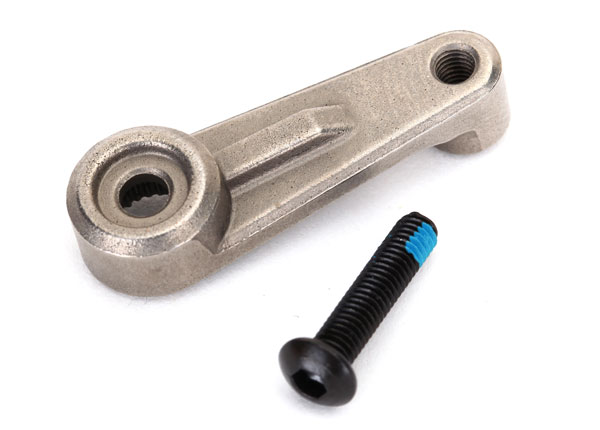

The 2255 High-Torque 400 brushless servo’s 400 oz.-in. of torque represents a 220% boost in steering power of the Sport’s 2075X servo. We paired it up with the 8247X metal servo horn to make sure all that twist reaches the tires.

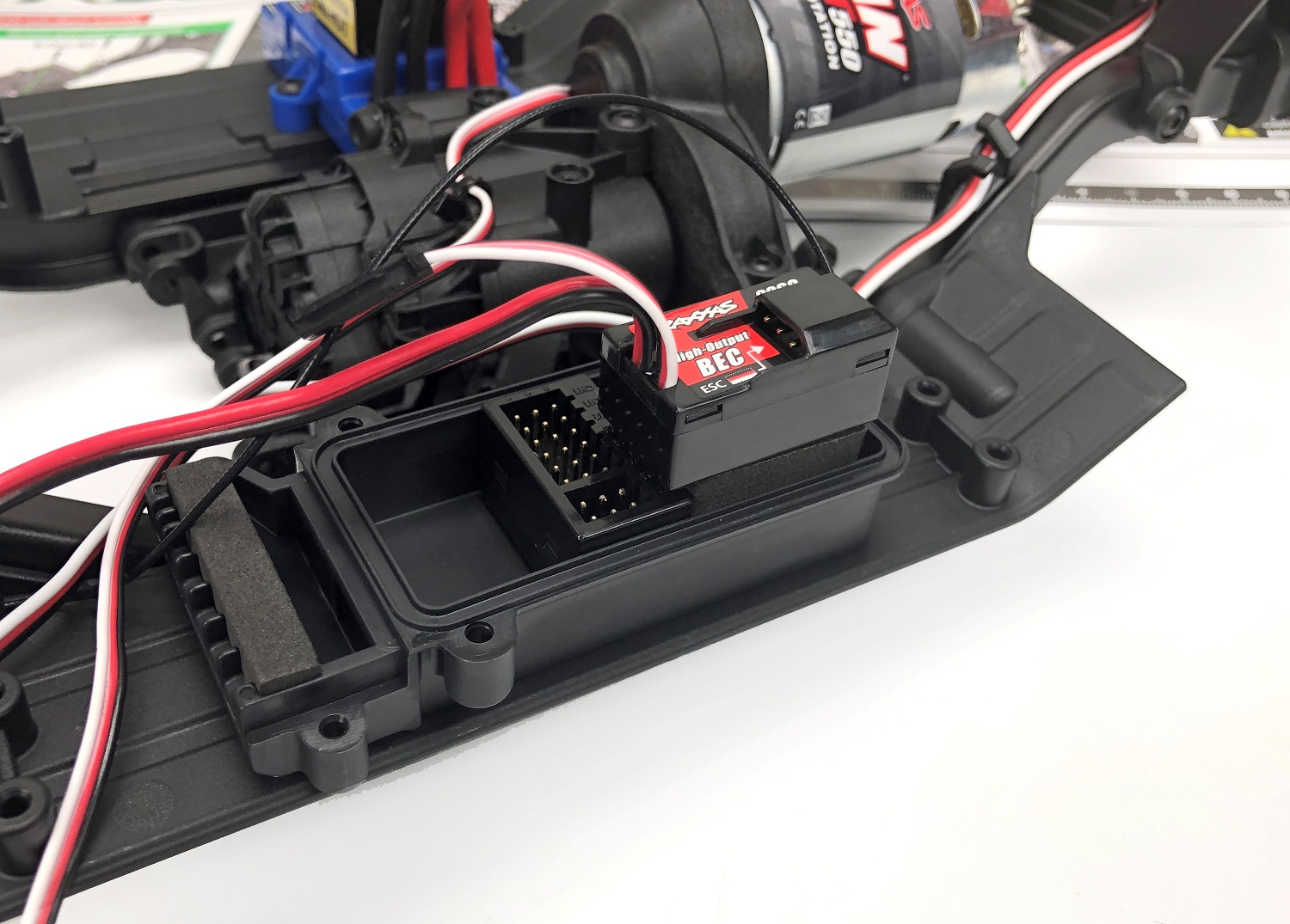

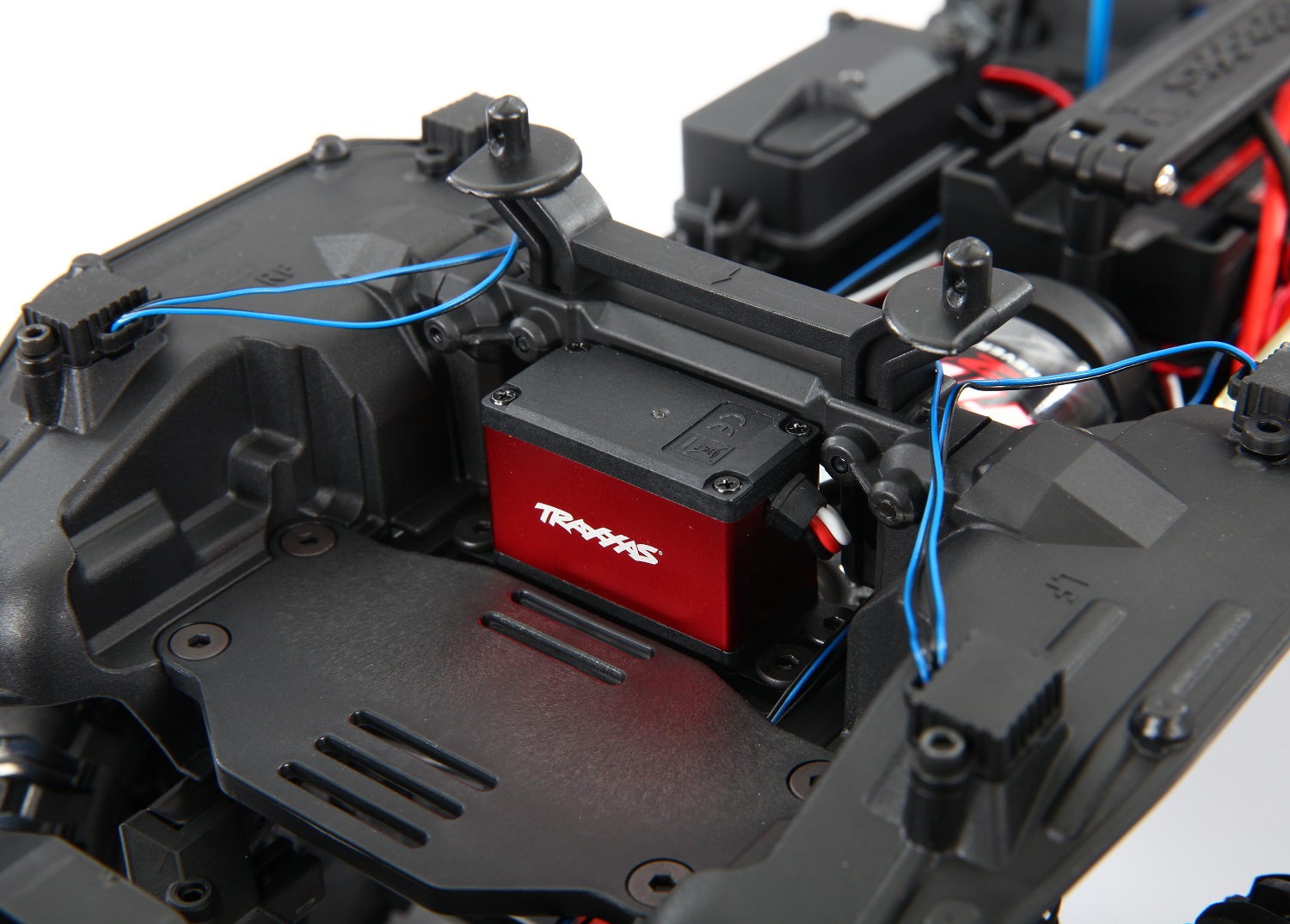

The 2262 High-Output BEC makes certain the 400 servo delivers full steering power without pulling down receiver voltage. It installs under in the receiver box, and the BEC kit includes a taller receiver box lid and fresh seals. With the servo installed you can also see the rock lights in the fender wells. As with the silver Sport, we added the 8080 narrow inner fenders to support the lights. The fender set also includes the shelf ahead of the servo.

LED Light Bar

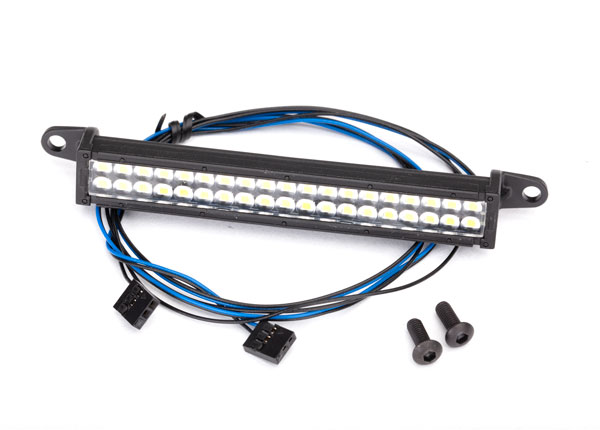

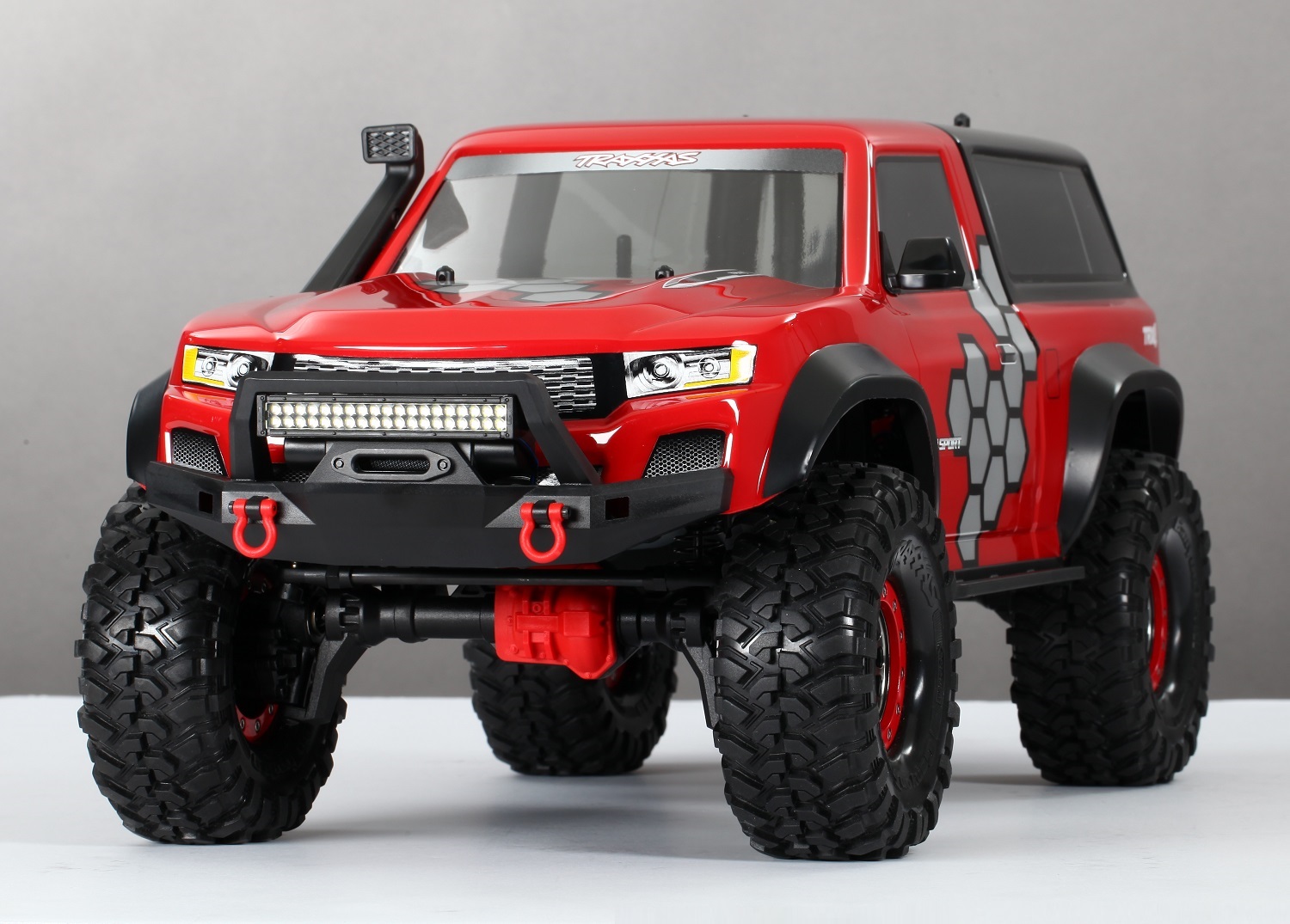

The way the 8088 light bar tucks into the bumper is super satisfying, and it puts plenty of lumens onto the trail. This shot also shows off the 8119 snorkel set, which includes the side-view mirrors.

Spare Tire Carrier

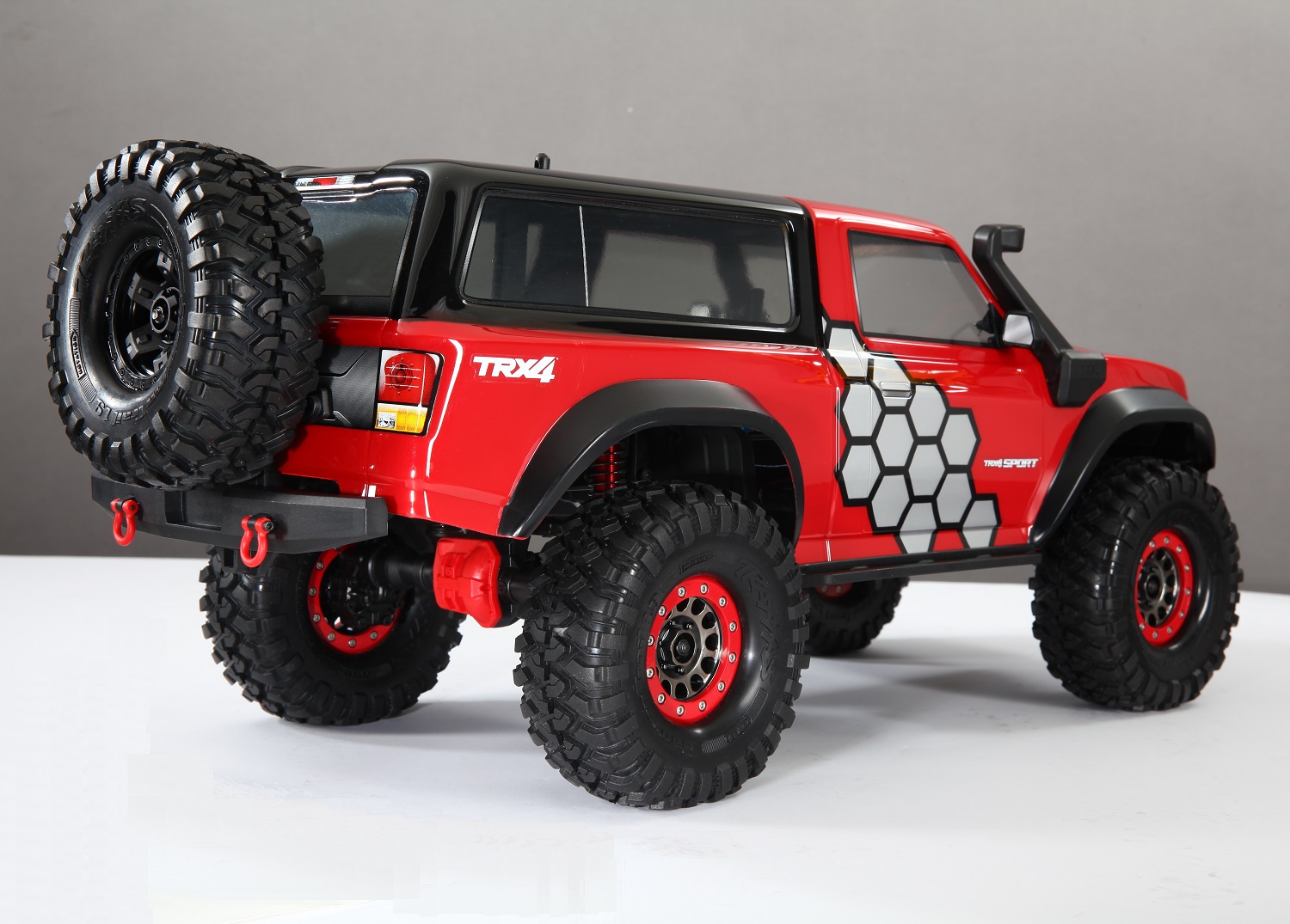

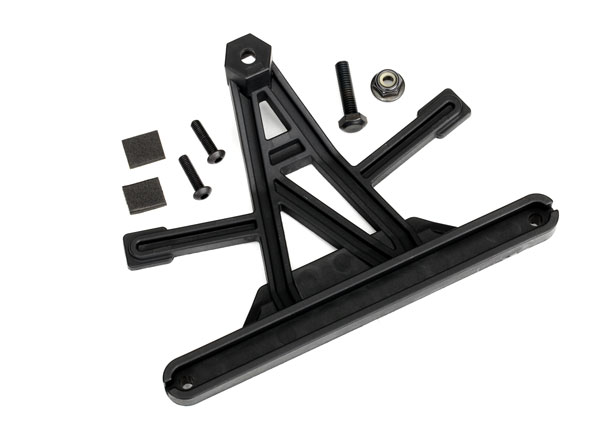

Adding a rear-mounted spare tire is easy, just install the 8118 carrier. It fits between the bumper and bumper mount, and is compatible with all TRX-4 models. Note the hex that keeps the tire from rotating on the mount, and foam-padded arms that protect the tailgate.

Suspension

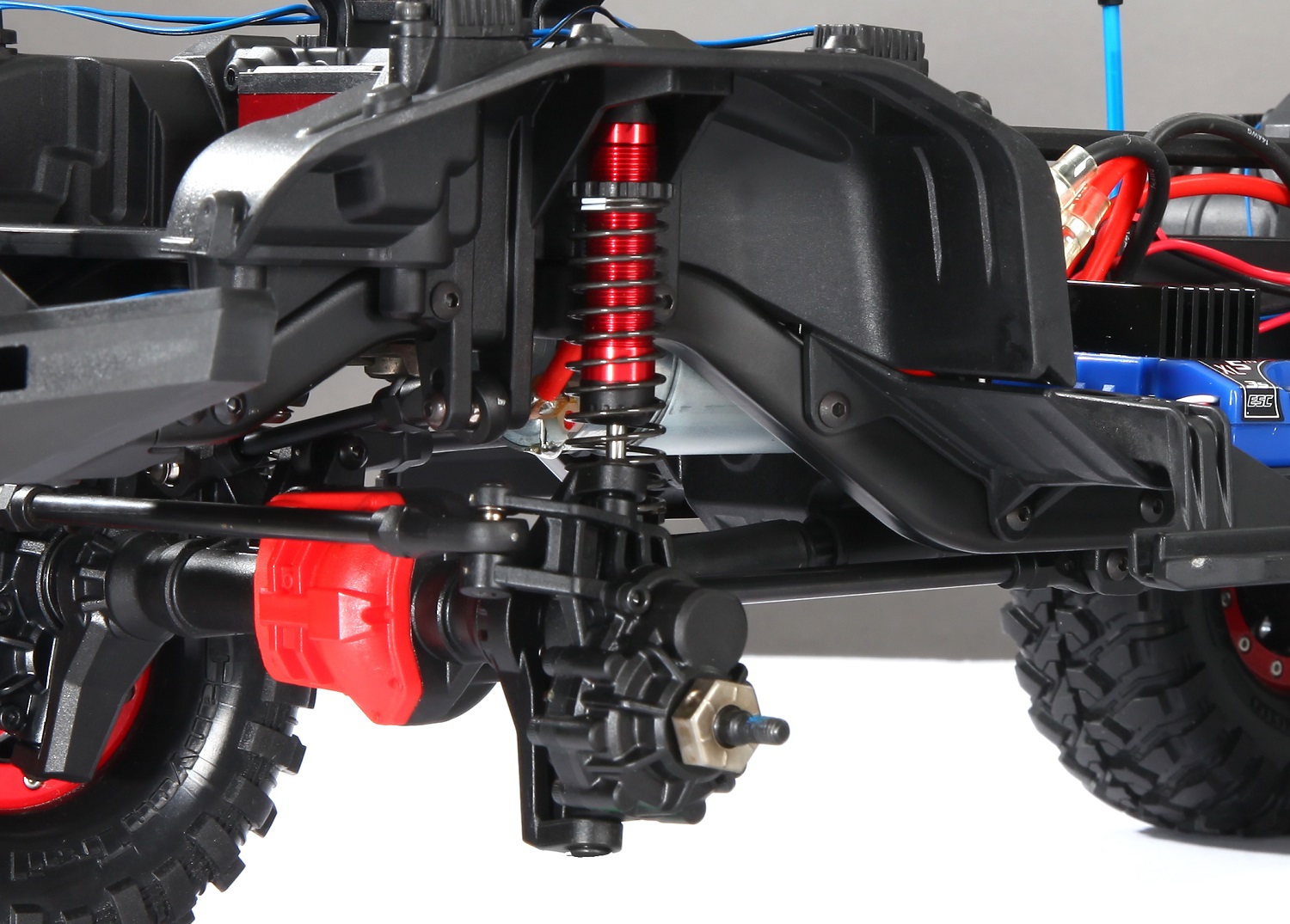

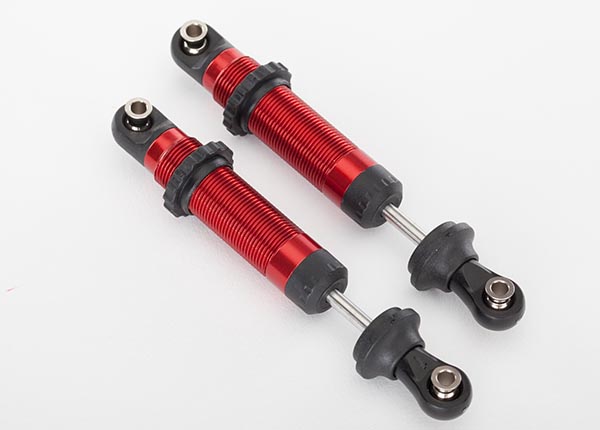

We went red with the GTS shocks by swapping the silver stockers for fully-assembled red-anodized versions (8260R gets you a pair). They also really pop in the fender wells when the rock lights are on! For a lower-cost color change, you can get individual red-anodized shock bodies (8266R) and rebuild the shocks with the new bodies.

We had one of our primo painters lay down the hex grid graphic, but you could also get this look with a solid red paint job and a hand-cut vinyl decal. Hit the airplane section of your favorite hobby store for “trim tape” in solid and metallic colors, it’s perfect for creating custom stick-on graphics.

TRX-4 Comparison Guide

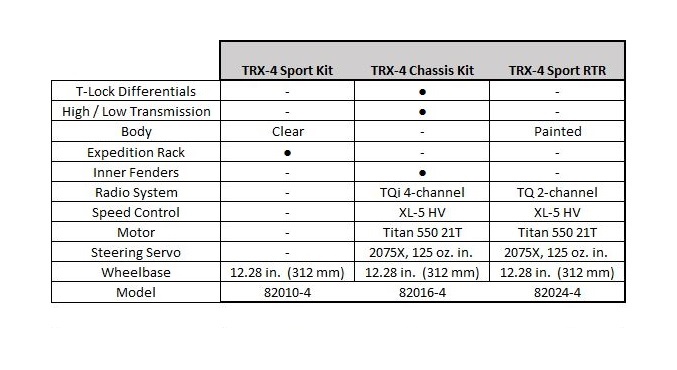

The projects featured in this build series are based on the Sport Unassembled Kit and Sport RTR models. Another great option for a custom TRX-4 build is the 82016 Chassis Kit, which leaves body selection up to you but includes front and rear T-Lock differentials, High / Low transmission, and all the required electronics. Here’s a chart that shows how the Sport RTR and kit options stack up:

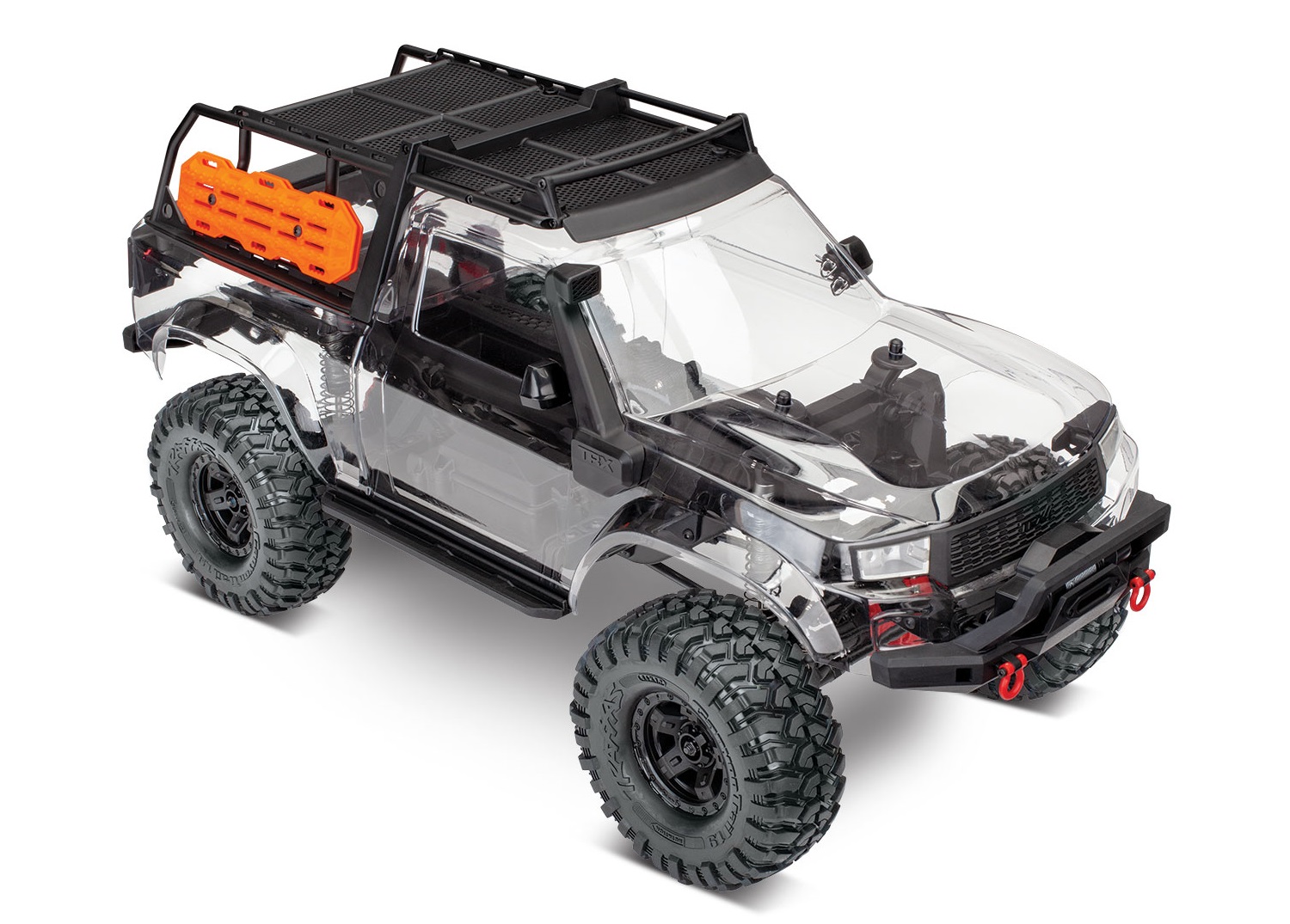

TRX-4 Sport Kit

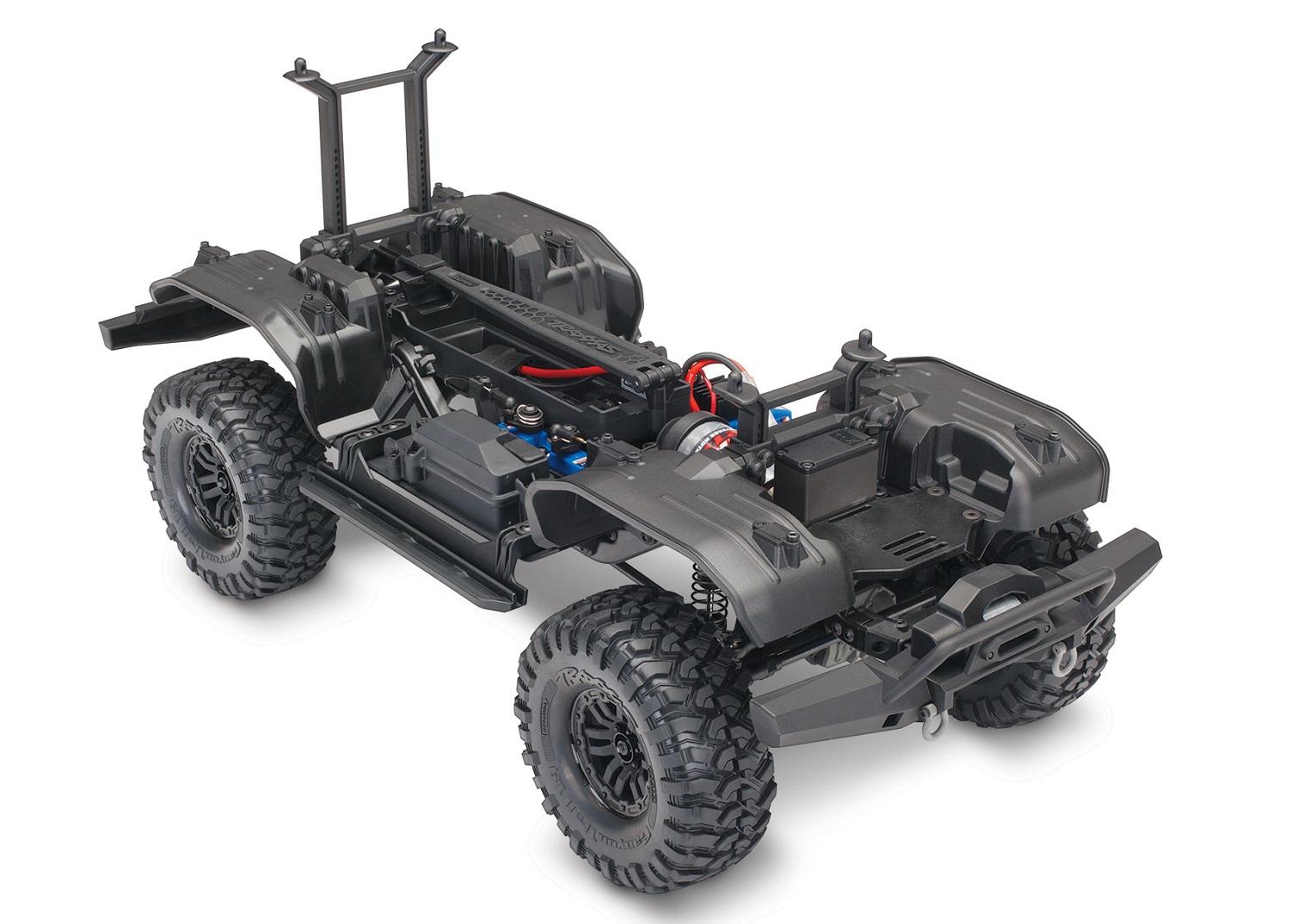

TRX-4 Chassis Kit

The TRX-4 Sport Kit includes a clear body with LED-ready grille and tailgate. Electronics choices are up to you. Like the sport RTR, the axles have spools instead of differentials, and the transmission is a single-speed. The TRX-4 Chassis Kit is fully loaded with T-Lock differentials, High / Low transmission, plus all the required electronics. Body choice is left to you. The tall rear body mount is supplied so you can mount pickup or SUV-style bodies.

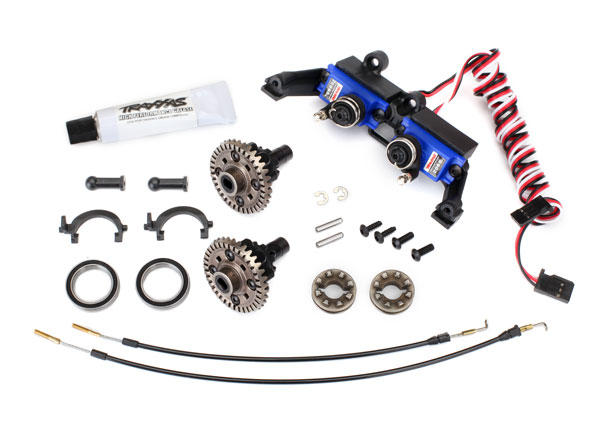

T-Lock Differential Kit

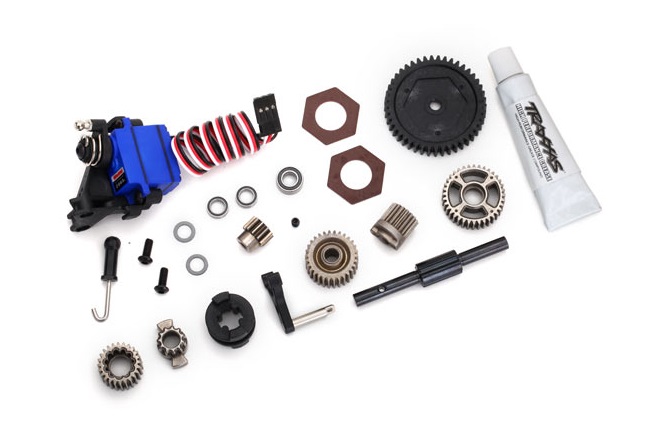

Two-speed conversion kit

You can add T-Lock differentials and High/Low remote-shift transmission capability to the TRX-4 Sport models with the 8195 T-Lock differential kit and 8196 two-speed conversion kit. All the required parts are in there, including the servos. You’ll also need to equip your truck with the 6507R TQi 4-channel radio system to operate the transmission and differentials.

That's marks the end of our TRX-4 Sport build series. If you haven't already read Part 1, you can check it out here. Click on the link below to see more exciting TRX-4 builds.

View TRX-4 Build Projects
