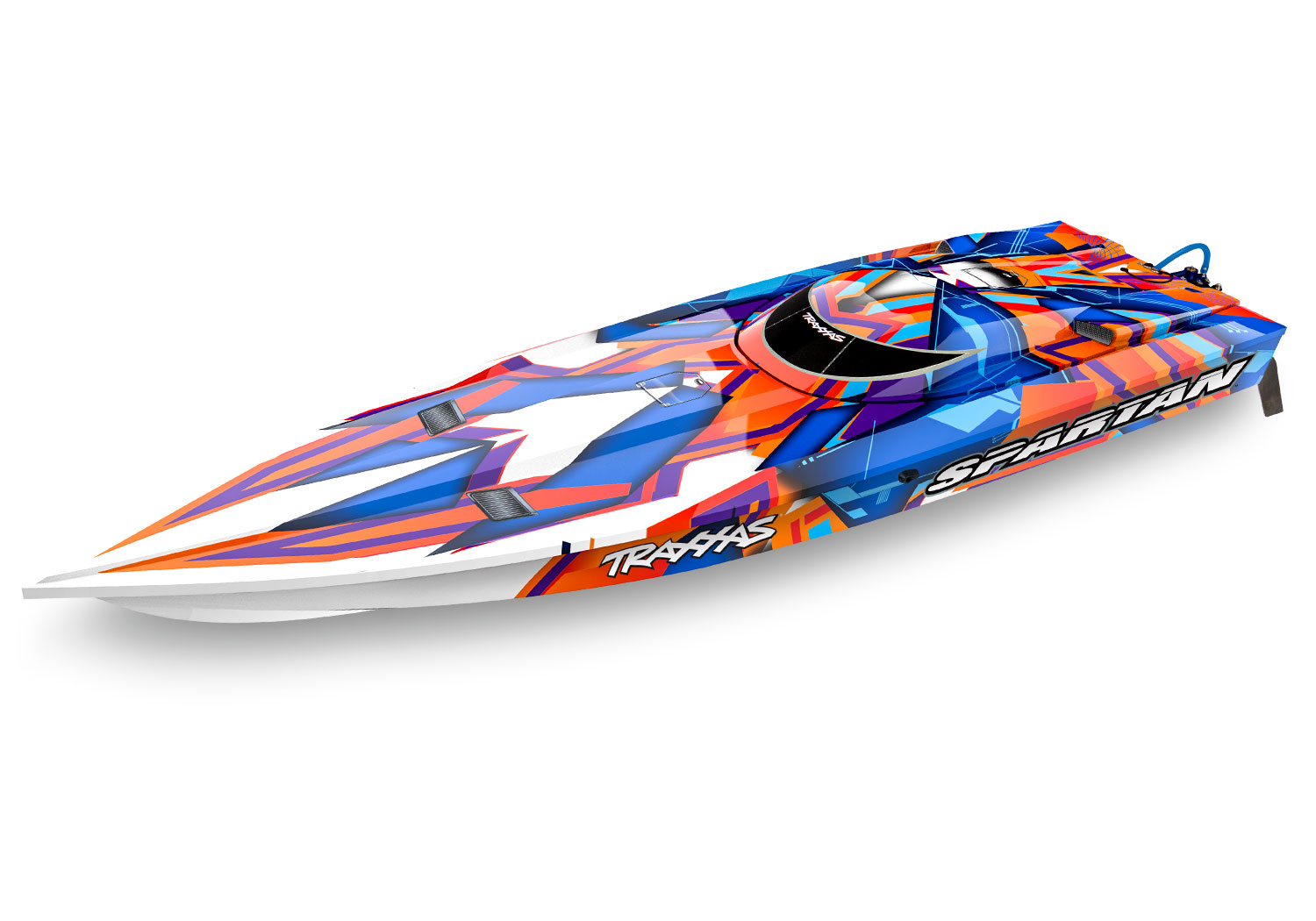

Spartan Brushless 36" Boat TSM
MODEL SPECS
Model Name:
Spartan Race Boat
Model Type:
Boats
Model Speed:
50+ mph with two 3-cell LiPo batteries
Model Skill Level:
2
Scale:
1/10
Weight:
5.31 pounds (2.41 kg)

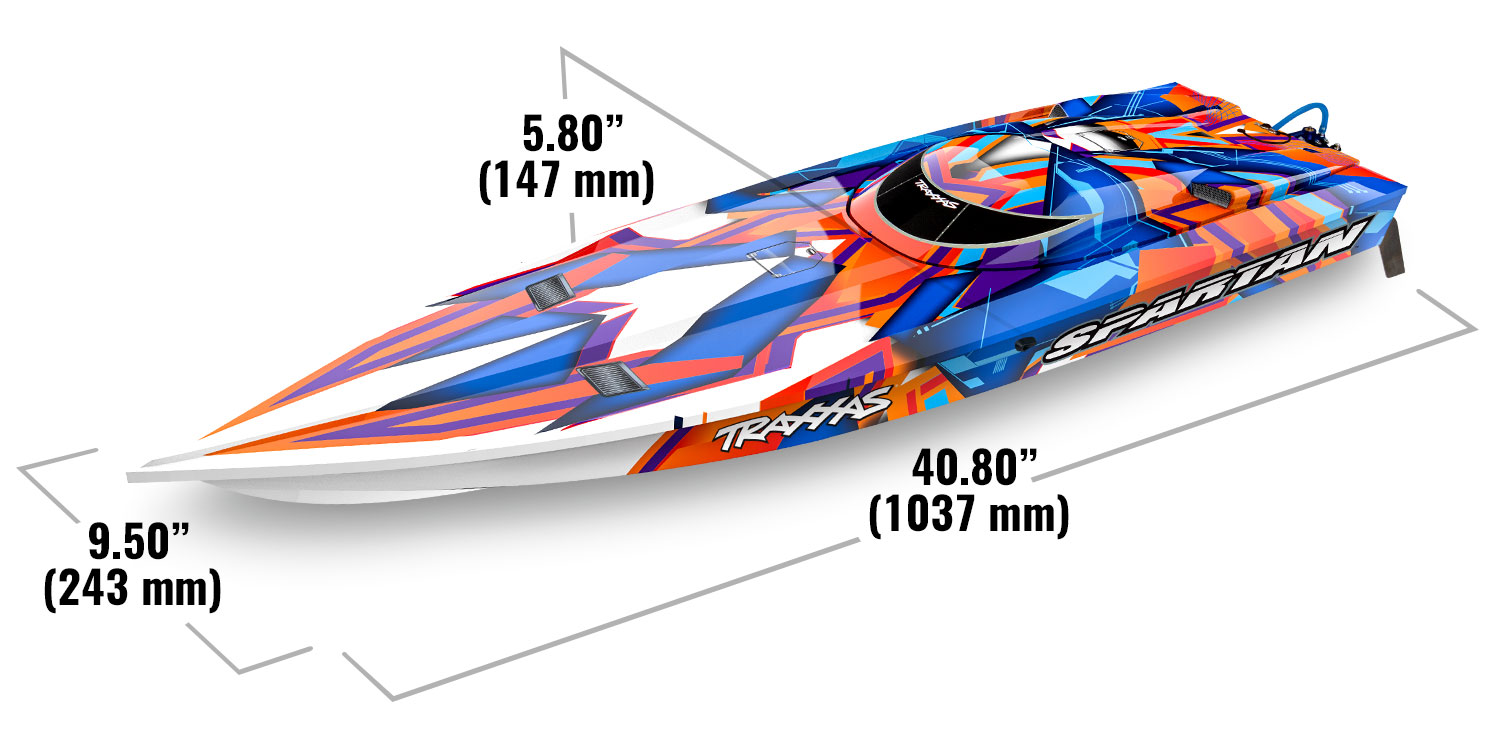

Length:
40.8 inches (1037 mm)
Width:
9.5 inches (243 mm)
Height:
5.8 inches (147 mm)
Drive System:
Direct drive, 0.150″ flex cable
Prop:
2-blade composite, 42 mm x 59 mm
Outdrive:
Adjustable aluminum
Hull Length:
36.5 inches (927 mm)
Dead Rise Angle:
26 degrees
Length:
40.8 inches (1037 mm)
Height:
5.8 inches (147 mm)
Beam (Width):
9.5 inches (243 mm)
Hull Type:
Deep-V
Servo(s):
2056 high-torque waterproof
Radio System:
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver
MOTOR SPECS

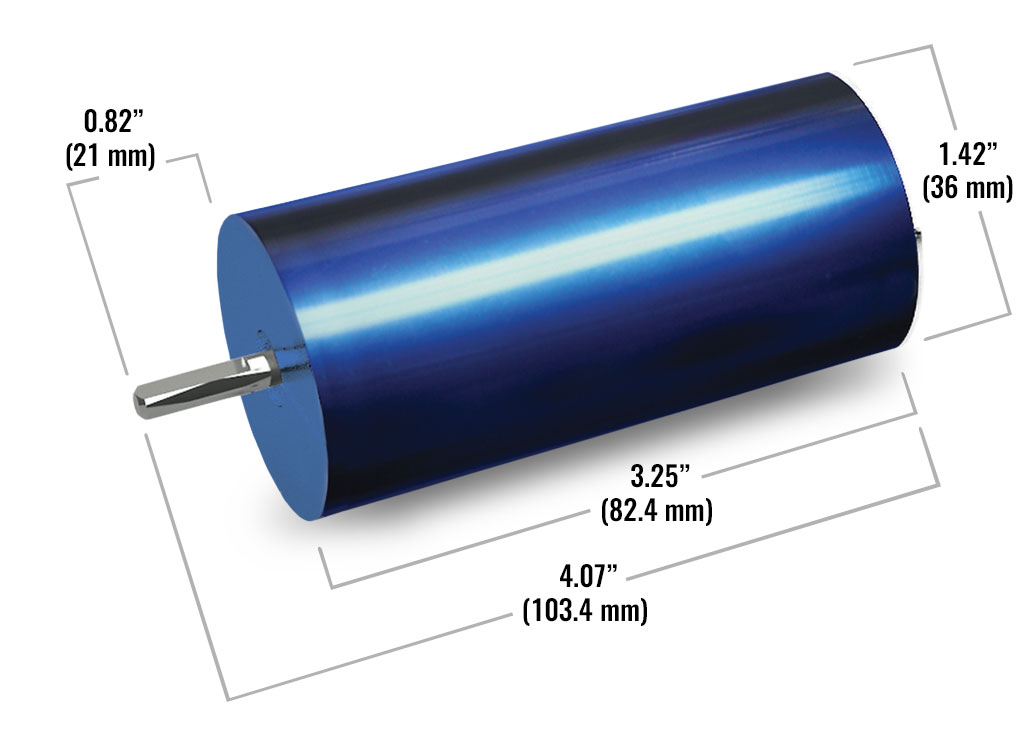

Motor Name:
Velineon® 540XL
Motor Type:
Sensorless brushless
Motor Weight:
13.62 ounces (386 g)
Motor Length:
4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
Motor Diameter:
1.42 inches (36 mm)
Motor Shaft Size:
5 mm
Motor Connector Type:
Traxxas 5.5 mm bullet connectors

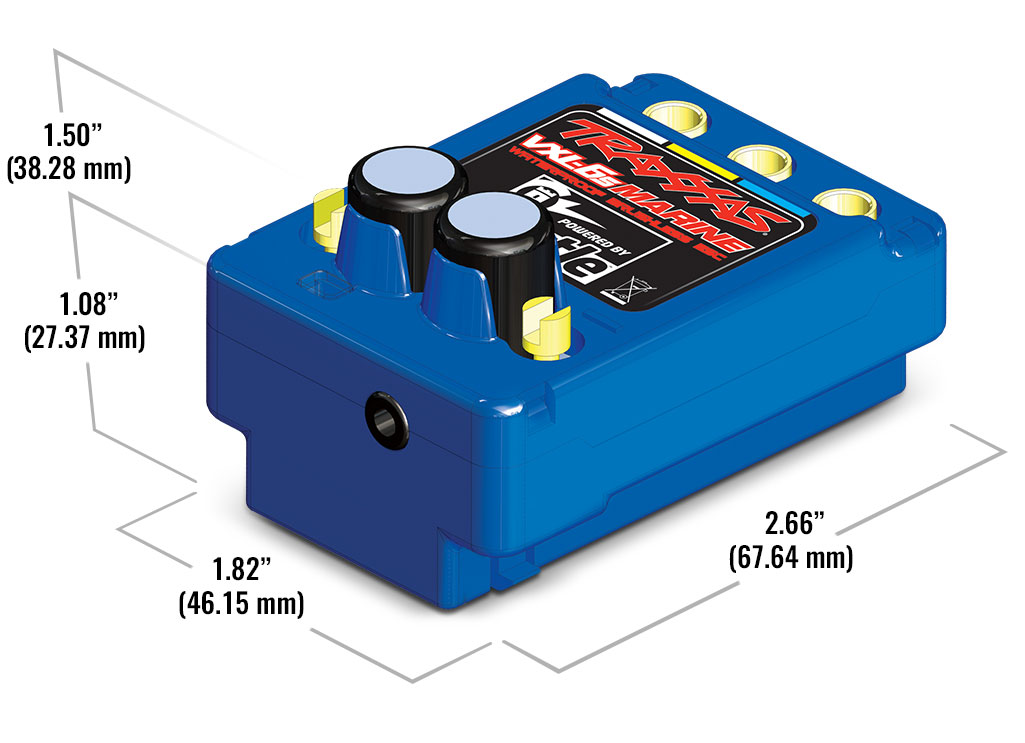

ESC SPECS
ESC Name:
Velineon® VXL-6s
ESC Type:
Brushless
ESC Case Size:
2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:
7.30 ounces (207 g)
Motor Connectors:
Traxxas 5.5 mm bullet connectors
Battery Connectors:
Traxxas High Current Connector
36″ Reinforced Deep V Hull Lightweight ABS hull Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube Pre-painted graphics Easy-access hatch with body clip lanyard Molded foam in the bow for extra security VXL-6s™ Marine Electronic Speed Control Innovative waterproof design Integrated water cooling Sport Mode - forward / brake / reverse Race Mode - forward / brake Training Mode™ - 50% forward / brake / 50% reverse (patented) Built-in two-stage low-voltage detection for LiPo batteries Locked rotor protection NiMH battery packs: 12-18 cells (14.4 to 21.6 volts) LiPo battery packs: 4-6 cells (14.8 to 22.2 volts) Velineon® 540XL Brushless Motor 1800 kV 5 mm output shaft Ultra high-temperature sintered Neodymium magnets Unique high-flow silicone water cooling jacket Traxxas Stability Management® (TSM) Improves straight line acceleration Never dulls throttle or slows the vehicle Adjusts from off to 100% assistance from the transmitter TQi™ 2.4 GHz Radio System 2-channel transmitter 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately) Automatically stores and loads settings for up to 30 Traxxas Link enabled models Adjustable steering and throttle sensitivity (exponential) Adjustable steering and throttle endpoints Patented waterproof receiver box Integrated Battery Trays Integrated trays reinforce hull Hold a variety of 2-cell and 3-cell LiPo batteries Batteries can be positioned fore or aft for better balance Driveline Quick release flex cable Blue-anodized aluminum drive strut High performance prop Steering Waterproof digital 2056 servo Blue-anodized aluminum rudder Stainless steel trim tabs and turn fins Low-maintenance Oilite bushings Stainless steel hardware Requires Battery and Charger (Sold Separately)
